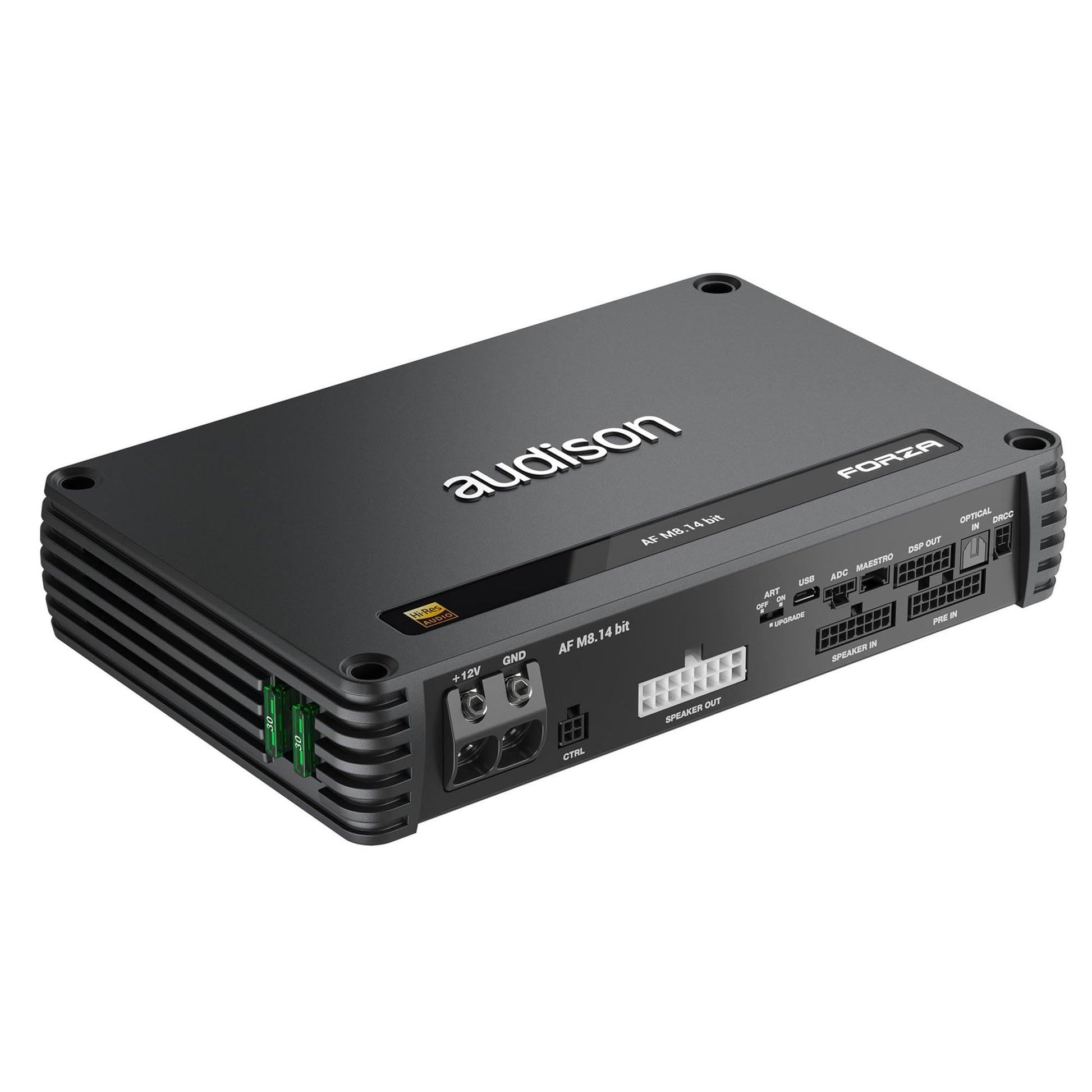

Audison Forza AF M8.14 bit 8 CH Amplifier with 14 Channels DSP - 8 x 90W at 4Ω

Brand: Audison

Features:

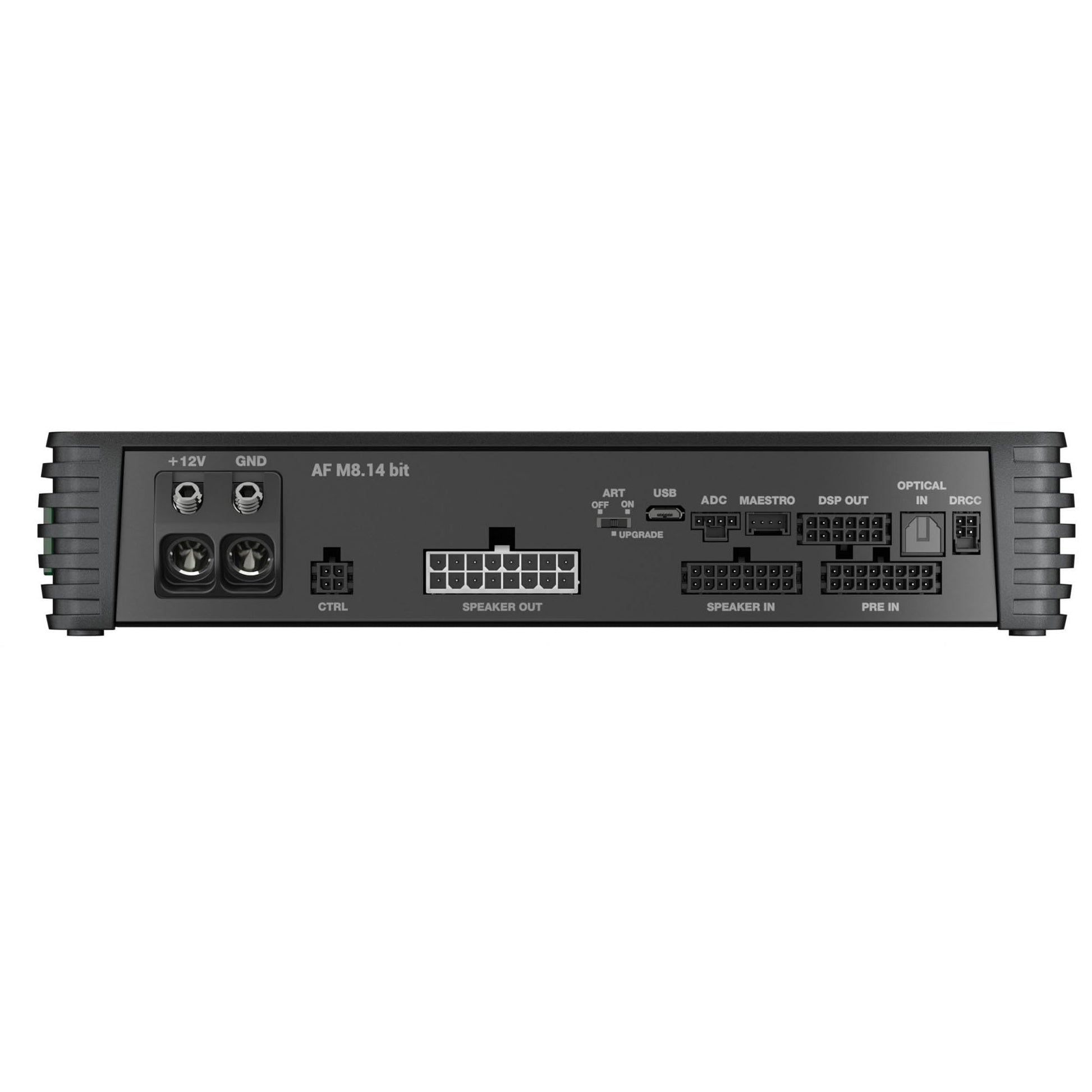

• Pre-In with 8 stereo RCAs interconnection for after-market sources with PRE-OUT outputs
• Speaker-In with 8 pairs of labeled cables for OEM sources with high-level outputs
• Speaker-Out with 8 labeled cables to connect the amplifier to the speakers
• DSP-Out with 6 labeled cables to connect the amplifier to one or more companion amplifiers
• Forza Control cable with 2 wires for remote power-on and remote-out signal, plus 2 wires for functions programmable on bitDrive software.

Binding: Electronics

model number: AF-M8.14-bit

Part Number: AF-M8.14-bit

Details: AMPLIFIER TECH DATA Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 30A Operating power supply voltage: 6.5 ÷ 17.5 VDC Idling current: 1.5 A Standby Current Draw: 1.7 A Consumption @ 14.4 VDC, 2Ω, Max Musical Power: 55 A Remote IN: 4 ÷15 VDC (1 mA) Remote OUT: 6.5 ÷15 VDC (150 mA) ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers: 1.5 VDC Efficiency Rated Power: 82% AMPLIFIER STAGE Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power: 0.05% Bandwidth @ -1.5 dB: 10 Hz ÷ 42 kHz Damping factor @ 1 kHz, 4Ω, 2 VRMS: 100 S/N ratio (A weighted @ 1 V Input) Master Input: 98.5 dBA S/N ratio (A weighted @ 1 V Input) Optical Input: 105 Minimum load impedance: 8Ch: 2Ω | 4Ch – (Bridge 1/2; 3/4; 5/6; 7/8): 4Ω Output Continuous Power (RMS) @14.4 VDC, 1% THD: 8 Ch @ 4Ω: 90 W x 8, 8 Ch @ 2Ω: 140 W x 8, 4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω: 280 W x 4 Adjustable Crossover: Yes INPUTS / OUTPUTS Pre-In Inputs: 0.6 ÷ 6 VRMS (15 kΩ Imp.) Digital Input: Yes Pre Outputs: 2 Hi Level Inputs: 8 Low Level Inputs: 8 Speaker-In Inputs: 2.2 ÷ 22 VRMS (5 Ω Imp.) Digital IN: 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card DIGITAL SIGNAL PROCESSOR Audio DSP Converter: Analog Devices ADAU1467 automotive qualified audio processor., Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance Filter type: Full / High-Pass / Low-Pass / Band-Pass Crossover frequency: 20 Hz ÷ 20 kHz Phase control: 0° / 180°, All-Pass filters Analog Input Equalizer (20 ÷ 20k Hz): 12 Biquad + Delay Output Equalizer: Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz Time Alignment Distance: 0 ÷ 510 cm / 0 ÷ 200.8 inches Input Output Real Time Audio Monitor: RTA GENERAL REQUIREMENTS PC connections: Micro USB 1.1 / 2.0 / 3

EAN: 0801882313673

Package Dimensions: 9.4 x 6.1 x 1.9 inches
