Digital Evaluation Board DEB Plus, Solderless Expandable Circuit Prototyping for Electrical Engineering Students, 20 IC Logic Chips, 140-Piece Wiring Set, Hands-On STEM College Prep Learning System

Brand: Generic

Features:

• The Next Step Up For Electrical Engineering Students Who Are Ready For More: The DEB PLUS builds on the DEB-1002 base model with a heavy-duty modular PCB, an extra breadboard for saving and swapping projects, and expandability options via the Extender Board, giving students a more robust circuit prototyping platform designed to grow with their skills as coursework demands more
• Two Breadboards, Modular Design, And Full Expandability Built In: Unlike the base model, the DEB PLUS includes a second breadboard for storing or expanding active projects alongside the attached 63-row solderless breadboard, and its modular PCB design supports connection to the Extender Board accessory, making it the right platform for students building more complex digital logic circuits

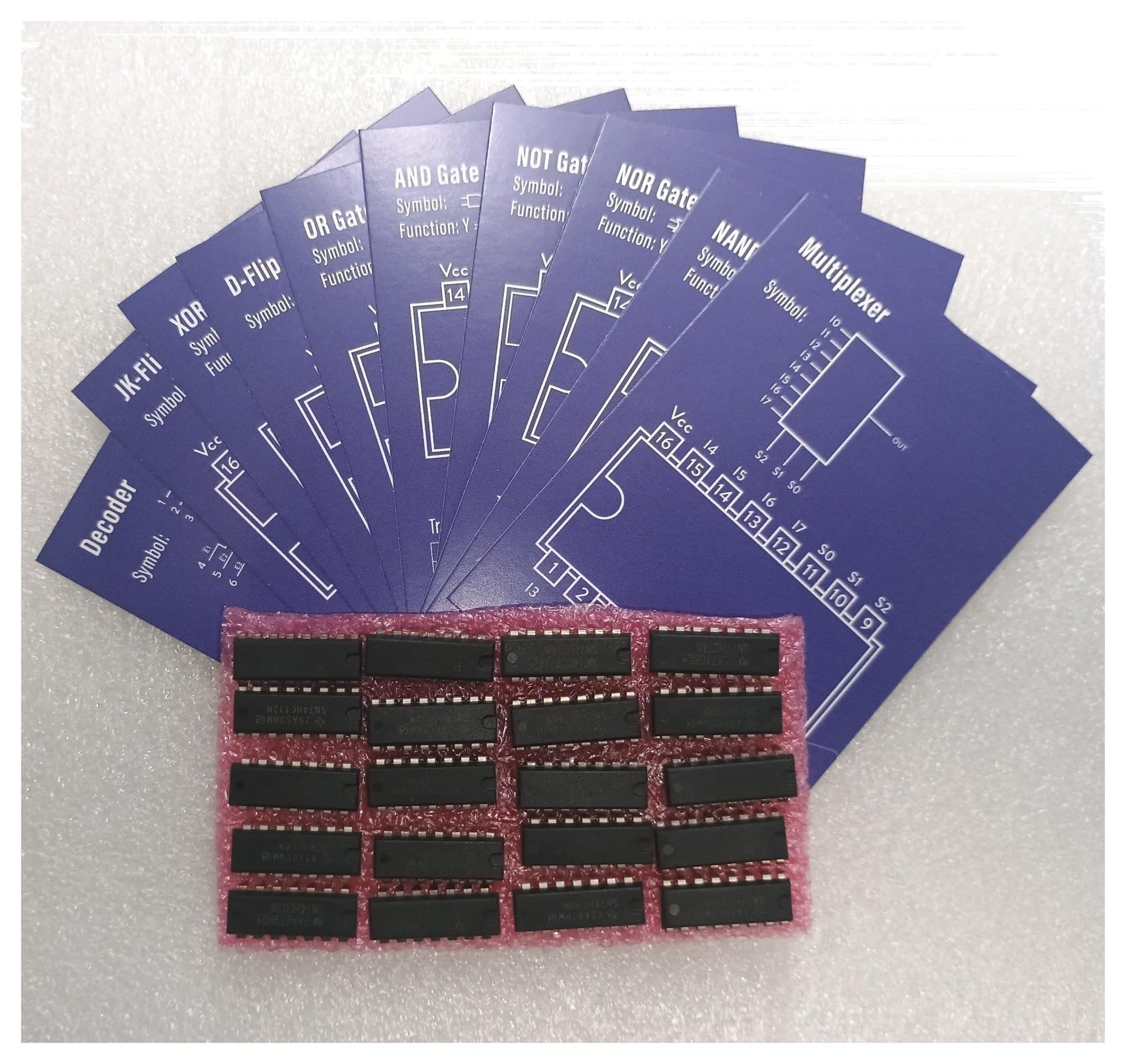

• 20 IC Logic Chips Across 10 Varieties With Clock Pins For Advanced Circuit Builds: Every DEB PLUS ships with 20 IC logic chips in 10 varieties and printed schematics for each, plus embedded clock and clock enable pins that simplify flip flop implementation and state machine designs, giving students the components and infrastructure needed for more sophisticated digital logic experiments
• 4 Input Pins, 10 Output Pins, And Built-In Error Detection For Independent Learning: Four input pins with dedicated push-button switches and LEDs give students full control over logic experiments, while 10 output LEDs display results in real time, the yellow ATTN indicator flags shorts instantly for self-correction, and the green ON light confirms the circuit is running normally

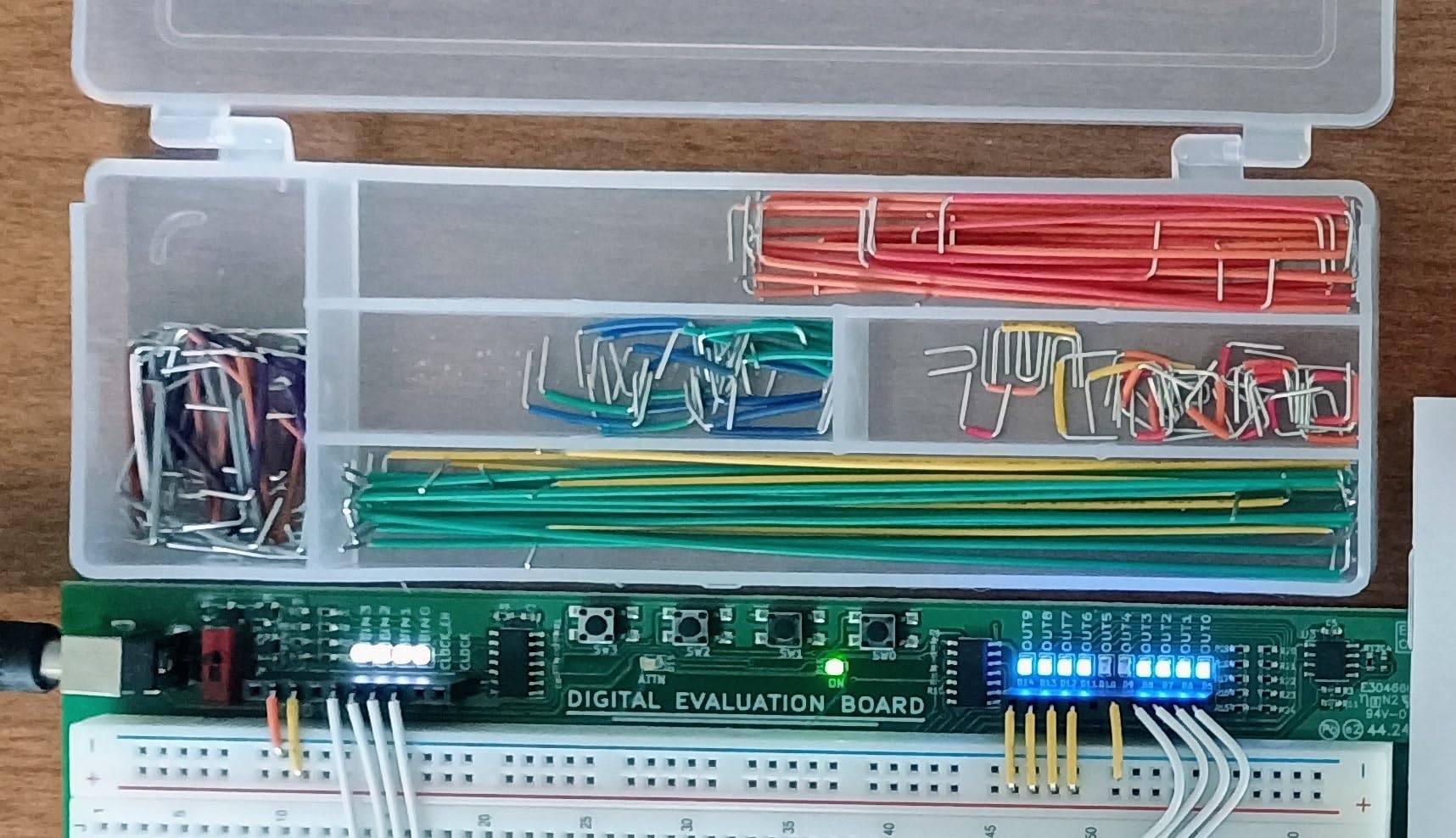

• 140-Piece Solid Core Wiring Kit And 9V Battery Power, Ready To Use Anywhere: The included 140-piece pre-cut, pre-bent solid core jumper wire kit in 14 lengths works directly with the attached breadboard right out of the box, and battery-powered operation means the DEB PLUS works equally well in classrooms, homeschool setups, and remote learning environments without any additional equipment

Part Number: DEB PLUS Digital Evaluation Board

Details: Ready to go further? The DEB PLUS is built for students who are.

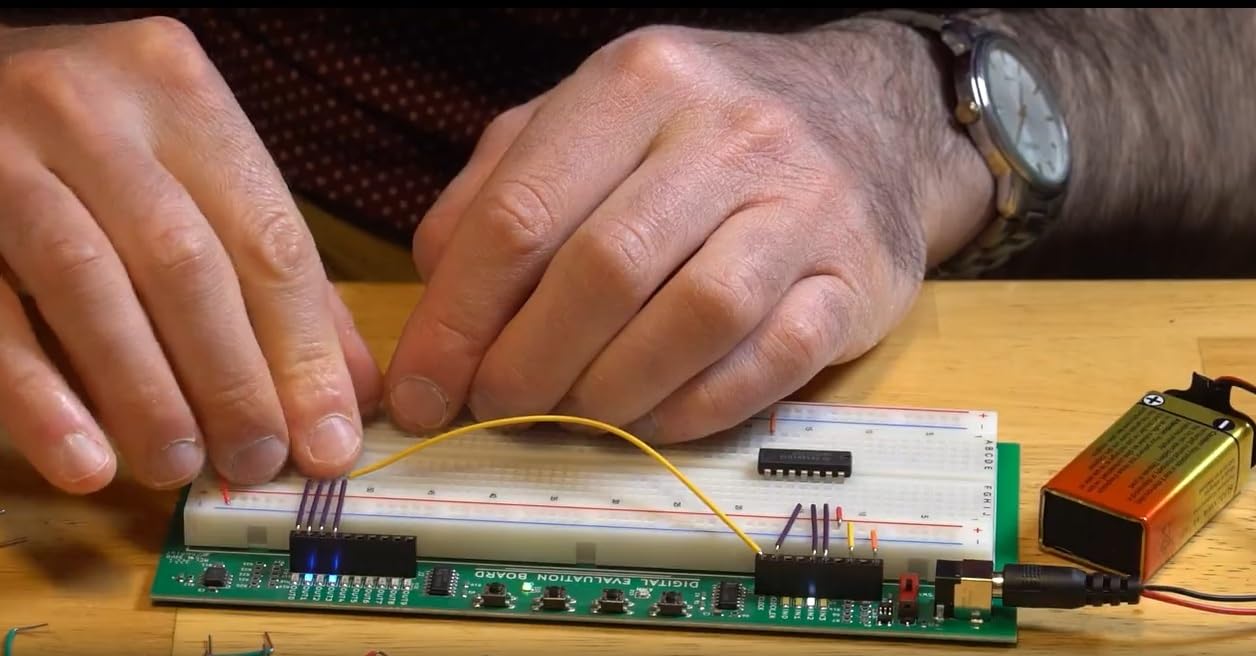

The DEB PLUS is a heavy-duty, modular circuit prototyping platform designed for electrical engineering students who need more room to build, more flexibility to expand, and more infrastructure to tackle advanced digital logic concepts, all without a lab, without coding experience, and without anything extra to buy.
Everything included out of the box:

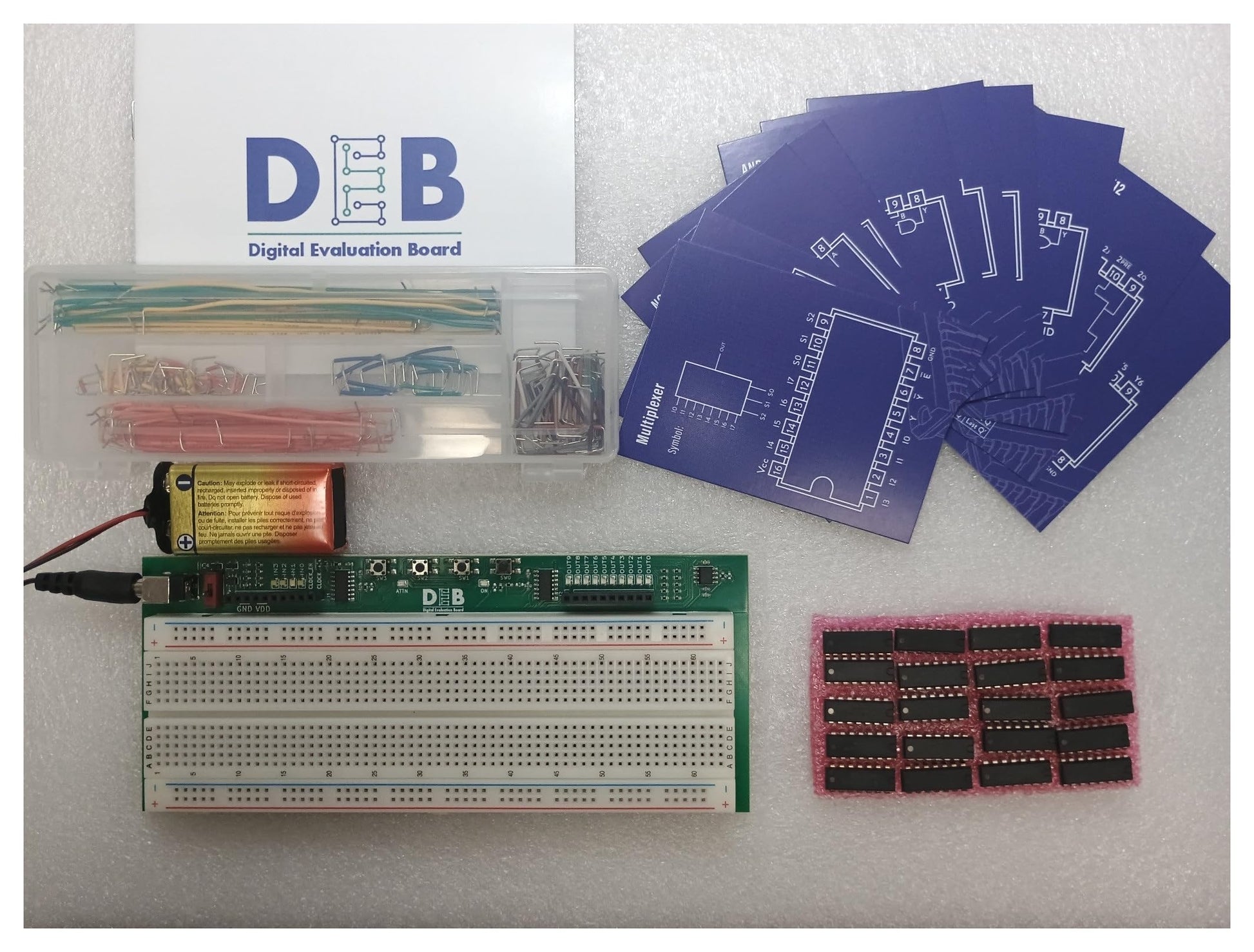

Heavy-duty modular circuit board, attached 63-row solderless breadboard, second breadboard for saving and swapping projects, 9V battery and connection cable, 20 IC logic chips in 10 varieties with printed schematics, 140-piece pre-cut solid core jumper wire kit in 14 lengths, and step-by-step first-circuit building instructions.
More pins, more power, more room to build:
The DEB PLUS features 4 input pins with dedicated push-button switches, 10 output LEDs for real-time results, 2 VDD pins, 2 ground pins, and embedded clock and clock enable pins that simplify flip flop and state machine designs. The yellow ATTN indicator flags shorts instantly for self-correction, and the green ON light confirms the circuit is running normally.
Expandable when your student is ready:
The modular PCB design supports connection to the Extender Board accessory for even greater build complexity. The second breadboard lets students save active circuit configurations between sessions so no progress is lost between study sessions.
Part of a larger learning community:
The JumpSTART EE college prep program is a structured community built to help students develop real confidence before college-level EE coursework demands it. DEB PLUS students can apply to join the program separately. Battery-powered and fully portable, it works in classrooms, homeschool setups, and remote learning environments equally well. Add it to your student's learning plan today.

EAN: 0199284079700

Package Dimensions: 12.0 x 7.0 x 2.0 inches
