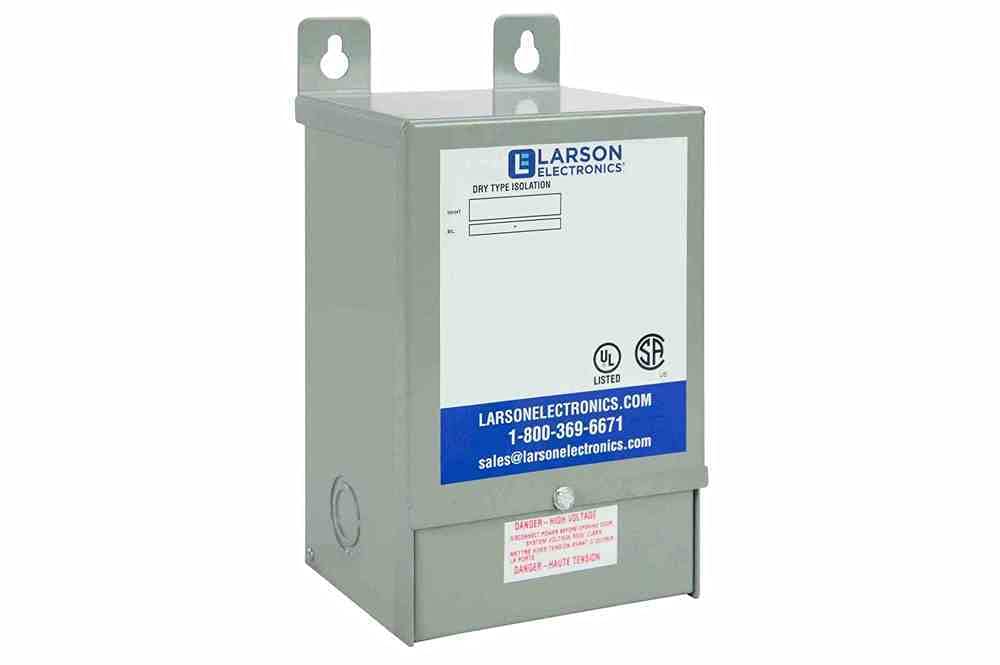

10 kVA Isolation Transformer -208V Primary - 230V Euro Secondary - NEMA 3R - 1 Phase - Fully Potted/Encapsulated

Brand: Larson Electronics

Features:

• Contact us today for information about custom options tailored to meet your specific needs
• For safety reasons, we cannot accept returns on transformers, phase or frequency converters.
• Once these products leave the factory, they cannot be resold and must be destroyed to ensure every unit sold is safe to use.

model number: 266103

Part Number: 266103

Details: With a transformer rating of 10 kVA, This isolation transformer is a single phase unit with a primary voltage of 208 V single phase. This transformer takes 208 V and converts it to European 230 V single phase (L1+N). This L1+N model is considered European 230 V. Featuring robust construction, this unit`s cores are manufactured with non-aging, cold-rolled silicon steel laminations using state of the art technology. This fully potted unit boasts a low cost of ownership and is highly energy efficient. Lower heat emissions mean less cooling is needed as well. The Standard Type 3R enclosure makes the unit suitable for both indoor and outdoor applications and it can be wall mounted. The unit also features 180 degrees C insulation with a 115 degrees C temperature rise and is rated IP24. This isolation transformer offers many benefits to the consumer. This fully potted transformer provides owners with significant energy savings as well as offering environmental benefits. Integrated wall mounting brackets make installation fast and easy. This is a fully potted isolation transformer which means that it provides operators with an increased level of protection against electric shock. This achieves these safety features by seperating or 'isolating' the powered device from the power source and insulation between the primary and secondary power sources. Power supplies for sensitive equipment such as computers, medical devices, or laboratory instruments. Larson Electronics is a manufacturer and as such can build stationary and portable transformer systems to your specifications. Although we carry several models of power distribution transformer systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us to discuss your specific requirements.

Package Dimensions: 18.0 x 18.0 x 14.0 inches
