1100LB Truck-Mounted Crane Hoist, 360° Swivel Hoist Lift with 12V Electric Winch Pickup Truck Jib Cranes

Brand: YIYIBYUS

Color: Orange

Features:

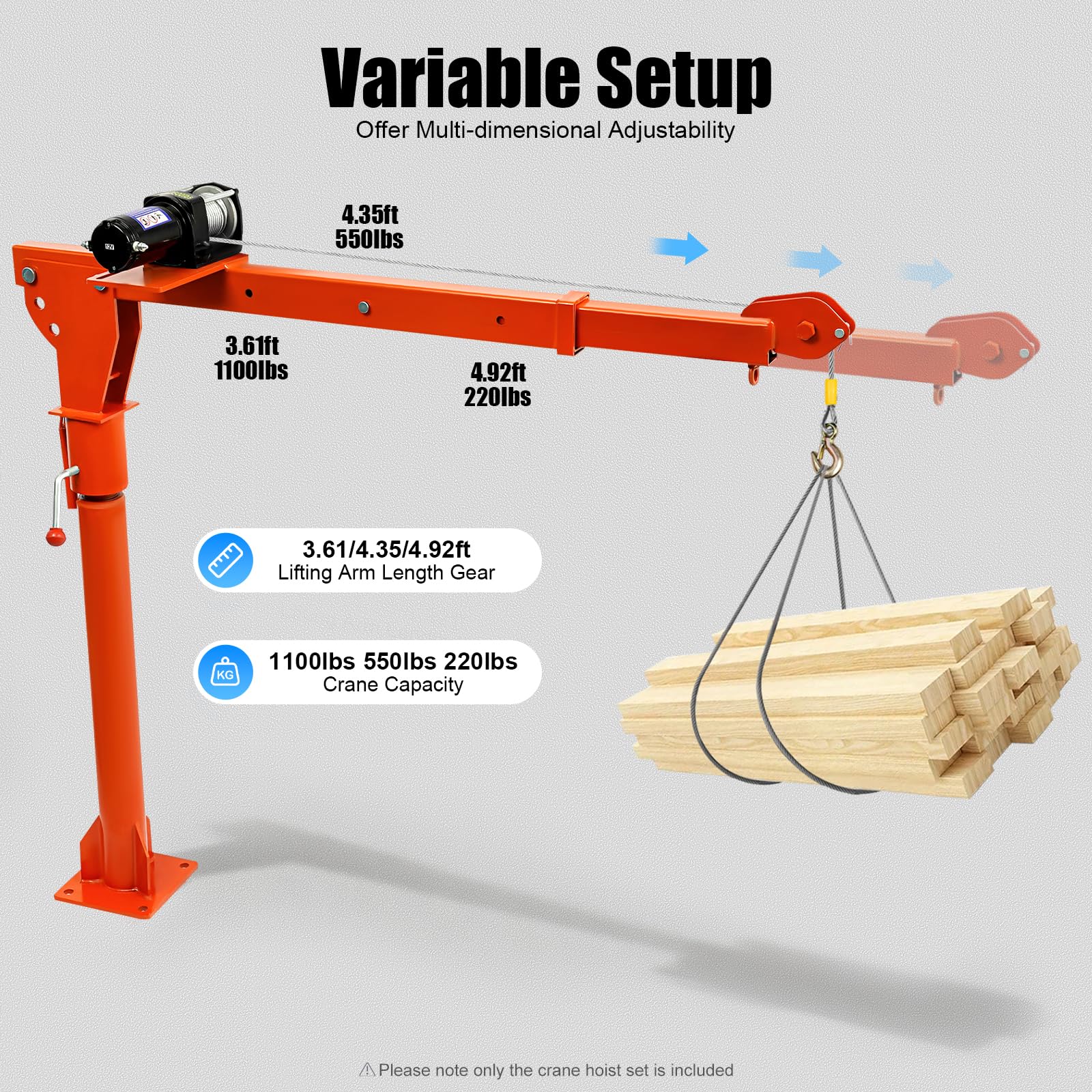

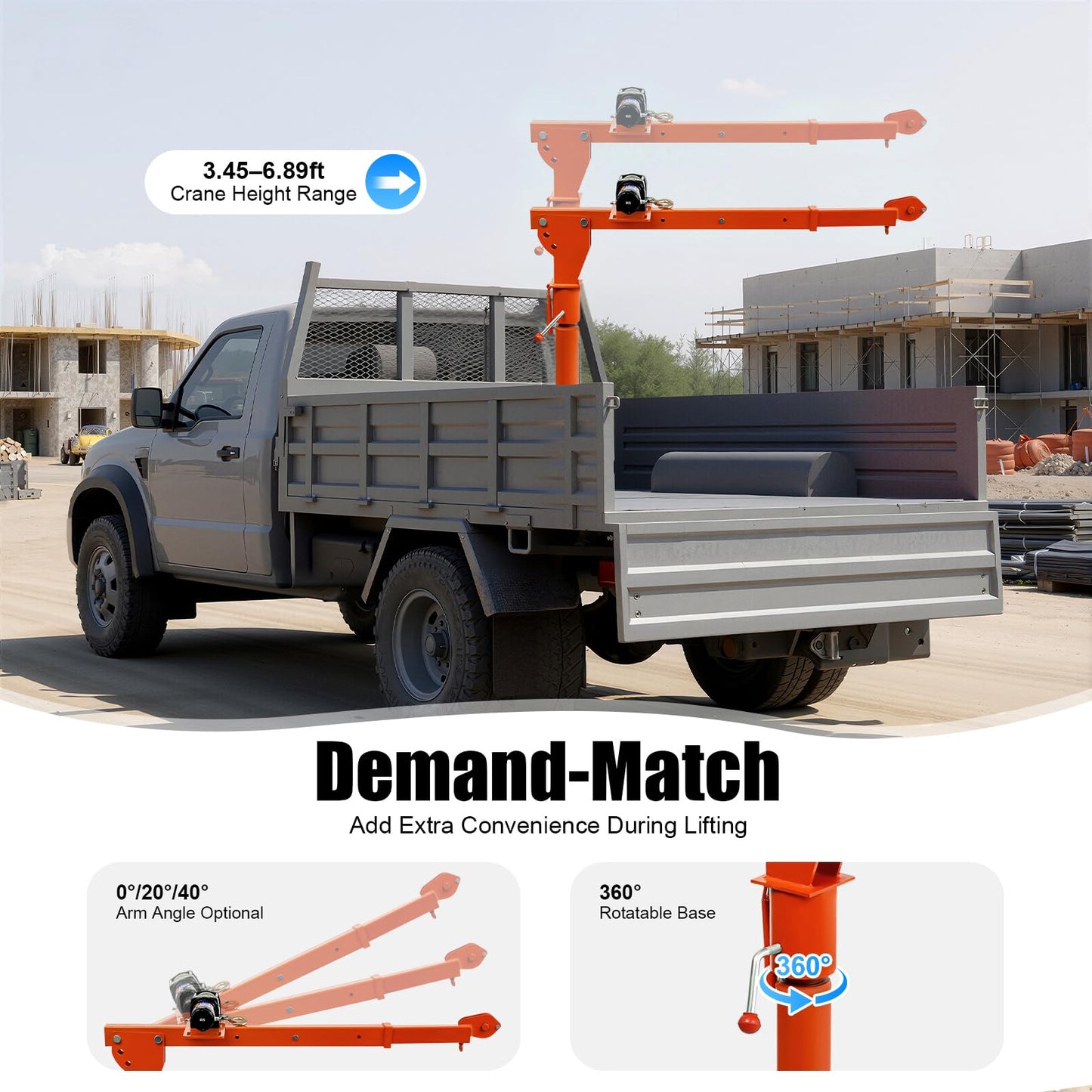

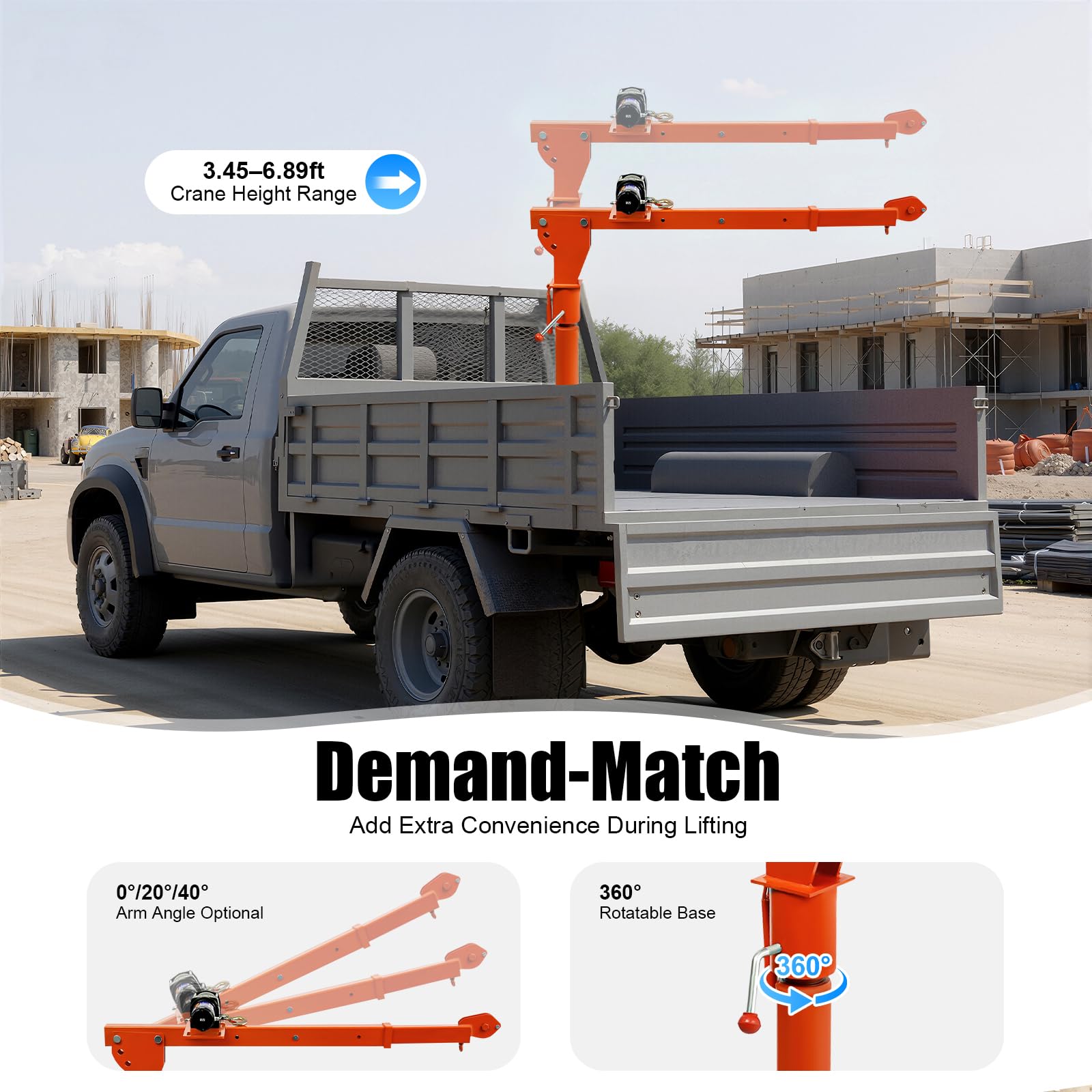

• ✔【Adjustable Design】You can adjust the lifting arm length at 3.61/4.35/5.09ft and angle at 0°/20°/40° and the crane height from 3.45-6.89ft to meet your different construction environments and usage needs. The 360° rotatable base also brings more convenience during the lifting process.

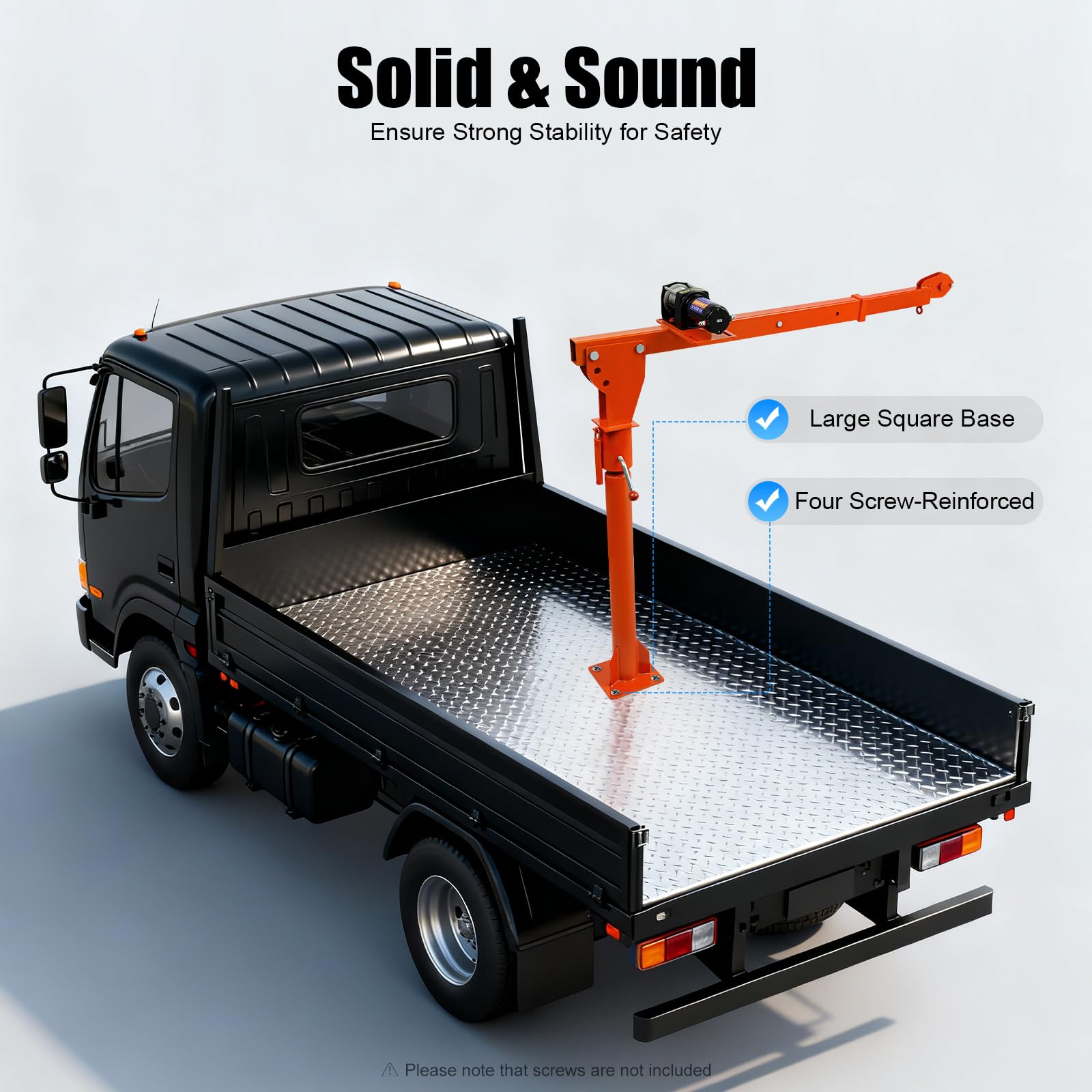

• ✔【Stable Structure】The large square base(9.45-in in length) with four screw-reinforced installation holes makes the product highly stable, so you don't have to worry about shaking or collapsing during the production process.
• ✔【User-friendly Design】The equipped remote control allows you to control the electric winch within a distance of 49.21ft, and it can also control the up and down directions (one is up, the other is down)greatly improving operation convenience.

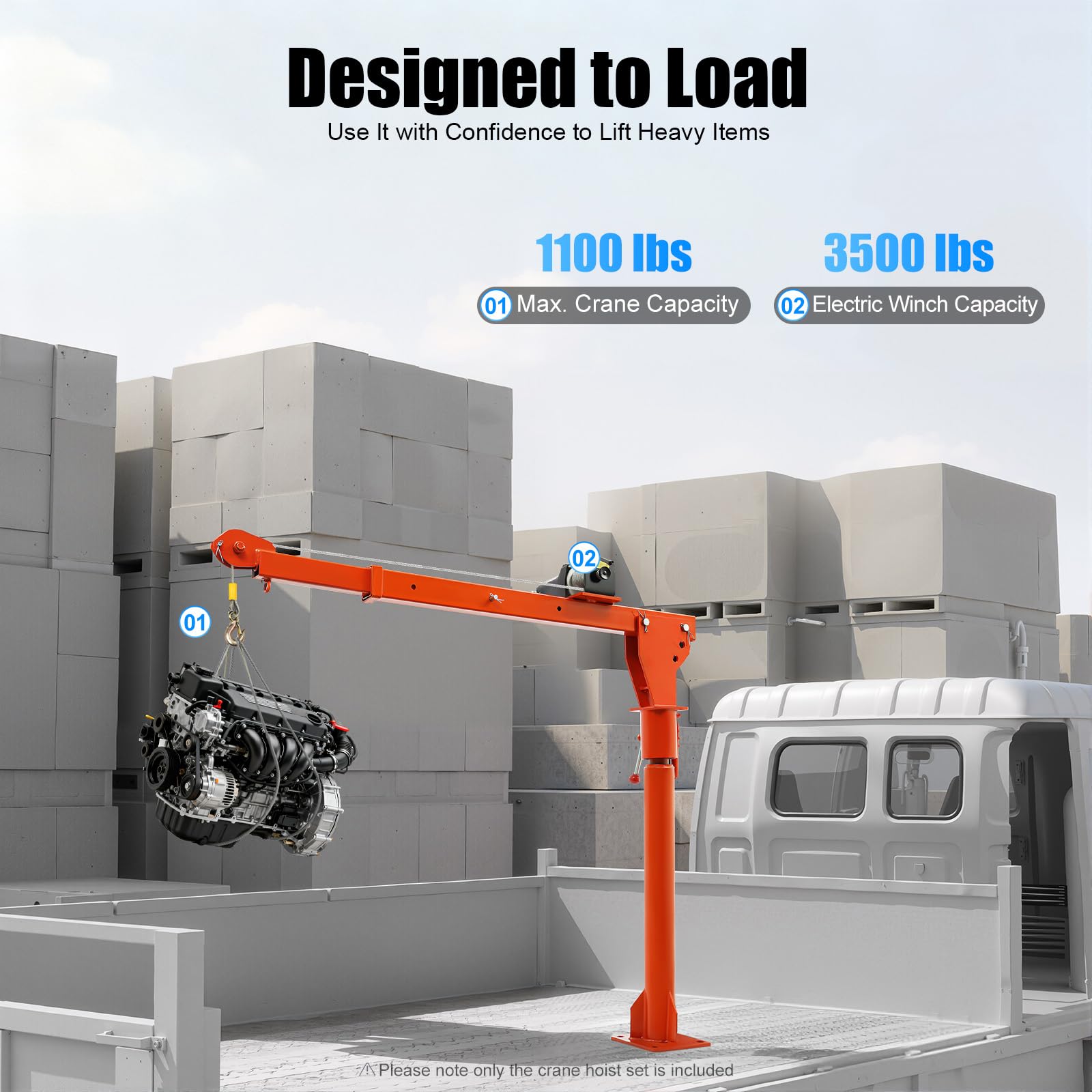

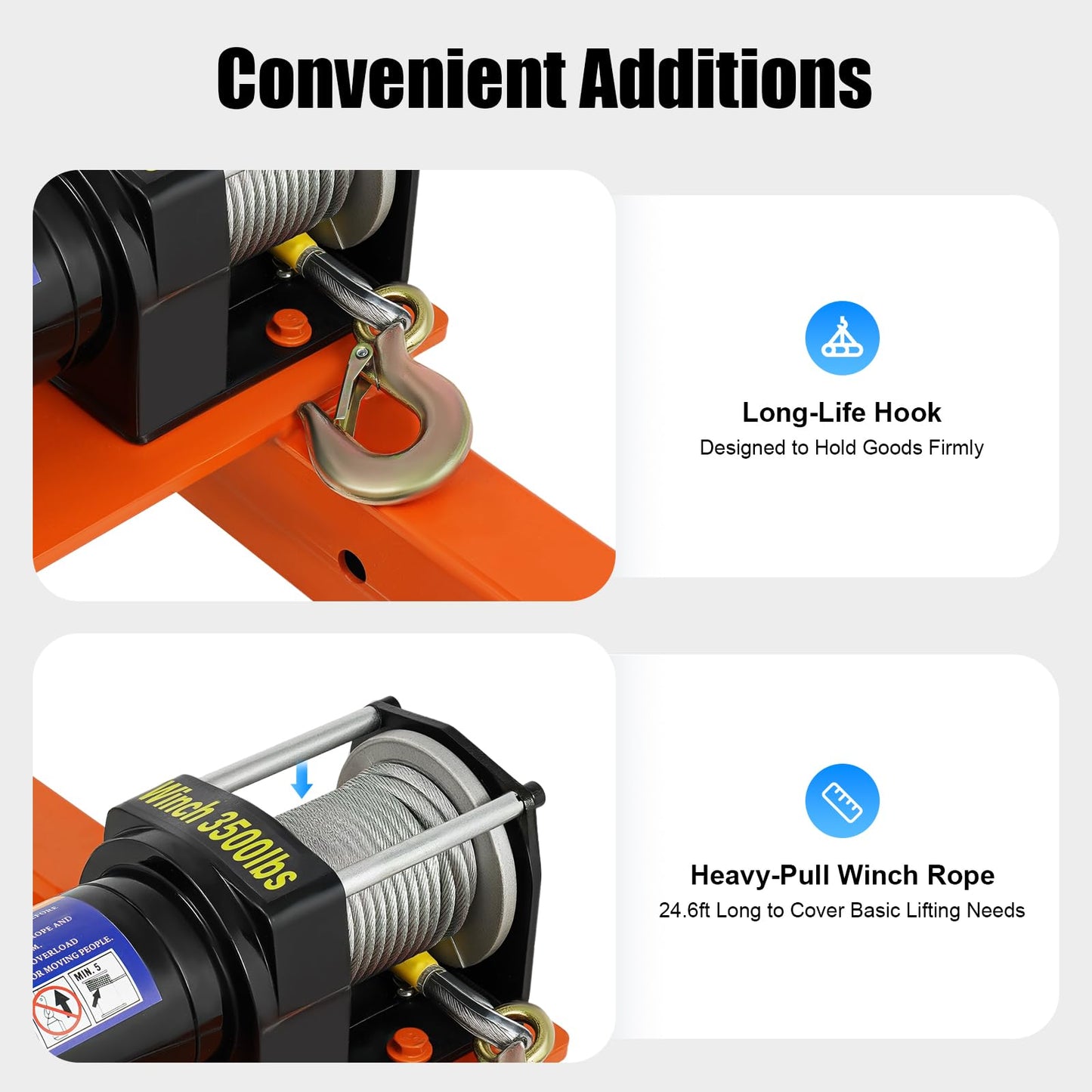

• ✔【Strong Load-bearing Capacity】The maximum 1100 lbs load capacity of the truck-mounted crane and 3500 lbs load capacity of the electric winch allow you to use this product with confidence to lift heavy objects such as engines, tables, and shop equipment.

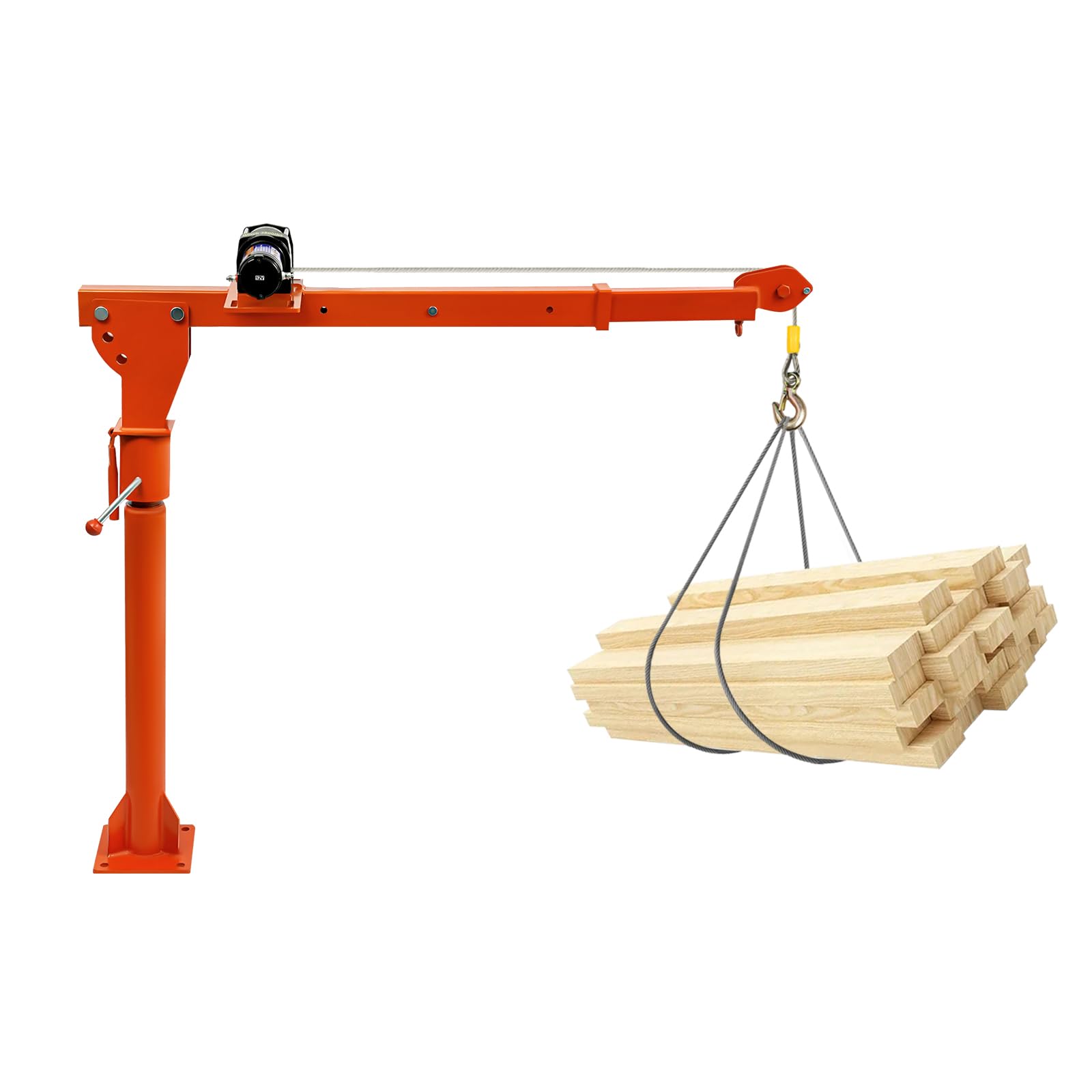

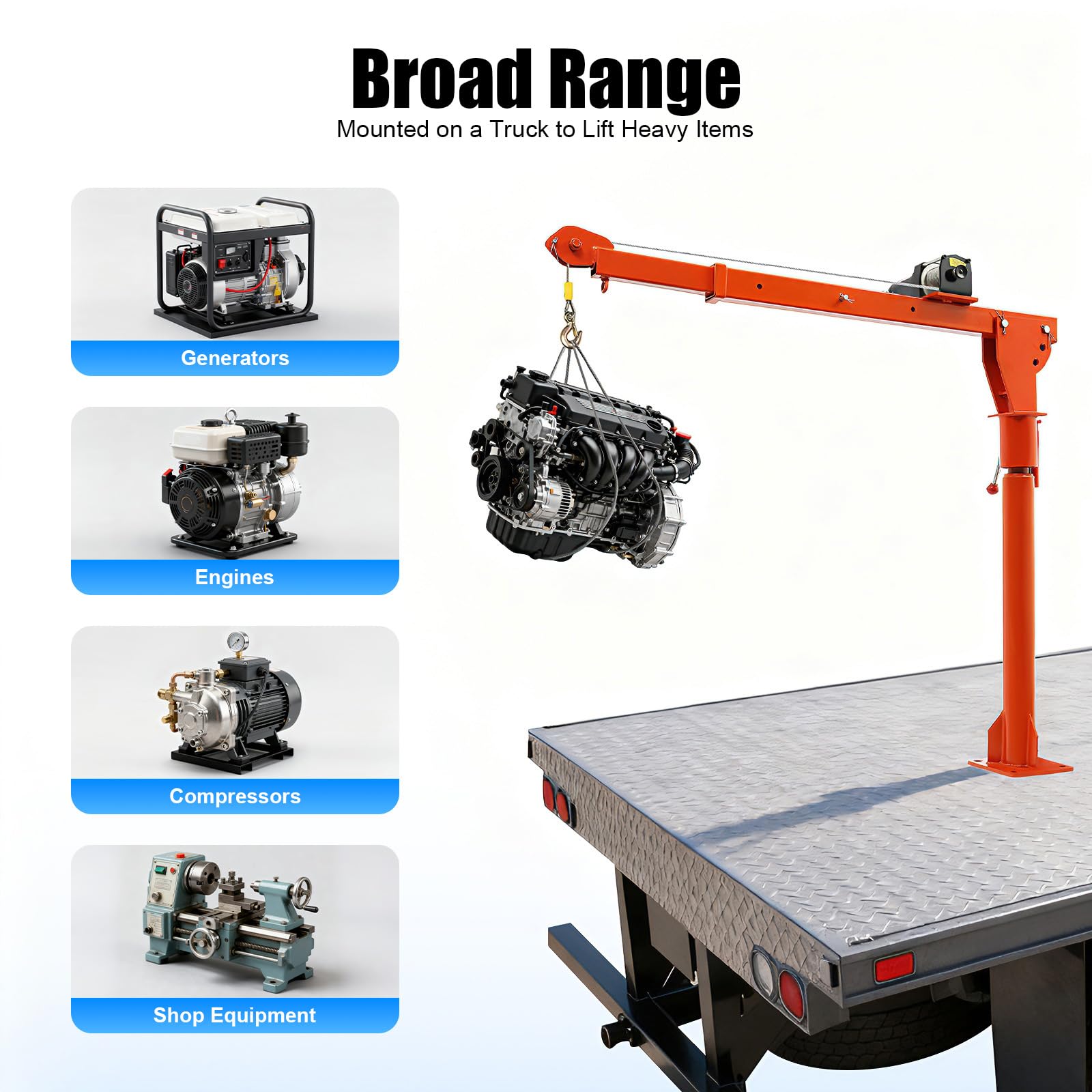

• ✔【Application】It is mounted on a truck to lift generators, engines, compressors, wood, shop equipment, etc. It is suitable for the construction industry, forestry industry, and more.

model number: YIYIBYUS

Details: Specification
Material: Q235 Steel
Color: Orange
Surface Treatment: Polishing and Painting Processes
Assembly Required: Yes
Number of Items: 1
Electric Winch Voltage: 12V

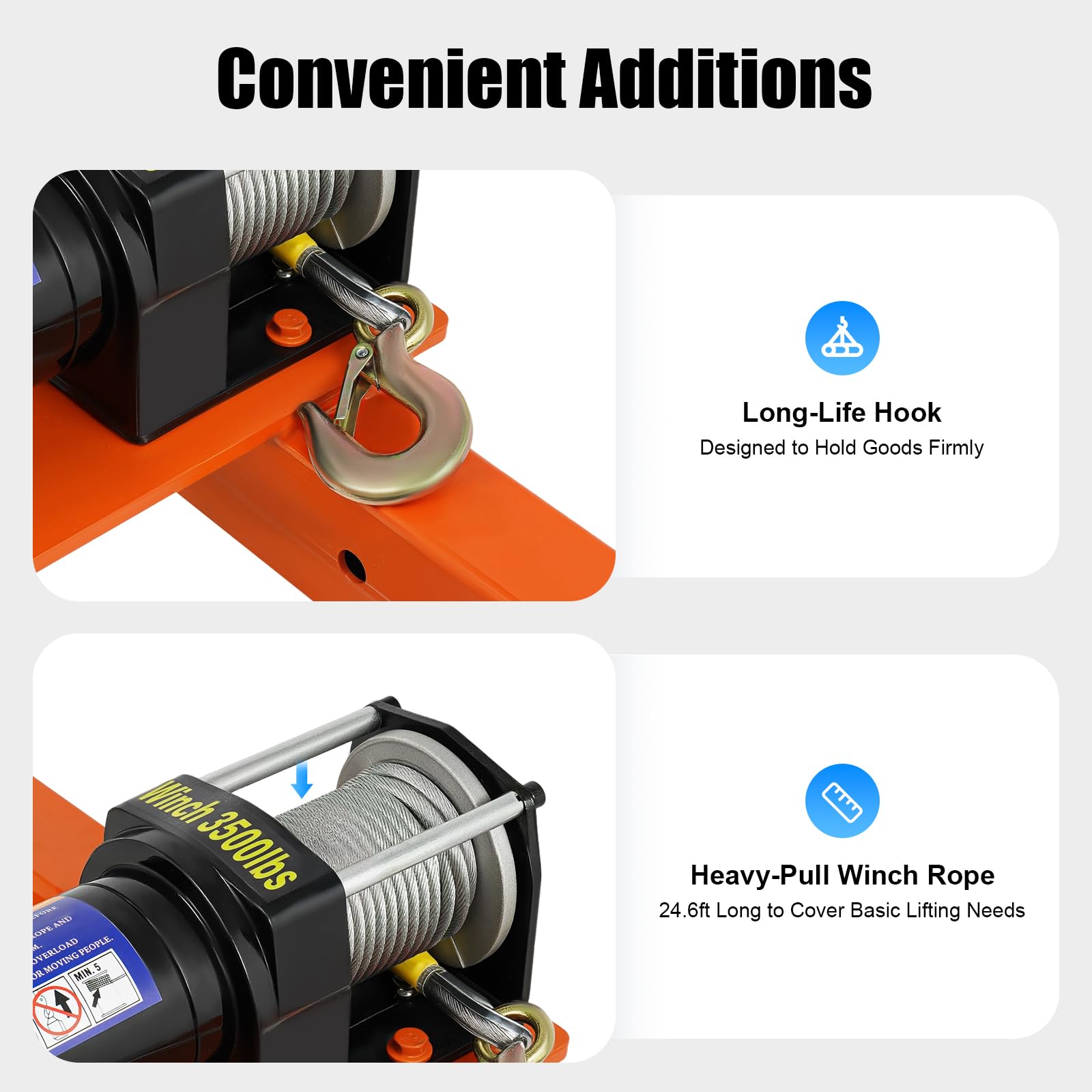

Winch Rope Length: 7.5m/24.6ft
Battery Model: 1 * AA Battery(Included)
Electric Winch Capacity: 1587kg/3500lb
Lifting Arm Bearing Capacity: 100kg/220lb; 250kg/550lb; 500kg/1100lb
Cable Length: 1.3m/4.27ft
Remote Control Distance: 15m/49.21ft
Lifting Arm Height Adjustment Range: 0°-20°-40°
Lifting Arm Length Adjustment Range: 1.1m/3.61ft; 1.325m/4.35ft; 1.55m/5.09ft
Base Rotation Angle: 360 °
Gross Weight: 44kg/97lb
Net Weight: 40kg/88.18lb

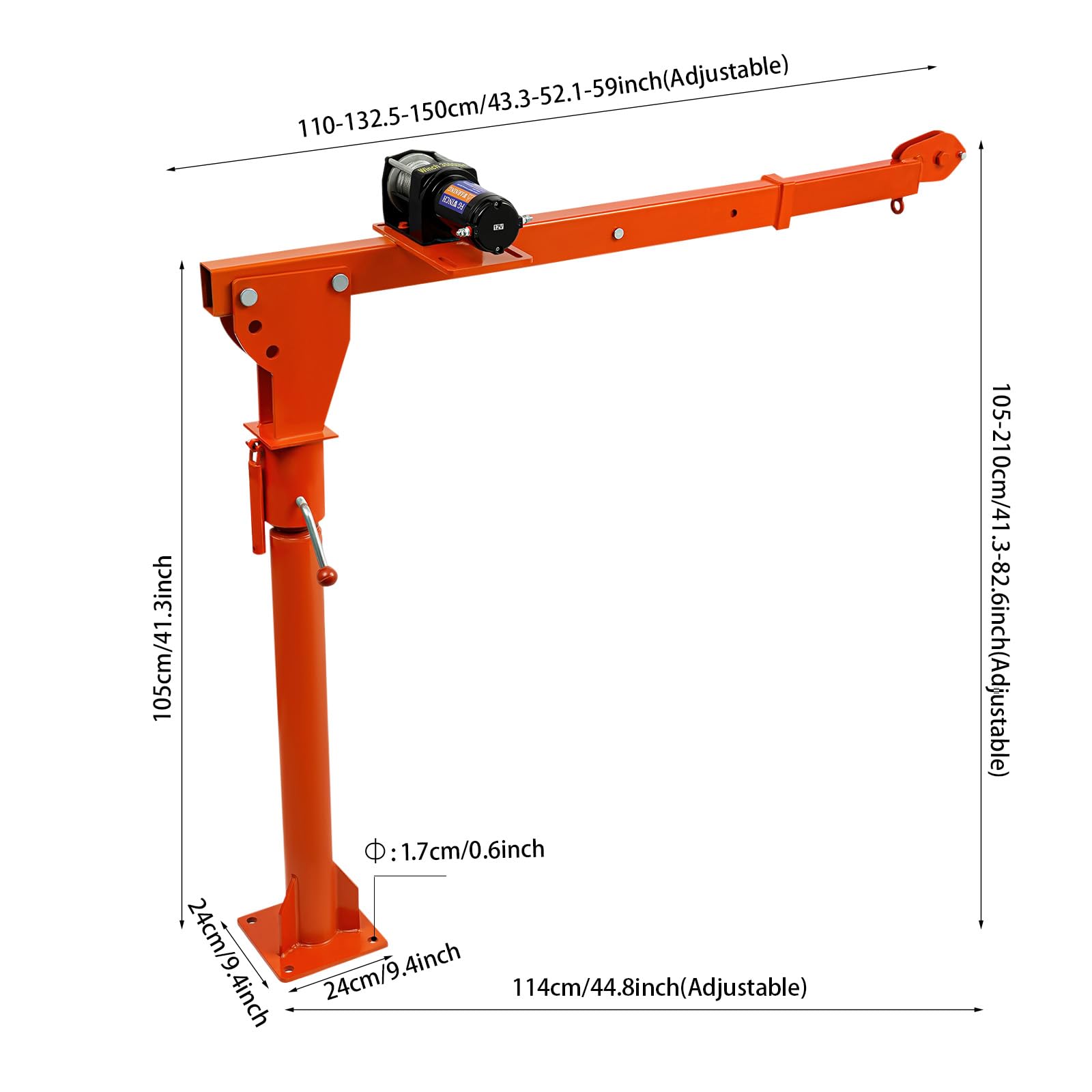

Support Pole Height: 1.05m/3.45ft
Base Size: 24*24cm/9.45*9.45in
Installation Hole Diameter: 17mm/0.67in
Product Size(L&H): 1.14*1.05-2.1m/3.74*3.45-6.89ft
Package Size: 105*30*25cm/41.34*11.81*9.84in

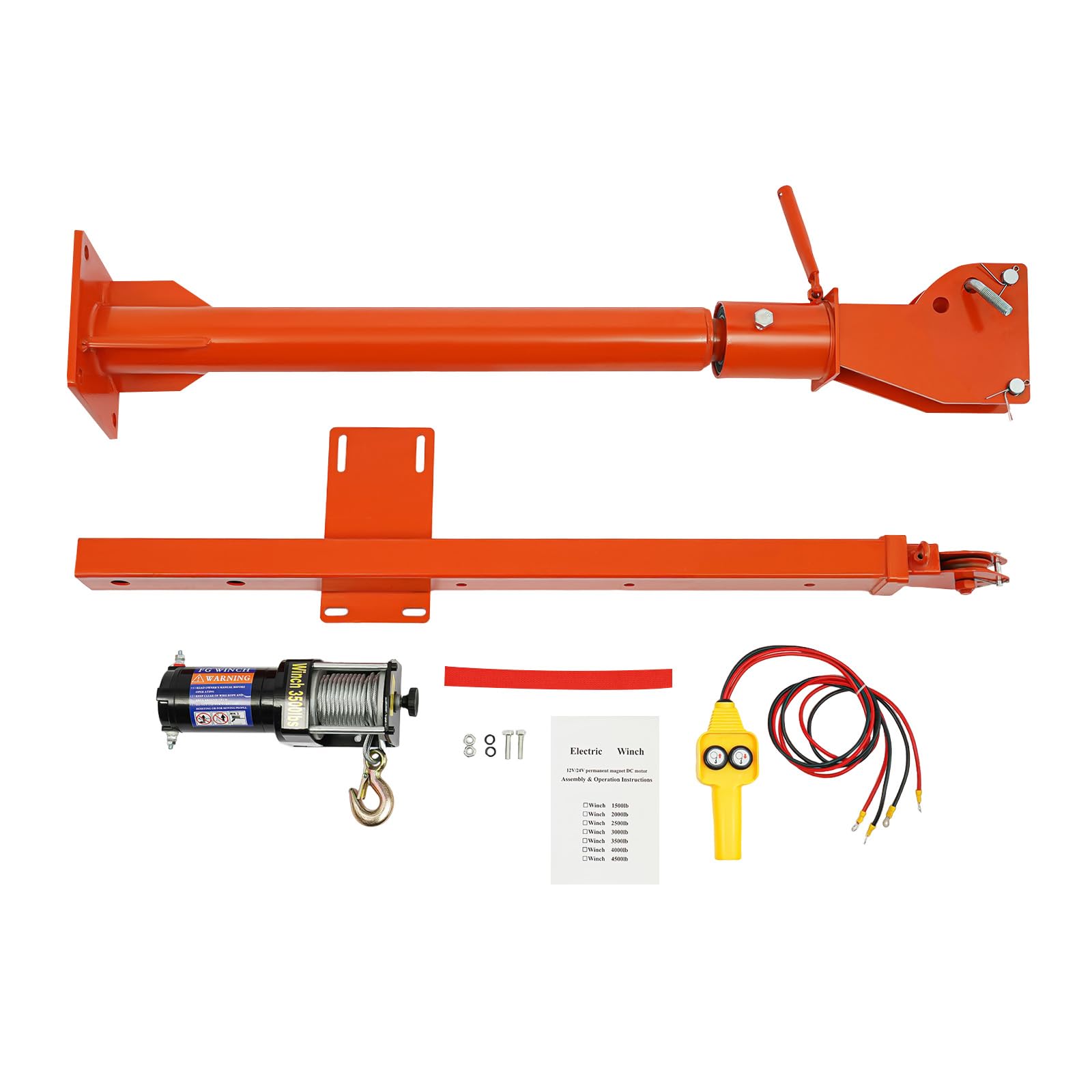

Package Included
1*Truck-Mounted Crane Hoist
1*Electric Winch
1*Remote Control Assembly
All Accessories Required for Installation
Notes
1. Please read the label carefully before using it. Please stay away from the area around the wire rope and drum.
2. Please pull out the rope in the direction of the arrow. Please do not use it for overloaded lifting or moving personnel.
3. Please take a 10-minute break after 30 minutes of continuous work. Please turn off the power switch when not in use.
4. Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

EAN: 0743557793420
