12000W Hybrid Solar Inverter 48V to 120V/240V Split Phase, Built-in 2 MPPT Solar Controllers, Max PV Input 18KW, Pure Sine Wave, 6 Unit Parallel for Home, RVs, Lead Acid/Li Battery, UL1741, FCC

Brand: Anern

Features:

• 12000W HYBRID SOLAR INVERTER: Converts 48V DC to 120V/240V single-phase split-phase AC, delivering 12000W continuous output and 18000W peak output.Supports up to 6,000W+6,000 PV input with 2 MPPT solar charging, maximum DC voltage 500V. Features 160A max AC input, 50/60Hz output frequency, starting voltage above 125VDC, and 220A maximum PV charging current. Designed for reliable on/off-grid solar systems in RVs, homes, cabins, and workshops.
• BUILT-IN 2 MPPT SOLAR CHARGING CONTROLLER: Equipped with a high-efficiency MPPT controller, Max. 160A Battery Charging, this inverter maximizes solar energy harvesting—boosting charging efficiency by up to 30%. Compatible with high-voltage PV arrays (up to 500VDC), it ensures faster charging under varying light conditions.

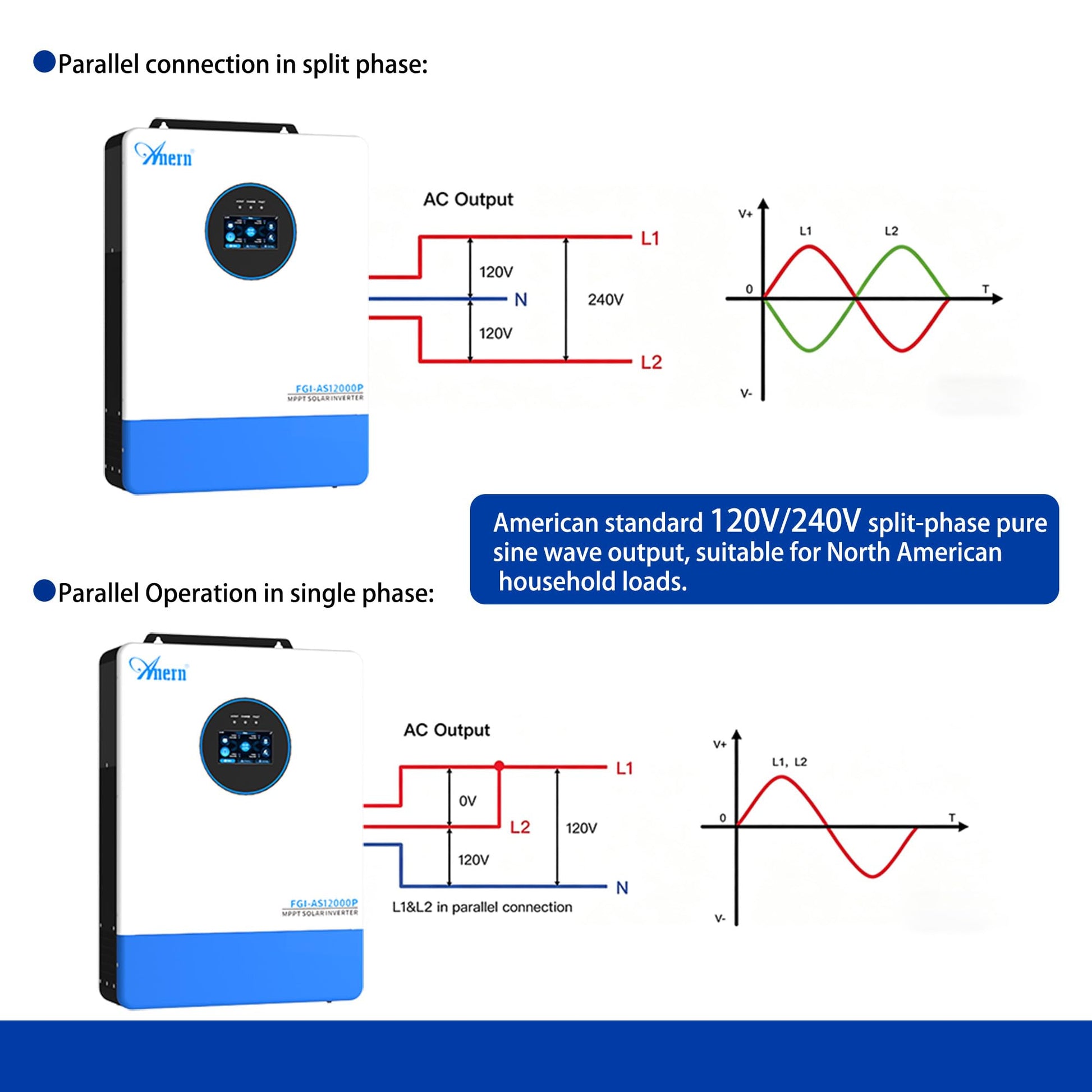

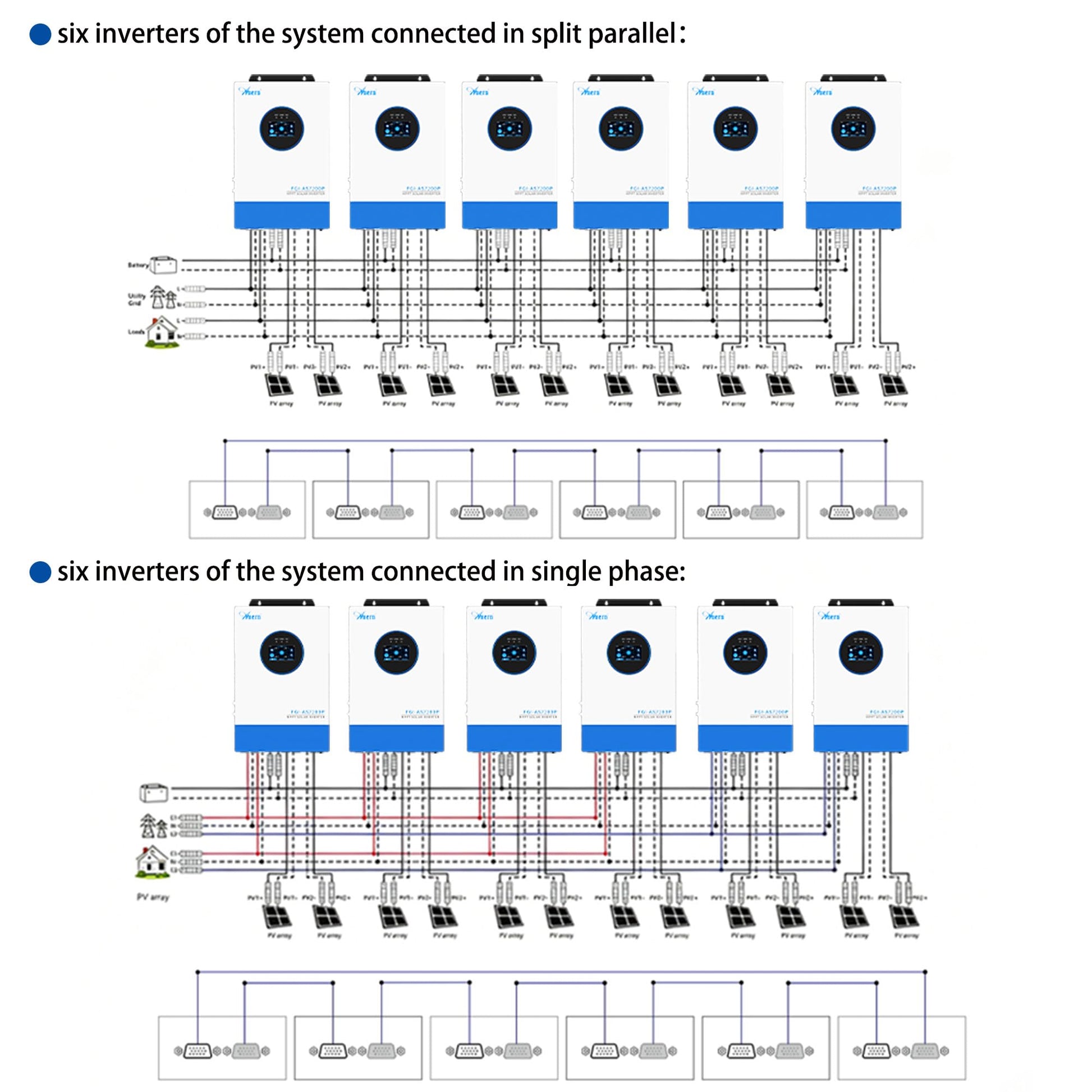

• SUPPORT PARALLEL: Anern 12000W solar inverter supports parallel connection of 6 units, the maximum output power can be up to 72KW, a single unit can get 120V single-phase output or 240V split-phase output; three units can get 208V three-phase output, and the parallel connection can increase the inverter's power and surge capacity.
• SMART LCD SCREEN WITH REAL-TIME MONITORING: Features a responsive LCD screen and indicator LEDs for real-time monitoring of power input/output, battery status, and system alerts. Easily configure system settings such as charging current, voltage thresholds, and priority modes using intuitive control buttons.
• FLEXIBLE CHARGING & OUTPUT MODES FOR ALL SCENARIOS: Choose from four charging modes (Solar Only, AC Priority, Solar Priority, Hybrid Charging) and three output modes (Mains Priority, PV Priority, Inverter Output). Ensure a stable and uninterrupted power supply—even during outages or solar fluctuations.
• COMPREHENSIVE SAFETY PROTECTION: Built-in overload protection, over temperature protection, and short circuit protection ensure safe operation. Features auto restart function when AC power recovers and cold start capability for enhanced reliability and system longevity.

Package Dimensions: 31.0 x 24.0 x 10.0 inches
