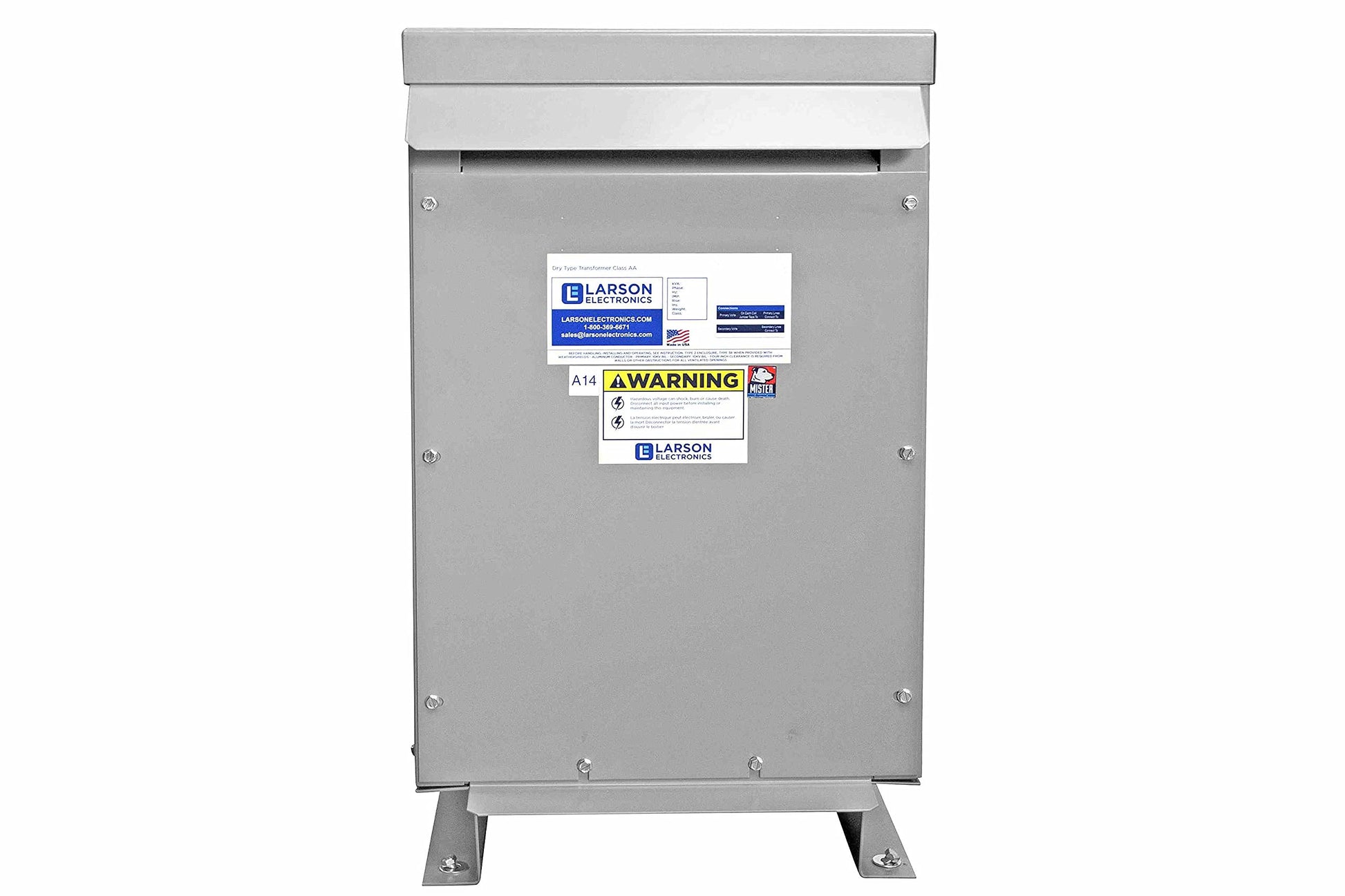

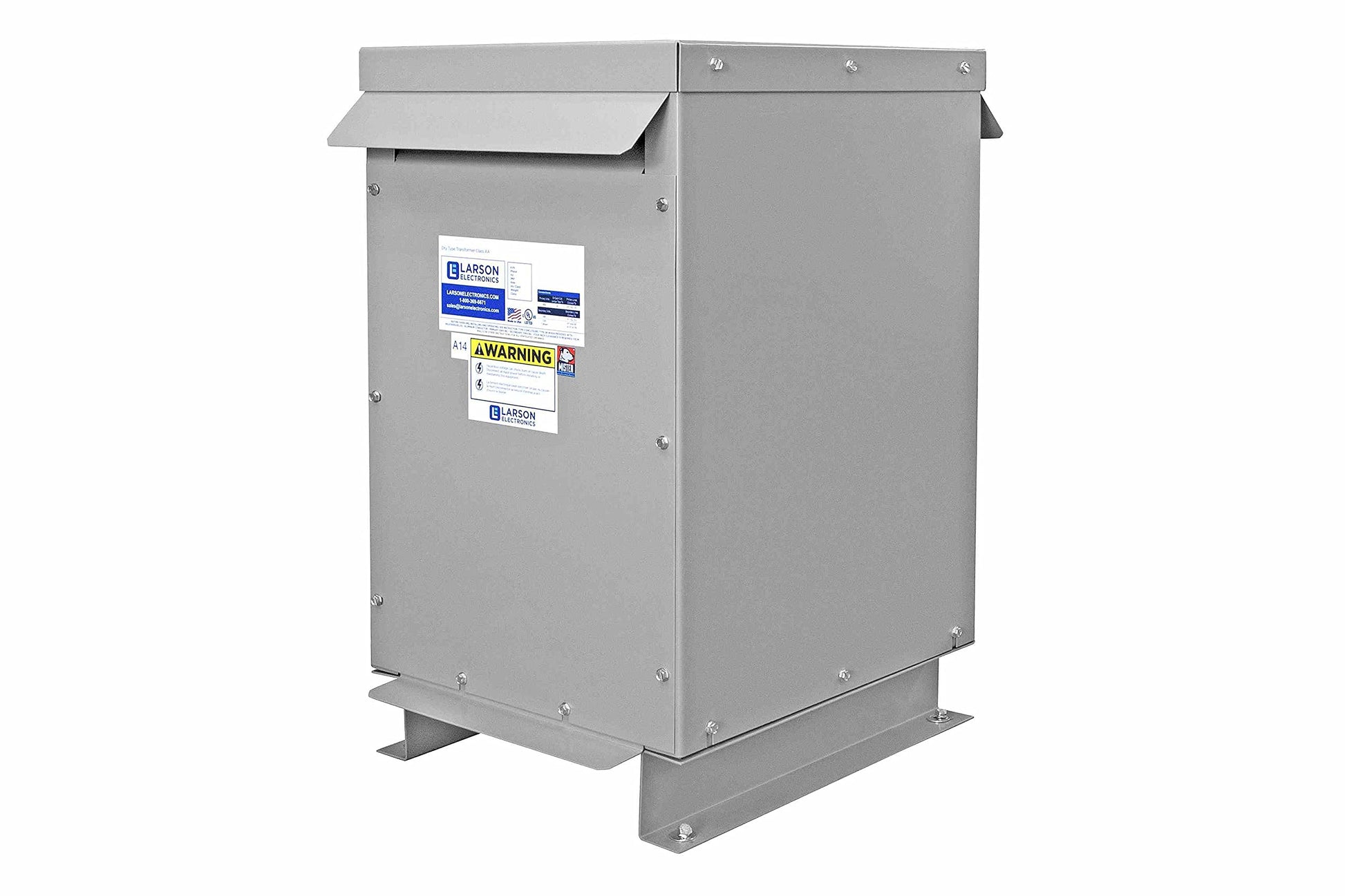

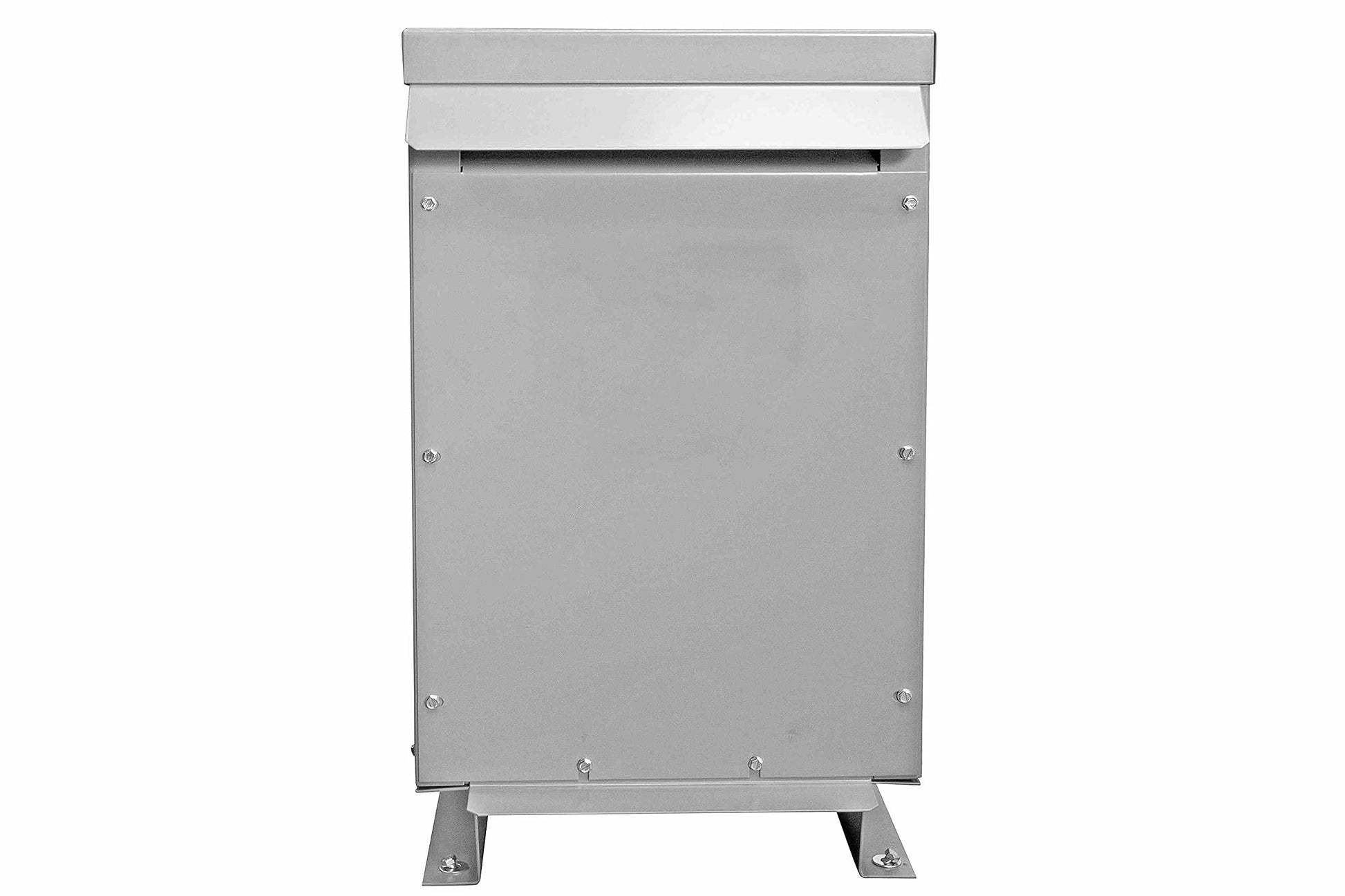

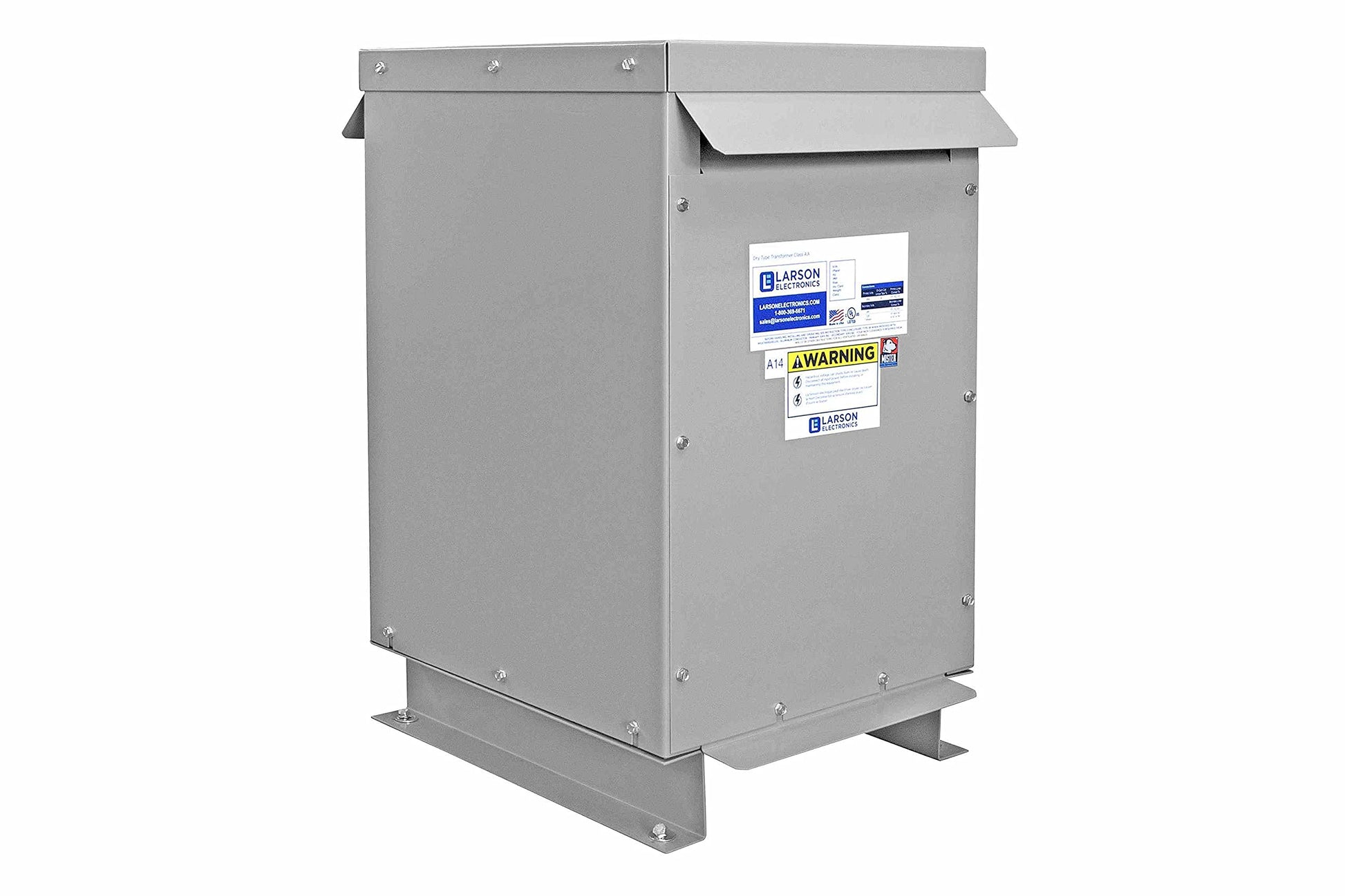

15 kVA 3PH DOE Transformer, 208V Delta Primary, 240V/120 Delta Secondary, N3R, Ventilated, 60 Hz

Brand: Larson Electronics

Features:

• Contact us today for information about custom options tailored to meet your specific needs
• For safety reasons, we cannot accept returns on transformers, phase or frequency converters.
• Once these products leave the factory, they cannot be resold and must be destroyed to ensure every unit sold is safe to use.

model number: 241474

Part Number: 241474

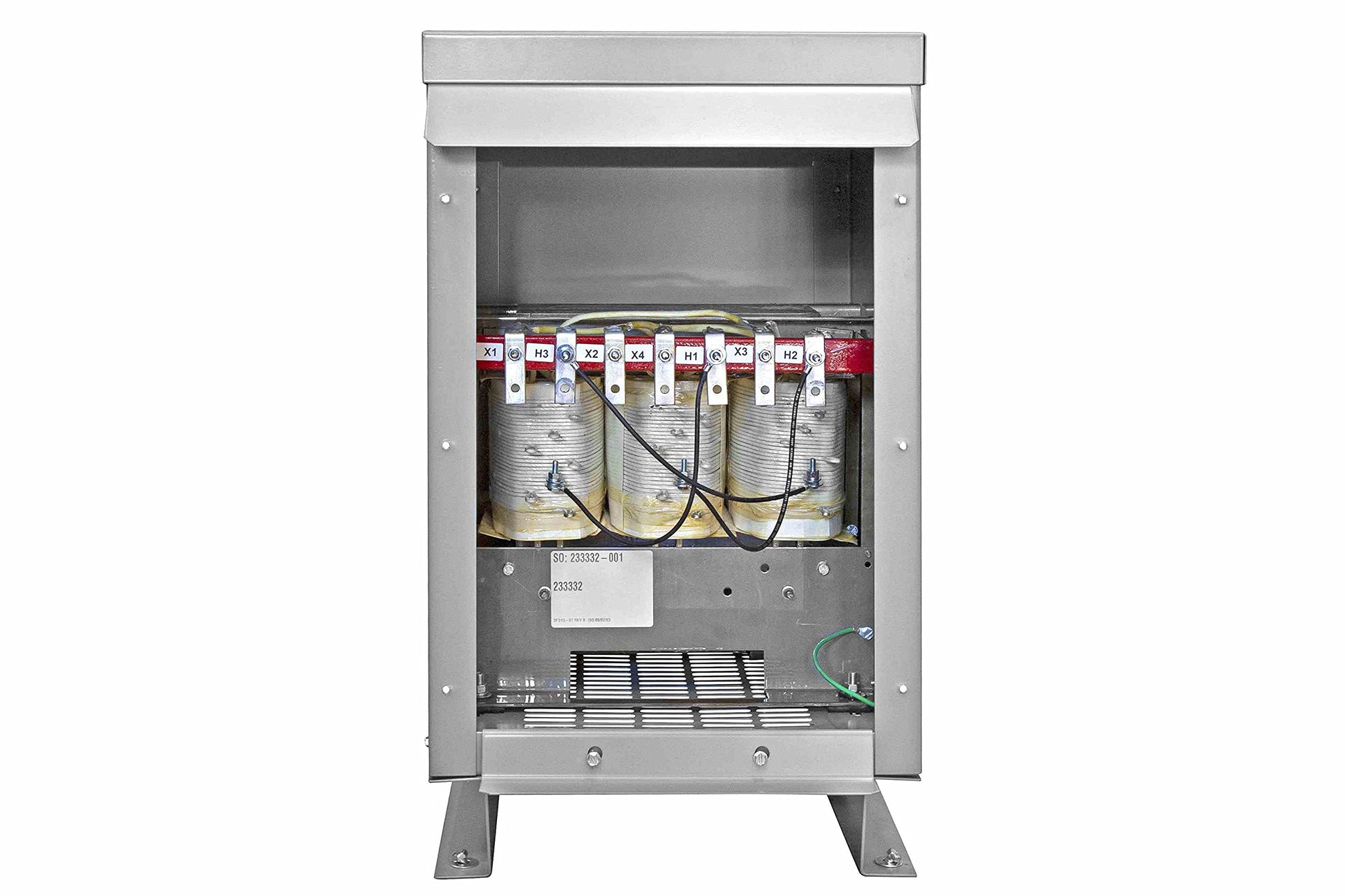

Details: This DOE Efficiency transformer is a three phase transformer with a 15 KVA capacity rating. This isolation transformer is configured with an input voltage of 208V Delta 3-Phase AC on the primary side and an output voltage of 240V/120 High Leg Delta w/ Center Tap 3-Phase AC on the secondary side. Featuring robust construction, this unit`s cores are manufactured with non-aging, cold-rolled silicon steel laminations using state of the art technology. This 15 KVA distribution transformer features 220 degrees C insulation with a 150 degrees C temperature rise. This 208V to 240V/120 general purpose transformer offers many benefits to the consumer. The MT-DOE series of transformers from Larson Electronics meet or exceed efficiency standards for United States and Canada. Converting 208V local grid power to 240V/120 for on-site equipment. Larson Electronics is a manufacturer and as such can build stationary and portable transformer systems to your specifications. Although we carry several models of power distribution transformer systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us to discuss your specific requirements.

Package Dimensions: 48.0 x 40.0 x 34.0 inches
