15 kVA Isolation Transformer - 480V Delta Primary Voltage - 400Y/231 Wye-N Secondary Voltage - NEMA

Brand: Larson Electronics

Features:

• Contact us today for information about custom options tailored to meet your specific needs
• For safety reasons, we cannot accept returns on transformers, phase or frequency converters.
• Once these products leave the factory, they cannot be resold and must be destroyed to ensure every unit sold is safe to use.

model number: 151154

Part Number: 151154

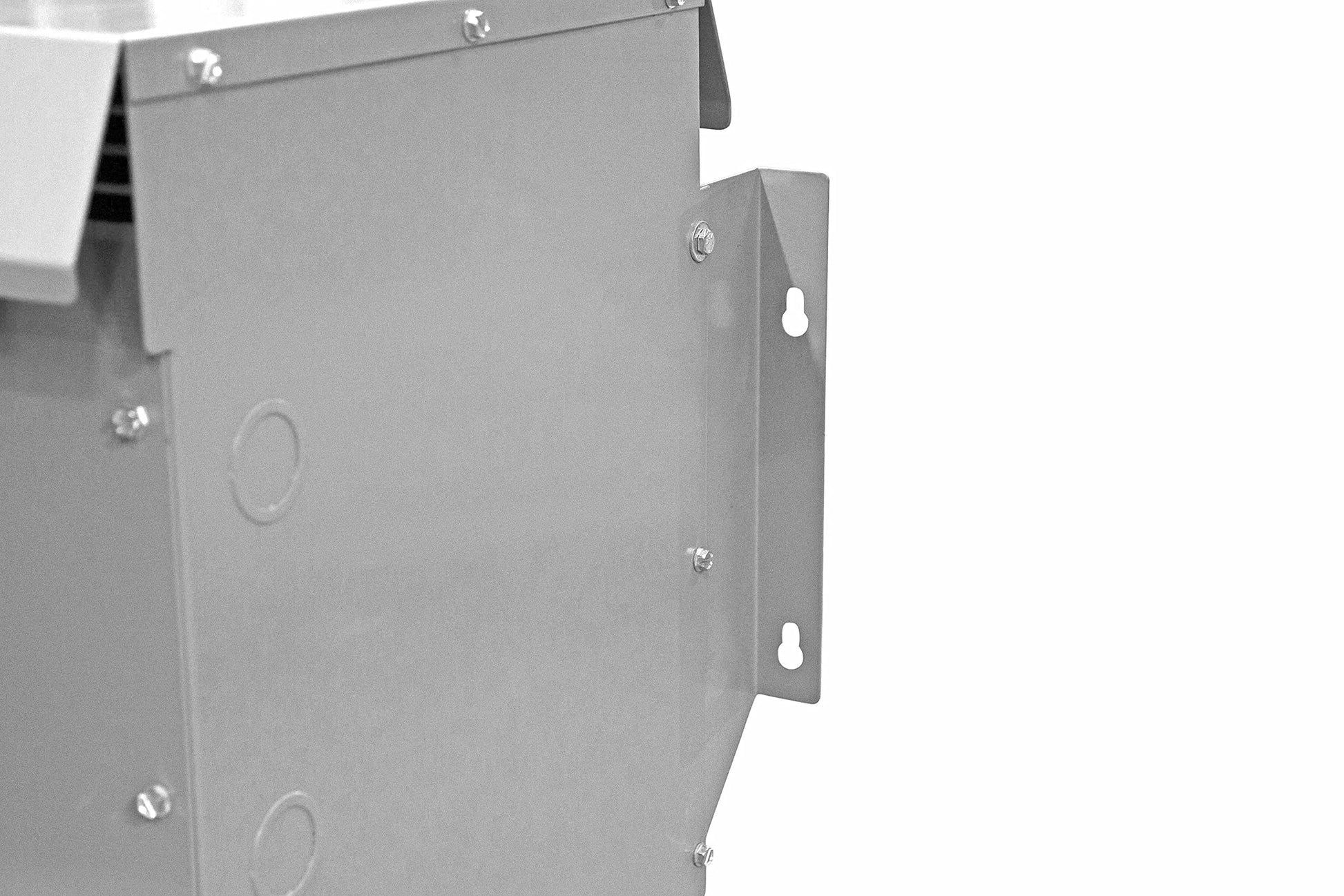

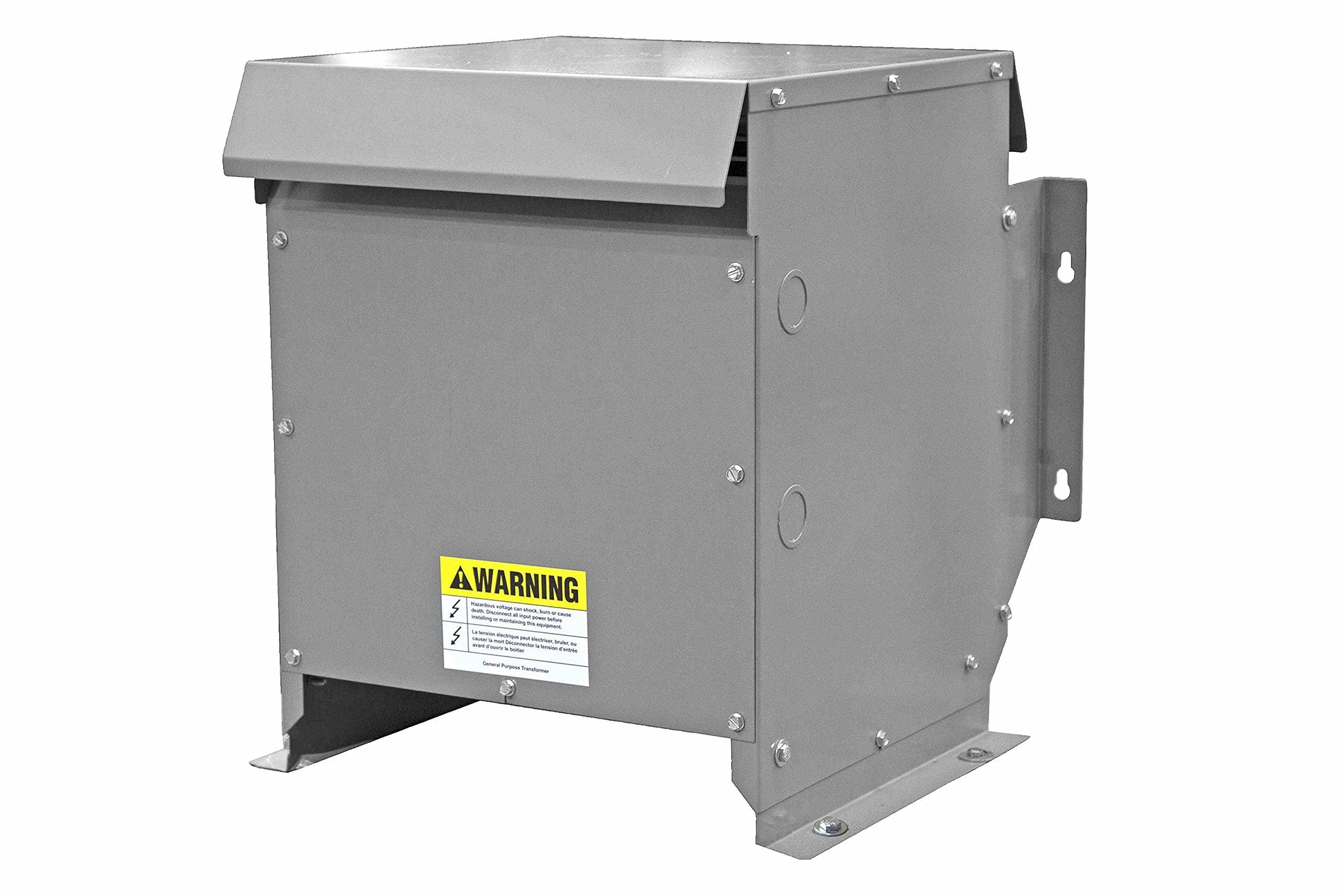

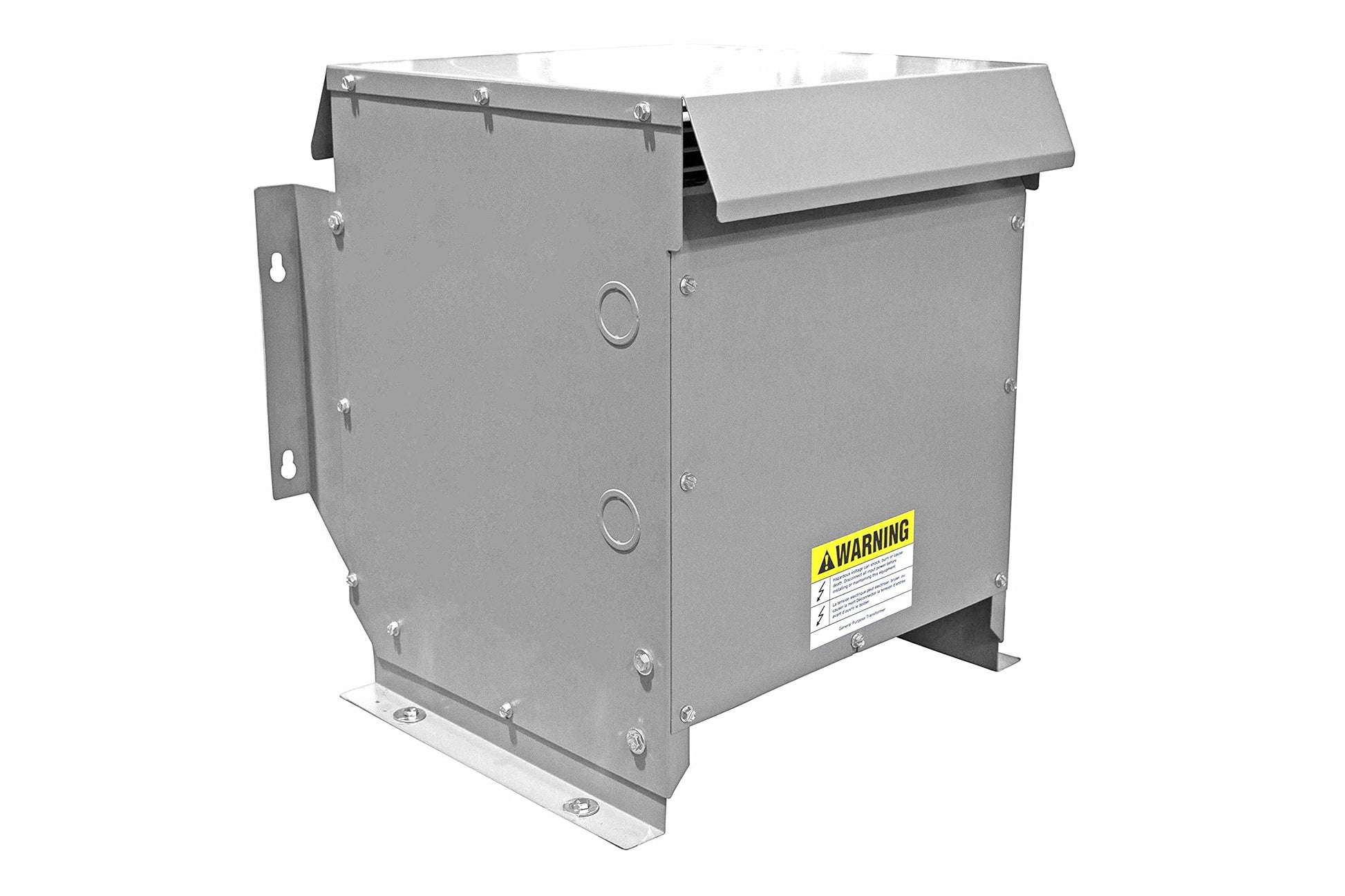

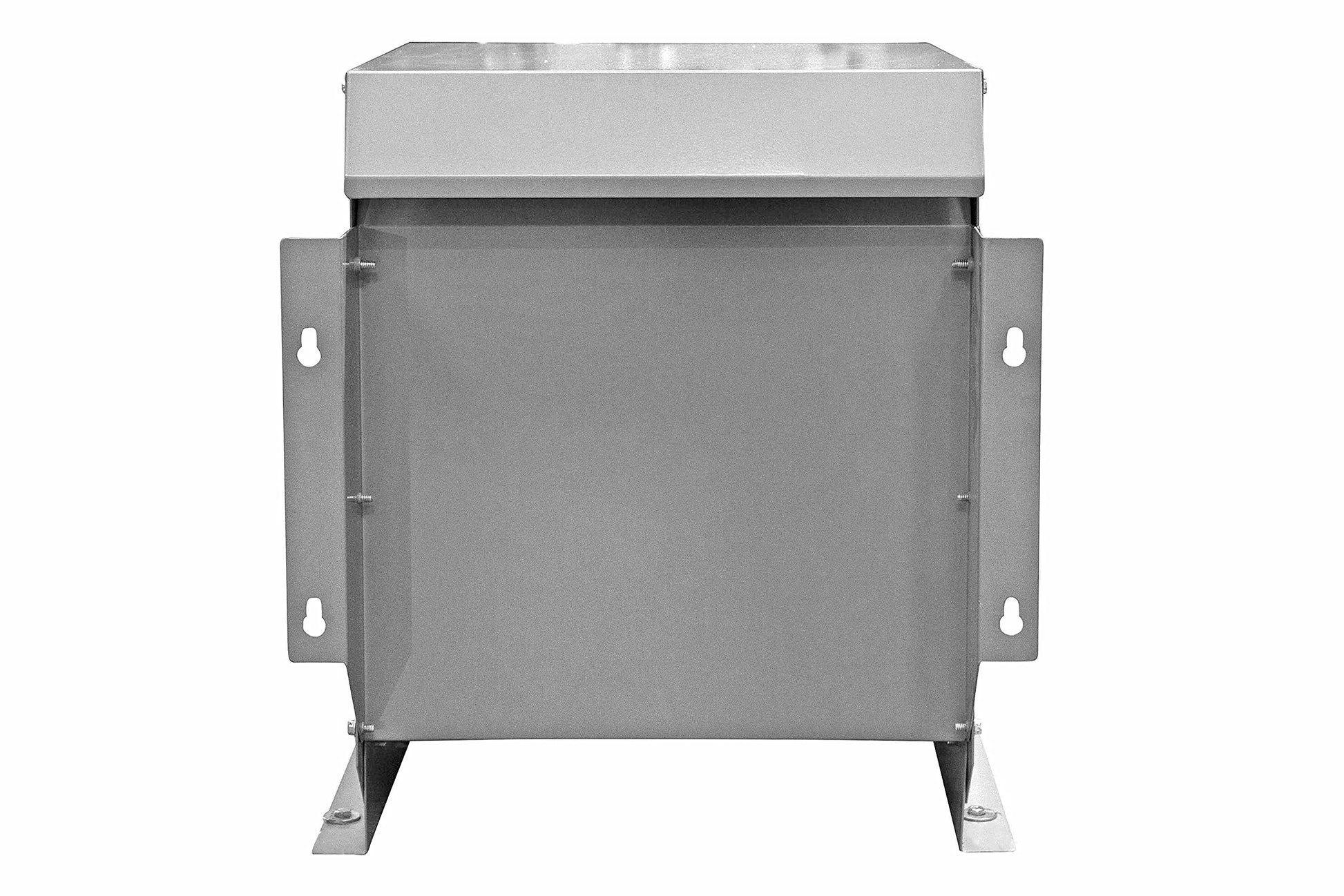

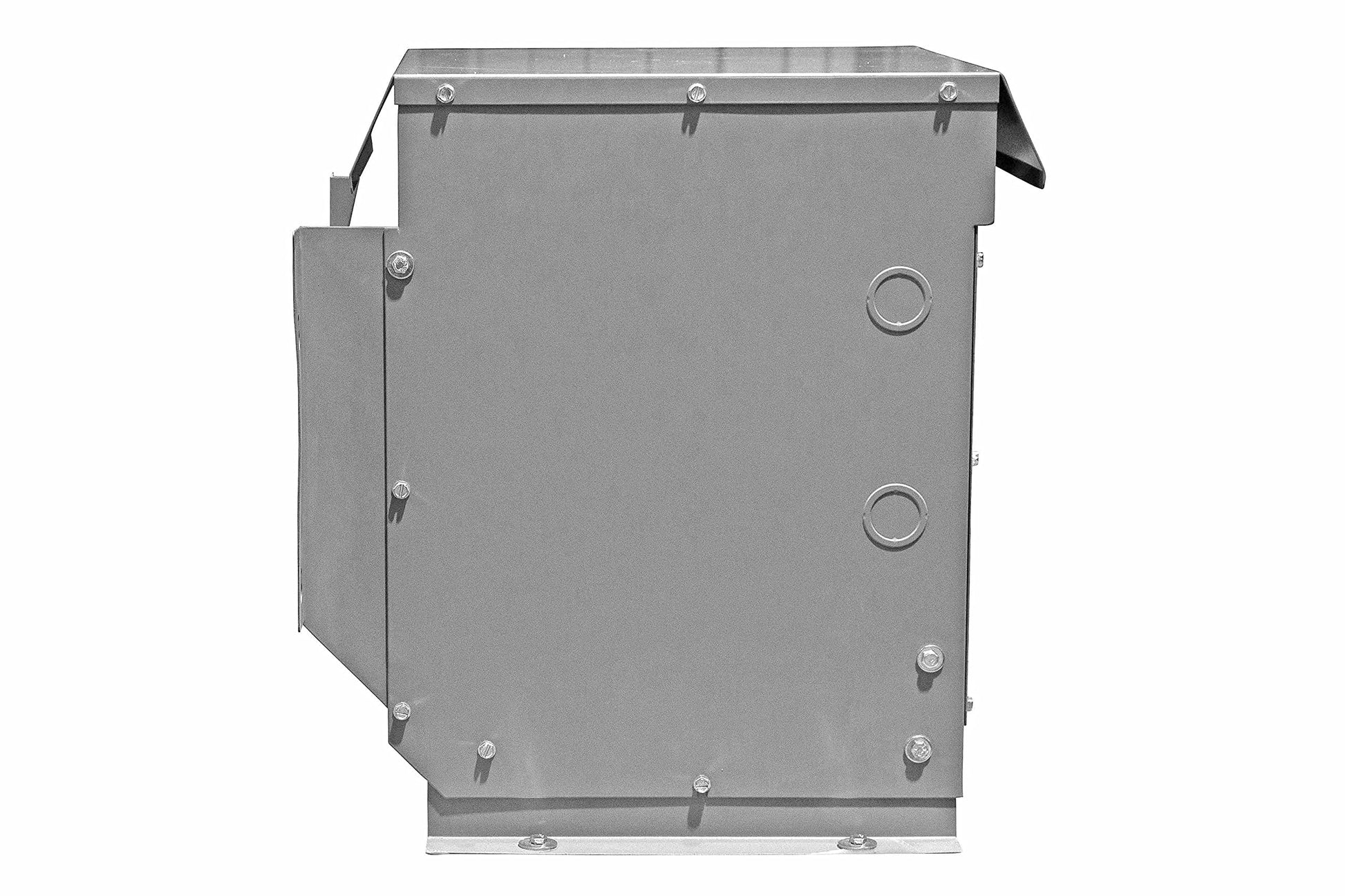

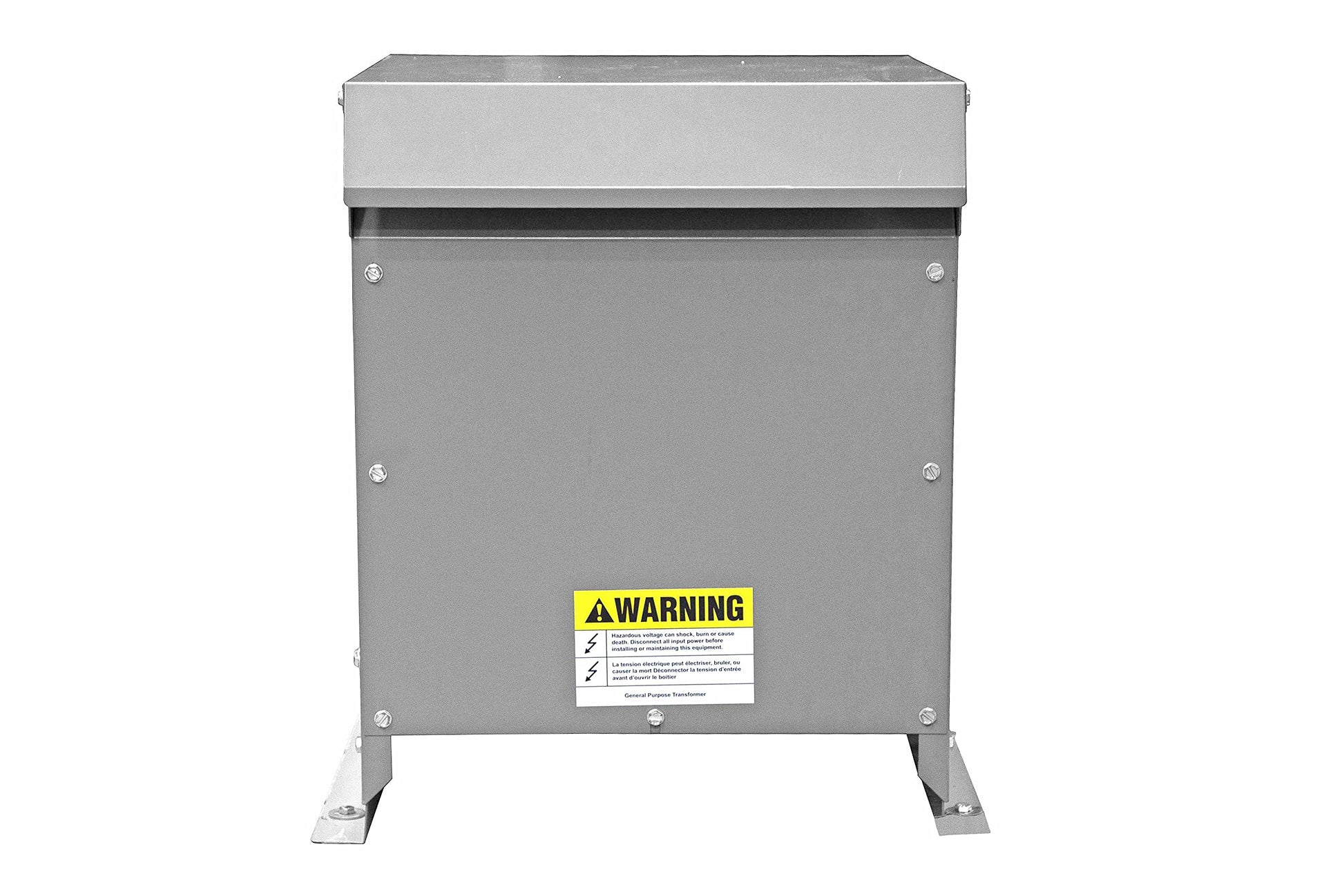

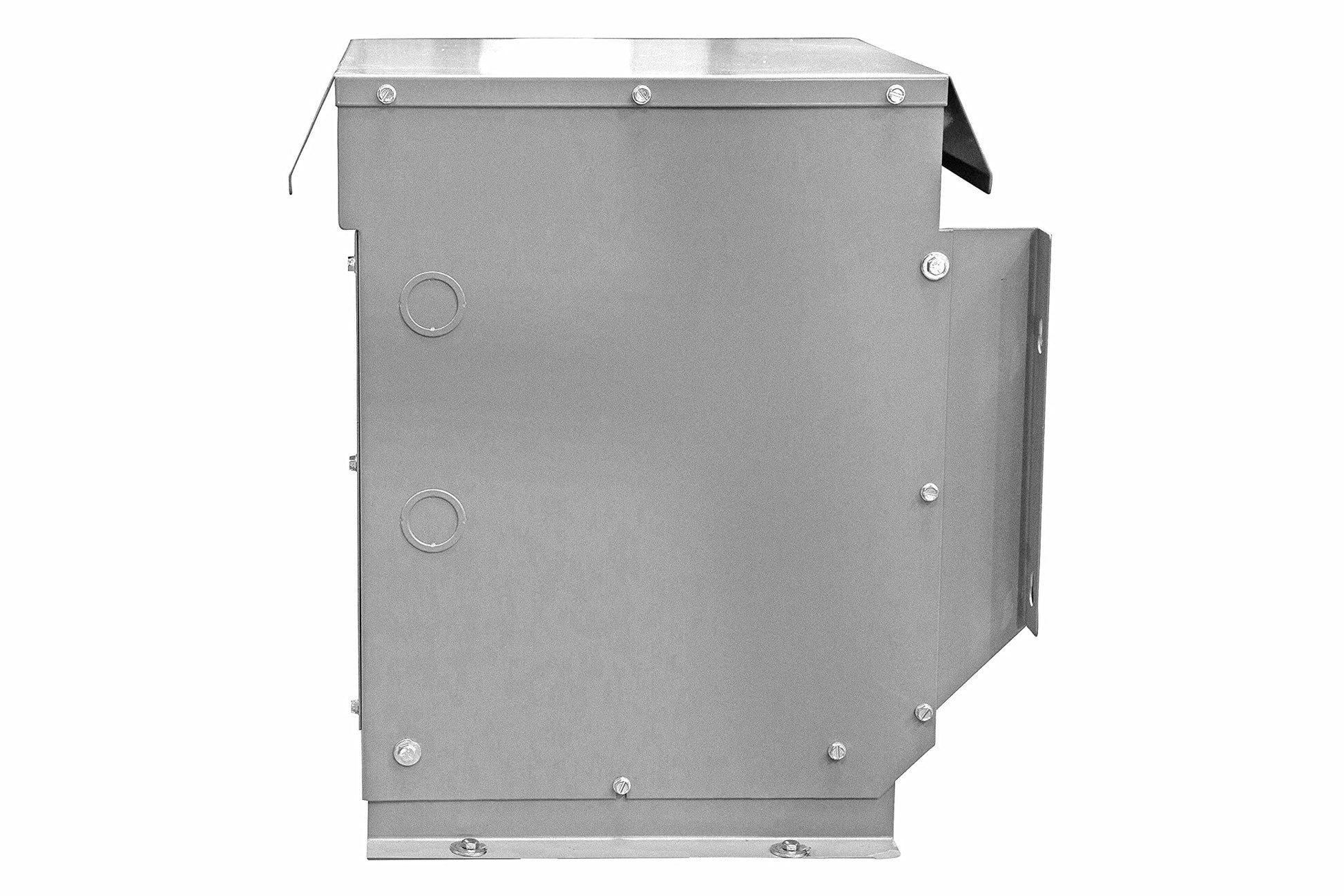

Details: With a transformer rating of 15kVA, this transformer is a three phase unit with a primary voltage of 480V Delta. It also provides a secondary voltage of 400Y/231 Wye-N. Featuring robust construction, this unit`s cores are manufactured with non-aging, cold-rolled silicon steel laminations using state of the art technology. The Standard Type 3R enclosure makes the unit suitable for both indoor and outdoor applications and is floor mounted. The unit also features 220 degrees C insulation with a 150 degrees C temperature rise and is rated IP24. This general purpose transformer offers many benefits to the consumer. This isolation transformer provides owners with significant energy savings as well as offering environmental benefits. Integrated floor mounting brackets make installation fast and easy and the offset outward facing floor installation holes allow for easy power tool access. This is an isolation transformer which means that it provides operators with an increased level of protection against electric shock. Larson Electronics is a manufacturer and as such can build stationary and portable transformer systems to your specifications. Although we carry several models of power distribution transformer systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us to discuss your specific requirements.

Package Dimensions: 40.0 x 30.0 x 30.0 inches
