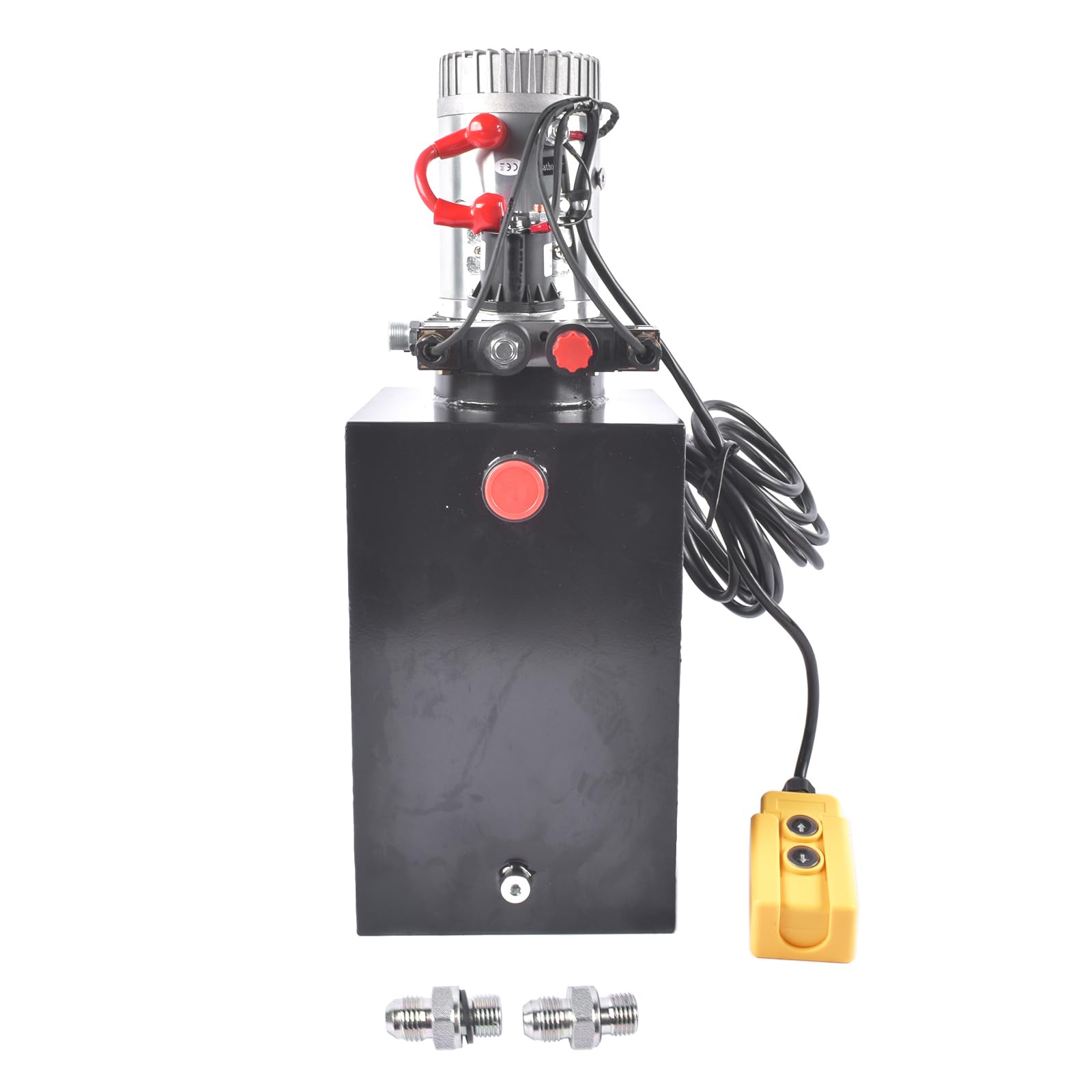

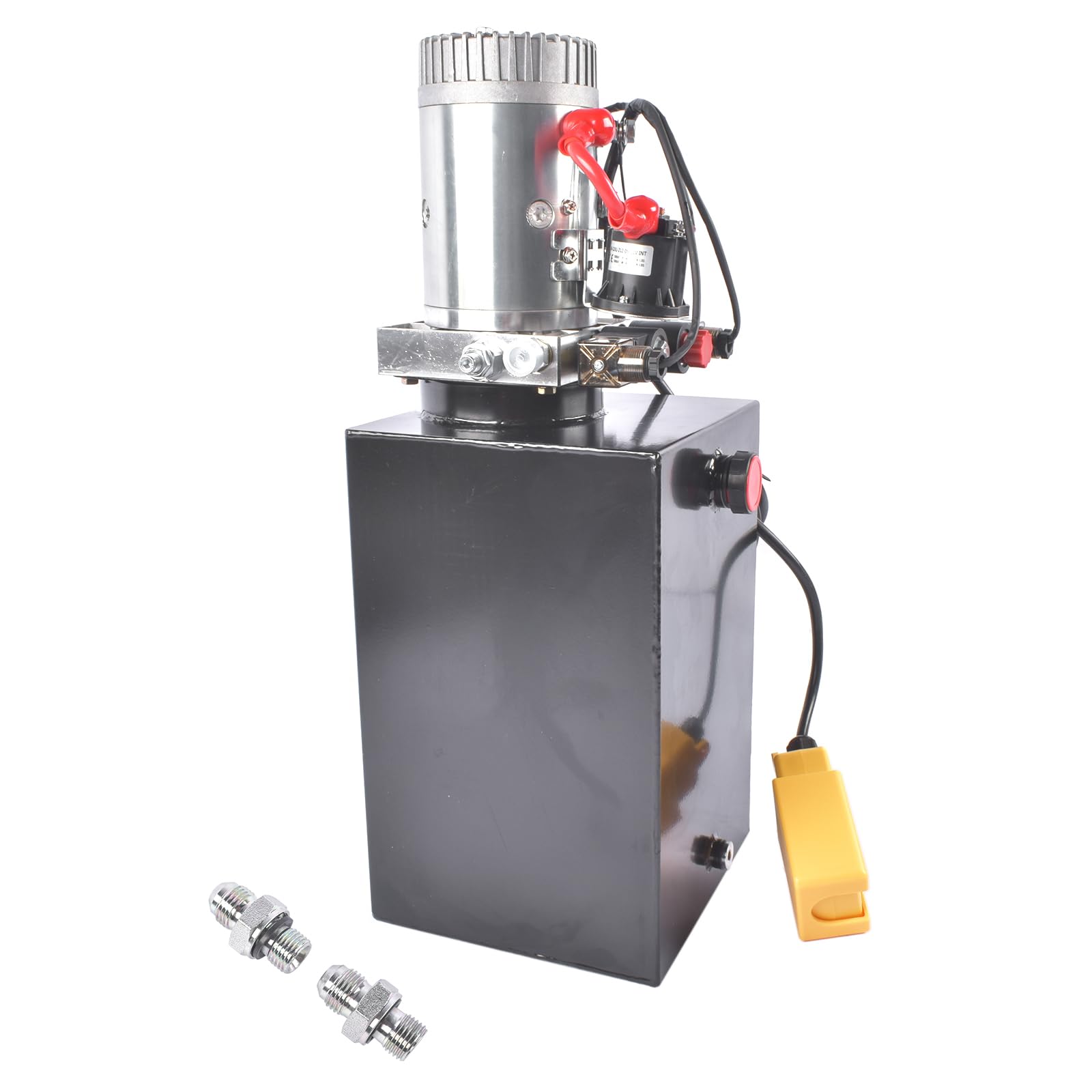

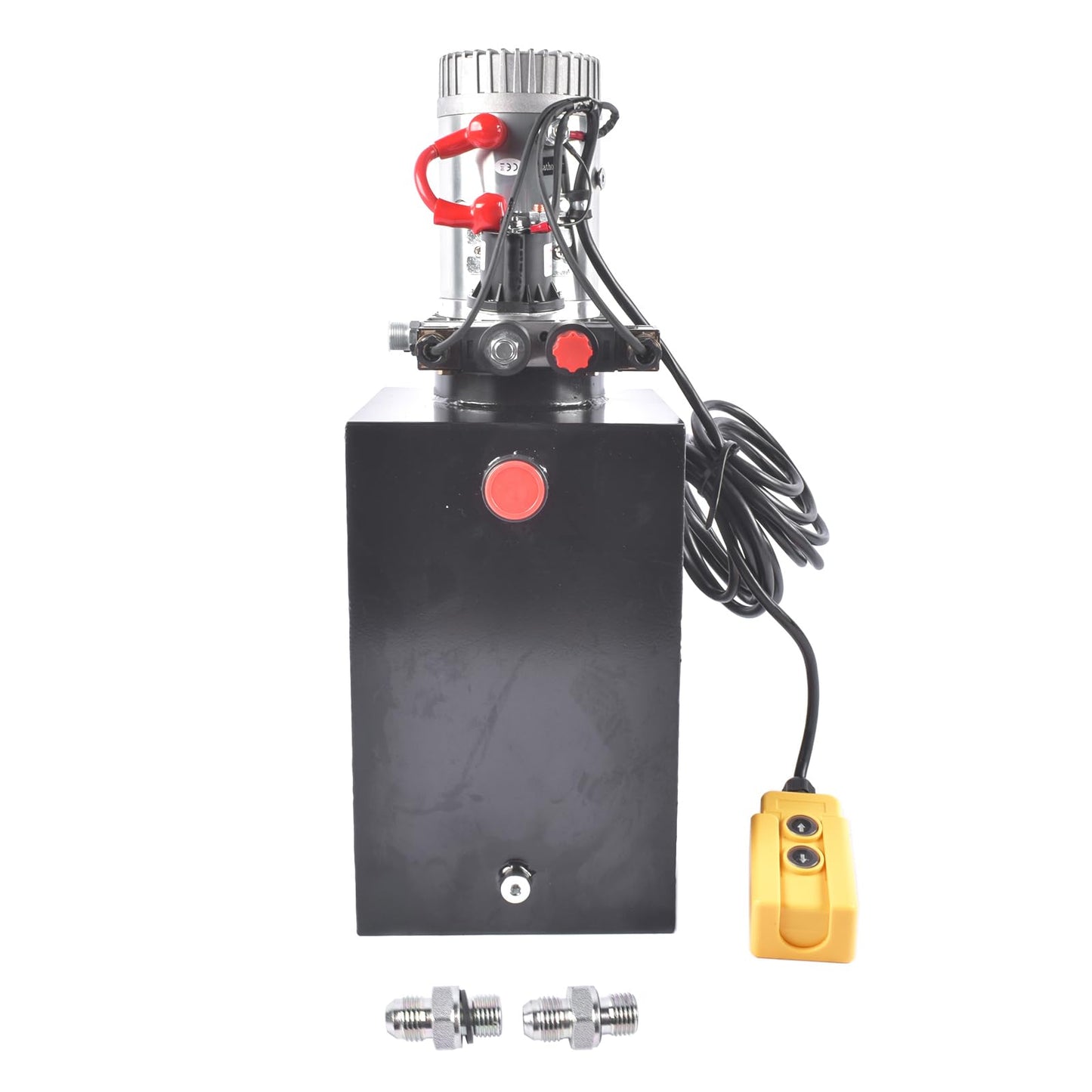

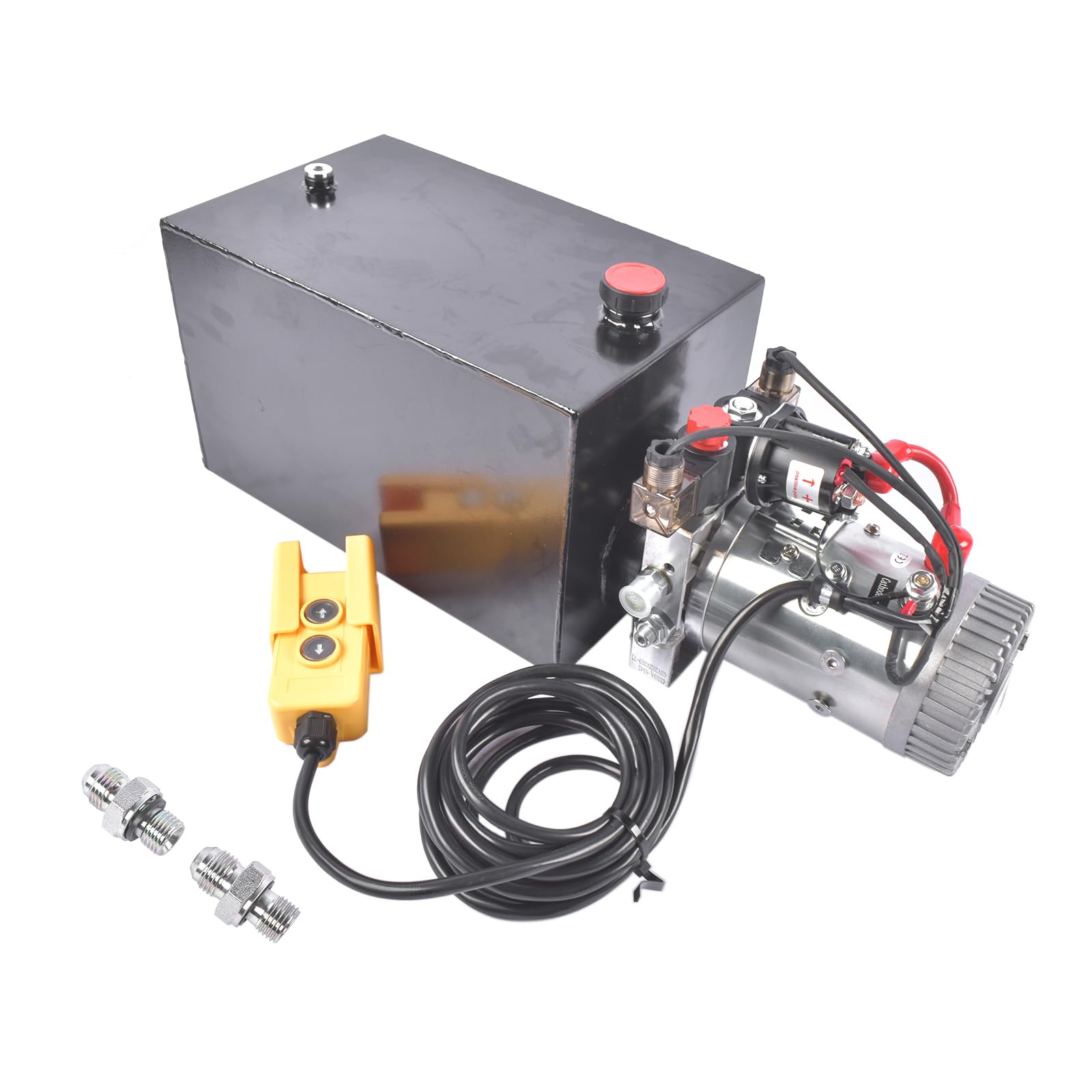

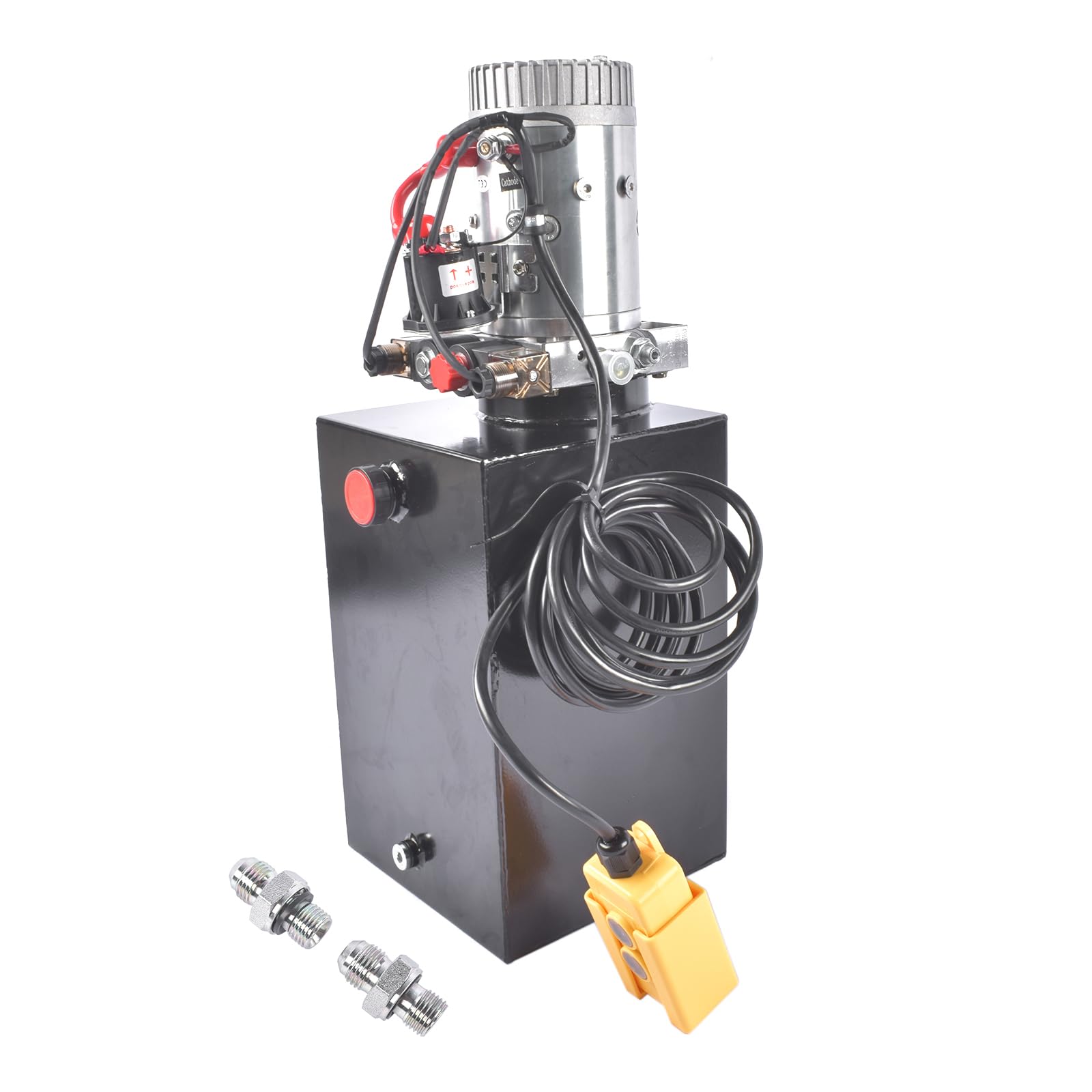

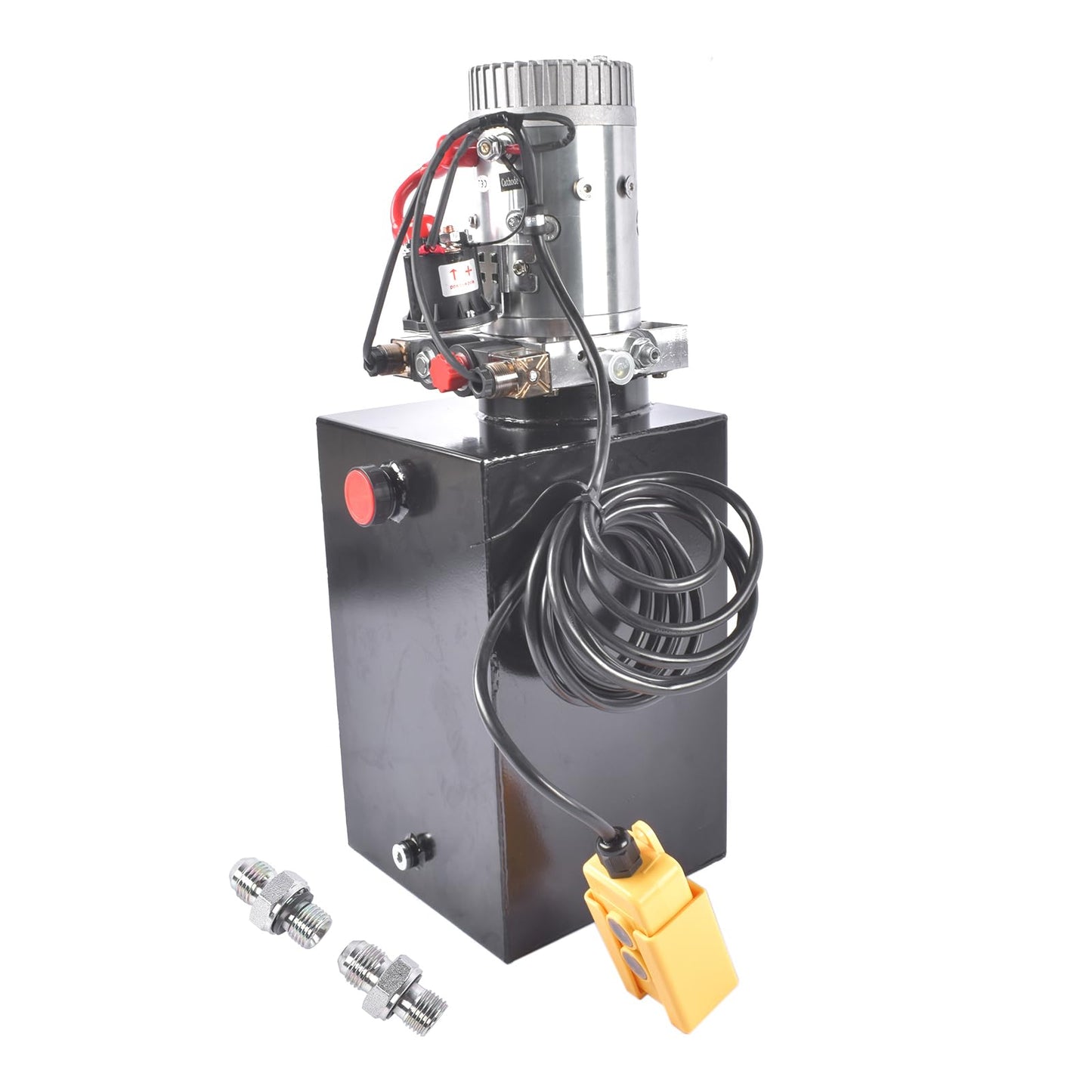

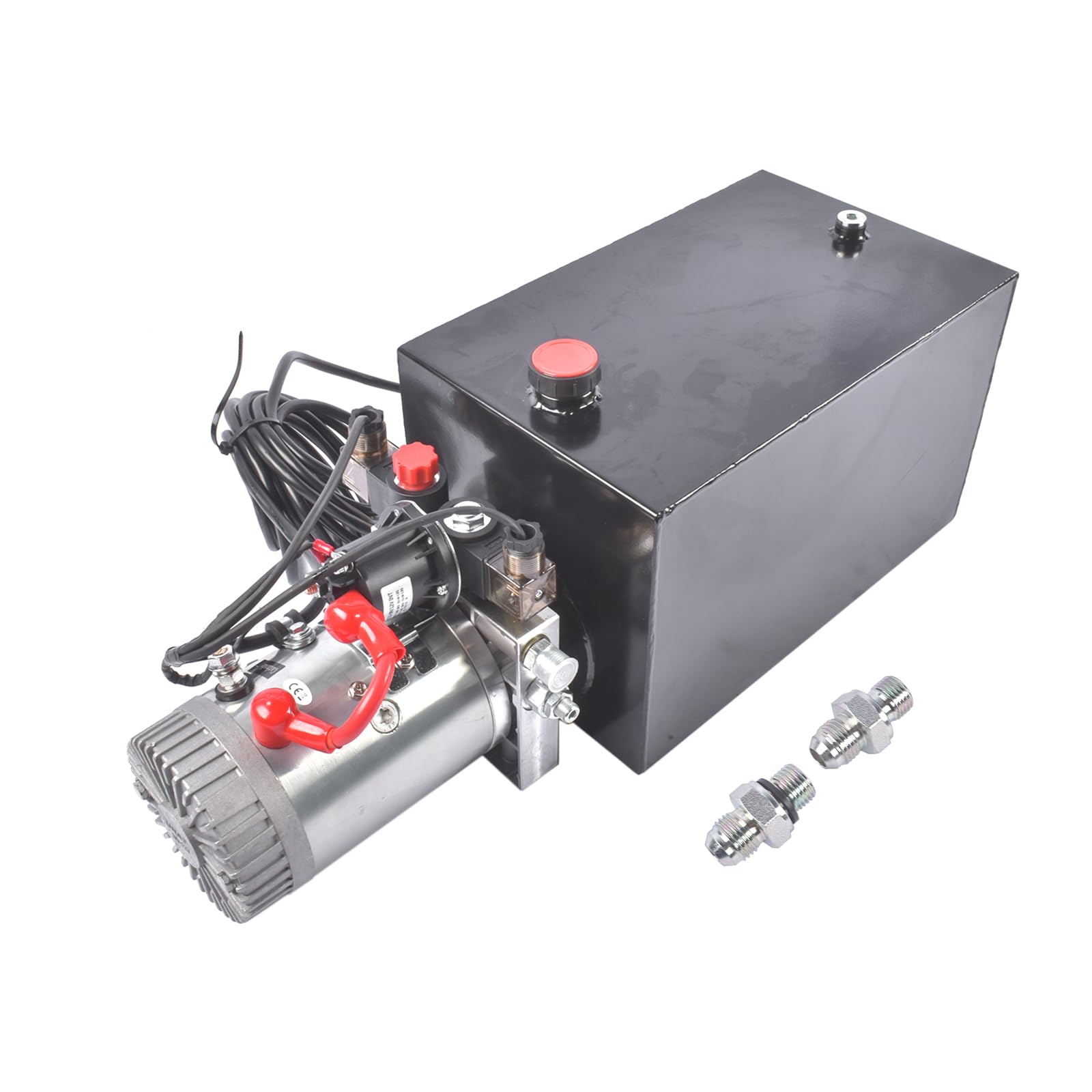

15 Quart Double Acting Hydraulic Pump 12V DC Dump Trailer Hydraulic Power Unit 3200PSI 22MPa 1.6KW with 2 Additional SAE#6 Connectors Weonefit

Brand: Weonefit

Color: Black

Features:

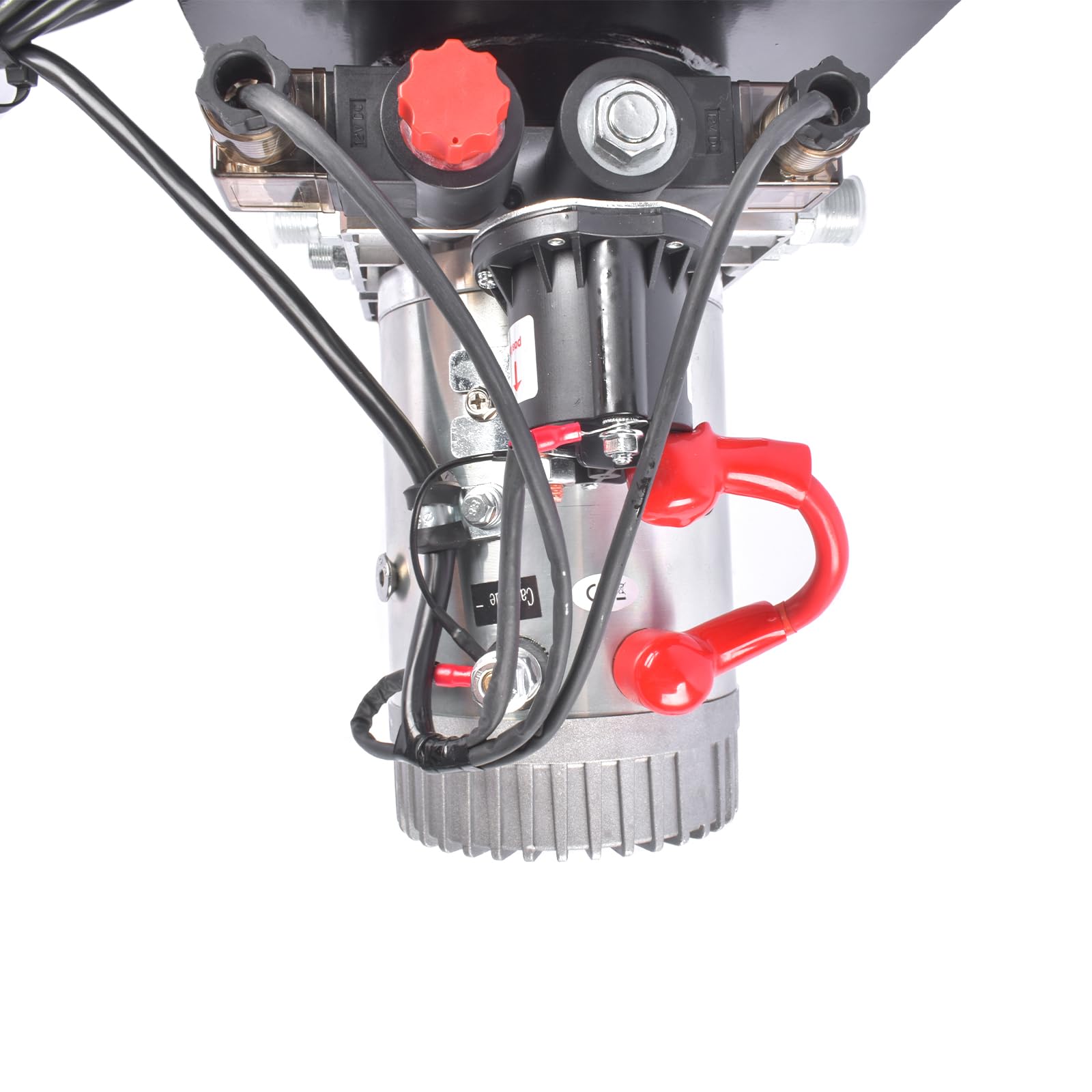

• High Performance: The hydraulic pump is equipped with a 12V DC motor (rated at 1.6KW) and a 15 quart/15-liter oil tank. The maximum pressure at the outlet can reach 3200PSI/22MPa with your double-acting cylinder can easily lift at least 5 tons of weight.
• Quick Start＆Lifting: With the powerful 12V DC electric motor, our hydraulic pump for dump trailers can start rapidly and provide quick oil output. In addition, it can provide strong power that will lift heavy objects in a short period.
• Double Acting Power Unit: This hydraulic power unit employs a double-action power mechanism. Ensures hydraulic oil works alternately in both ports, evenly distributing force across your equipment. A built-in safety relief valve automatically releases pressure if the limit is exceeded, ensuring a safer operation with fewer failures.

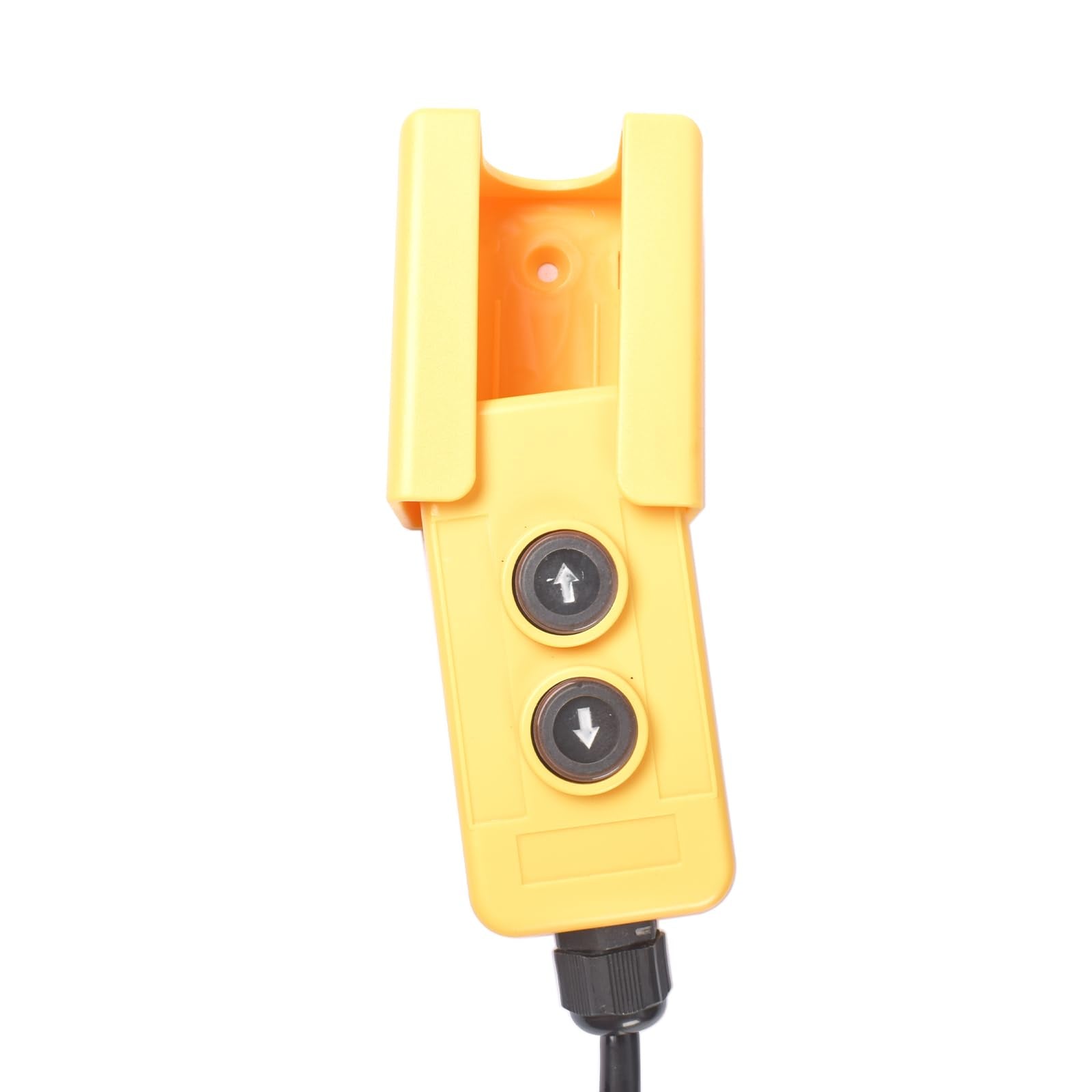

• Easy to Use: This hydraulic power unit can be used directly with the controller (included) after connecting your cylinder with the oil pipe (not included) and connecting the 12V DC power supply (not included) according to the instructions. The interface type of the oil port is (9/16')SAE#6, and the suitable hydraulic oil viscosity range is 22-46mm²/s.
• High Cost Performance: This brand new hydraulic pump is perfect for replacing your dump trailer pump, and you get a great performing hydraulic power unit for half the cost of a dump truck pump store. It can also be used as a power unit for other hydraulic systems such as garden tractors, forklifts, stackers, small or medium-sized lifting platforms, etc.

model number: Weonefit 15 Quart 12V DC Hydraulic Pump

Details: I. Product Details:

The hydraulic pump is equipped with a 12V DC motor (rated at 1.6KW) and a 15 quart/15-liter oil tank. The maximum pressure at the outlet can reach 3200PSI/22MPa with your double-acting cylinder can easily lift at least 5 tons of weight, which can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.

II. Technical Specifications:

Material of Tank: Metal
Reservoir Capacity: 15 quart
Voltage: 12V DC
Pump Action: Double Acting
Power Source: Electric
Motor Power: 1.6KW
Rated Pressure: 3200PSI / 22MPa
Reservoir: 15 Quart Steel Reservoir
Port: SAE #6 Port
Rotating Speed: 2600r/min
Installation Method: Horizontal Mount

III. Wide Application:

For most truck tailgate lift, RV leveling, scissor lift, dump trailers, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.

Package Dimensions: 25.7 x 11.5 x 11.3 inches
