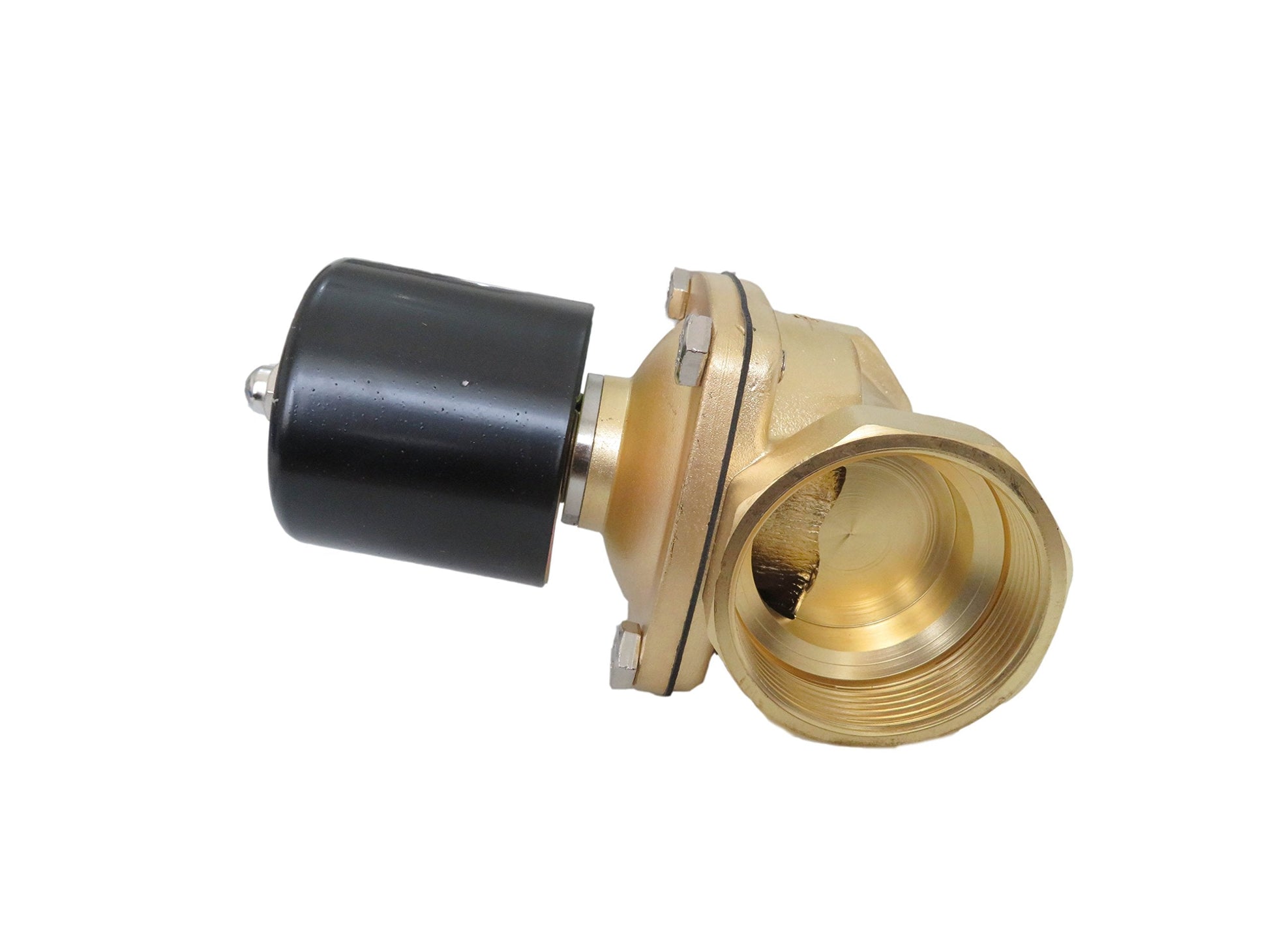

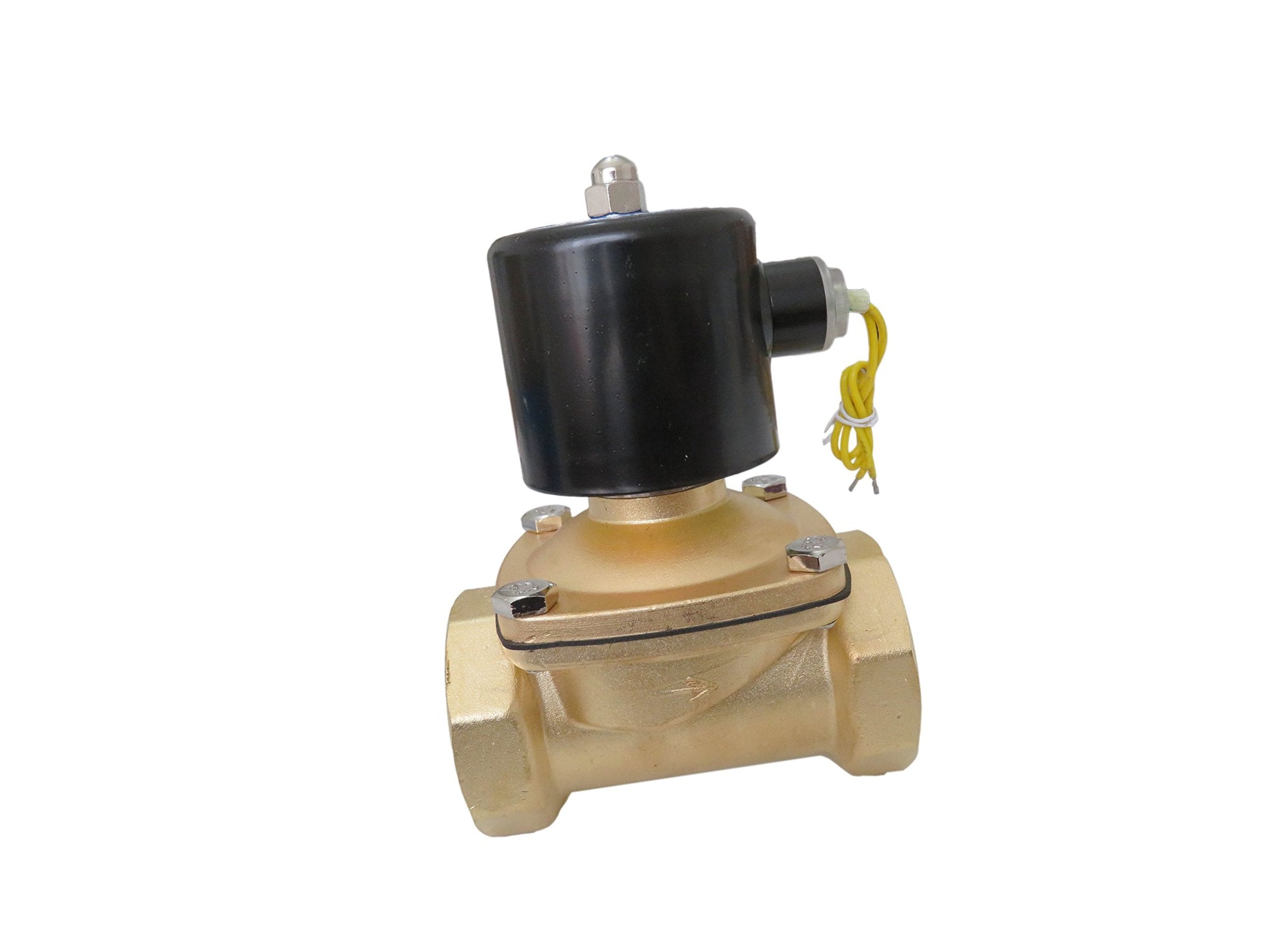

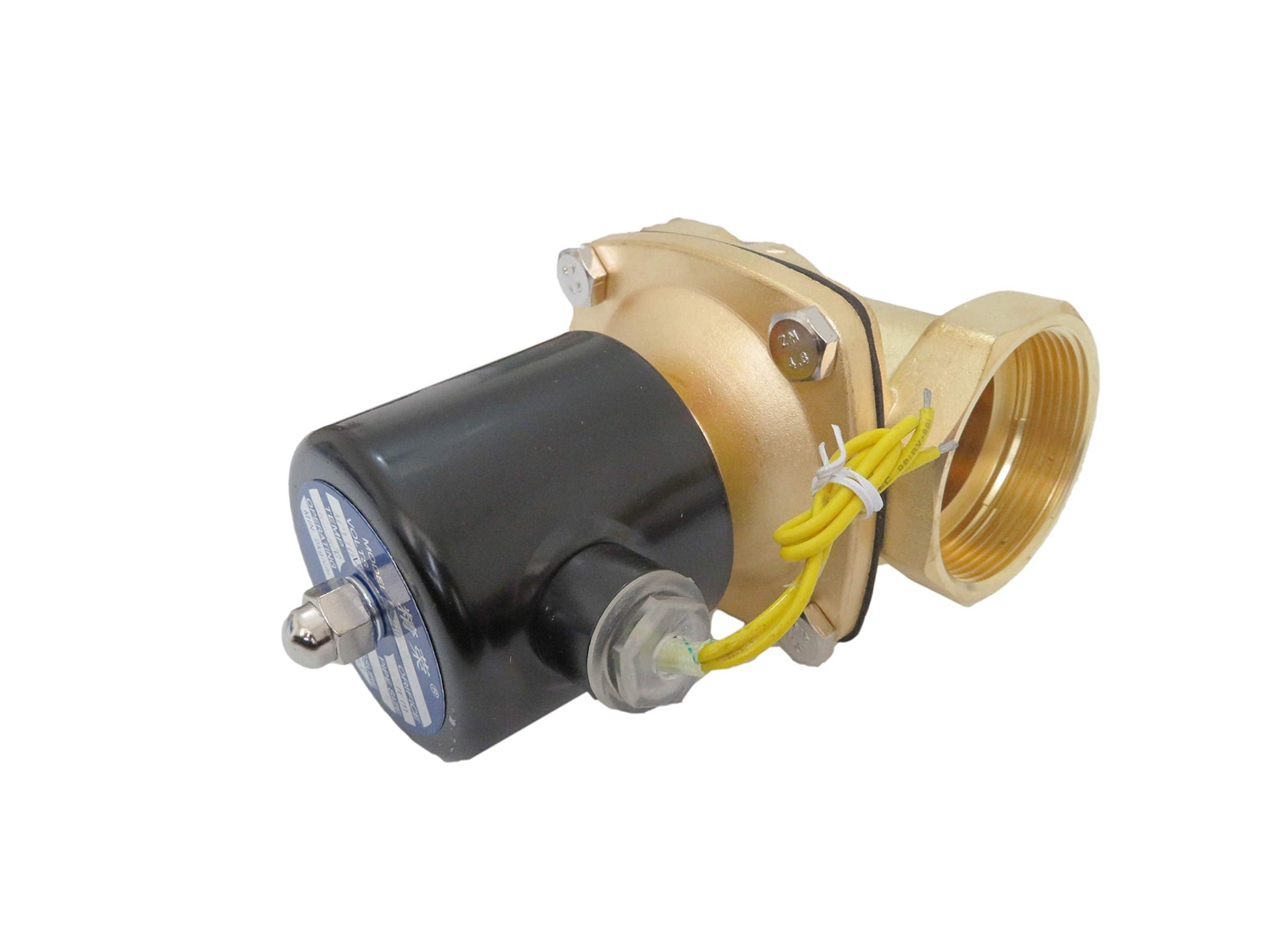

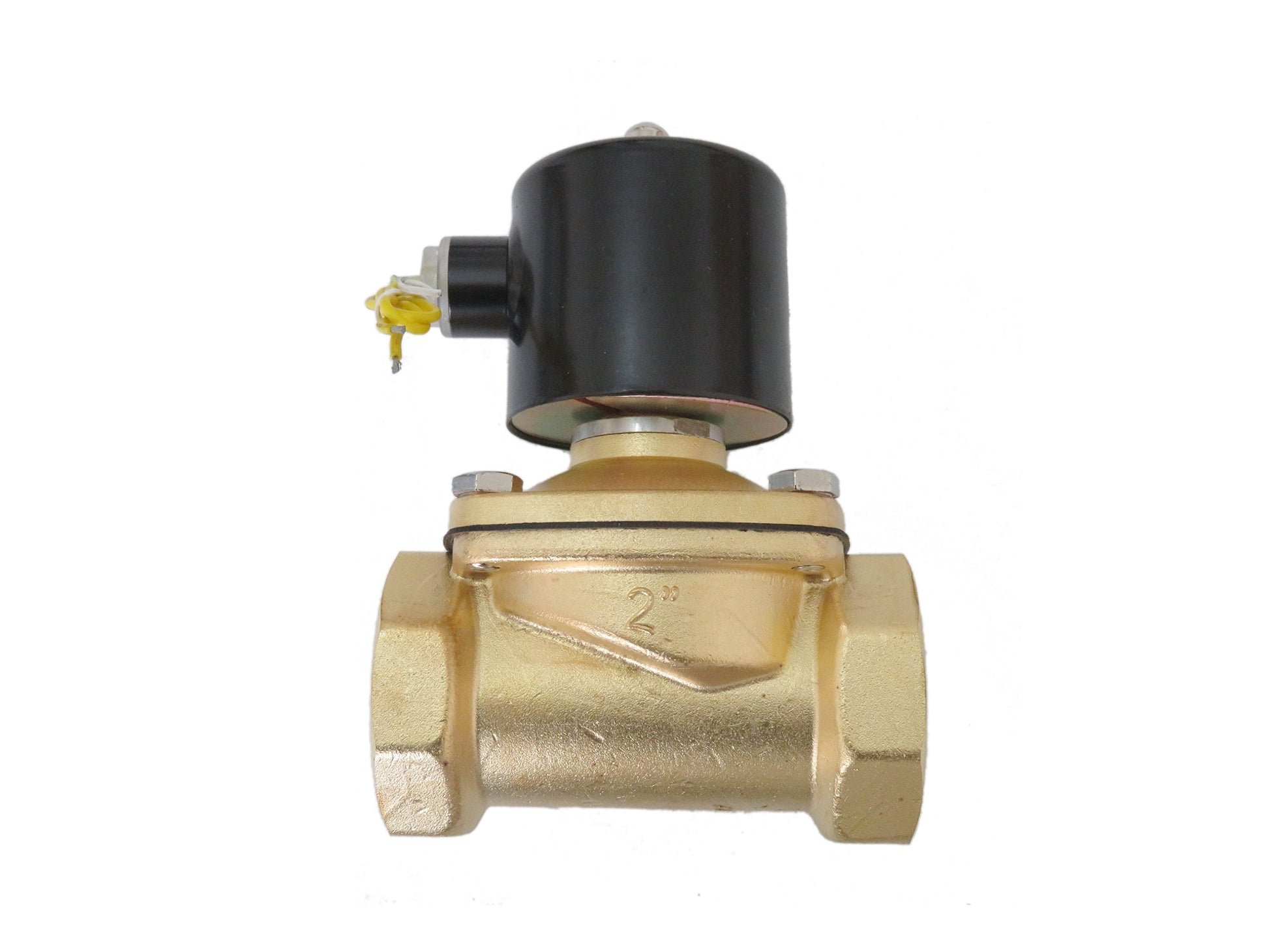

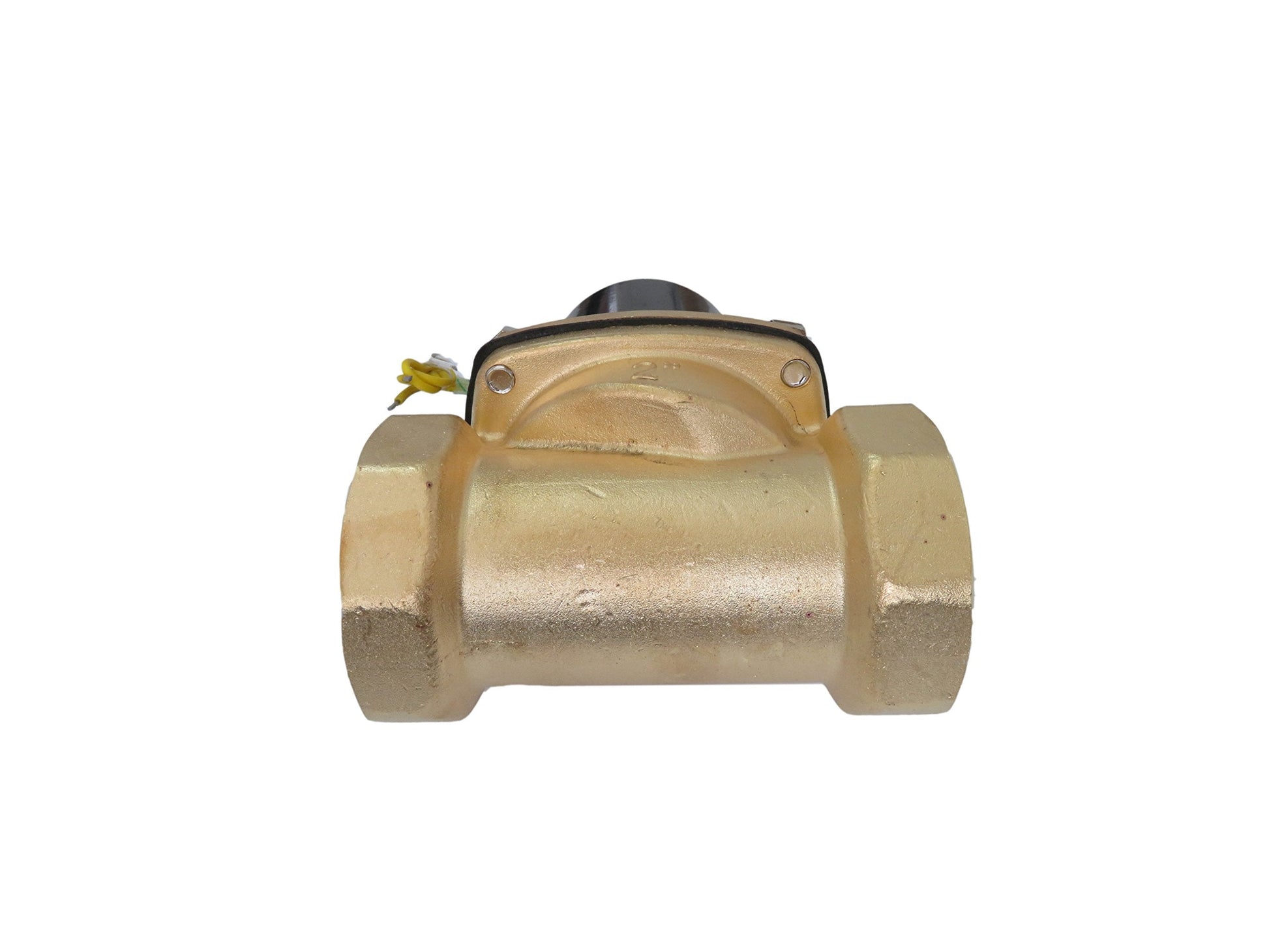

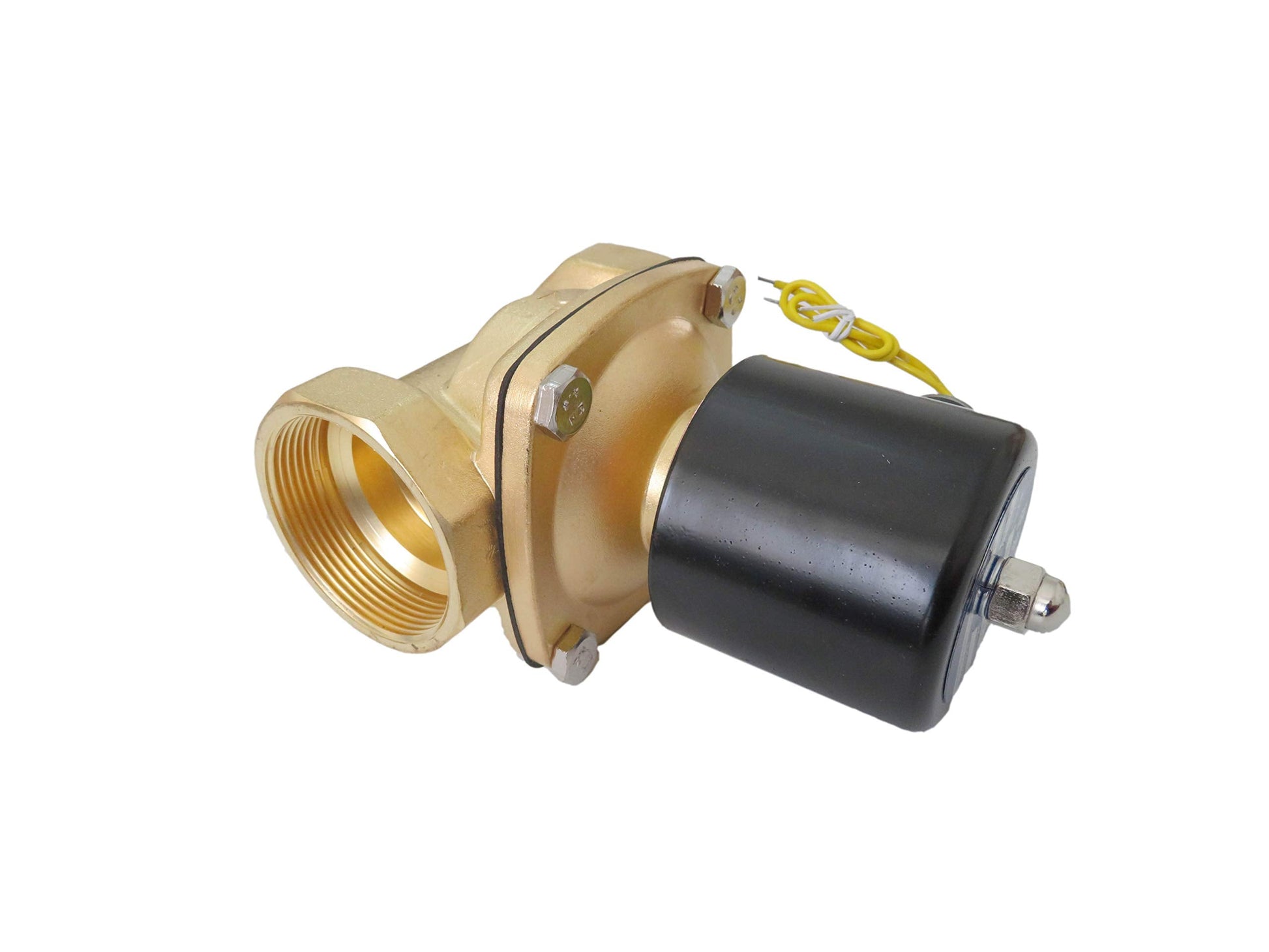

2" Inch 110V AC Brass Electric Solenoid Valve 110 VAC 120 Volt

Brand: XSPANDER

Features:

• Normally Closed – Opens when power is applied
• Gravity Feed Capable – No Minimum Pressure
• Connection: 2” Inch FNPT
• Pressure Range: 0 – 145 PSI
• Suitable Media Water: Air - Gas - Etc

model number: 110-VAC

Part Number: 110-VAC

Details: TECH SPECS:
Body Material: Brass
Components: Stainless Steel
Operation Type: Semi-Direct Lift Valve
Coil Connection: 5.5'' Lead Wire
Orifice Size: 50 mm
Cv Value: 48
Height: 6.50''
Length: 5.30'' port to port
Width: 4.25''

FEATURES:
Proudct Name: 110 Volt AC Solenoid Valve
Function: Normally Closed
Connection: 2” Inch FNPT
Temperature Range: 20 – 265°F
Pressure Range: 0 – 145 PSI
Power Requirements: 40VA - 40 Watts
Suitable Media: Water – Air - Gas - Etc

Package Dimensions: 9.3 x 6.7 x 3.9 inches
