For safety reasons, we cannot accept returns on transformers, phase or frequency converters.
Once these products leave the factory, they cannot be resold and must be destroyed to ensure every unit sold is safe to use.
130 degrees C insulation with a 80 degrees C temperature rise
Contact us today for information about custom options tailored to meet your specific needs
model number: 153381
Part Number: 153381

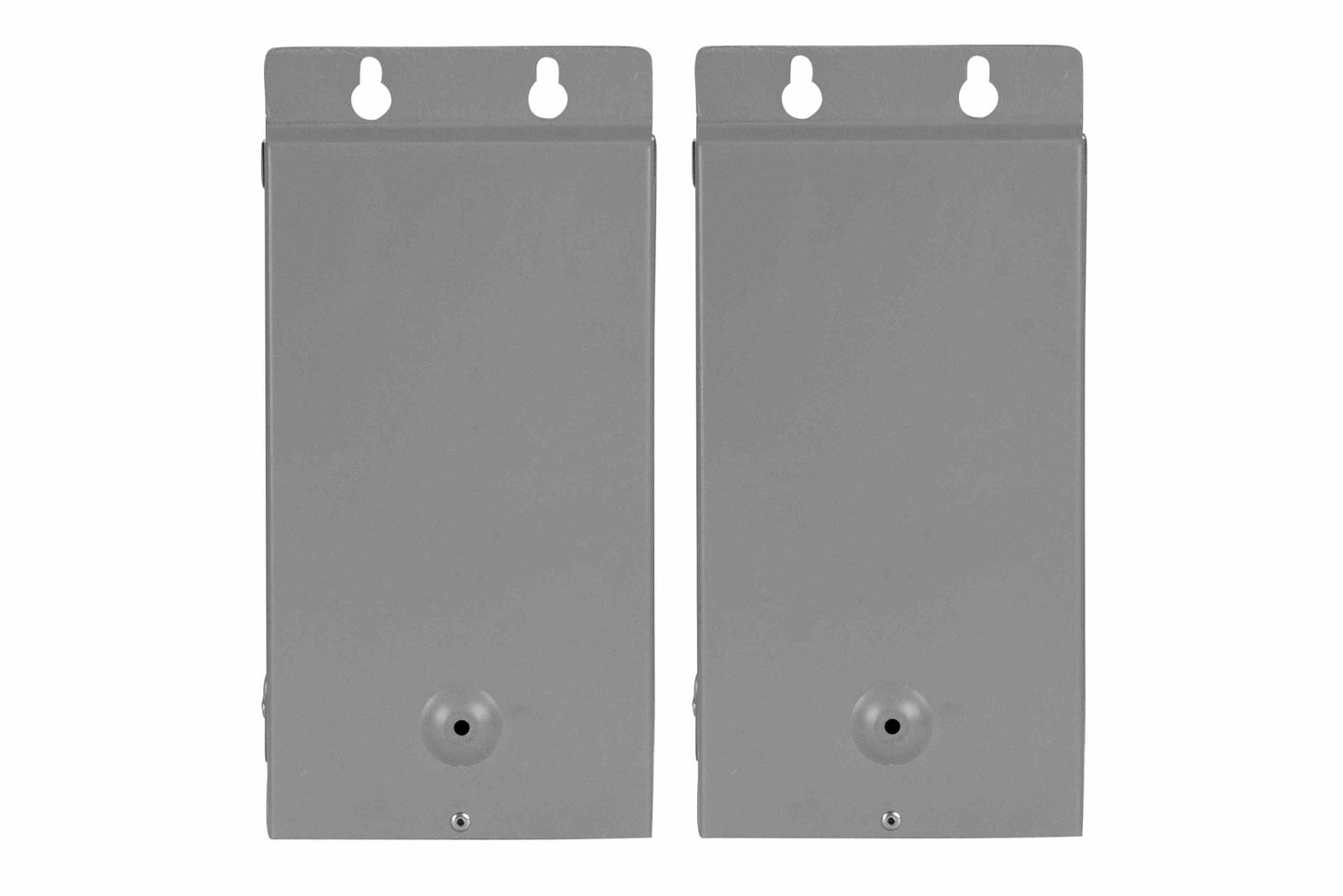

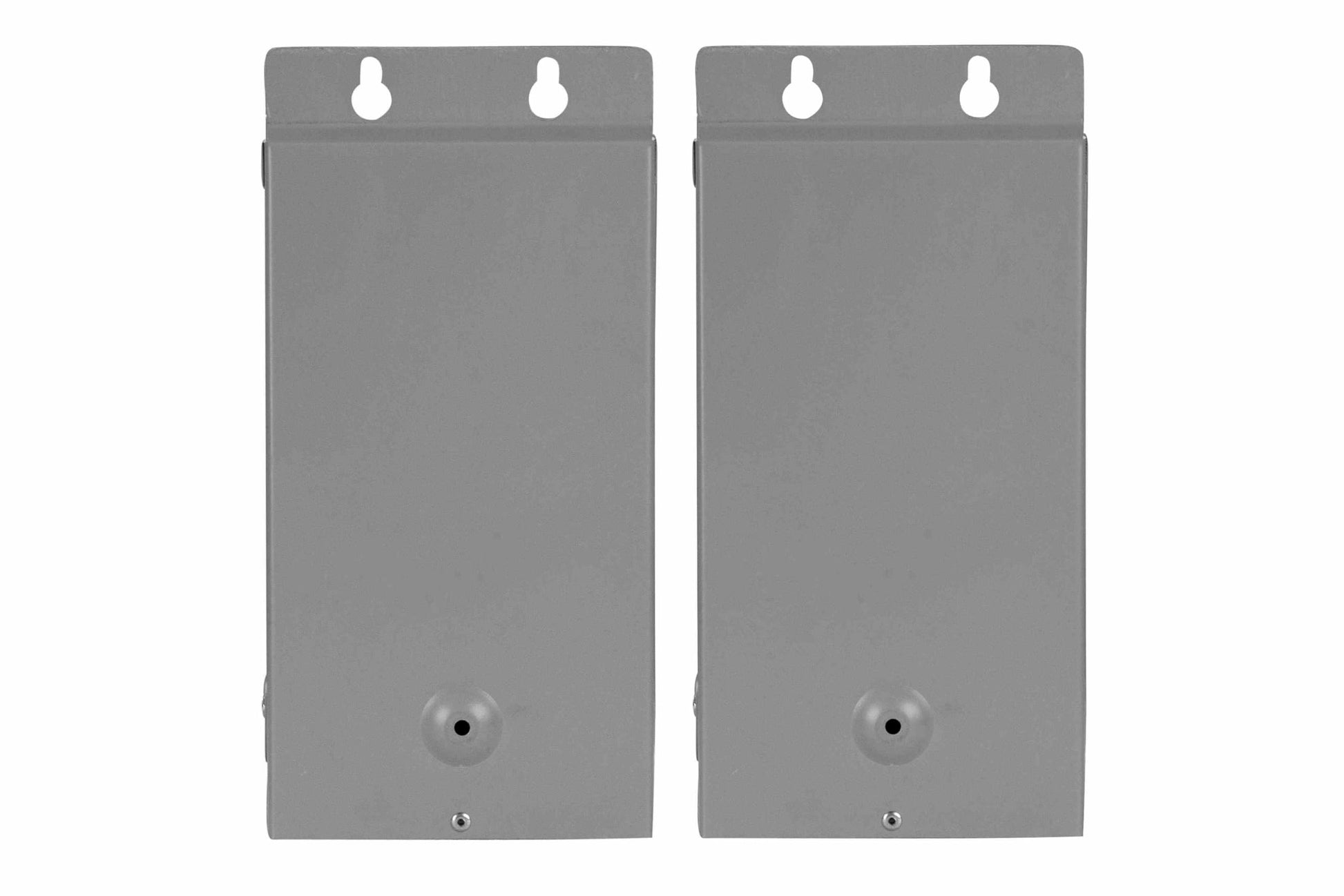

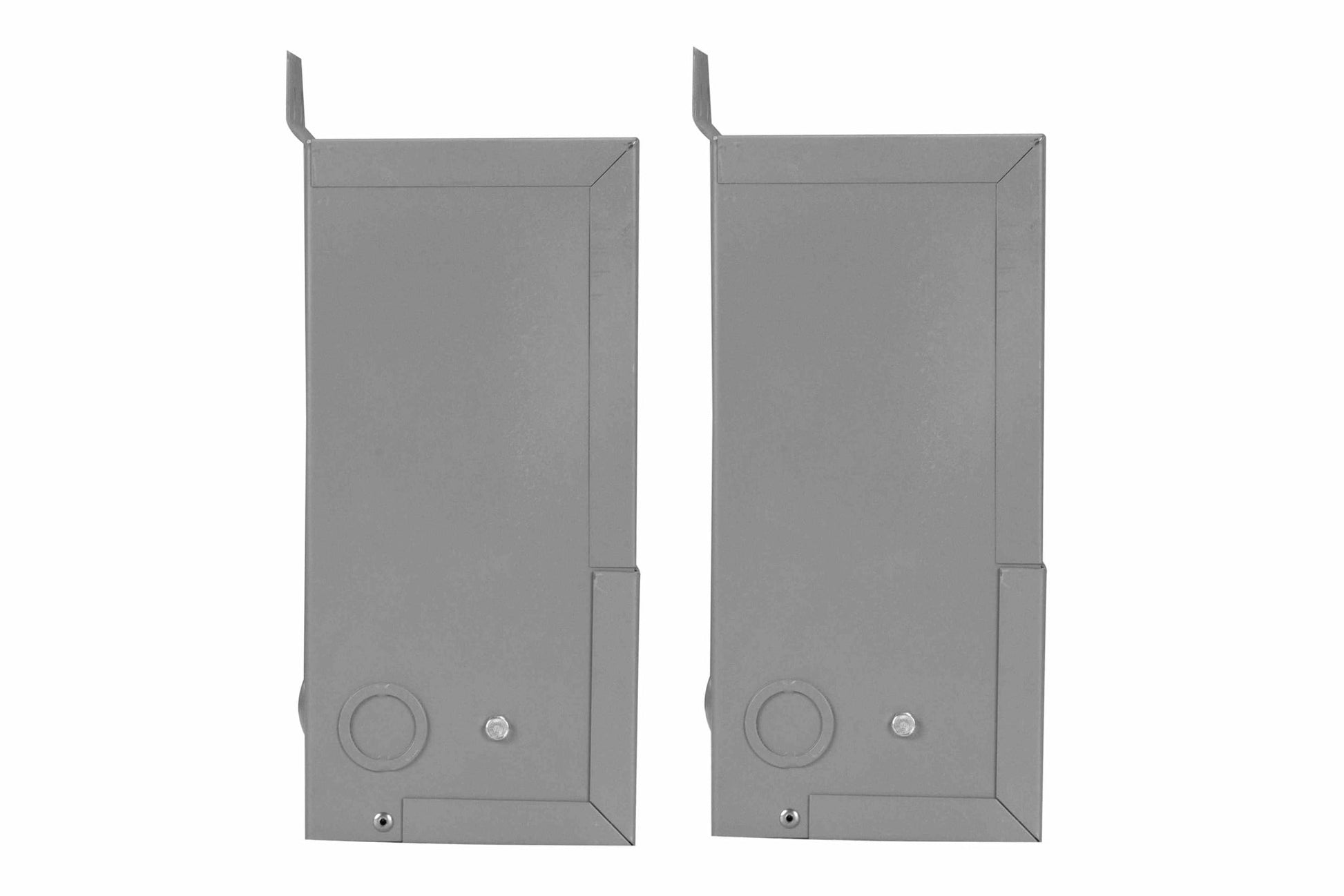

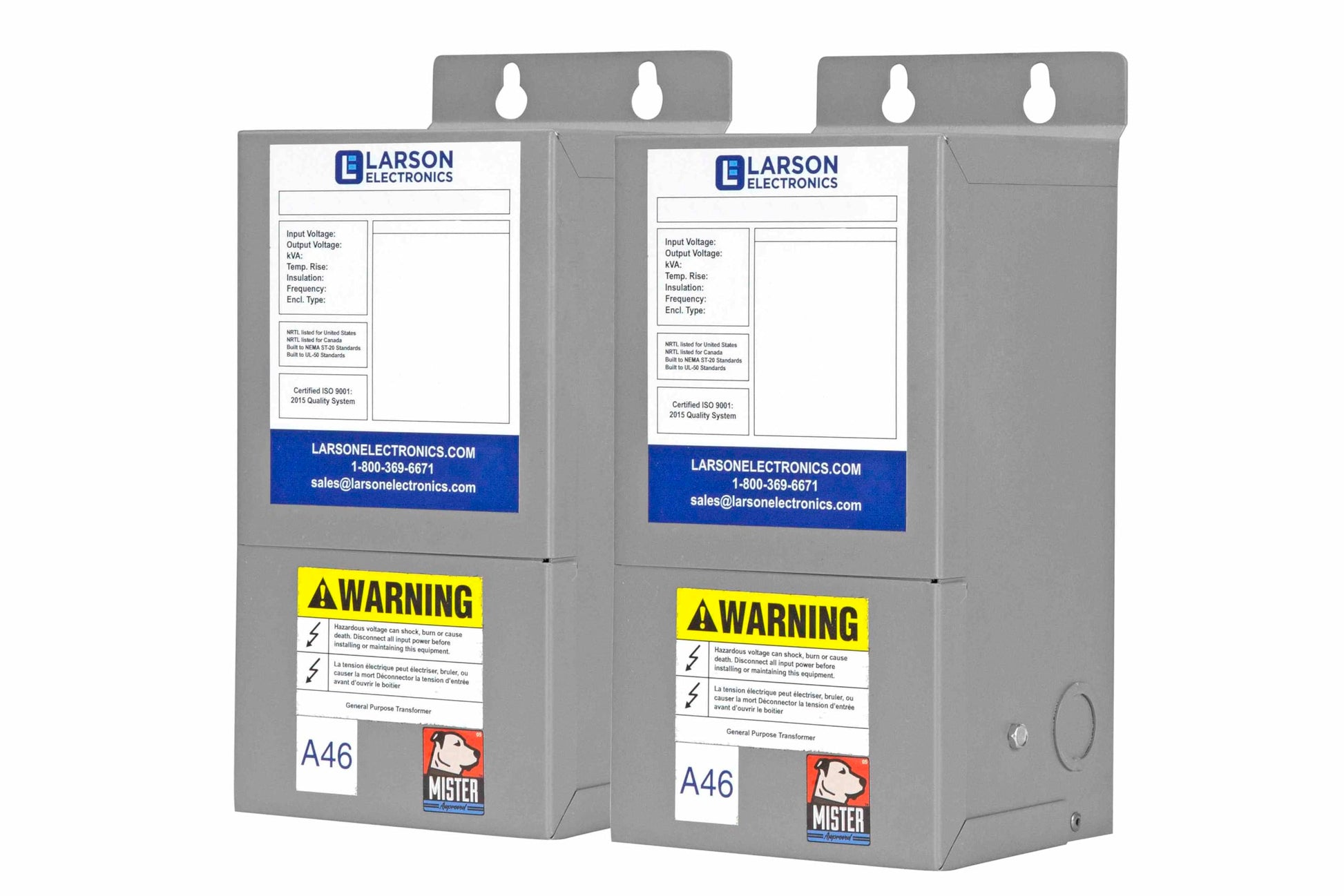

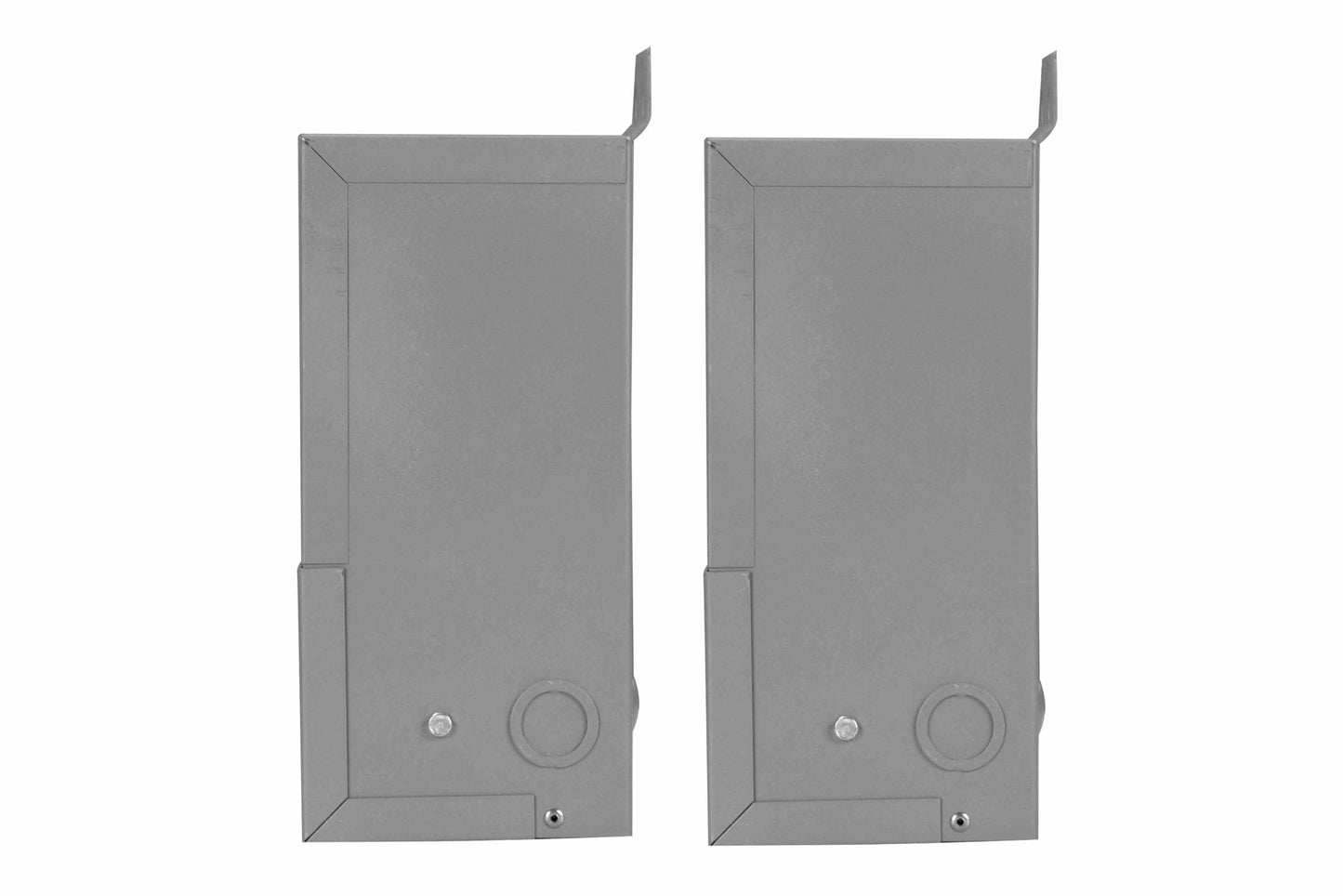

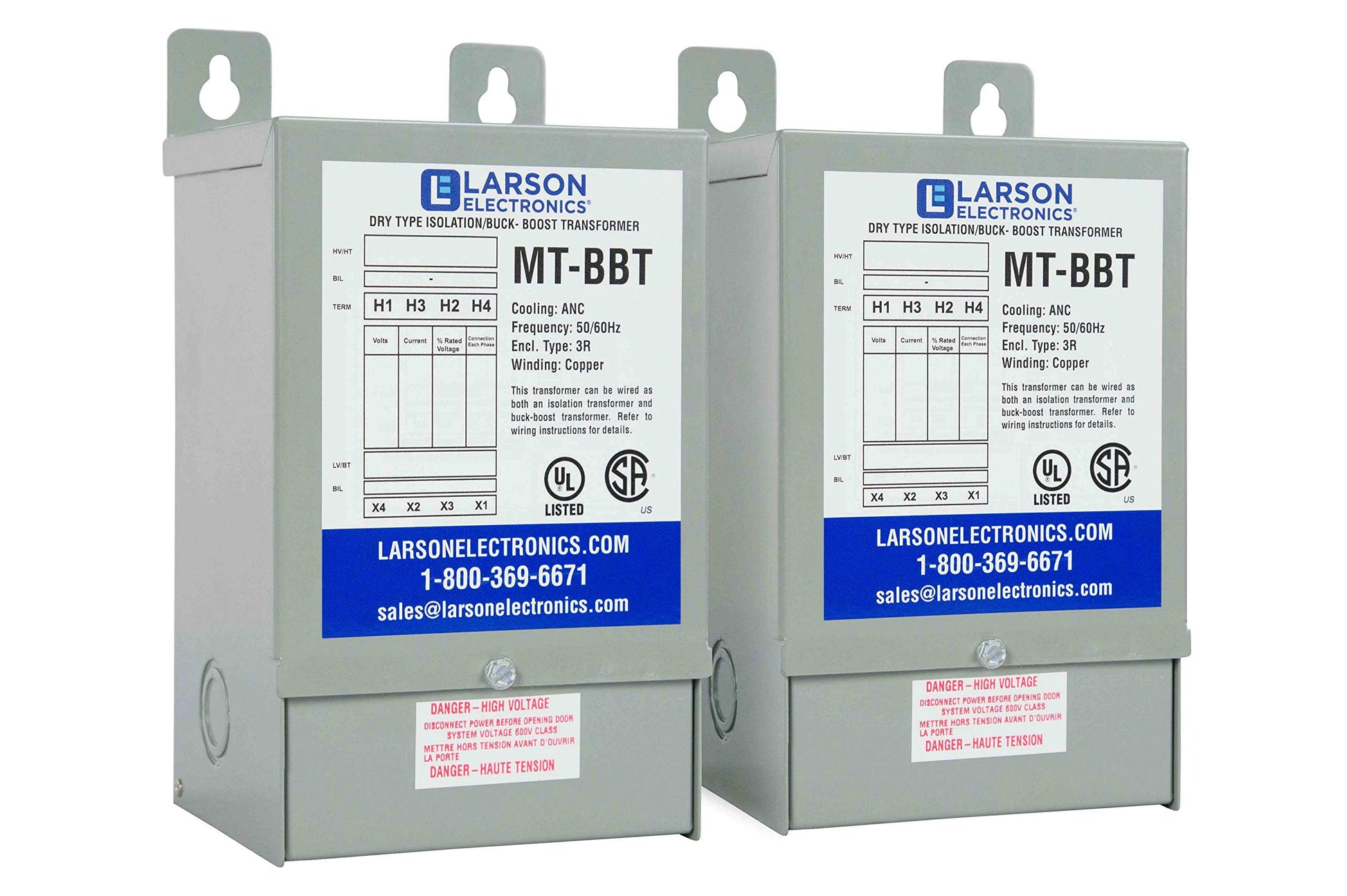

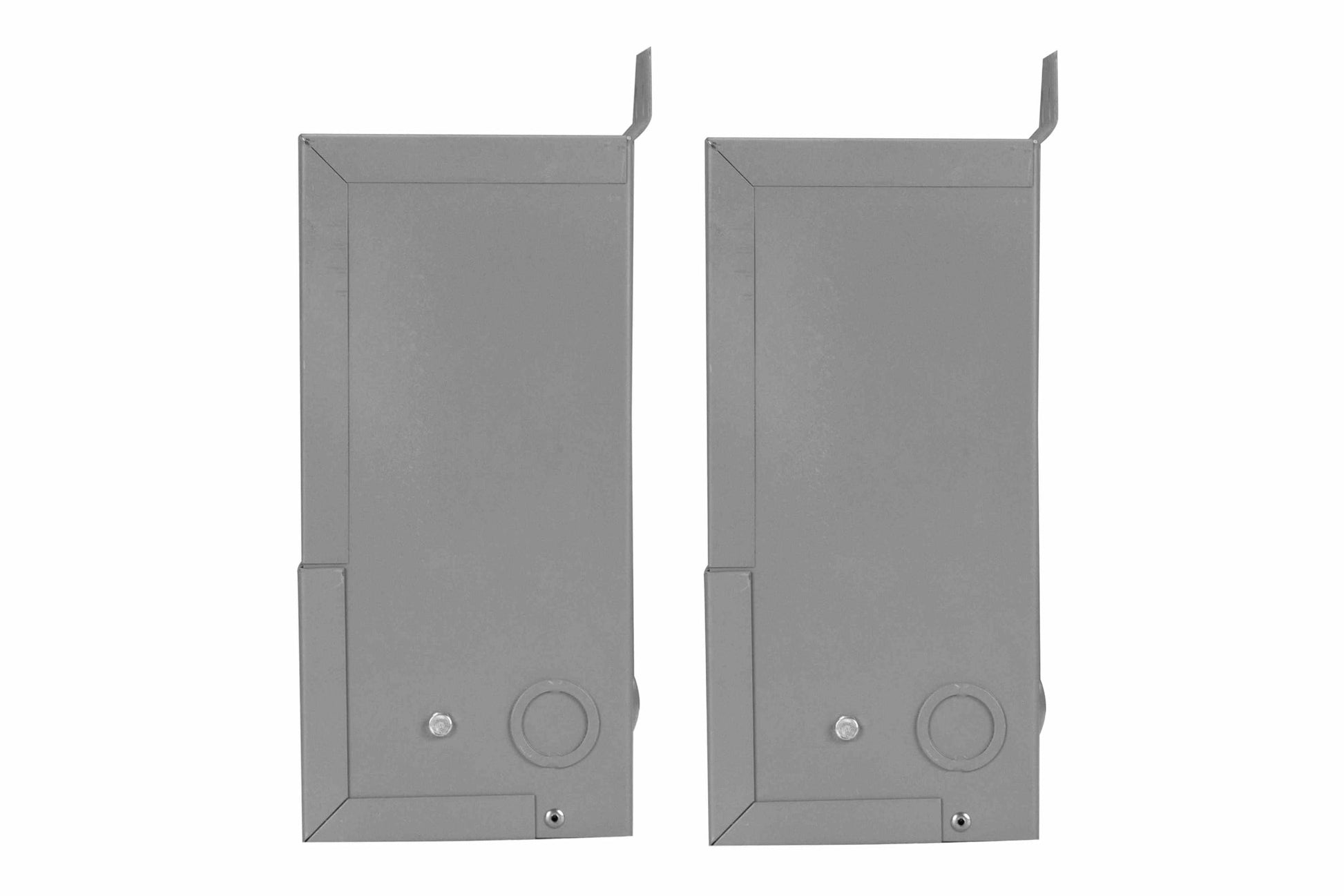

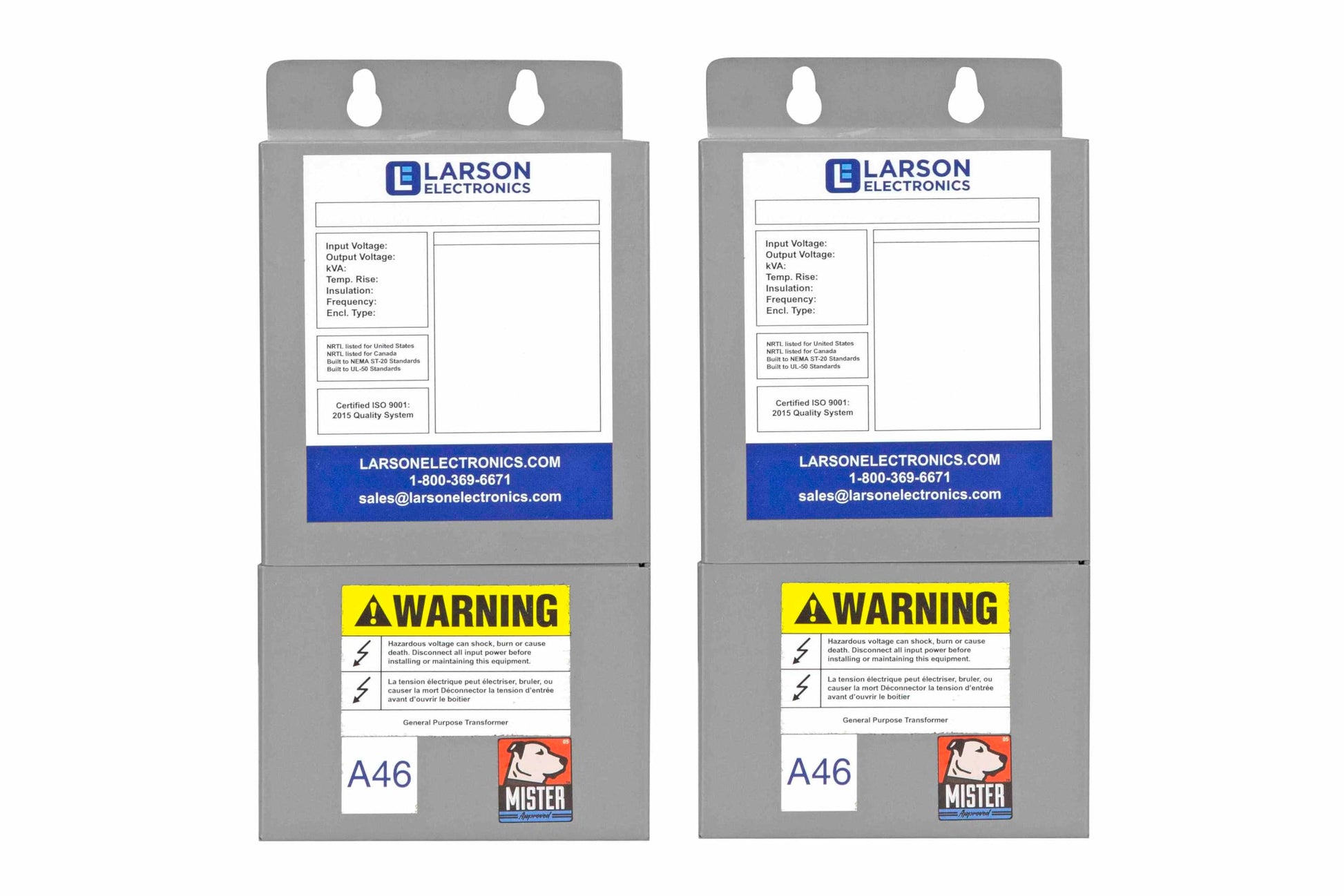

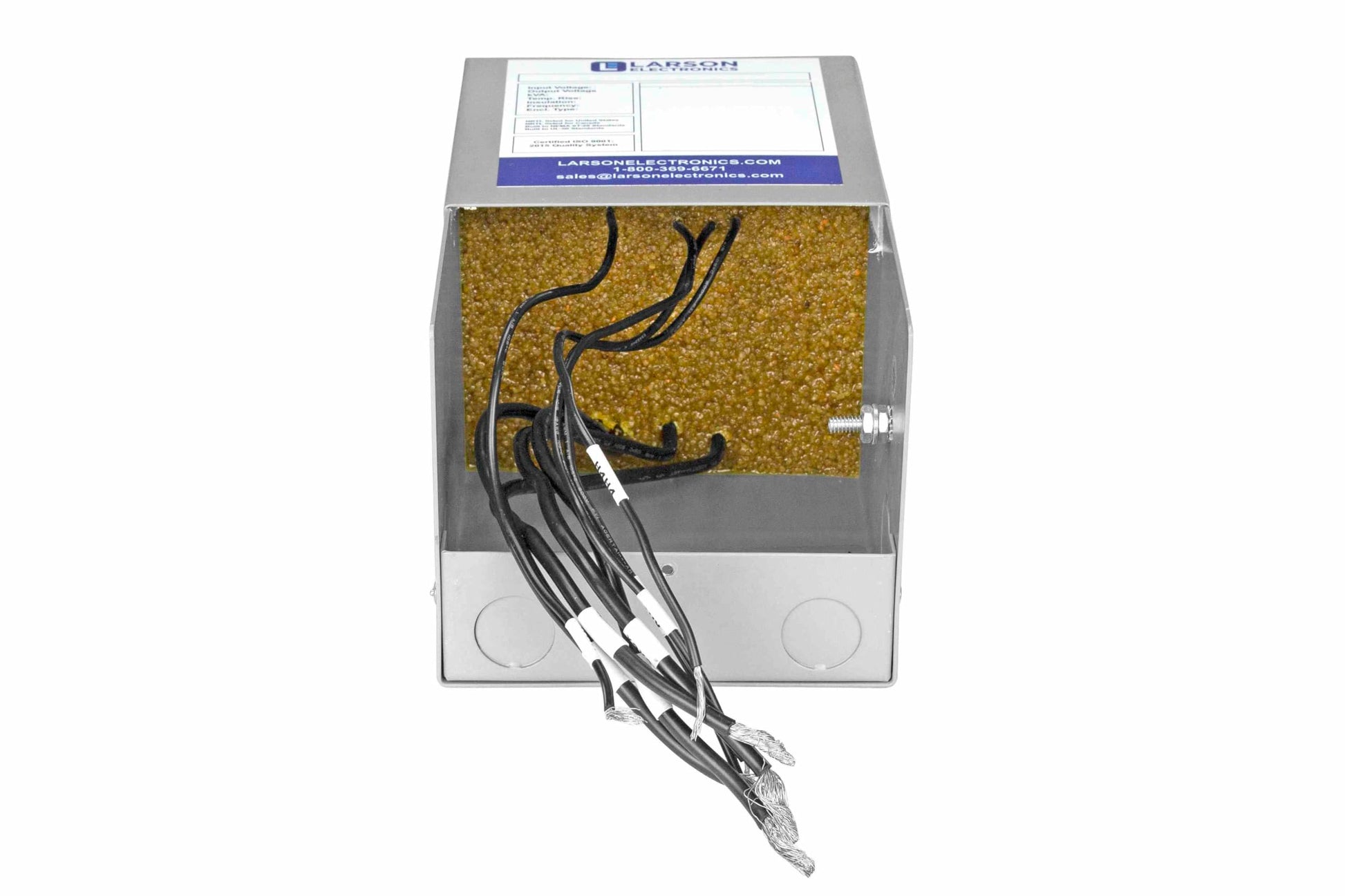

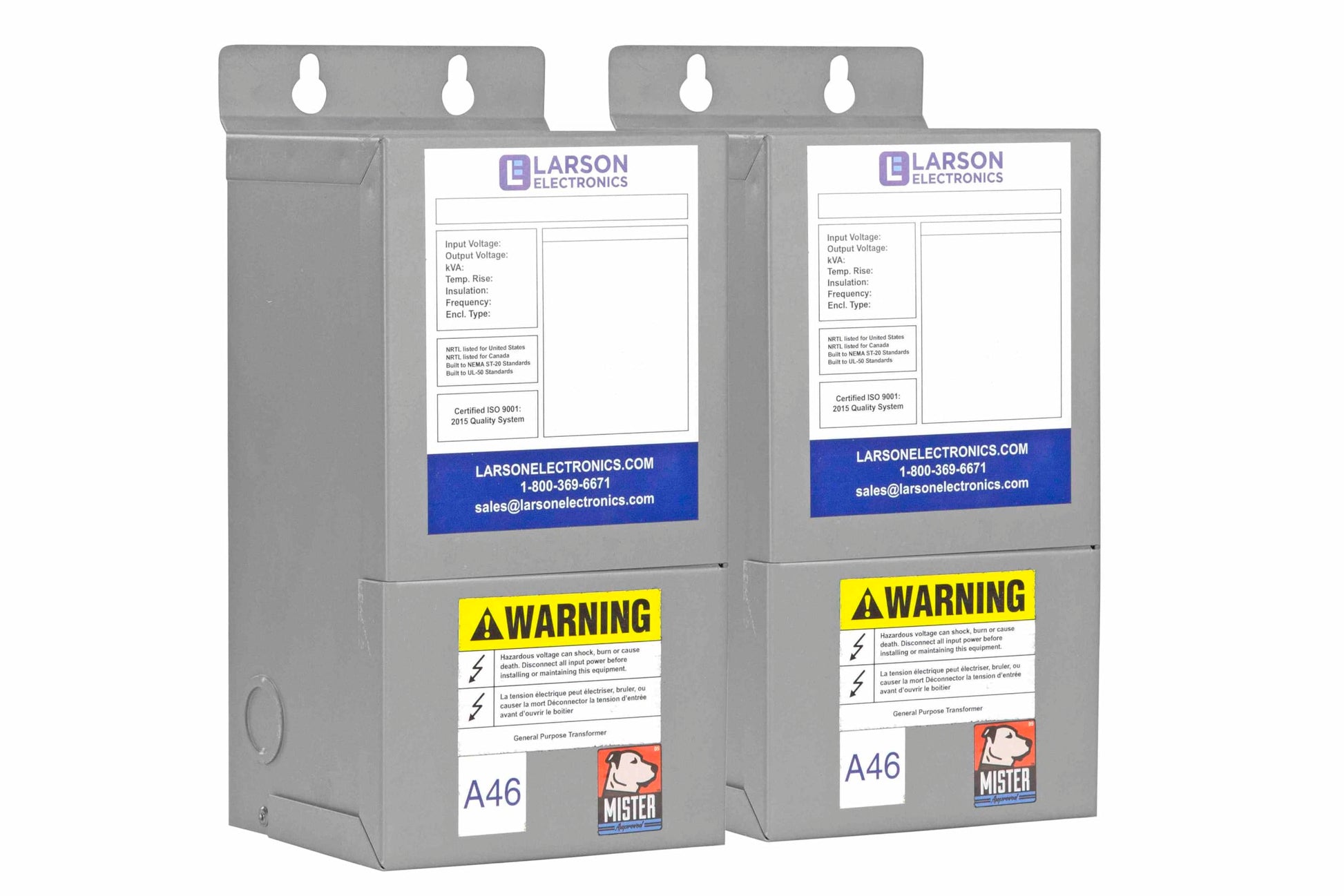

Details: This Three Phase Energy Efficient Buck and Boost 50/60Hz Transformer from Larson Electronics is powerful, reliable and designed with the environment in mind. Suitable for both indoor and outdoor applications, providing increased reliablity, protection against critical equipment failures and an extra level of protection by isolating the power source from the connected device. Transformer Features: With a transformer rating of 9.57 kVA, This buck and boost transformer is a three phase unit with a primary voltage of 240V AC and 23.4 amps on the input side. It also provides a secondary voltage of 208V and has 26.6 amps available on the secondary side. The NEMA 3R painted steel enclosure makes this unit suitable for both indoor and outdoor applications and it can be either floor or wall mounted. This unit features 130 degrees C insulation with a 80 degrees C temperature rise. Although we carry several models of power distribution transformer systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us to discuss your specific requirements.
