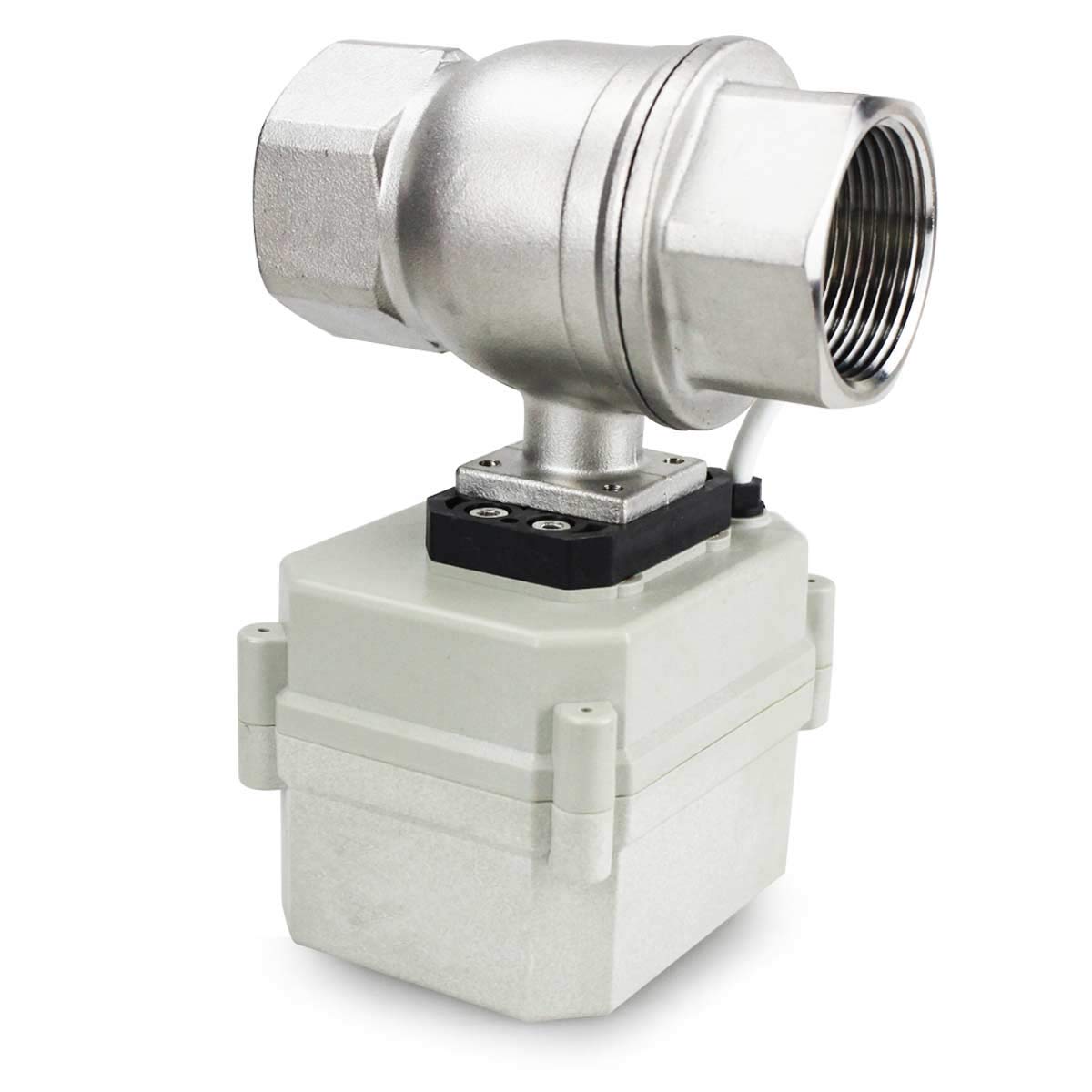

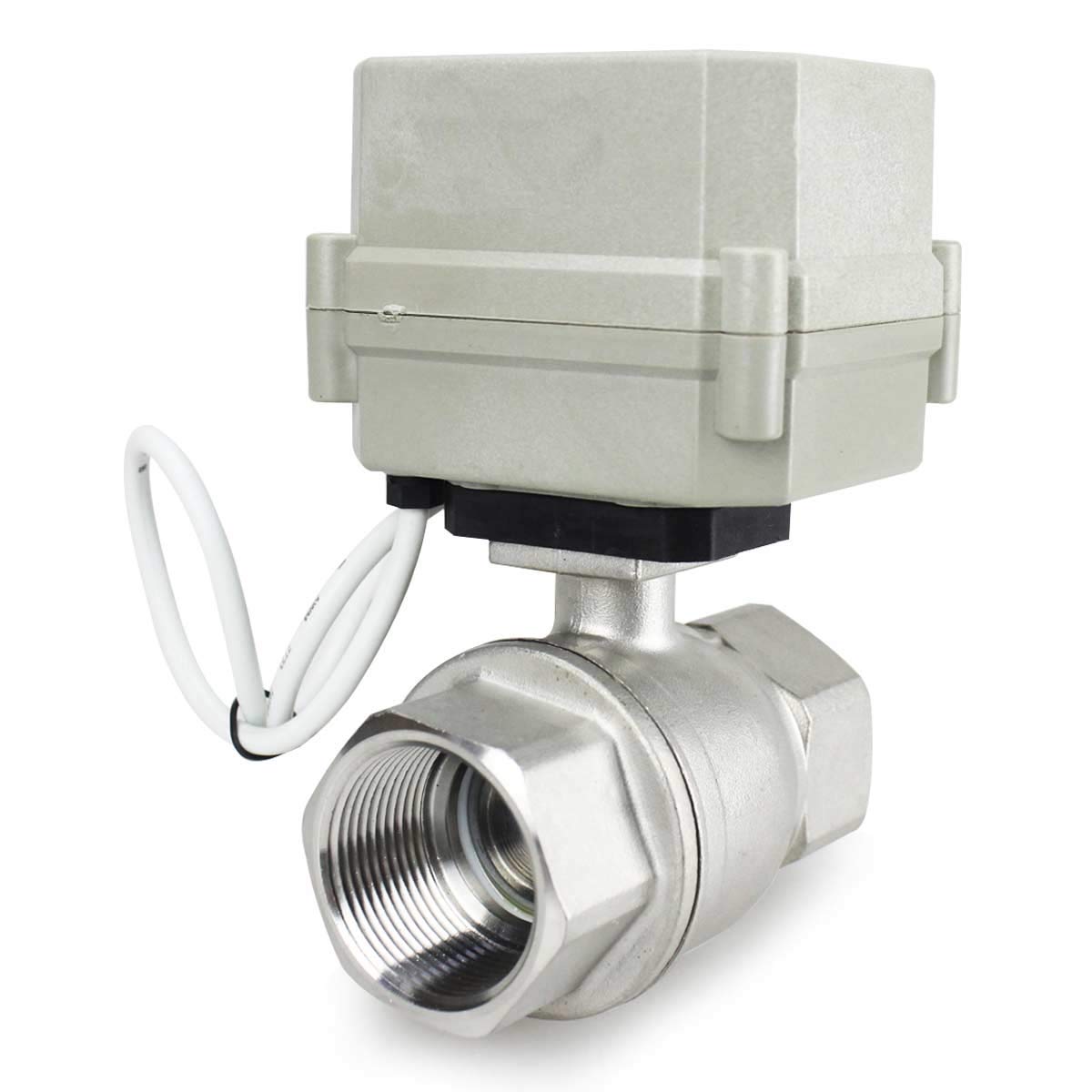

7 Wires CR7-06 12VDC 24VDC 24VAC Stainless Steel Normally Closed Position Feedback Manual Override Motorized Electrical Ball Valve (1-1/4 inch)

Brand: JLFlo

Features:

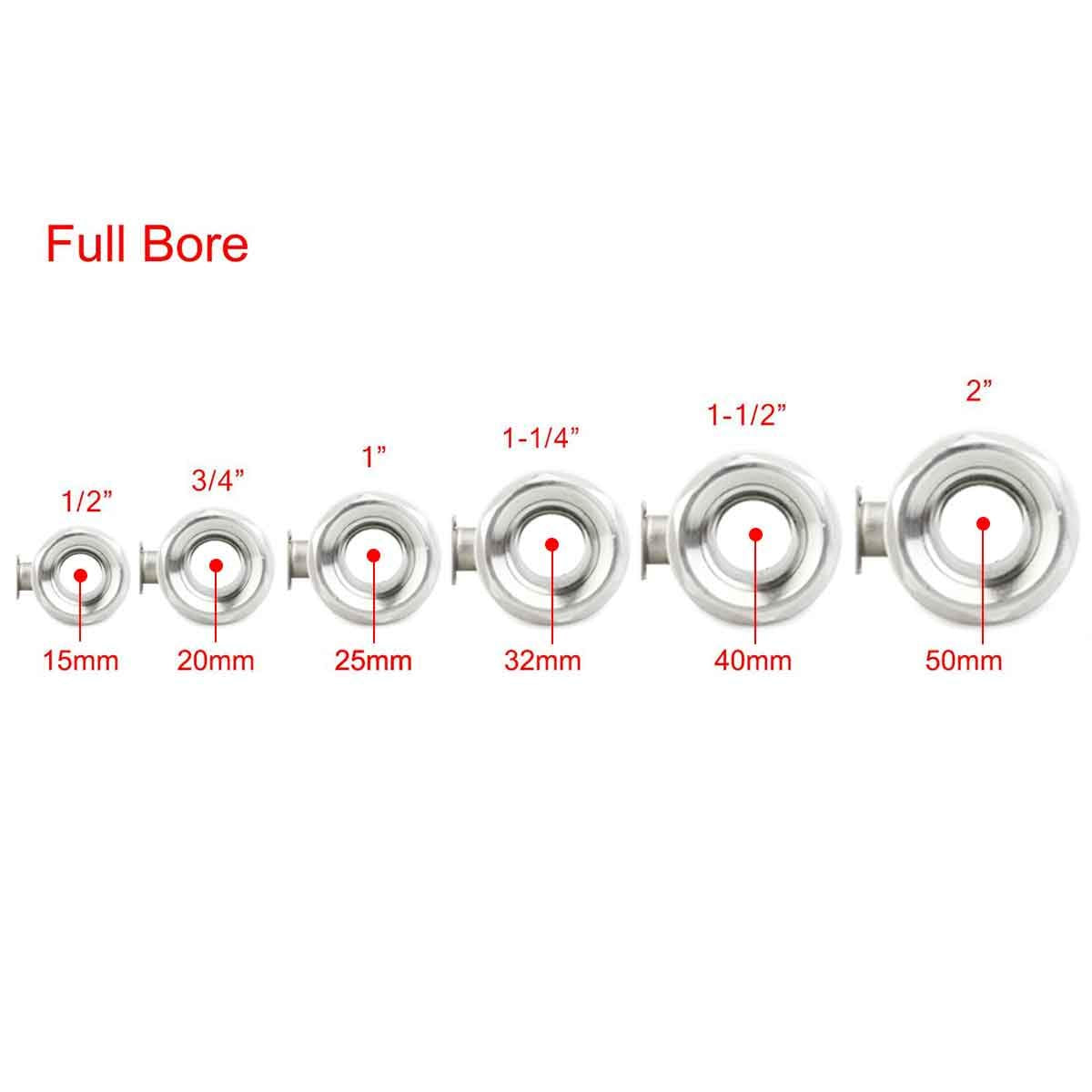

• 2 Way NPT 1-1/4' 32mm Full Bore CF8 Lead Free Valve Body;
• Limit Switches Bulid, Cut Off Power Automatically When Arrived At Place;
• Build In Capacitor Return, Will Return To Original Position When Power Off;
• Require Connect Power Time No Less Than 2min For Charge Inner Capacitor Each Cycle Time;
• Form 12V-24VDC include 24VAC Wide Range Working Volage Design, CR7-06 3 Wires Control and Position Feedback Wires Installed Electric Ball Valve, On/Off By Manually/Electrical Available, Auto Return To Closed When Power Off/Power Failed.

Details: Actuator Design is Capacitor Return, Will Require Connect Power Time No Less Than 2min For Charge inner Capacitor Each Cycle Time;

Technical Parameter:
◎Model:T32-S2-B;
◎Wide Range Working Voltage: 12VDC 24VAC 24VDC;
◎Valve Dimension:1-1/4' NPT Female Thread Connection;

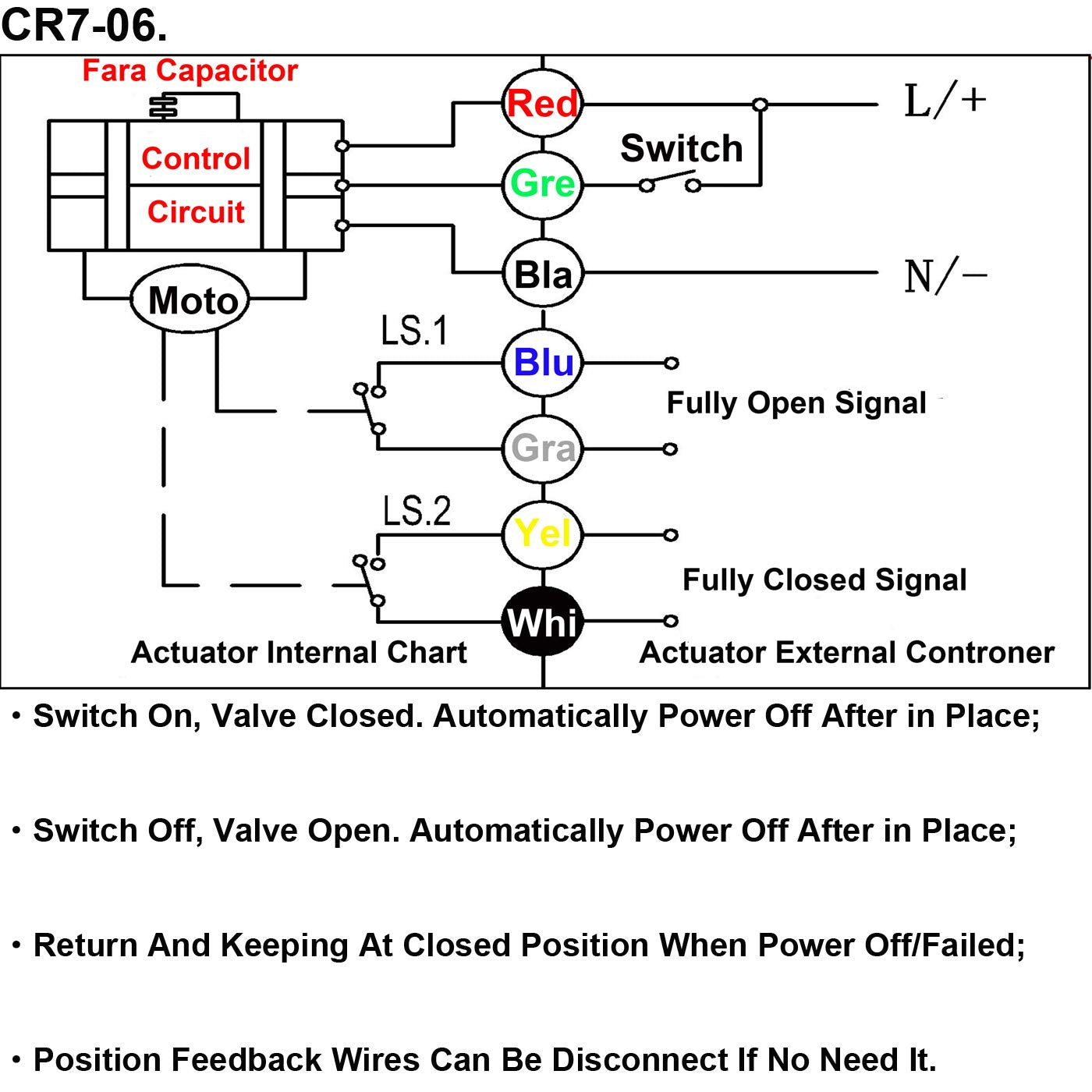

◎Wiring Diagram:CR7-06(3 Wires Control, Installed With Position Feedback Wires);
◎Valve Body Material: Stainless Steel 304(CF8);
◎Actuator Material: Engineering Plastics;
◎Open/Closed Time: Less Than 15Sec.;
◎Suitable Media: Air, Water, Oil;
◎Power: Max 2 Watts;
◎Manual Override: Yes;
◎Indicator: Yes;
◎Working Current: Max 1.5 Ampa When Action, Cut Off Current When Arrived At Place;
◎Max. Torque Force For Aucator: 15 N.M;
◎Cables Length: 0.5 Meters;
◎Max Working Pressure:145PSI(1.0MPA);
◎Liquid Temperature: 32°~212°F (0°~100°C);
◎Environment Temperature:5~122F(-15°~50°C);

Application:
◎HVAC;
◎Water Treatment;
◎Chemical Process;
◎Small Industrial Equipment For Automatic Control;
◎Replacing Solenoid Valve, Particularly When Solenoid Cannot Work Reliably;
◎Automatic Control Systems;
◎Efficient Water-Saving, Water Equipment;
◎Solar Hot Water Project;
◎Regular Watering The Flowers, Timing Humidifying, Timing of Drainage of Air Compressor.

Features:
◎Smart Shape, Perform Reliably, Large Output Torque, As Long As 50000-100000 Times , Convenience For All Kinds Of Requirements;
◎Float Ball design, No Leak, Large Flow, The Valve is Bi-directional Ball Valve , Regardless of Inlet And Outlet , Most Suitable for Heavy Dirt and Long Time No Action;
◎The Conditions That Solenoid Valve Can Not Be Worked;
◎High Protection Class, Can Be Worked In Most Conditions;
◎POM Cooperate With Metal Gear, The POM Gear is Used in High-Speed Level to Reduce Noise, At The Same Time Metal Gear is Applied At The Low-Grade To Ensure The Reliability of The Gear.

EAN: 0788362292973

Package Dimensions: 5.0 x 3.0 x 3.0 inches
