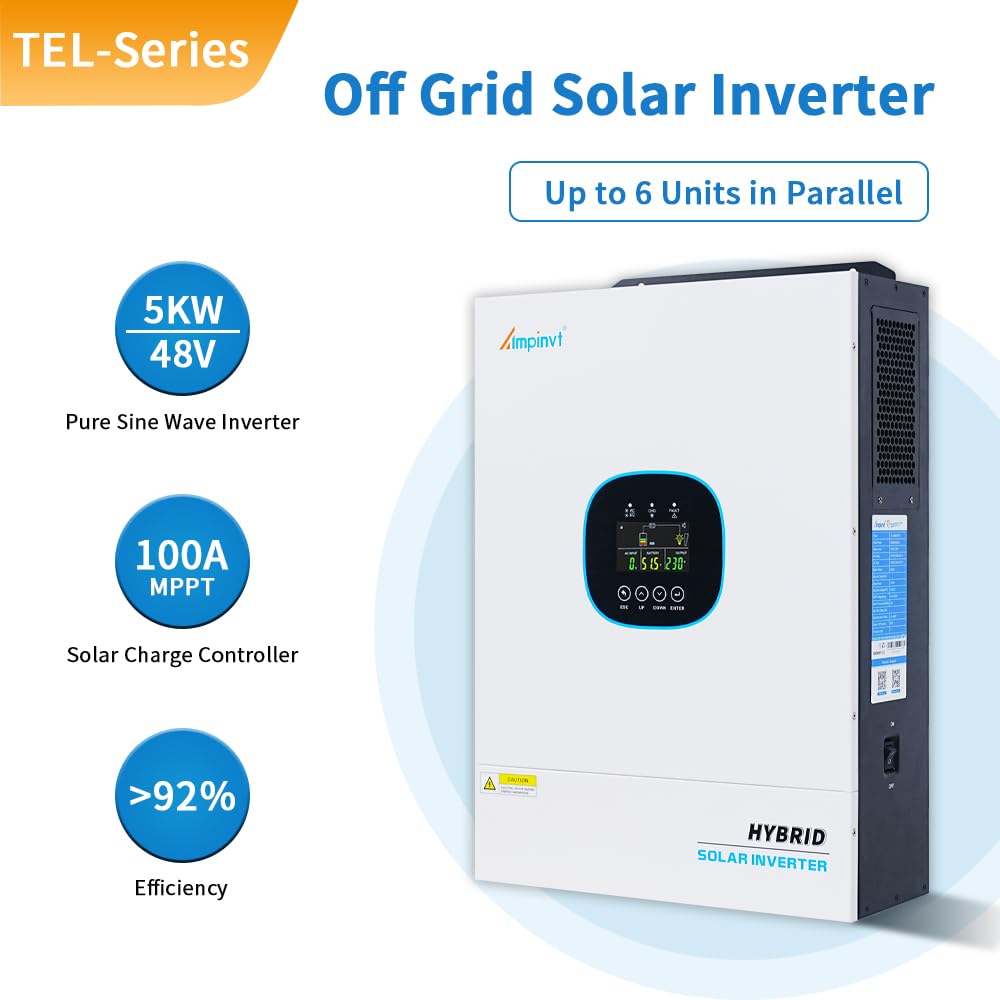

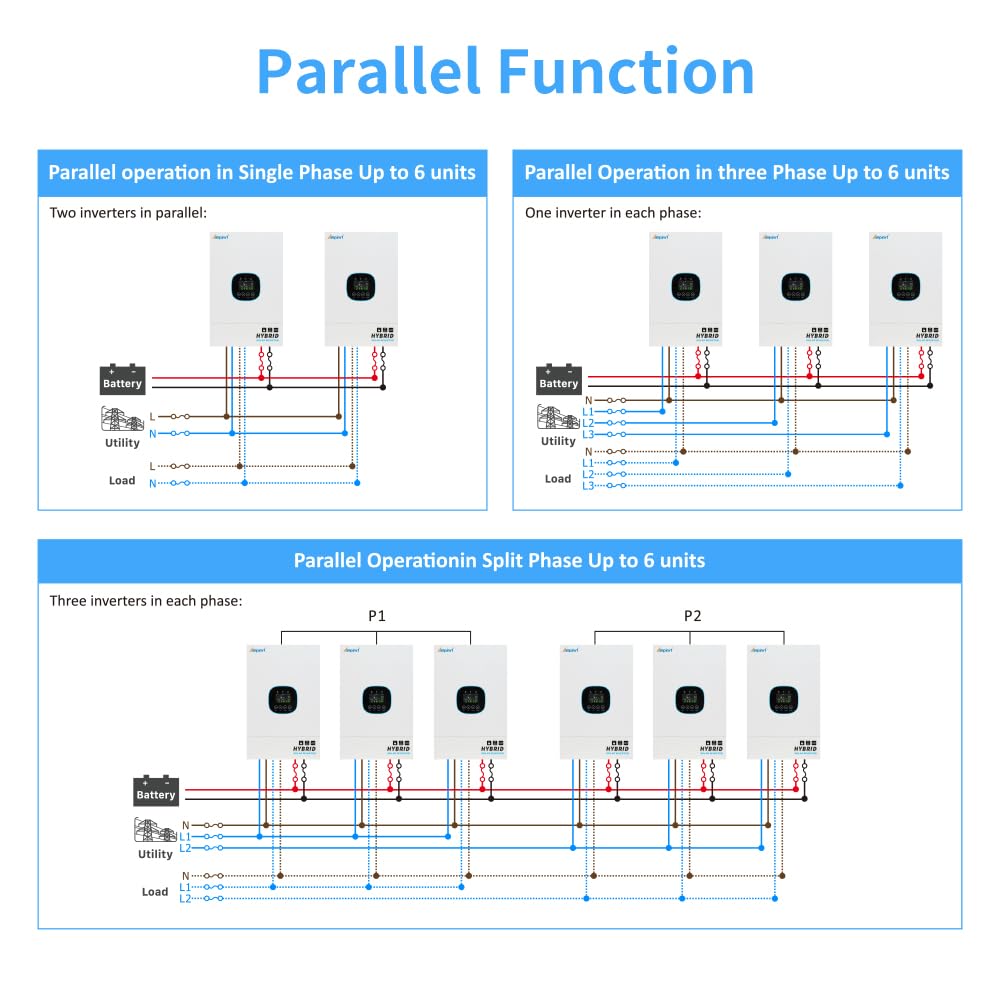

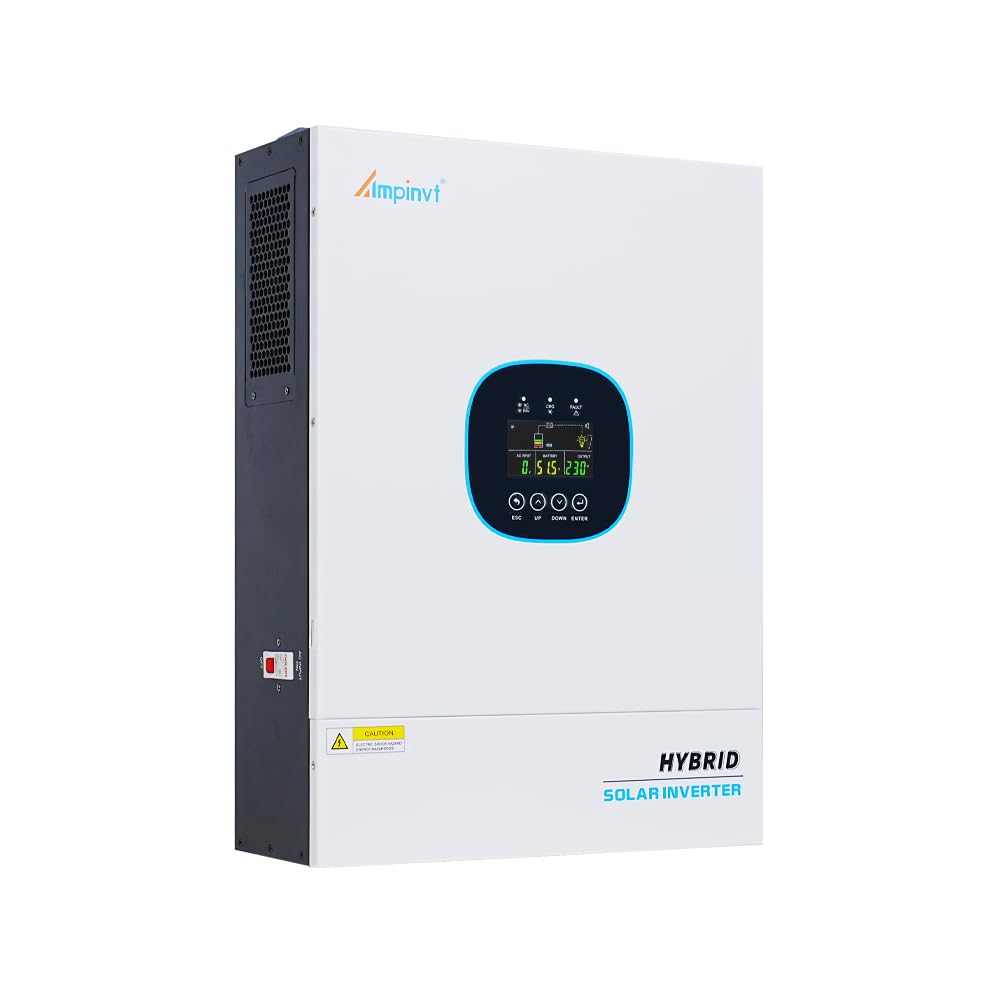

Ampinvt Solar Inverter 5000 Watt 48V to 120V, inbuilt 100A MPPT Solar Charger, Max PV Input 5500W 500Vdc,Off Grid Pure Sine Wave Inverter Support up to 6 in Parallel for Lead Acid Lithium Battery

Brand: AMPINVT

Color: White

Features:

• This Pure Sine Wave Solar Inverter is a combination of an inverter, ac battery charger , MPPT solar charge controller and AC auto-transfer switch. Support Single-phase,Split Phase and Three-phase 120/208V/240Vac Output, High transfer efficiency is above 92%.

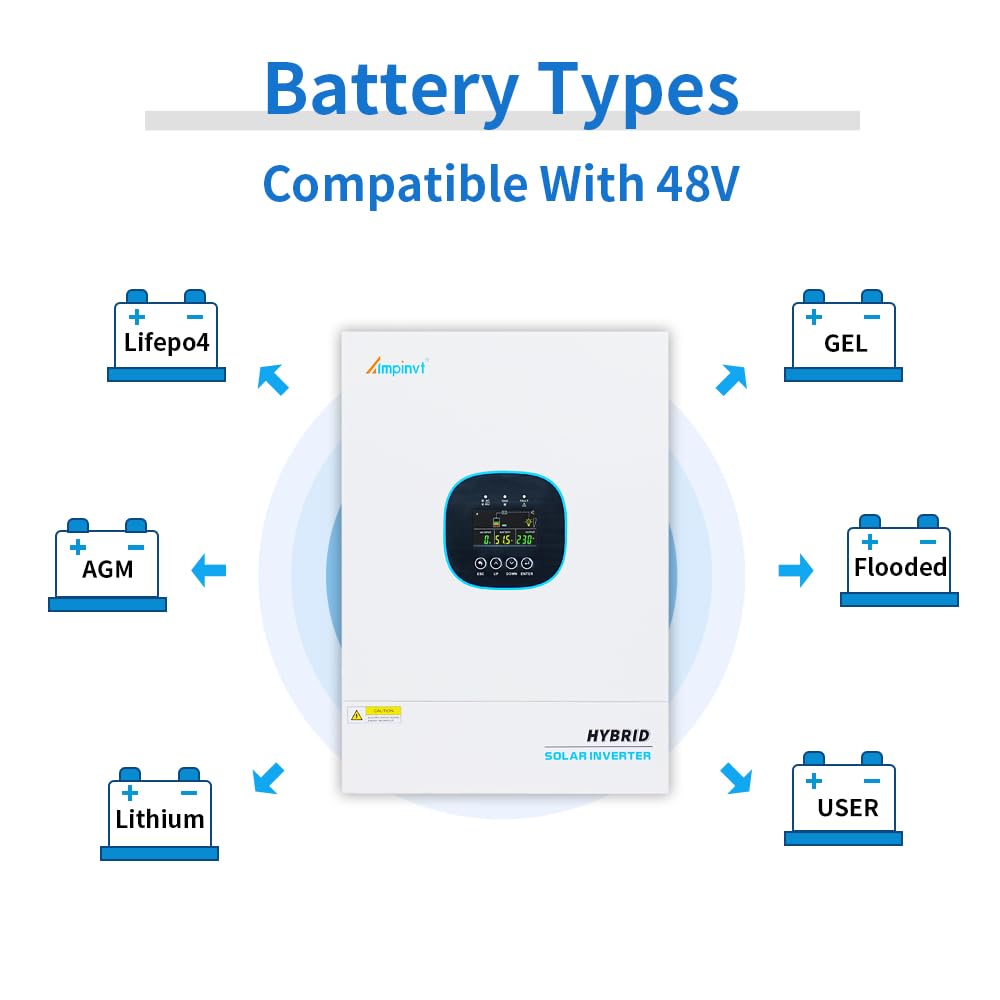

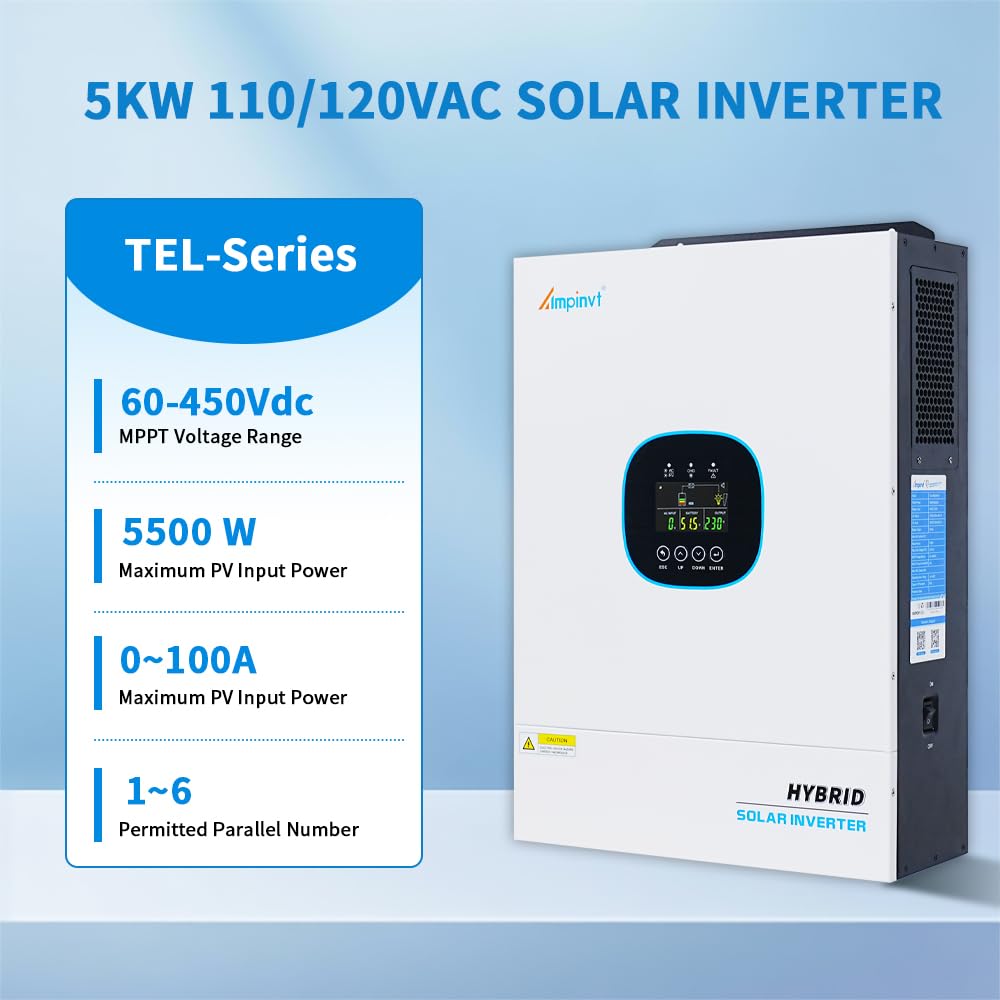

• 100A MPPT controller delivers up to 98% tracking efficiency and supports charging for 48V lead-acid (Seal, AGM, Gel, Flooded), lithium (LiFePO4) batteries. Max.PV Power：5500W, PV Input Voc:60-500V, Max PV Charging Current: 100A
• 3 Work Modes: PV load priority mode / Inverter priority mode / PV priority mode. 4 Charging Modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.
• Communication Ports (RS485/WIFI & USB): RS485/WIFI: Enables communication with monitoring hosts, lithium BMS, or mobile apps via optional modules for real-time data and parameter adjustment. USB: Connects to PC software for configuration; requires CH340T driver installation.
• Dry Contact Control: Automatically starts/stops the diesel generator based on battery voltage. Normally closed (NC-N) and normally open (NO-N) contacts change state when voltage is low, supporting resistive loads up to 125VAC/1A, 230VAC/1A, or 30VDC/1A.
• Protections: Battery low voltage alarm / Battery high voltage alarm / Over temperature protection / Over load protection / Short Circuit protection.

model number: TEL-48502M100

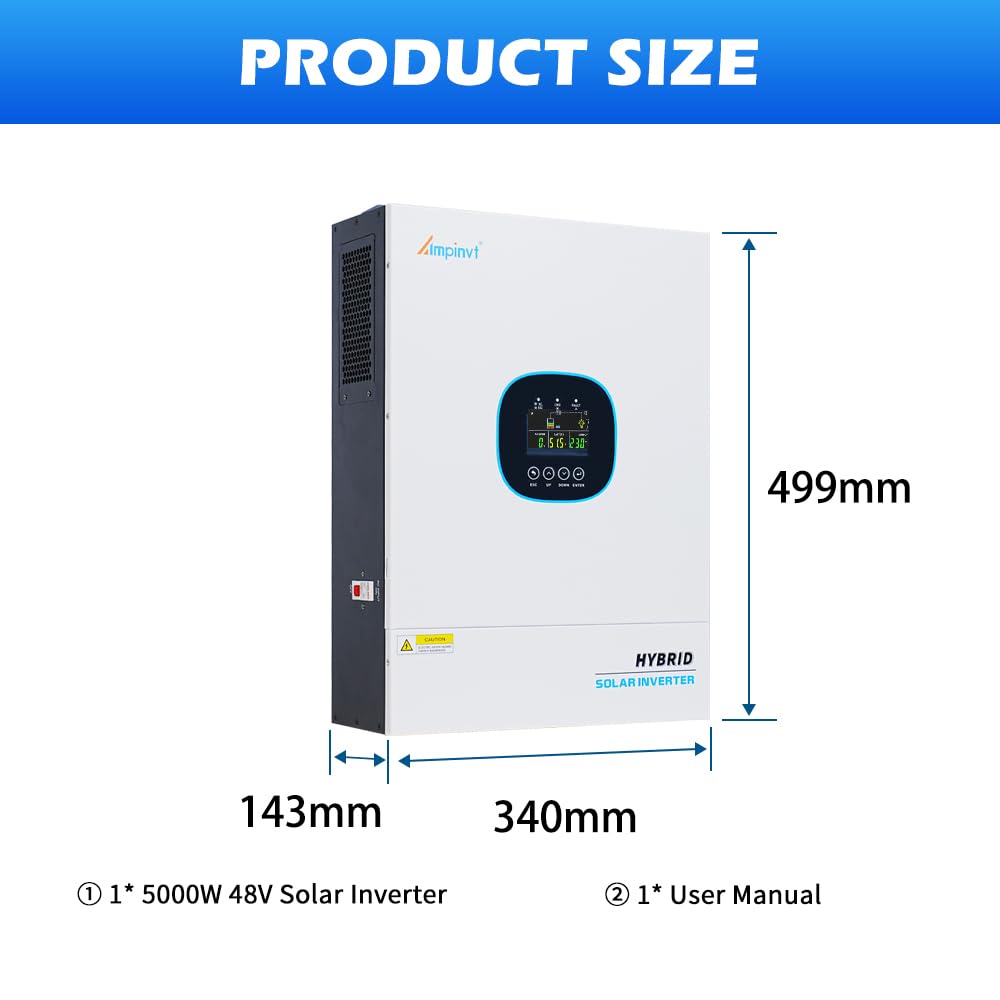

Package Dimensions: 21.6 x 16.7 x 9.1 inches
