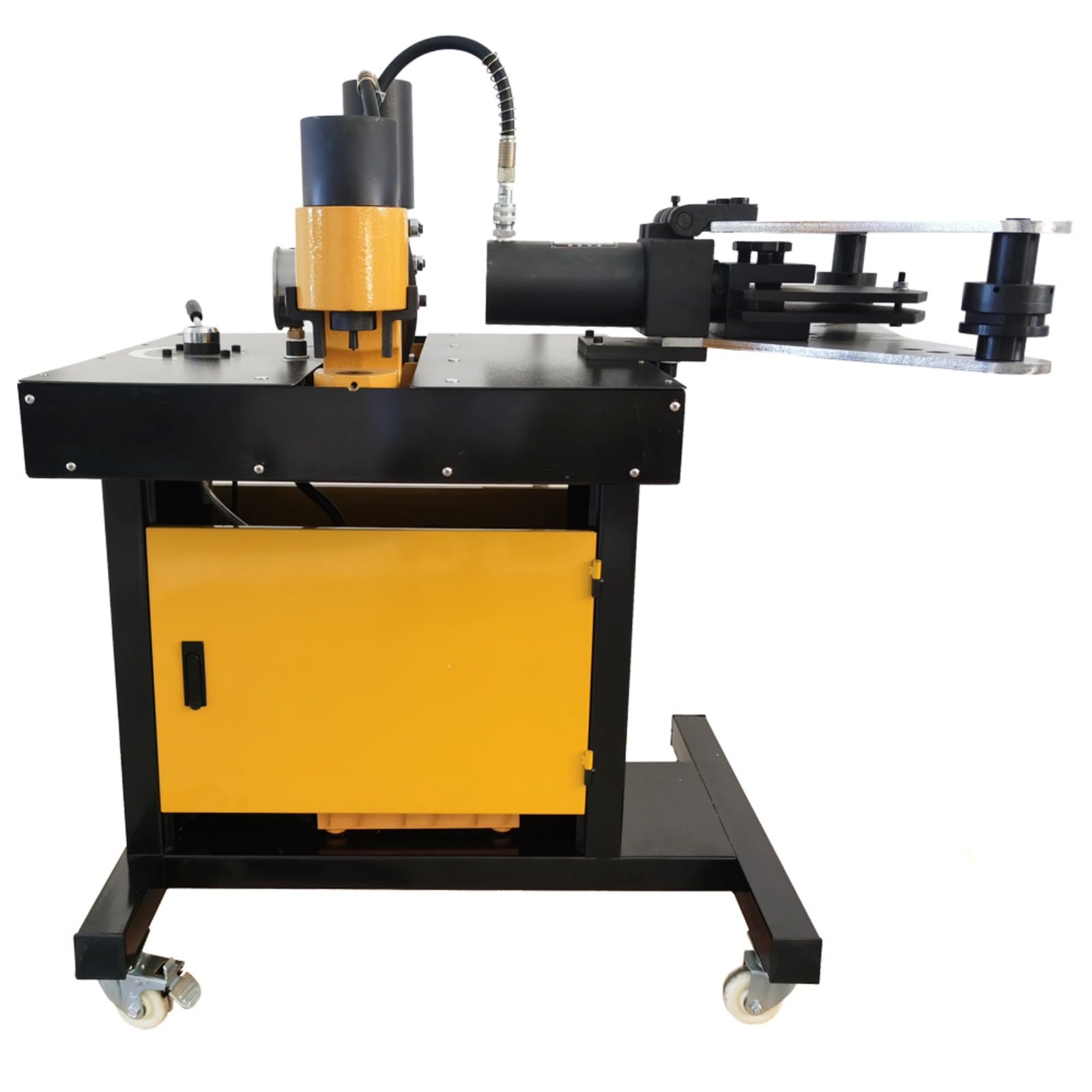

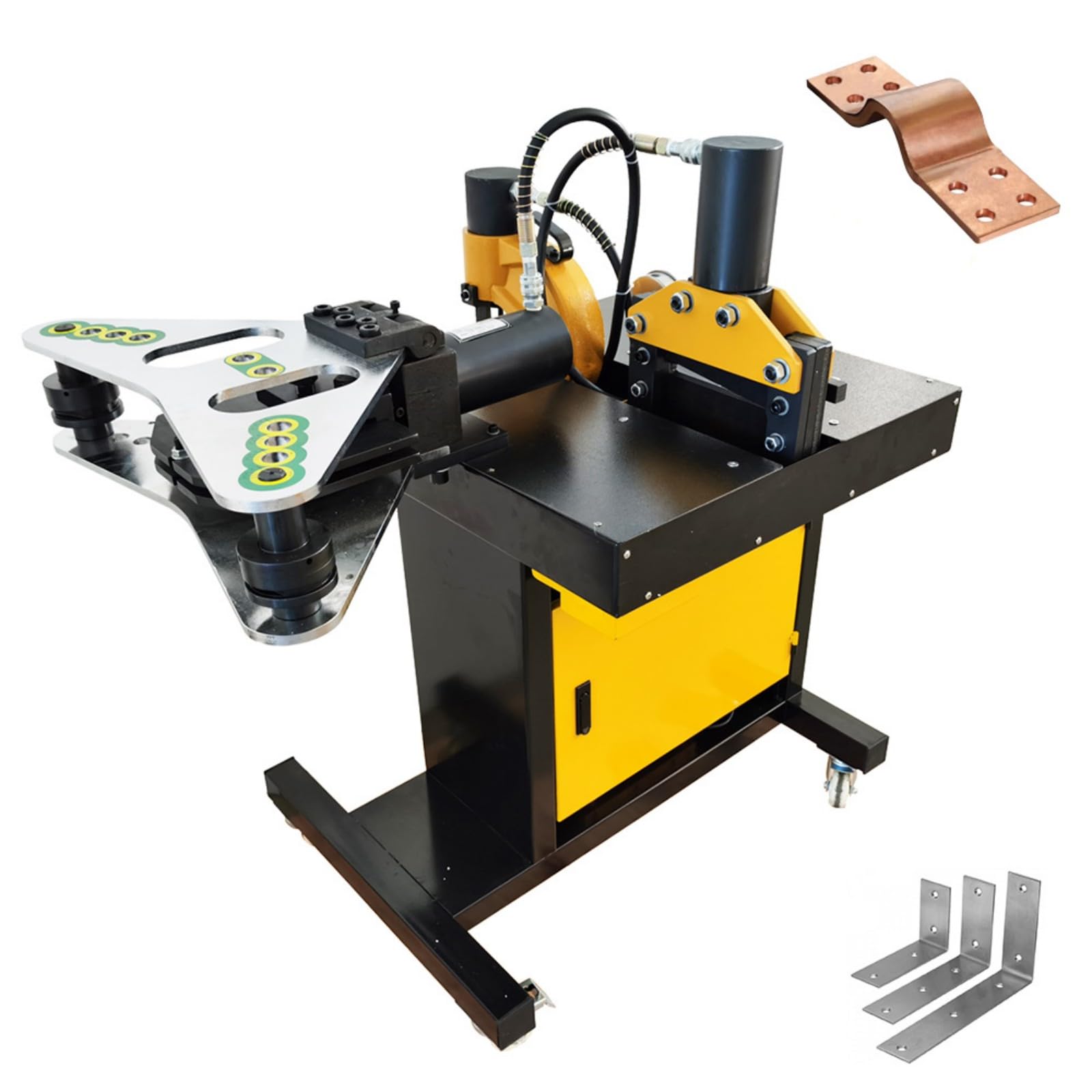

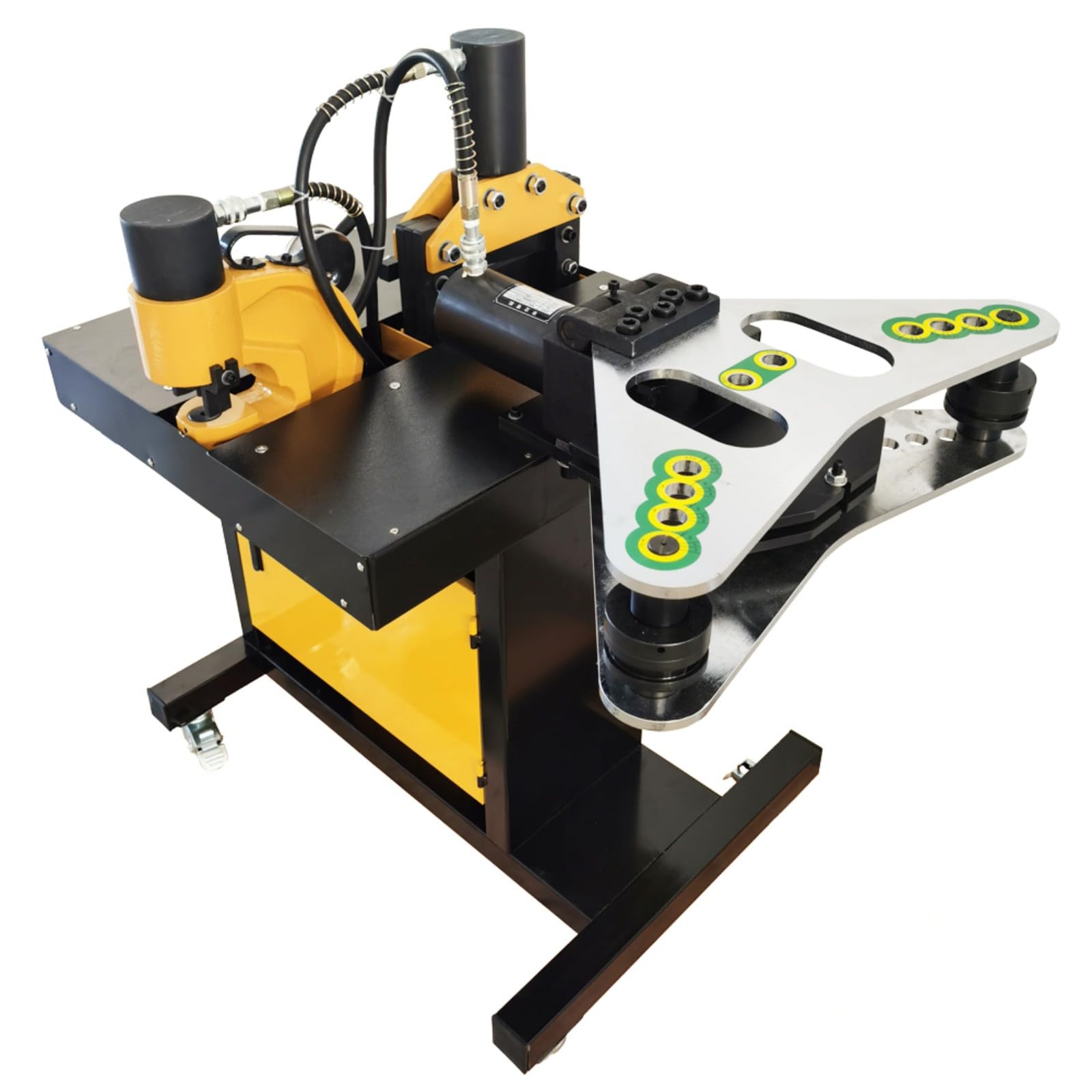

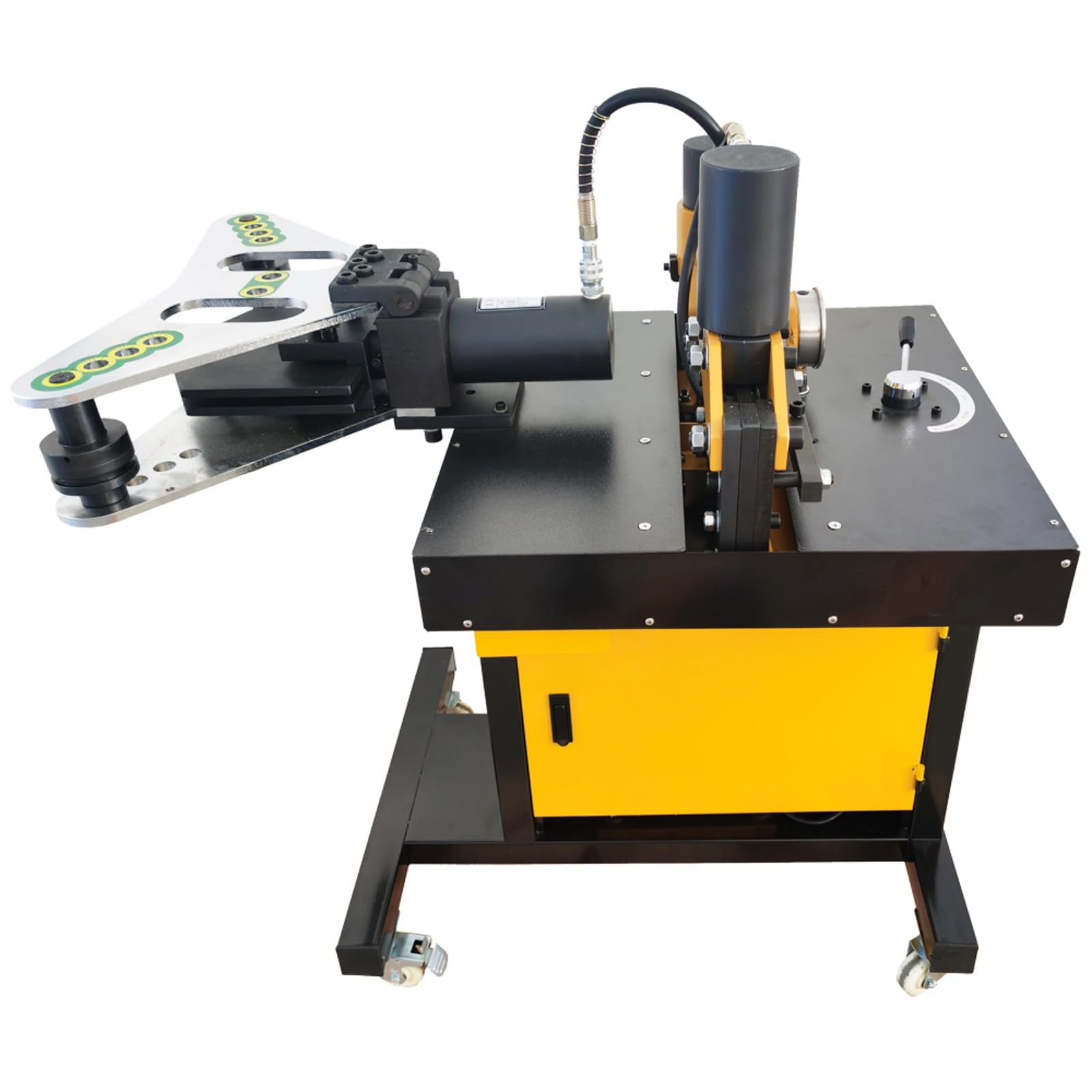

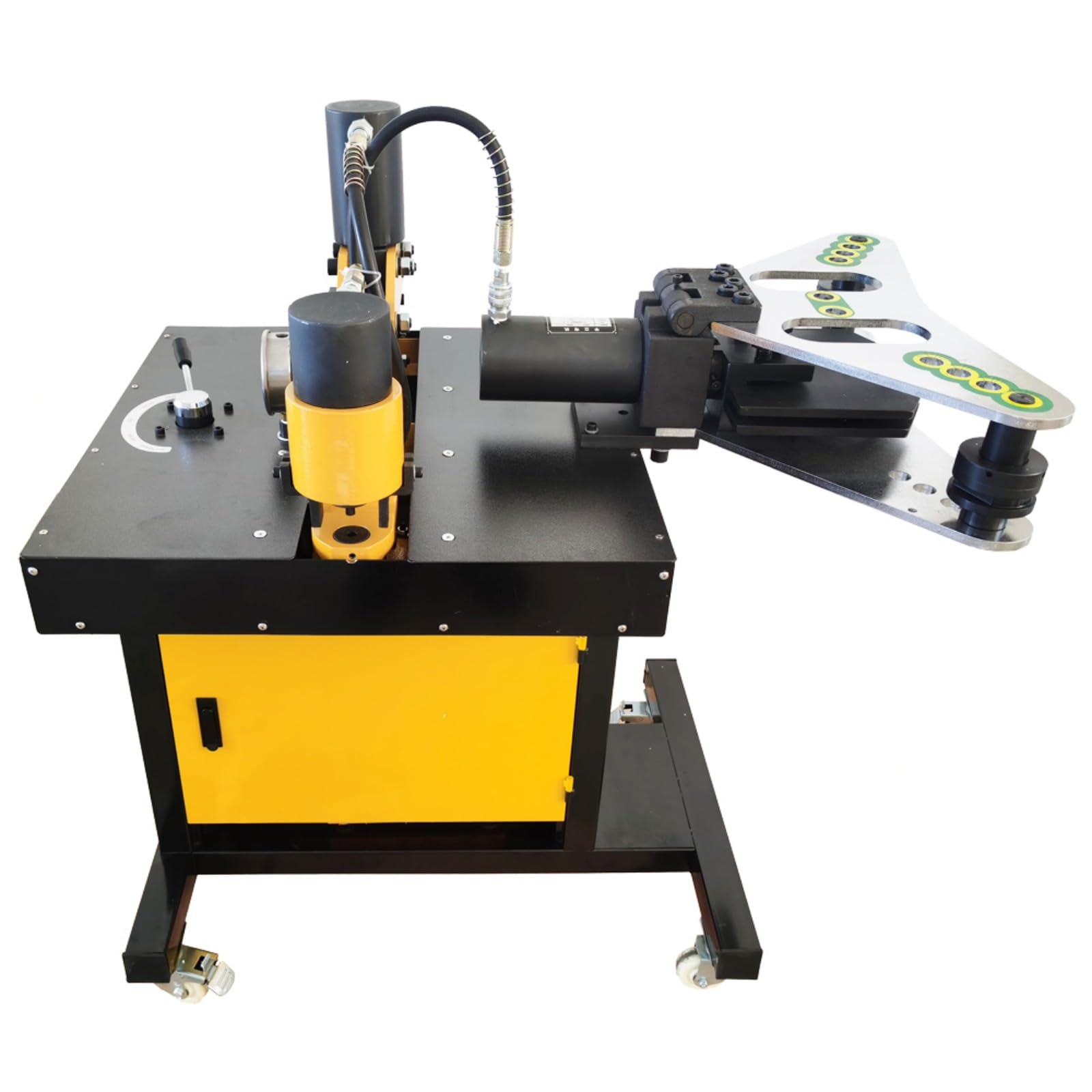

BEILOCKERY Hydraulic Busbar Machine,4-in-1 Copper Aluminum Bus Bar Processor for Cutting, Punching, Flat & Edge Bending, 110V Busbar Machine for Switchgear/Electrical Panel Fabrication

Brand: BEILOCKERY

Color: Yellow

Features:

• High precision: The busbar processing machine has excellent precision machining capabilities, with output forces of 35 tons, 35 tons, and 25 tons for cutting, punching, and horizontal/vertical bending, respectively. This ensures that the cutting surface is smooth and polished, with no burrs after punching, and can be bent and formed in one go
• Powerful hydraulic system: The busbar processing machine adopts an electric 700bar hydraulic system, which can provide sufficient pressure. The 1000kg/cm ² oil filled hydraulic gauge allows operators to perform processing operations based on pressure indicators, avoiding equipment overload damage
• Durable and sturdy: The worktable of the busbar processing machine has undergone mirror polishing, grinding, and chrome plating treatment, with extremely high hardness and wear resistance, ensuring accuracy and stability even after long-term use

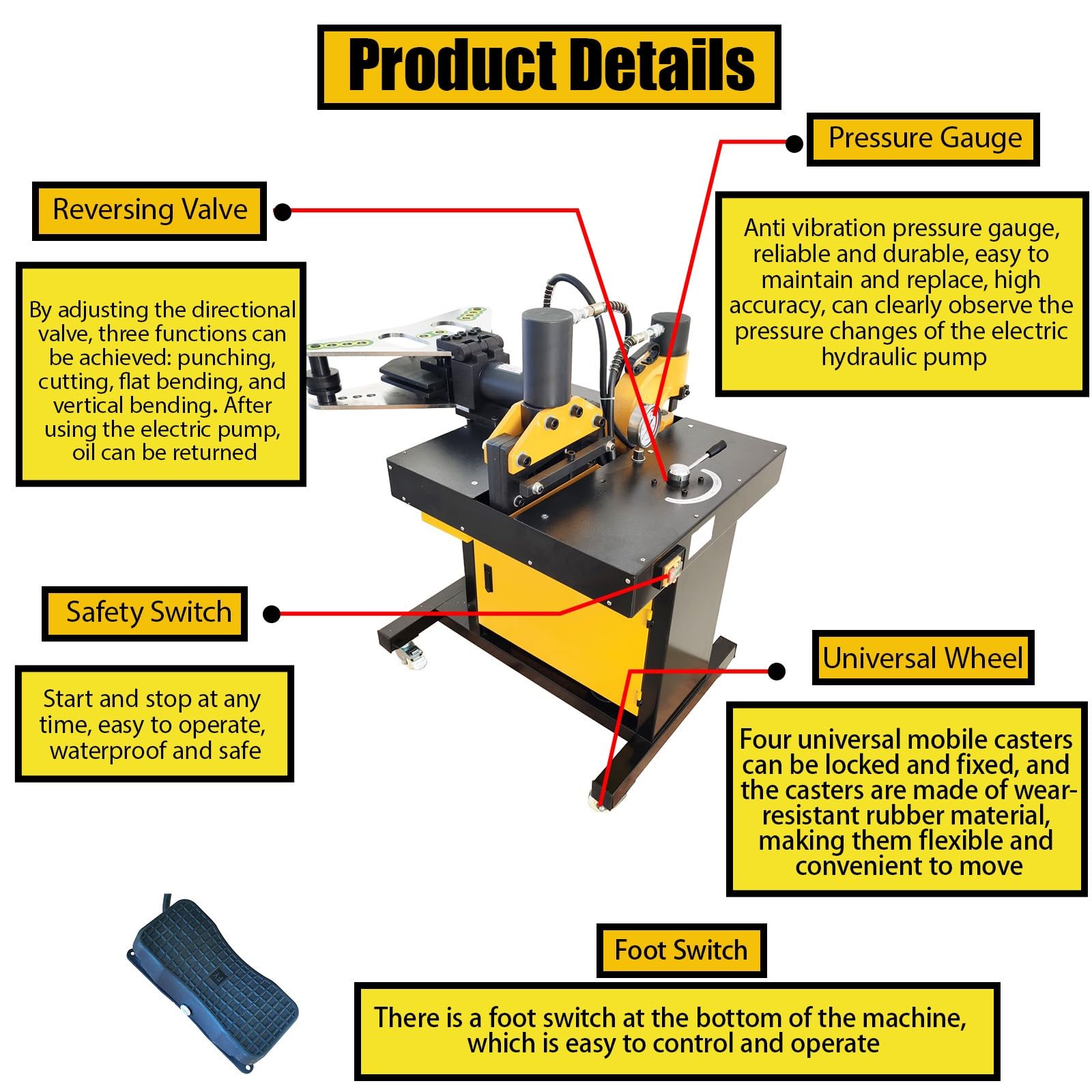

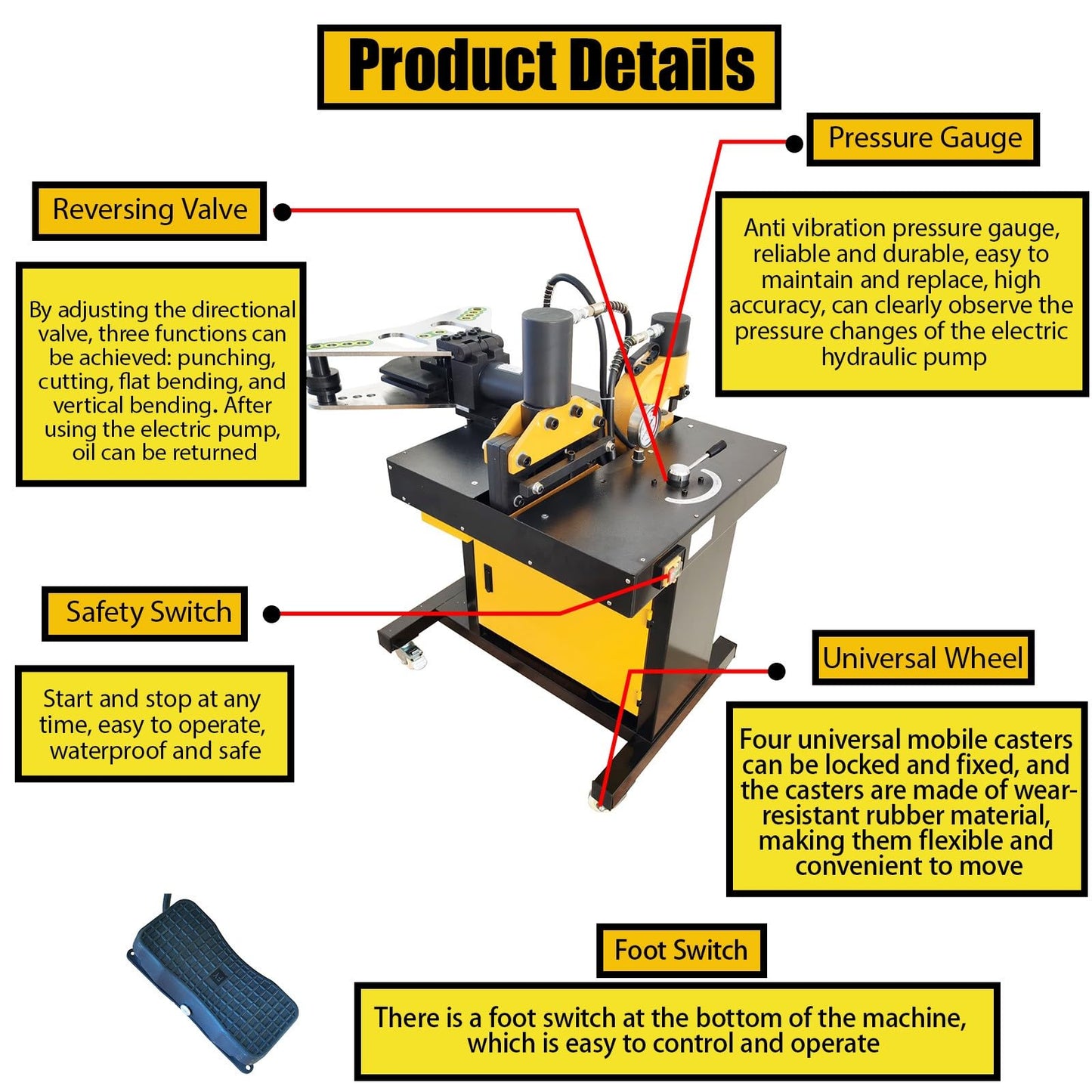

• Safety design: High quality and high sealing rubber pipes ensure that the circuit will not leak hydraulic oil. At the same time, the machine is equipped with an emergency switch. In case of emergency, the operator can quickly stop the operation of the machine to prevent accidents

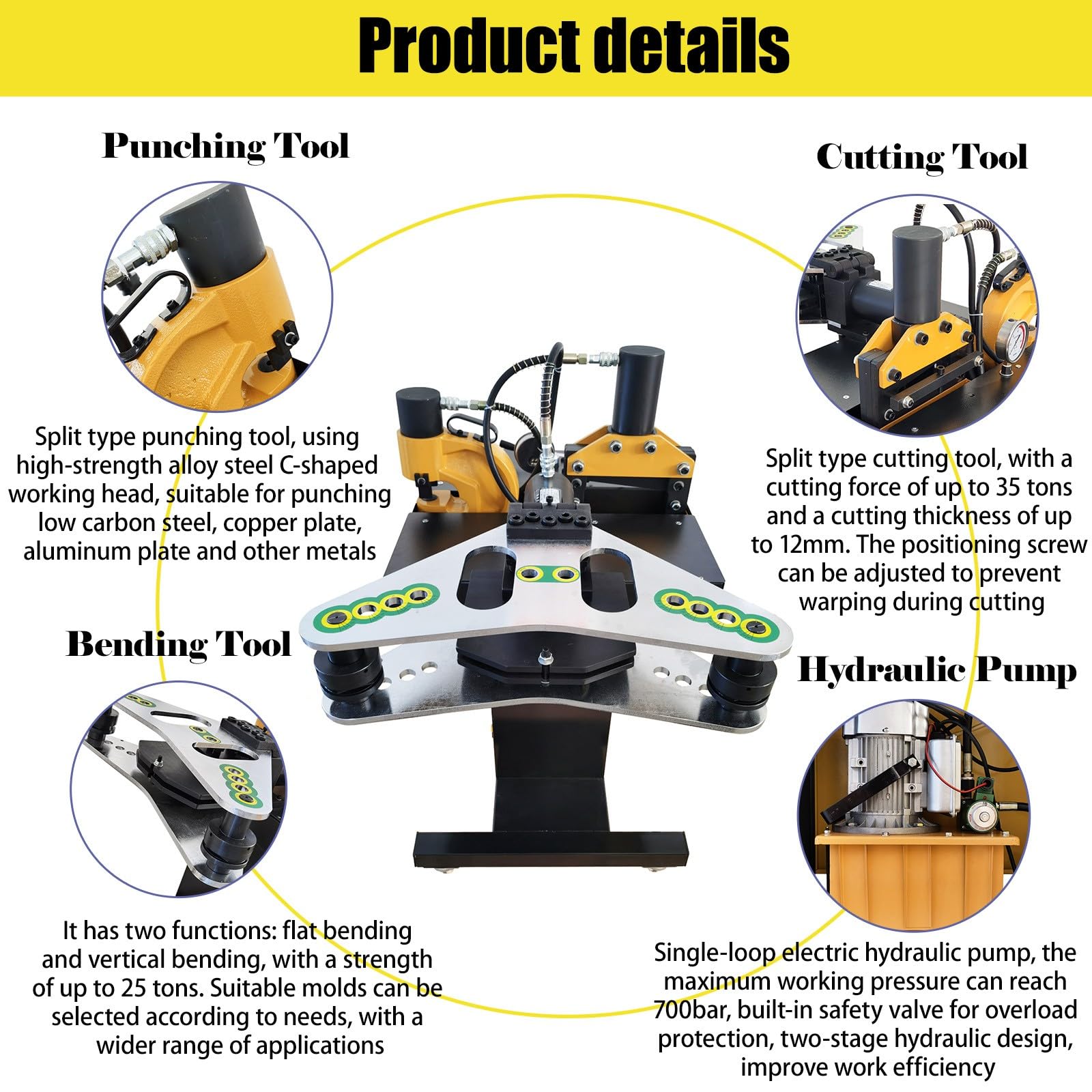

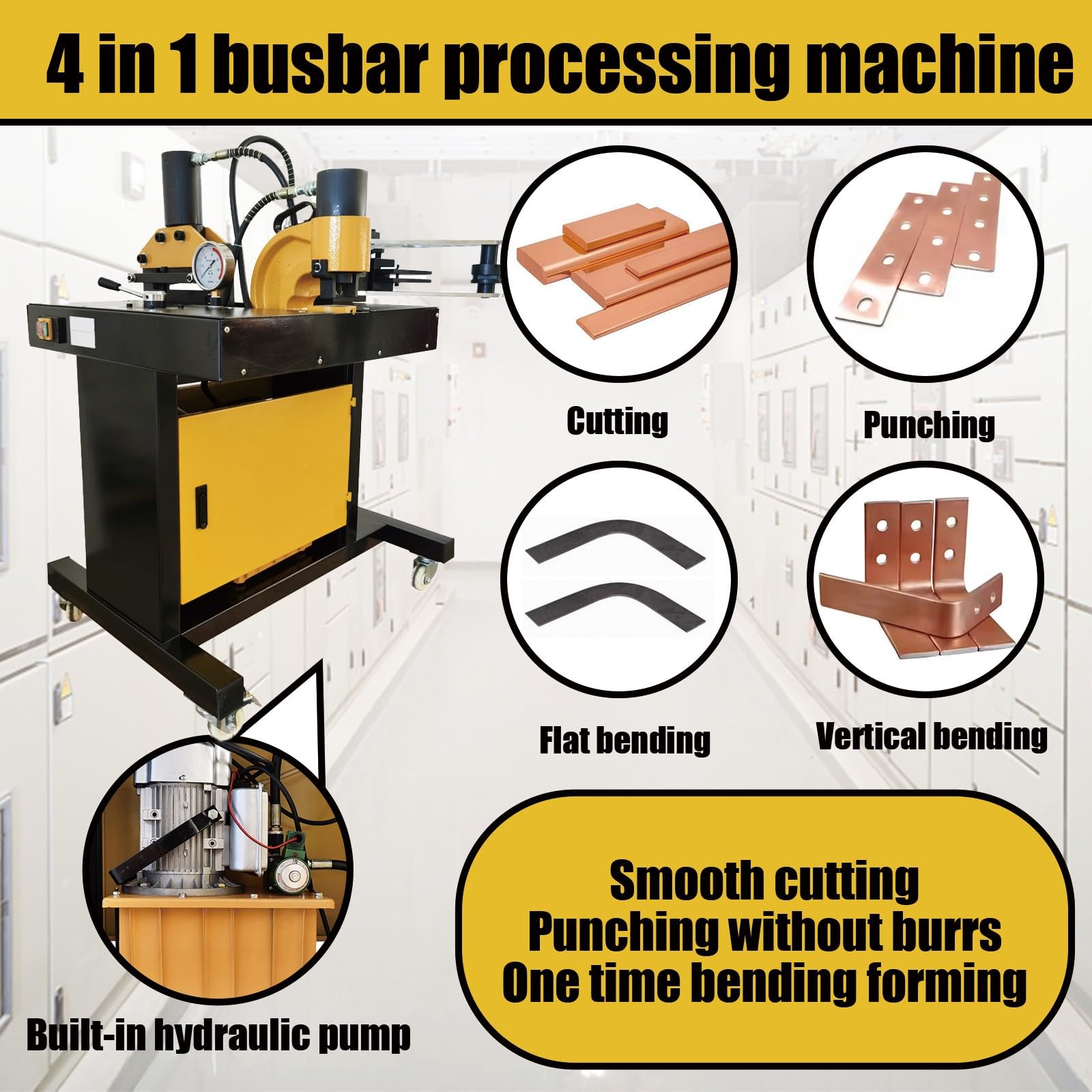

• Application: The busbar processing machine integrates four processing units: cutting, punching, flat bending, and vertical bending. Its main function is to efficiently process copper and aluminum busbars of different specifications. By selecting the corresponding processing unit, diverse processing tasks for copper and aluminum bars can be easily and quickly completed.

model number: S056867

Part Number: S056867

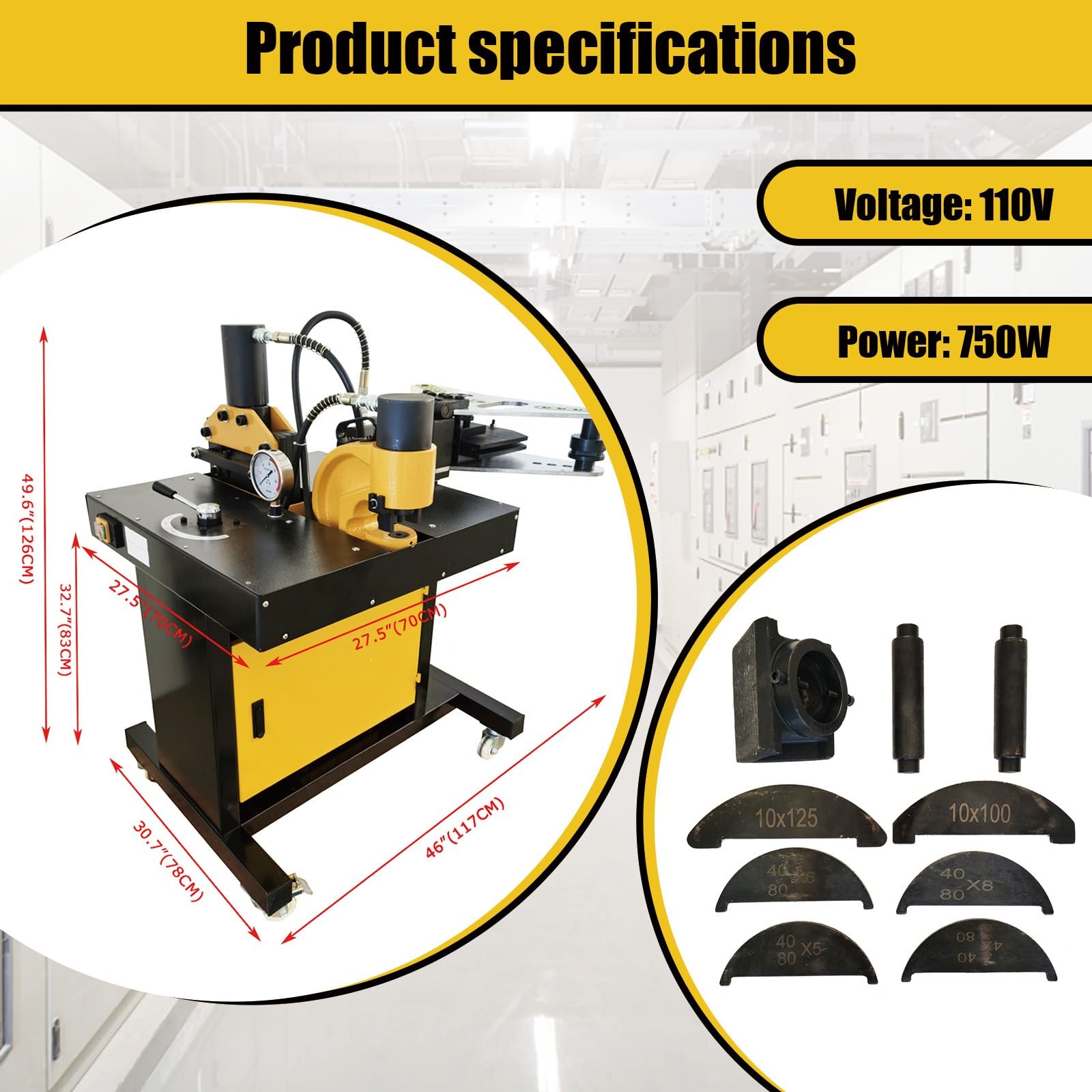

Details: Product Parameters:
Voltage: 110V
Power: 750W
Output cutting force: 35ton
Output punching force: 35ton
Output flat/vertical bending force: 25ton
Cutting max(Width*Thickness): 7.9'*0.5'(200mm*12mm)
Punching max(Thickness): 0.5'(12mm)
Flat/vertical bending width: 1.6'*2'*2.4'*3'*4'*5'(40,50,60,80,100,125mm)
Flat/vertical bending thickness: 0.24'*0.3'*0.4'*0.5'(6,8,10,12.5mm)
Flat/vertical bending busbar angle: 0°-90°
Throat depth of punching: 4.3'(110mm)
Punching dies: 3/8', 5/8', 1/2', 3/4'
Hydraulic pump pressure max: 700bar(10152psi)
Tank capacity of hydraulic pump: 2.11gal(8L)
Flow rate of hydraulic pump: 0.7L/min-5L/min
Package size: 47.6'*32.7'*55.5'(121CM*83CM*141CM)
Net weight/Gross weight: 497LBS(225.5KG)/605LBS(274.5KG)

Item Included (056867)
Bus processing machine *1
Vertical bending dies *6
Mold head *1
Flat bent post *2

EAN: 0198462732130

Package Dimensions: 55.5 x 48.0 x 32.7 inches
