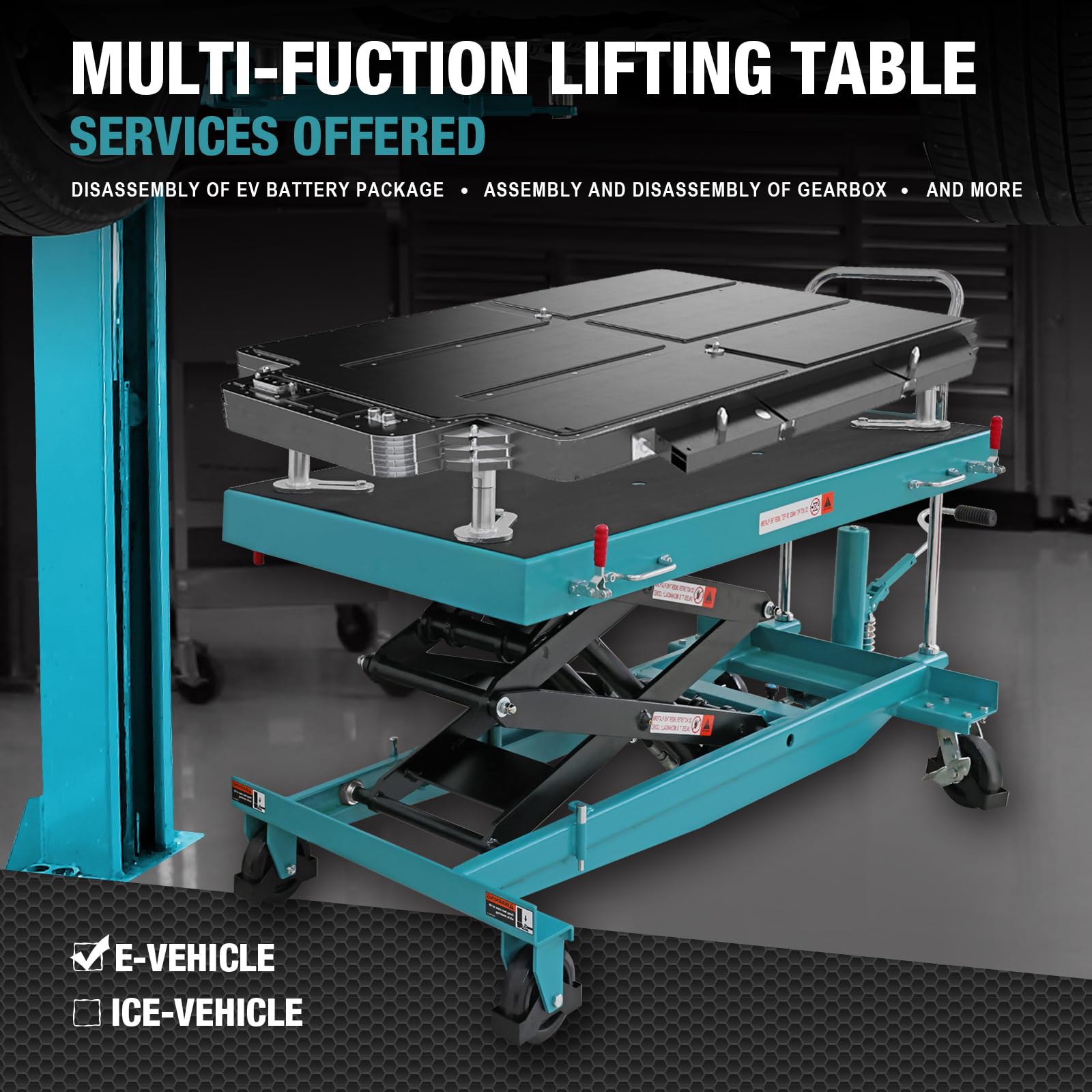

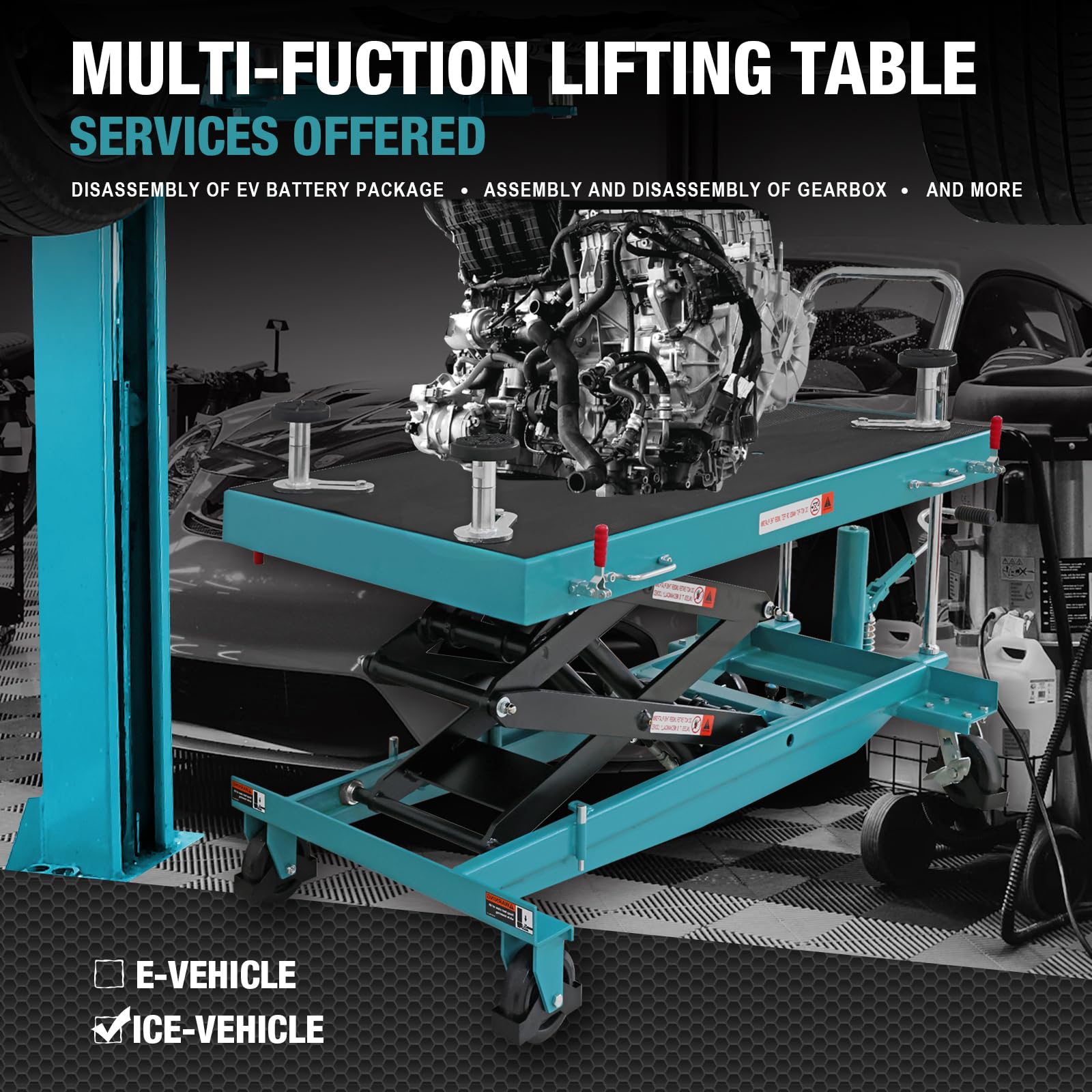

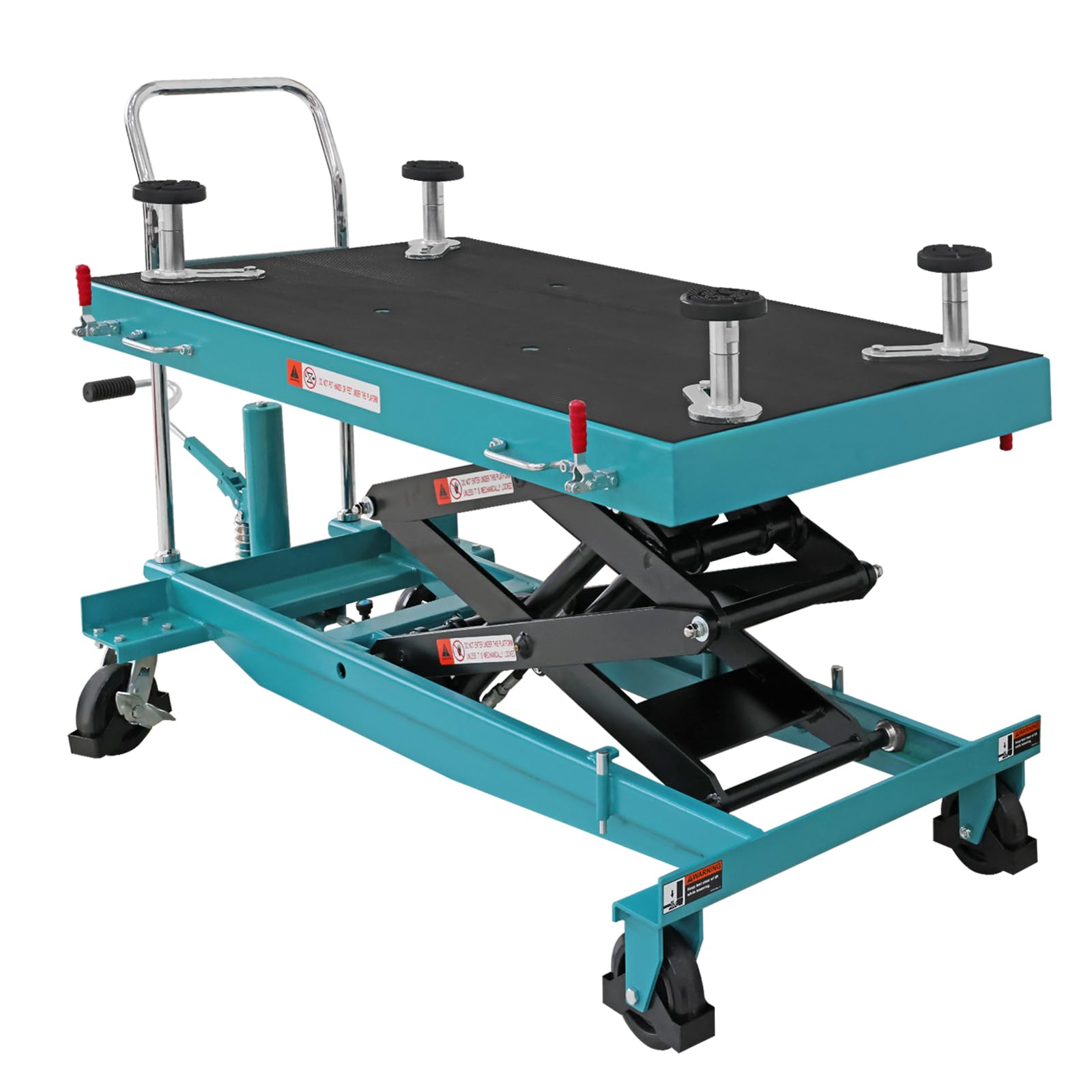

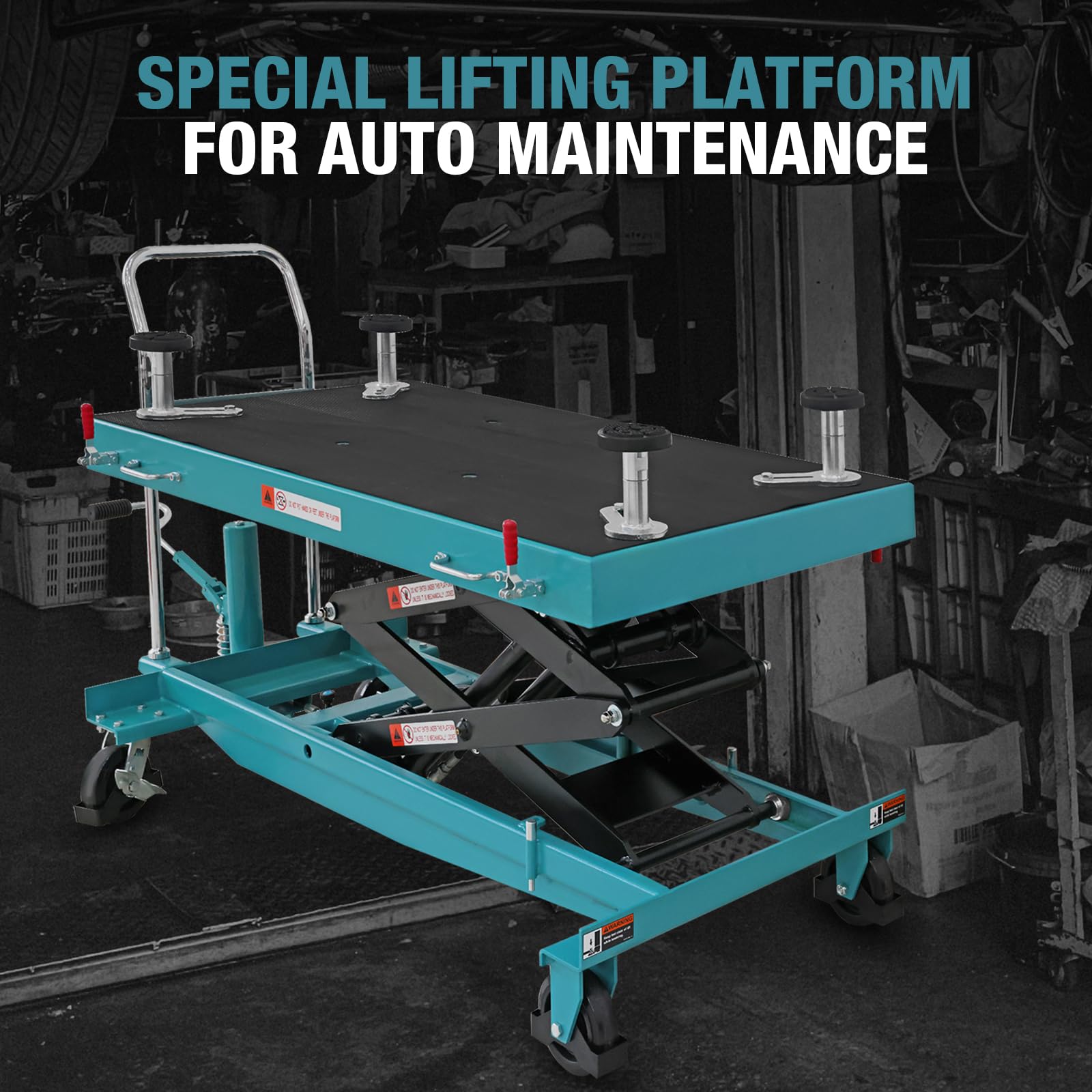

Big RED ATDP10001R Torin 1-Ton Battery Lift Table: Hydraulic Platform for Safe EV/Hybrid Battery Removal & Repair, Insulated Adjustable Tray, Dual Cylinder

Brand: BIG RED

Color: Teal

Features:

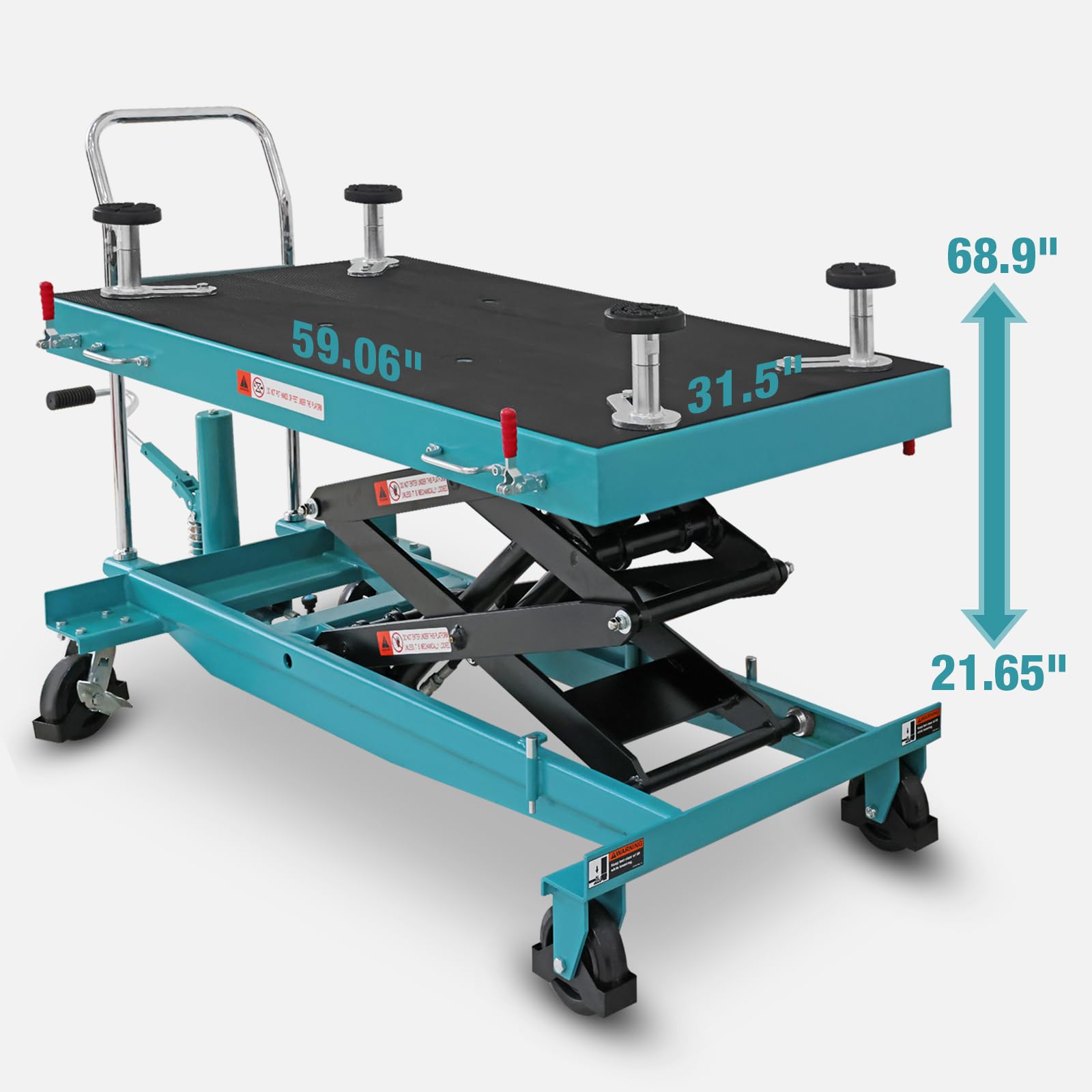

• Strong Support :1 ton (2,205 lbs) capacity with 21.65” to 68.9” height range, specially for electric vehicles.

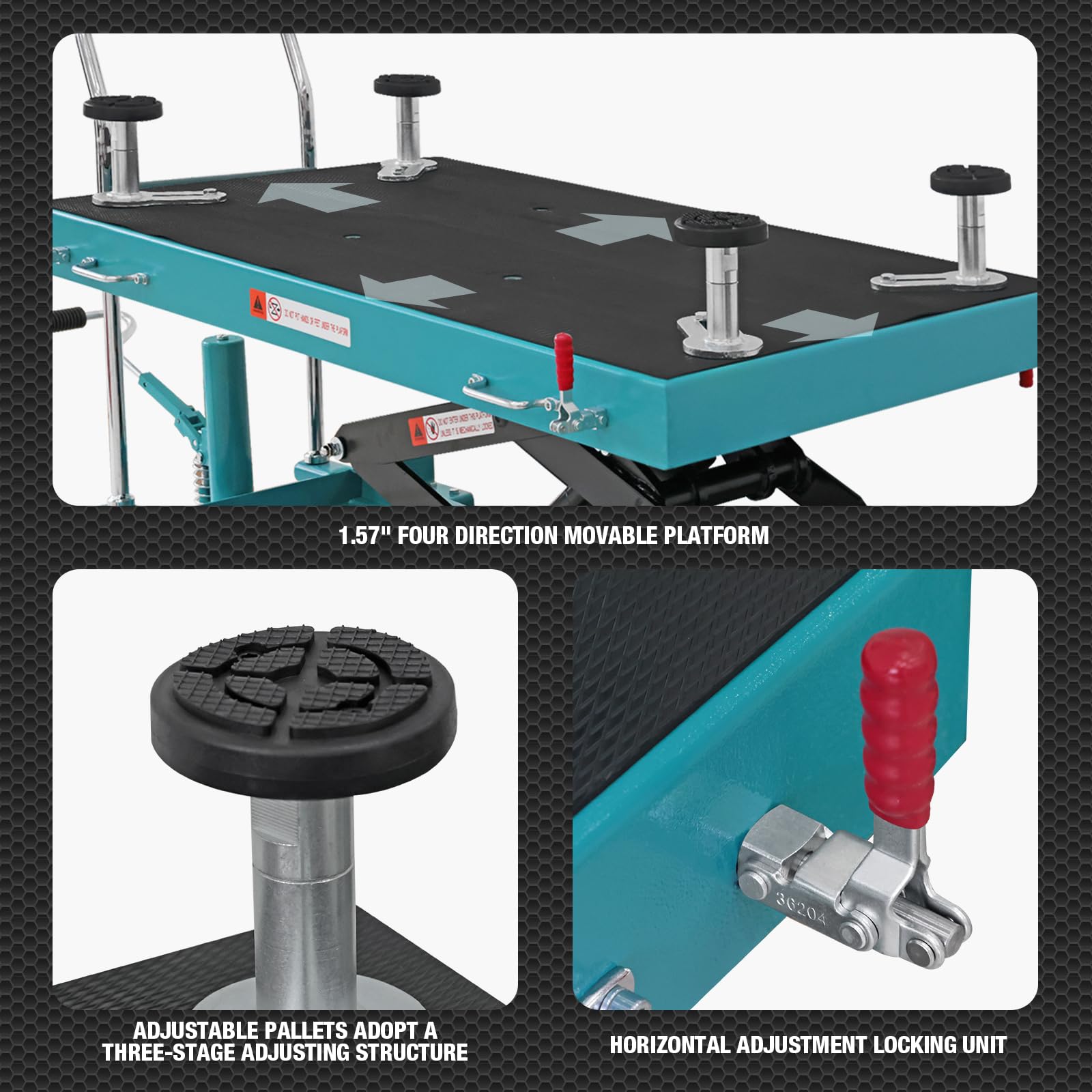

• Large & Anti-slip Platform: 59” L × 31.5” W floating table with 3.15” movement for wide operating space.
• Safety Ensurance :Insulation material on table and tray prevents shock; high anti-fall device prevents sudden drops.
• Unique Design :Insulated three-stage tray adjusts height freely; double cylinder structure ensures faster, more stable lifting.
• Smooth Move : Includes high-load PU brake swivel casters for easy movement; wheel covers protect tires.

model number: ATDP10001R-3

Part Number: ATDP10001R-3

Details: This professional lift table is specifically engineered for the maintenance and repair of various electric vehicle batteries. It provides strong support with a 1-ton (2,205 lbs) capacity and offers flexible operation through an adjustable height range from 21.65 inches to 68.9 inches.The workstation features a large, anti-slip platform measuring 59' in length and 31.5' in width. This platform incorporates a floating design, allowing for 3.15 inches of horizontal movement to easily reposition loads and maximize operating space.Safety is ensured through multiple integrated features. Both the main table and the tray are laid with insulation material to prevent electric shock to operators. Furthermore, a high-position anti-fall device is included to prevent any sudden drop of the load during elevated use.Its unique design includes an insulated three-stage tray that allows for free height adjustment of the working surface. The double cylinder structure enhances the lifting process, making it both faster and more stable.For smooth mobility, the unit is equipped with wear-resistant, high-load PU wheels on 360-degree swivel casters, each with a braking function. This design enables easy movement even under heavy conditions. The included wheel covers also serve to protect the tires from potential damage during transit or use.

EAN: 0810151429694

Package Dimensions: 86.6 x 37.3 x 23.6 inches
