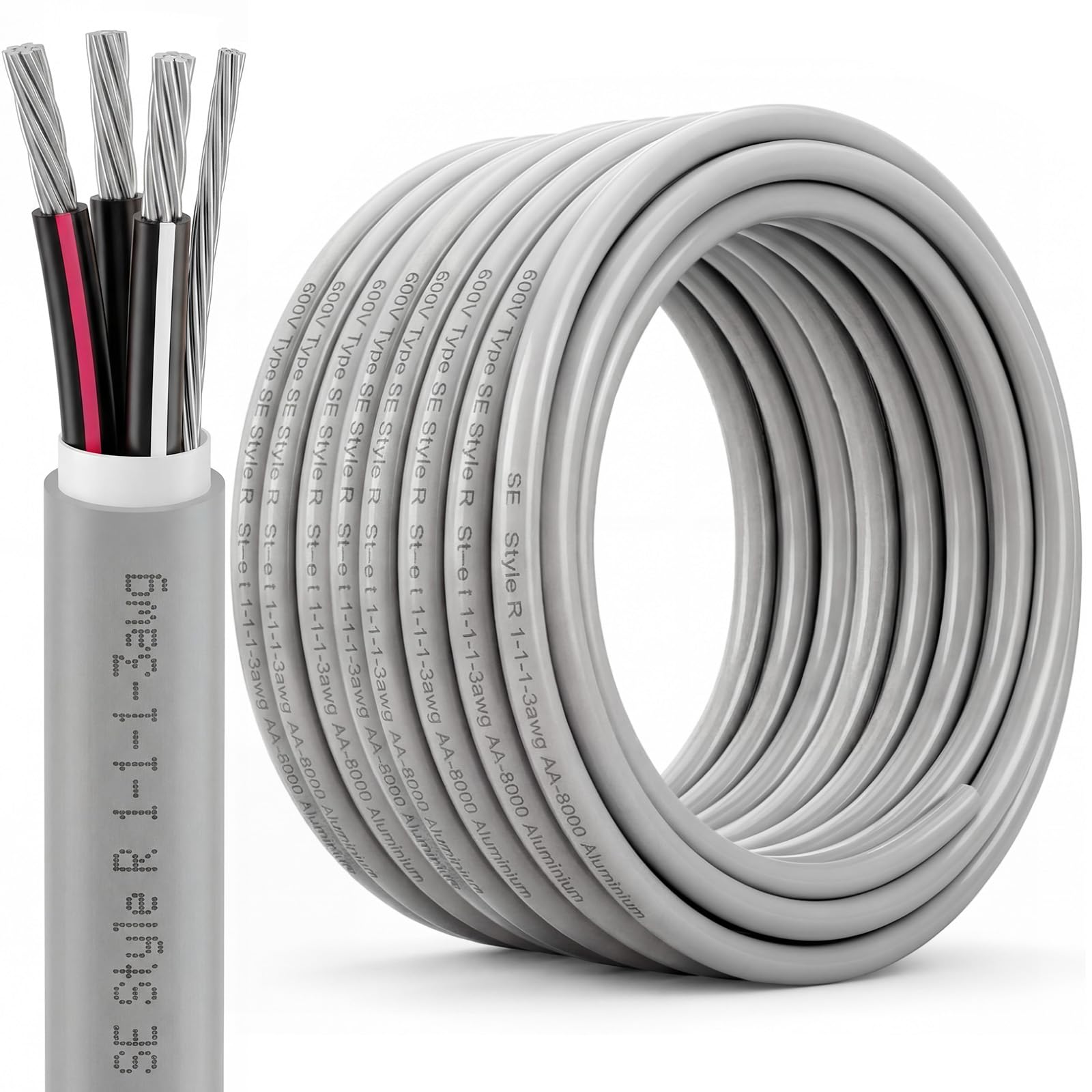

FairySandy 100' 1-1-1-3 SER Aluminum Service Entrance Cable 600V, 100 Amp, XHHW-2 Insulation, Gray PVC Jacket, 1-1-1-3 Aluminum Wire for Mobile Homes

Brand: FairySandy

Color: black

Features:

• Standard Construction: Package contains 1 roll of 1-1-1-3 aluminum wire for service entrance and distribution access; 100 feet long, plenty of length to meet the general access needs of homes and mobile homes

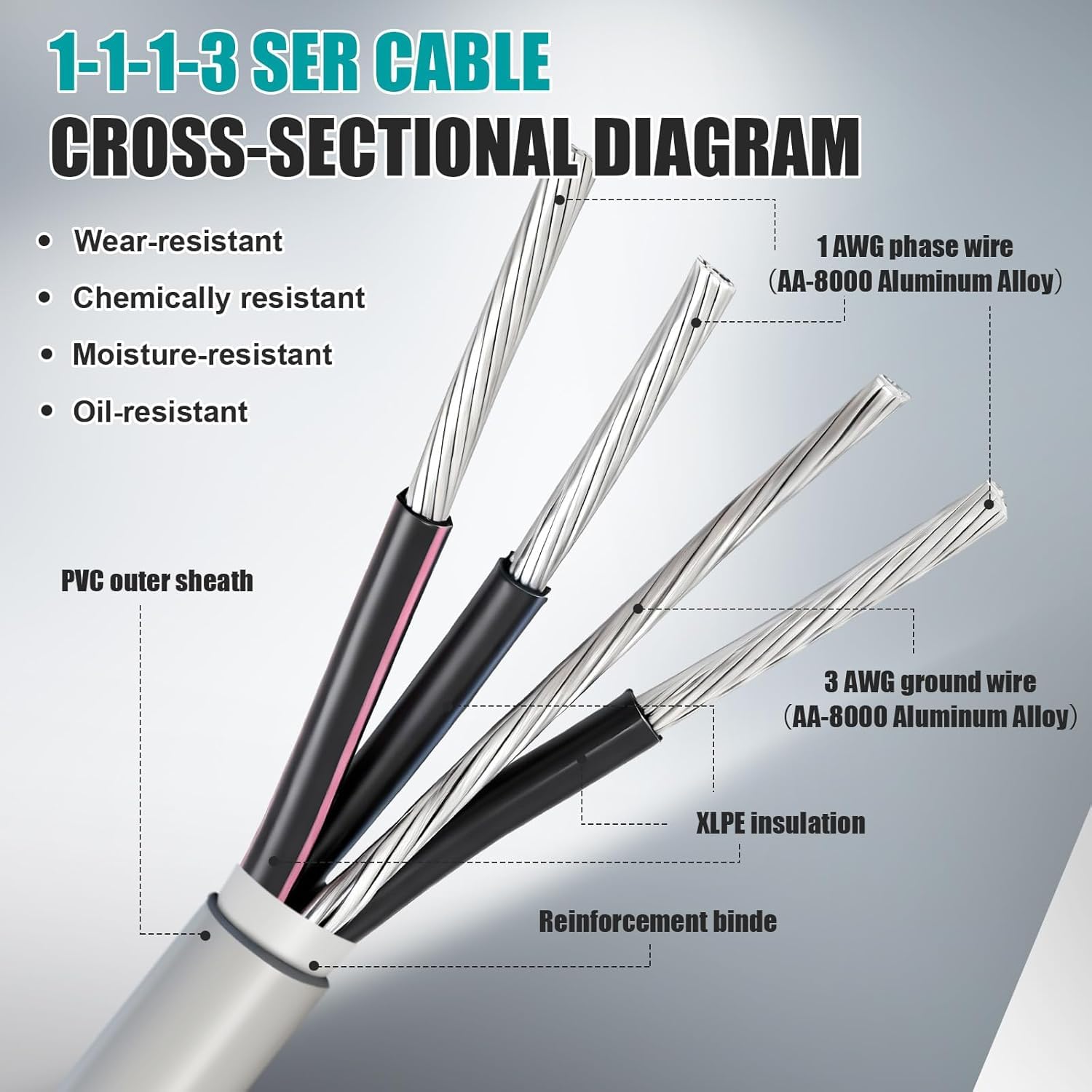

• High Conductivity: the 1-1-1-3 aluminum service entrance cable uses AA-8000 series aluminum alloy conductors, offering excellent conductivity and flexibility; The 1-1-1-3 wire includes three 1 AWG insulated wires and one 3 AWG bare ground wire

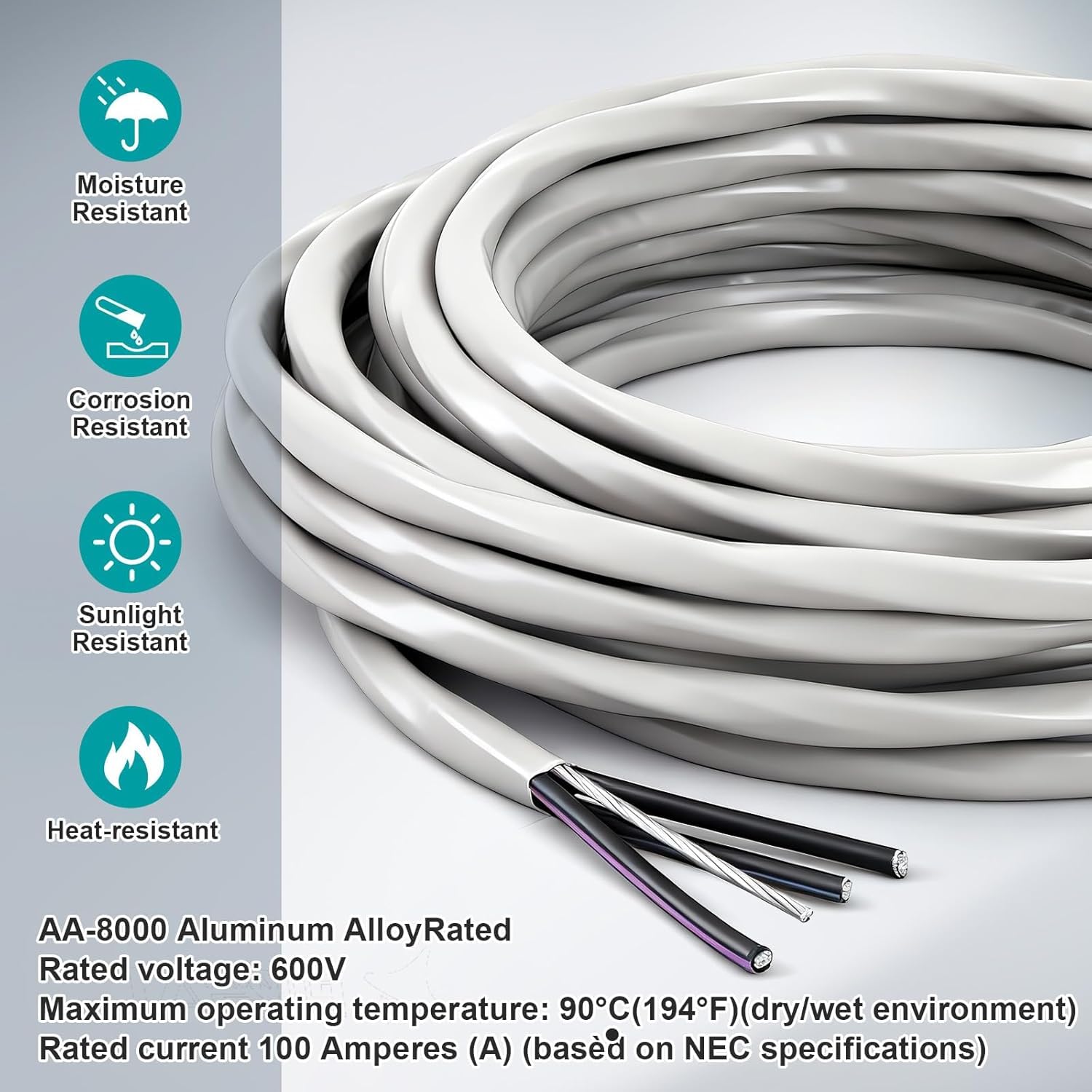

• Features: rated voltage 600V; Typically used for 100-amp power service applications; Service cables are ideal for heavy-duty residential and commercial power transmission.Rated for 85A (60°C) or 100A (75°C), meeting standard NEC requirements for 1 AWG Aluminum
• Xhhw-2 Insulation: the 1-1-1-3 aluminum wire uses XHHW-2 cross-linked polyethylene insulation, resistant to 90°C ( dry/ wet environments); The outer sheath is a sun-resistant gray PVC sheath, providing heat, moisture, and abrasion resistance
• Stable Power Supply: designed as an above-ground entry cable to transmit power to the meter, or as a feeder from the main distribution panel to a sub-distribution panel; Aluminum wire suitable for indoor and outdoor installation

model number: QIA-FairySandy-1118

Part Number: QIA-FairySandy-1118

Details: Features:

Durable:
1-1-1-3 service cable has the characteristics of high conductivity, low resistance, softness, and can be twisted and extended at will. Easy to strip and cut, rated voltage is 600V

Conform to The Specification:
Aluminum wire is resistant to sunlight exposure and is approved for use in cable ducts and underground facilities as recommended by national standards for electrical specifications.

Specifications:
Material: aluminum
Color: black

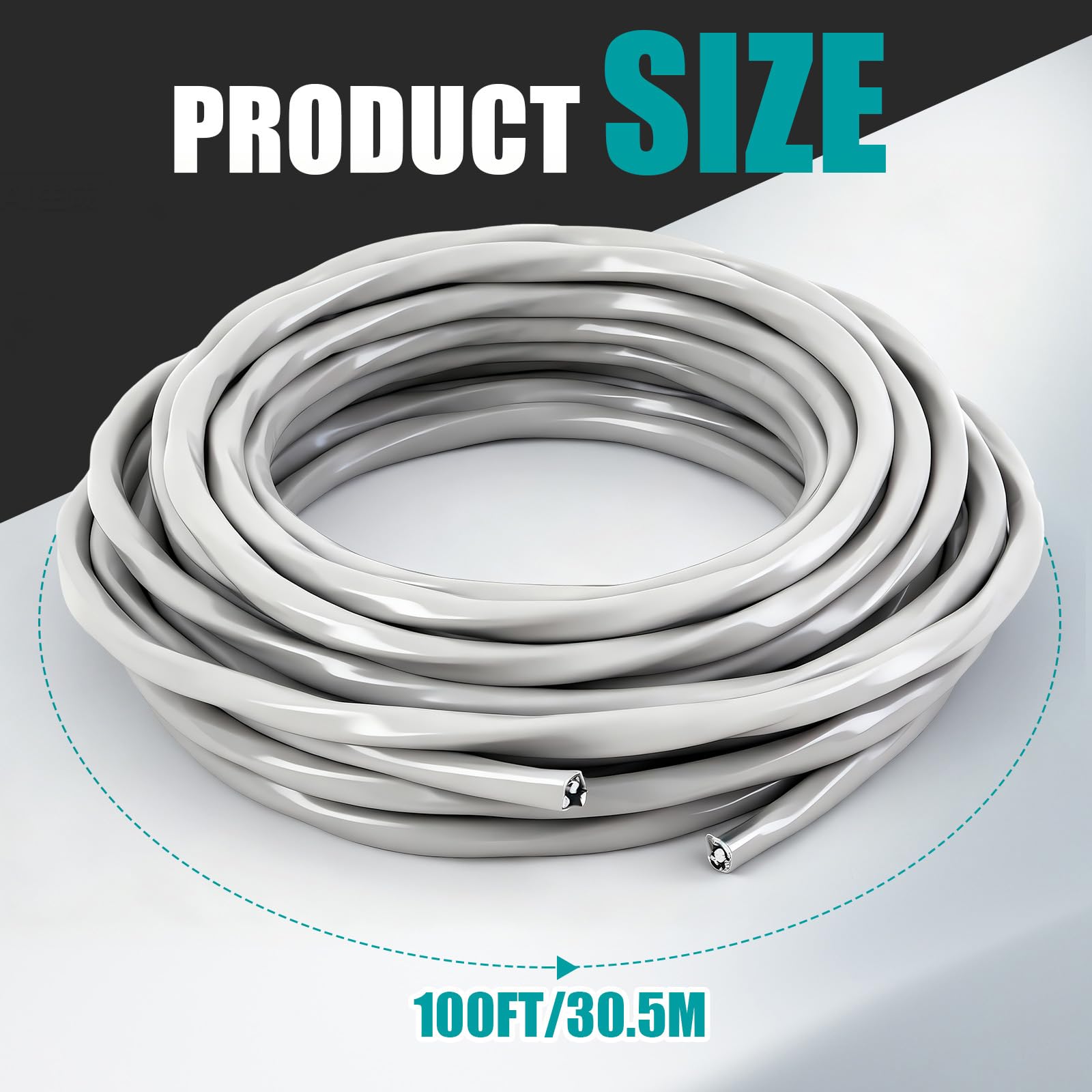

Size: 100ft/30.5m

Package includes:
1-1-1-3 Aluminum Service Entrance Cable

Notes:
Manual measurement, please allow slight errors on size.
The color may exist a slight difference due to different screen displays.
Please check the size before ordering

Package Dimensions: 42.5 x 41.7 x 5.7 inches
