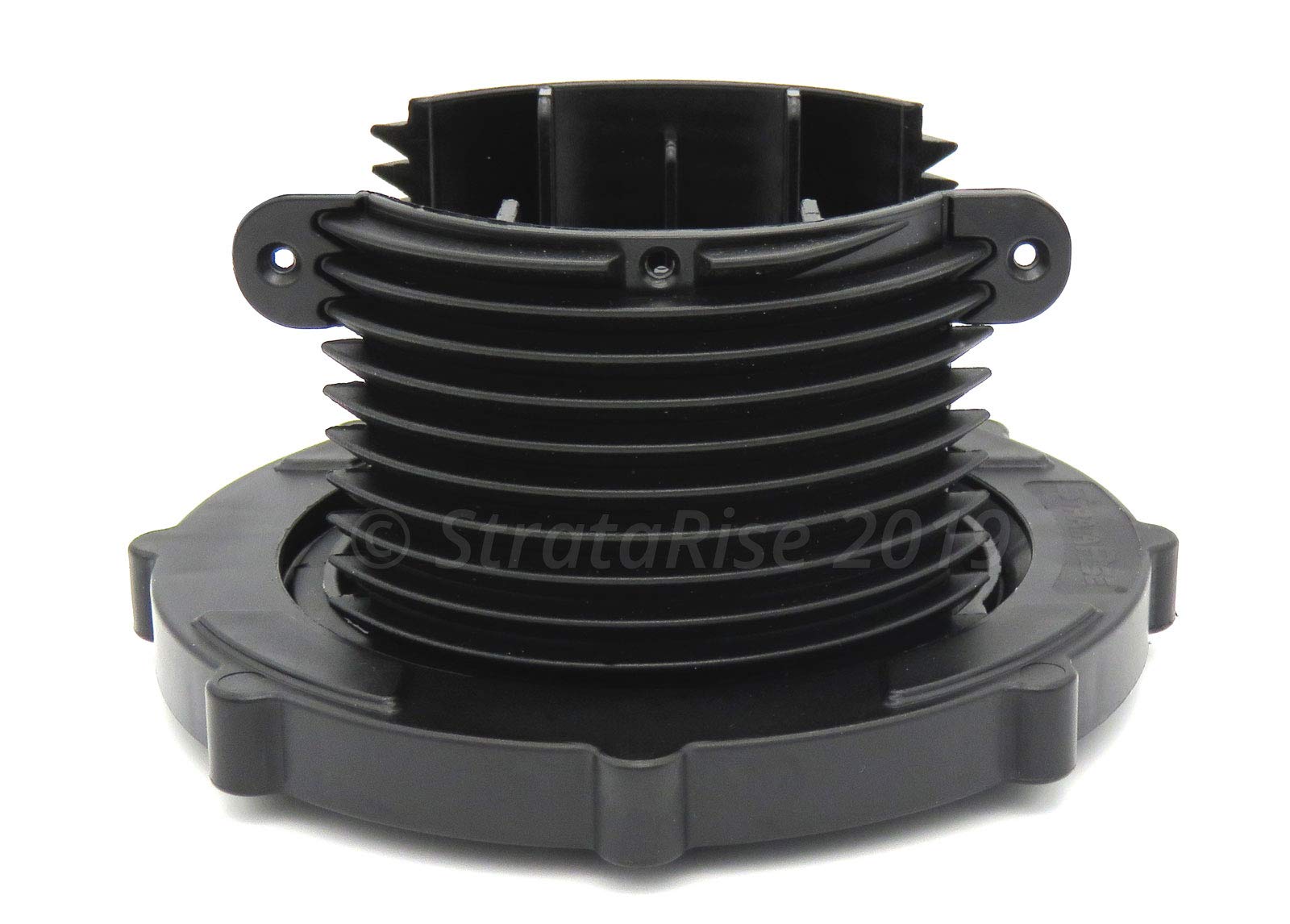

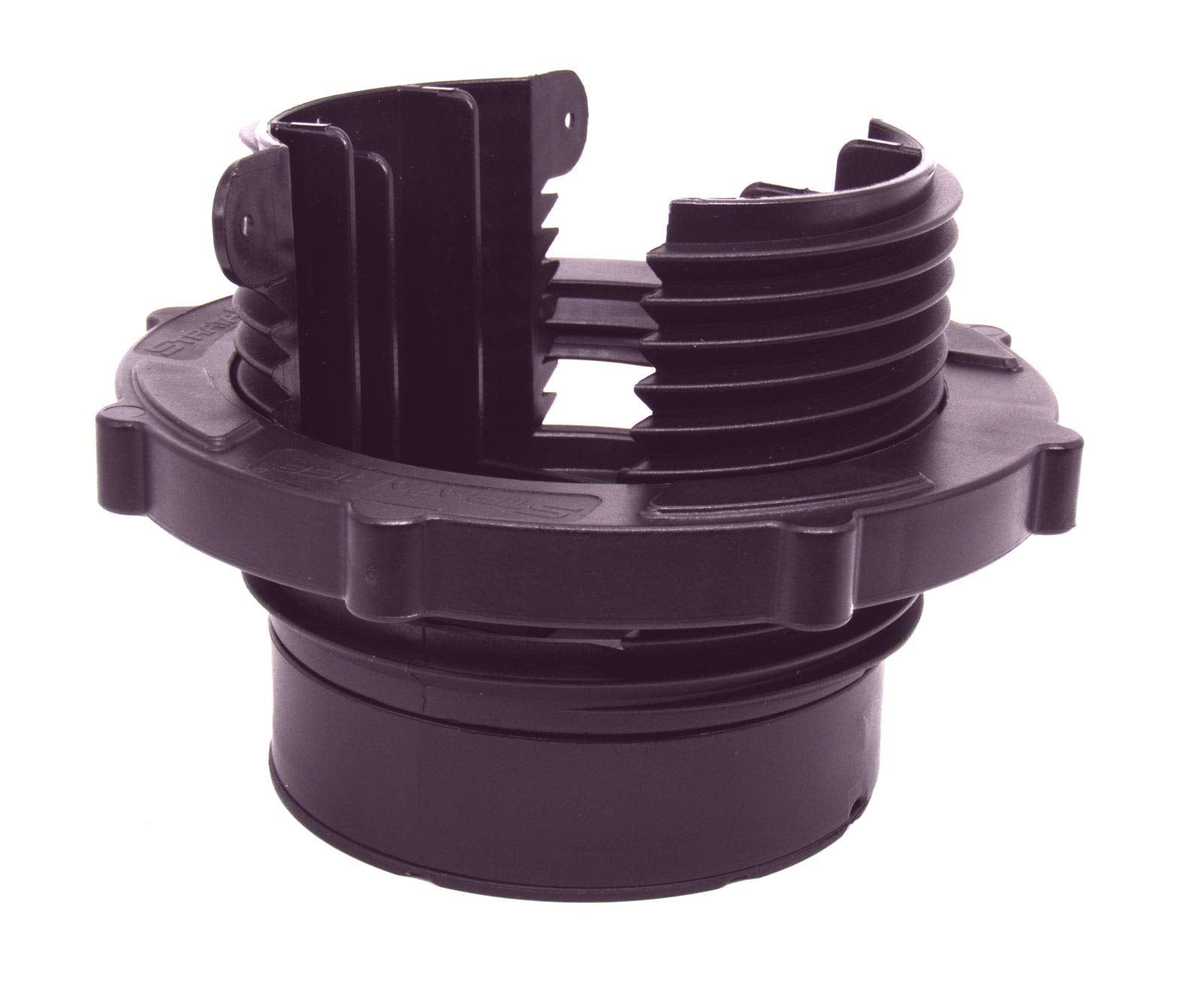

StrataRise Flexi-Level 1250 Pedestals are adjustable from 1/2' (12mm) to 2' (50mm).

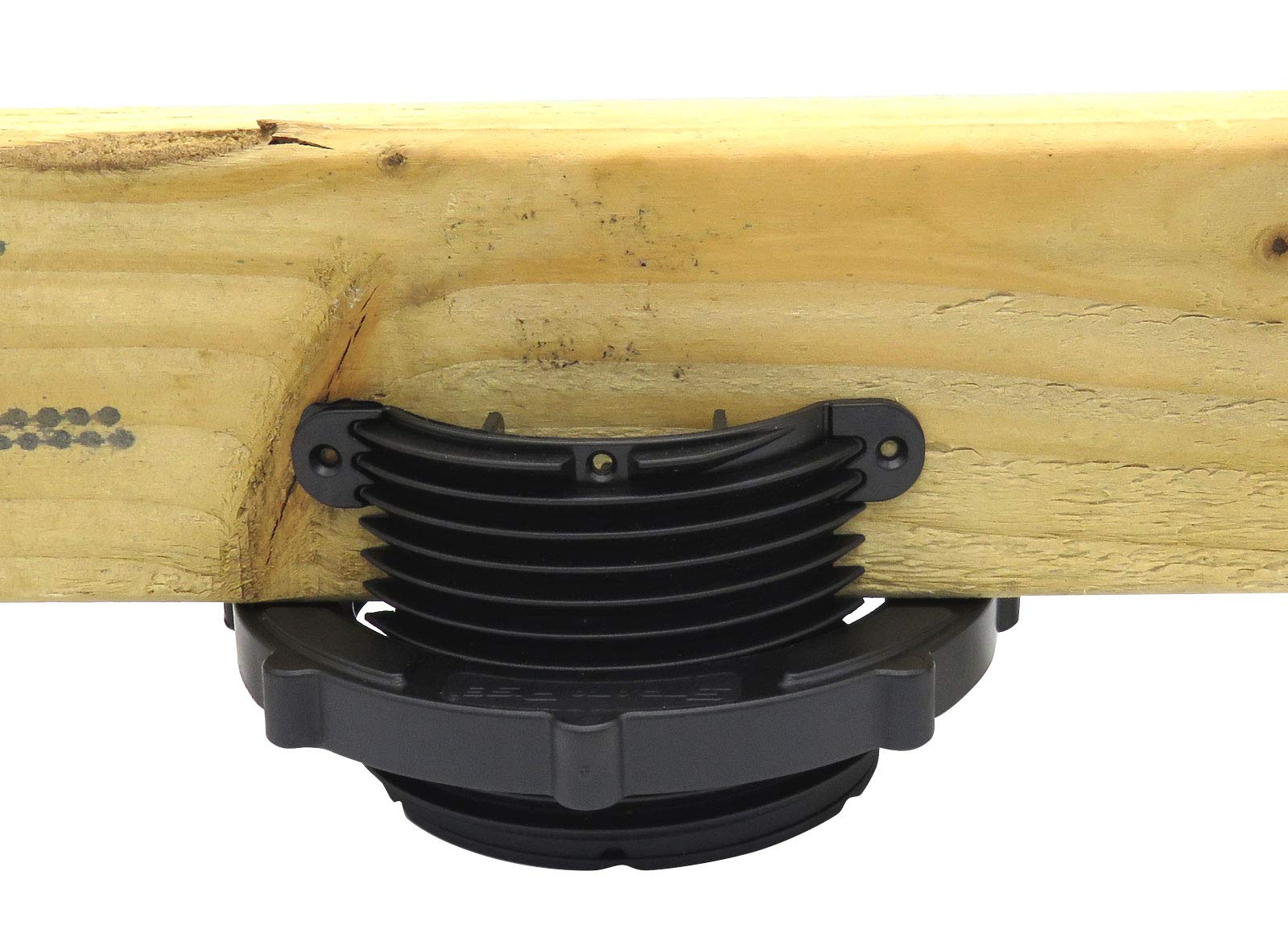

Drainage outlets in all compartments so water cannot collect and become stagnant. Effectively raises beams above the substrate surface, preventing saturation and reducing potential for rotting.

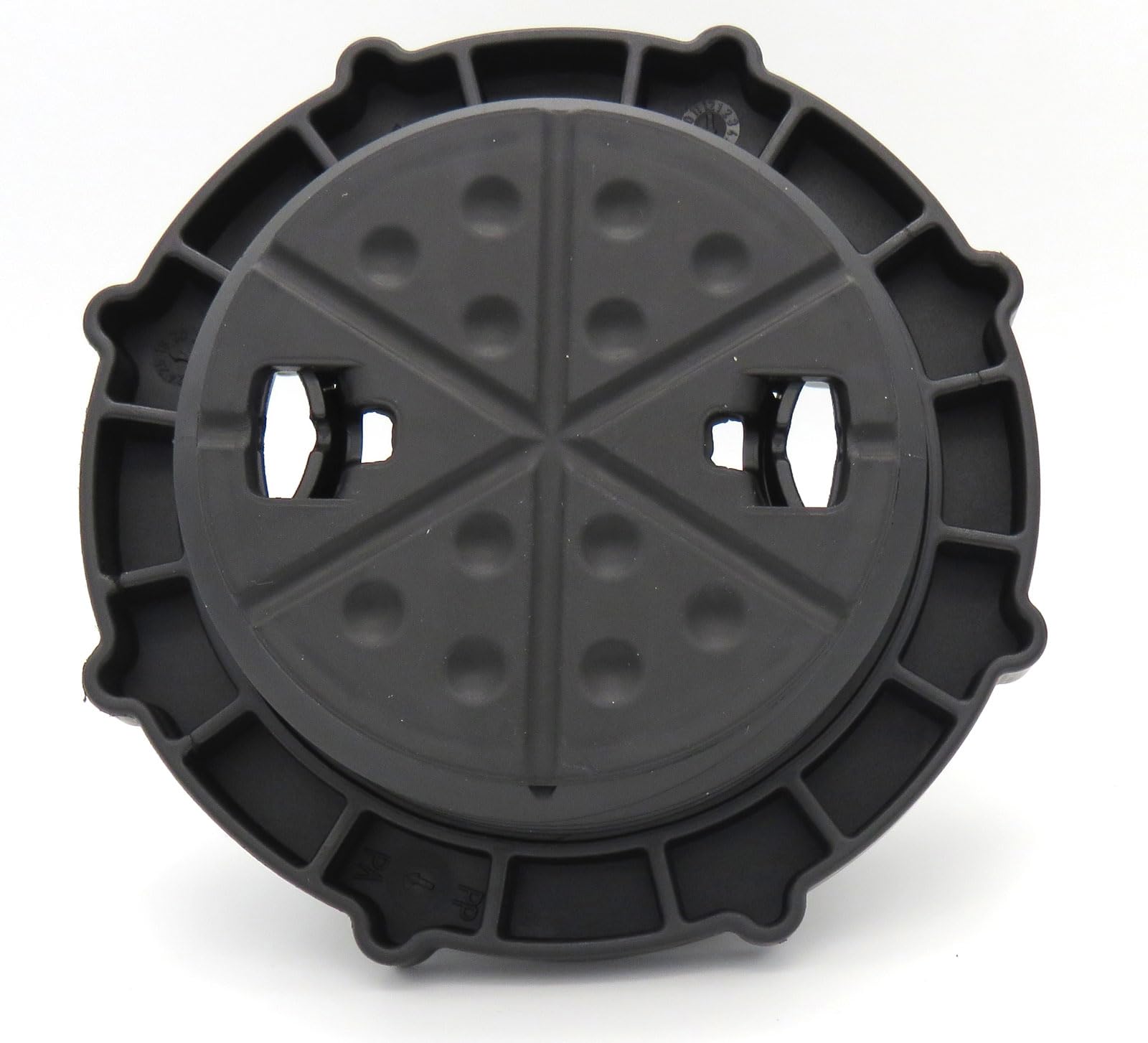

A clip-in, molded, acoustic base pad is supplied as standard with every cradle, providing cushioning and protection when used on top of membranes – it incorporates water drainage channels.
The Flexi-Level support cradle is rated for an average maximum load of 3000lbs/sq. yard ( 16.3kN/m²) using a minimum of 6 supports per square yard.
Easy and quick to use and adjust. The adjuster ring has been designed to provide easy handling. A deep thread provides extra strength, prevents cross-threading allows faster adjustment. There is now a provision for fixing the cradle to the joist after adjustment to allow lifting of the joists, to insert interim supports, without losing the cradle position and level.
