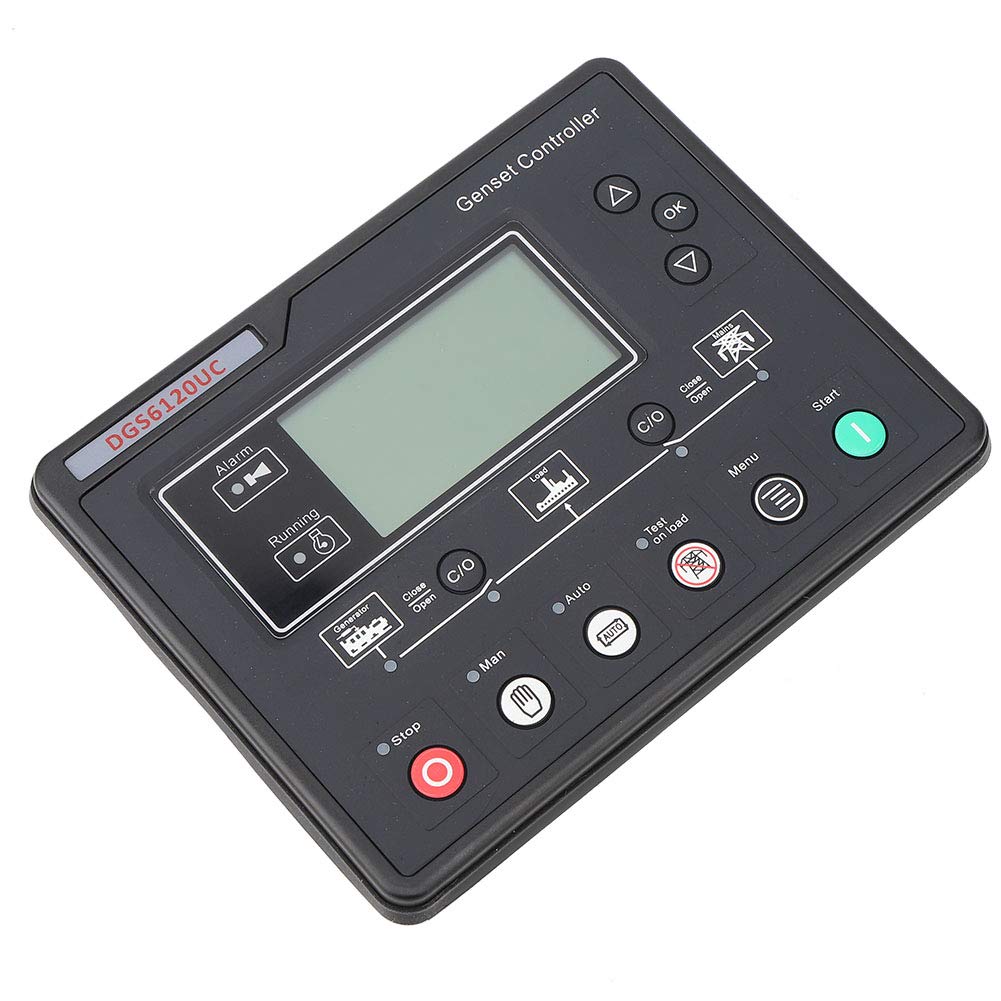

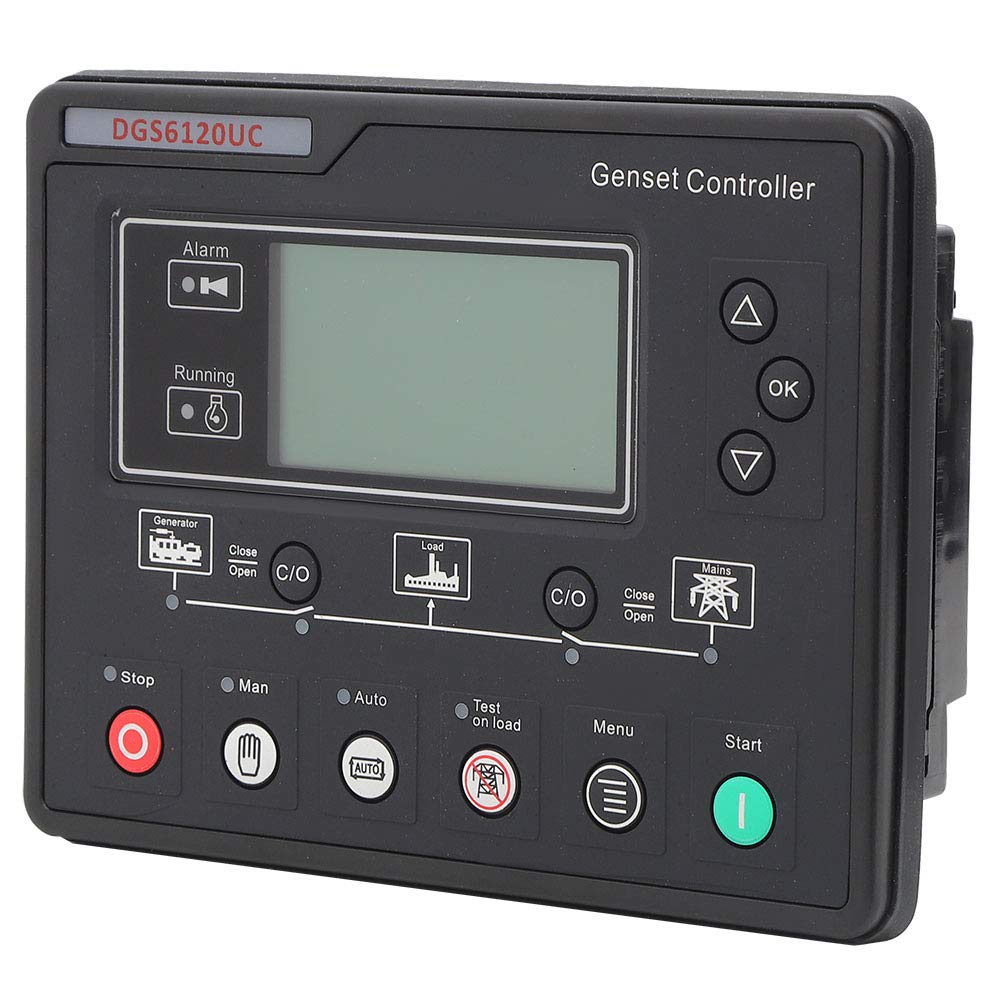

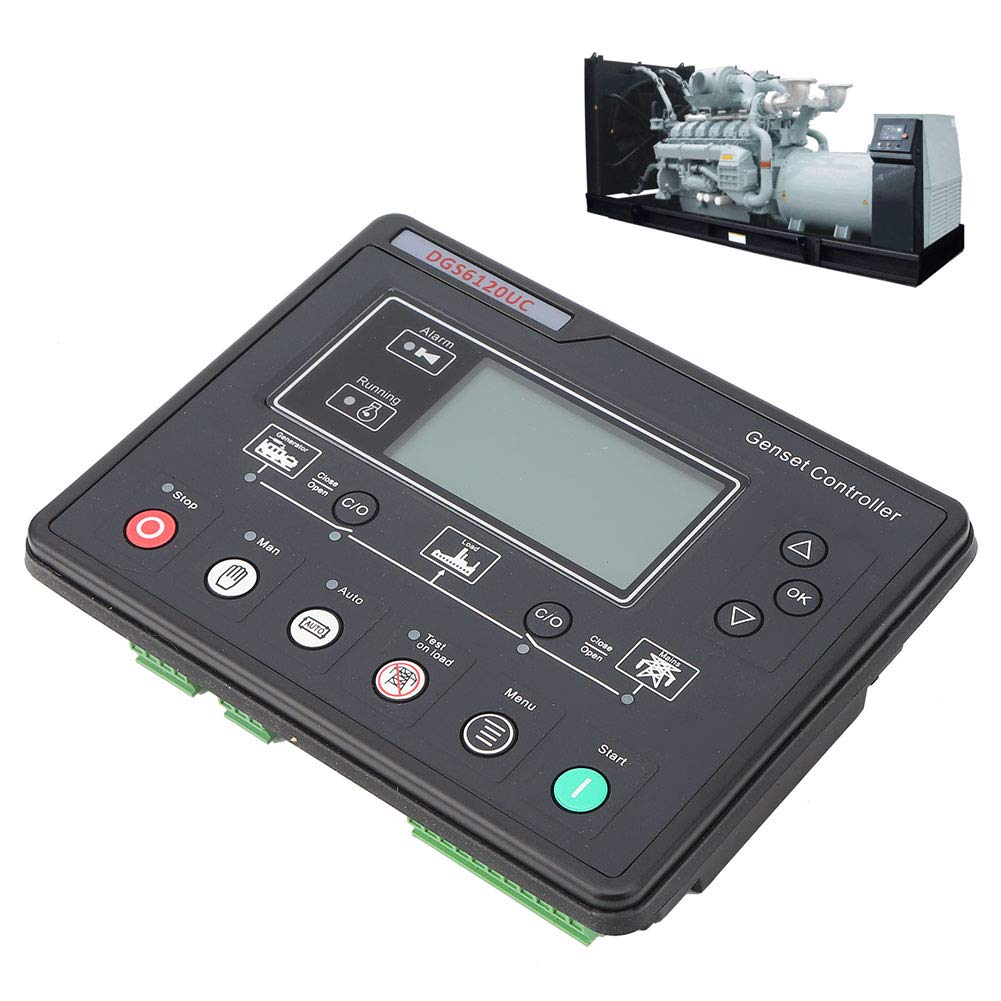

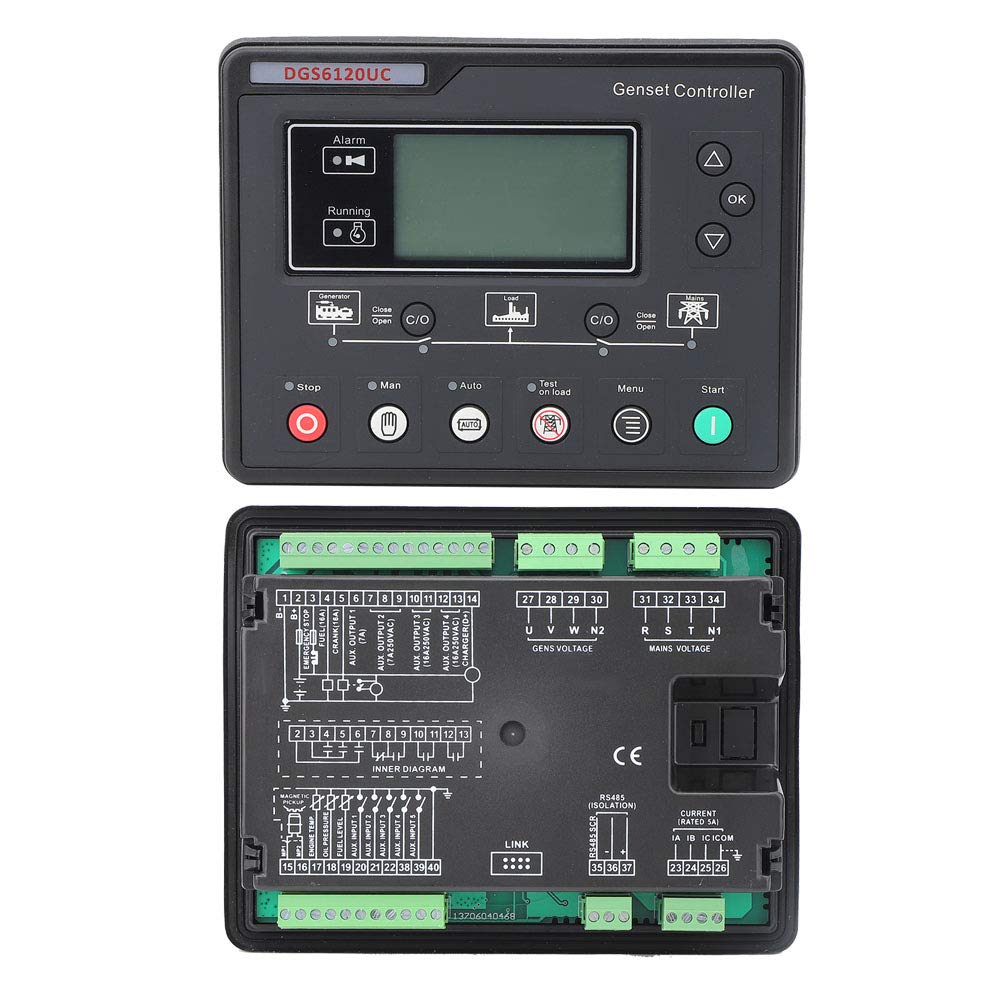

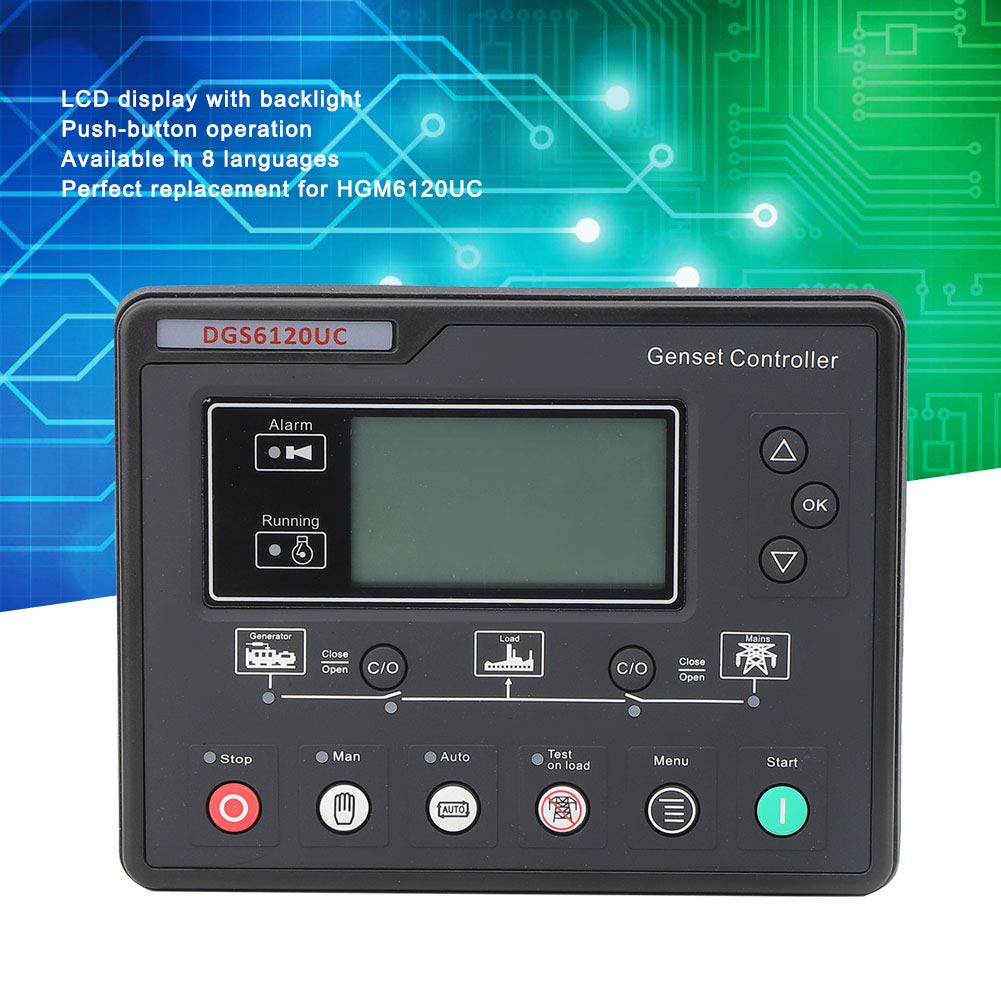

Generator Control Panel,Genset Controller Module Automatic Power Monitoring Switching Control for Generators LCD Display Backlight

Brand: ZephyVita

Features:

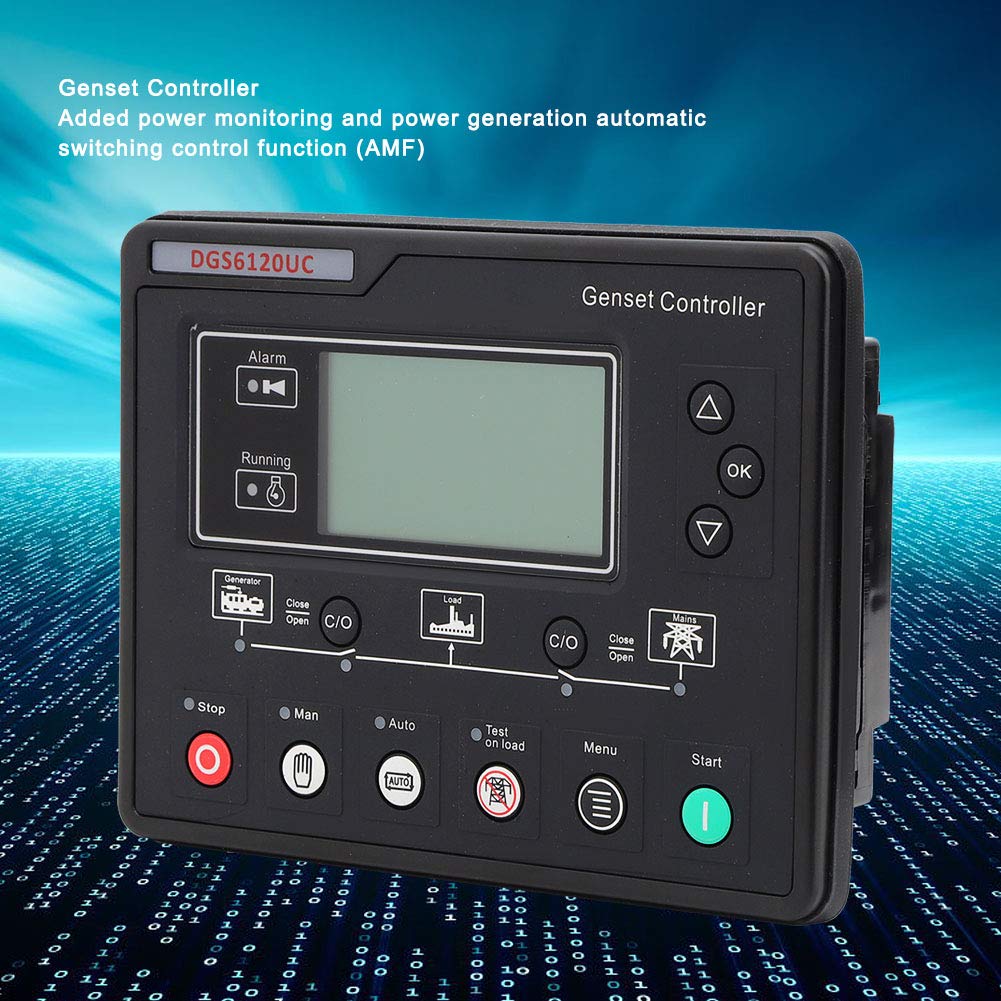

• [AUTOMATIC POWER MONITORING] The controller features added power monitoring and power generation automatic switching control function (AMF) for seamless operation.
• [INTUITIVE INTERFACE] LCD display with backlight, optional language interface, and push-button operation make it easy to navigate and operate.
• [MANUAL TEST MODE] With the load test key, the controller can be placed in manual mode for testing. It automatically loads the generator set when generation is normal.
• [MULTI-LANGUAGE SUPPORT] Available in 8 languages including Chinese, English, Spanish, Russian, and more for versatile usage.
• [PREMIUM CONSTRUCTION] Manufactured from premium plastic materials, the controller ensures a long service life and for reliable operation.

Part Number: ZephyVitasr6nfqgxz5

Details: [AUTOMATIC POWER MONITORING] The controller features added power monitoring and power generation automatic switching control function (AMF) for seamless operation.
[INTUITIVE INTERFACE] LCD display with backlight, optional language interface, and push-button operation make it easy to navigate and operate.
[MANUAL TEST MODE] With the load test key, the controller can be placed in manual mode for testing. It automatically loads the generator set when generation is normal.
[MULTI-LANGUAGE SUPPORT] Available in 8 languages including Chinese, English, Spanish, Russian, and more for versatile usage.
[PREMIUM CONSTRUCTION] Manufactured from premium plastic materials, the controller ensures a long service life and for reliable operation.

Spec:
Conditon: 100% Brand New
Item Type: Genset Controller
Material: Plastic
Color: As Pictures Shown
Mains Voltage Normal Delay: (0-3600)S
Mains Voltage Abnormal Delay: (0-3600s
Mains Voltage Low Threshold: (30-620)V
Mains Voltage High Threshold: (30 620)V
Switching Interval: (0-99.9)S
Power-On Delay: (0-3600)S
Stop Delay: (0-3600)S
Starting Times: (1-10)
Warm-Up Time: (0-300)S
Starting Time: (3-60)S
Starting Interval Time: (3-60)S
Safe Running Time: (1-60)S
Startup Idle Time: (0-3600)S
High-Speed Warm-Up Time: (0-3600)S
High Speed Cooling Time: (0-3600)S
Stop Idle Time: (0-3600)S
Power Down Time: (0-120)S
Waiting for Stop Delay: (0-120)S
Switch Closing Delay: (0-10)S
Engine Teeth: (10-300)
Abnormal Power Generation Delay: (0-20.0)S
Generating Overvoltage Shutdown Threshold: (30-620) V
Generating Undervoltage Shutdown Threshold: (30-620) V
Underspeed Shutdown Threshold: (0-6000) Rpm
Overspeed Shutdown Threshold: (0-6000) Rpm
Under Frequency Shutdown Threshold: (0-75.0) Hz
Over-Frequency Shutdown Threshold: (0-75.0) Hz
Over-Temperature Shutdown Threshold: (80-140)C
Low Oil Pressure

Package Dimensions: 9.1 x 7.1 x 2.4 inches
