IMELBUFF Hydraulic Pressure Test Coupling Kit, JIC BSPP ORFS Hydraulic Swivel Run Tees Set Repair Tools for Most Excavator Construction Machinery 3 Gauges 4 Test Hoses 14 Couplings 19 Tee Connectors

Brand: IMELBUFF

Features:

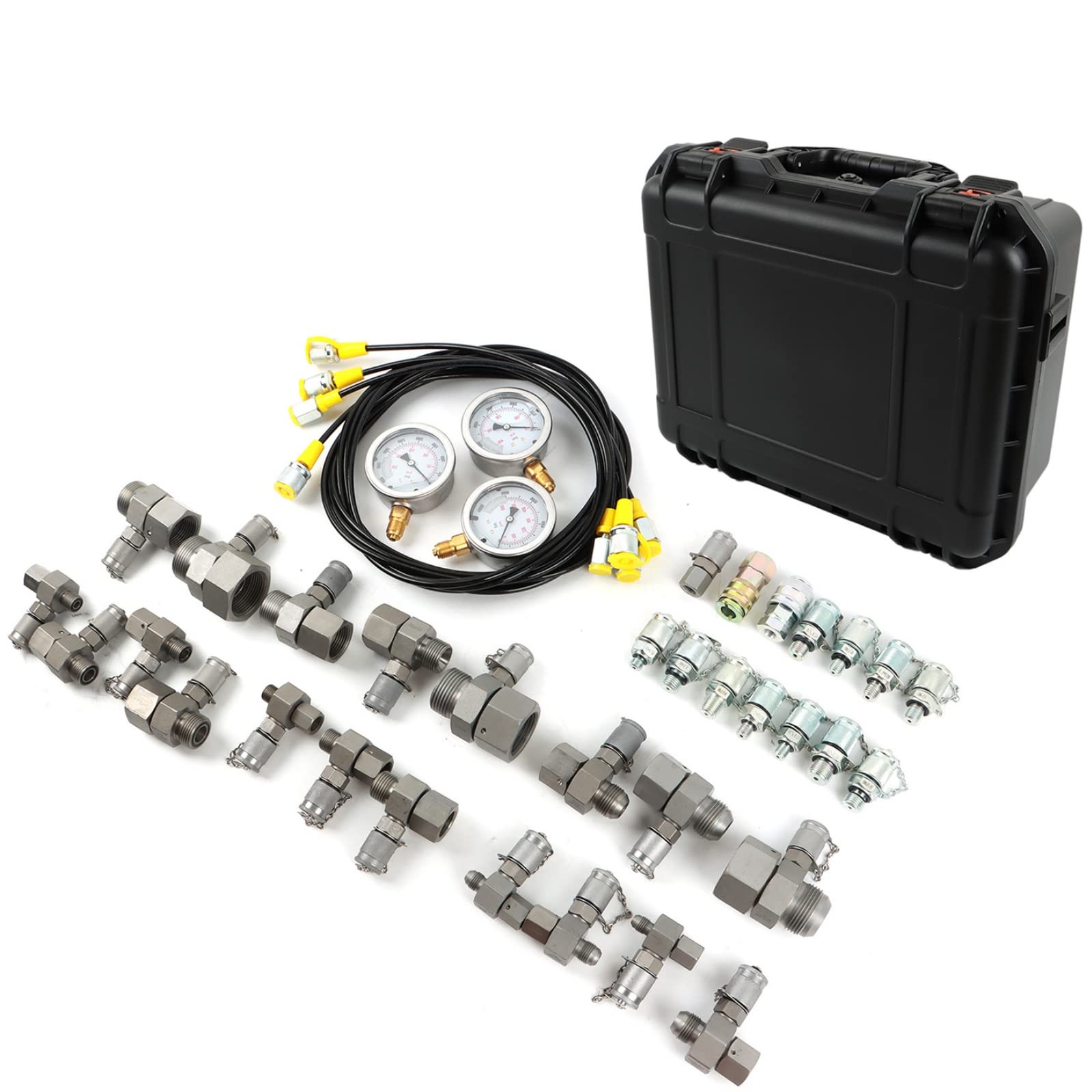

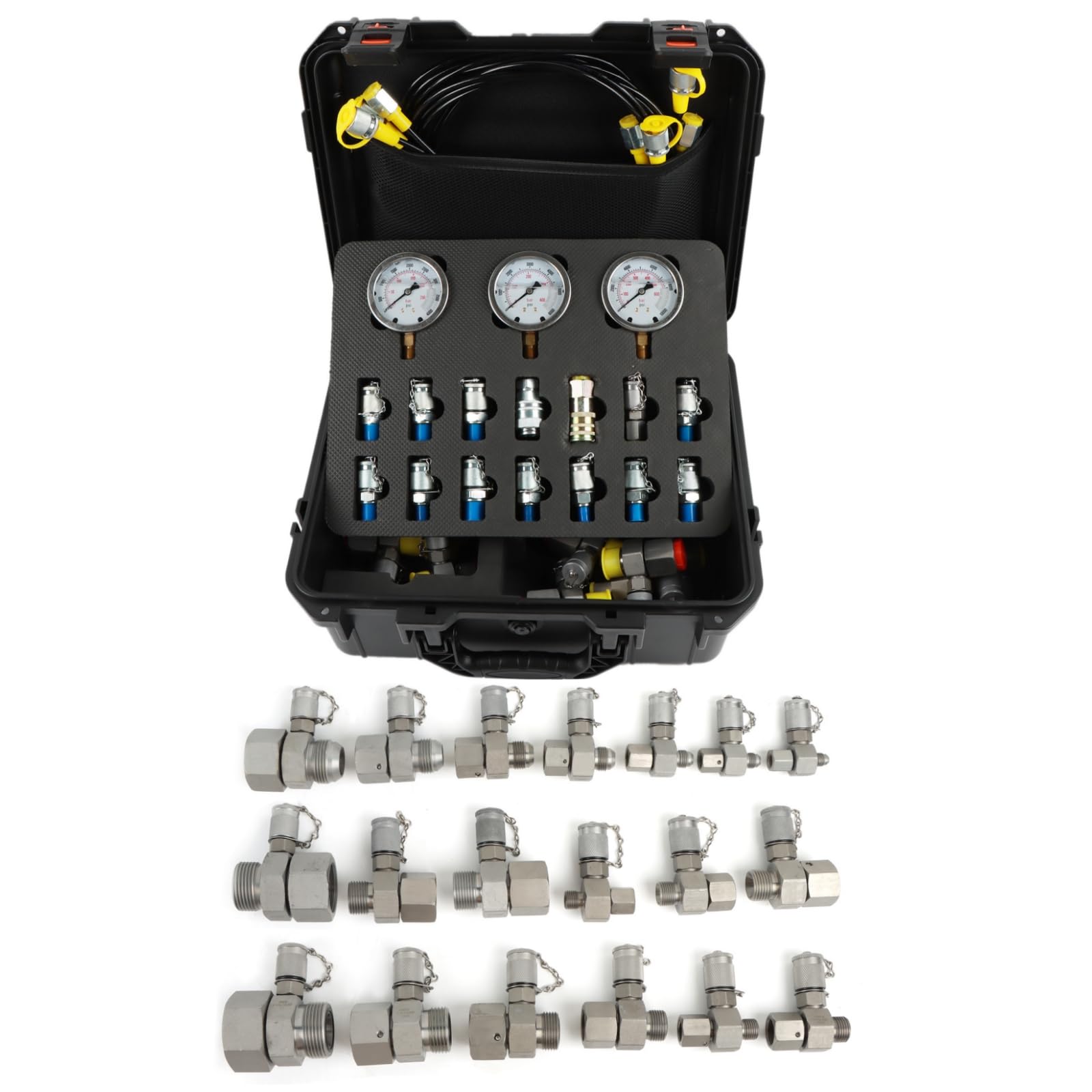

• 🧰Kit Include: 3 preesure gauges & 14 test couplings & 4 test hoses & JIC & ORFS & BSPP Hydraulic Swivel Run Tees Set & 1 Sturdy Carrying Case
• 🧰Accurate Reading: 3 different working pressure gauges: 25/40/60Mpa. the internal fluid is made of high grade silicone oil. The scale is clear and accurate, ensuring accurate pressure measurement, efficient and convenient.

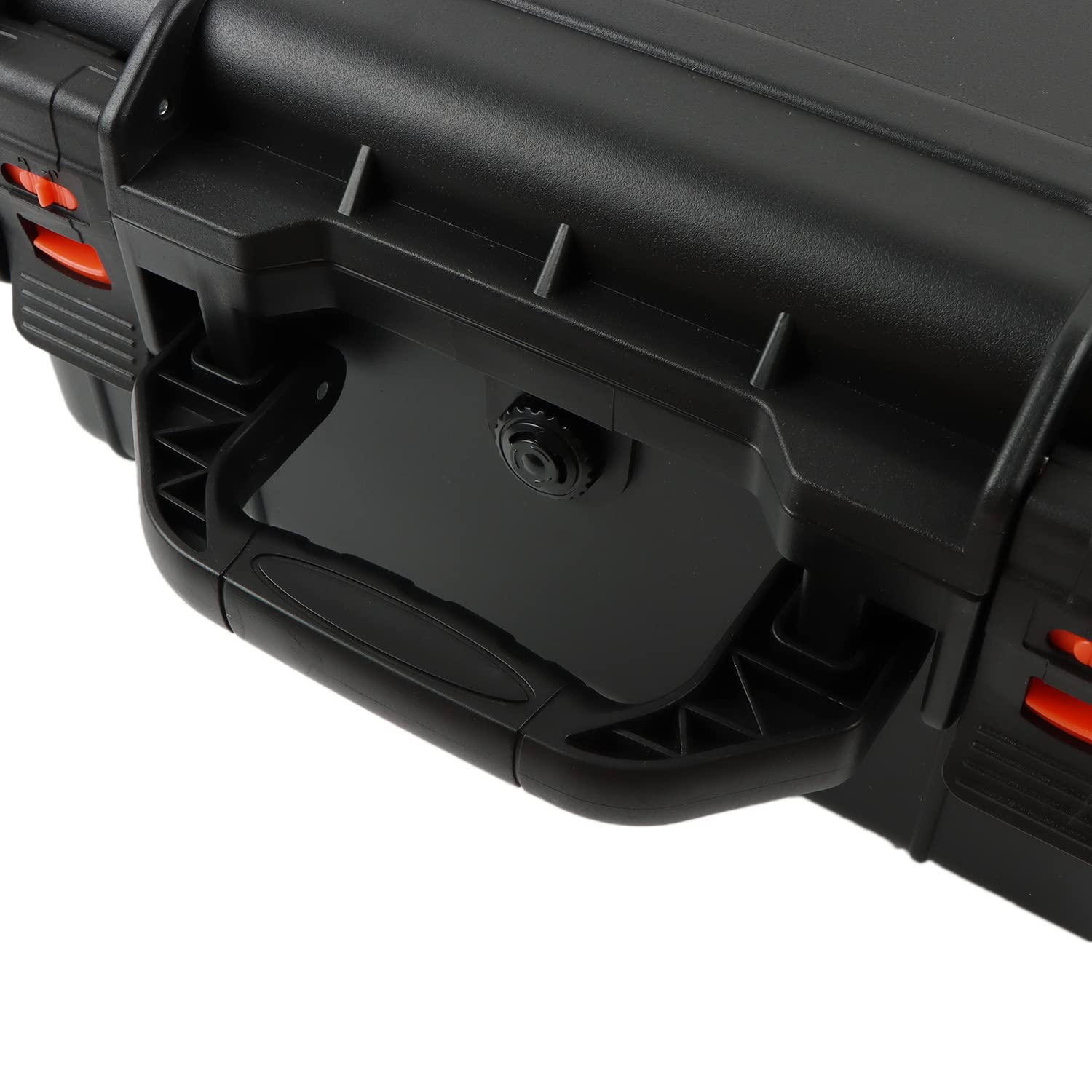

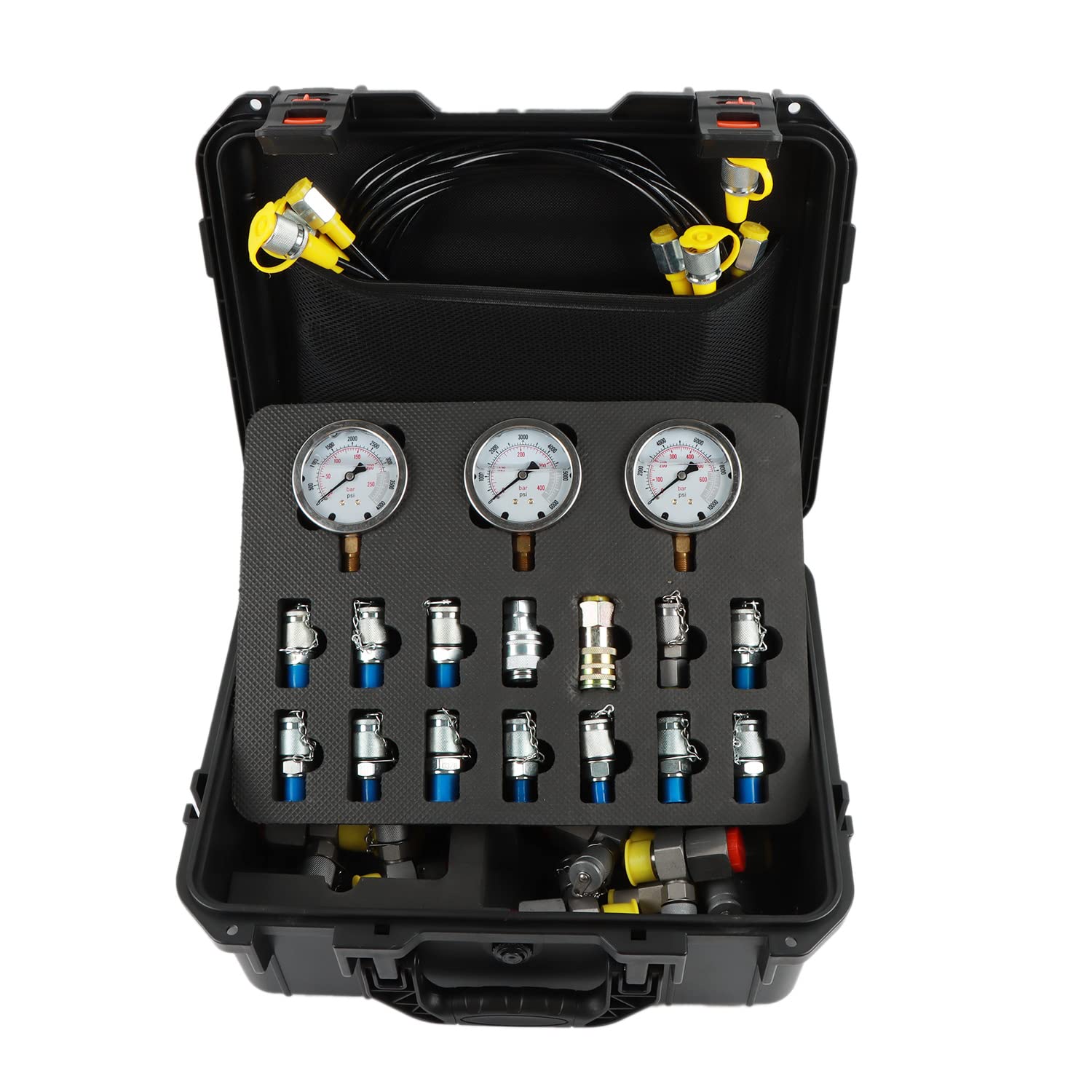

• 🧰Feature: The case is very sturdy and well thought-out. It's great for keeping the whole set organized and secure when not in use. The recesses for each individual item are very snug and keeps the fittings from rattling around.
• 🧰Application: for most excavators and machines on the market. Widely used in construction, machinery, ships, mining, petroleum, chemical industry, maintenance stores, farms, production plants, etc. Applicable media for pressure test: oil, water, air (non-corrosive substances to copper/copper alloy)
• 🧰Service: 1-year-warranty and 24 hour support for customer service. Please feel free to contact us by amazon email if you have any question with the product. Thank you for choosing IMELBUFF

model number: SAE JIC-37°, ORFS, BSPP

Part Number: IM-Guage-004

Details: 25/40/60MPa Hydraulic Pressure Test Gauge Kit with 14 Couplings & SAE JIC-37°& ORFS & BSPP Hydraulic Swivel Run Tees Connector Set for Excavator Construction Machinery
Product Details:

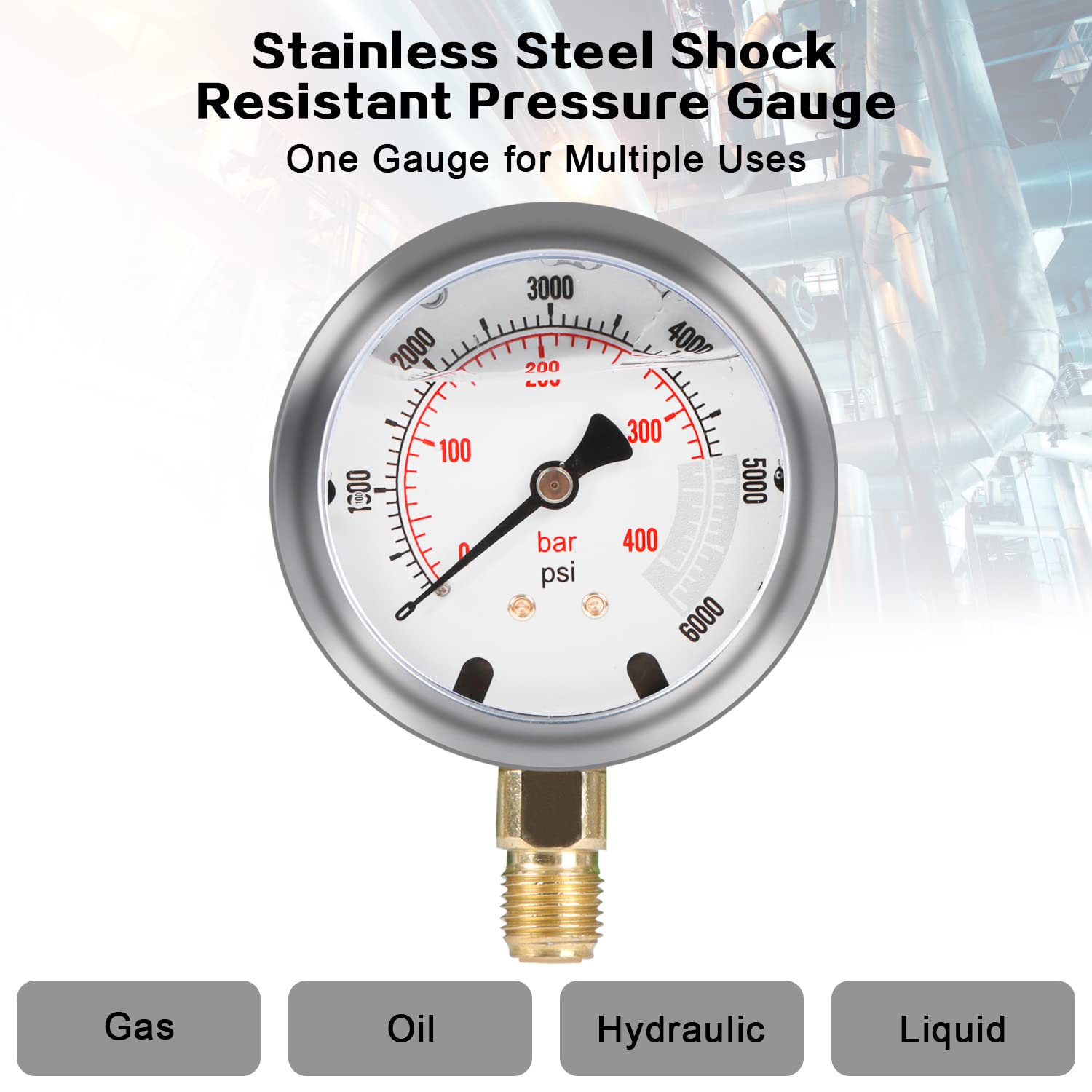

🧰3 Pressure Gauges:
25mpa/250Bar/4000PSI *1
40mpa/400Bar/6000PSI *1
60mpa/600Bar/10000PSI *1

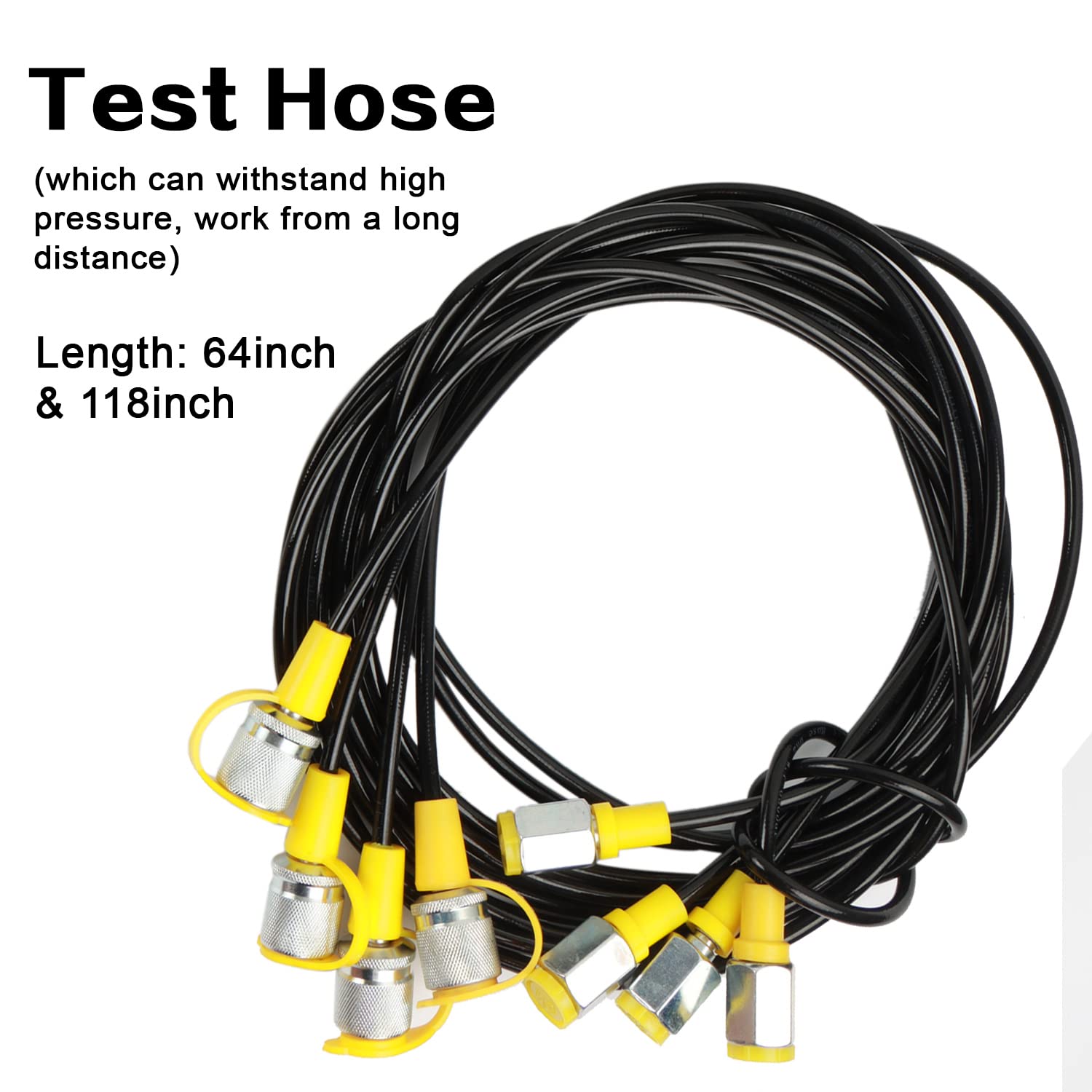

🧰4 Test Hoses:
Length 164cm/64inch test hoses *3
Length 300cm/118inch test hoses *1

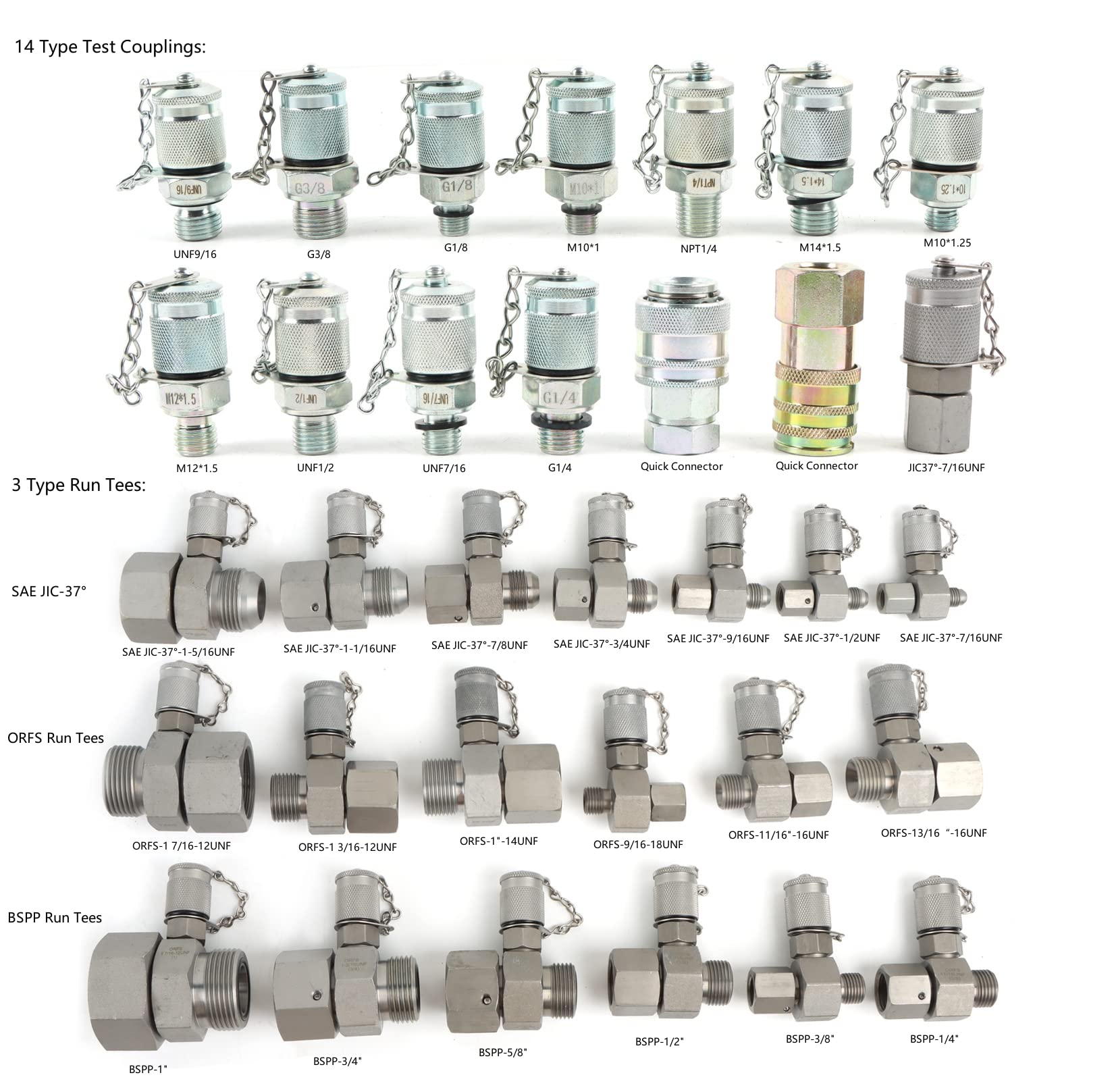

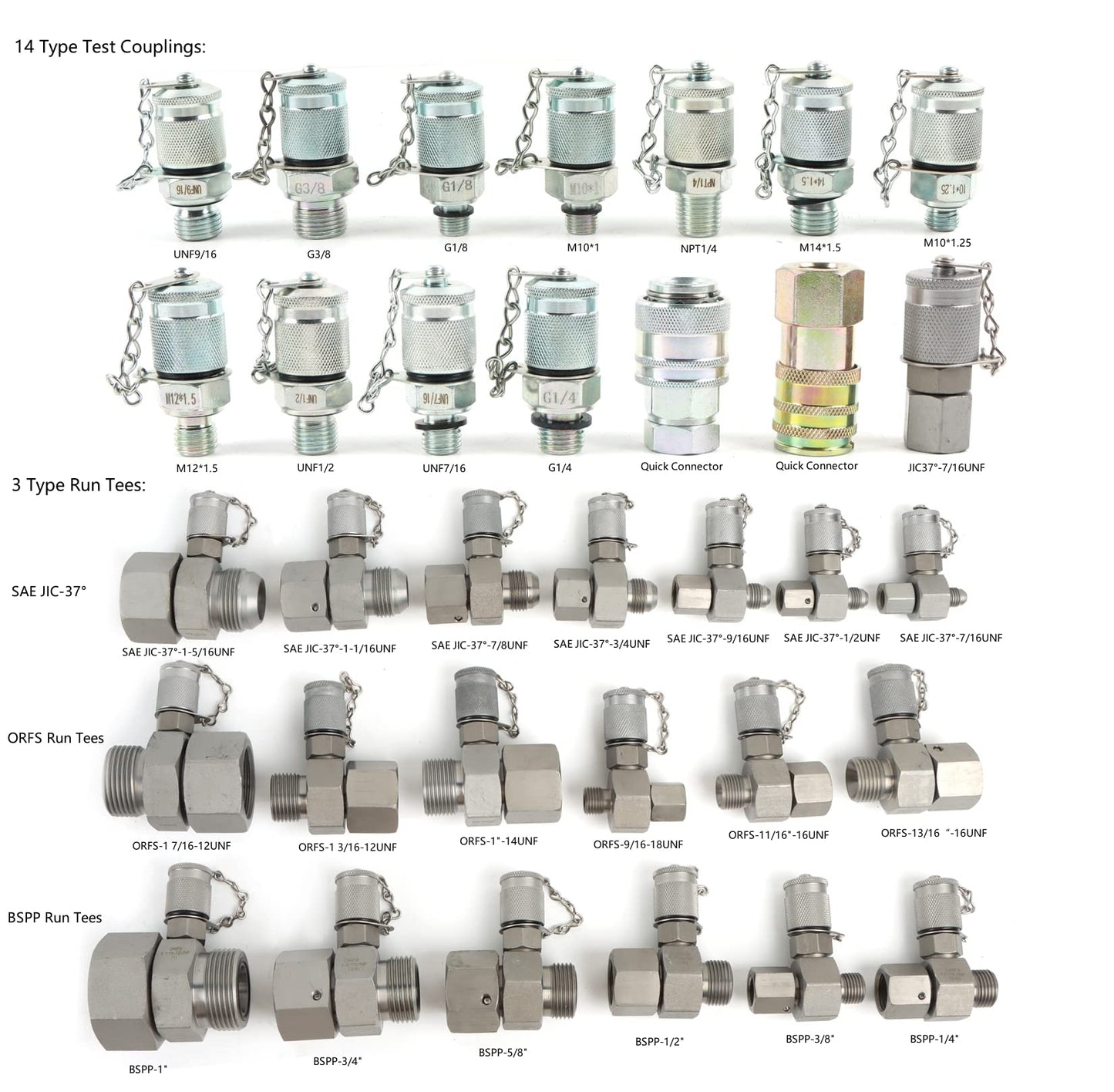

🧰14 Test Couplings:
G1/4 ---- for Komastu/Kobelco
G1/8 ---- for Kawasaki/Caterpillar
G3/8 ---- for Daewoo/Hyundai/Kato
M10*1 ---- for Komastu - 5/6
M10*1.25 ---- for Komastu -7/8
M12*1.5 ---- for Hitachi
M14*1.5 ---- for Hitachi
UNF7/16-20 ---- for Caterpillar
UNF1/2-20
UNF9/16-18 ---- for Caterpillar
NPT1/4-18
JIC37°-7/16UNF
Quick connector for Komatsu/Hitachi*1
Quick connector for CAT/CASE/John Deere*1

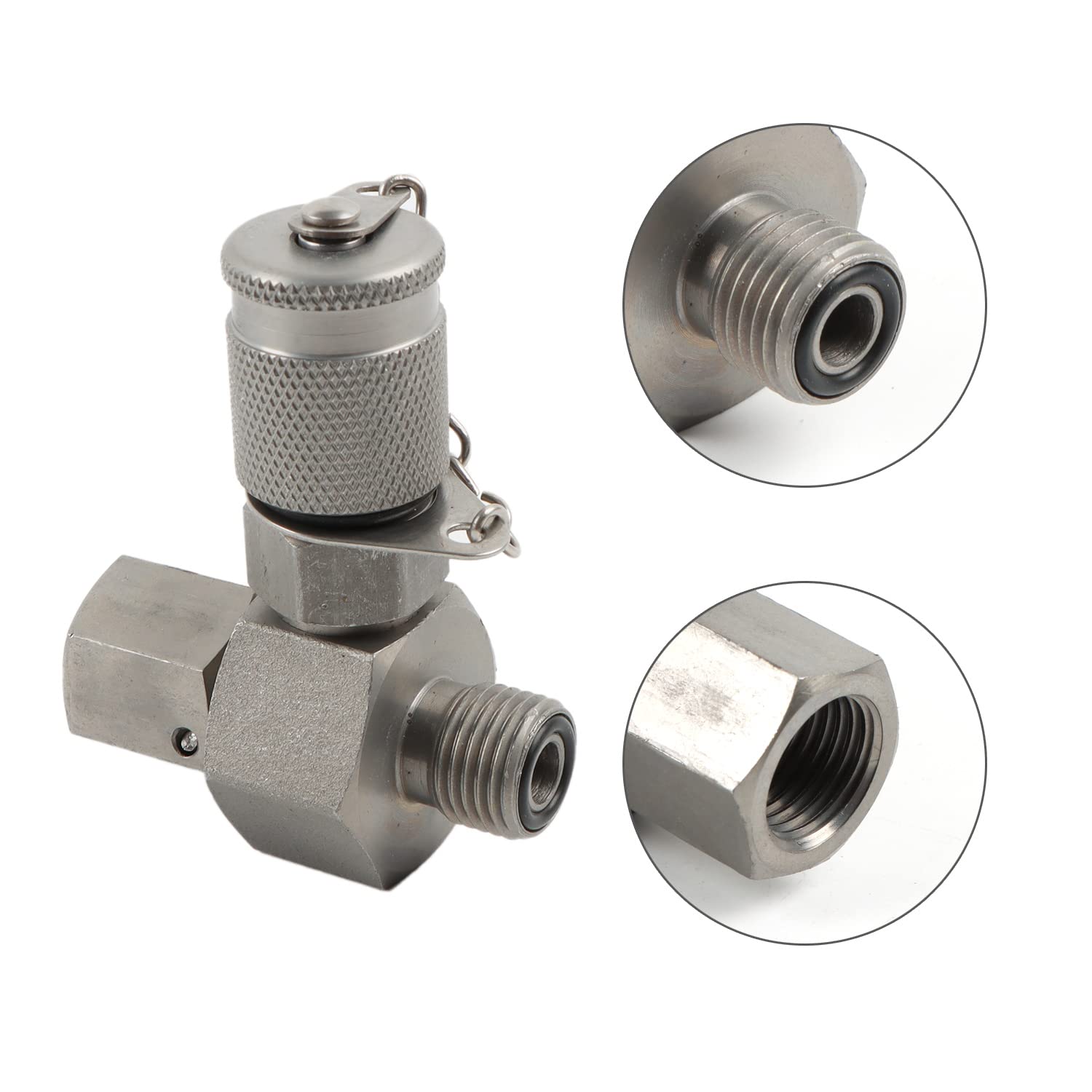

🧰Swivel Run Tees
SAE JIC:
SAE JIC-37°-7/16UNF *1
SAE JIC-37°-1/2UNF *1
SAE JIC-37°-9/16UNF *1
SAE JIC-37°-3/4UNF *1
SAE JIC-37°-7/8UNF *1
SAE JIC-37°-1-1/16UNF*1
SAE JIC-37°-1-5/16UNF*1
ORFS:
ORFS-9/16-18UNF *1
ORFS-11/16'-16UNF *1
ORFS-13/16“-16UNF *1
ORFS-1'-14UNF *1
ORFS-1 3/16-12UNF *1
ORFS-1 7/16-12UNF *1
BSPP:
BSPP-1/4' *1
BSPP-3/8' *1
BSPP-1/2' *1
BSPP-5/8' *1
BSPP-3/4' *1
BSPP-1' *1

Package Dimensions: 14.6 x 12.0 x 7.0 inches
