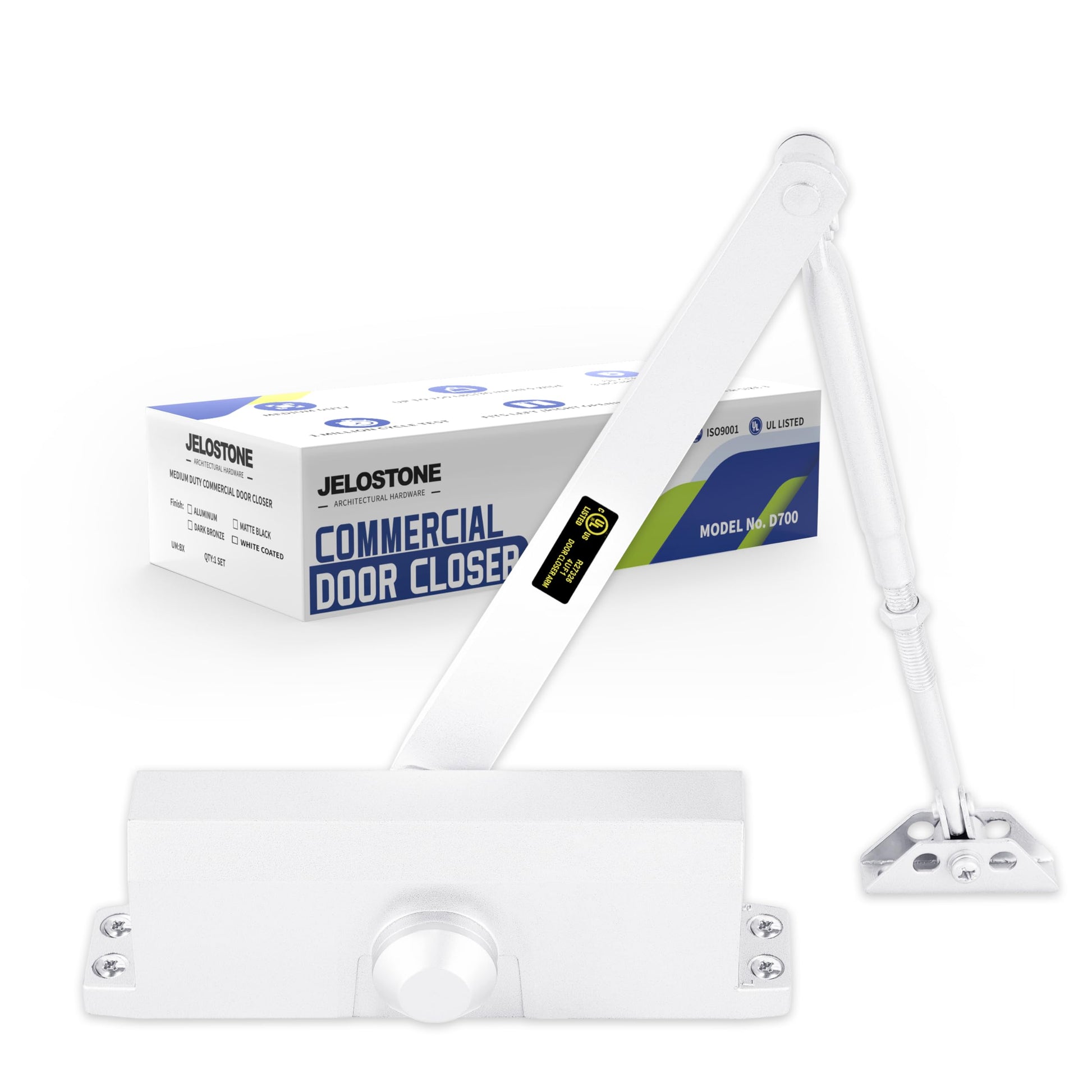

JELOSTONE Medium Duty Commercial Door Closer D700, UL 3 Hour Fire Rated, Fixed Size #3 Spring Power and 3 Valves Closing/Latching/Backcheck, Door (55-150LB/33-36 in), Indoor/Outdoor (White Coated)

Brand: JELOSTONE

Color: White Coated

Features:

• DOOR CLOSER RESIDENTIAL/COMMERCIAL USAGE: The D700 Automatic Door Closer from JELOSTONE Architectural Hardware suits medium- to high-traffic entrances, such as homes, condominium units, offices, restaurants, and other light to medium traffic commercial areas. This is an economical door automatic closer model for doors that weigh up to 65 kg (150 lbs). This is a non-handed closer that will work on left- or right-handed light commercial doors.
• MATERIAL: This door hydraulic closer is manufactured from US26D satin chrome-plated cast aluminum, wrought steel arm. It features a heat treated piston and powder-coated body to enhance corrosion resistance. The heavy-duty door closer features three valves for adjustable closing speed, latching speed, and backcheck.
• CERTIFICATIONS: These auto close door hinges are UL228-listed and have a UL-certified three-hour fire rating. JELOSTONE Architectural Hardware commercial door hardware with 1 million cycles test required, D700 suits standard residential and light commercial applications, like in small offices and public restrooms.

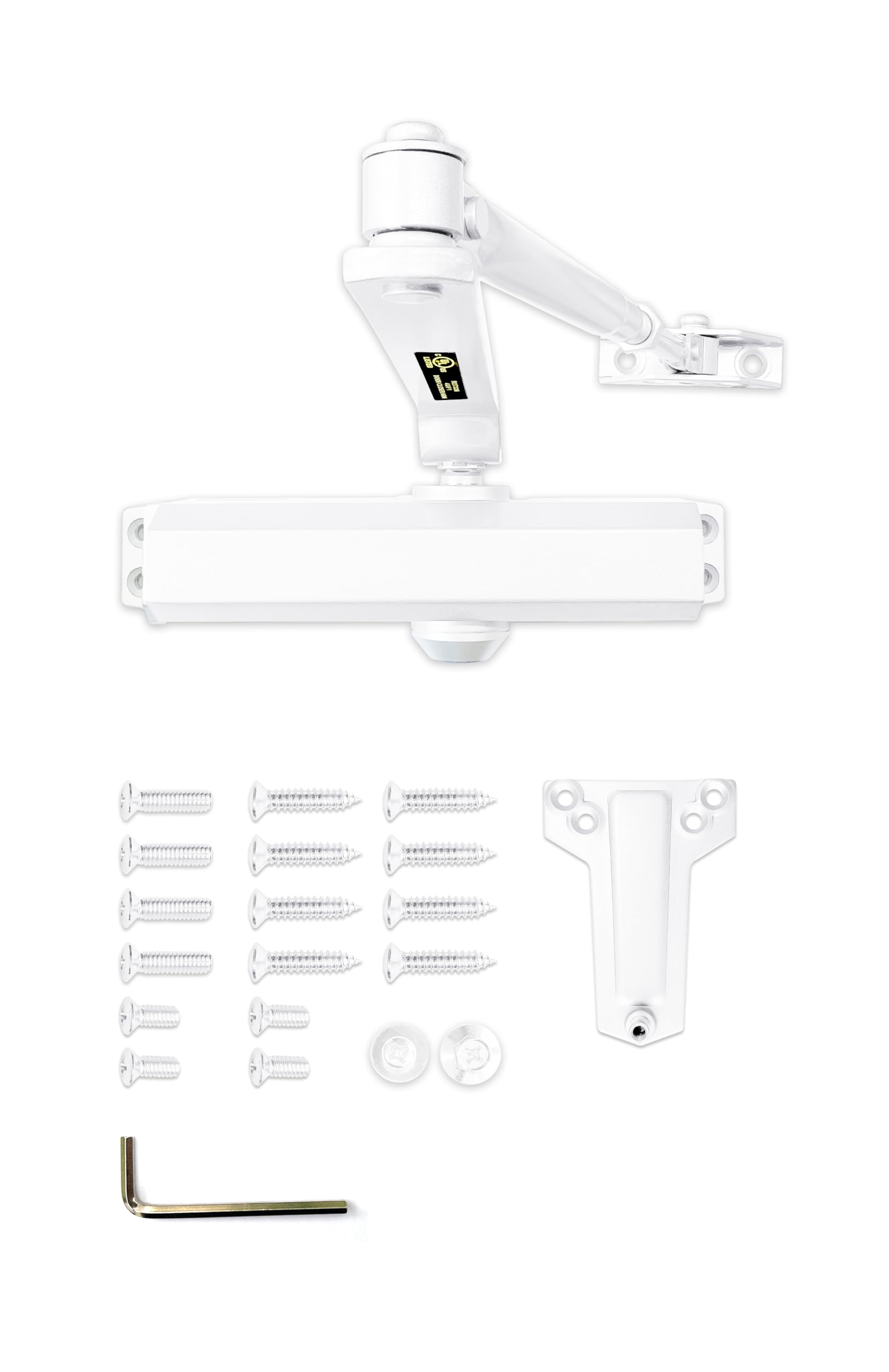

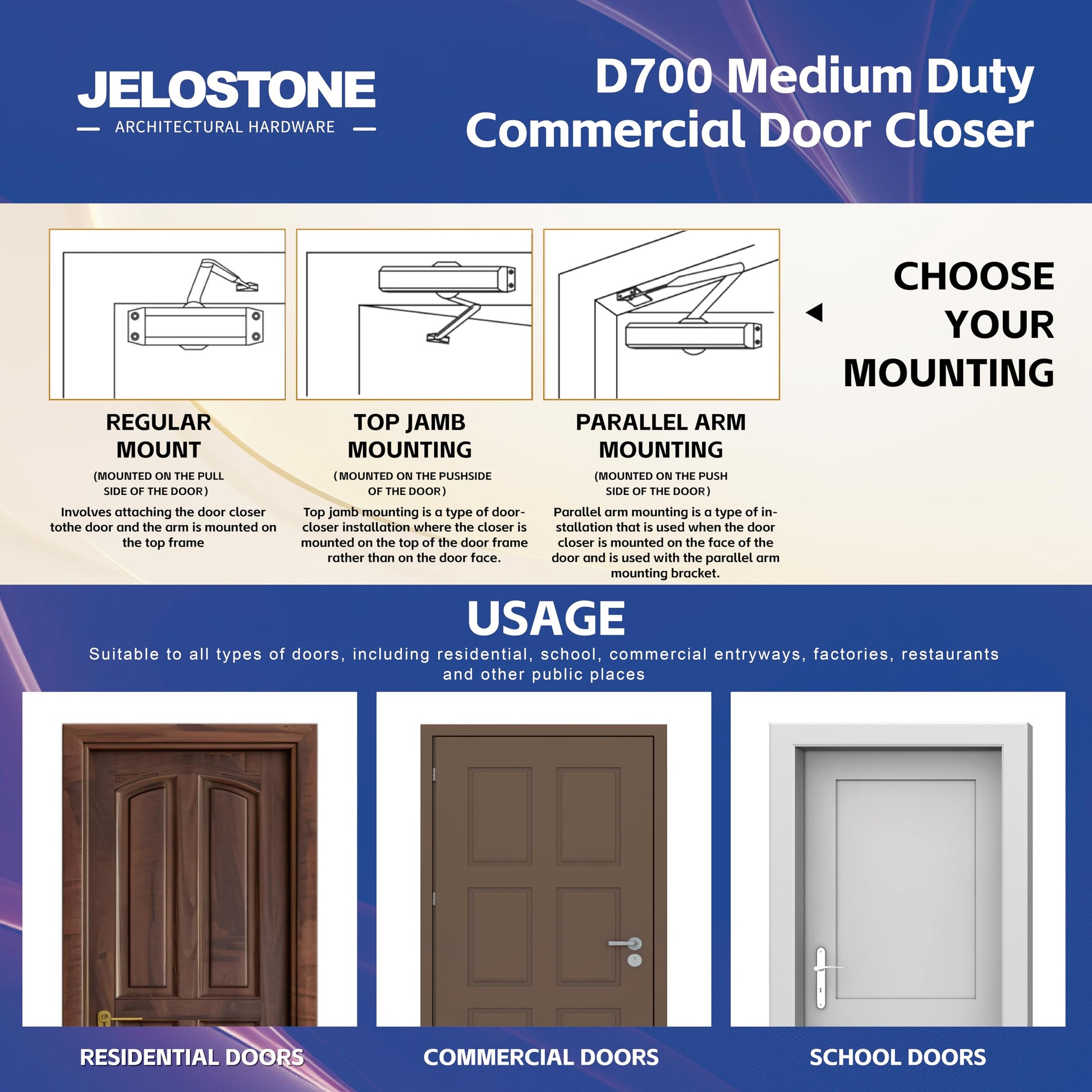

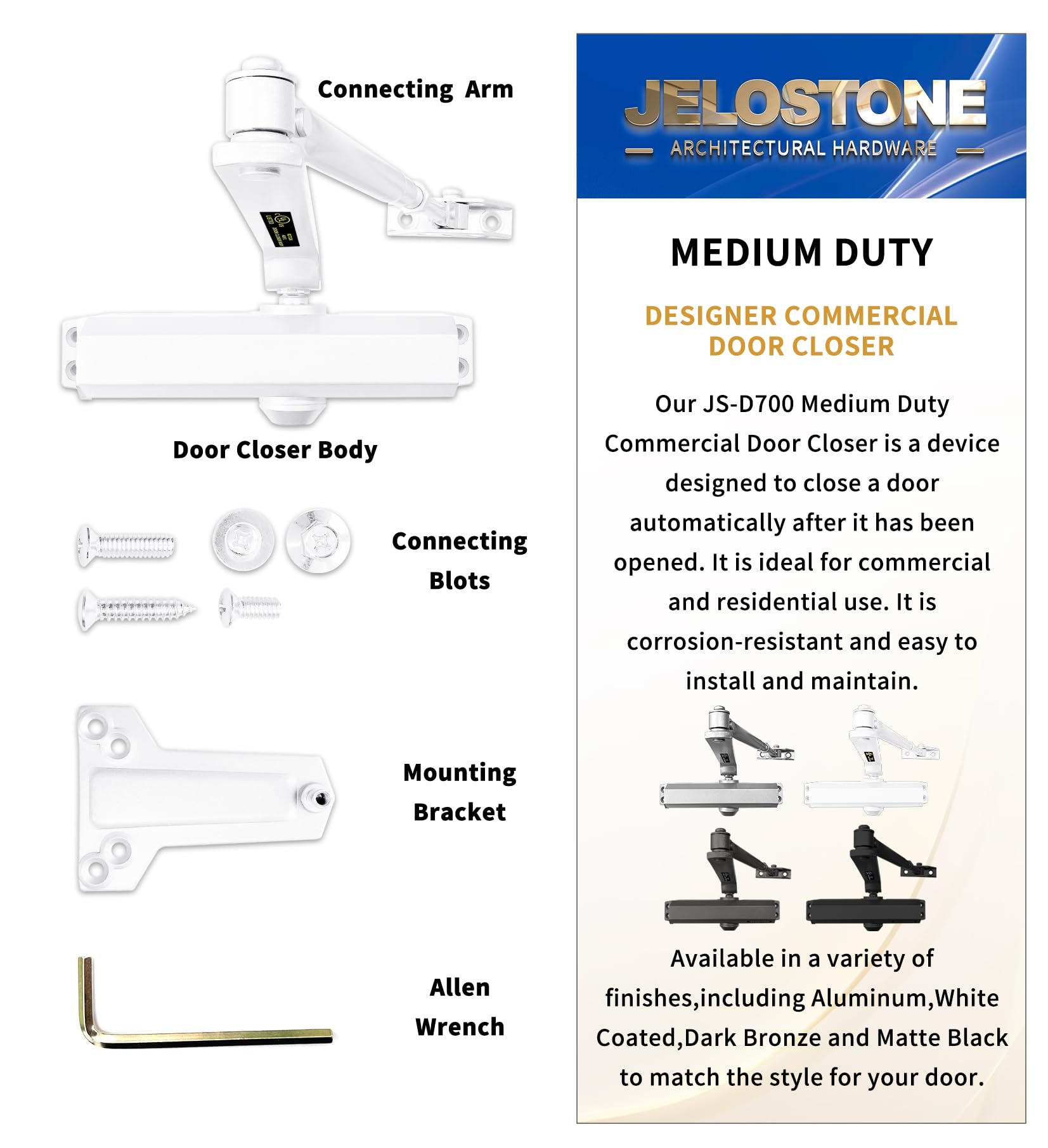

• INSTALLATION: Every pack of commercial door closer we provide contains all the necessary hardware, such as brackets and soffit plate, for installation using any of the three mounting types. The mounting options for our surface-mounted door closer are regular arm mounting (most power-efficient), top jamb mounting (fairly power-efficient), and parallel arm mounting (with 25% less power efficiency than the other two options).

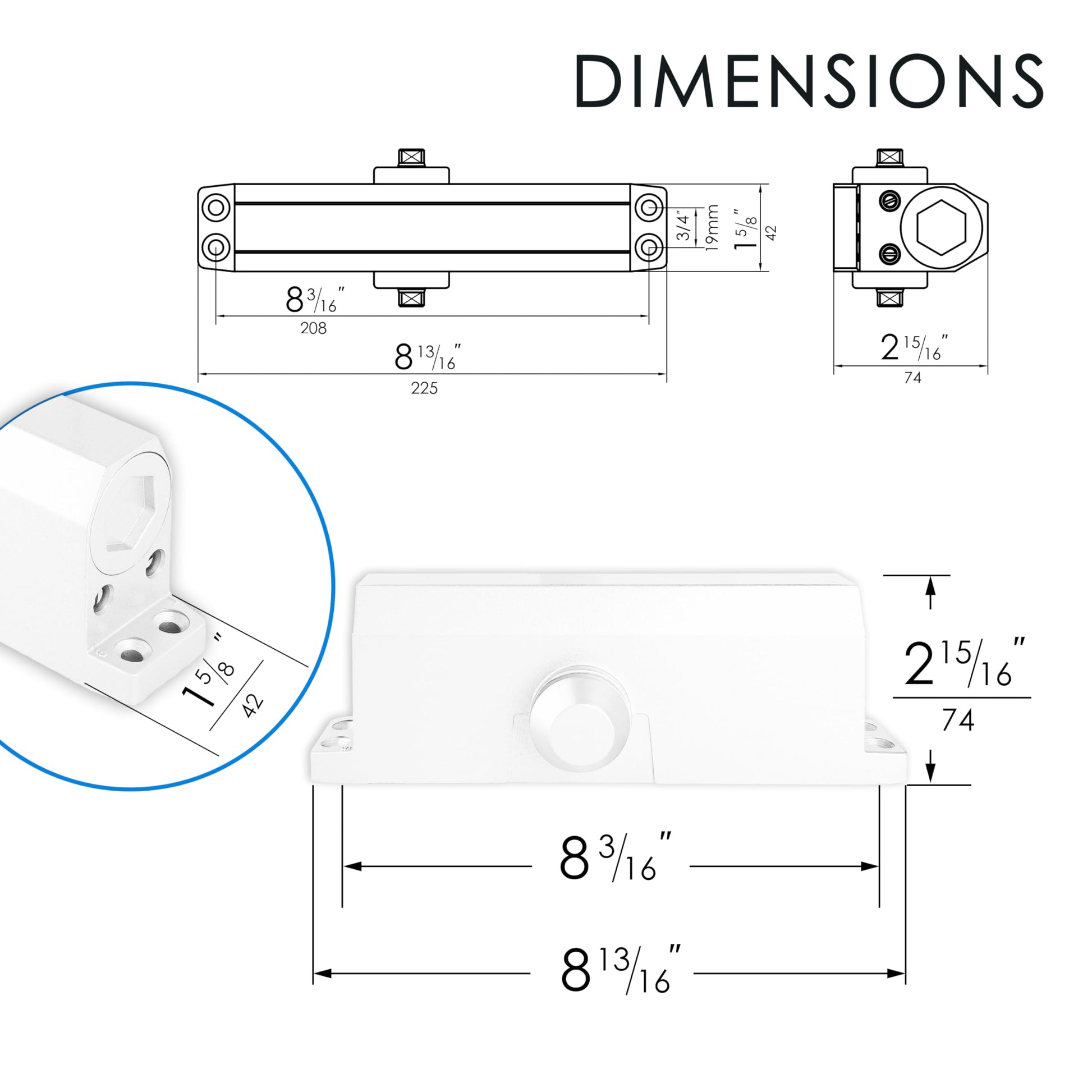

• SPECIFICATIONS: This door closer weighs 5 pounds. Its screw/bolt pattern is 8-3/16' c-c wide and 3/4' c-c high. It has a footprint height of 1-5/8' (41 mm) and a weight of 8-7/8' (225 mm). This automatic door closer's projection is 2-7/8' (73 mm). It can deliver a fixed spring force #3 of at least 5 pounds.
• CROSS REFERENCE: The JS-700 can be specified as a substitute and/or a direct replacement (shares the same hole pattern) for: LYNN Hardware DC6003.

model number: D700

Details: The Traditional American Medium Duty Door Closer is your choice for commercial doors. This closer features a durable cast aluminum body and a wrought steel arm. The closer also has three valves for adjustable closing speed, latching speed, and backcheck. The adjustable backcheck and delayed action come standard, giving you more control over your door. ANSI A156.4 tested and certified, this door closer is an excellent choice for commercial applications.

EAN: 0990497101031

Package Dimensions: 12.6 x 4.1 x 3.3 inches
