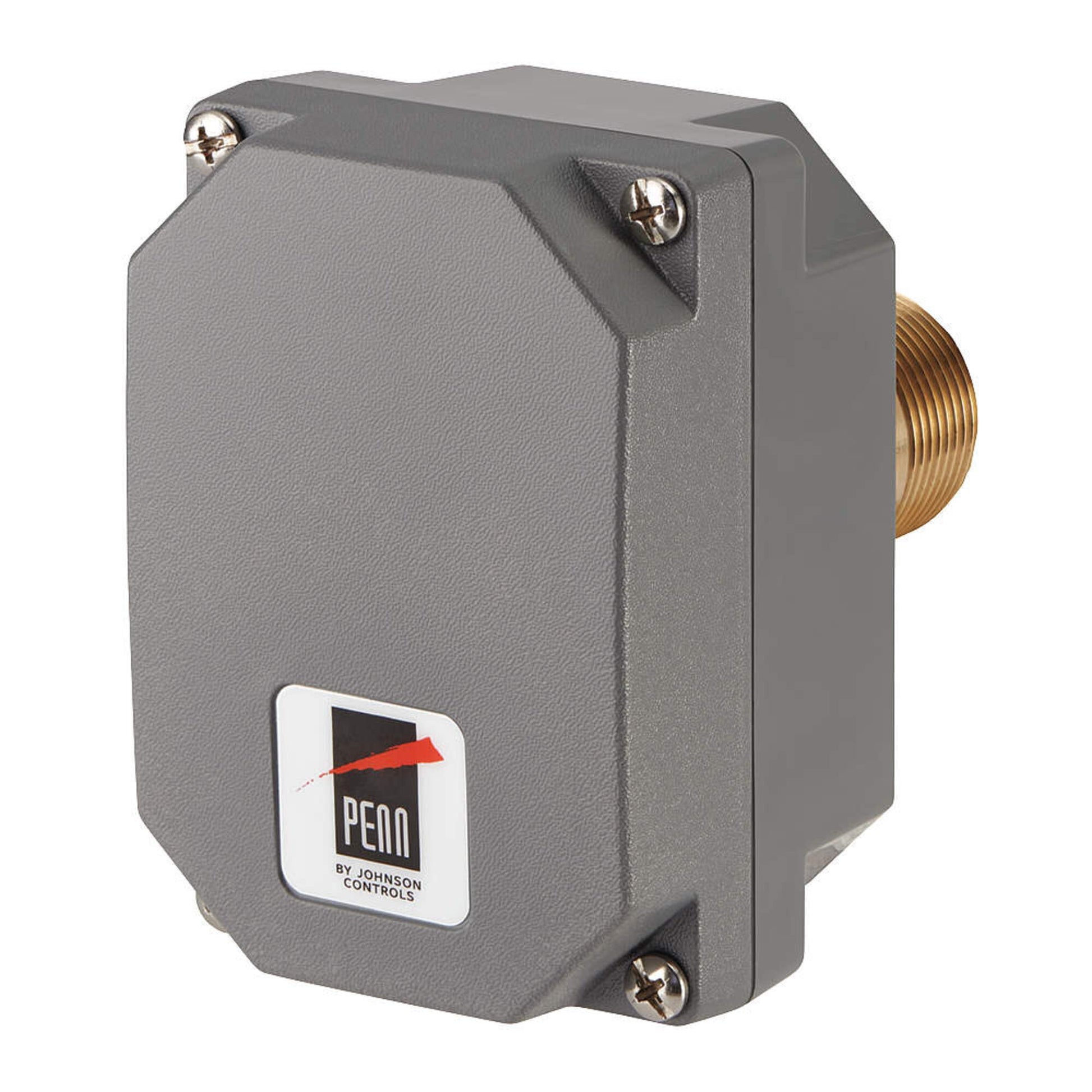

Johnson Controls F261MAH-V01C Flow Switch

Brand: Johnson Controls

Color: Grey

Features:

• Type 3R (NEMA) or Type 4 (NEMA) enclosure allows use in indoor or outdoor applications
• Viton diaphragms allow use in fluid lines carrying chlorinated water, treated water, or other nonhazardous fluids
• low-flow operation on low-flow models actuates switch with less than 1.0 GPM (3.8 L/min) flow for water applications or 9.0 GPM (34.1 L/min) flow for steam applications
• Maximum fluid pressure of 290 psig (20 bar) permits use in a wide range of pressure flow conditions

Release Date: 05-12-2017

model number: F261MAH-V01C

Part Number: F261MAH-V01C

Details: The F261 Series Flow Switches respond to fluid flow in lines carrying water, ethylene glycol, or other nonhazardous fluids. These models also work in applications with swimming pool water and lubricating oils. F261 Series Standard Flow Switches use a variety of paddle sizes to respond to fluid flow rates in applications with pipe sizes greater than 1 inch trade size. Refer to the F261 Series Fluid Flow Switches Product Bulletin (LIT-12011987) for important product application information.

Package Dimensions: 7.0 x 5.5 x 3.3 inches
