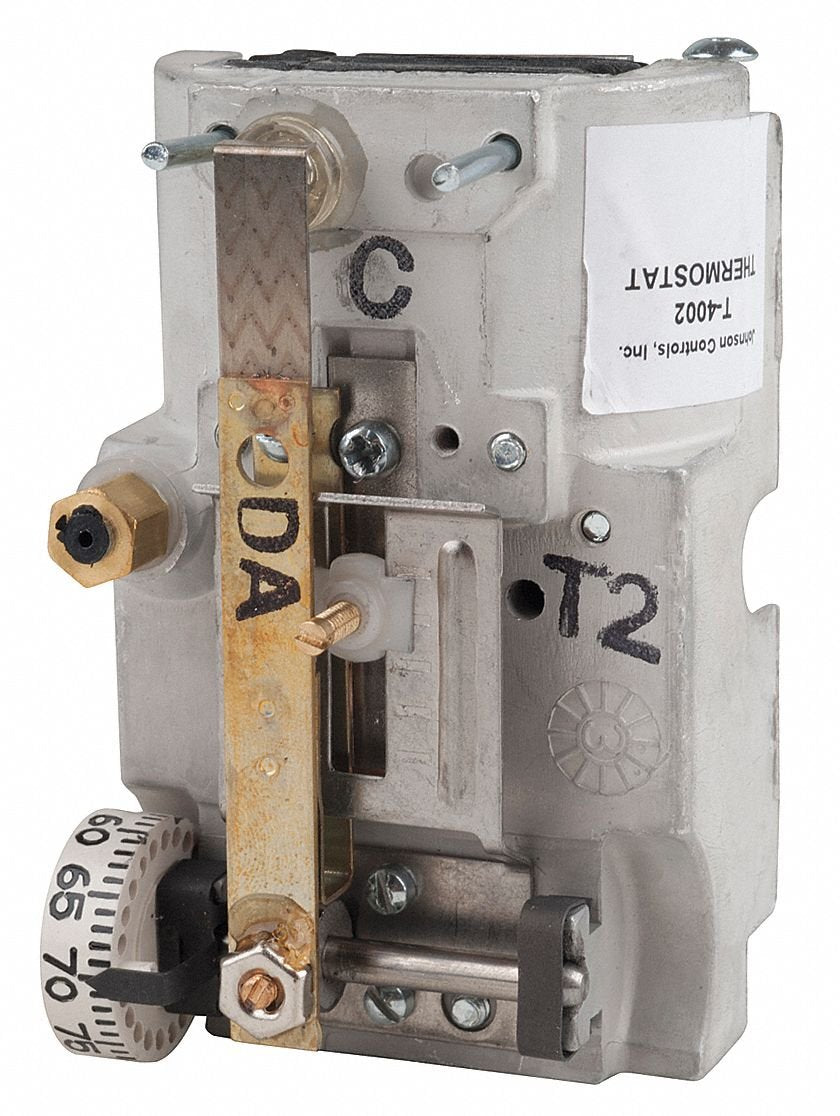

Johnson Controls - T4002-201 T-4002-201 Single Temperature High Volume Output Thermostat, Direct Acting, Horizontal Mounting

Brand: Johnson Controls

Color: Silver

Features:

• Air connections two (supply and output)
• Dials range 55 to 85°f
• Sensitivity adjustable from 0.75 to 4.0 psig/°f (9 to 50 kpa/°c)
• Factory set at approximately 2.5 psig/°F (32 kPa/°C)
• Flow capacity 400 scrim (107 ml/use)

Release Date: 14-06-2017

model number: T-4002-201

Part Number: T4002-201

Details: The t-4002 thermostat is a high volume output, single temperature thermostat. Refer to t-4000 Series Pneumatic room thermostat product Bulletin (lit-7171060p) for important product information. made in United States. Manufactured by Johnson Controls.

EAN: 0785028366887

Package Dimensions: 4.1 x 3.8 x 2.8 inches
