Leviton 120/240 Volt Panel Protector, 4-Mode Protection, Light Commercial/Residential Grade, In NEMA 1 Enclosure, 51120-1

Brand: Leviton

Features:

• 120/240V Single Phase Panel Mount Surge Protective Device, 4-Mode Protection, 50kA Max Surge Current Rating, NEMA 1 Enclosure, UL 1449 4th Edition Type 2
• Type 2 Single Phase Surge Panel with 4-Mode Protection

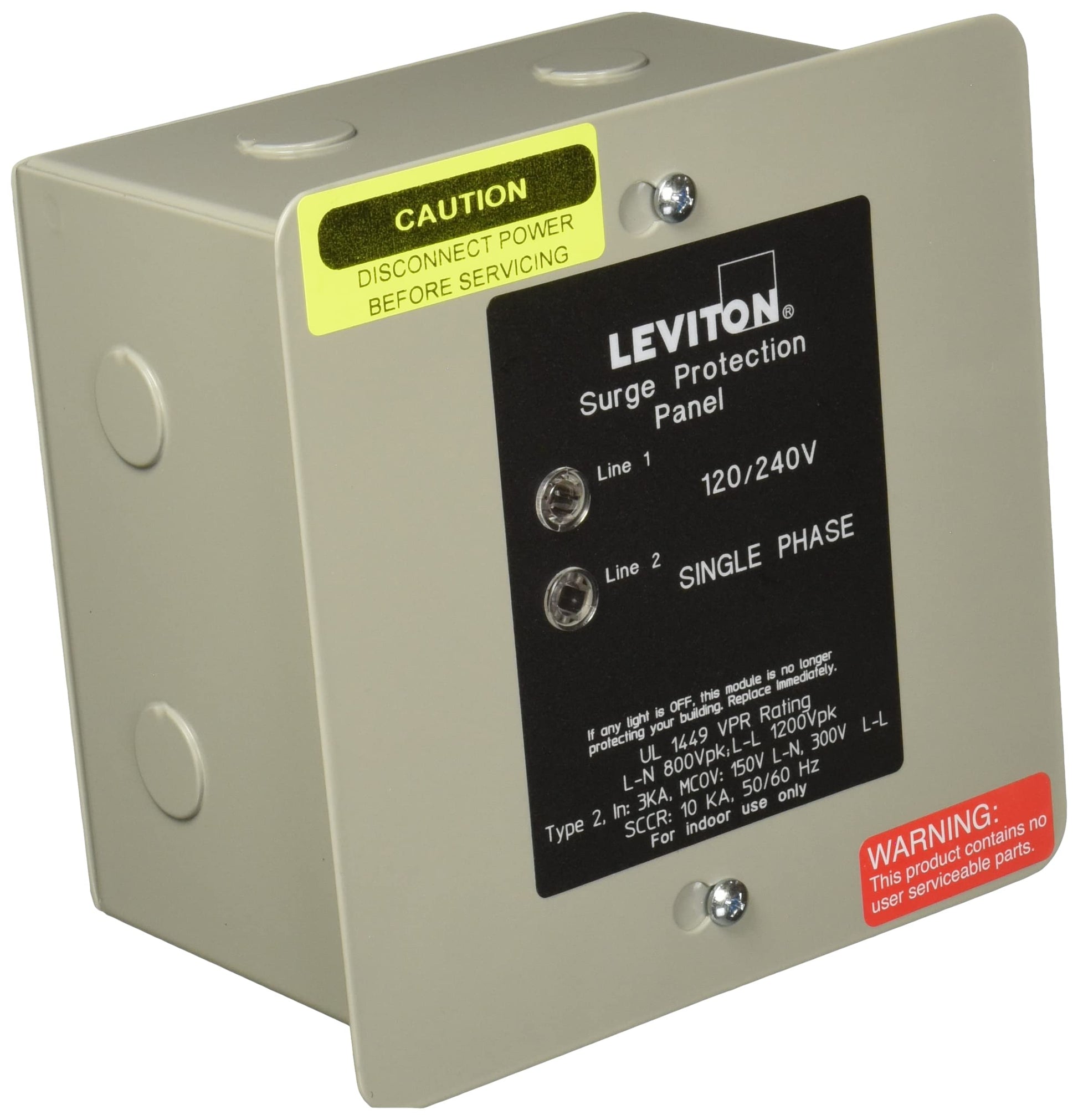

• Real-time diagnostic visual indicator shows power and suppression status for each protected phase

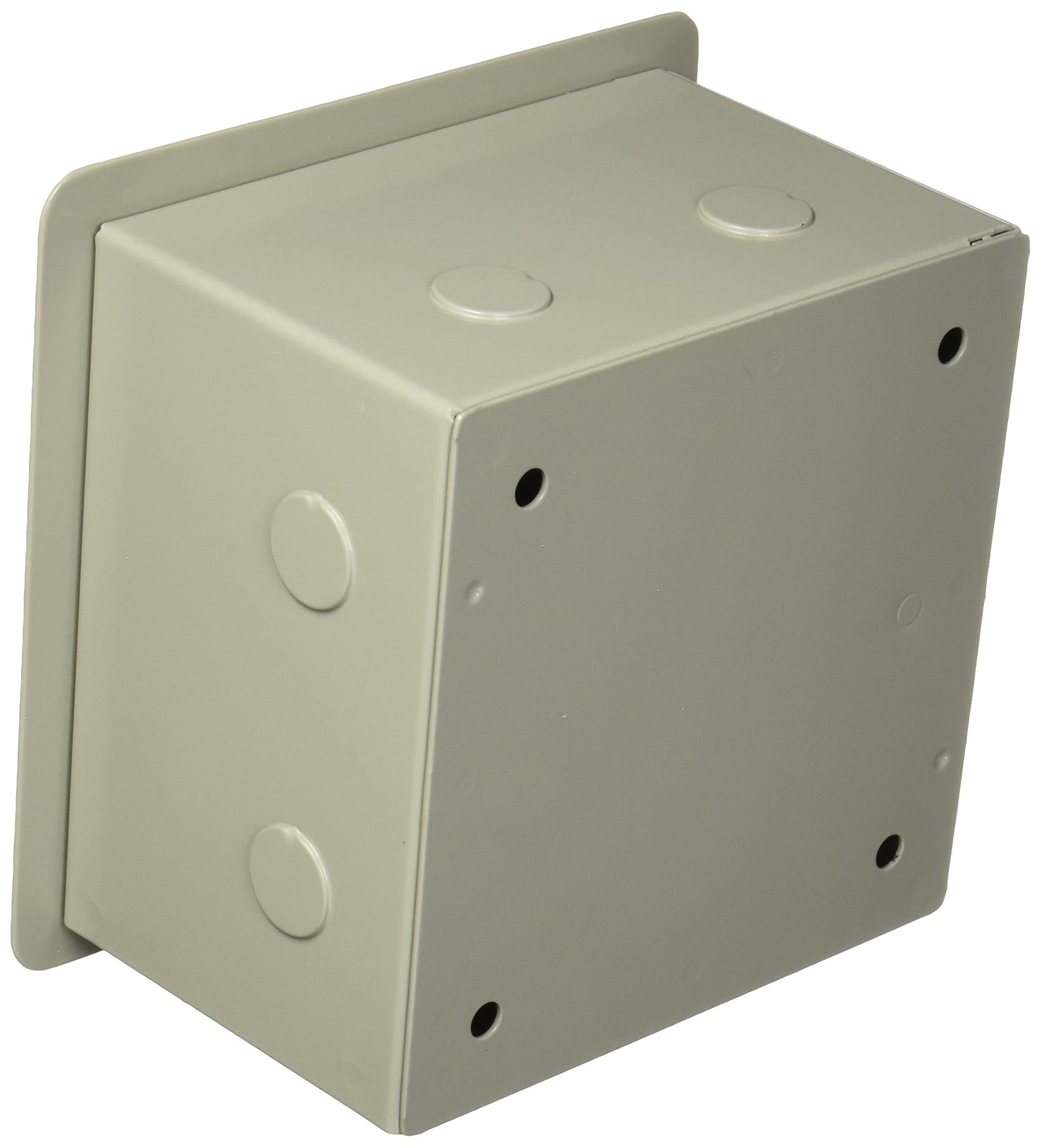

• Standard J-Box enclosure with pre-punched standard knock-outs can be easily surface mounted in typical frame construction
• Features a low VPR to ensure protection of sensitive electronic devices including LCD TVs and computers
• NEMA 1 enclosure

model number: 51120-1

Part Number: 51120-1

Details: Product Description

7 INCH W X 4.06 INCH D X 7 INCH H SIZE; BRANCH PANEL USED ON; 50/60 HZ FREQUENCY RATING; 12 AWG LEAD WIRE CONNECTION TYPE; UL (CANADA AND US) APPROVAL; RESIDENTIAL APPLICATION; 120/240 VAC VOLTAGE RATING; PANEL MOUNTING; NEMA 1 ENCLOSURE

From the Manufacturer

Leviton's Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are listed to UL 1449 Standards. Leviton's outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions. 120/240 Volt Panel Protector, 4-Mode Protection, Light Commercial/Residential Grade, In NEMA 1 Enclosure.

EAN: 0078477827642

Package Dimensions: 8.4 x 8.3 x 5.2 inches
