Dual-Voltage DC Stick/TIG Welder (120V/230V): Offers a 10–225 amp output range, supporting a wide variety of welding applications in both light and heavy-duty settings

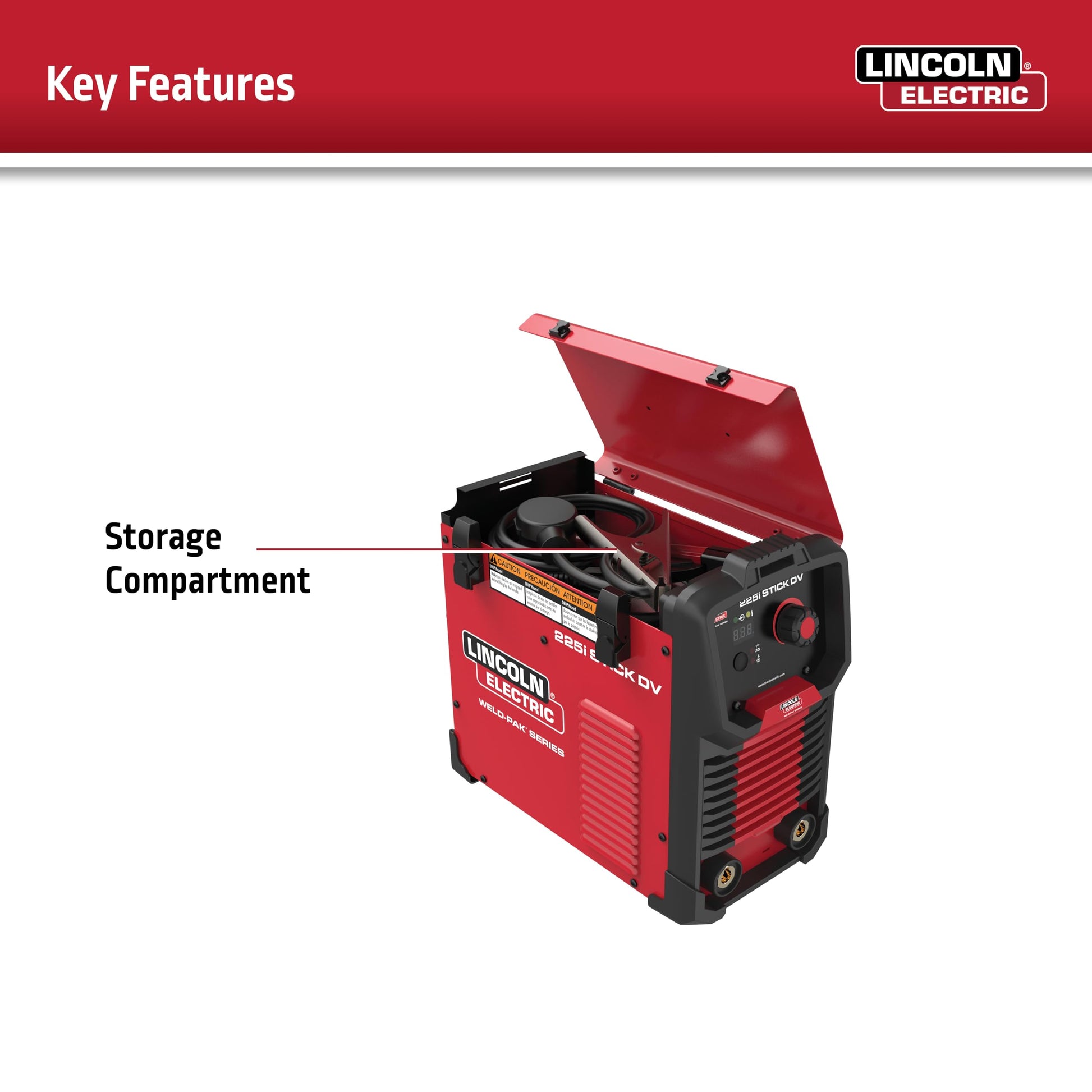

Lightweight & Portable Design: Weighing only 20 lbs., this inverter welder is easy to transport and includes a built-in tool-box top for convenient storage of cables and accessories
Smooth, Stable Arc Performance: Delivers strong welds on 12-gauge sheet metal up to 5/16' steel in a single pass, with a 30% duty cycle at 225 amps on 230V input
TIG-Ready Capability: Supports Touch Start TIG welding (additional TIG accessories required), giving operators the flexibility to switch between Stick and TIG processes

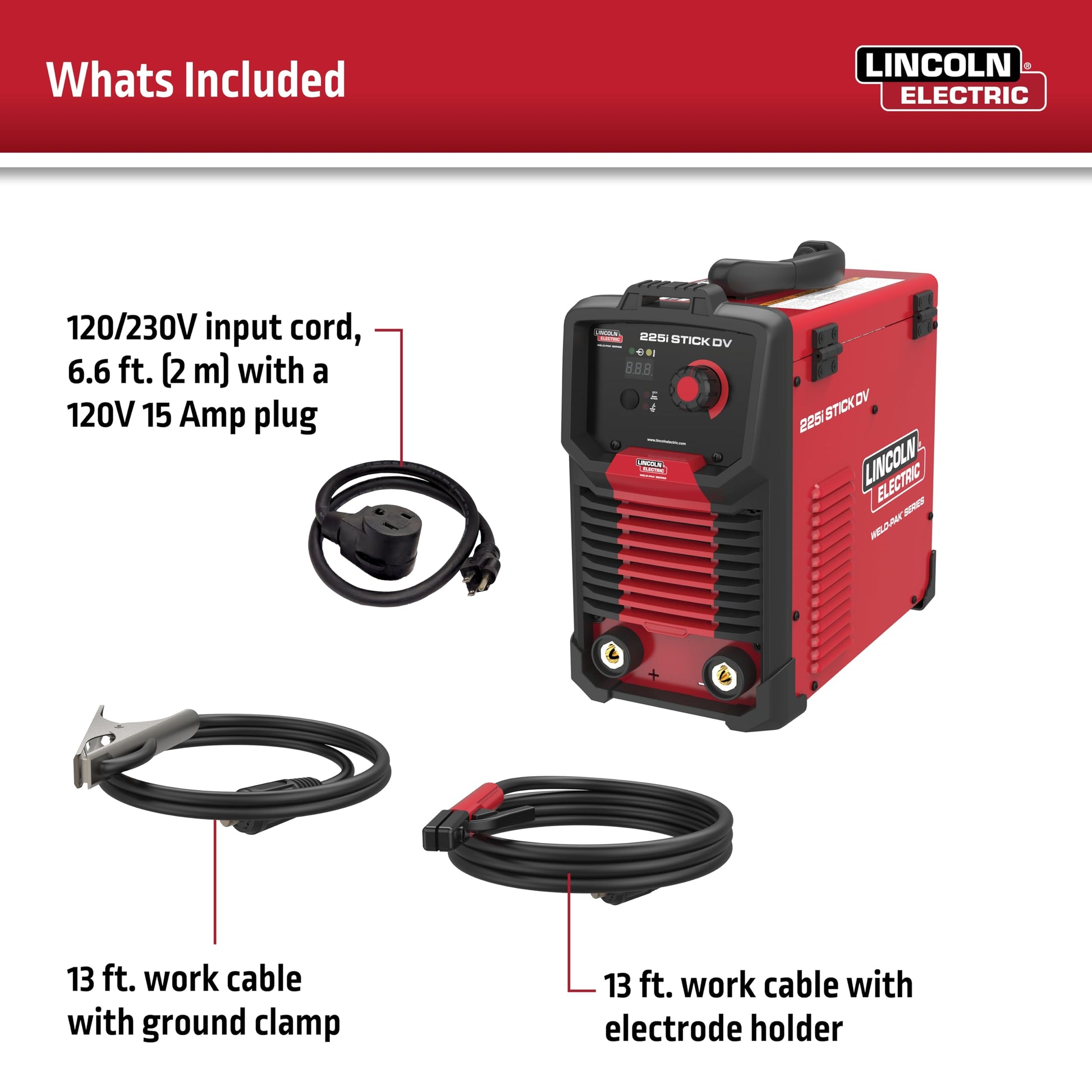

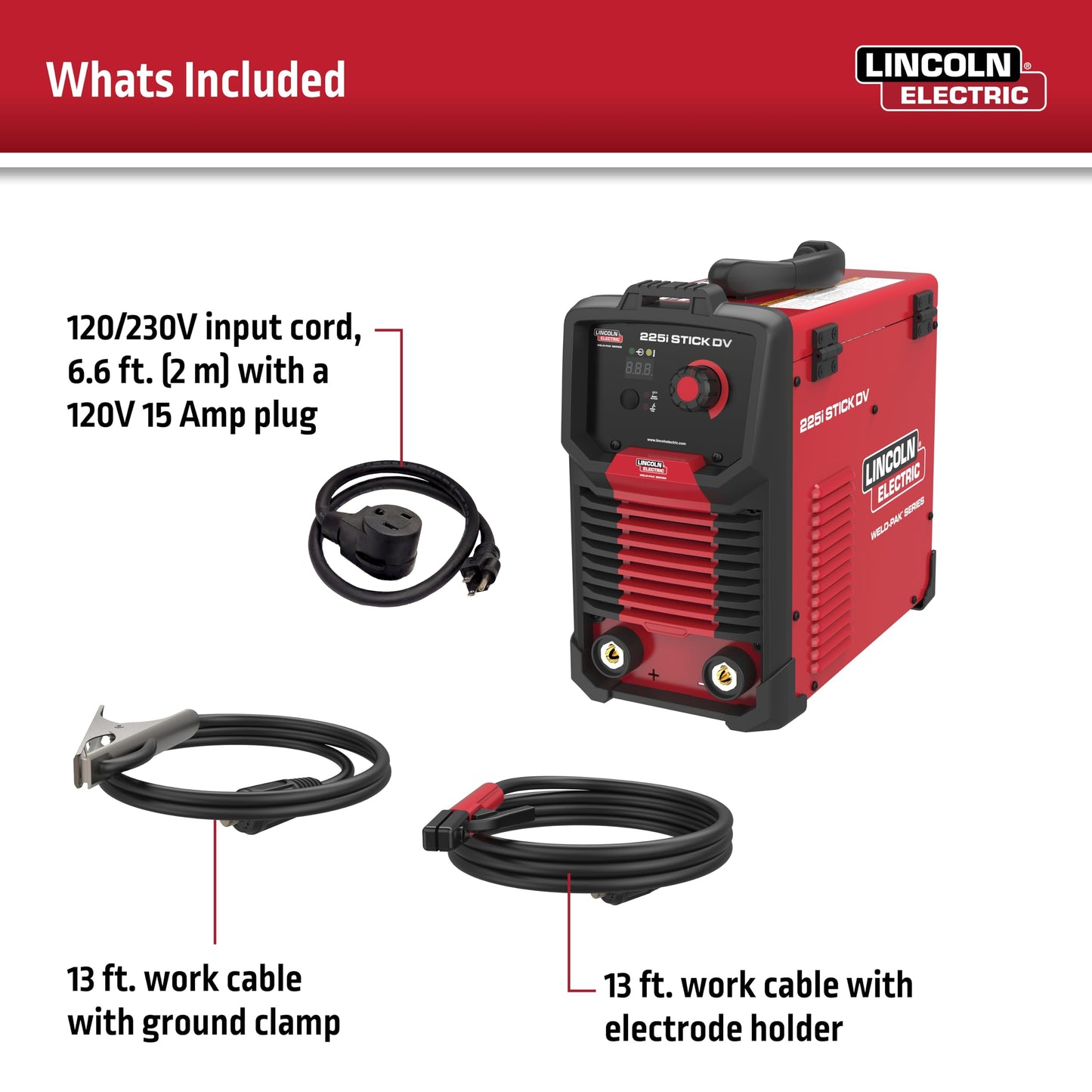

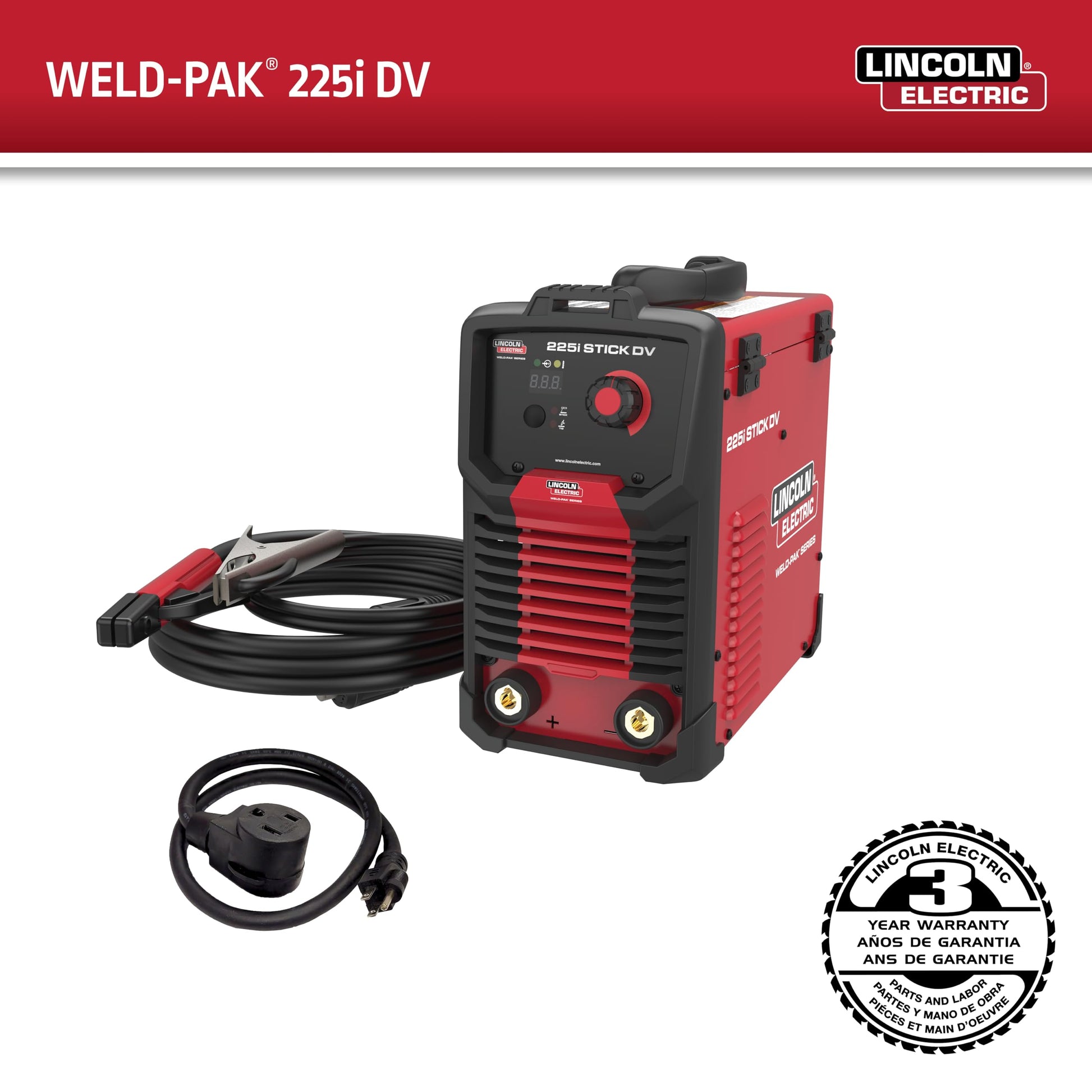

Complete Accessory Kit Included: Comes equipped with a shoulder strap, 13 ft work cable and clamp, 13 ft electrode cable and holder, plus a 6 ft input cable with 6-50P plug and 5-15P adapter
model number: K5419-1
Part Number: K5419-1

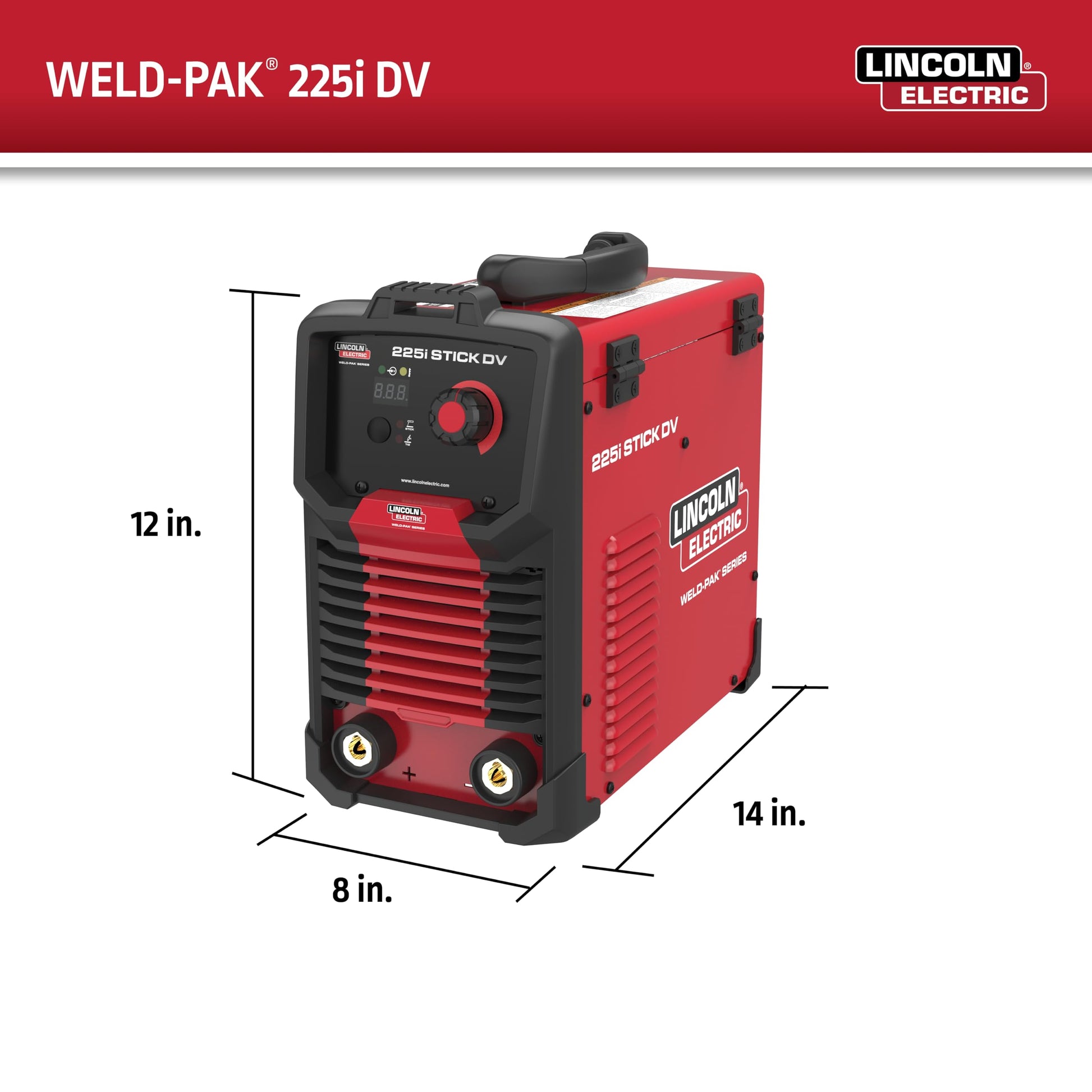

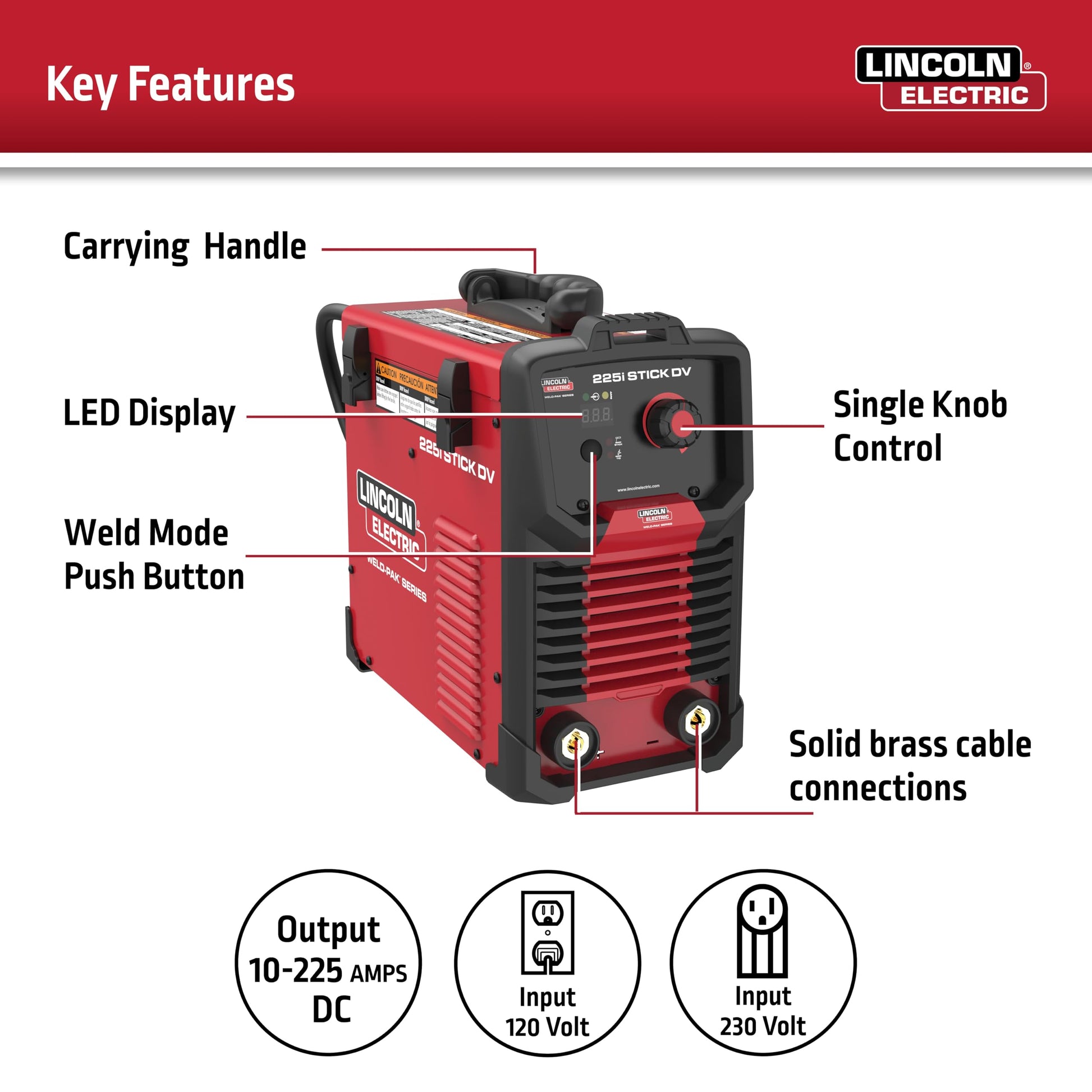

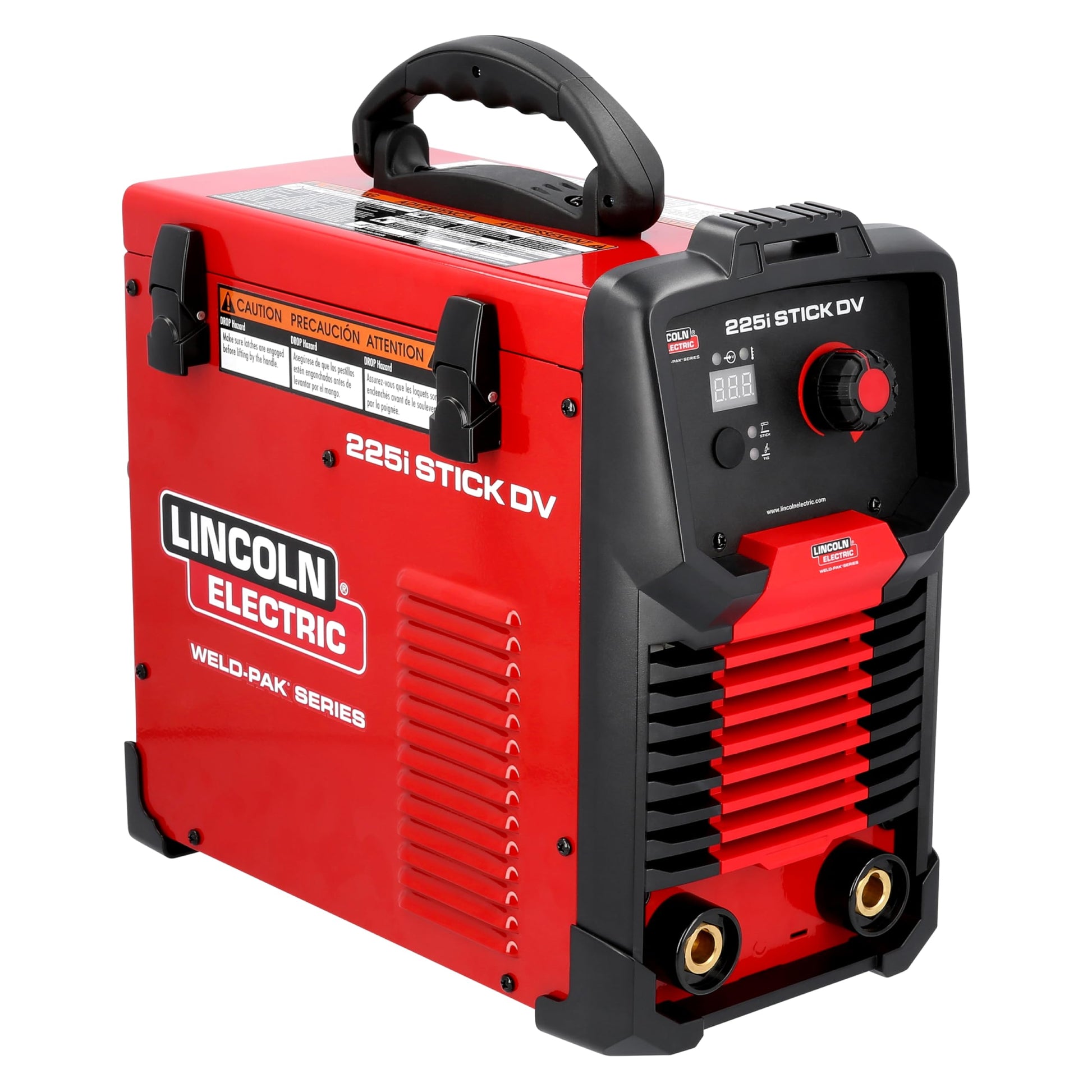

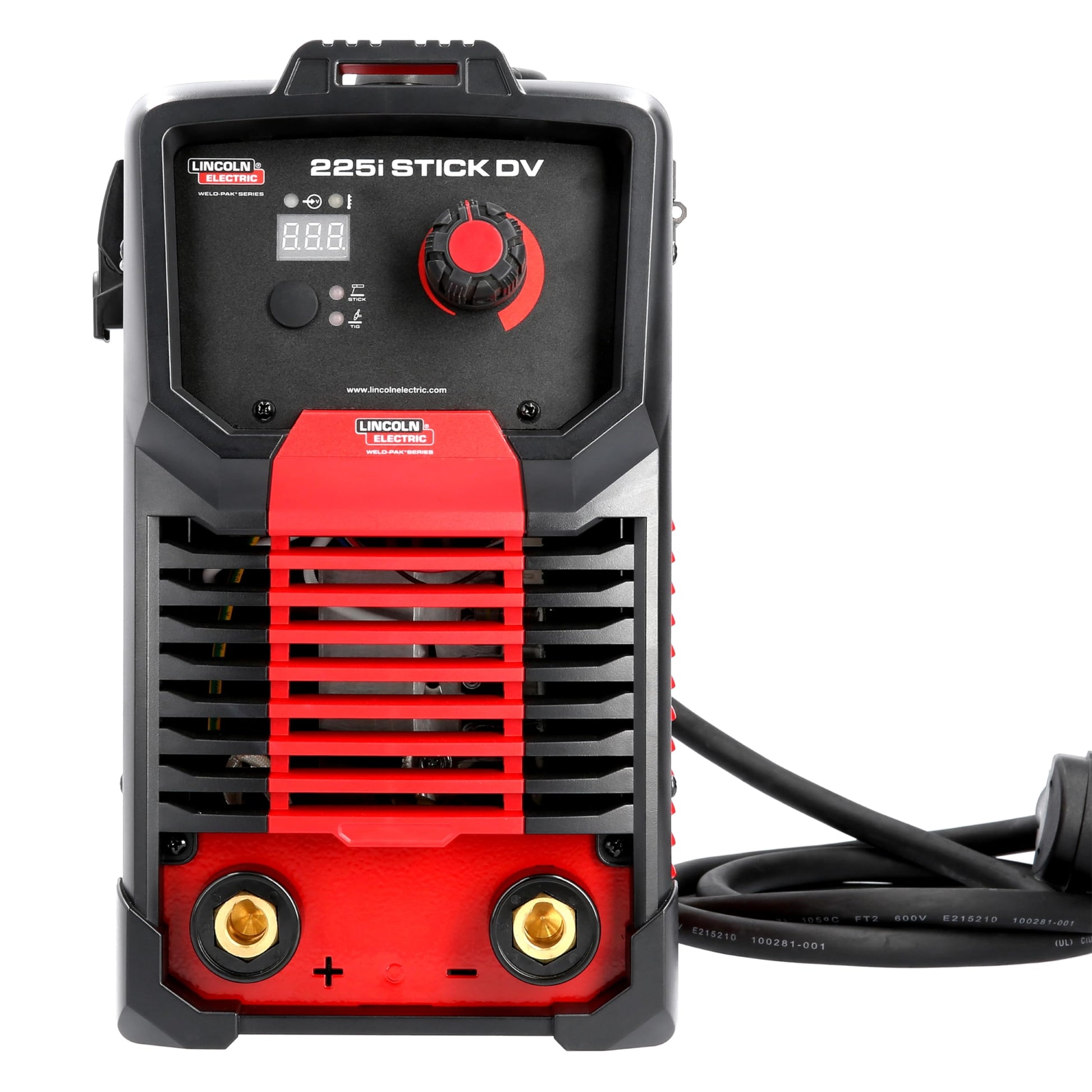

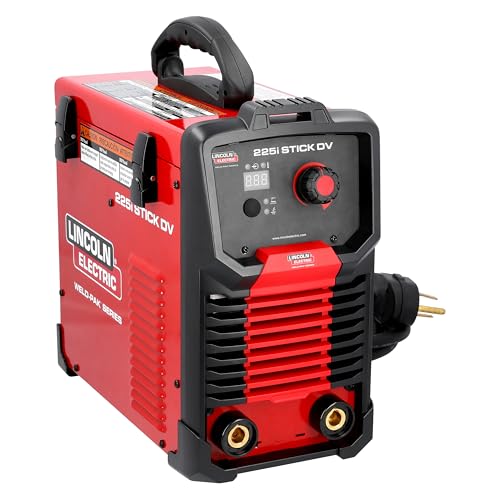

Details: Lincoln Electric Weld-Pak 225i Stick DV has a 10 to 225 amp DC output that supports mild steel stick electrode diameters from 5/64' to 5/32'. Weighing in at 20 lbs., it is lightweight and portable. The case has a tool box top for storing cables or tools. The smooth arc provides strong welds on 12 gauge sheet metal to 5/16' thick steel. It has a 30% duty cycle at 225 amps when connected to 230VAC. Touch Start TIG welding is supported. A simple display allows you to dial in the weld settings so you can get started quickly and easily on any job, anywhere – maintenance work, fabrication, light structural and everything in between. The Weld-Pak 225i Stick DV is a lightweight inverter welder capable of DC Stick and DC TIG applications, 120VAC/230VAC input, 120/230/1/60 and 10-225 amp DC welding output range. 30% duty cycle at 225 amps and Weigths 20 lbs. Dimensions of unit 12H x 8W x 14L inches. Welds 12 gauge to 5/16' single pass. Comes with a shoulder strap, 13 foot work cable and clamp, 13 foot electrode cable and electrode holder, and 6 foot input cable with attached three-prong 230VAC 6-50P plug with 5-15P 120VAC adapter. TIG capability with additional attachments.
