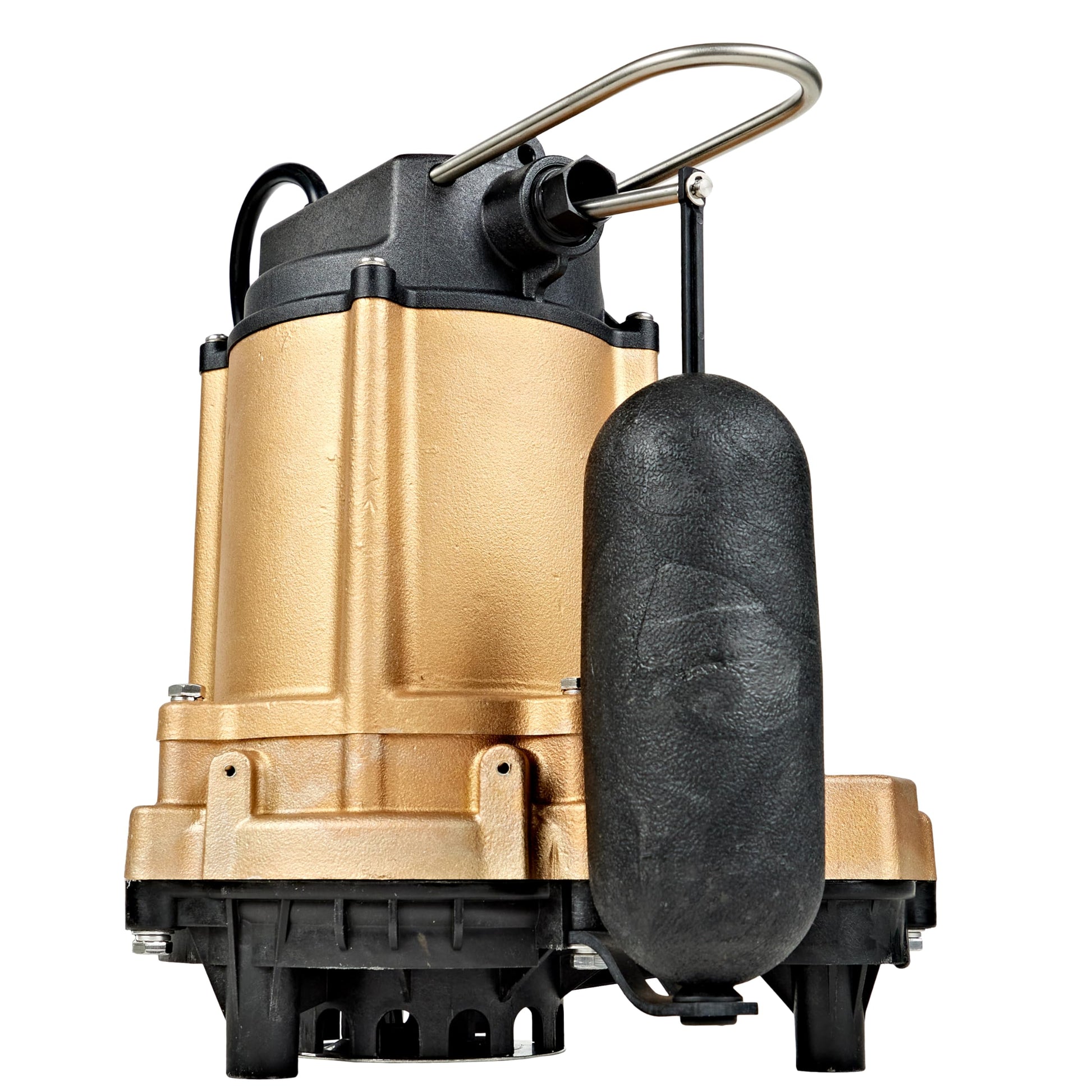

Little Giant 6EC-CBA-SFS 115 Volt, 1/3 HP, 3180 GPH, Automatic Epoxy Impregnated Cast Bronze Sump/Effluent Pump for Salty/Briny Water with Integral Snap-Action Switch, 20-Ft. Cord, Bronze, 506811

Brand: Little Giant

Color: Bronze

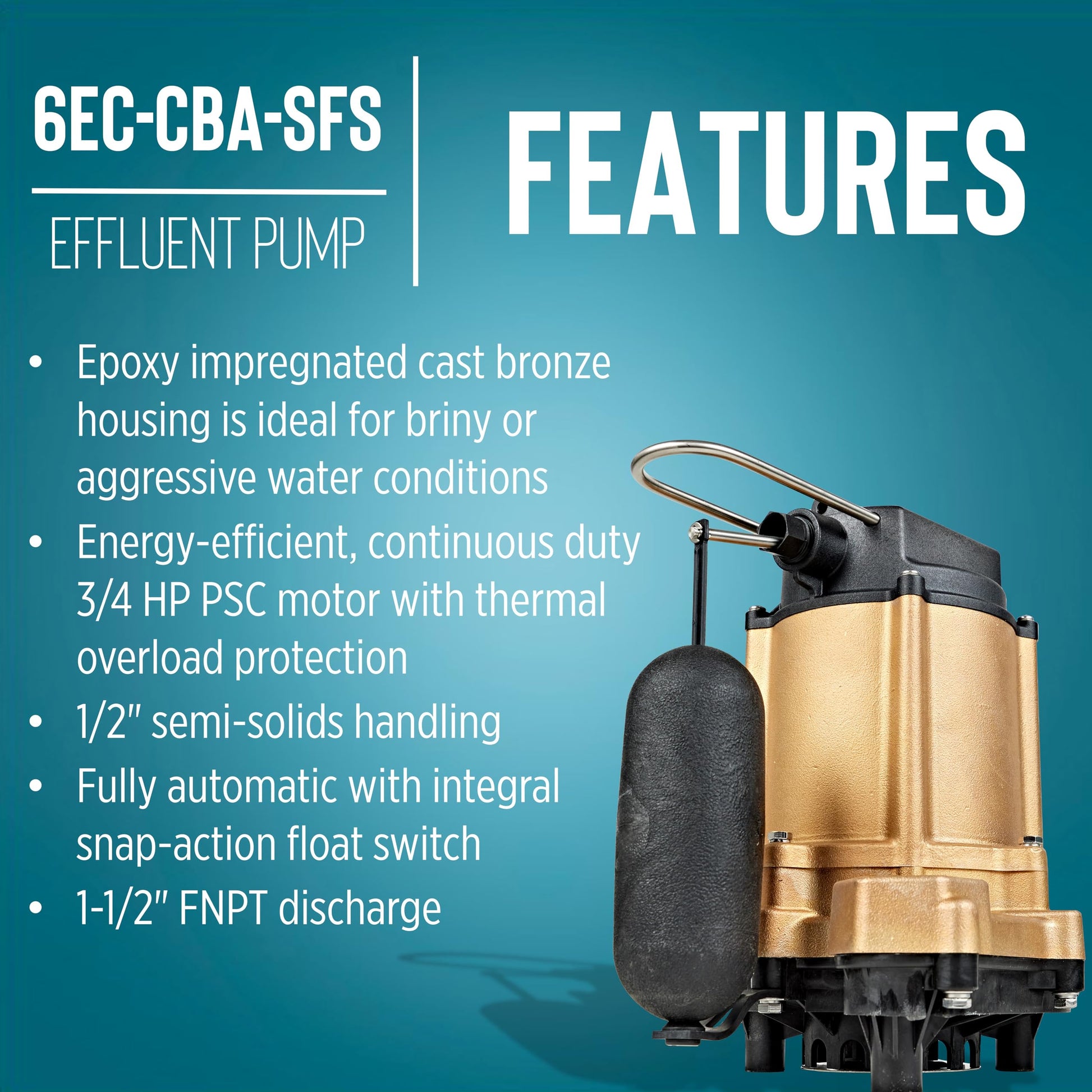

Features:

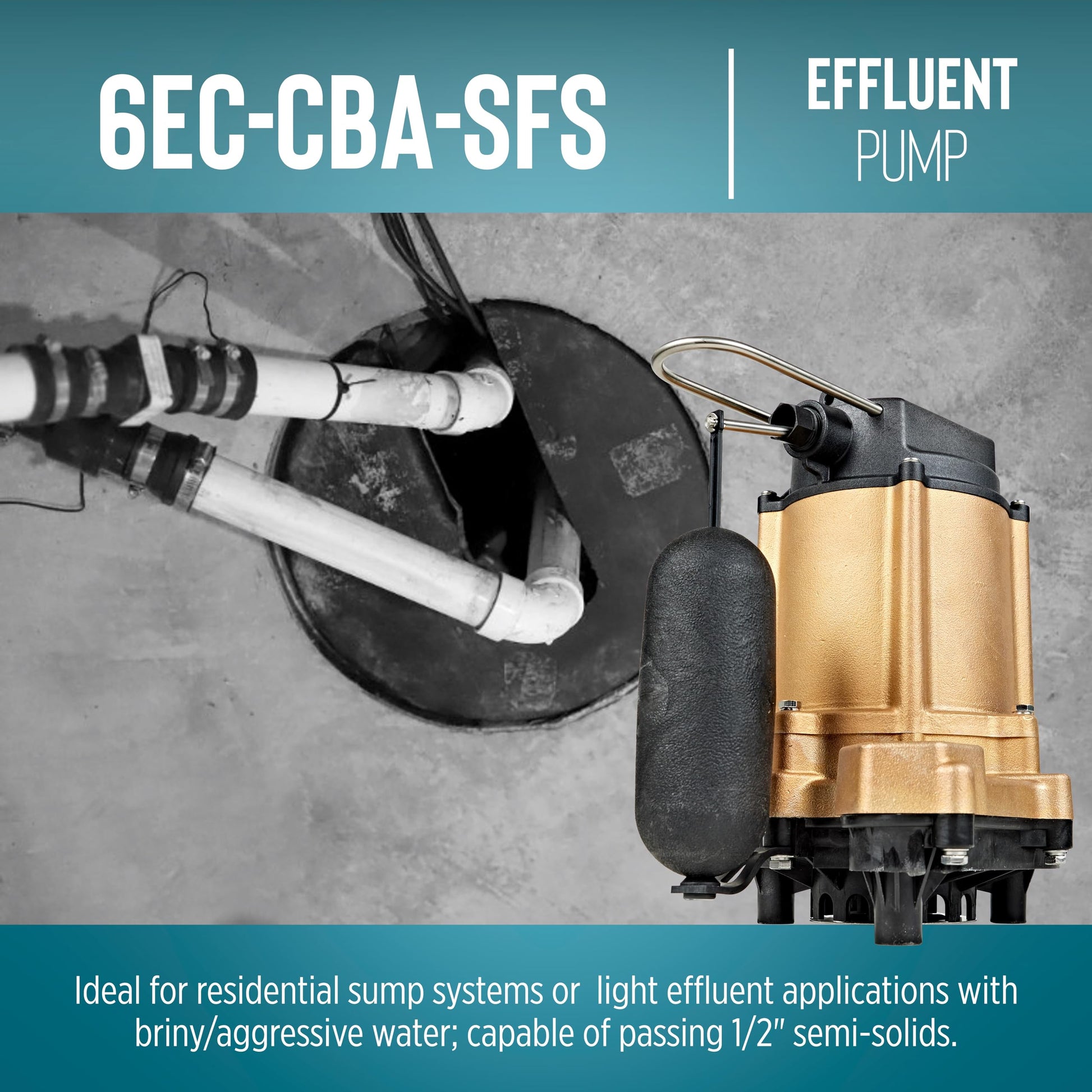

• APPLICATIONS: ideal for sump pump, dewatering and water transfer in aggressive water conditions such as briny/salty water or water from water treatment systems; handles up to 1/2-inch solids

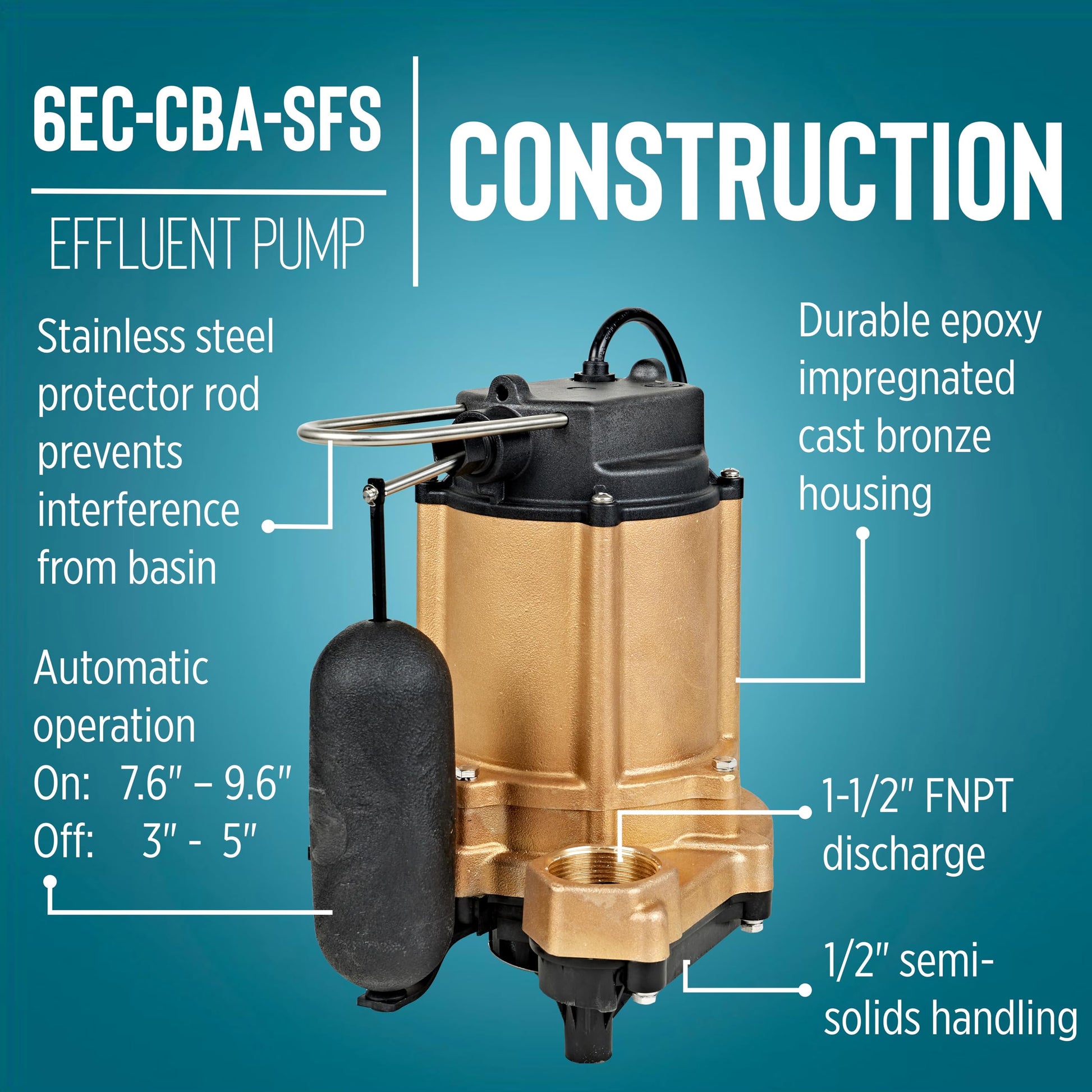

• BUILT TO LAST: Epoxy impregnated cast bronze motor housing and cover; nylon impeller; epoxy-coated cast iron volute; Nitrile/carbon/ceramic shaft seal; Polypropylene base; rated for continuous duty
• AUTOMATIC OPERATION: Built-in snap-action float switch activates when liquid reaches 7.6 to 9.6 inches and shuts off when liquid falls to between 3 and 5 inches
• MOTOR SPECIFICATIONS: Permanent split capacitor (PSC) motor with thermal overload protection; 115 Volts; 60 Hz; 1/3 HP; 600 Watts; 5 running Amps; 14.5 starting Amps

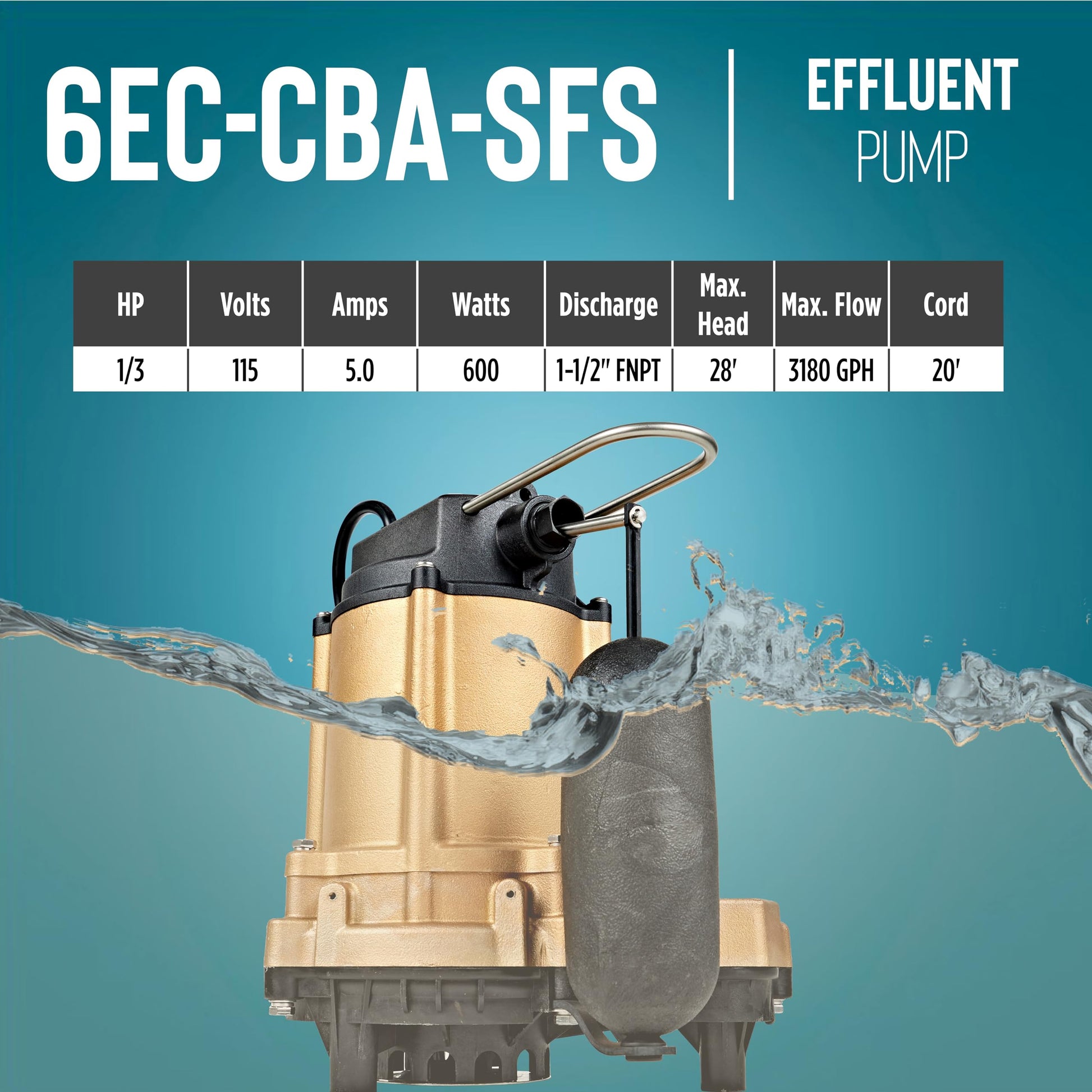

• PUMP SPECIFICATIONS: 3180 GPH at 5-ft. lift; 28-ft. shut-off; maximum 12.1 PSI; 20-ft. cord; 27.8 lbs.

model number: 506811

Part Number: 506811

Details: The Little Giant 506811 6EC-CBA-SFS 1/3 hp, 3180 GPH pump is ideal for use as a sump or light effluent pump. The housing is made of epoxy-impregnated cast bronze ideal for briny/salty water conditions or for homes with water softeners emptying into the sump pit. This pump has a built-in snap-action float switch which activates the pump when the water level reaches 7.6' - 9.6' and shuts off when the water falls to between 3' and 5'. This pump can handle up to 1/2' solids and has a 1.5' FNPT discharge. This pump comes with a 115-volt, 20' cord suitable for standard outlets in North American homes.

Features & Benefits:

- 1/3 horsepower PSC motor

- 1-1/2' FNPT discharge

- 140 °F (60 °C) liquid temperature rating

Pump selection guidelines:

Application: effluent pumps can be used to transfer or remove clean water or liquid effluent with up to 1/2' semi-solids. It is not designed to pass raw sewage.

Switch options (not all may be available):

- Tethered switches rise/drop with the depth of the water. They require a minimum basin size of 18'. The on/off levels can be adjusted easily.

- Diaphragm switches take up less room than a traditional tethered switch and uses water pressure to turn the pump on/off. A breather tube is located on the plug which must be free of debris for it to operate properly. The on/off levels cannot be adjusted.

- Snap-action switches take up less room that a traditional tethered switch. The float rises/lowers with the water level. The on/off level cannot be adjusted.

Piggyback vs. integral (built-in):

- A piggyback plug allows the switch to be overridden to pump below the off level. It is easily replaceable.

- An integral switch is built into the pump. An integral switch cannot be overridden so it is not the best choice for emergency water removal.

EAN: 0010121014084

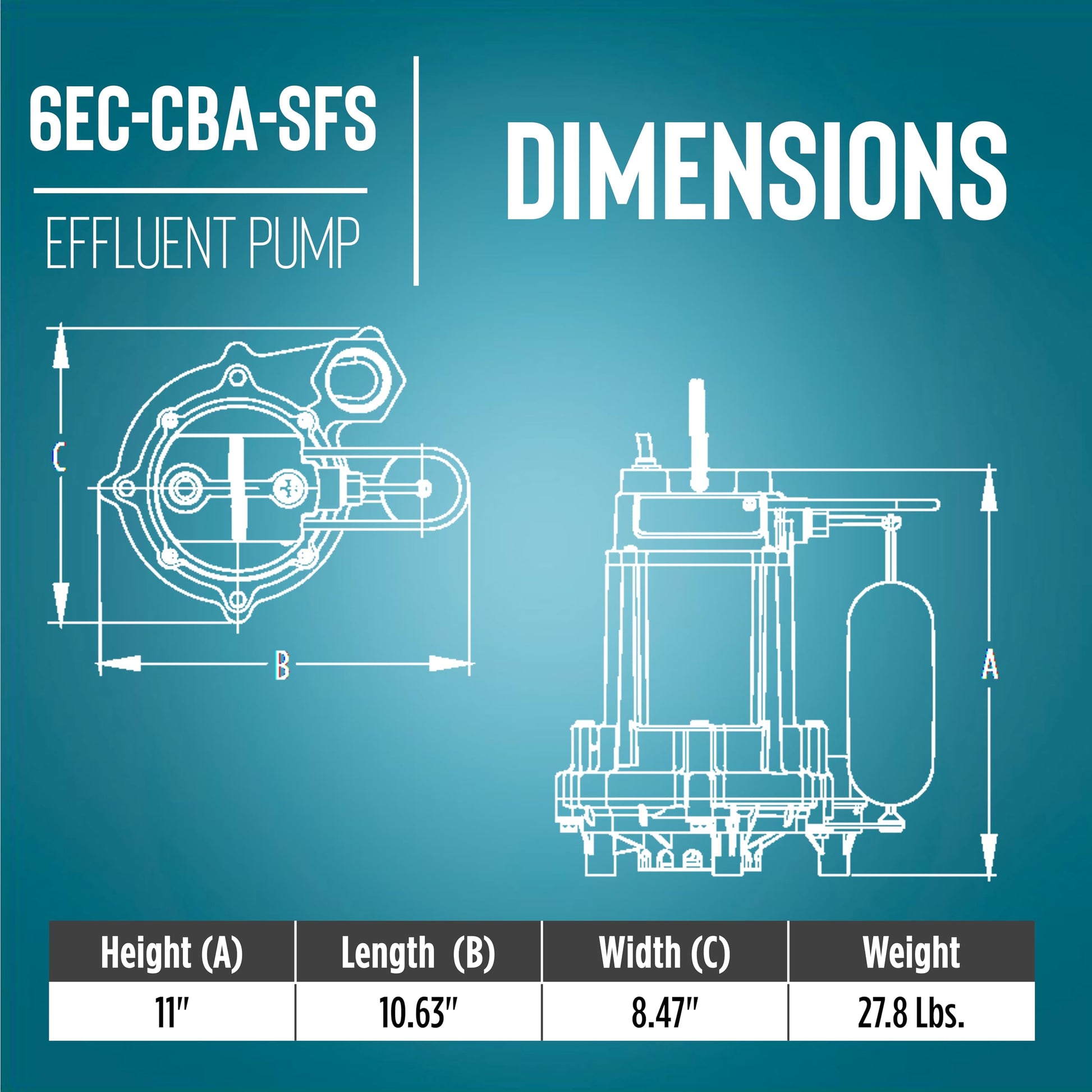

Package Dimensions: 14.5 x 10.5 x 9.5 inches
