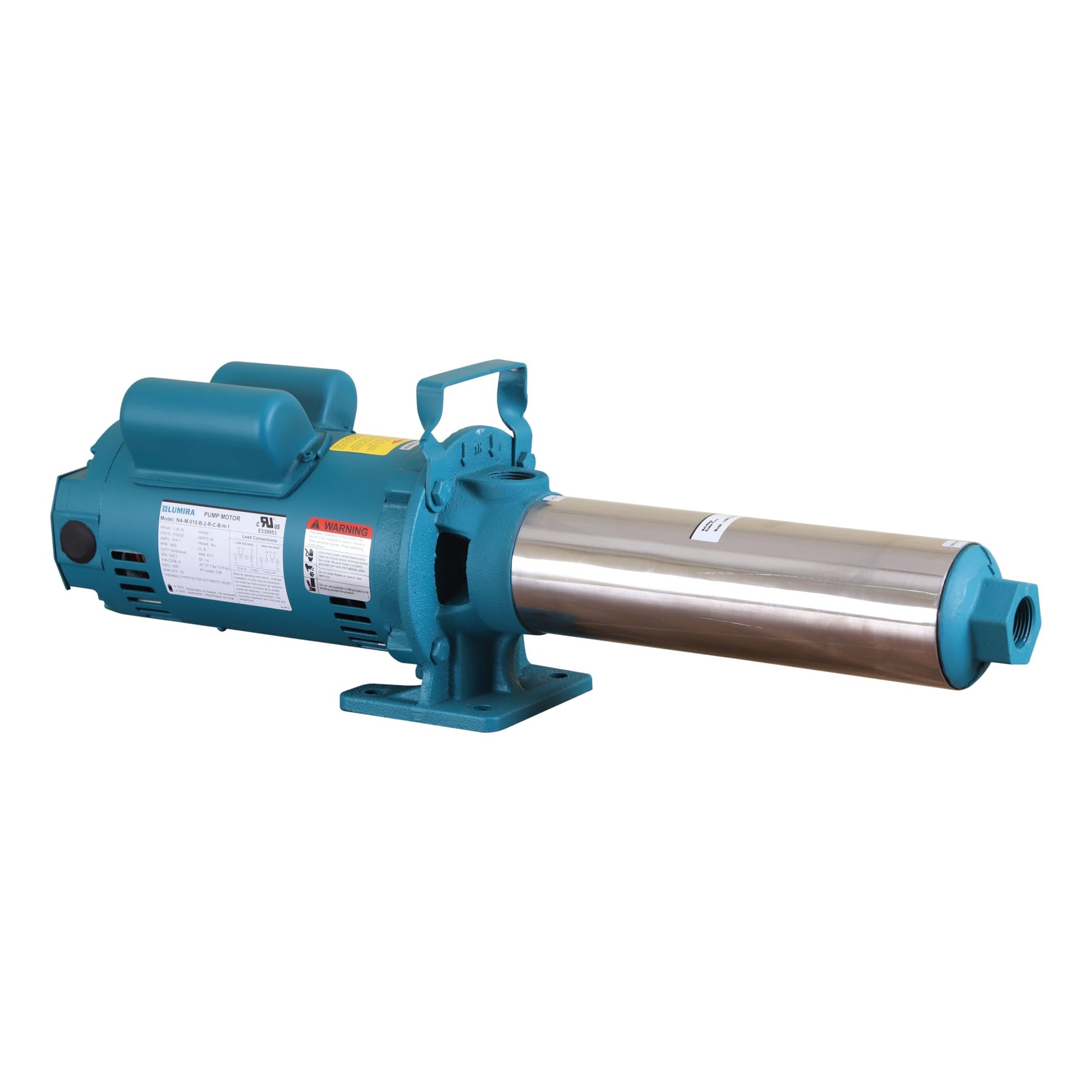

LUMIRA Multi stage booster pump - 07 GPM,13 STAGE, 0.75 hp, 115/230 Volts, 1 phase, 1" FNPT connections

Brand: LUMIRA

Color: Teal

Features:

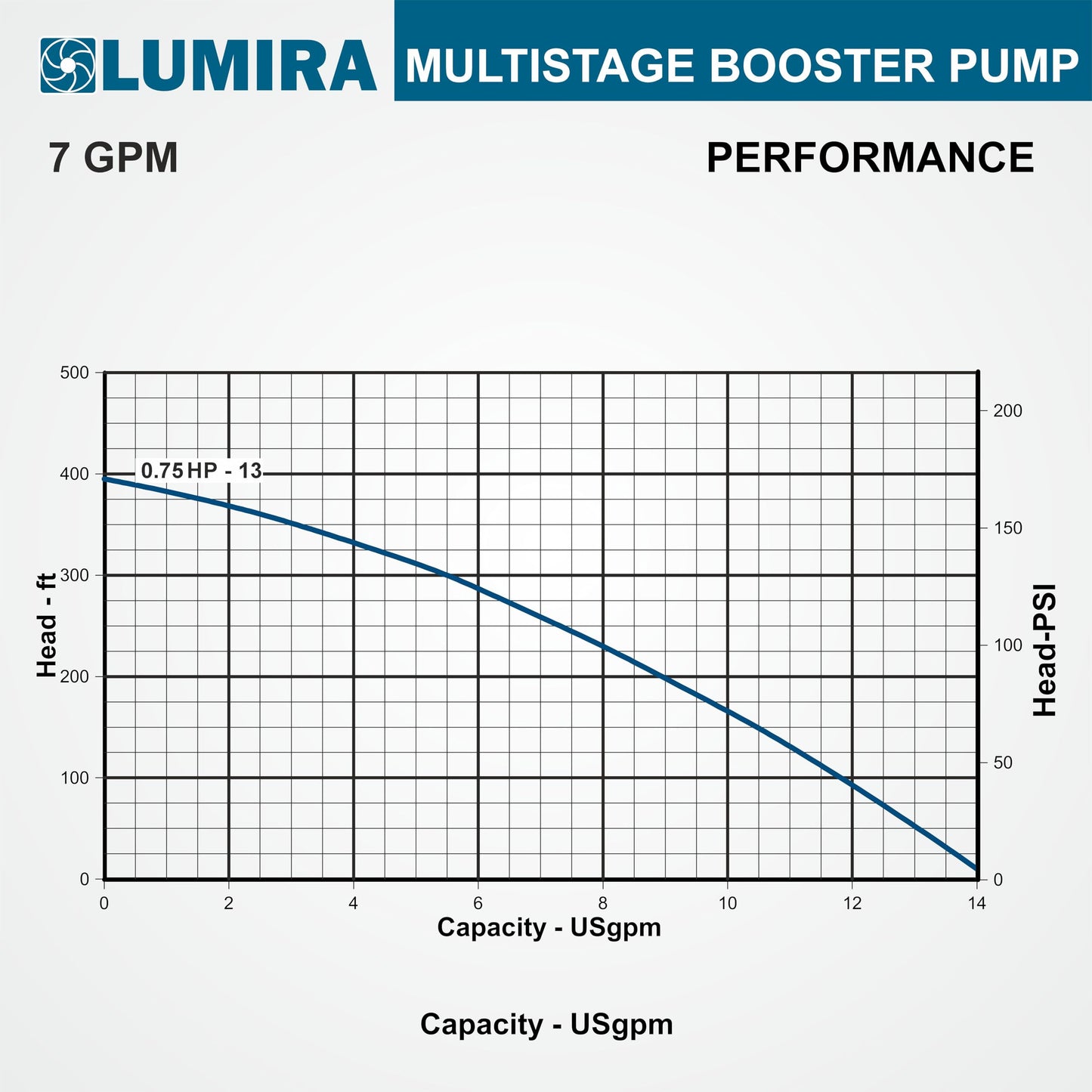

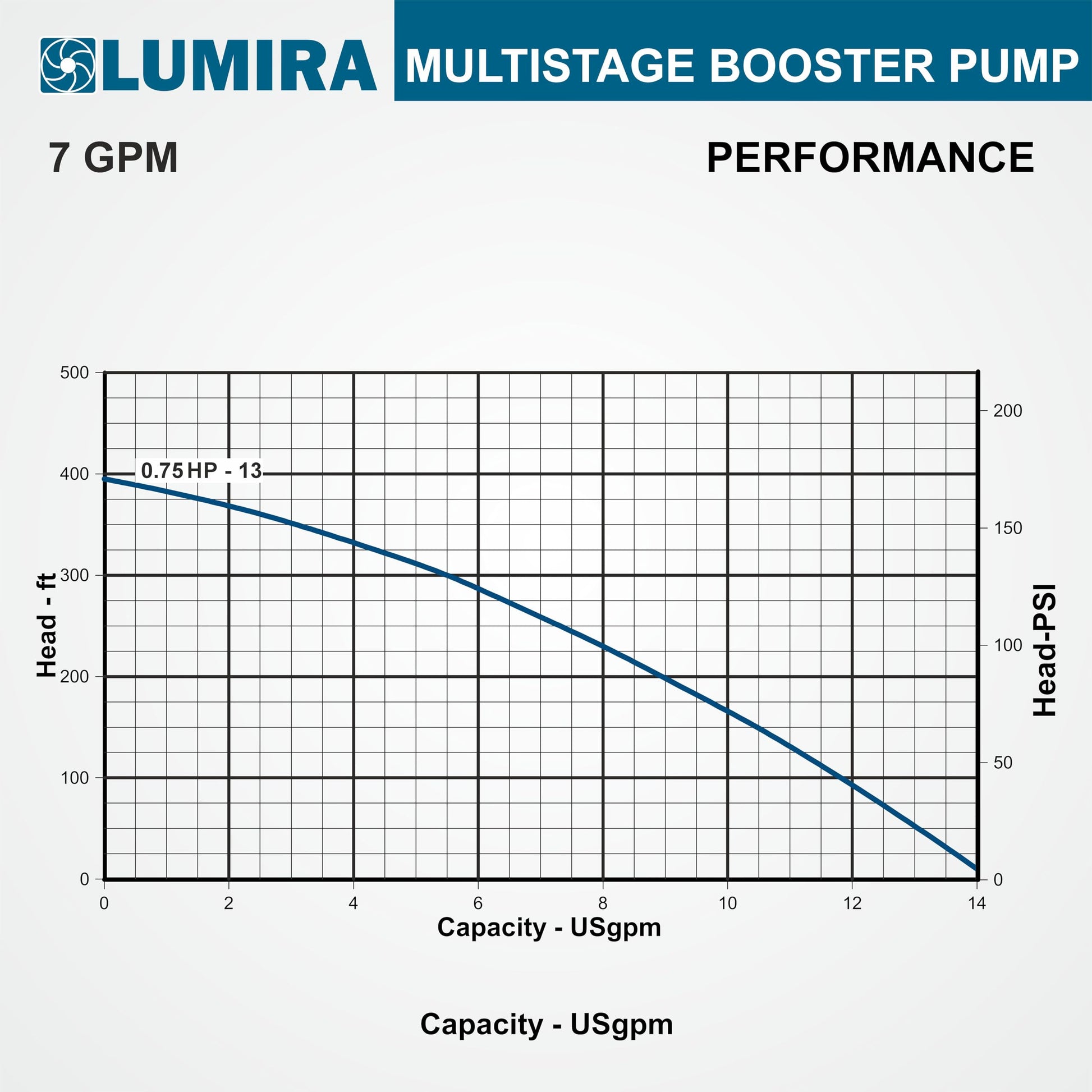

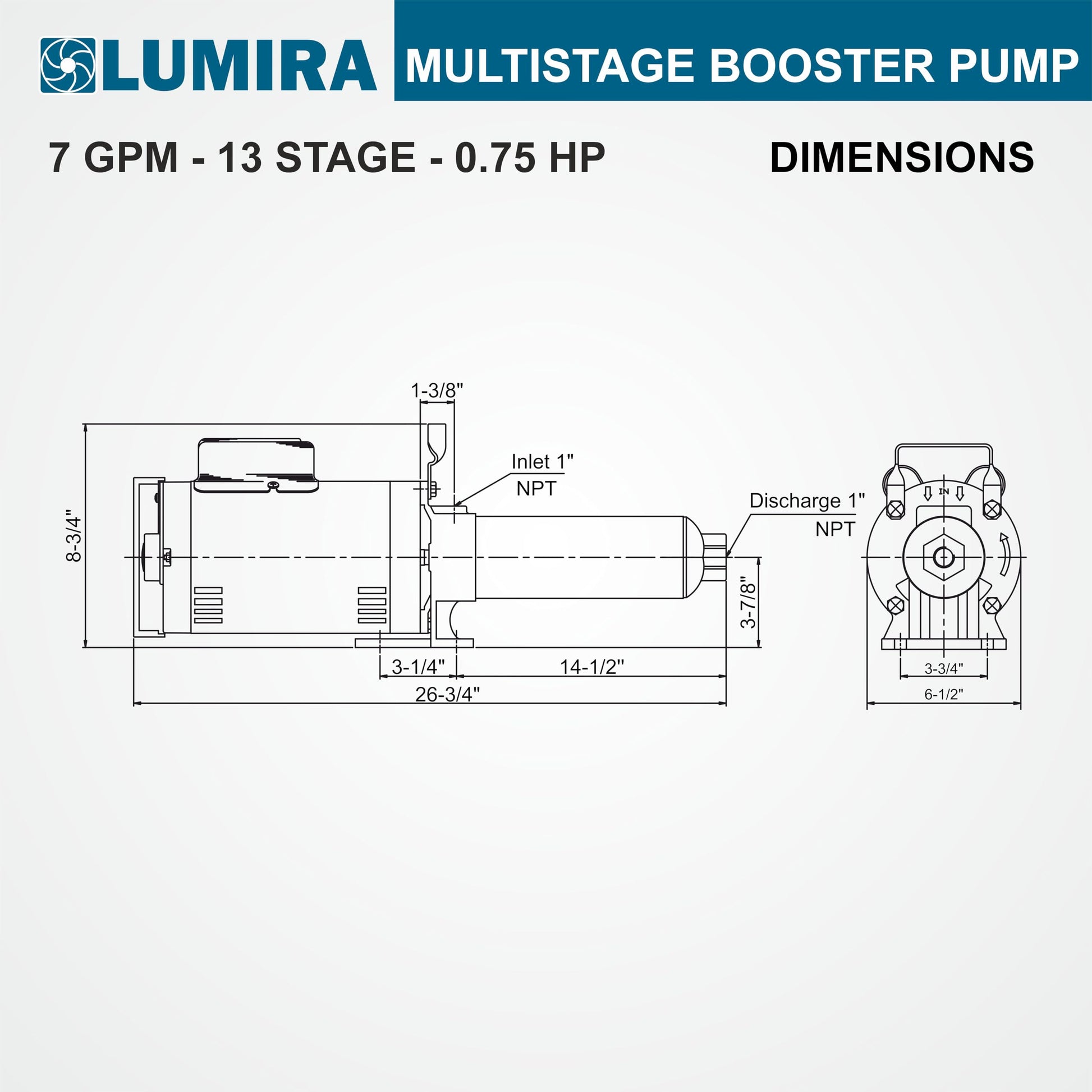

• The Multi-Stage Booster Pump delivers a flow rate of 07 GPM @ 260 ft (89 psi.), powered by a 0.75 HP ODP motor. The inlet and outlet connections are 1' FNPT.
• Maximum pressure is 398 ft (172 psi.) and maximum flow is 9 USgpm.

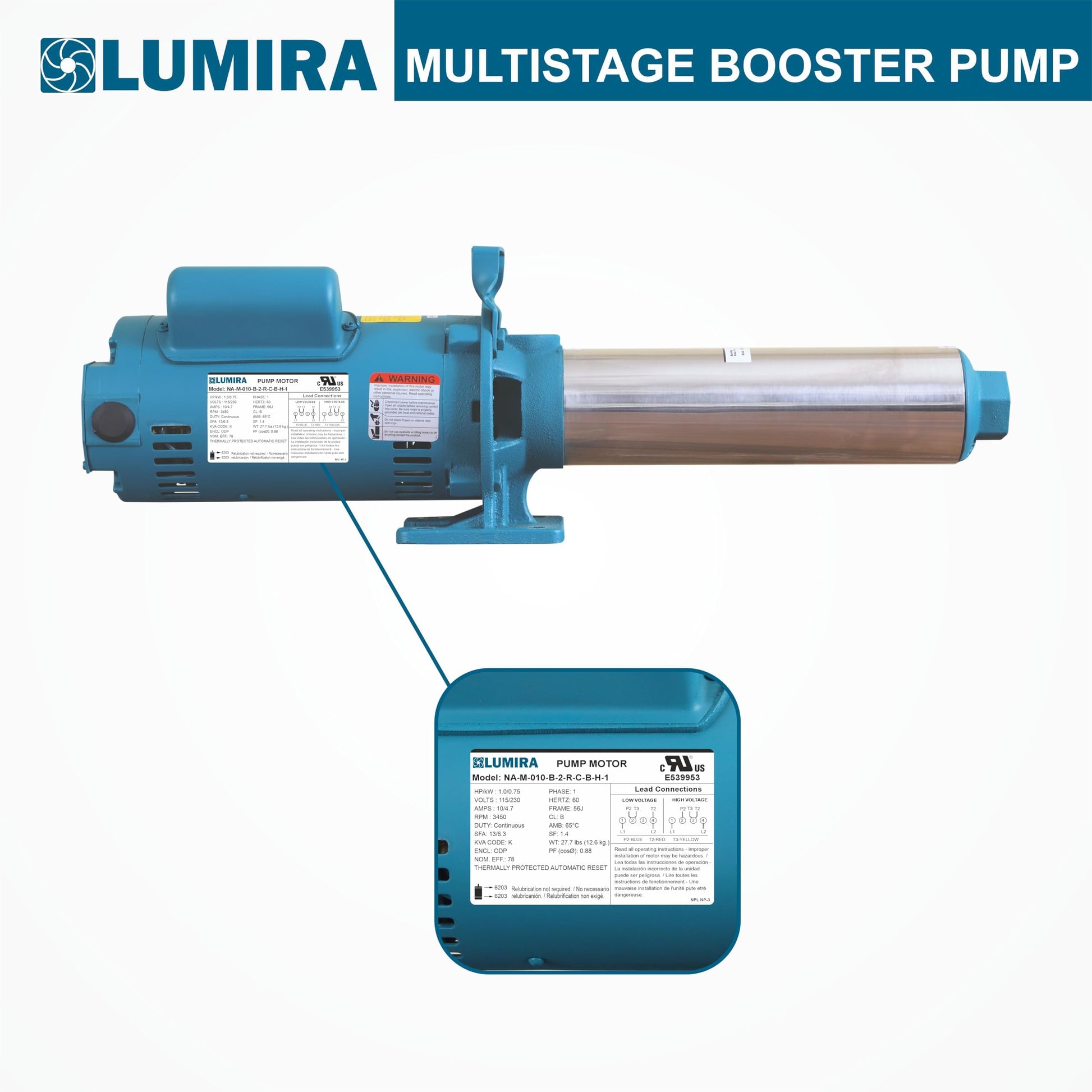

• The pump is powered by 0.75 HP ODP, 1 phase, 115/230 Volts, 60 Hz, 56J frame, UL recognized motor.
• The pump features cast iron inlet and outlet casings. The pump outer jacket, shaft and bowl casing is of 304 stainless steel. The impeller and diffuser are of glass reinforced engineering composite material.

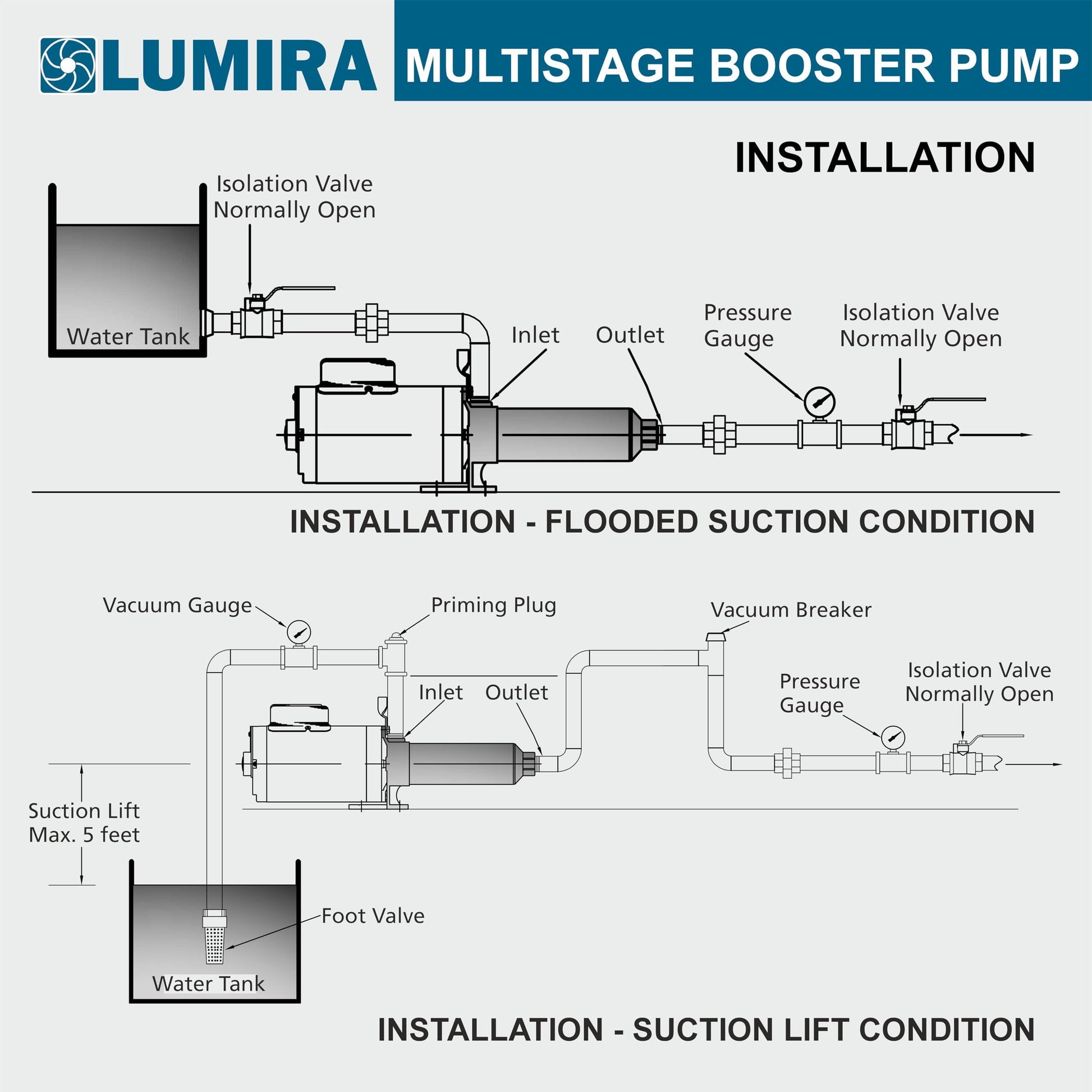

• The pump is suitable for following booster applications: 1.For water supply as well as pressurized washing in residential, commercial and industrial applications. 2.As a high pressure pump in Reverse Osmosis or filtration treatment for Water. 3.Industrial cooling water circulation.

model number: LHB07130761CC1

Part Number: LHB07130761CC1

Details: The Multi-Stage Booster Pump delivers a flow rate of 07 GPM @ 260 ft (89 psi.), powered by a 0.75 HP ODP motor. The inlet and outlet connections are 1' FNPT. Maximum pressure is 398 ft (172 psi.) and maximum flow is 9 USGPM. The pump features cast iron inlet and outlet casings. The pump outer jacket, shaft and bowl casing is of 304 stainless steel. The impeller and diffuser are of glass reinforced engineering composite material. The pump is suitable for following booster applications: 1. For water supply as well as pressurized washing in residential, commercial and industrial applications. 2. As a high pressure pump in Reverse Osmosis or filtration treatment for Water. 3. Industrial cooling water circulation.

Package Dimensions: 35.1 x 12.5 x 12.3 inches
