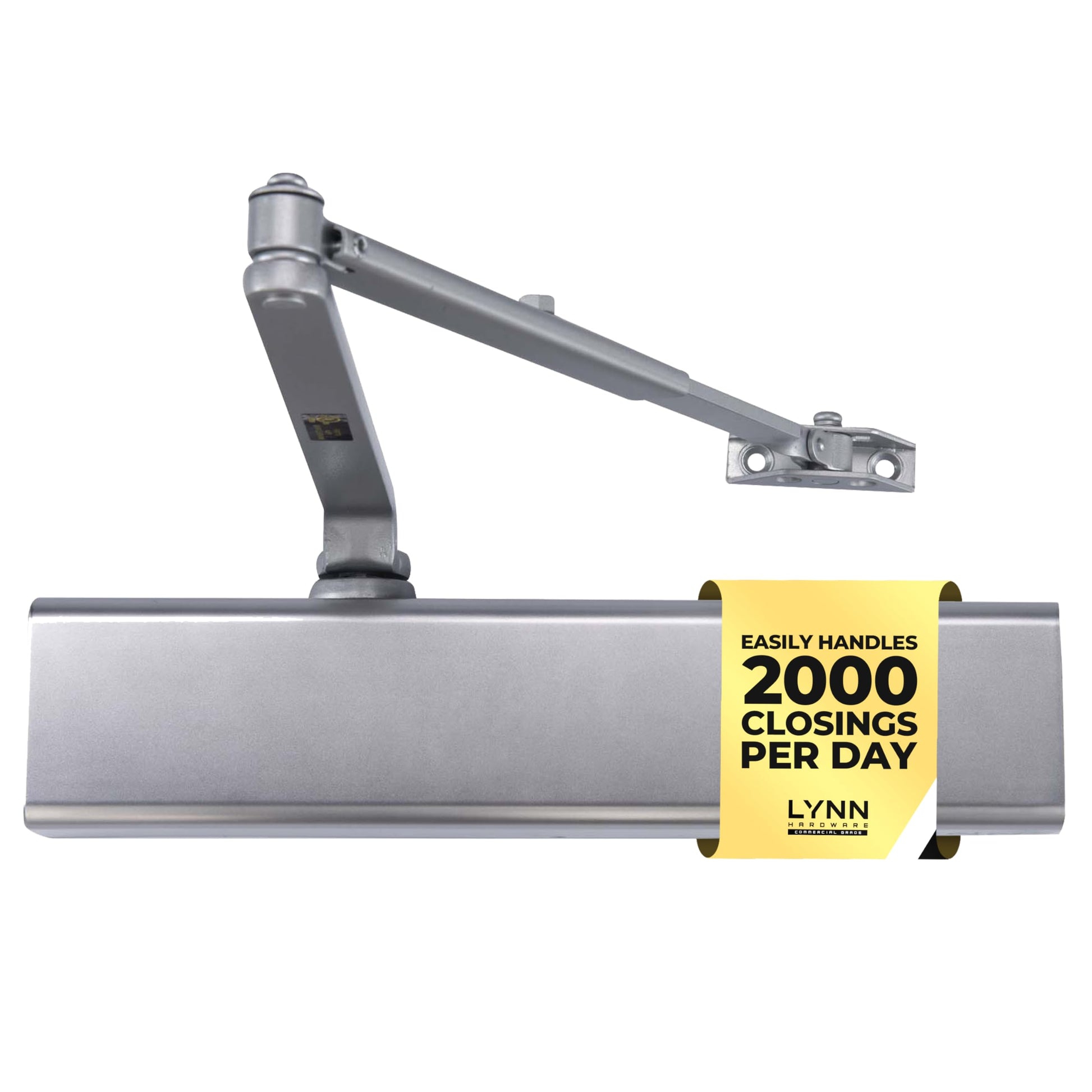

LYNN HARDWARE Heavy Duty Automatic Door Closer (Silver) - Commercial Grade, Contractors Choice, Adjustable Speed & Force, Delayed Closing Timer, 3 Mounting Options, 3 Hour Fire Rated (DC8016 Model)

Brand: LYNN HARDWARE

Color: Aluminum

Features:

• PREMIUM COMMERCIAL-GRADE PERFORMANCE: Made with a powder-coated cast aluminum body, wrought steel arm, and heat-treated piston, this commercial door closer ensures durability, reliability, and corrosion resistance for doors in high-traffic areas (up to 2,000 openings per day); suitable for commercial entrances, school corridor doors, offices, and restrooms

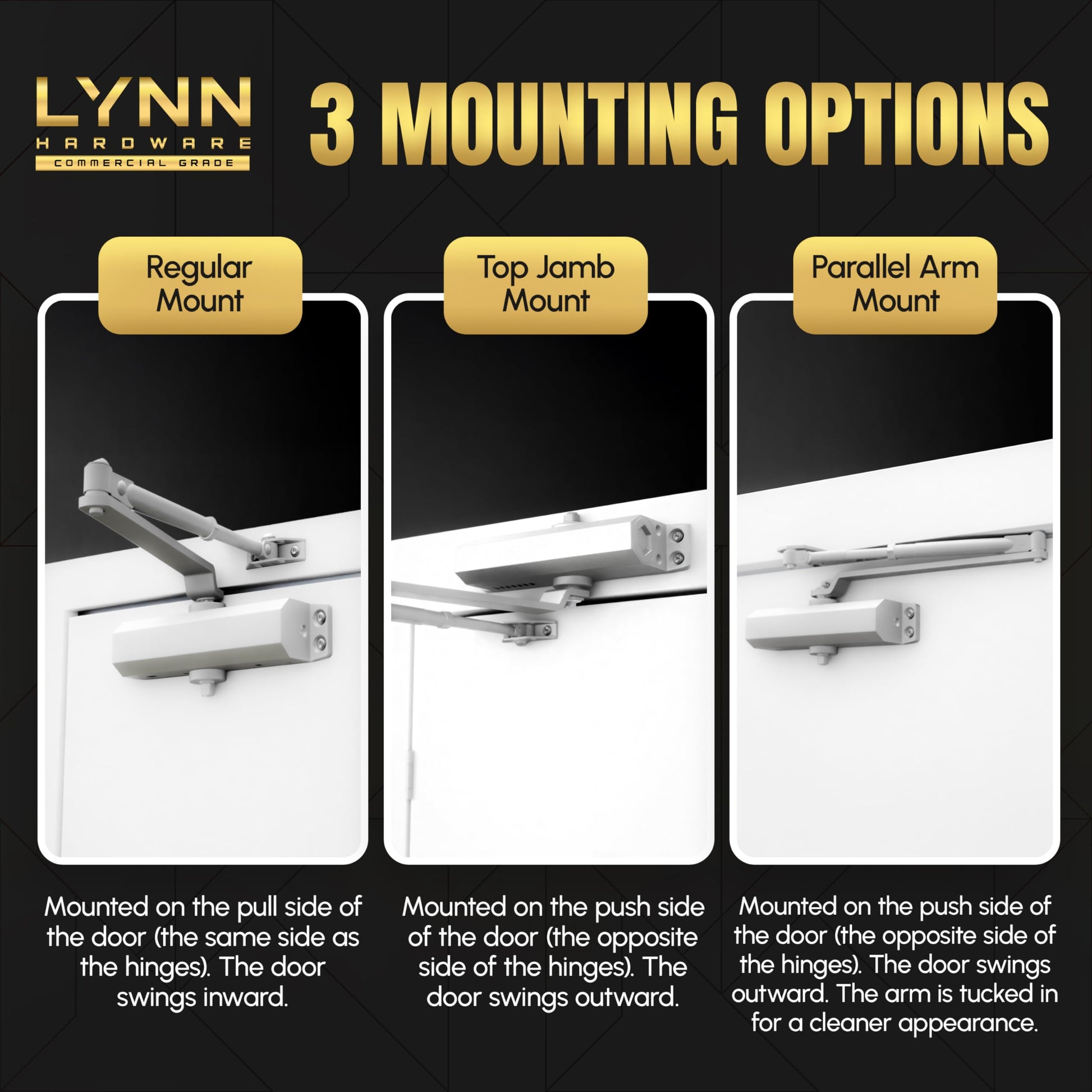

• THREE MOUNTING OPTIONS: This non-handed auto door closer (works on left or right-handed doors) includes three mounting options to suit any door and frame type (pull side or push side), including regular arm mount, top jamb mount, or parallel arm mount; all required hardware, a drill hole template, and easy-to-follow instructions are included for hassle-free installation

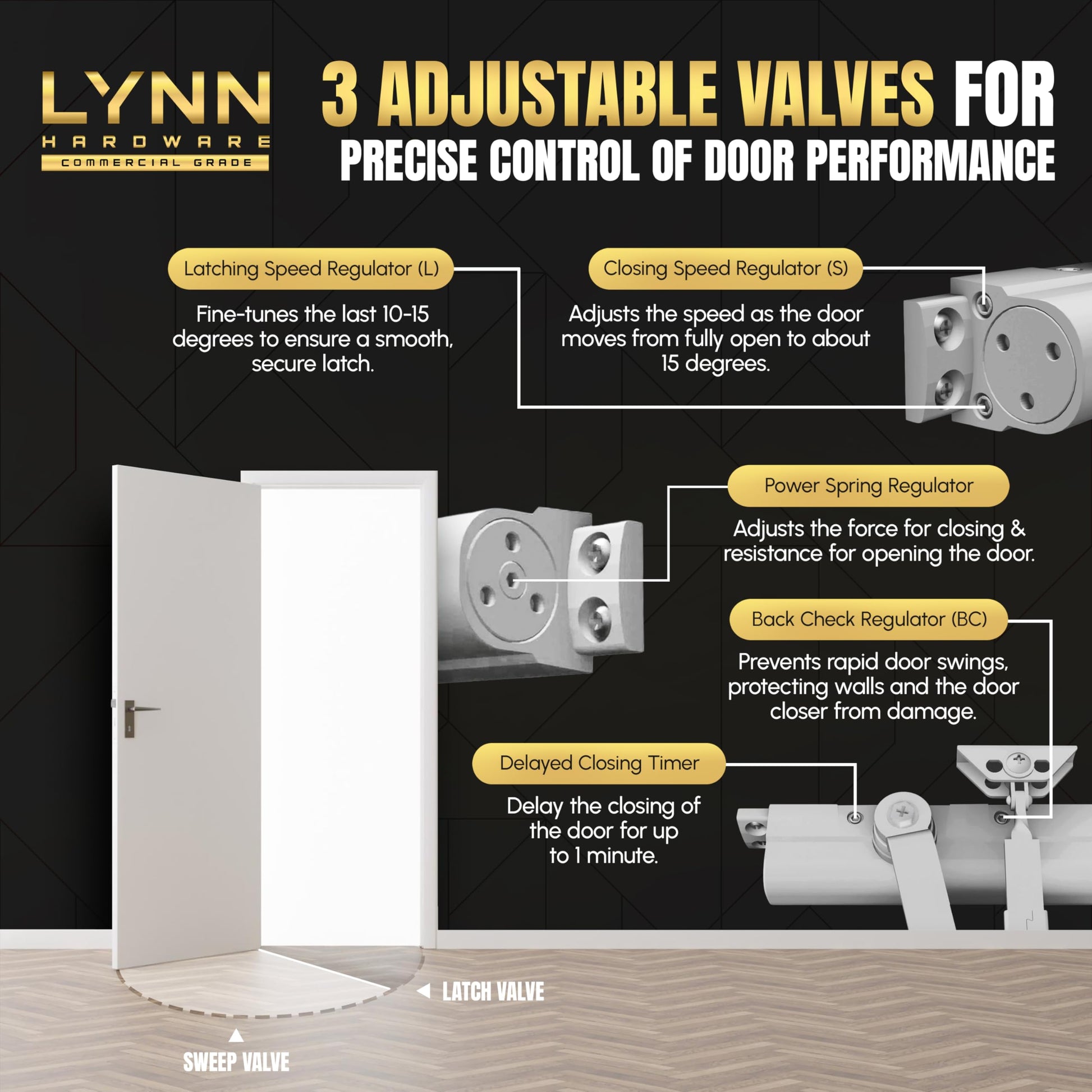

• 5 ADJUSTMENT VALVES FOR COMPLETE CONTROL: This hydraulic door closer features 5 adjustment valves to control the closing speed, latching speed, backcheck, spring force, and a delayed closing timer; fine-tune for smooth, quiet, and secure closing
• CERTIFIED FOR SAFETY AND LONG-TERM USE: UL 3-Hour Fire Rated, ADA Compliant, and ANSI/BHMA A156.4 Certified (tested to exceed 2 million cycles), ensuring safety and reliability; the DC8016 door closer is trusted by contractors, property managers, and builders
• USA SUPPLIED & SUPPORTED: Our commercial door closers are supplied by a USA-based company, providing reliable year-round support
• SPECIFICATIONS: This door closer weighs 7.4 lbs (3.36 kg) and is for doors weighing up to 330 lbs (150 kg) and 60” (1500 mm) wide; it’s dimensions are 2 7/8' (73 mm) high, 13 1/16' (332 mm) wide and 2 1/8' (73 mm) deep; its screw/bolt pattern is 12' wide (center to center) and 1 7/8' high (center to center); the spring force is adjustable from Setting # 1 (2 pounds of closing force) through to Setting # 6 (14 pounds of closing force)

model number: DC8016-BC-DA

Part Number: LYNN-DC8016-BC-DA-ALUM

EAN: 0037182315806

Package Dimensions: 14.1 x 5.8 x 3.0 inches
