Natotela Channel Drain with Galvanized Steel Grates-39.4Lx6.1Wx5.5H in. Deep Profile Trench Drain System for Driveway,3 Pack Total Length 118.1in,Heavy Duty Drainage System for Garage,Parking Lot

Brand: Natotela

Color: Galvanized Steel 3 Pack

Features:

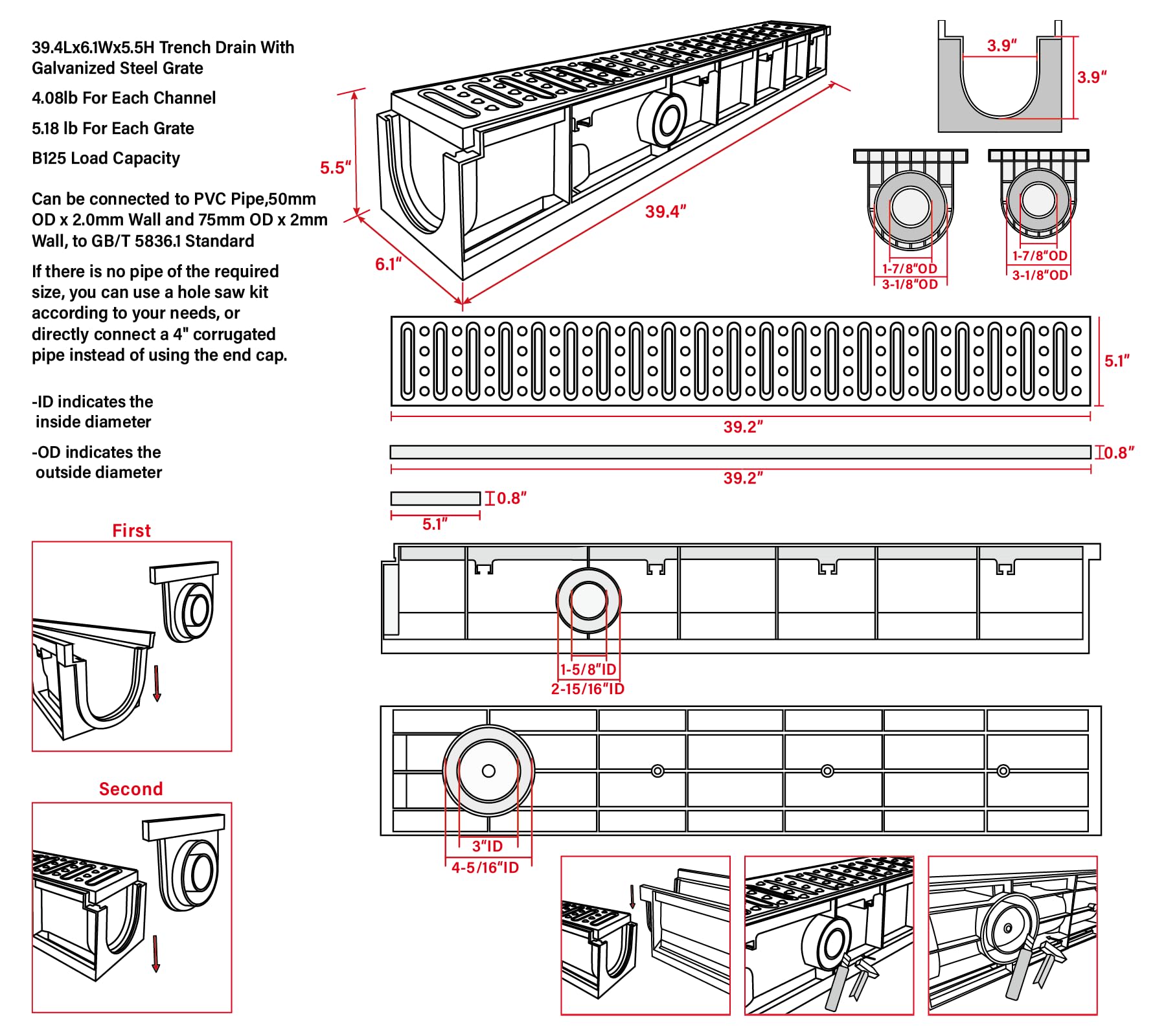

• HDPE TRENCH BODY: 39.4x6.1x5.5 inch channel drain with grate is made of high density polyethylene (HDPE) which has higher hardness and tensile strength than ordinary polyethylene. Make sure the trench drain system will not easily damaged and has a long service life. Bottom outlet diameter is 3' & 4-5/16'; Outlet adapter diameter is 1-7/8' & 3-1/8'; Side outlet diameter is 1-5/8' & 2-15/16'.

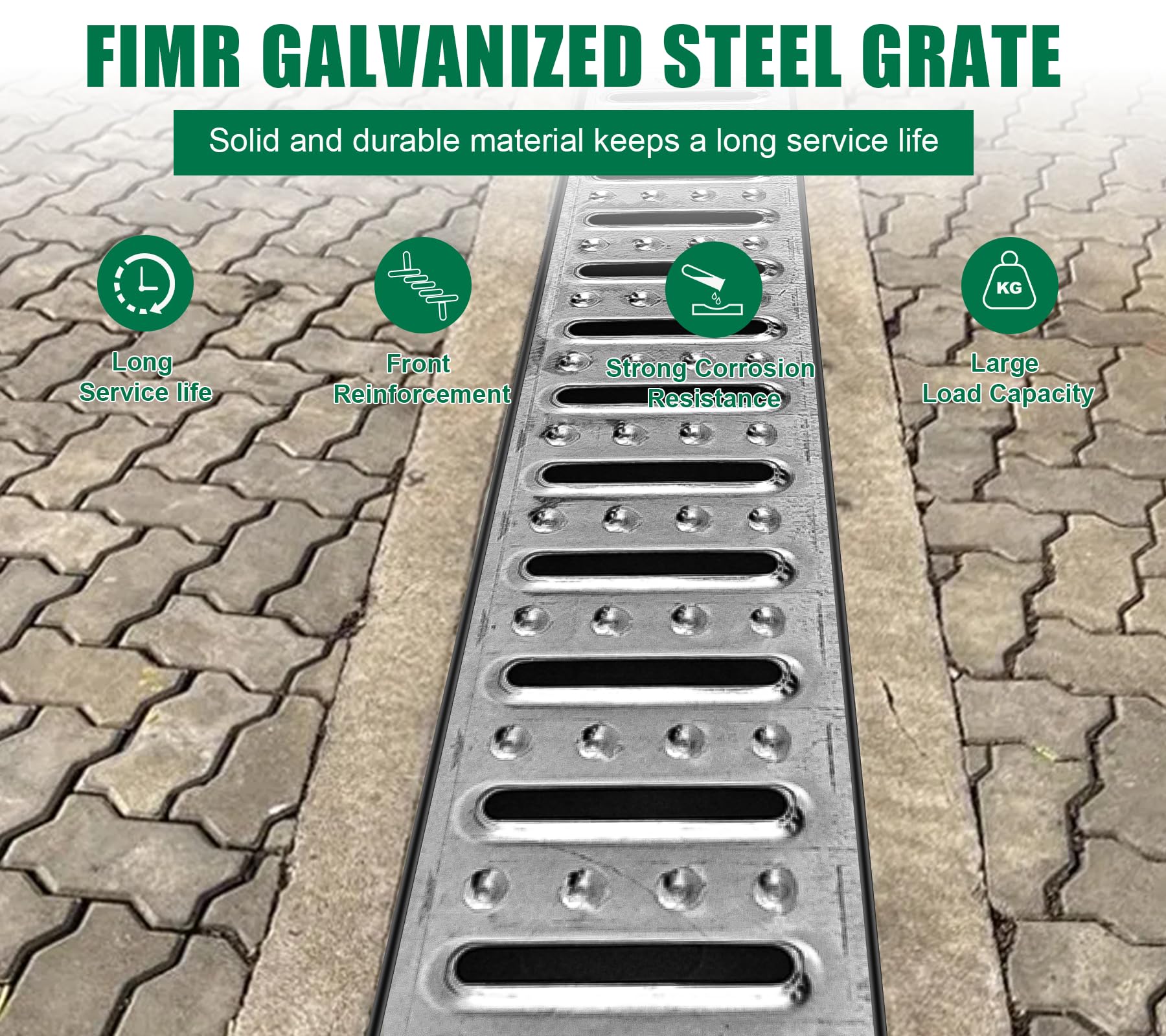

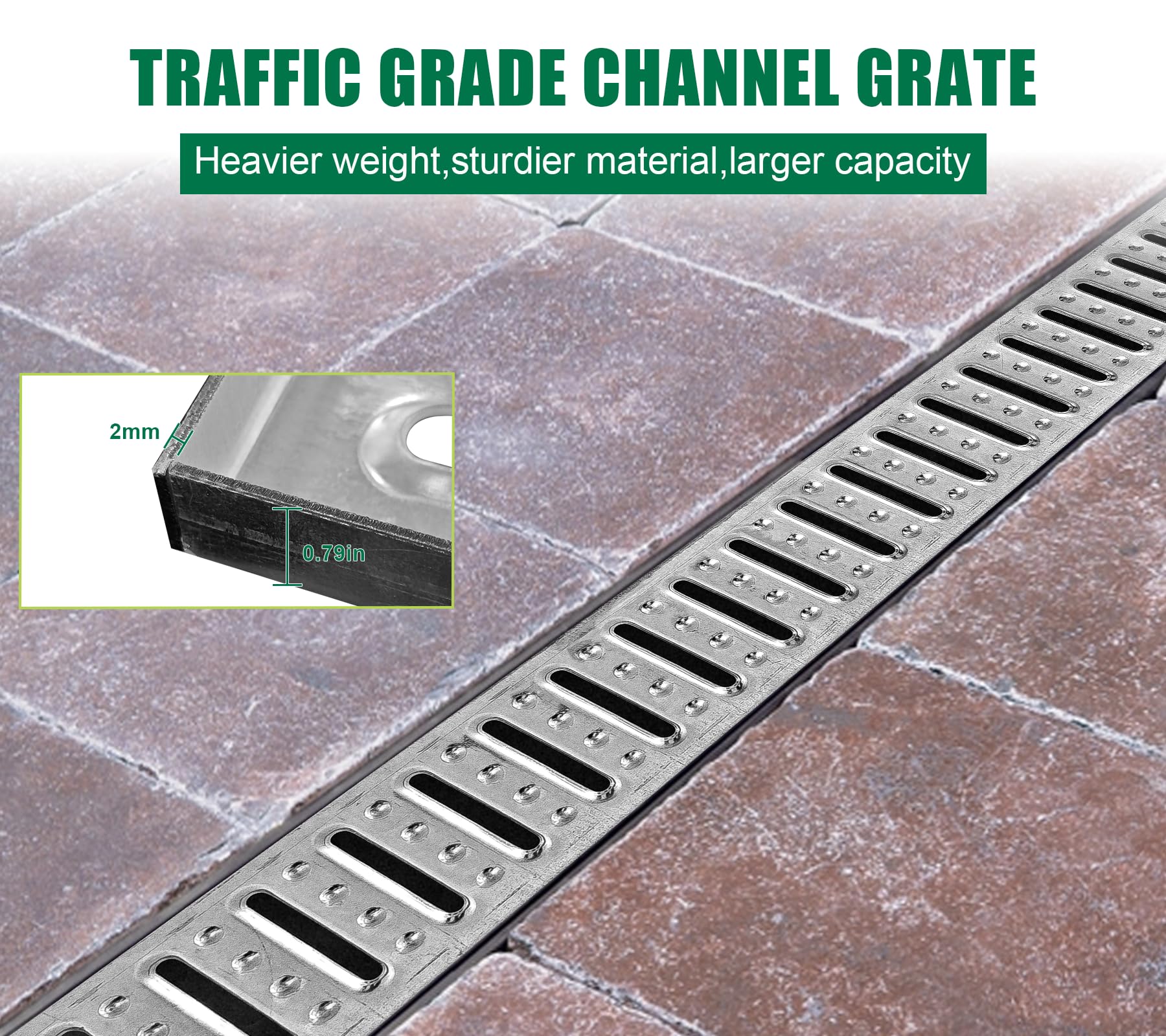

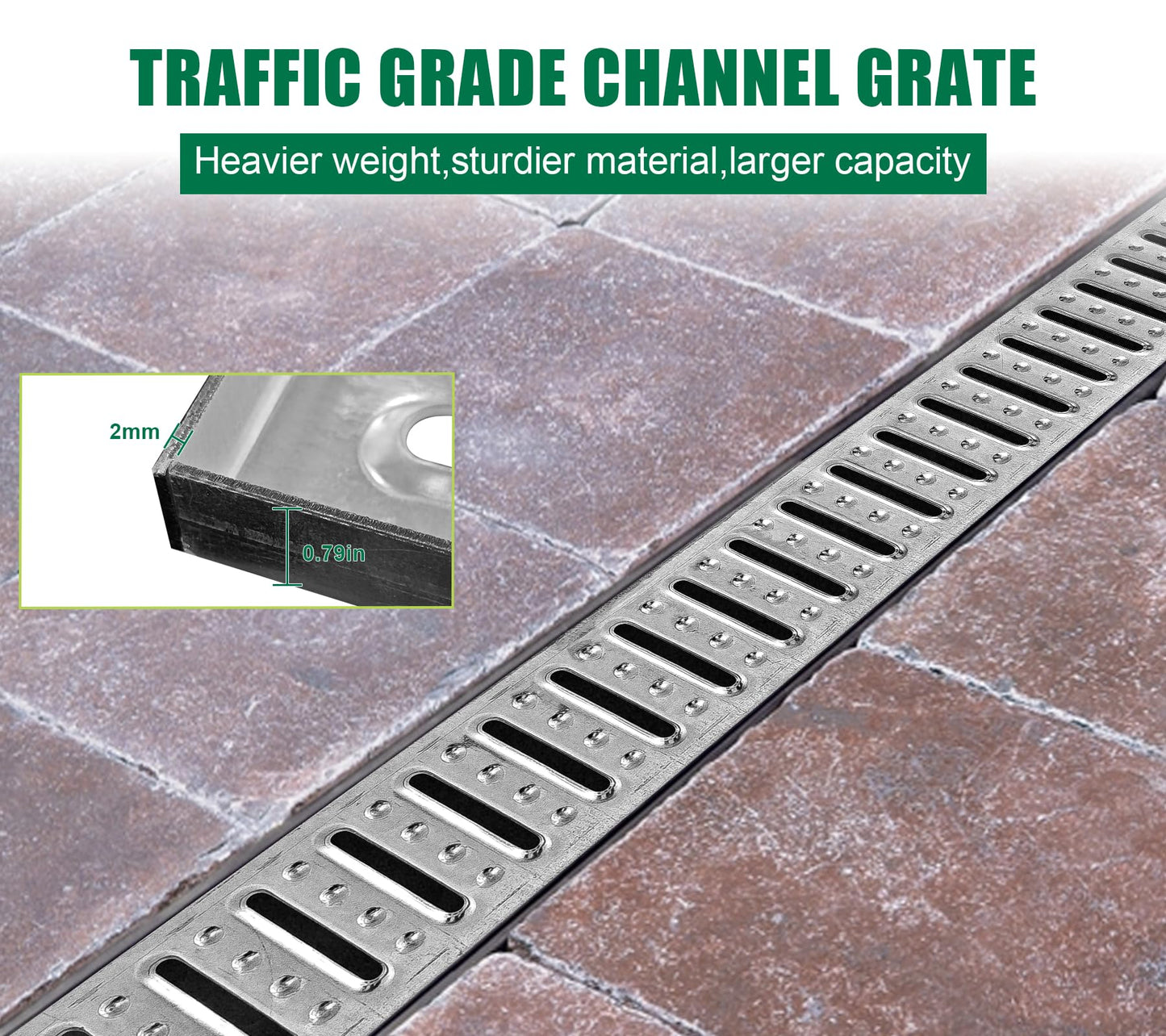

• 2MM HEAVY DUTY GALVANIZED STEEL GRATE: This trench grate is made of galvanized steel which has high strength and toughness. Loads up to 8800 lb. Make sure the trench drain sturdy enough to pass the ordinary cars. Adopt the process of hot-dip galvanizing which keeps the thicker zinc surface and better anti-corrosion ability. Durable and long service life.
• ANTI SLIP: The surface of galvanized steel grate adopts dot design which increases friction to prevent slipping. Safe for Your Family, Smooth for Your Drive!

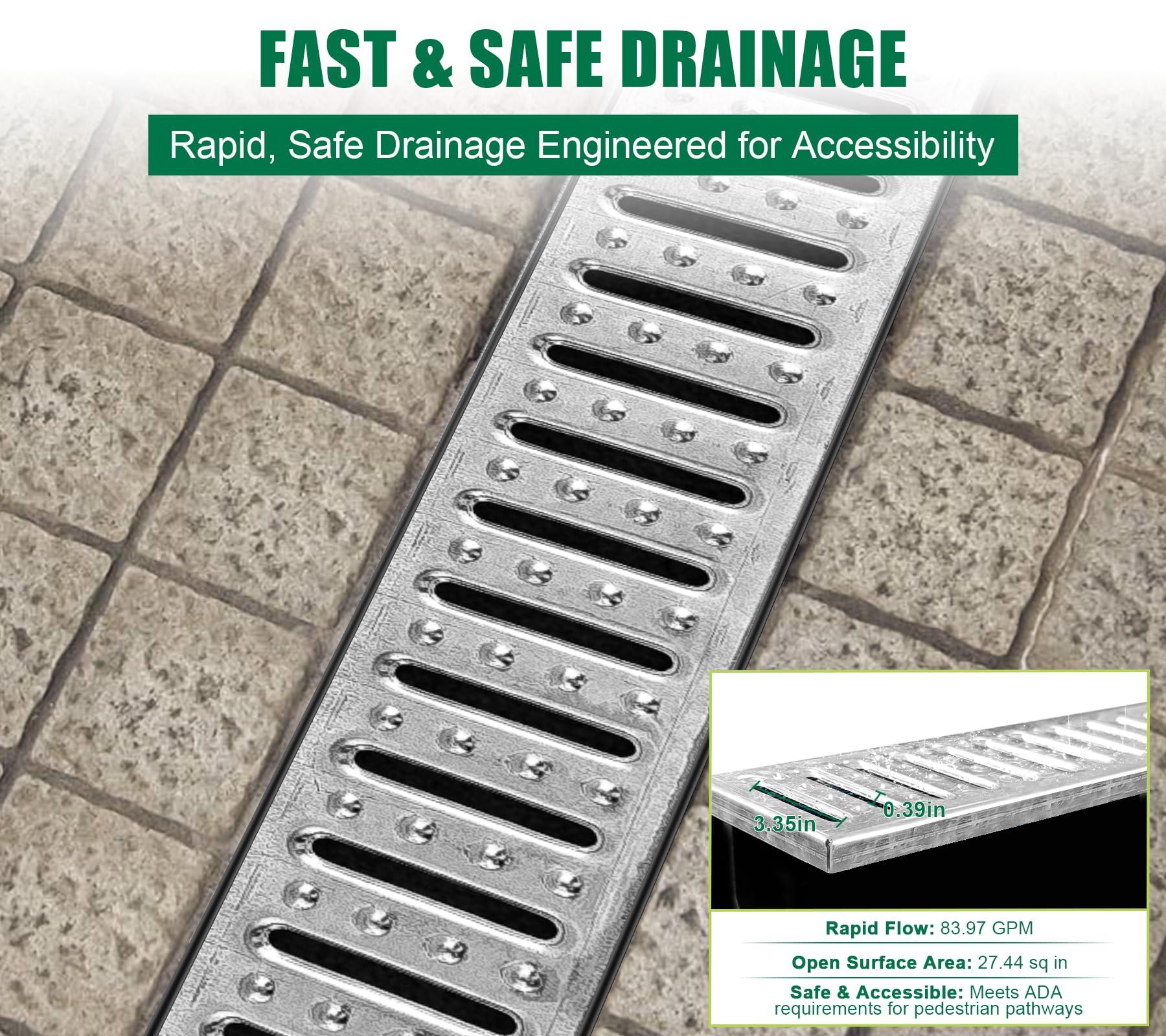

• PERFORATED DESIGN: Our trench drain system for driveway adopts perforated design. The 3.35 x 0.39 inches drainage holes ensures fast drainage and prevents leaves and small objects from entering the trench bottom. 27.44 sq. in. of opening surface area. 83.97 GPM Flow Rate. Moreover, the grate and the trench adopt sliding connection without screws or clasps. Easy to clean. ADA compliant for safe pedestrian use.

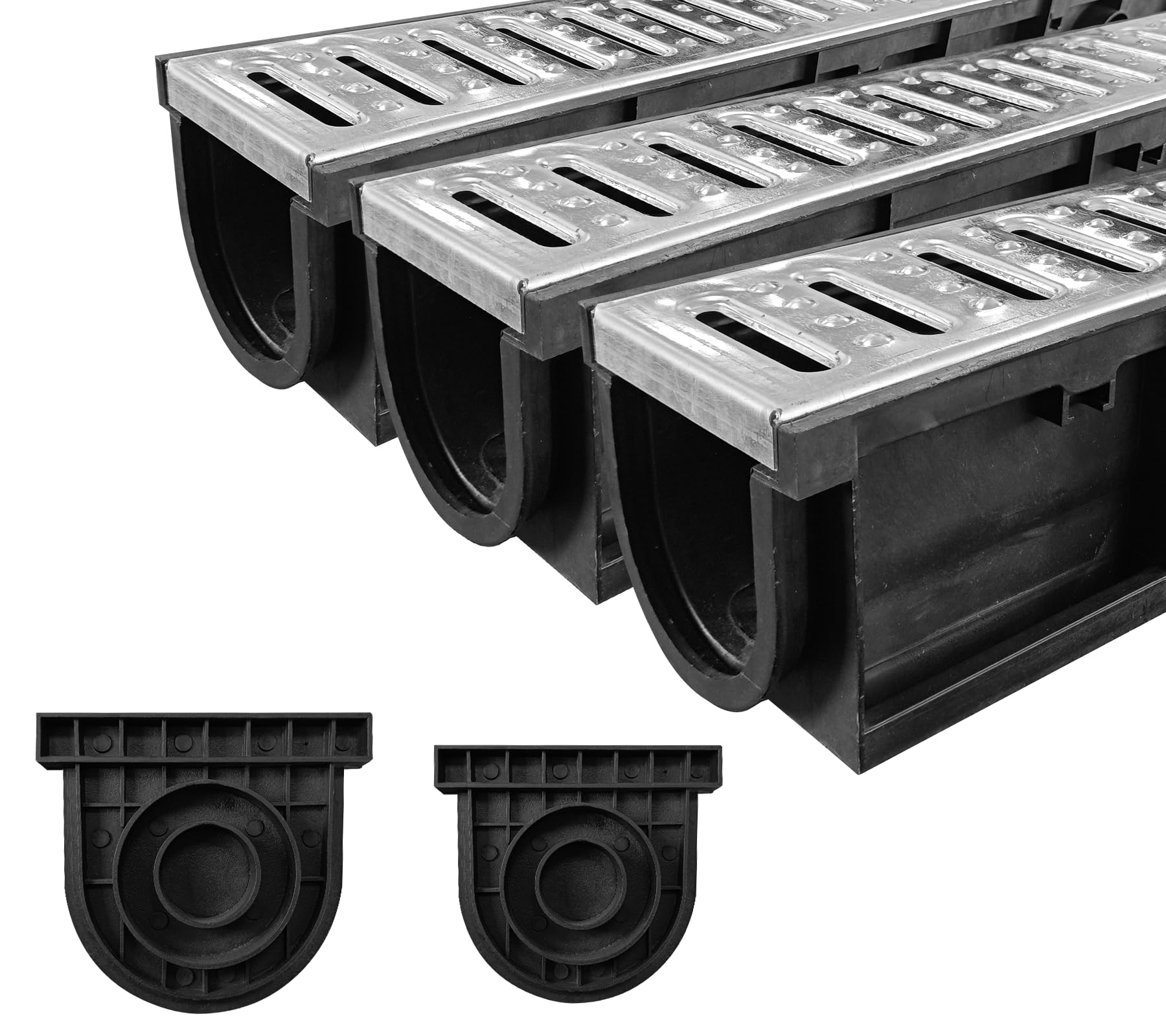

• PACKAGE INCLUDES: What you currently see consists of 6 grates, 3 trench drain and 2 end caps. 118.11 in. total length. You can connect this driveway channel drain directly together for extra length.Just use 1 end cap on one side and connect with 4in pipe on the other side to let the water flow to go a direction capping one end according to your need

model number: PSG-DXGCY-100x100-3

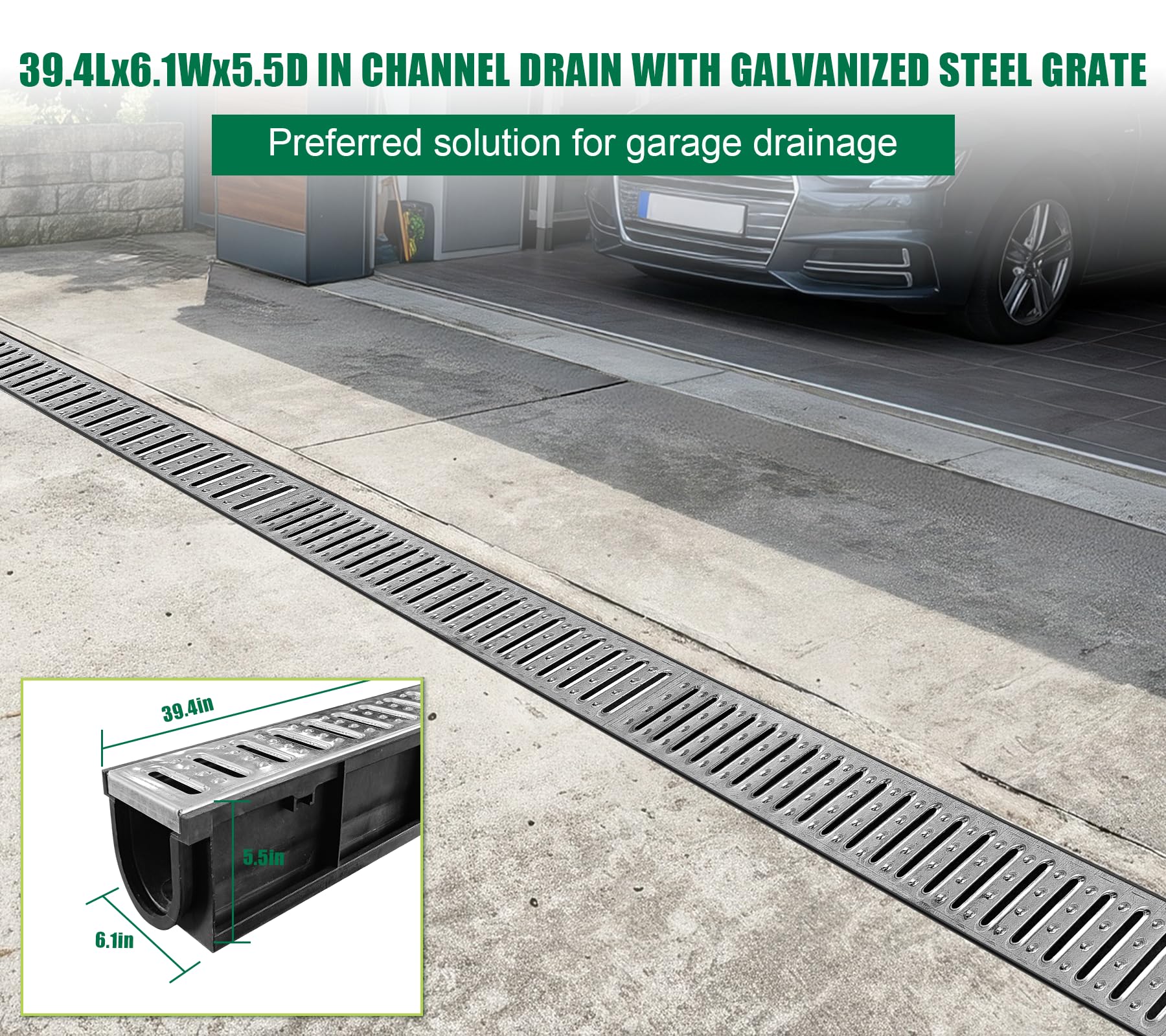

Details: 39.4Lx6.1Wx5.5H in. Deep Profile Trench Drain System for Driveway

Package Dimensions: 40.6 x 13.0 x 7.1 inches
