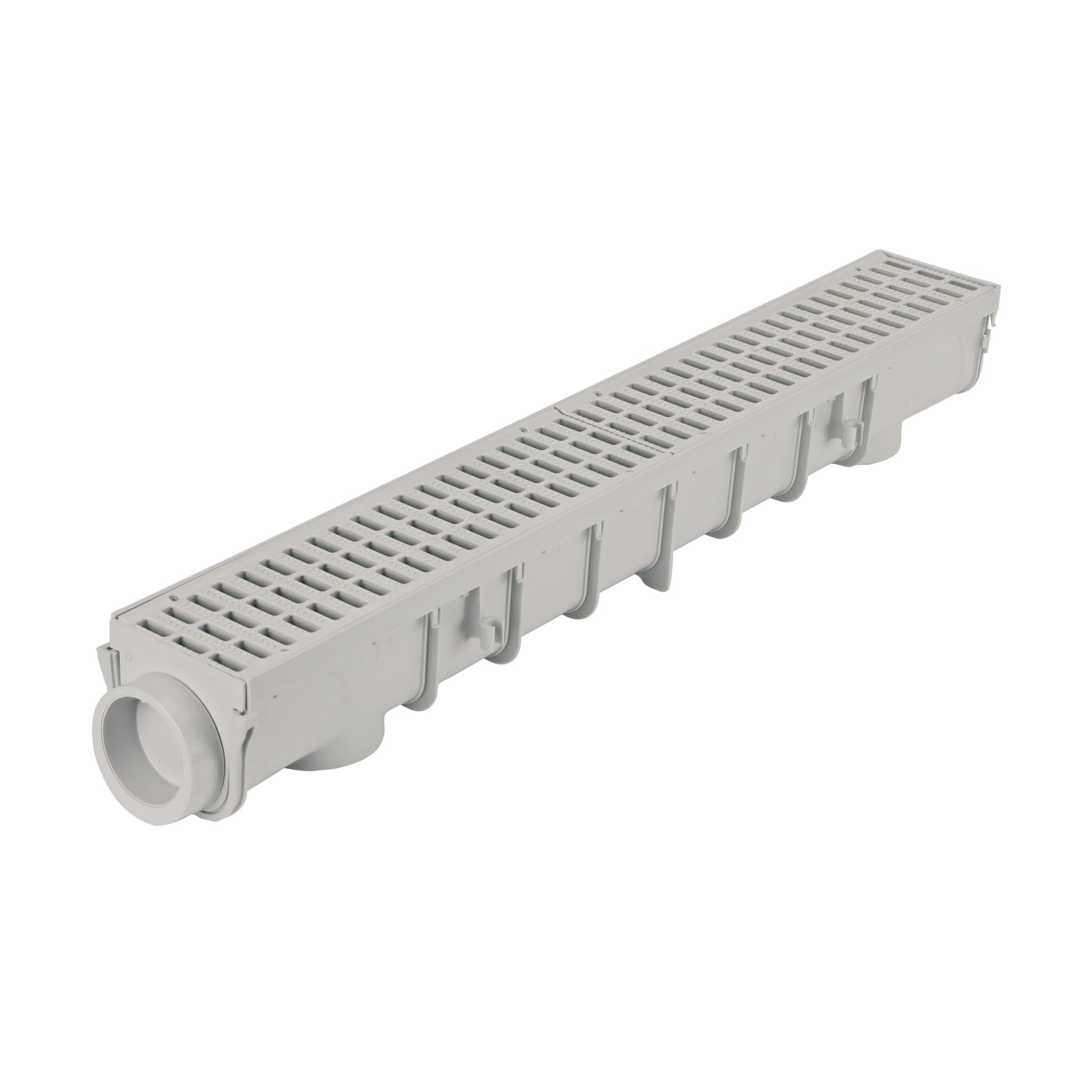

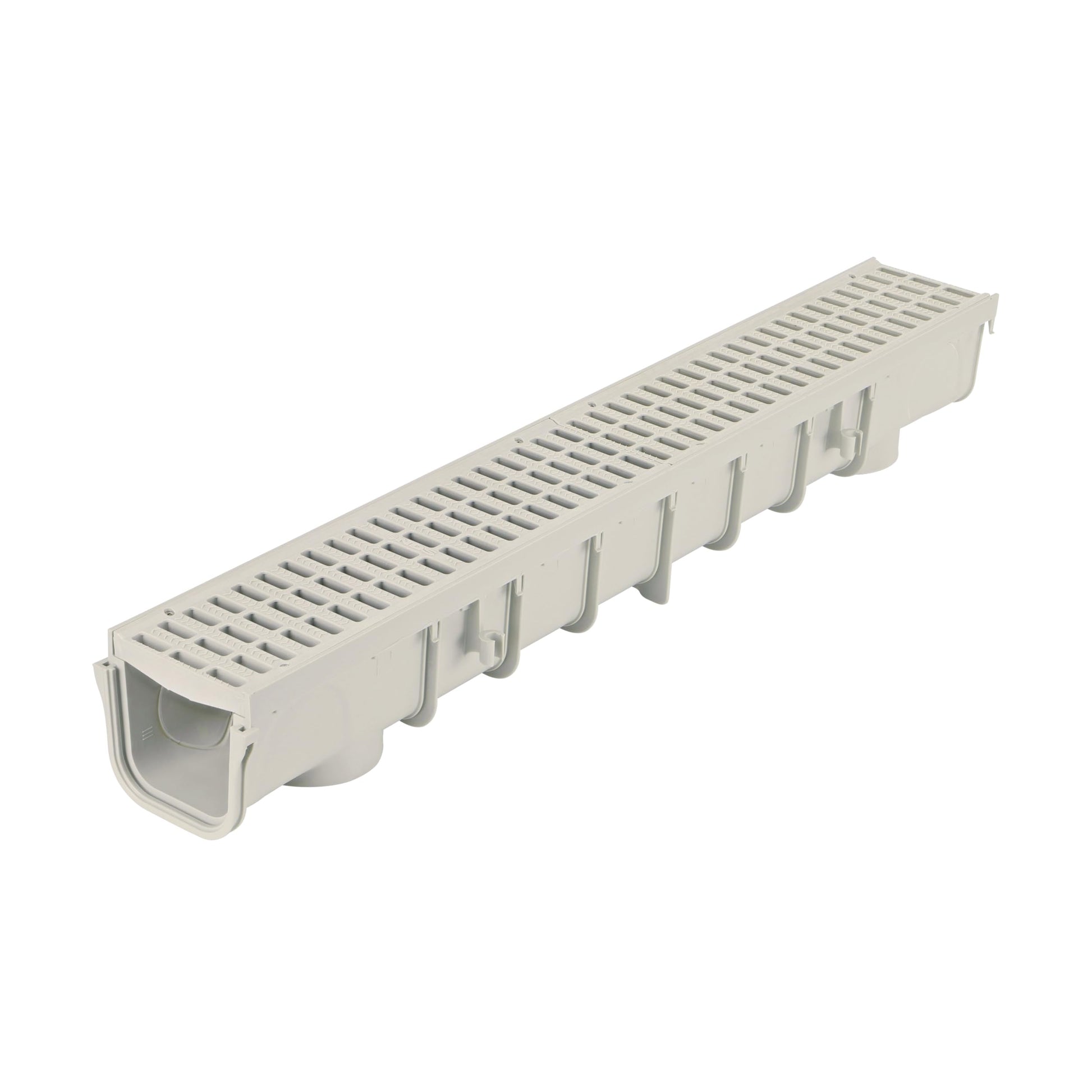

NDS 5” Pro Series Deep Profile Channel Drain Kit With HDPE Plastic Grates and End Caps, Trench & Channel Drainage For Driveway, Patio, Pool Deck, Courtyard, 5.5” x 39.4”, Gray

Brand: NDS

Color: Gray Plastic Grates

Features:

• DRAIN SURFACE WATER FROM HARDSCAPES: Avoid concrete staining and costly structural damage by capturing and conveying excess surface water to the drain pipe for downstream release

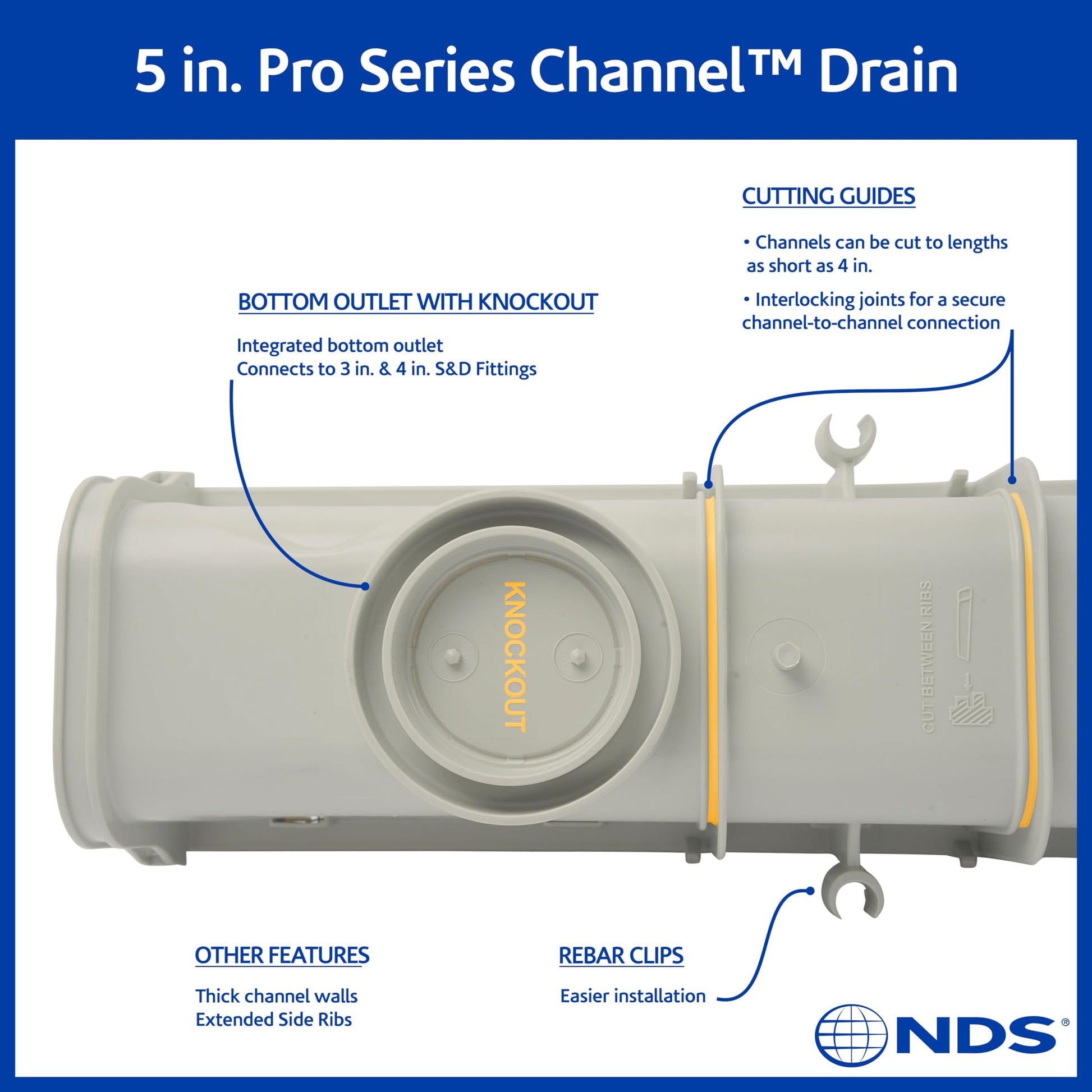

• CONNECTIONS: Bottom outlet connects to 3 in. & 4 in. Sewer & Drain Fittings; Side outlet connects to 3 in. Sewer & Drain pipe; End outlet connects to 3 in. Sewer & Drain pipe and 4 in. Sewer & Drain fittings

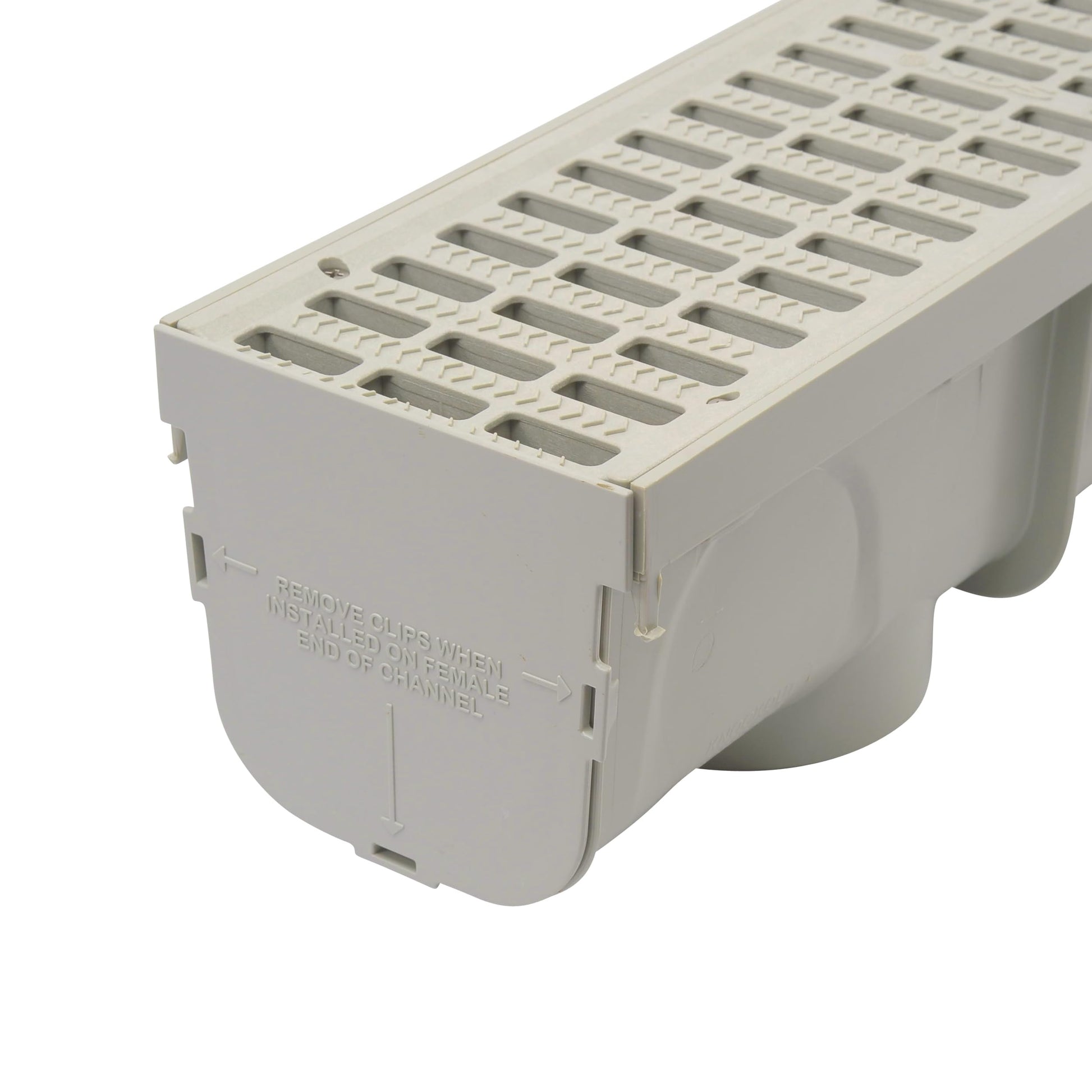

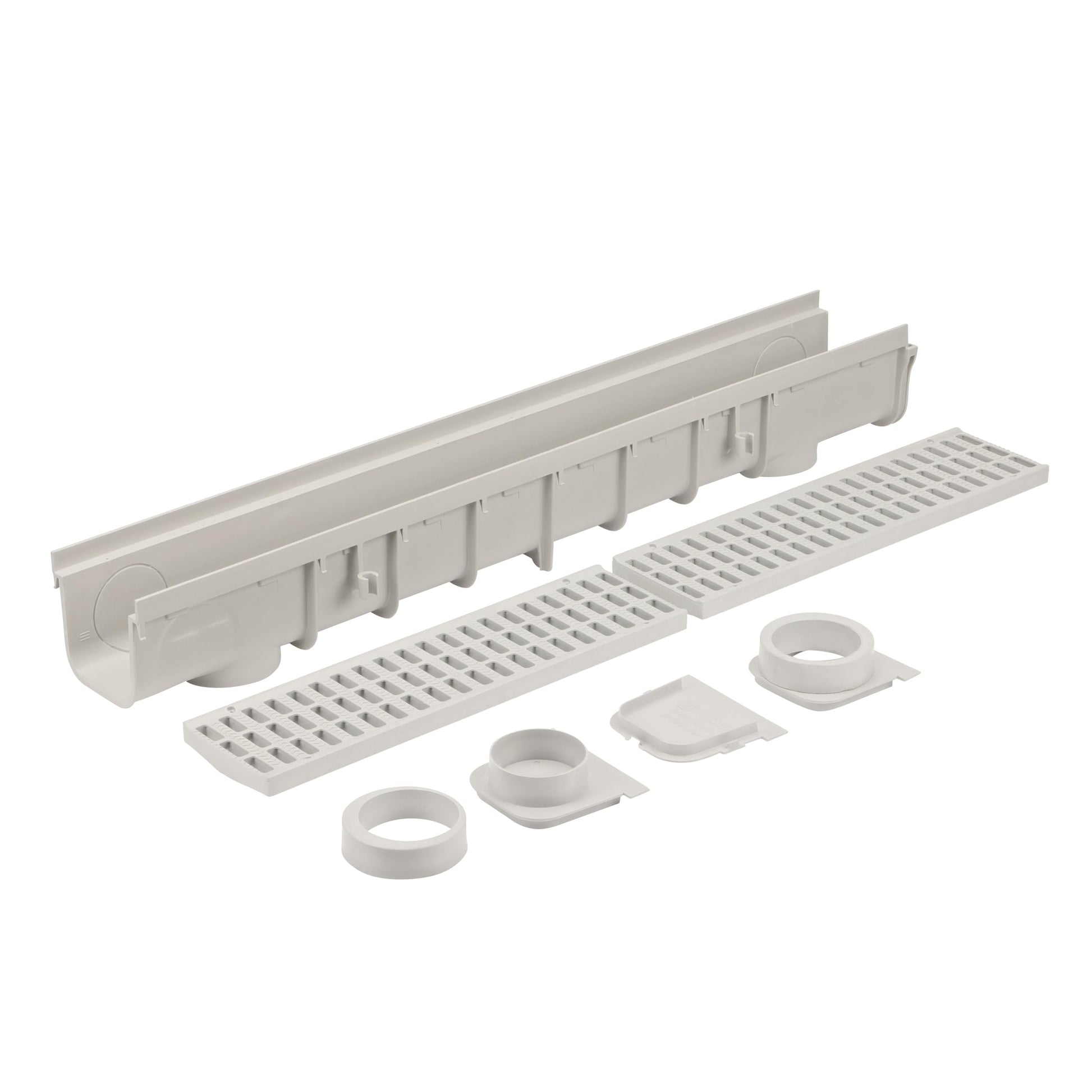

• KIT INCLUDES: 5 in. Pro Series Channel Drain kit comes with a channel drain, polyethylene channel grates, end cap/outlet, and end cap

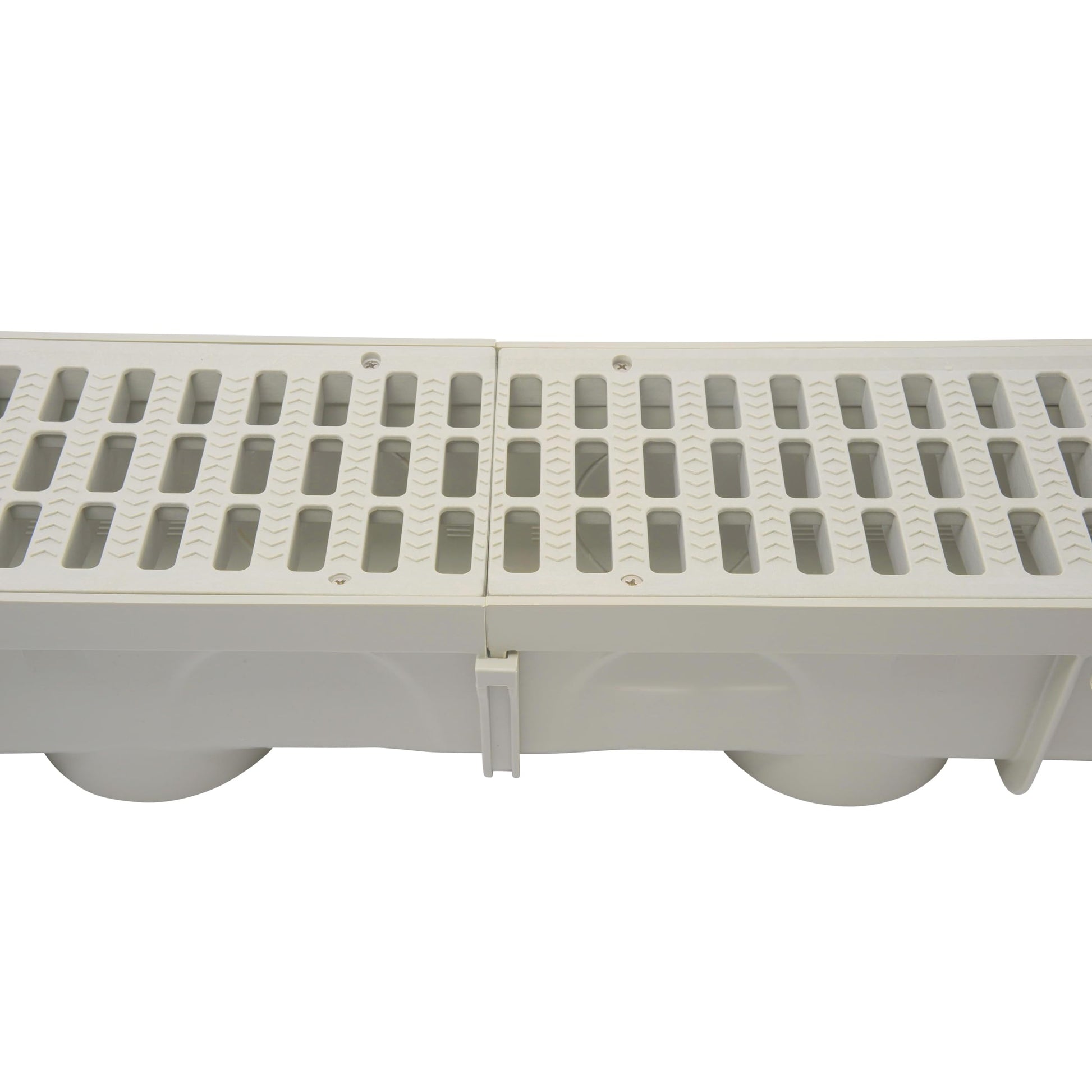

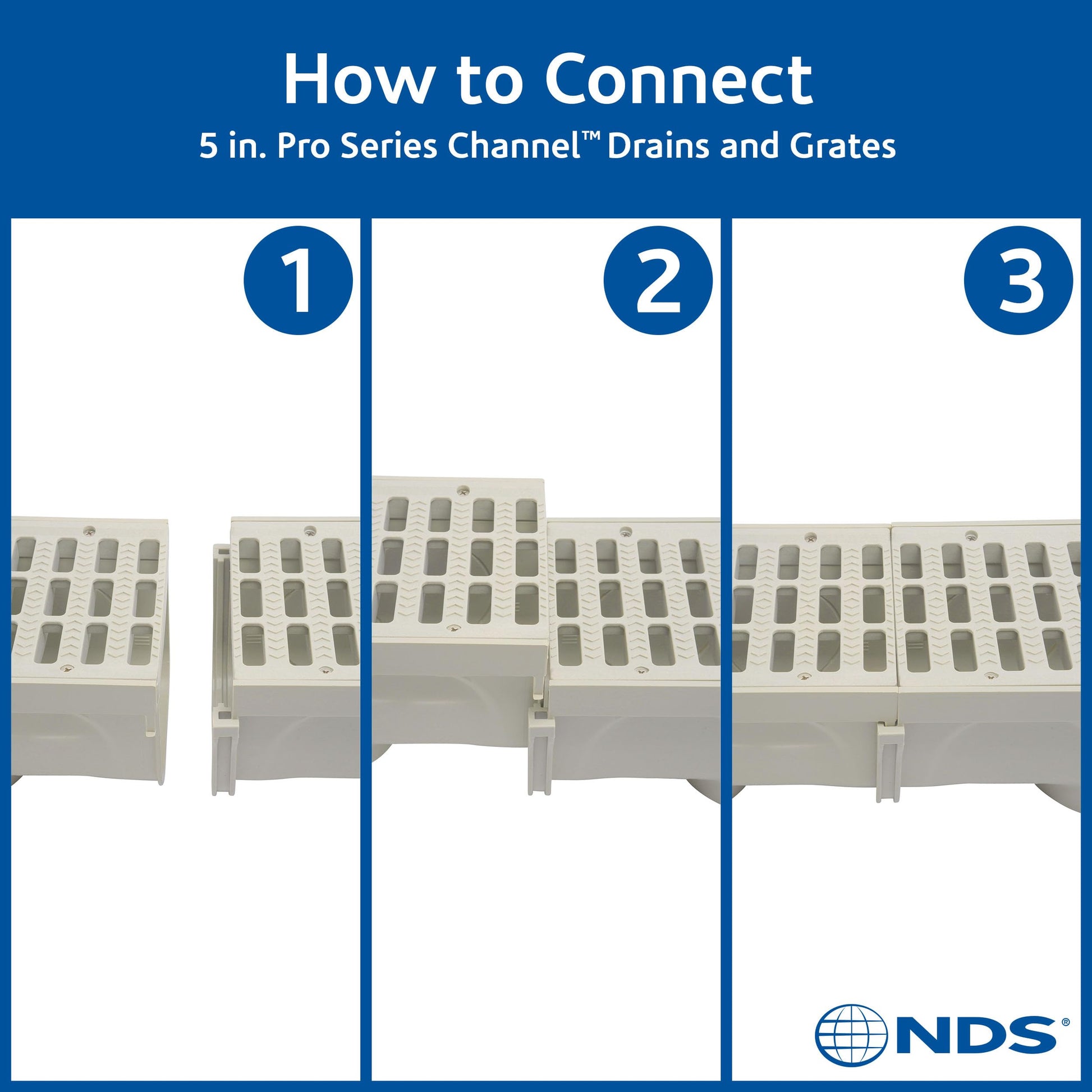

• MODULAR DESIGN: Sections connect together for longer runs, or can be cut with saw to length as short as 4 in. for smaller, interlocking sections; Channel-to-channel clips reduce motion during installation
• SPECIFICATIONS: 72 GPM per ft. flow rate. 23.5 sq. in. per linear ft. open surface area. Rated for NDS Class B Loads (up to 175 psi) when properly installed—recommended for medium-duty pneumatic tire traffic; ADA compliant

model number: 864G

Part Number: 864G

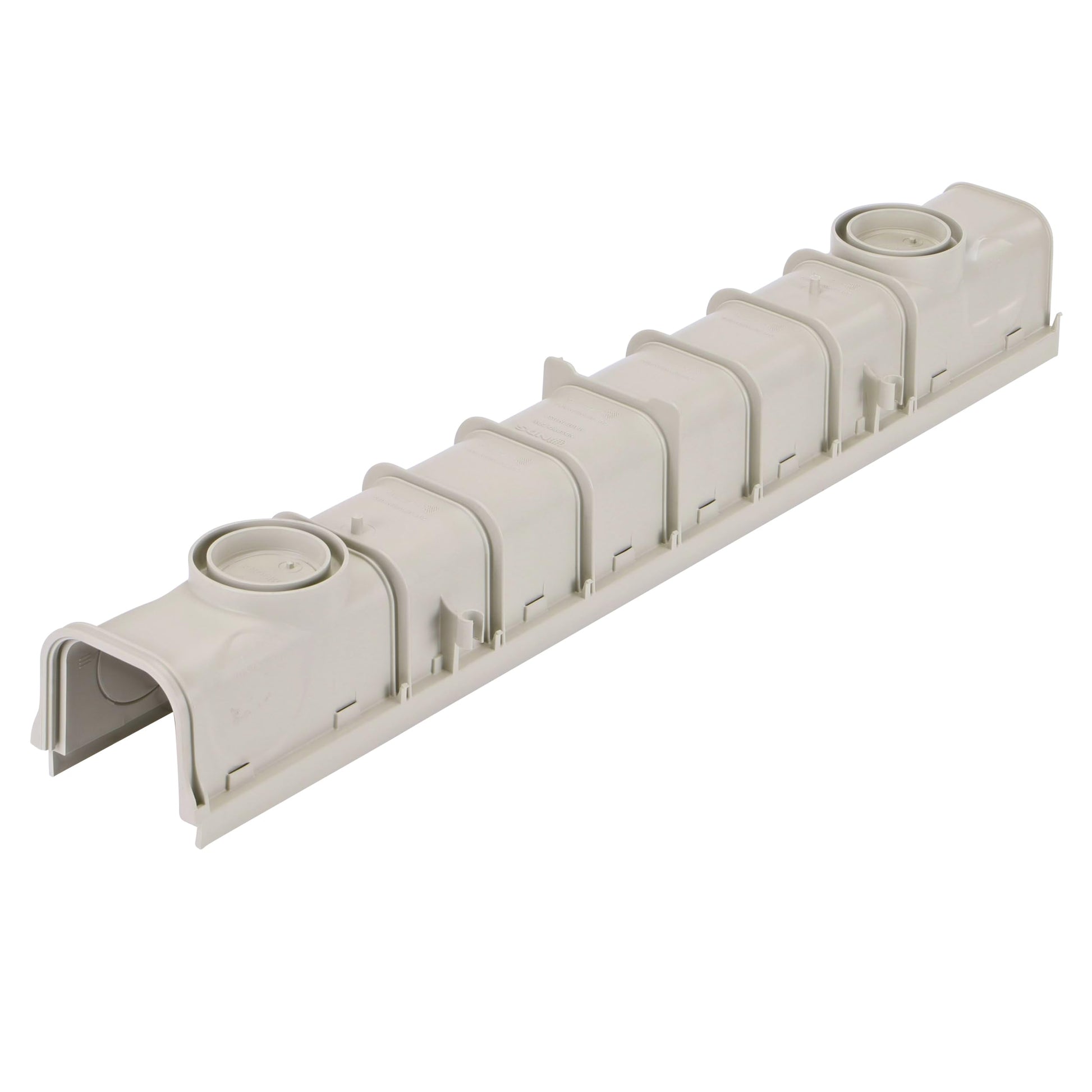

Details: Stop flooding and protect your property with the NDS 5-Inch Pro Series Channel Drain Kit. As part of a complete deep-profile drain system, it is engineered to manage moderate water flows from driveways, patios, walkways, and other hardscapes, and directs it to drain pipes for proper release downstream. Its lightweight, interlocking design makes installation fast and hassle-free, with no extra couplings needed; the modular design can be connected together for longer runs, or can be cut to size as short as 4 inches long for smaller sections. The removable drain grates make it easier to clean debris from the channel for maintenance. It's a professional-grade solution that’s strong enough for commercial use but simple enough for residential and DIY projects. Kit includes a 4.75-inch deep polypropylene (PP) channel, 2 polyethylene (HDPE) grates, end cap with outlet, and end cap. Each channel section provides 8 outlet options; bottom outlets connect to 3” and 4” Sewer & Drain (S&D) fittings, side outlets connect to 3” S&D pipe, and end outlet connects to 3” S&D pipe and 4” S&D fittings.

EAN: 0052063008646

Package Dimensions: 40.0 x 5.7 x 5.5 inches
