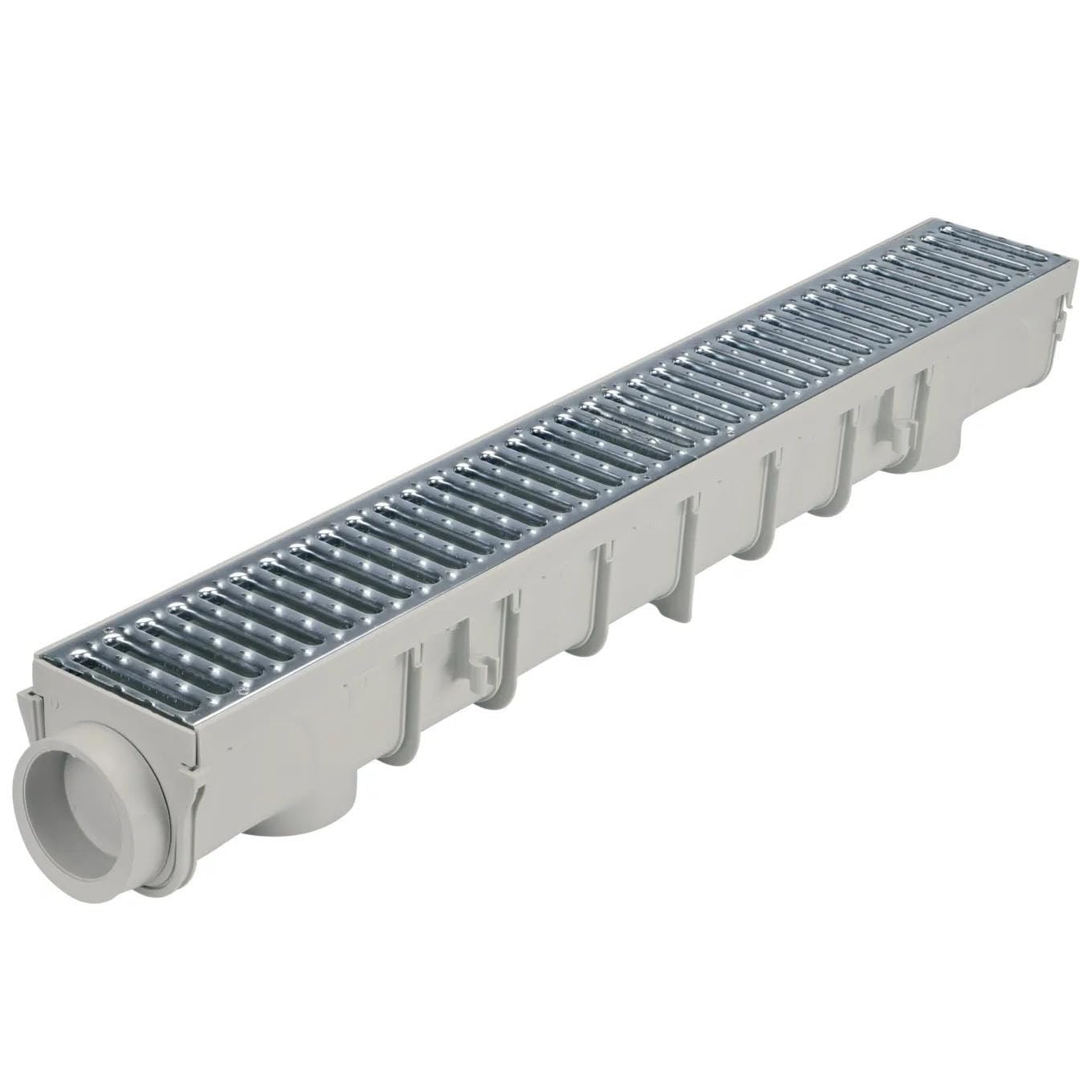

NDS Pro Series Channel Drain Kit, 5-1/2 in. X 39-3/8 in. Deep Profile Channel, Galv. Steel Grates, End Caps/Outlet, 5 in.

Brand: NDS

Color: Gray

Features:

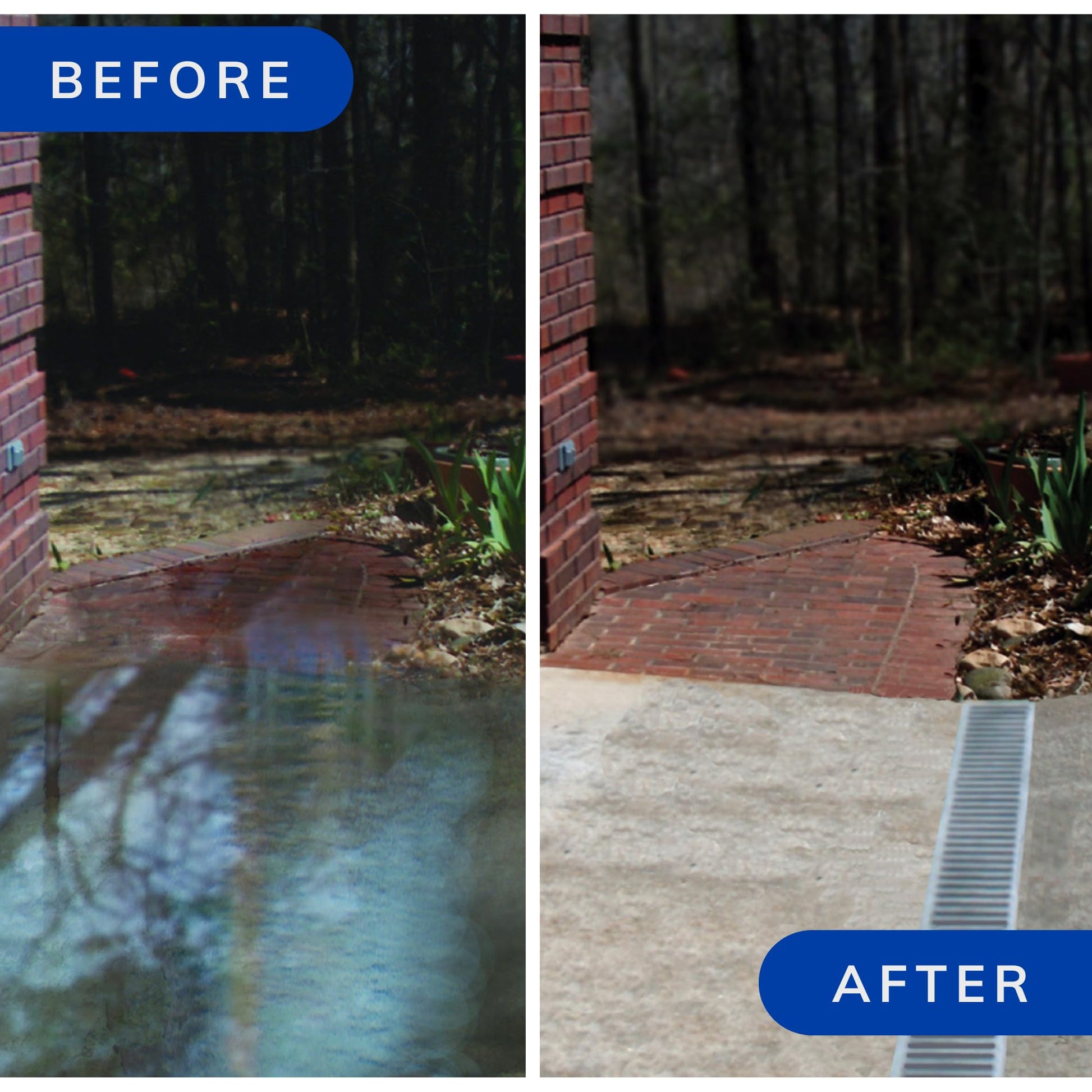

• Manages Surface Water Runoff Efficiently: Captures and conveys stormwater away from driveways, patios, and walkways to protect against flooding and concrete damage

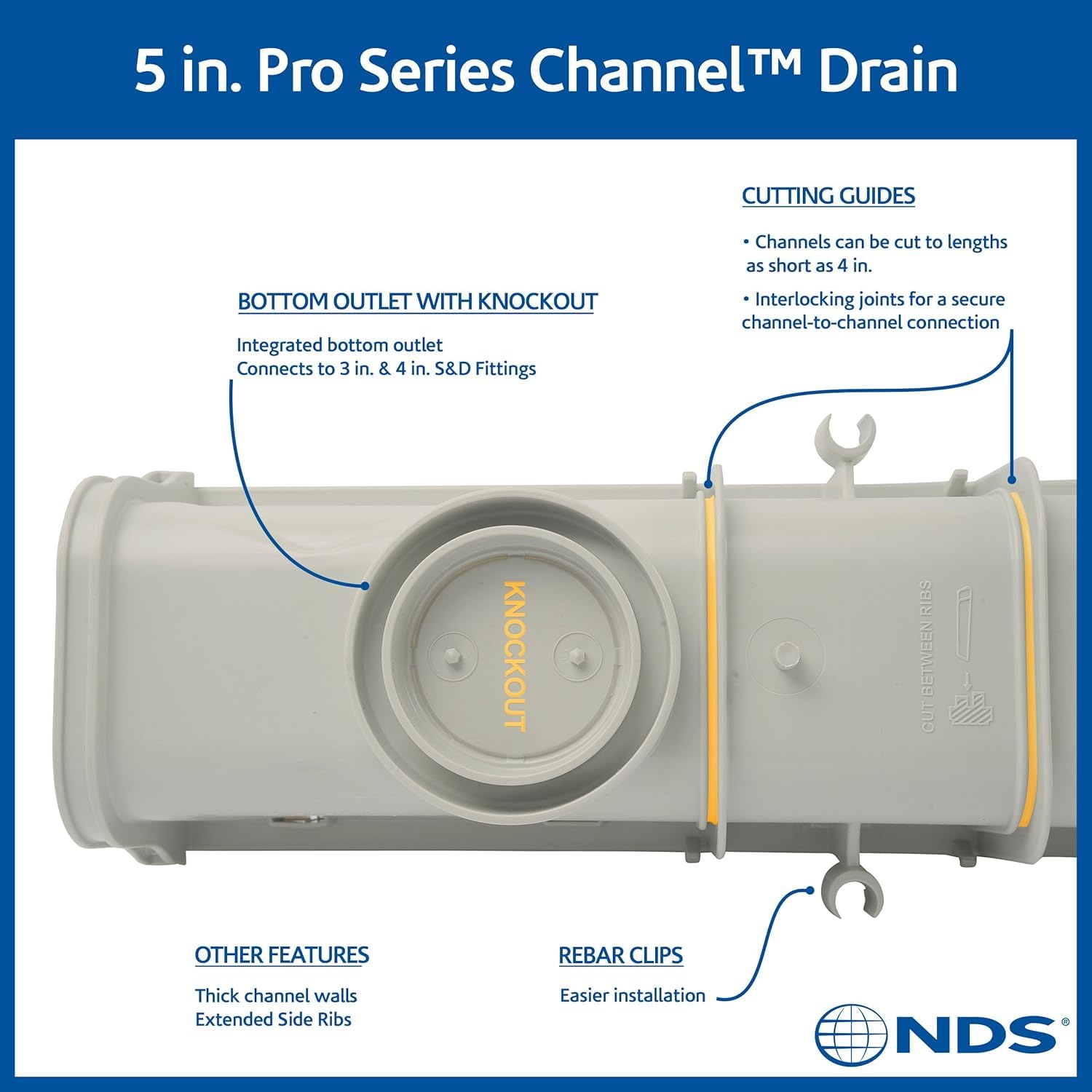

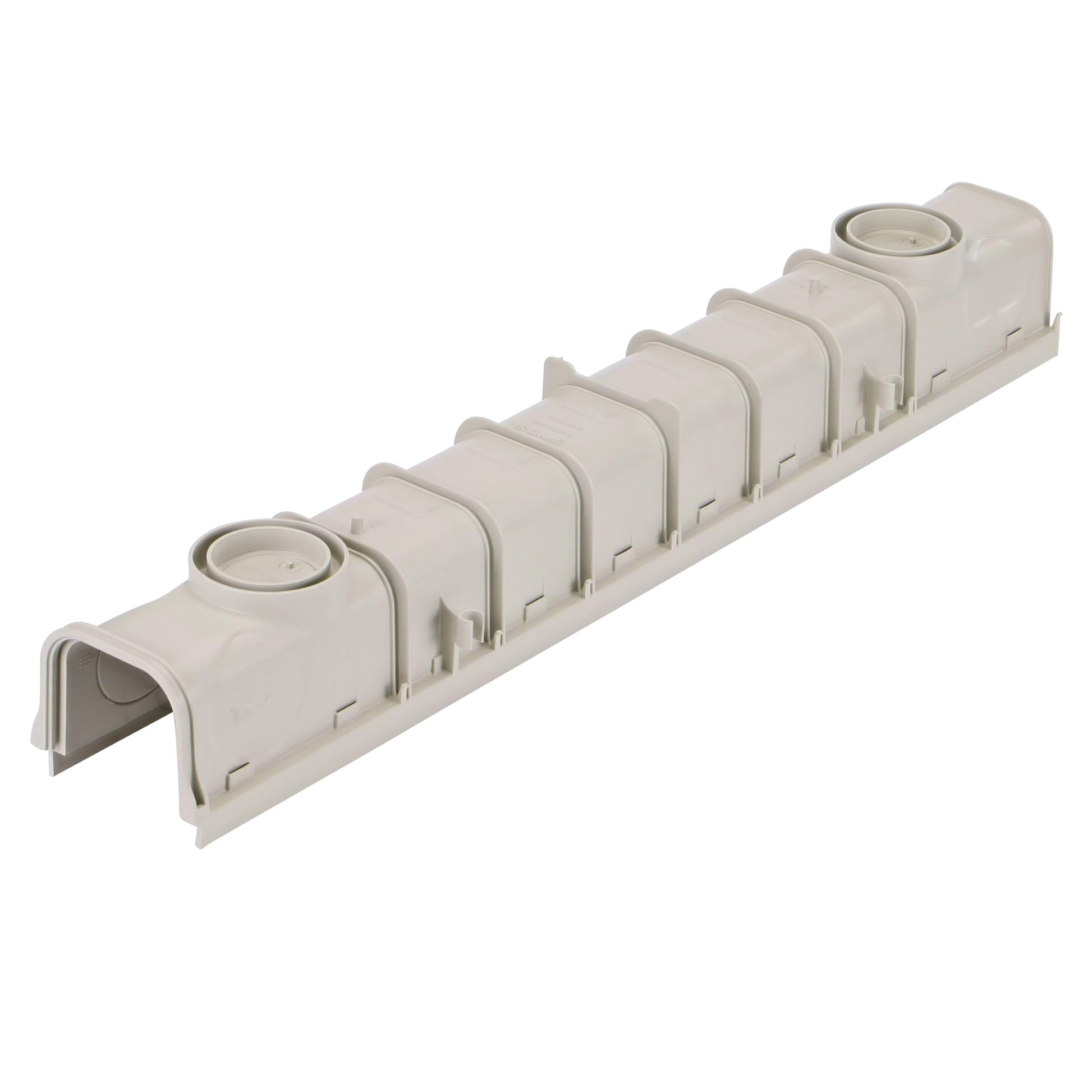

• Flexible Drainage Connections: Bottom outlet fits 3-inch and 4-inch sewer and drain fittings; side and end outlets connect easily to standard pipes for versatile setup options

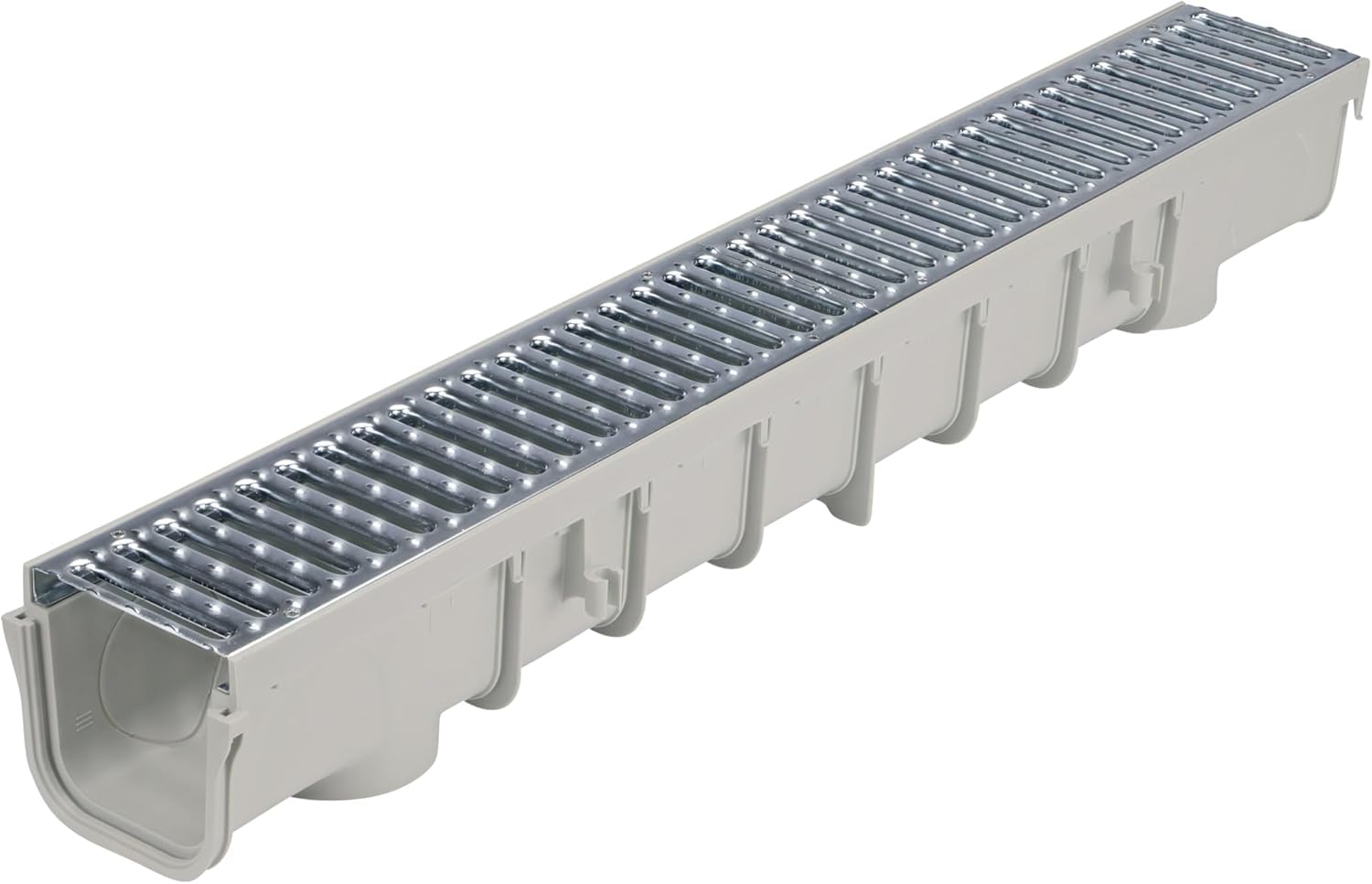

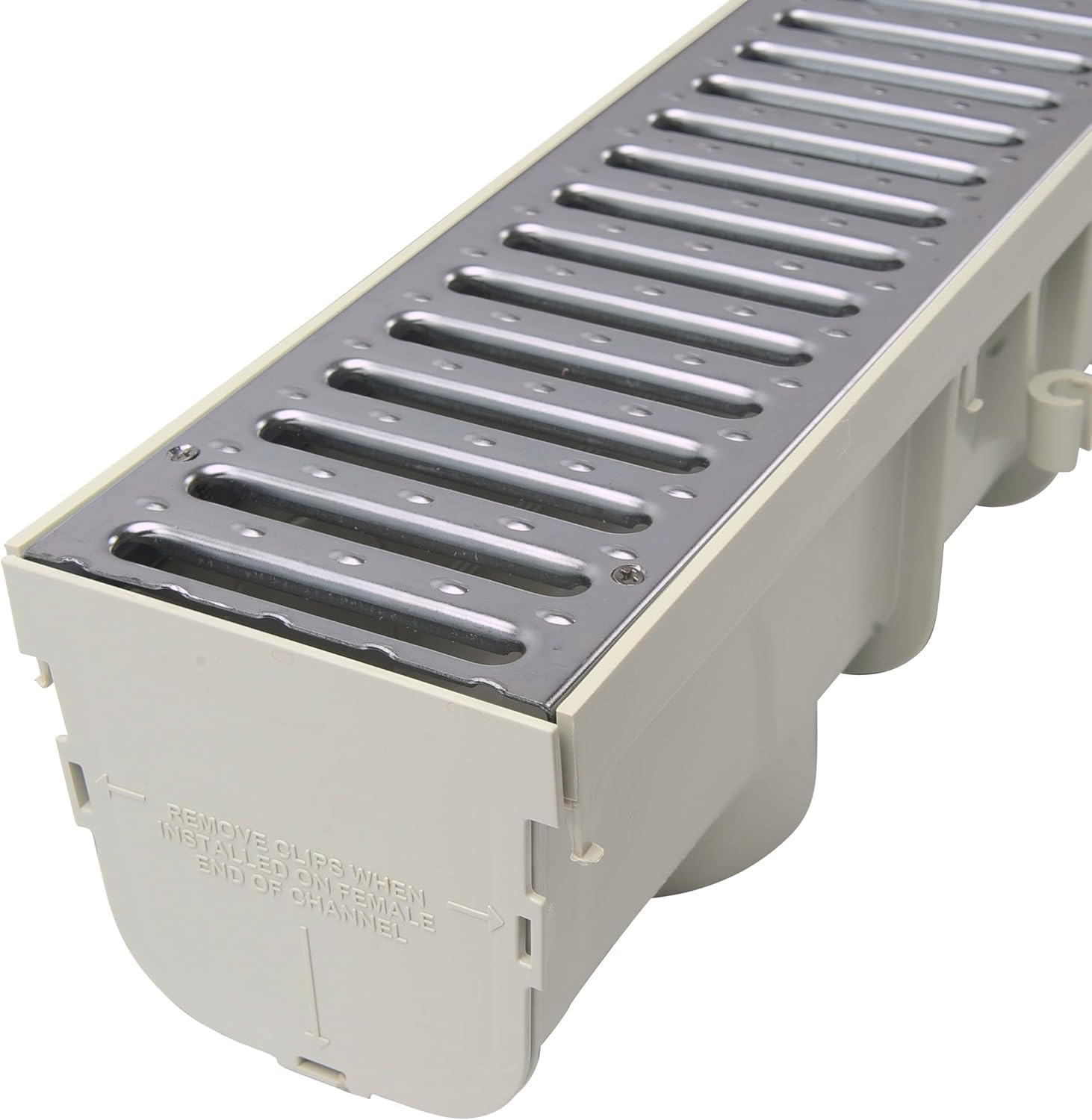

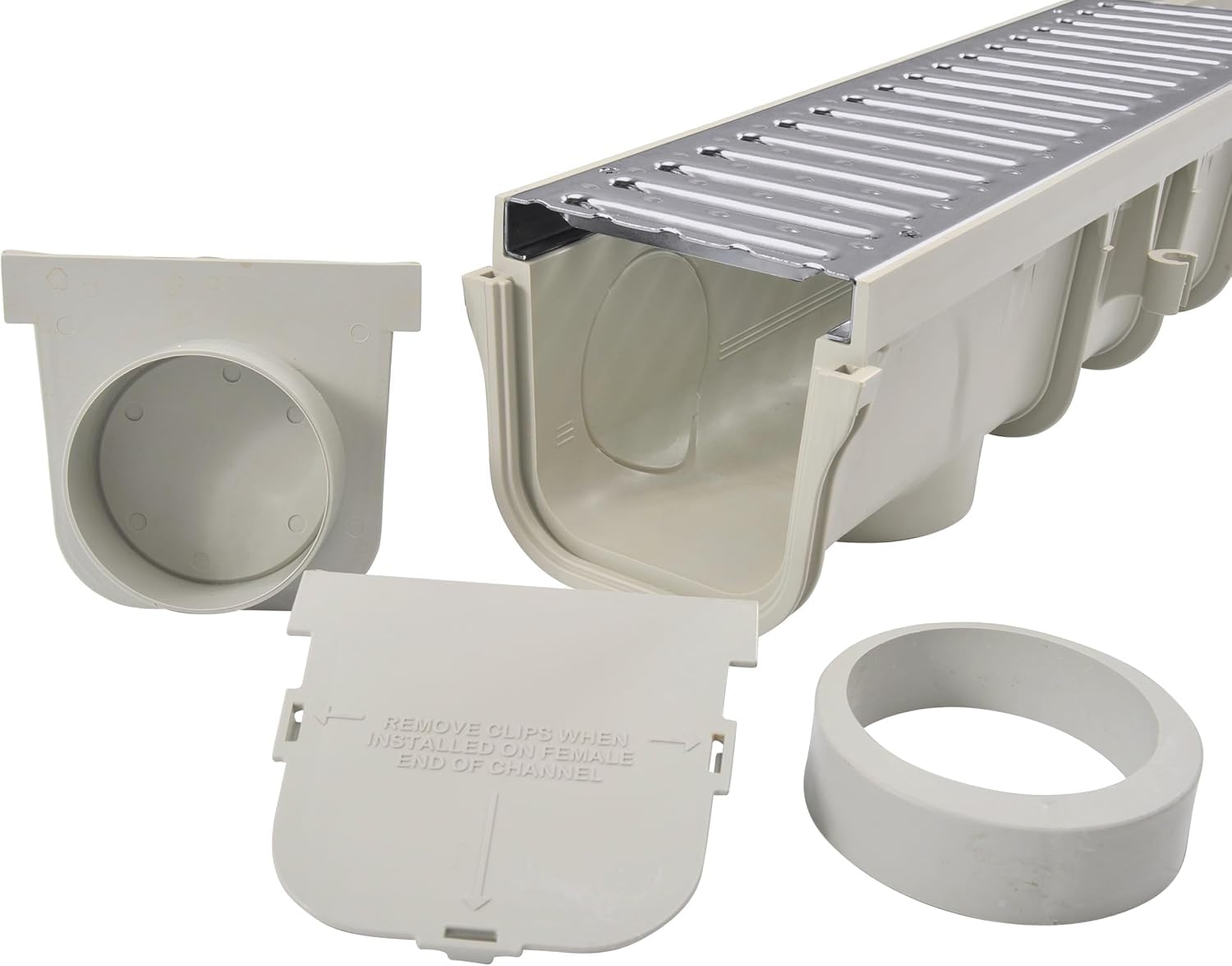

• Ready-to-Install Kit: Includes 5-inch deep channel drain, galvanized steel grates, end cap/outlet, and end cap for a complete modular drainage system

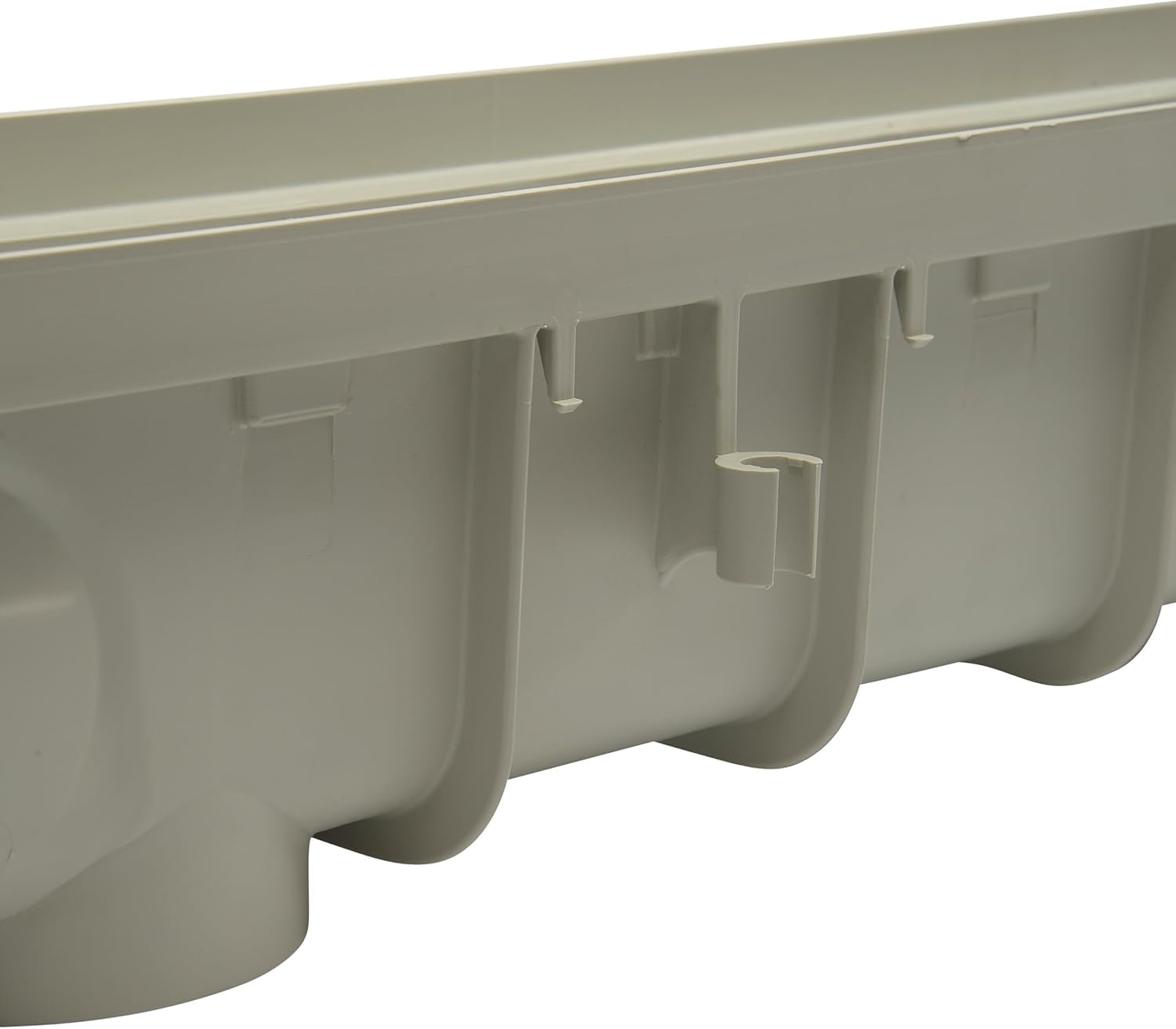

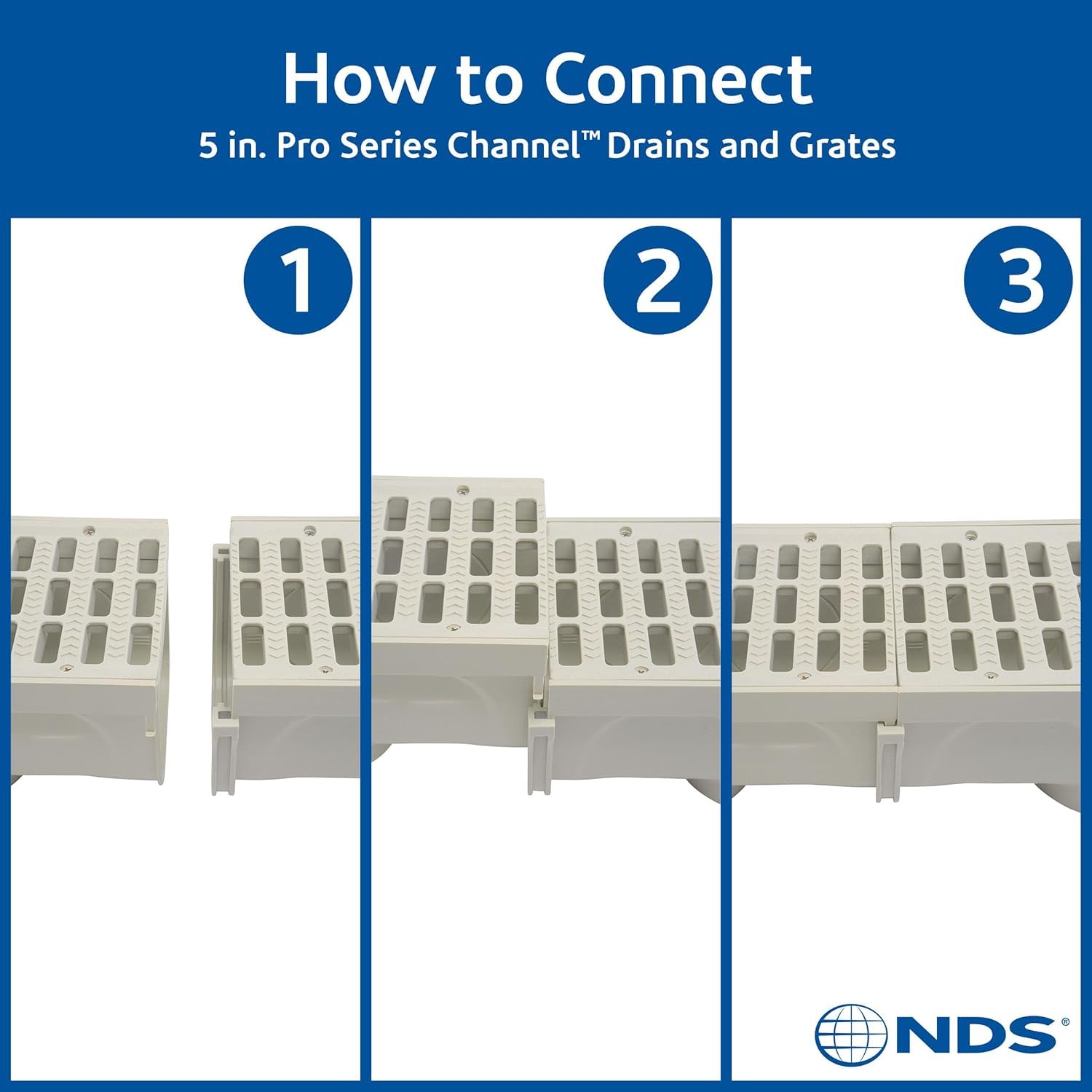

• Expandable Modular Design: Connect channels together for long trench runs or cut sections to custom lengths; interlocking clips simplify alignment and installation
• Durable and ADA Compliant: 59 GPM per foot flow rate, 19.32 sq. in. open surface area per linear foot; Class B load rated for light traffic applications up to 175 psi; ADA compliant for safe pedestrian use

model number: 864GMTL

Part Number: 864GMTL

Details: Drain excess water flooding hardscapes to prevent costly property damage with the 5 in. Pro Series Channel Drain, Deep Profile, the most durable modular drain system in its class. Captures moderate flows from driveways, patios, courtyards, walkways, & sports facilities, & conveys to drain pipe. Kit includes a 4-3/4 in. deep polypropylene channel, galvanized steel grates, end cap/outlet, & end cap. Channels connect together with interlocking joints. Shorten to 4 in. increments using saw guides. End cap/outlet, integrated bottom outlet, & side knockouts provide 8 outlet options per channel section. Channel drains, also called trench drains, are long, narrow drains used for surface drainage of hardscapes. Channel drains collect and convey water to drain pipes, which carry the water downstream to discharge with a pop-up emitter, or to percolate into the ground with a dry well or infiltration trench. NDS channel and trench drains are designed for durability, drainage, and performance, and are a proven alternative to traditional concrete drains. NDS offers free tools such as the Channel Drain Selector, Home Drainage Center, and NDS Stormwater Drainage mobile app to help make your project a success. Founded in 1972, NDS is the preferred choice of professionals and the leader in stormwater management solutions with proven products, tools, and support to help you get the job done right.

EAN: 0052063058207

Package Dimensions: 40.0 x 6.0 x 5.3 inches
