Planetary Gearbox Speed Reducer Gear Head Ratio 100 :1 Backlash <12 arc-min for 19mm Input Shaft 750w 80mm Servo Motor, Planetary Reducers 3500RPM Gear Box Reducer for CNC Lathe Machine Reducer

Brand: TOSEASTARS

Color: Gear Ratio: 100:1

Features:

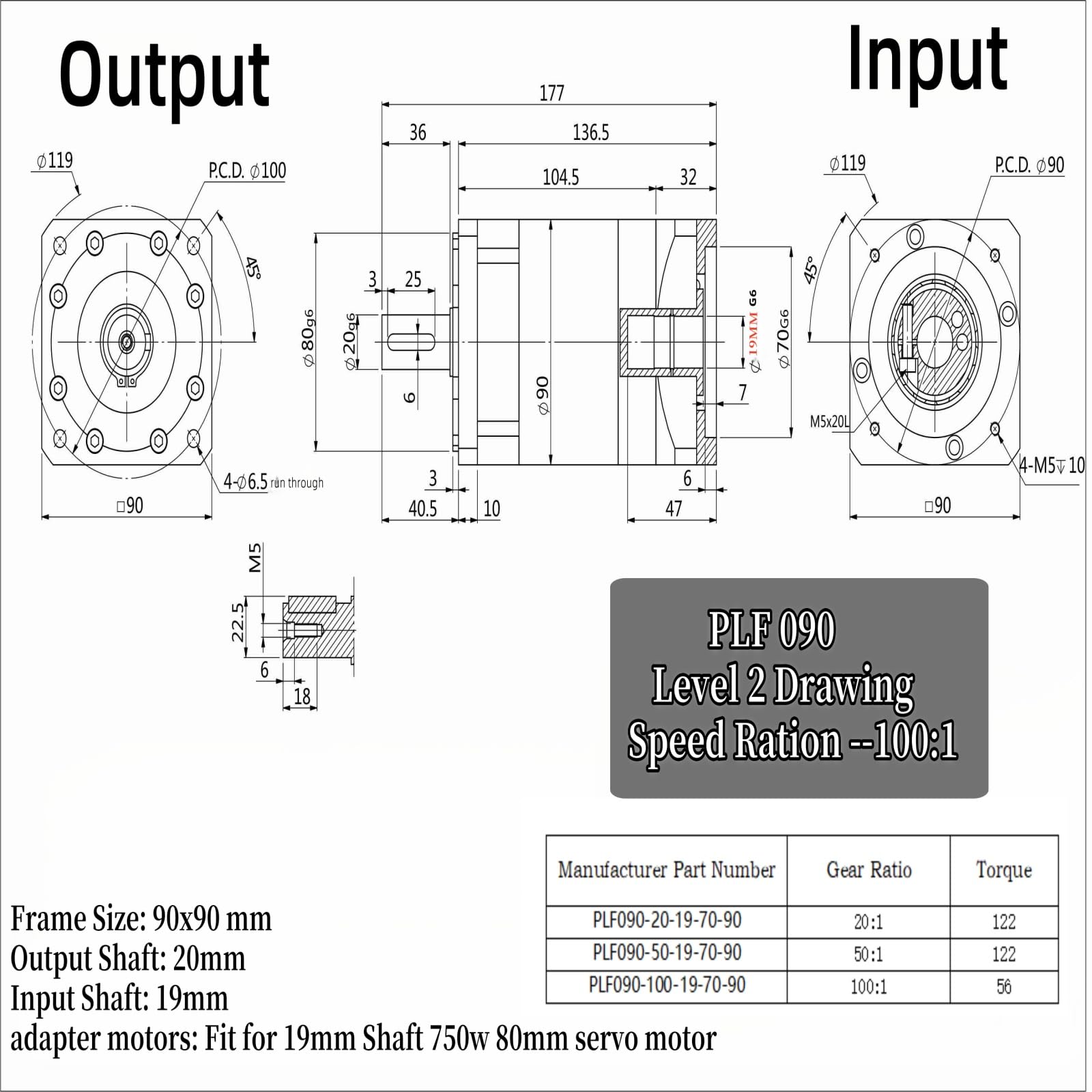

• Planetary Reducer for 80mm Servo Motor. Planetary Gear Frame Size: 90x90 mm(3.54 inch); Output Shaft: 20mm; Input Shaft: 19mm, adapter motors: Fit for 19mm Shaft 80mm servo motor. Gearbox Body length: 136.5mm/5.37 inch (not including output shaft length).

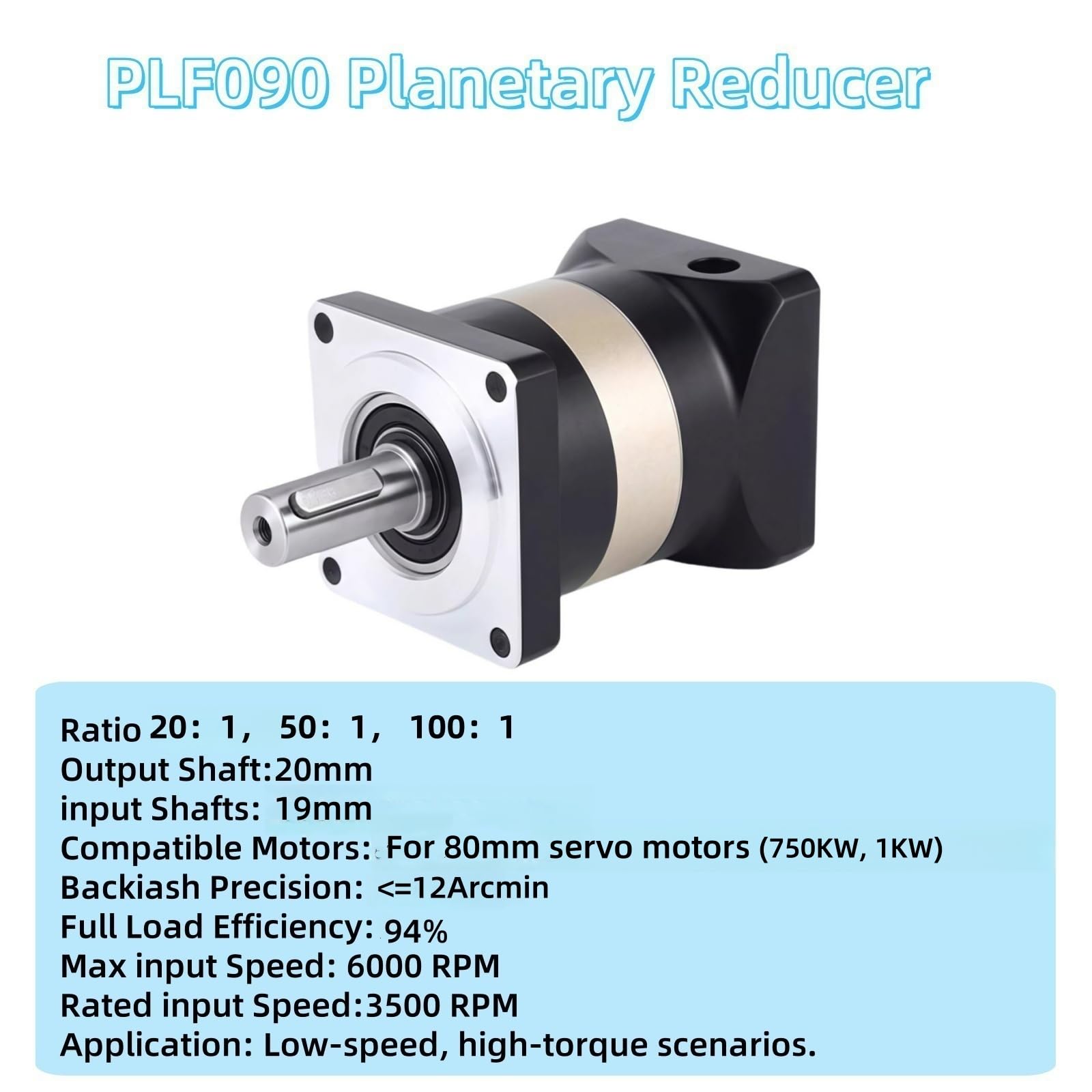

• Gear Ratio: 100 :1, Gear Reduction Box Backlash Precision: <= 12 Arcmin, Full load efficiency: 94%, max input speed: 6000rpm, rated input speed: 3500 rpm, Torsion rigidity: 1.8Nm/arcmin.
• Applications: Compact design, flexible and easy installation, space-saving. This planetary gearbox is mainly used to reduce speed and increase holding torque, widely applied in CNC machine, such as engraving machine, milling machine, lathe, work bench, grinding machine etc.
• Maximum torque: 56N. It's a good solution in applications that need low rotation speeds and/or lots of huge torque. Gearboxes Gearheads Speed Reducers Lower noise: less than 60dB.

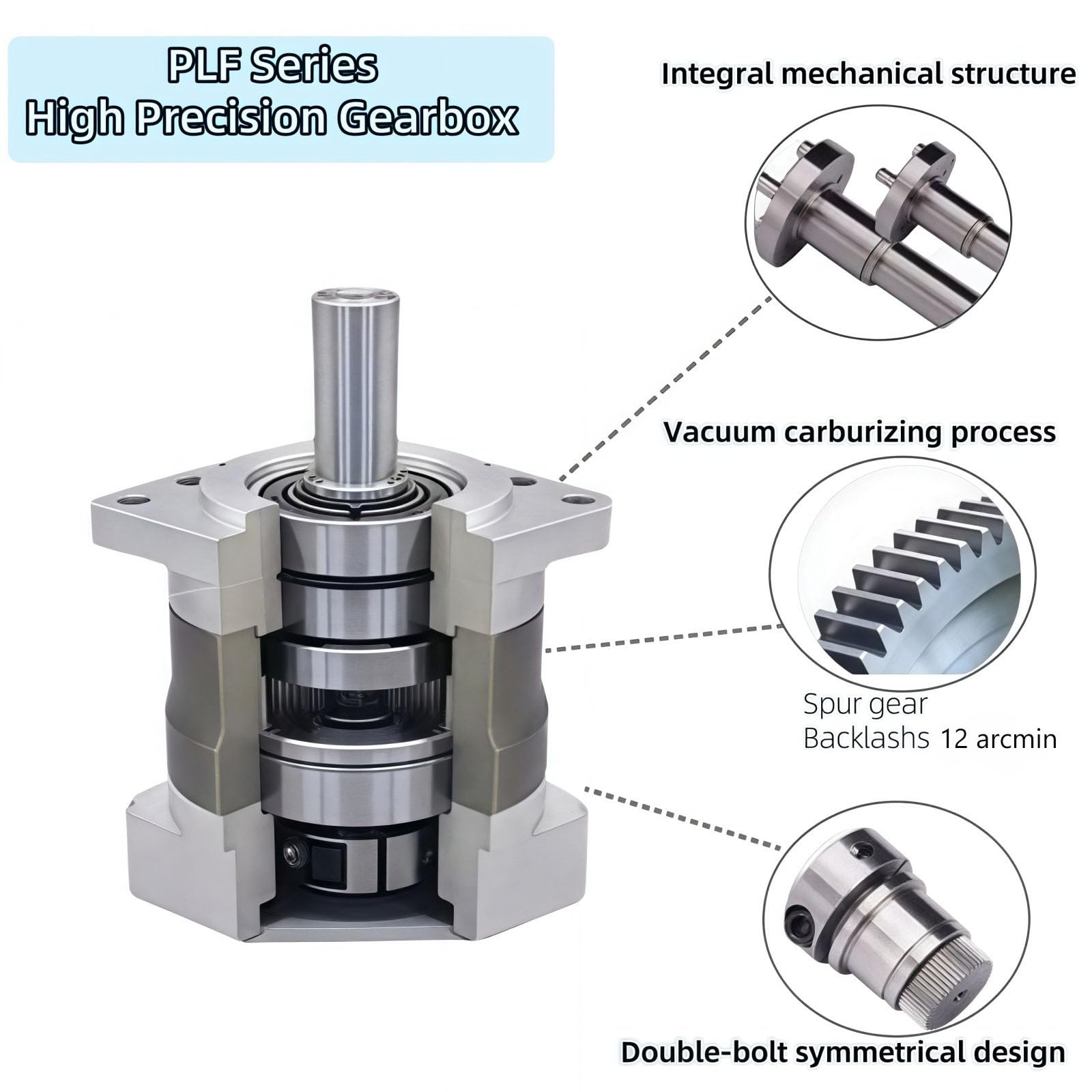

• Advantages: High-precision gears, low noise, professional engineers design, high hardness, 20CrMnTi steel, hard hobbing after carburizing, hardness up to 50 degrees, wear-resistant, no tooth chipping. Included:1pc x Planetary Gearbo, 4pc x Screws.

Part Number: PLF090-100-19-70-90

Package Dimensions: 10.2 x 7.2 x 6.2 inches
