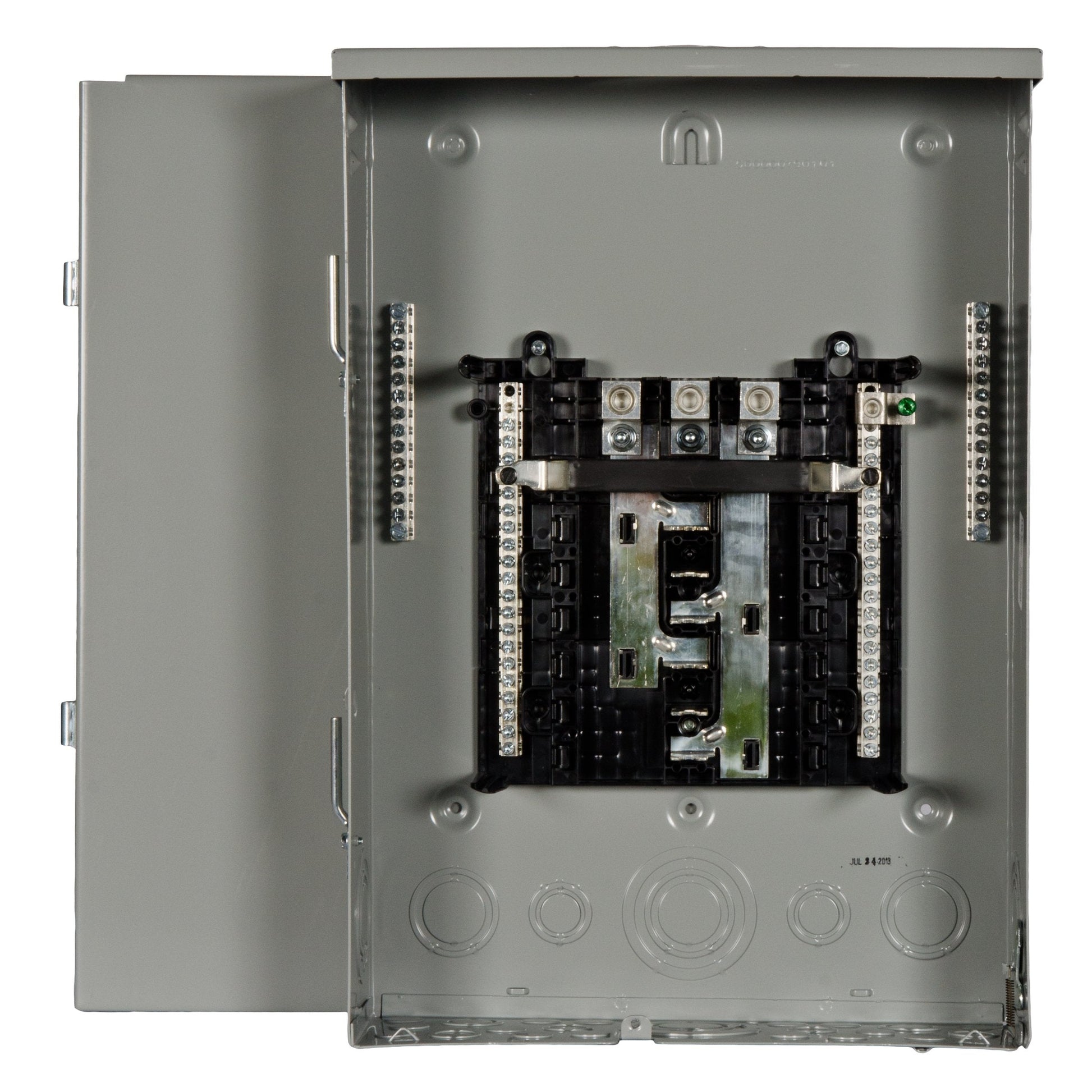

PW1224L3125CU 125-Amp 12-Space 24-Circuit 3-Phase Outdoor Rated Main Lug Load Center

Brand: SIEMENS

Features:

• Three phase 125 Amp Outdoor rated main lug load center with 12 spaces/24 circuits
• Features Siemens patented insta-wire technology which allows for quick and easy installation because screws are already backed out, ready for wire insertion on ground and neutral bars
• Copper bus
• All devices are provided with 2 factory installed ground bars
• Mounting tabs on the trim hold the load center in place freeing up both hands to drive the trim screws

model number: PW1224L3125CU

Part Number: PW1224L3125CU

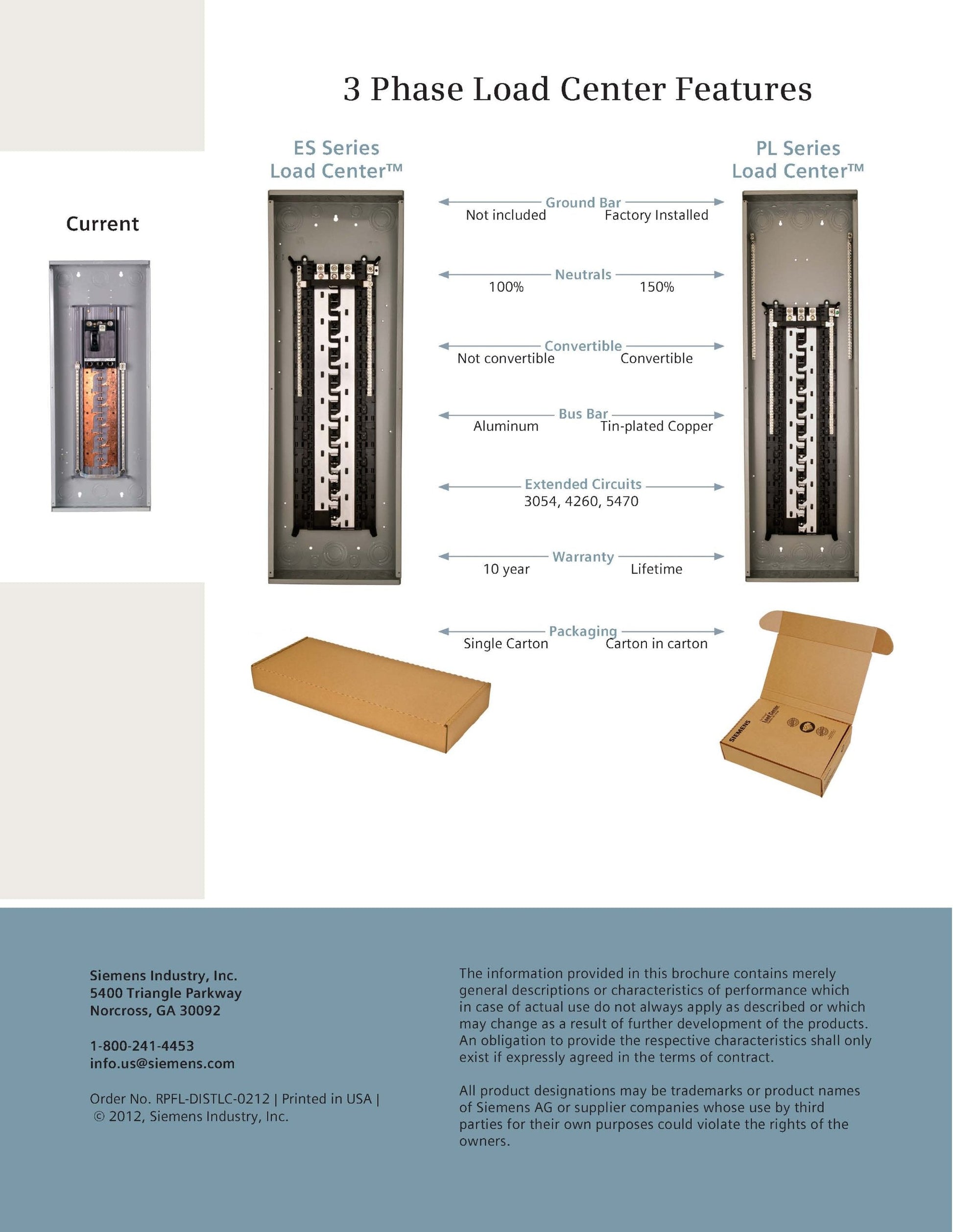

Details: Siemens introduces PL Series Load Centers - a new high quality and feature-rich line of load center products to meet applications for virtually every need. The PL Series load center provides maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PL load centers feature the patented insta-wire neutral/ground system, convertibility, copper bussing, and mounting tabs on the trim - these features were specifically engineered to decrease installation time and increase flexibility.

EAN: 0662643156812

Package Dimensions: 22.5 x 15.5 x 6.0 inches
