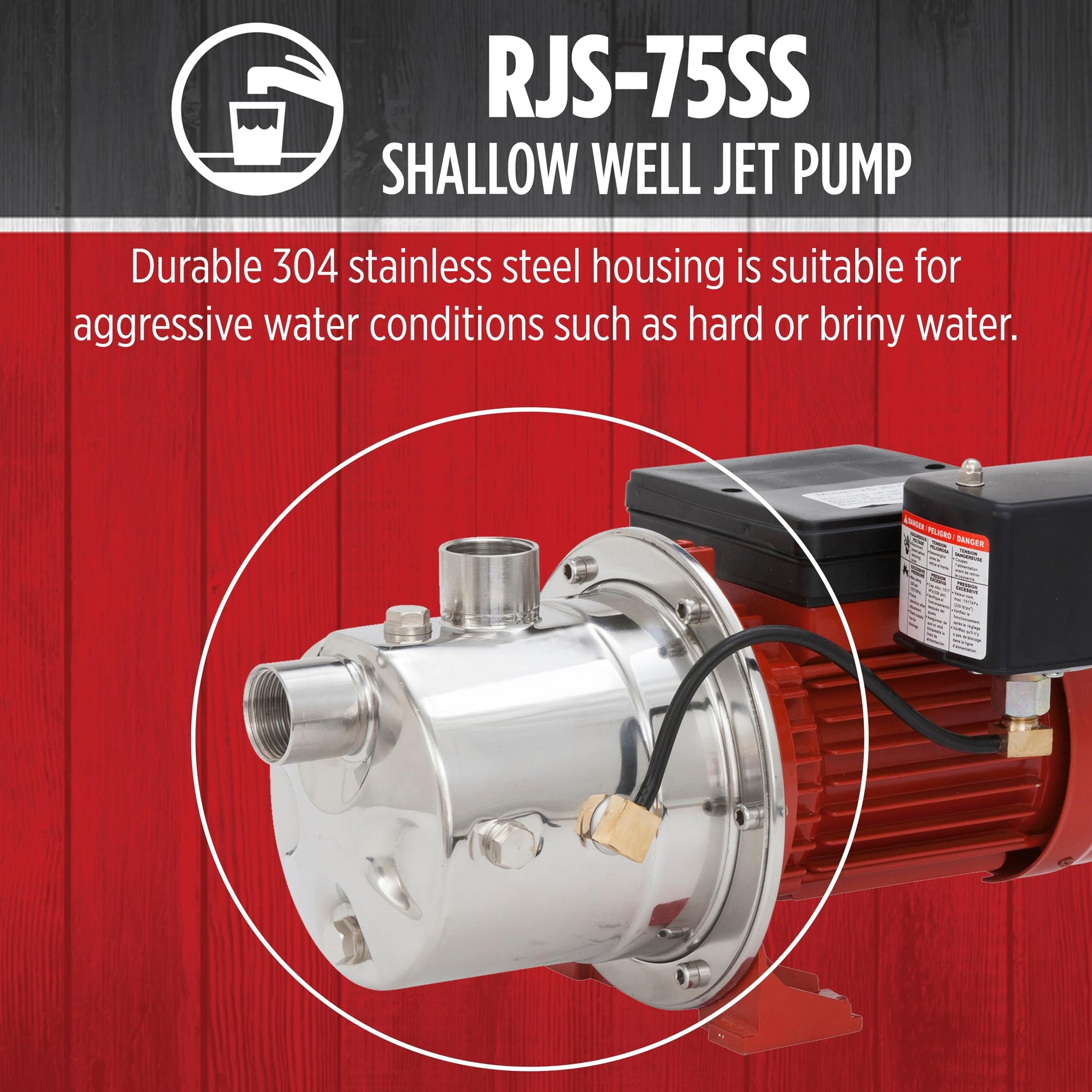

BUILT FOR AGGRESSIVE WATER CONDITIONS: Stainless steel pump housing is corrosion-resistant
SHALLOW WELL JET PUMP: ideal for the supply of fresh water to rural homes, farms and cabins with suction lifts less than 25-ft
Includes factory pre-set 30/50 pressure switch - produces up to 50 PSI with automatic shut-off

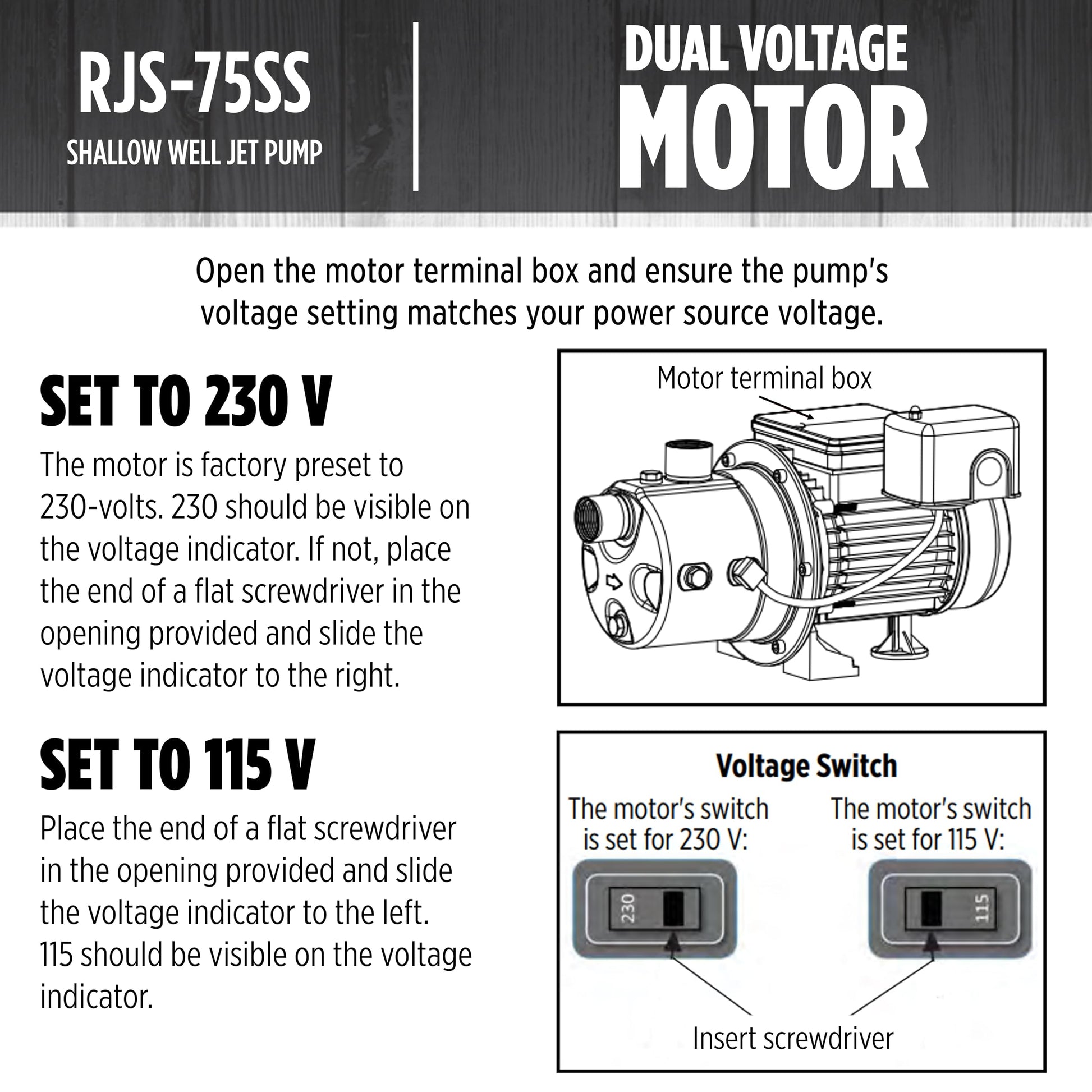

MOTOR SPECIFICATIONS: dual voltage (115/230 volts) thermally protected TEFC motor, factory set to 230 Volts but can be easily switched to 115 Volts; 9.0 Amps at 115 Volts; 4.5 Amps at 230 Volts

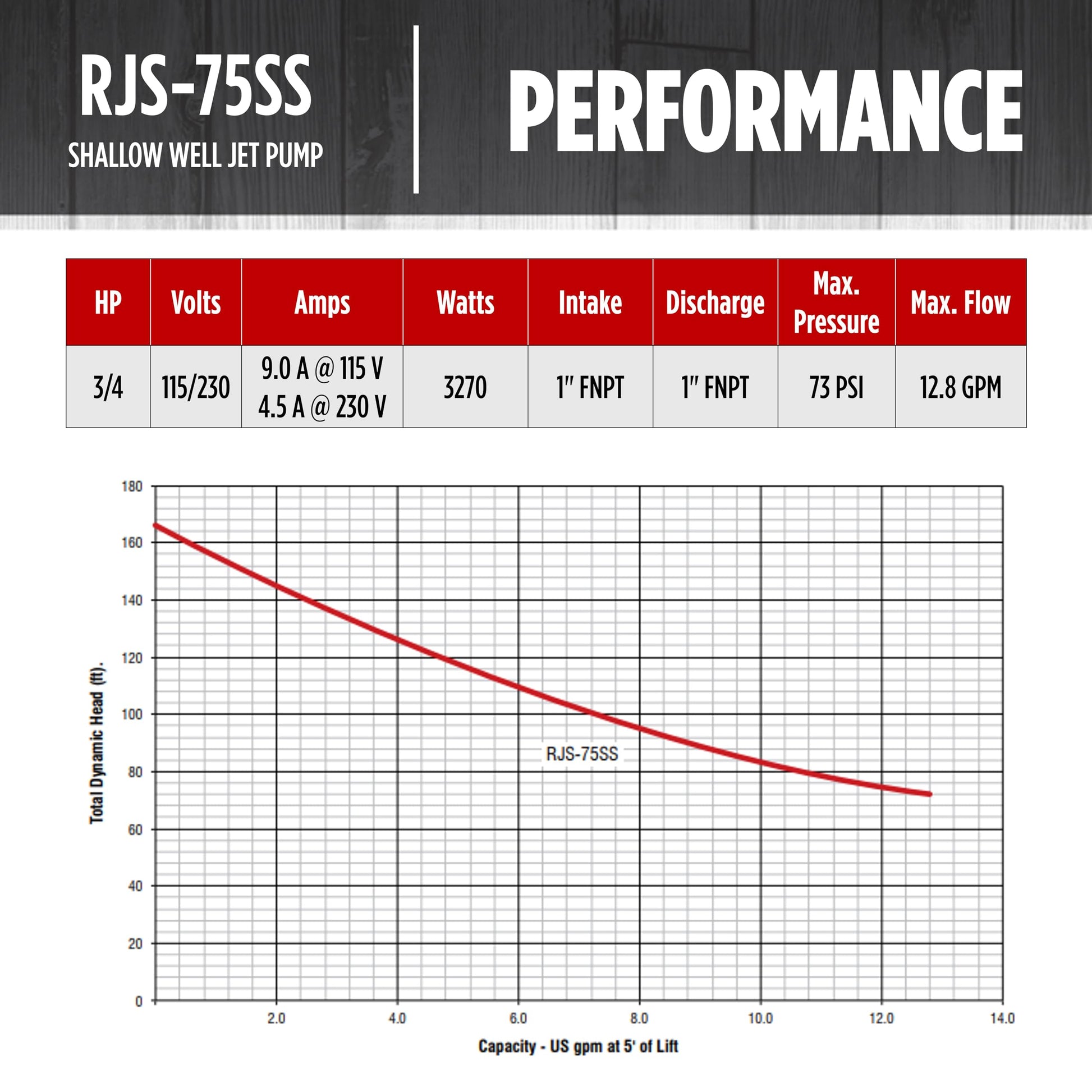

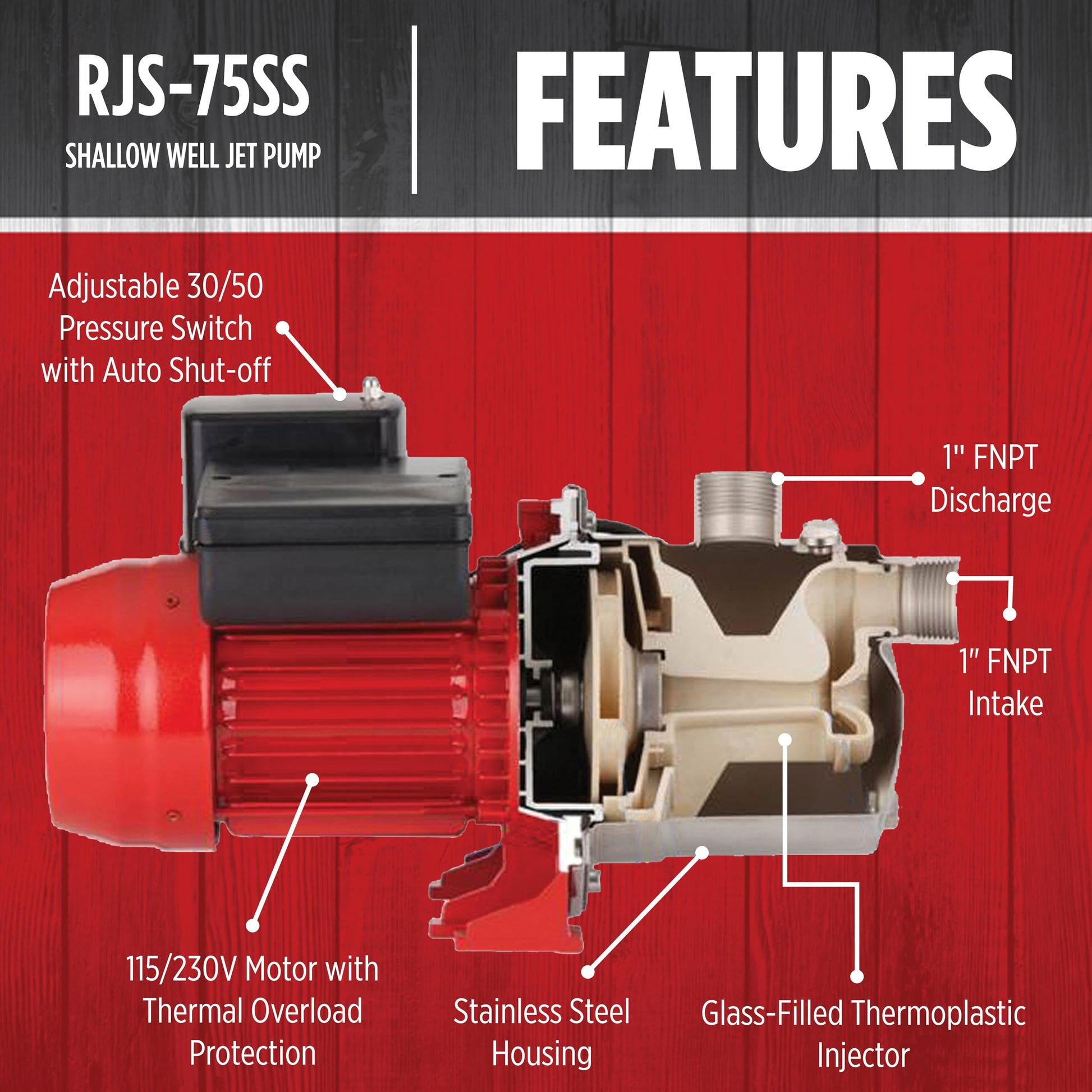

PUMP SPECIFICATIONS: 1-inch FNPT intake and discharge, 1/8-inch NPT pressure gauge port, 12.8 GPM at 5-foot suction lift and 30 PSI, maximum pressure 73 PSI, maximum head 169-ft
model number: 97080702
Part Number: 97080702

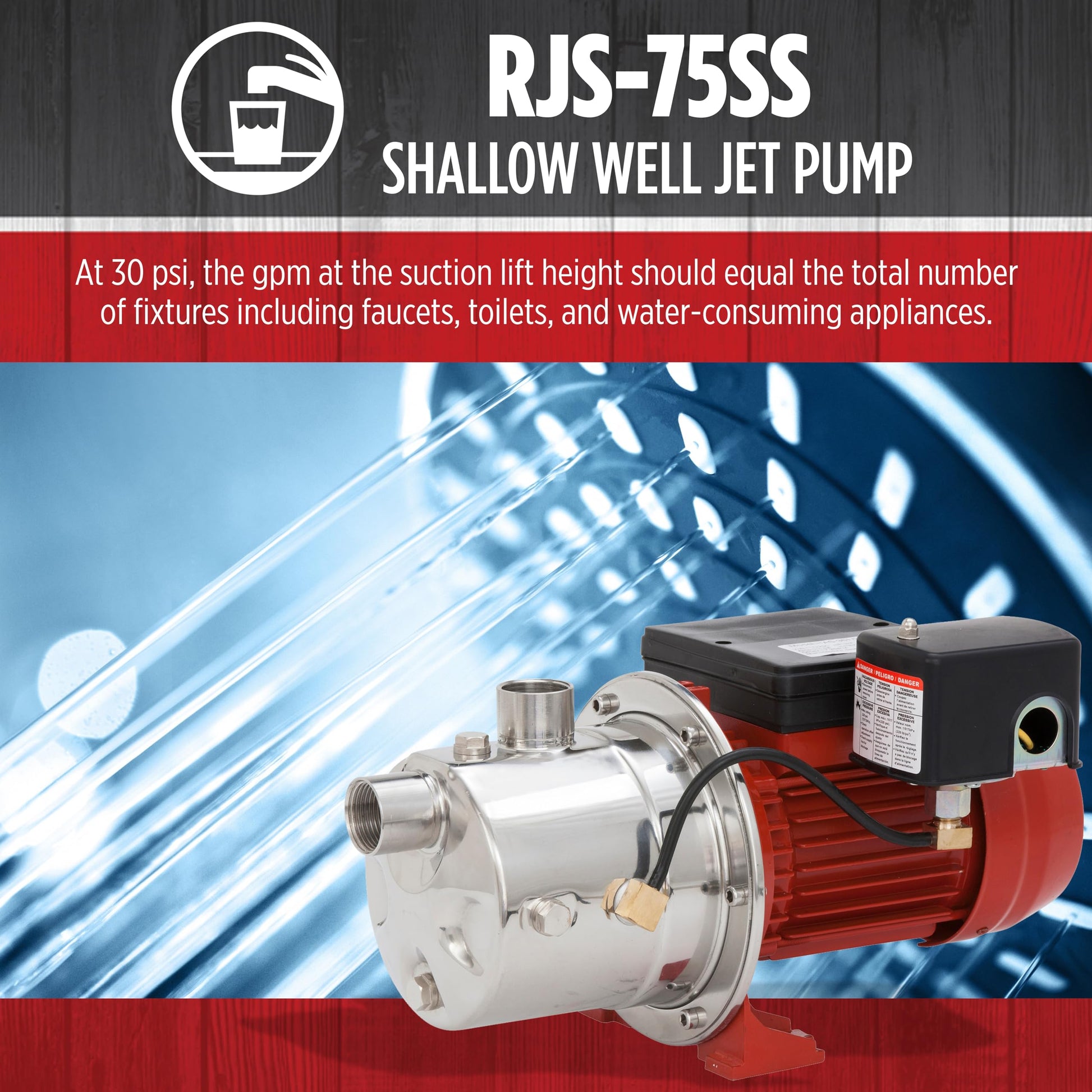

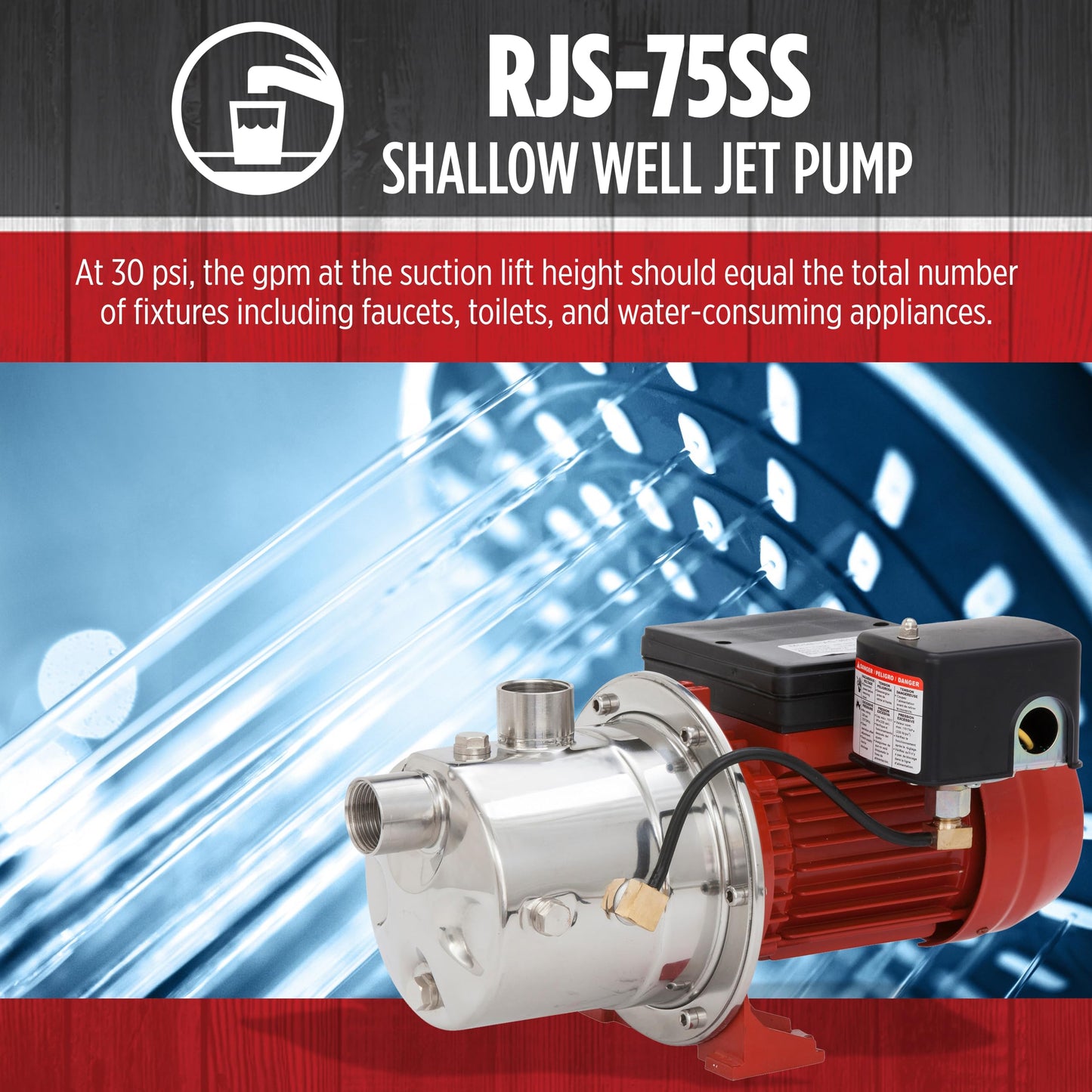

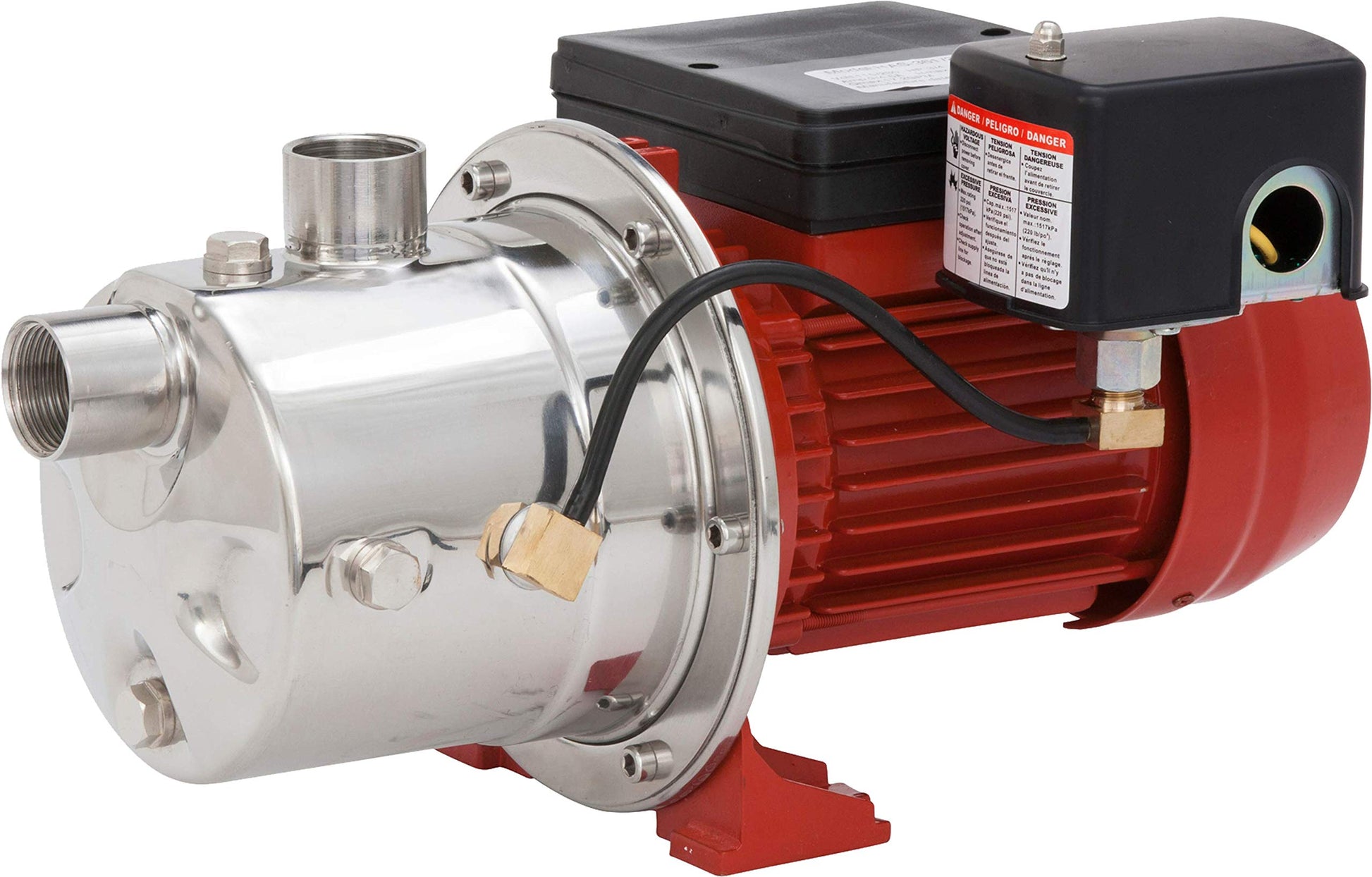

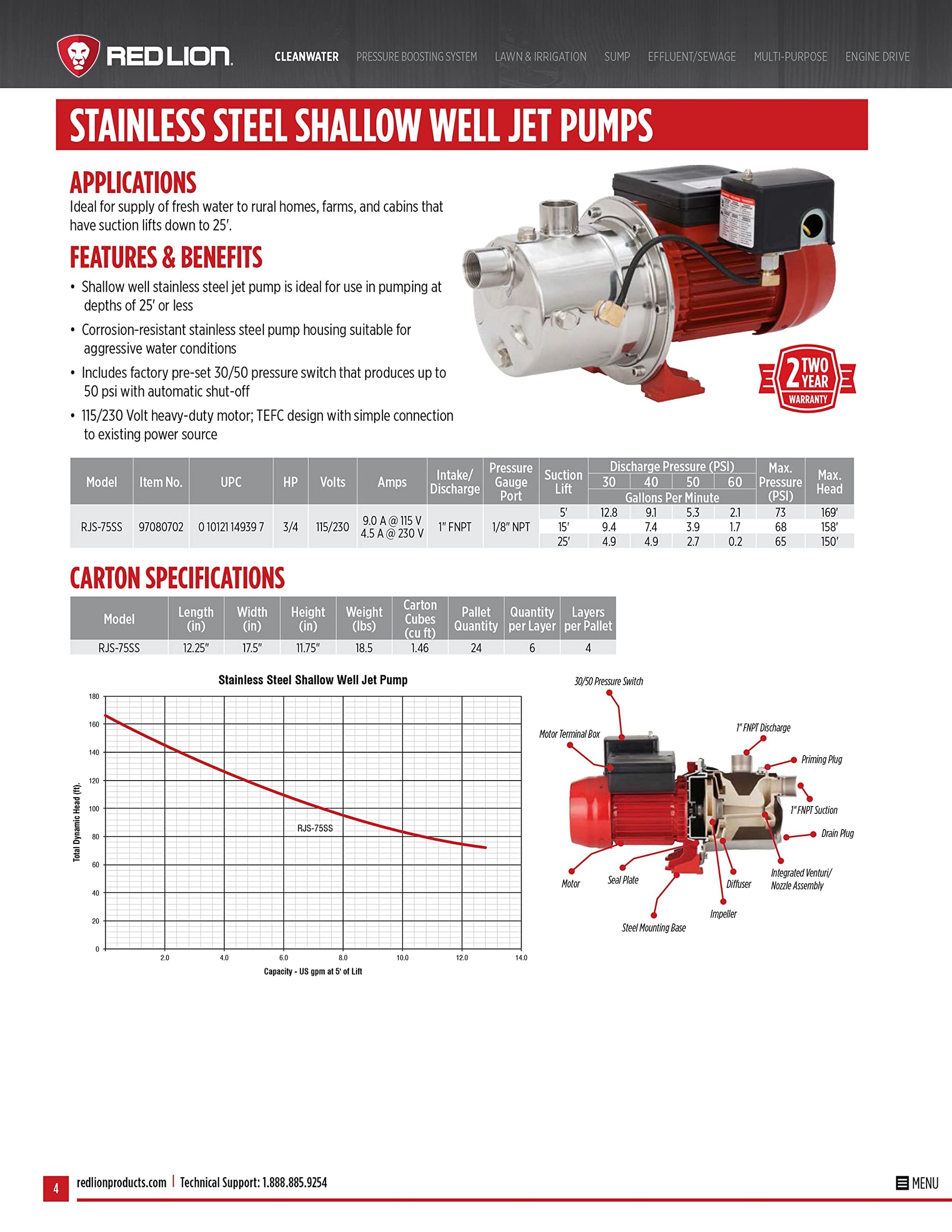

Details: The Red Lion RJS-75SS 3/4 HP shallow well jet pump is ideal for the supply of fresh water to rural homes, farms and cabins that have suction lifts down to 25 feet. Designed for aggressive water conditions, it features a corrosion-resistant stainless steel pump casing, a 115/230-volt heavy-duty motor and a factory pre-set 30/50 pressure switch that can produce up to 50 psi with an automatic shut-off.
