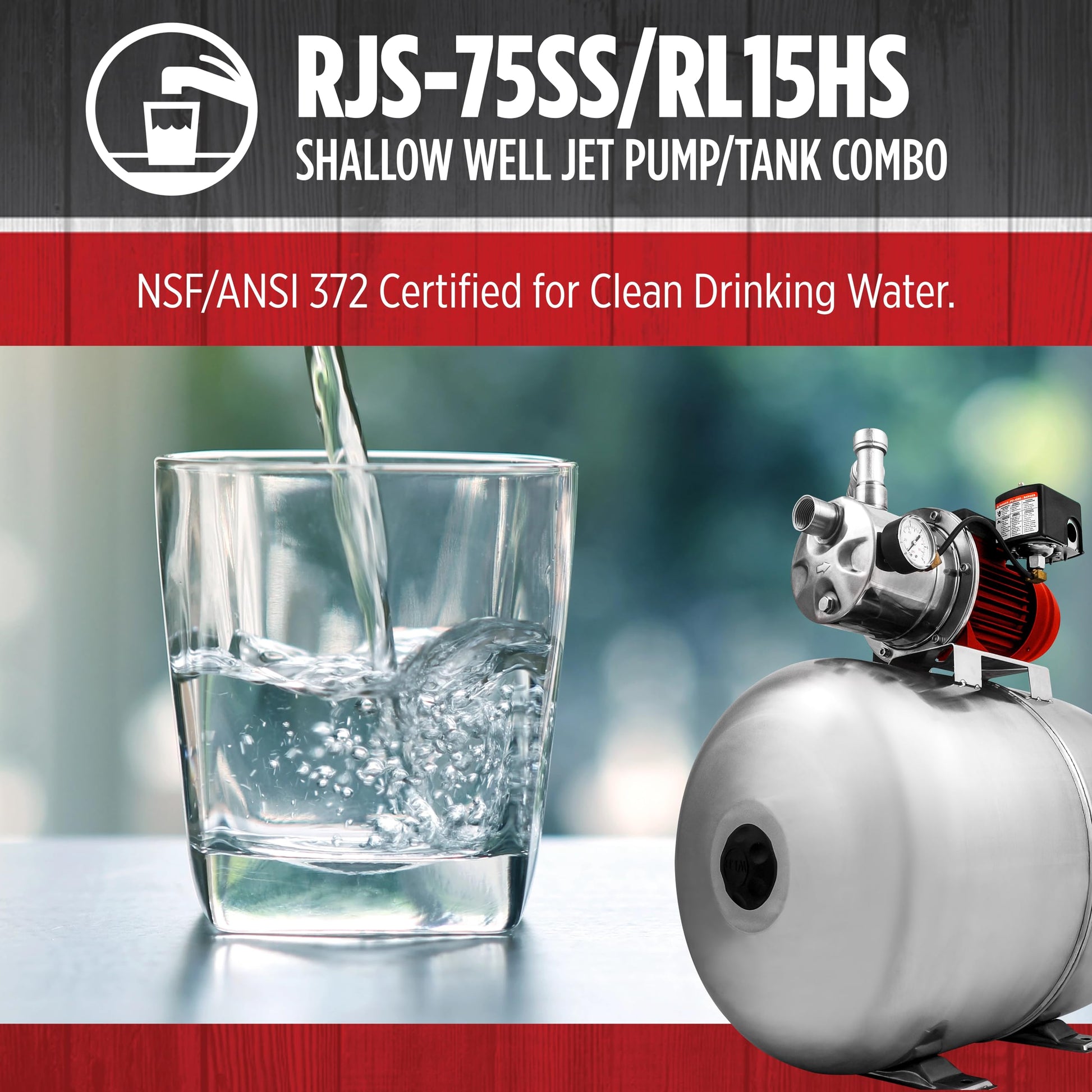

APPLICATIONS: ideal for drawing water from shallow wells (down to 25-feet) for rural homes, farms, and cabins; ANSI 372/NSF-61 Certified for safe drinking water

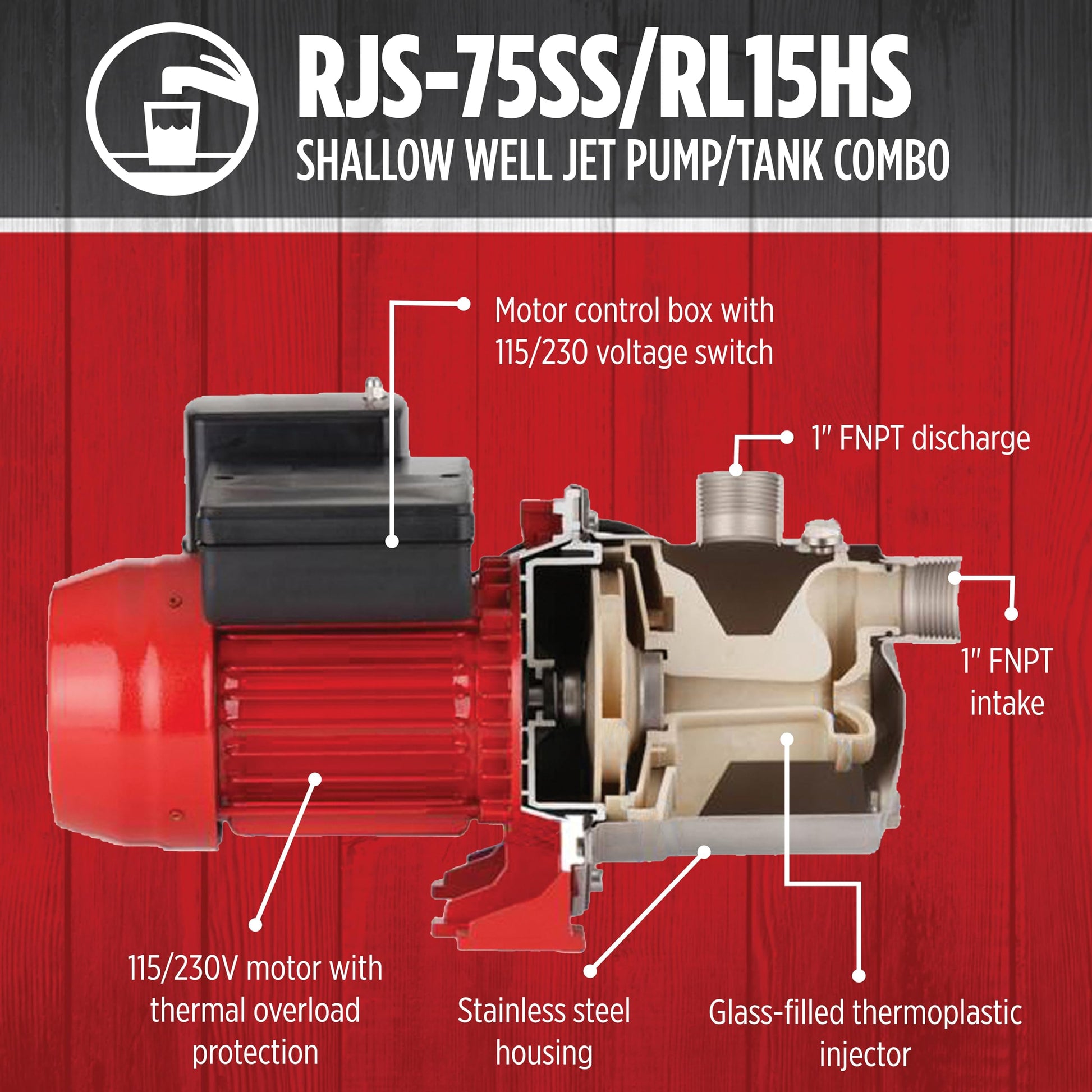

FACTORY ASSEMBLED: comes with pressure gauge and pressure switch simplifying installation; use with 115 or 230 volt power source; set to 230 volts but can be switched to 115 volts easily - see manual

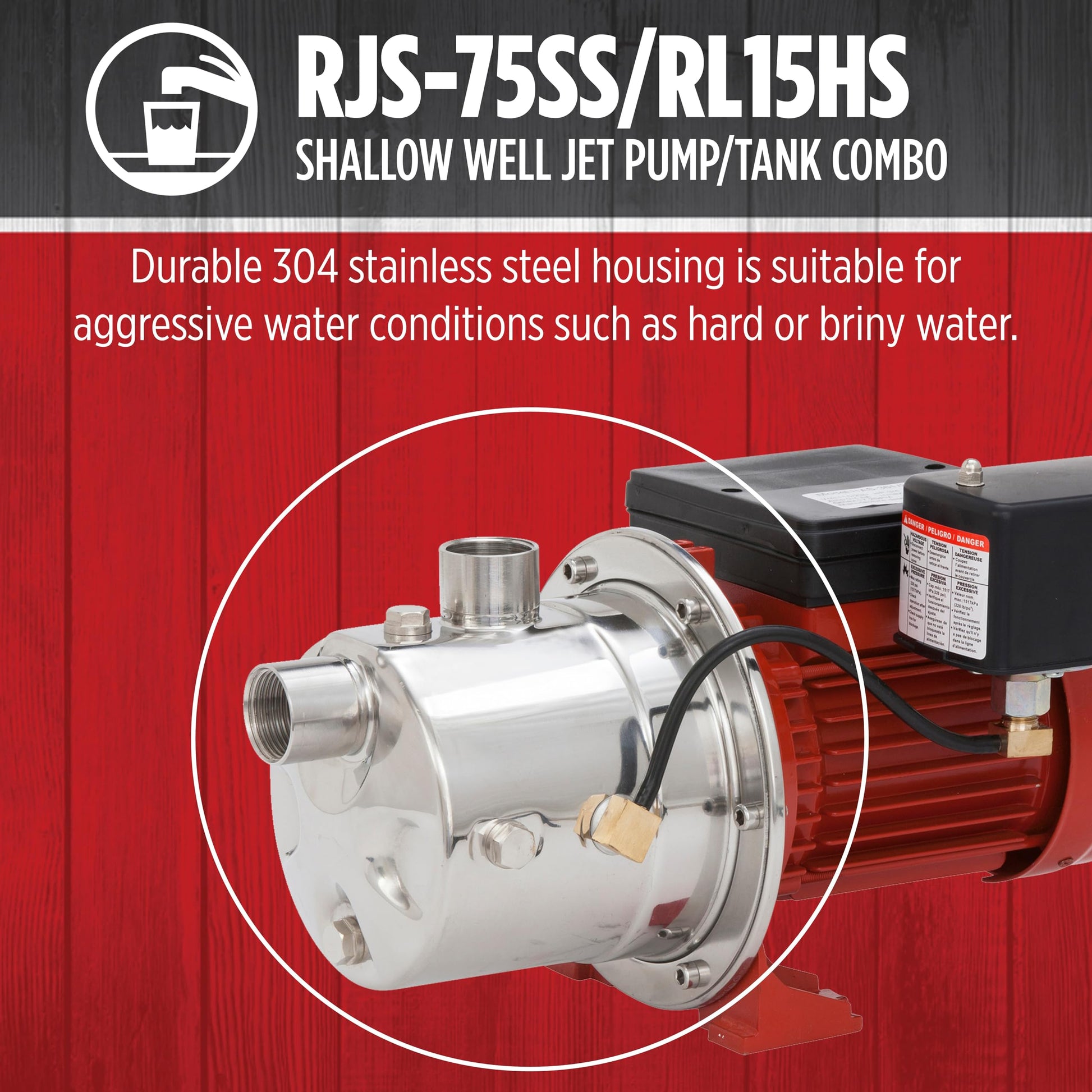

STAINLESS STEEL TANK AND PUMP CASING: more durable than cast iron and designed for aggressive water conditions; equipped with 1-inch FNPT threaded intake and discharge
15 US GALLON TANK; low profile, stainless steel pressure tank with high grade Butyl water chamber; adjust the pressure to 28 psi

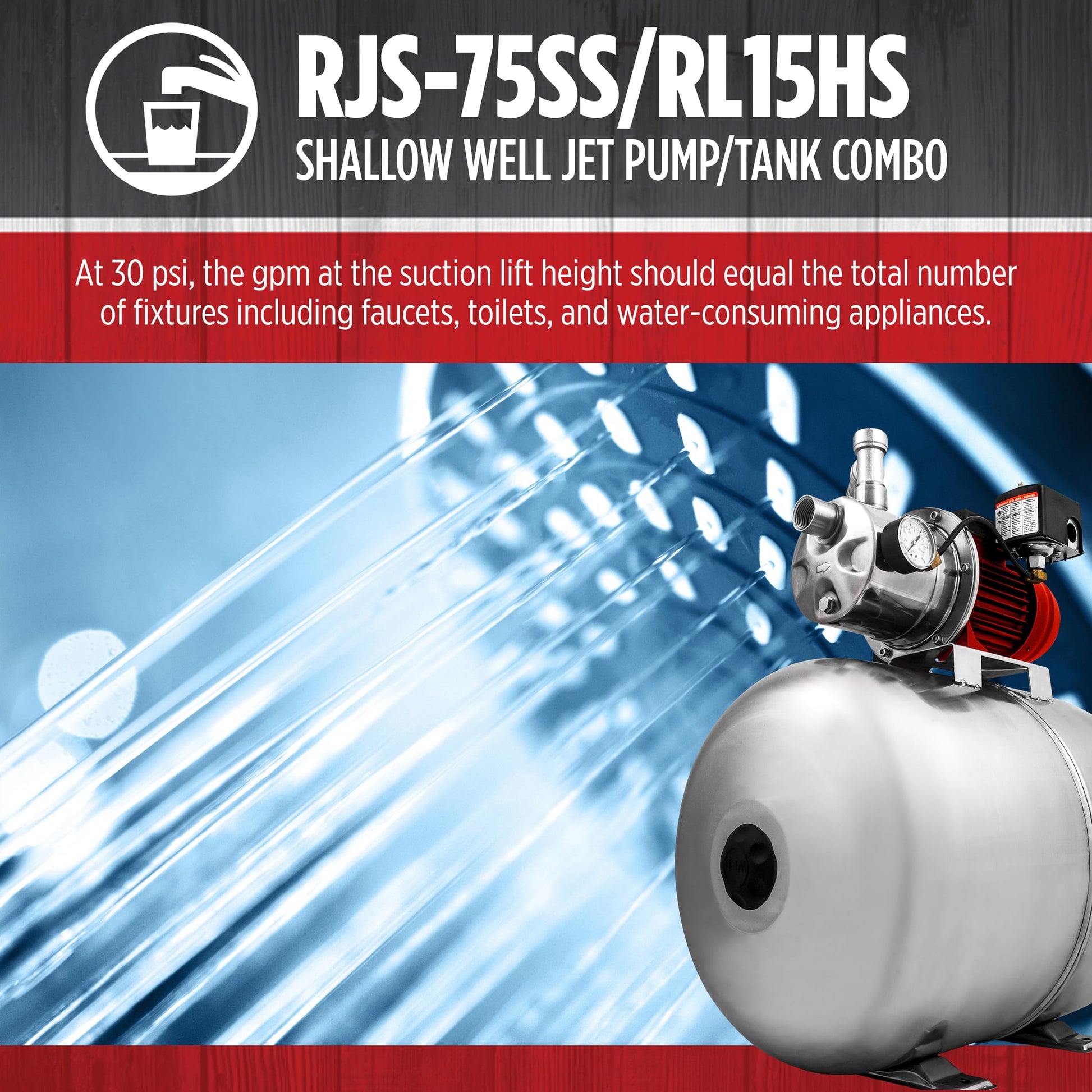

SPECIFICATIONS: 3/4 HP; 12.8 GPM at 30 PSI and 5-ft. suction lift; max pressure 73 PSI, 9.0 Amps at 115V; 4.5 Amps at 230 Volts; 3270 Watts, 15 gallon tank; max head 169-ft.; CSA listed in USA/Canada
model number: 602240
Part Number: 602240

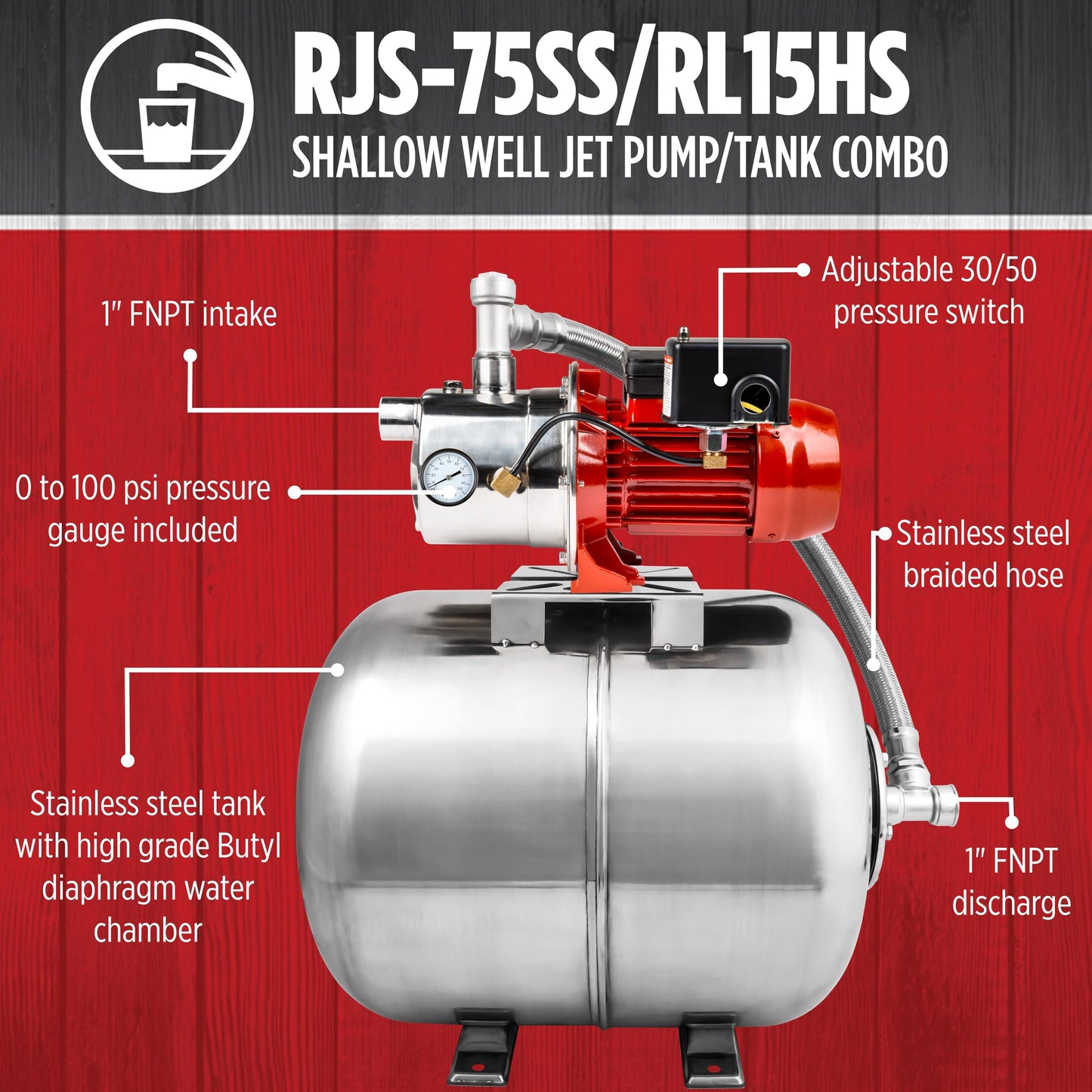

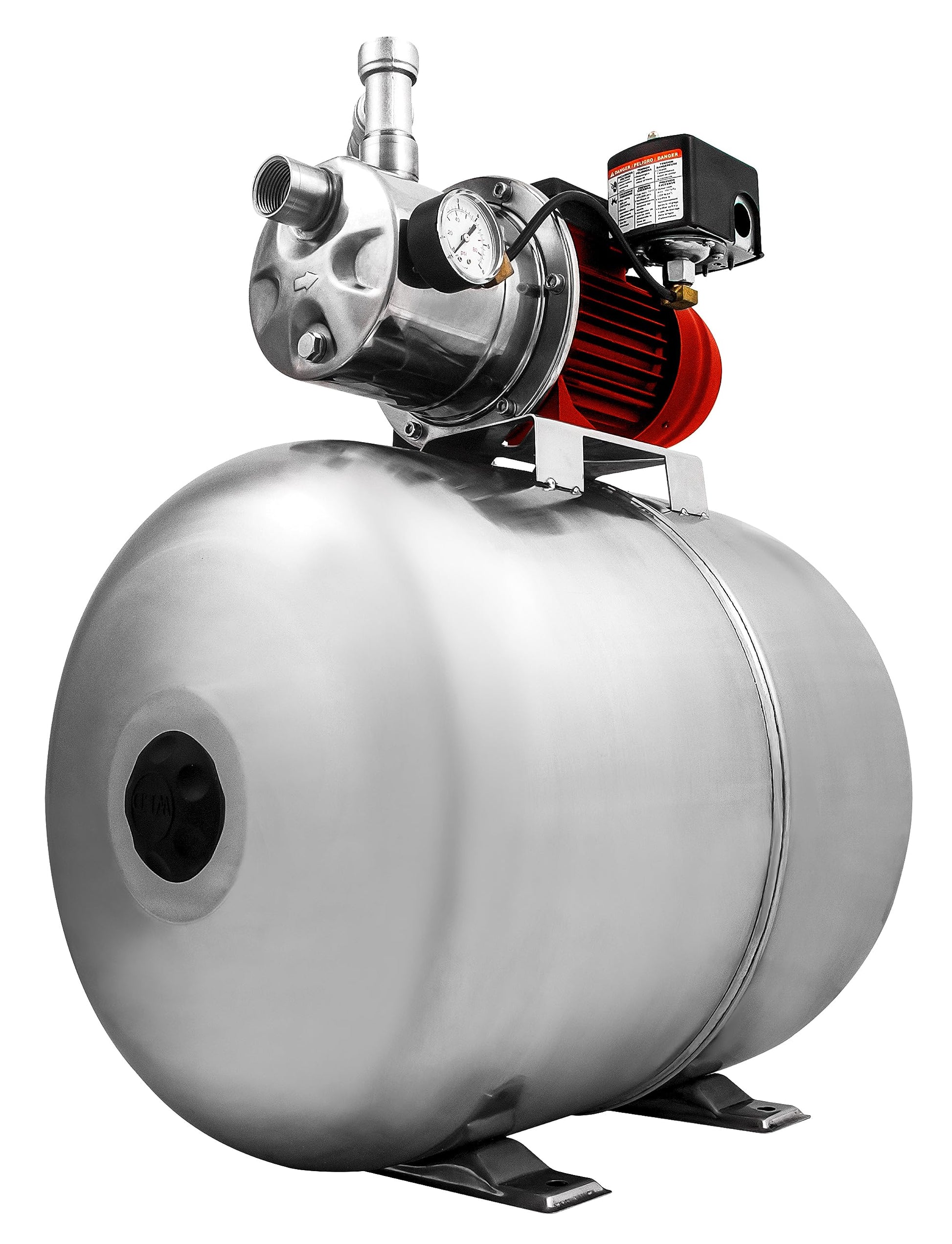

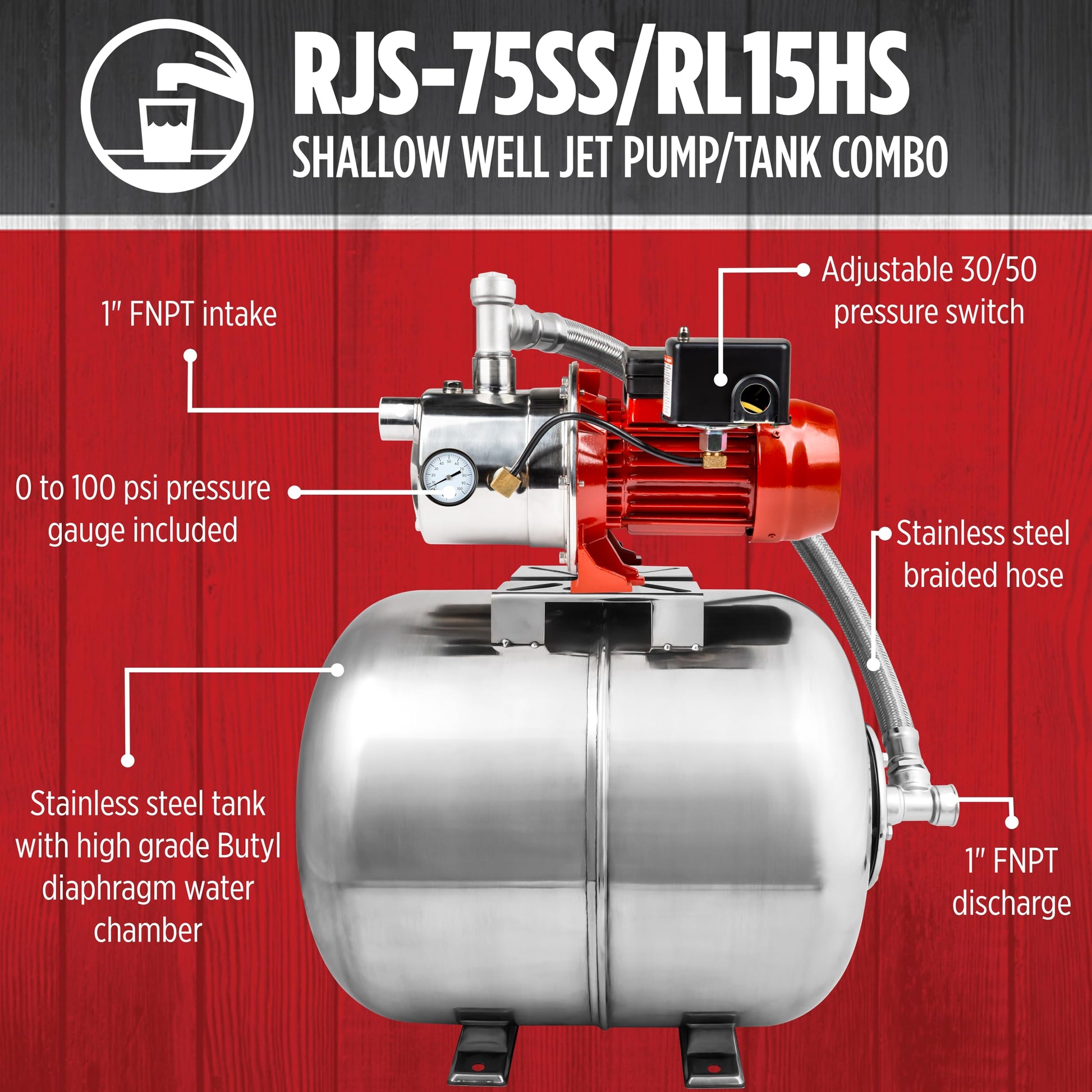

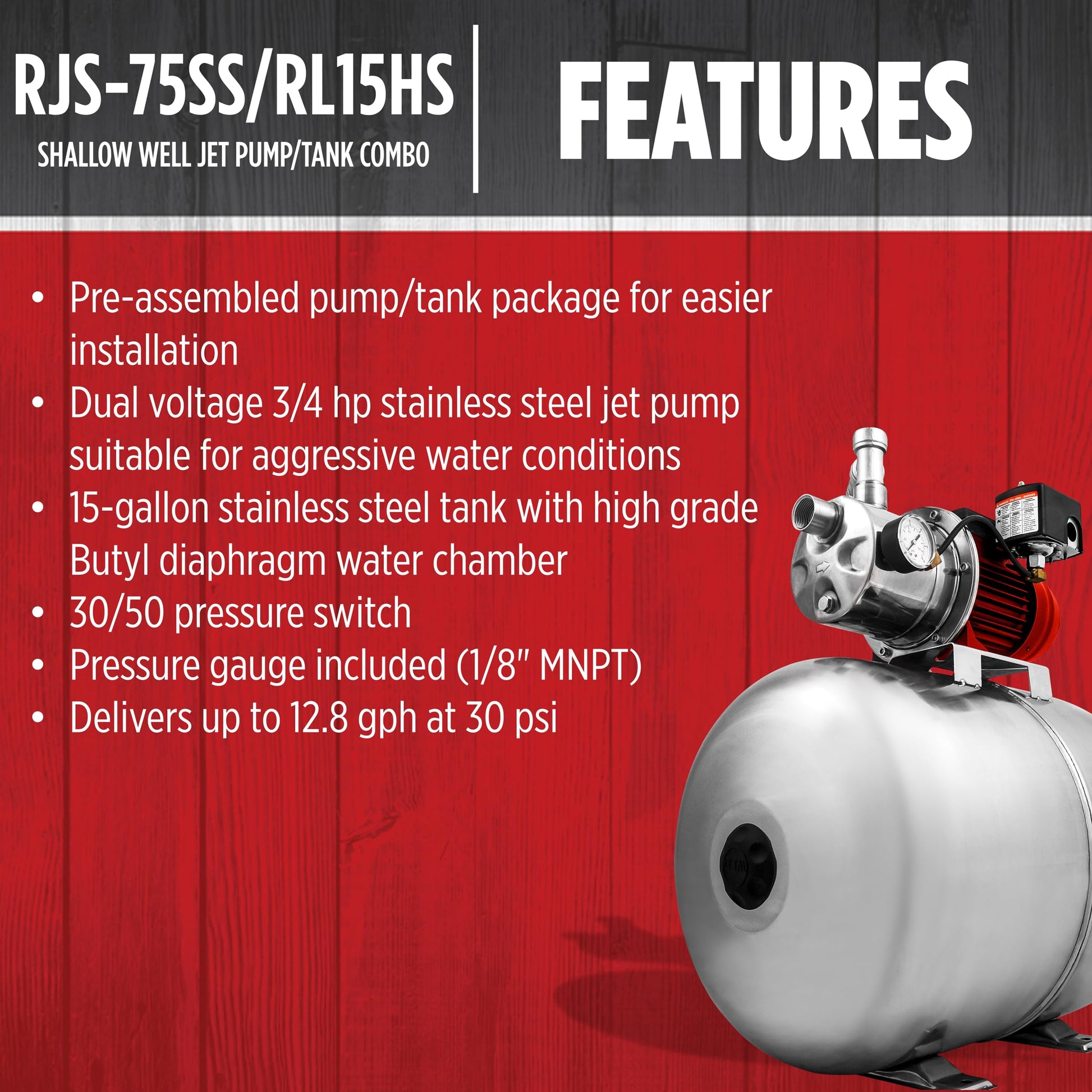

Details: The Red Lion RJS-75SS/RL15HS 3/4 HP pump with 15 Gallon tank is ideal for the supply of fresh water to rural homes, farms and cabins where compact system size and ease of installation are most important. This unit comes pre-assembled and work with 115-Volt or 230 Volt power supply (must be hard wired). This unit comes preset for 230 Volt operation, but can be easily switched to 115 Volt operation - see owner's manual. The stainless steel pump casing and tank is ideal for aggressive water conditions. A pressure gauge and factory pre-set 30/50 pressure switch is included. This pump comes with 1-inch Female NPT threaded intake and discharge. The Pressure Gauge Port is 1/8-inch NPT threaded.
