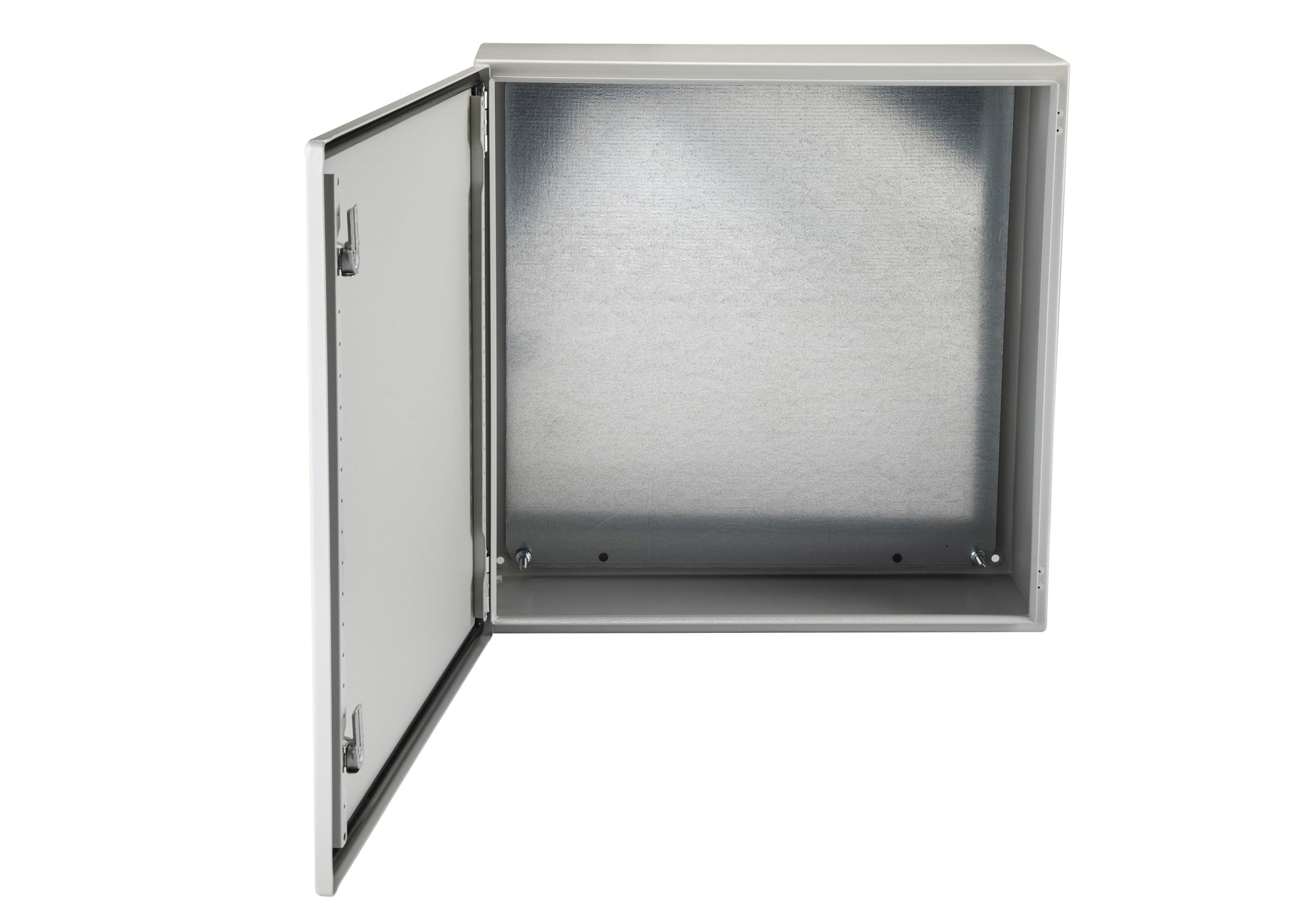

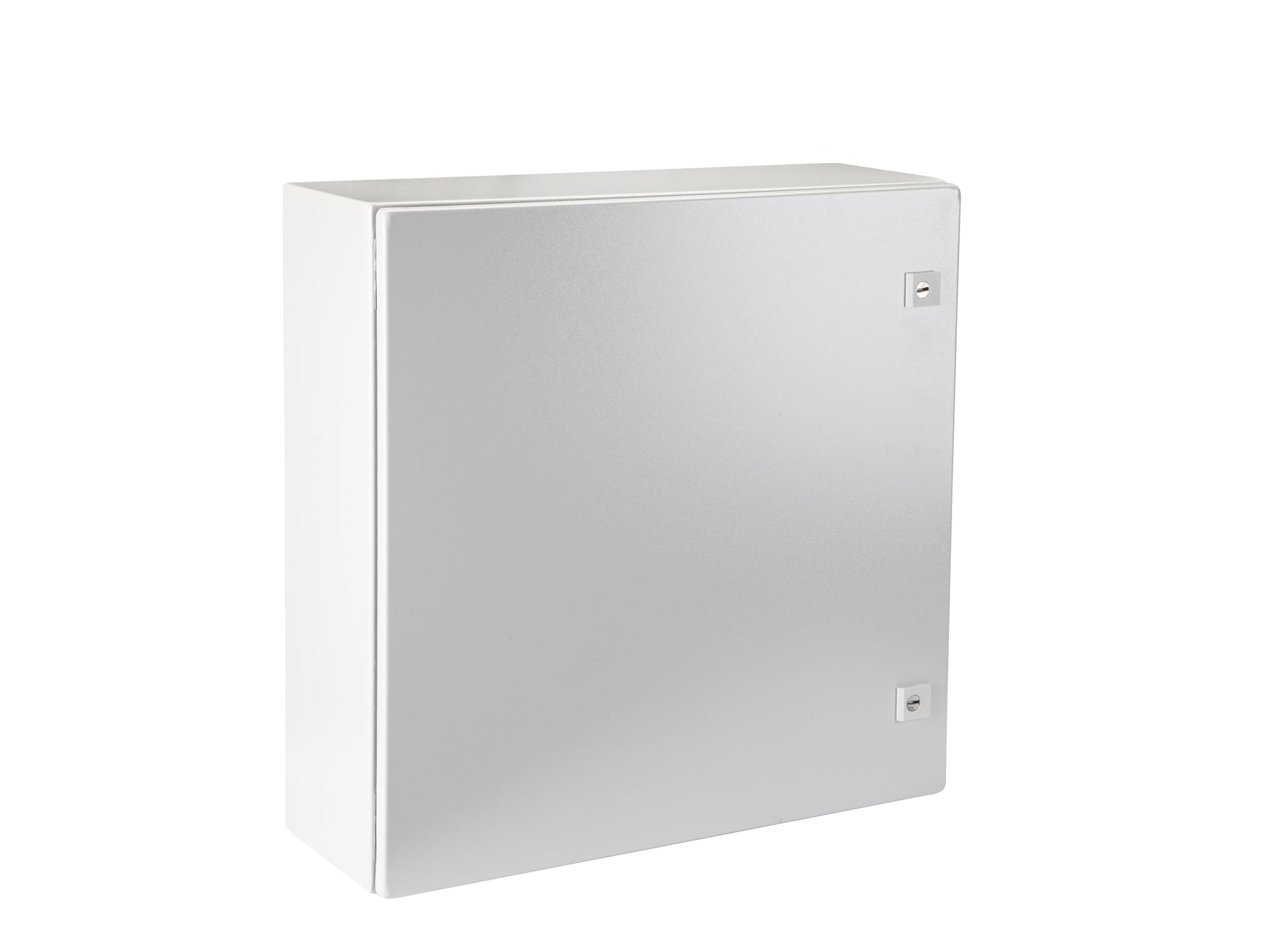

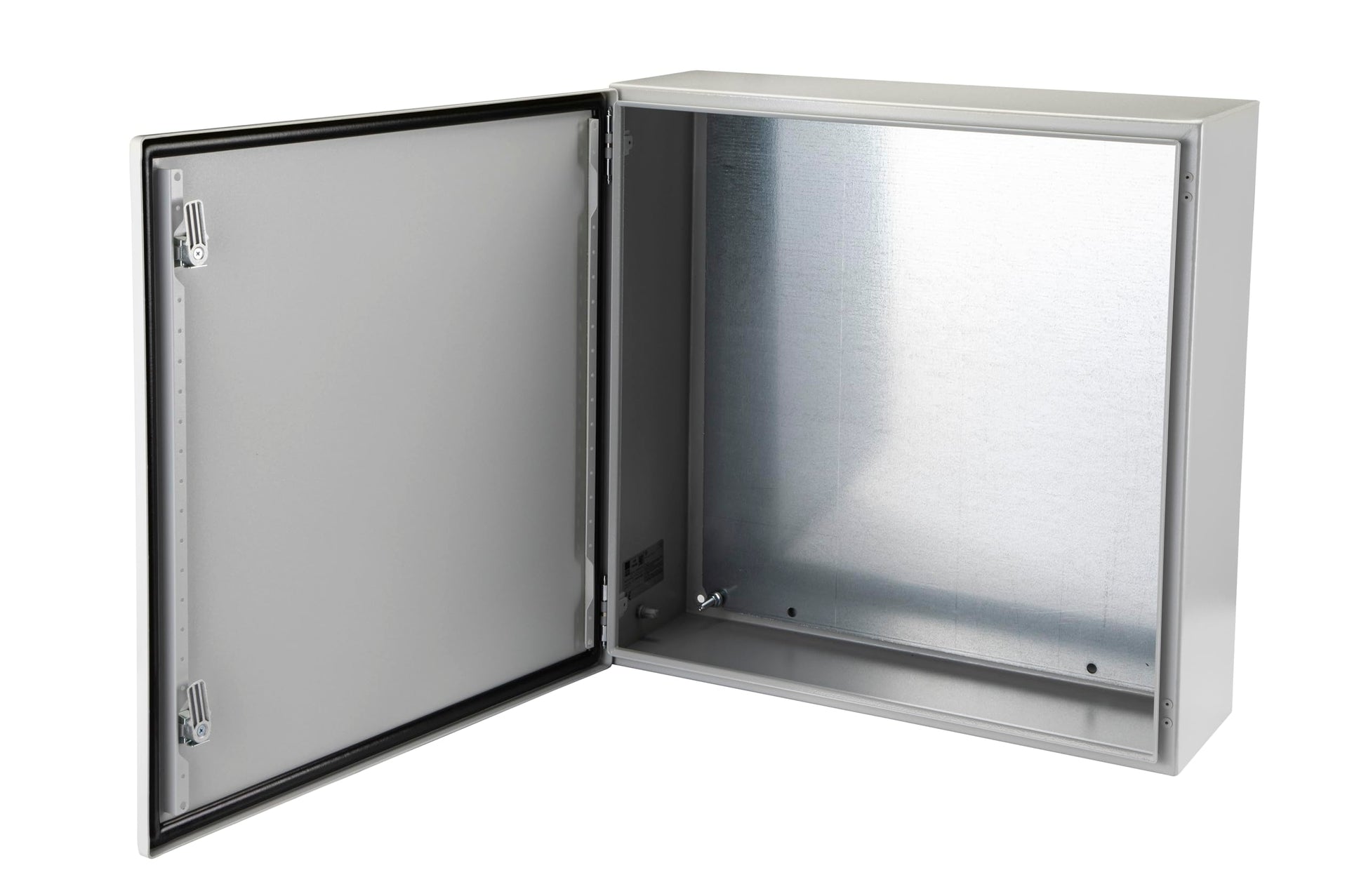

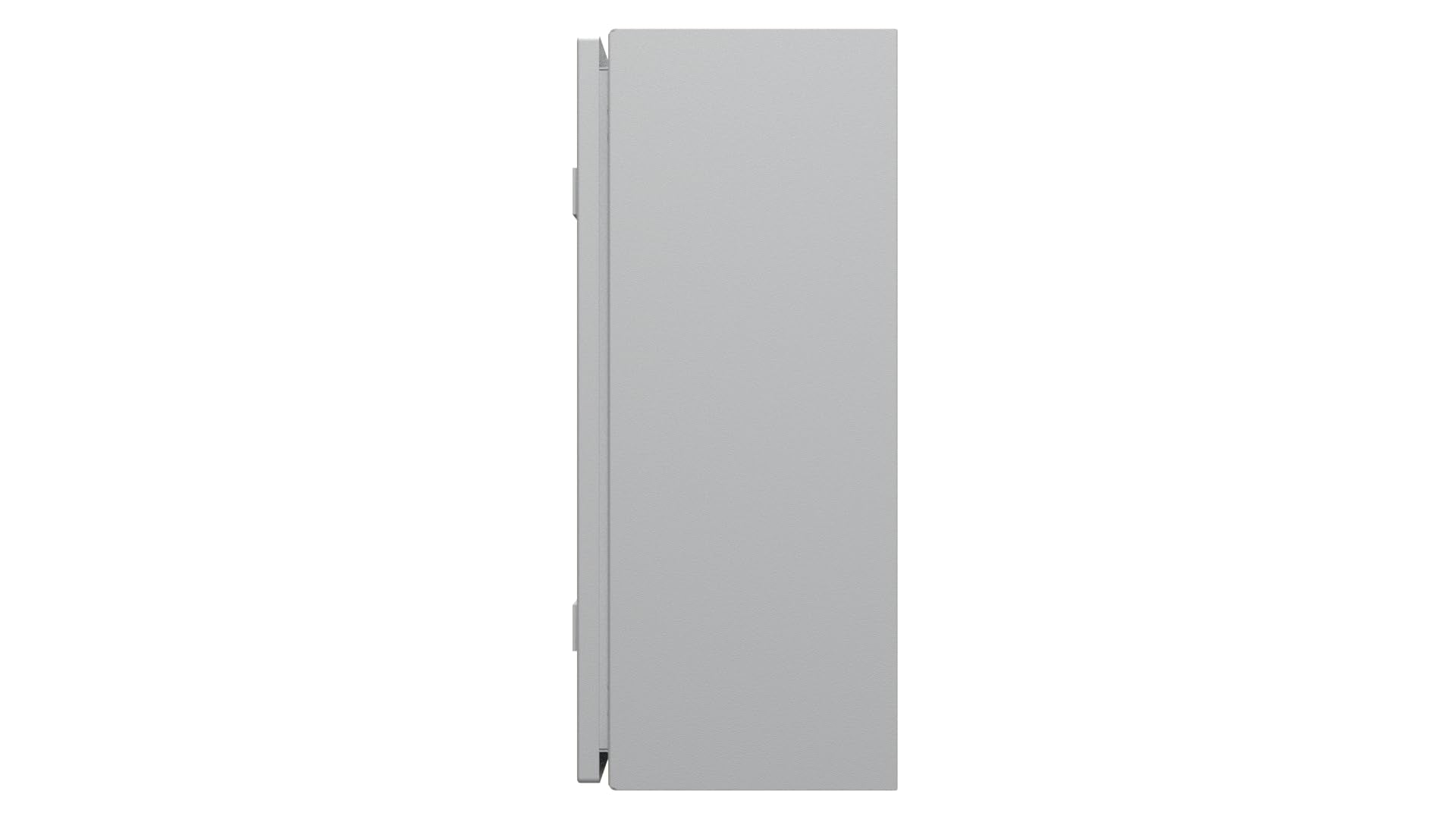

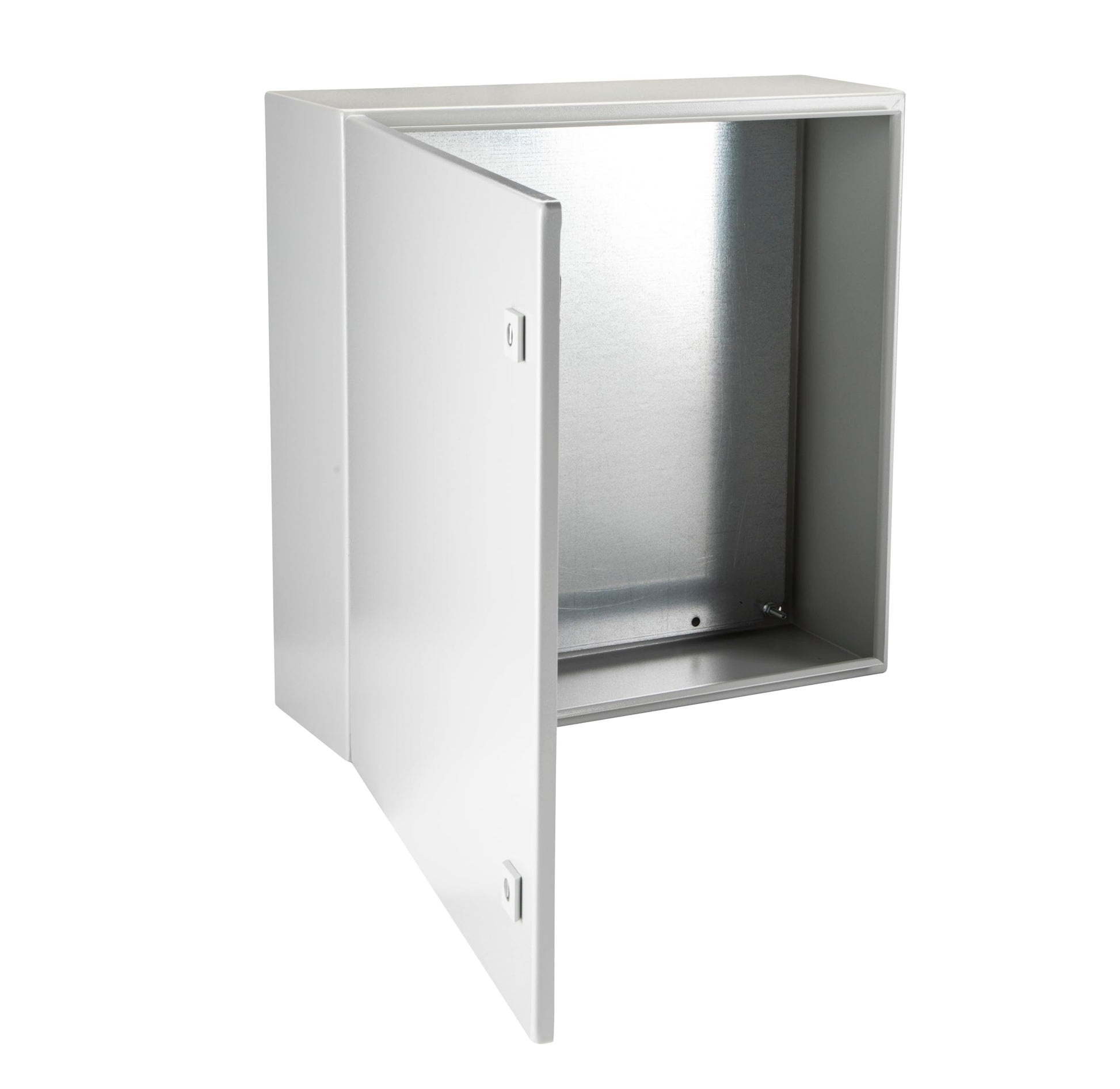

Rittal 1045.250, WM wall-mounted enclosure, Single Door, Carbon Steel, 19.7" Height x 15.7" Width x 8.27" Depth

Brand: Rittal

Color: Light Gray

Features:

• Door: Carbon steel, all-round foamed-in PU seal
• Housing and door: Dipcoat primed, powder-coated on the outside, textured paint / Mounting plate: Zinc-plated
• 13.9' X 18.7' mounting plate
• Material thickness: 0.06' door, enclosure & mounting plate
• NEMA 1, 3R, 4, 12 protection

model number: WM201608NC

Part Number: 1045250

Details: These single door wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include a cold rolled steel body and door, and a zinc plated mounting panel. Supply includes: Housing with door(s)/Door hinged on left/Mounting plate/Rear wall mounting holes/Quarter turn latch with slotted head insert.

EAN: 4028177532663

Package Dimensions: 16.1 x 0.8 x 0.4 inches
