Roof Riser Brackets, Stainless Steel 4x4 (Actual Size:3.5"×3.5") Adjustable Angles Saddle Roof Riser Brackets for Patio Cover for Patio Cover Roof Gazebo, 3Pack

Brand: DIY DECK

Color: Black

Features:

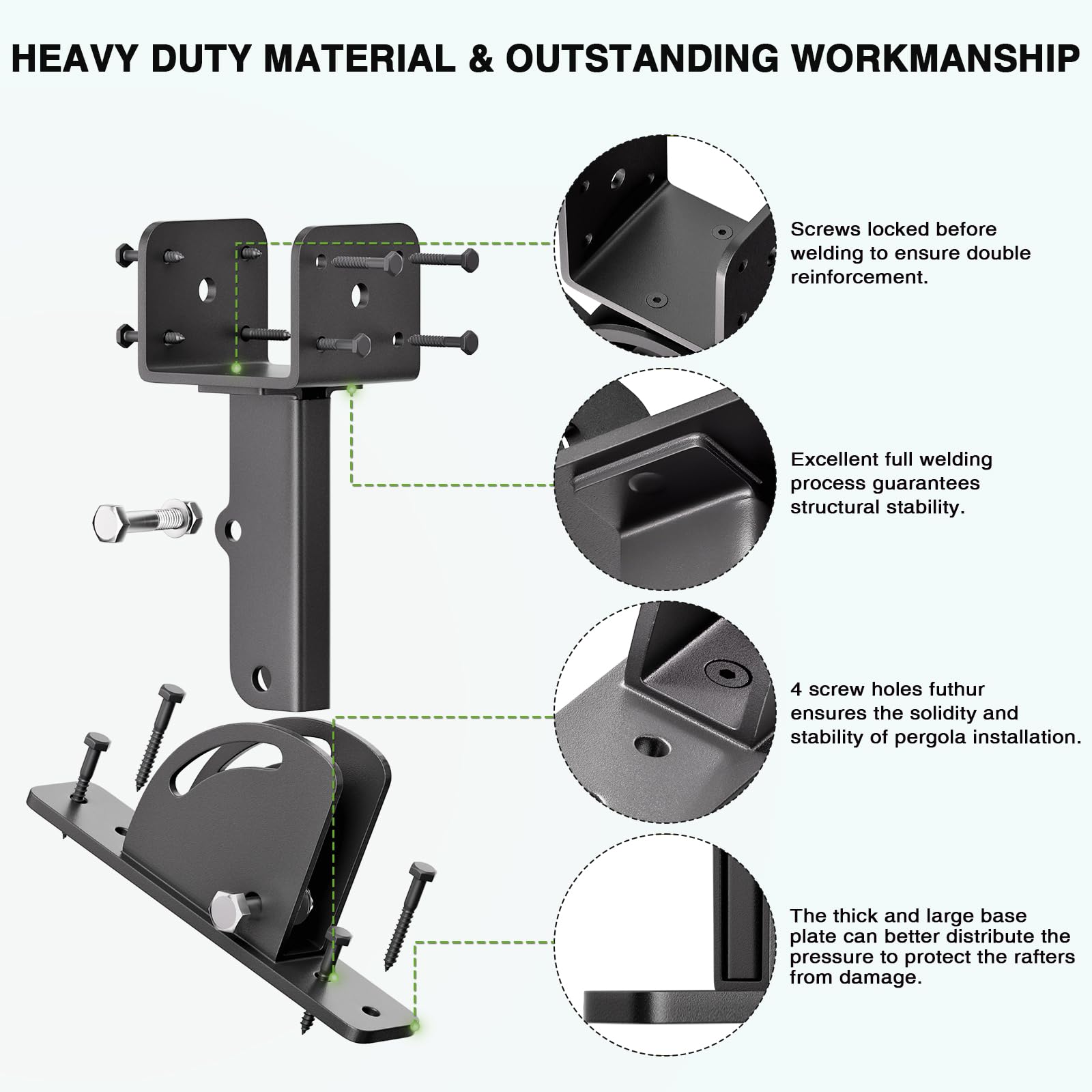

• HIGH-QUALITY MATERIAL: Pergola roof riser bracket is manufactured from thickened high-quality stainless steel with black powder coating. This material is anti-rust and corrosion resistant. The welding parts of this bracket were screw locked before full welding to ensure double reinforcement.

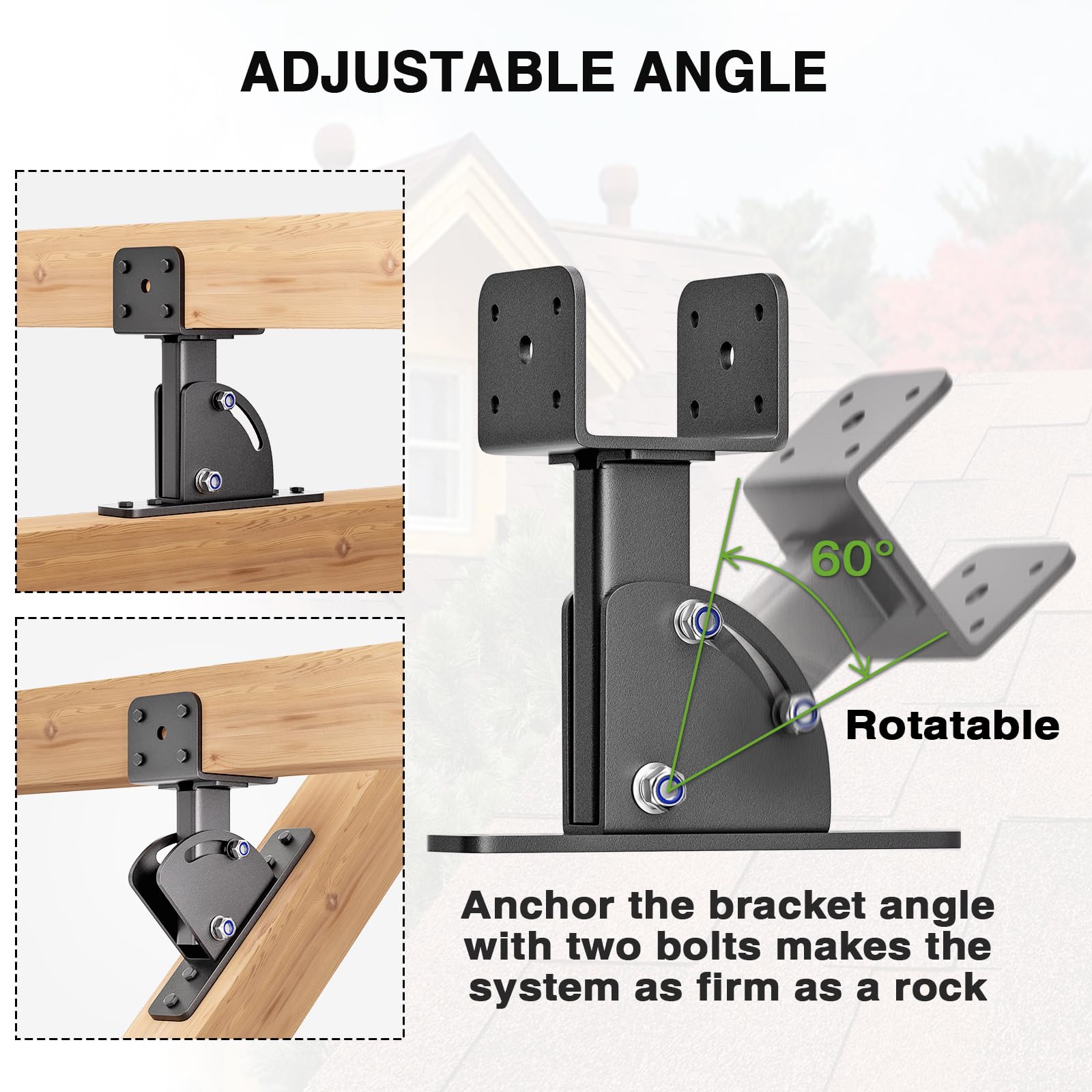

• 0°-60° ADJUSTMENT DESIGN: Patio roof riser kit can be adjusted from 0 to 60 degrees, accommodating most of the roof pitches and maximizing versatility for pergola installations.
• UNIQUE DESIGN: Heavy duty roof riser it has unique double-bolt mechanism. The bottom bolt is for axial rotation to your required angle according to your roof angle, the other bolt is for locking down to fix it. Once the bolts are both tightened, the entire pergola structure will be more stable even if the pergola’s pillar got loosed.

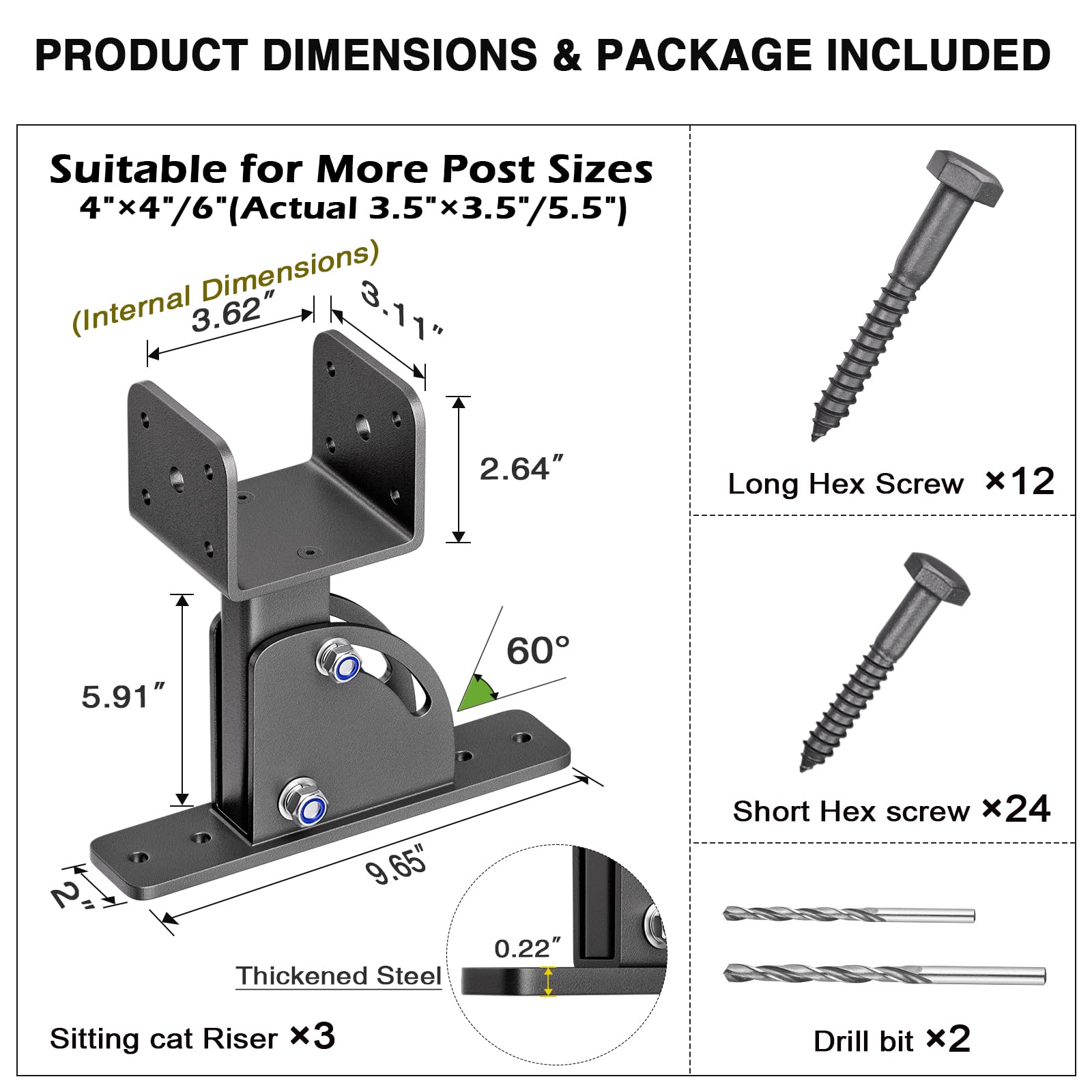

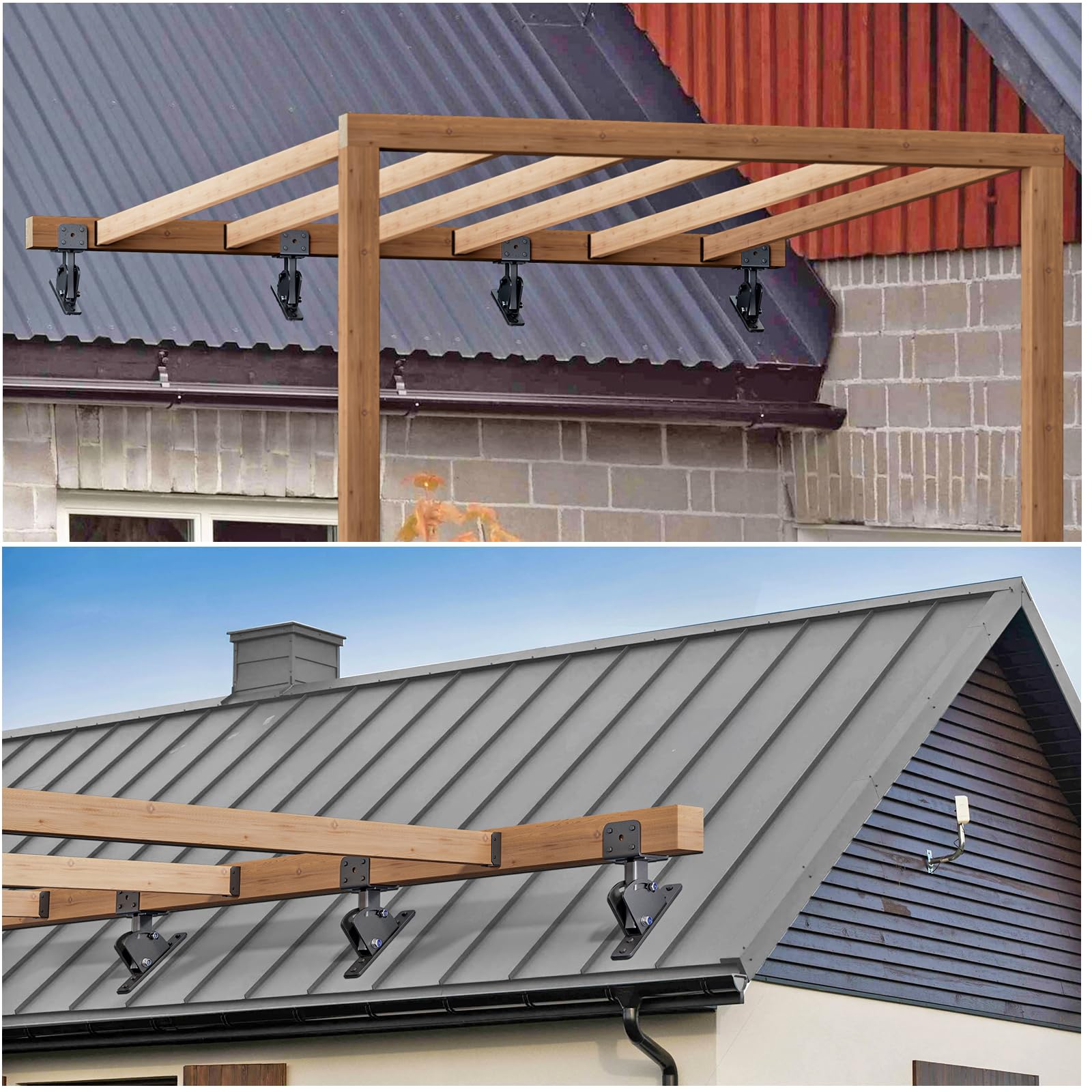

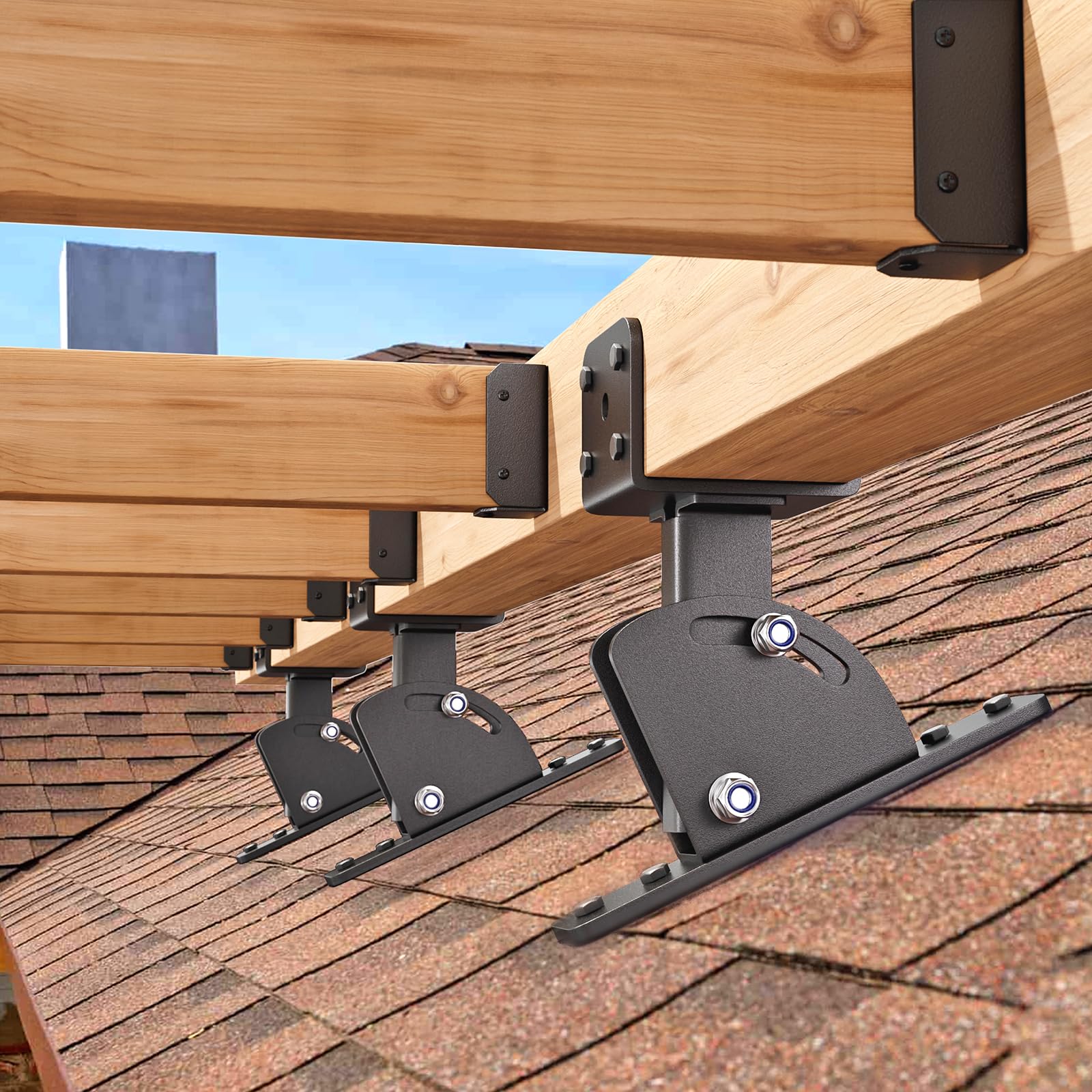

• EASY INSTALLATION: it is installed to the rafter, no need to break through the roof, without causing water leaking issue. The larger (L:10 inch; W: 1.8 inch) and thicker (T: 7GA) base plate not only provides convenient installation space with tools, but also further ensures the solidity and stability of pergola, and protects the rafter beam from being damaged by over-concentrated screw holes & pressure.

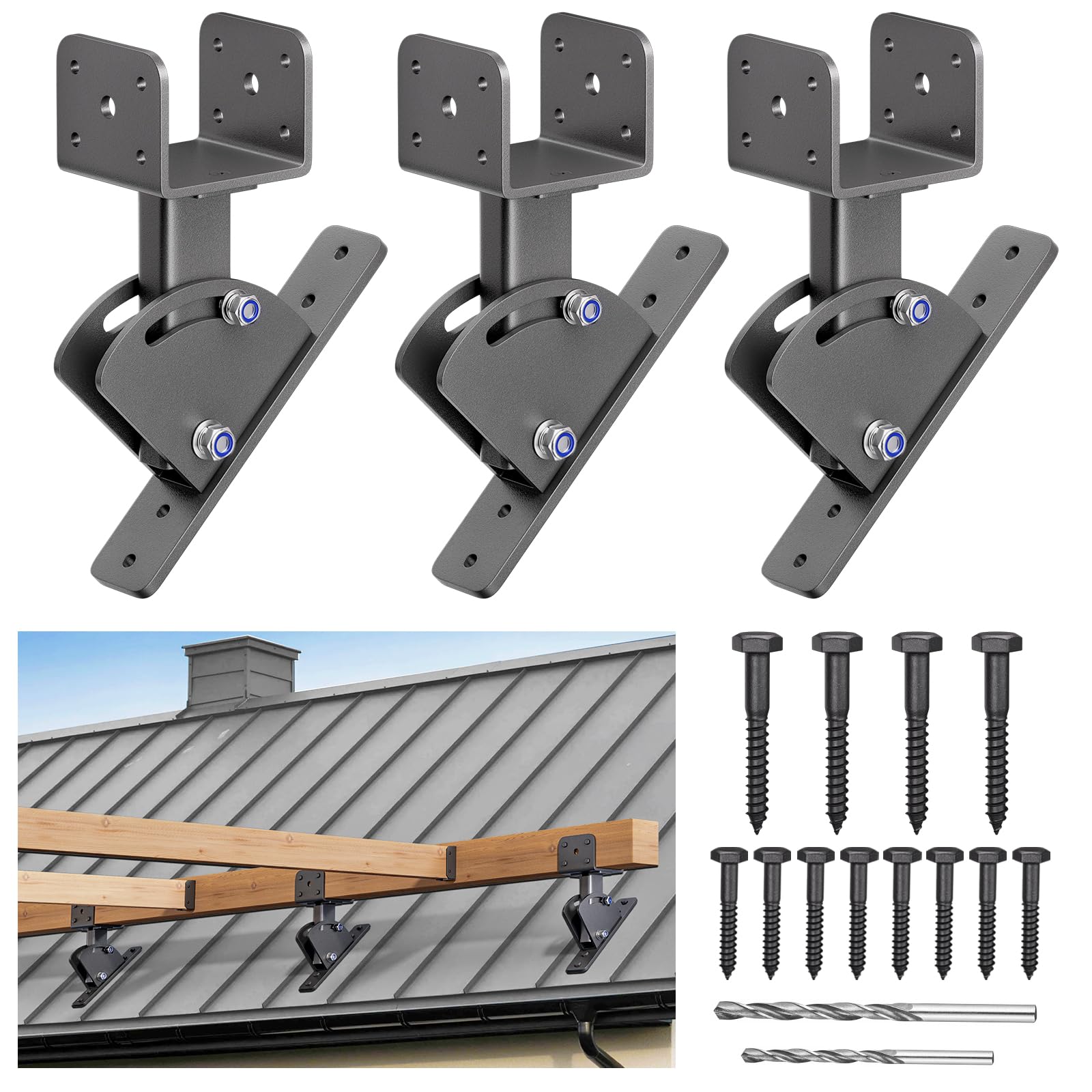

• PACKAGE INCLUDES: Roof Riser x 3, 1/4' Hex Head Lag Screws Bolts x24(for the saddle bracket), 5/16” Hex Head Lag Screws Bolts x12(for the base plate), Drill Bits* 1, Drill Bits * 1.

model number: DIYRRB

Part Number: DIYRR

Package Dimensions: 12.5 x 11.0 x 10.8 inches
