Seco-Larm Enforcer No Touch Request-to-Exit Plate, Outdoor (SD-9263-KSQ)

Brand: Seco-Larm

Color: Green

Features:

• Activates with the wave of a hand
• Ring illuminator changes color when activated
• Adjustable sensor range from 2 to 7 inches
• Weatherproof stainless steel for outdoor use
• Quick-connect screwless terminal block
• Activates with the wave of a hand
• Ring illuminator changes color when activated
• Adjustable sensor range from 2 to 7 inches
• Weatherproof stainless steel for outdoor use
• Quick-connect screwless terminal block

model number: SD-9263-KSQ

Part Number: SD-9263-KSQ

Details: A simple wave of the hand activates the Seco-Larm Enforcer No Touch Request-to-Exit Plate, and triggers a door to automatically open. This full-featured outdoor exit plate uses IR technology to allow entrance or exit without physical contact, making it the perfect access solution for areas that need to be kept clean, such as hospitals, schools, labs, clinics and more. Activates with the wave of a hand Ring illuminator changes color when activated Adjustable sensor range from 2 to 7 inches Weatherproof stainless steel for outdoor use Quick-connect screwless terminal block

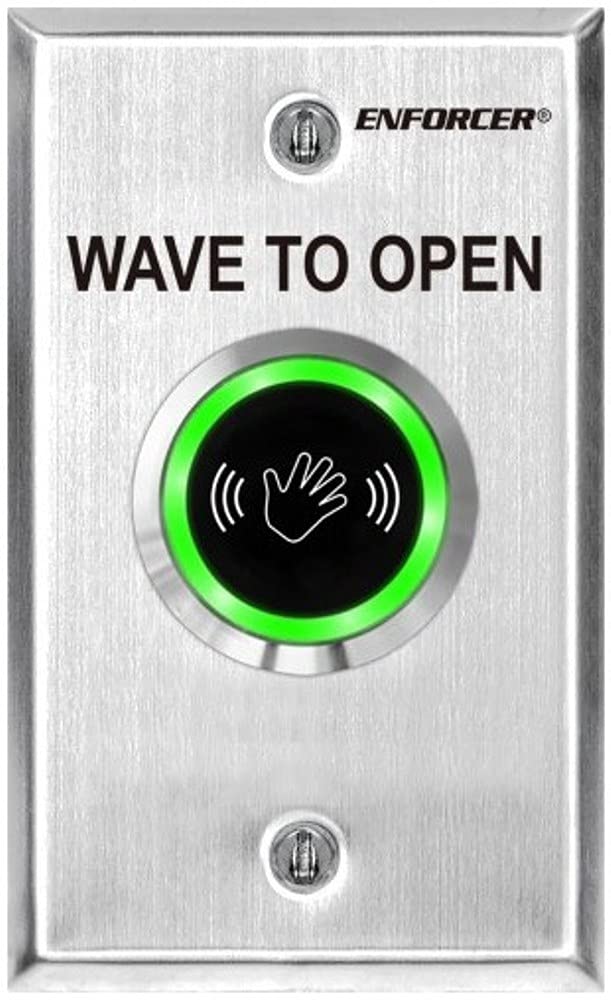

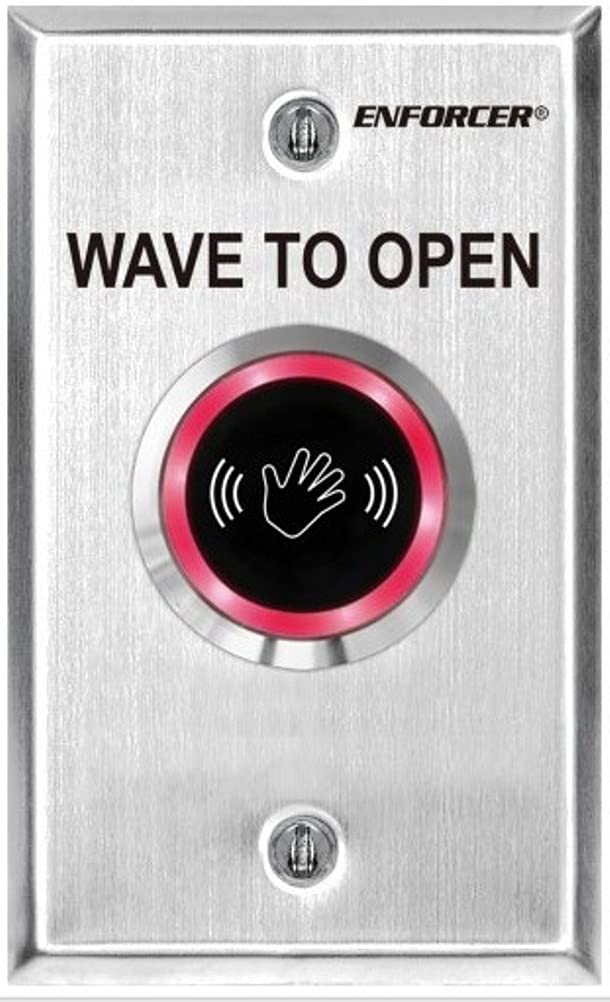

When the plate's built-in IR sensor detects motion, an attractive 'ring' illuminator turns from red to green (or you may select green to red), indicating successful activation of the exit plate. The sensor is easily triggered with a hand wave from 2 to 7 inches away. This sensor range is adjustable to perfectly fit its environment.
Designed for outdoor use, the exit plate is constructed from stainless steel, with a weatherproof rating of IP65. The plate includes a 1A relay and an adjustable trigger duration of 0.5 to 20 seconds or toggle.

Technical Details
Manufacturer Part #: SD-9263-KSQ UPC: 676544011835 Operating Voltage: 12~24 VDC Current Draw: Standby: 16mA at 12VDC / 25mA at 24VDC Triggered: 20mA at 12VDC / 32mA at 24VDC Relay Type: Form C dry contact, 1A at 30VDC Response Time: 10mS LEDs: Standby: Red Triggered: Green Output Time: 0.5 to 20 seconds, toggle Range: 2 to 7 inches (5 to 18cm) IP rating: IP65 Operating Temperature: -4 to 131 degrees F (-20 to 55 degrees C) Weight: 108 grams Dimensions: 4-1/2 x 2-3/4 x 1-1/2 inches (115 x 70 x 39mm) Warranty: 1 Year

EAN: 0676544011835

Package Dimensions: 5.8 x 3.1 x 1.9 inches
