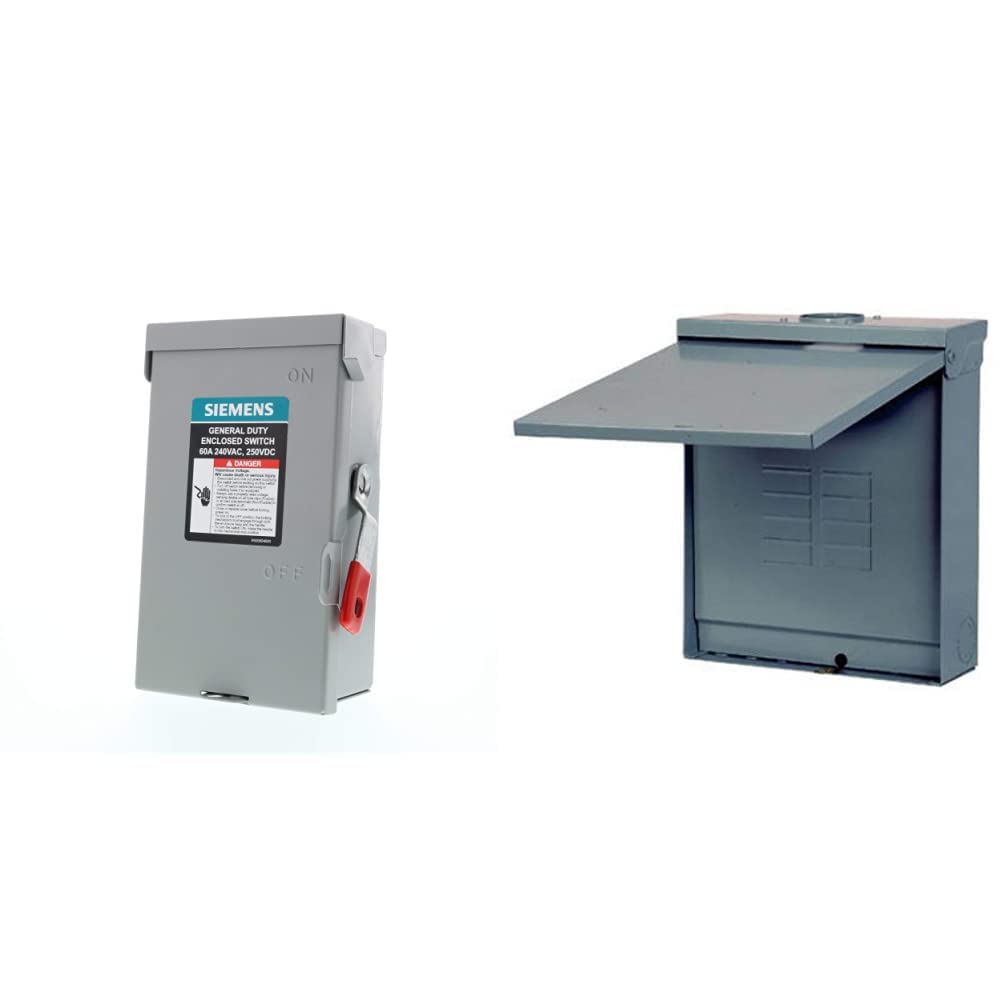

SIEMENS 2P 60A 240V General Duty Safety Switch Outdoor, Non-Fusible and SIEMENS W0816ML1125CU 125 amp Load Center

Brand: SIEMENS

Color: Grey

Features:

• 2P 60A 240V general duty safety switch has quick-make, quick-break mechanism for positive operation (SIEMENS).
• 125 amp outdoor load center has 16 circuits with copper bus bars (SIEMENS).
• Safety switch is non-fusible with visible blade and double-break switch action.
• Load center dimensions - 15.5'L x 13.0'W x 5.3'H and weighs 13.0 lbs.

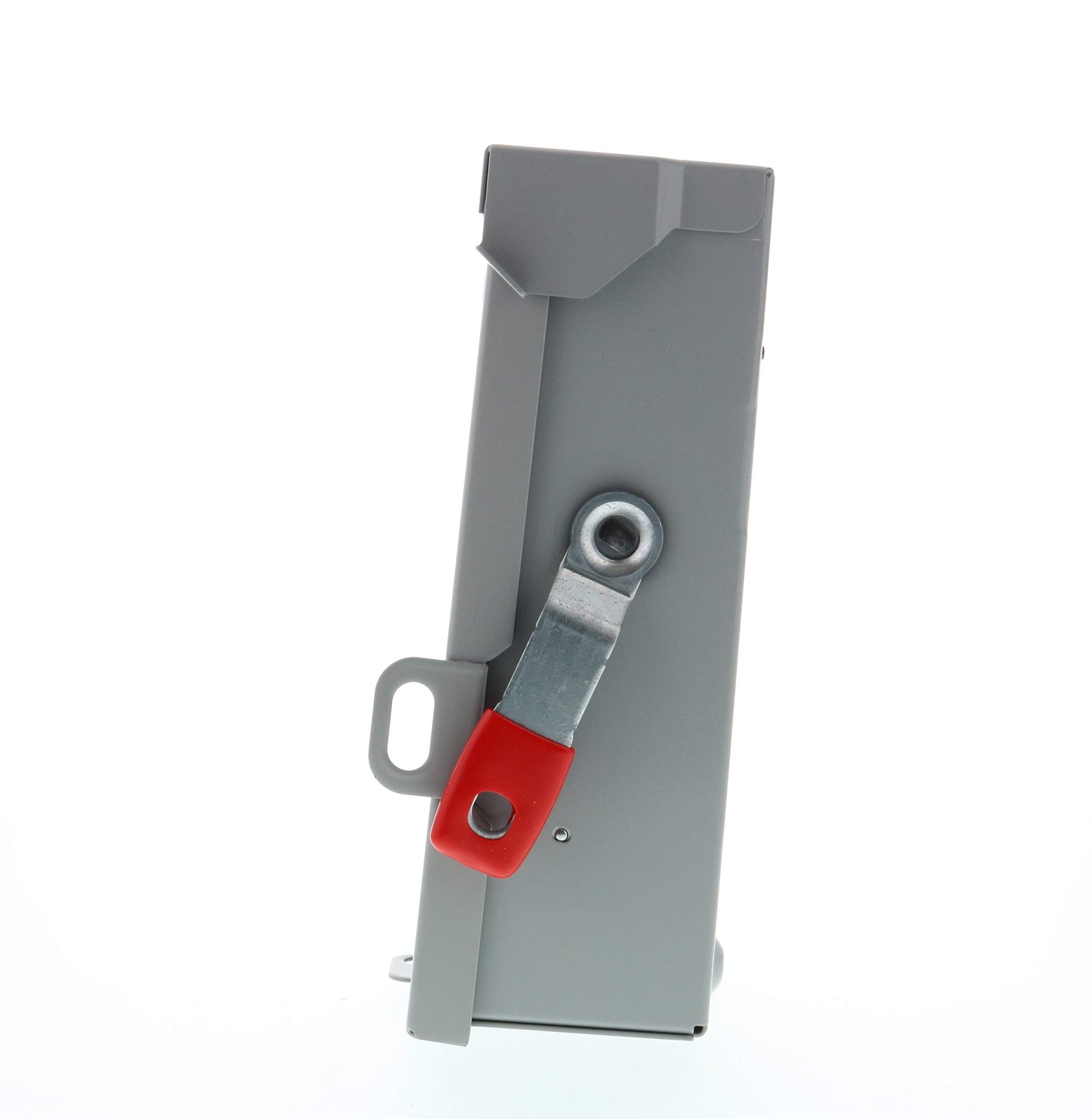

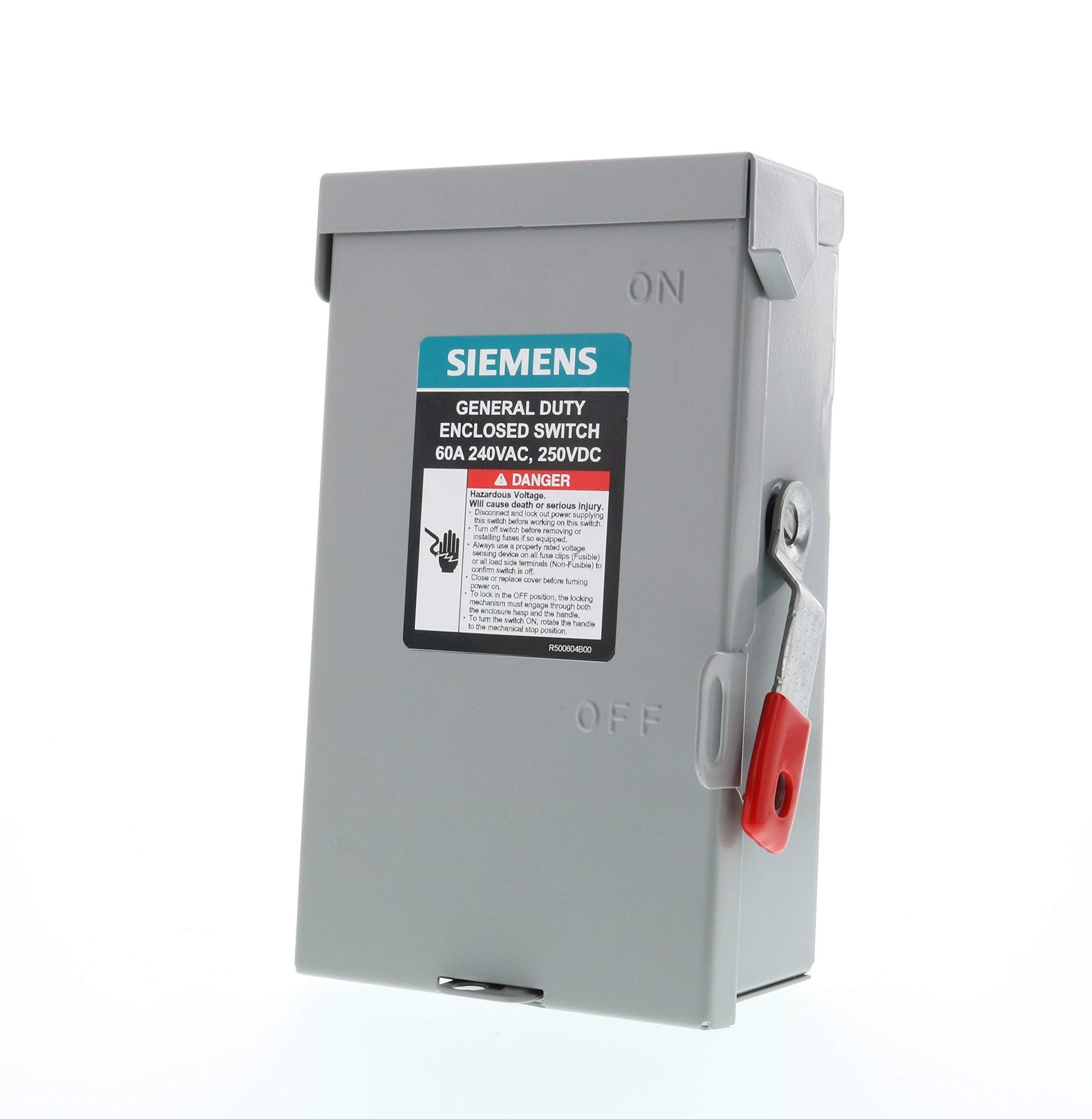

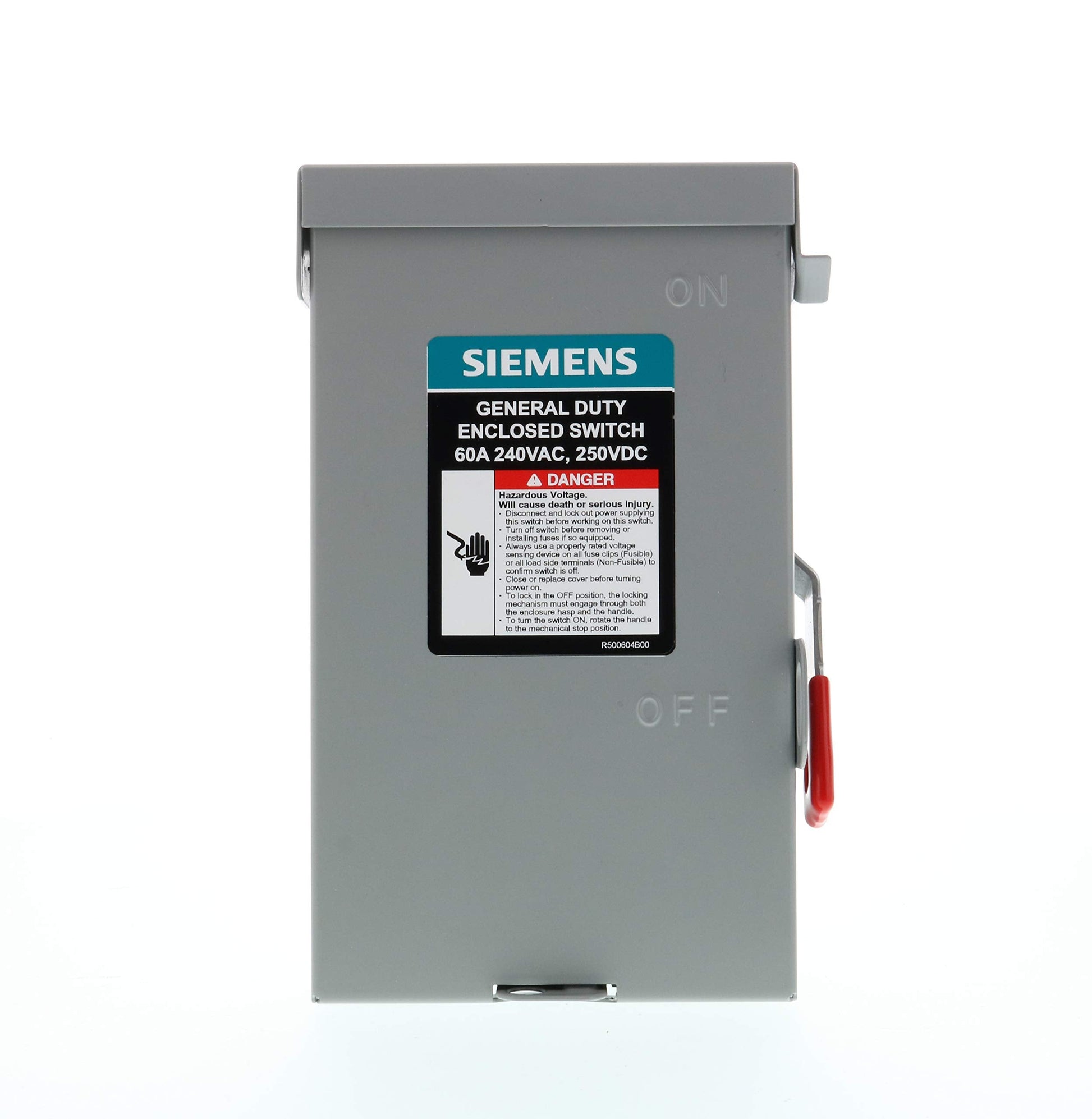

Details: SIEMENS 2P 60A 240V General Duty Safety Switch Outdoor, Non-Fusible
Siemens General Duty Safety Switches are intended for applications where reliable performance and continuity of service are needed, but where duty requirements are not severe and usual service conditions prevail. These switches are intended for use primarily with supply circuits rated 240V AC or less where the available fault current is less than 100,000A when used with Class R or T fuses, or 10,000A max when used with Class H fuses. All switches are provided with imbedded 'ON' and 'OFF' indicators and padlocking provisions on the handle and door. All switches are UL listed. Fuses not included on fusible device. Use HA type hubs if required.

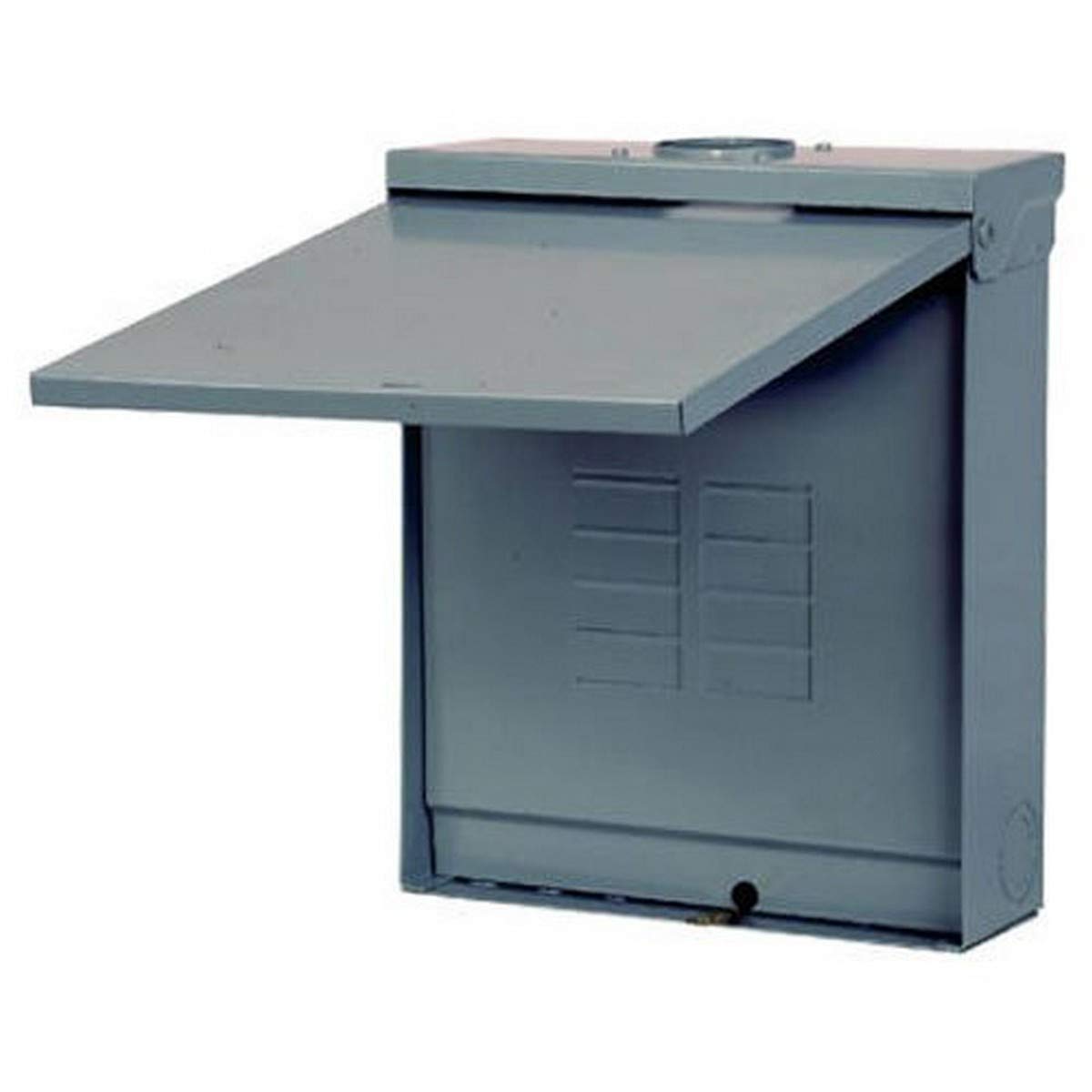

SIEMENS W0816ML1125CU 125 amp, 8 Space, 16 Circuit, Outdoor Center Load Cente, Gray
Siemens W0816ML1125CU 125 amp, 8 Space, 16 Circuit, Outdoor Load Center
Siemens 8 space, 16 circuit, Main Lug Load Center is 125 Amp rated. This enclosure is outdoor rated and has copper Bus Bars.
