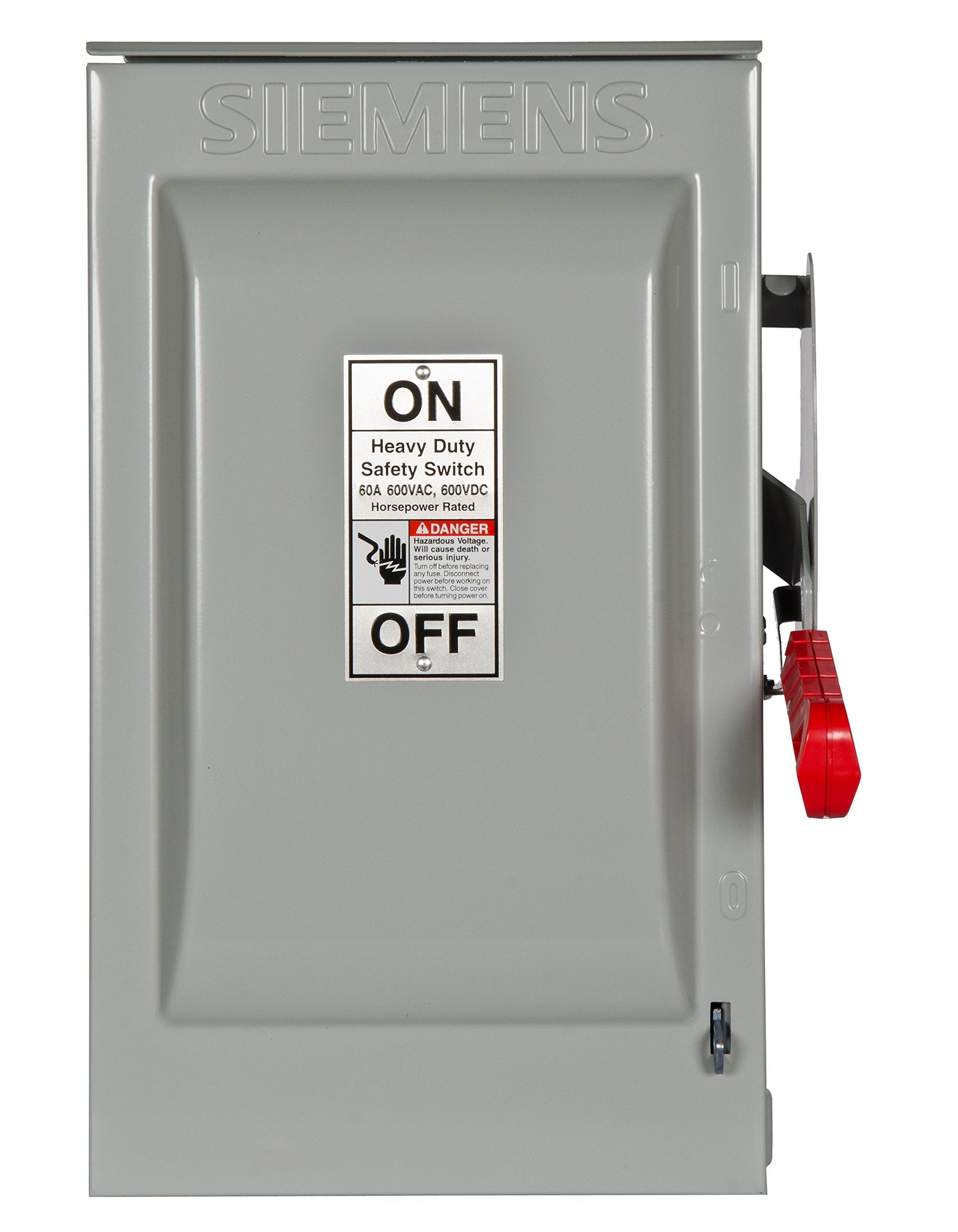

Siemens HF362R 60-Amp 3 Pole 600-volt 3 Wire Fused Heavy Duty Safety Switches

Brand: SIEMENS

Color: Grey

Features:

• This is a 60 Amp, 3 Pole, 600V, 3 Wire, Fused HD, Type 3R
• Quick-make, quick-break operating mechanism that ensures positive operation
• Arc chutes dissipate heat and prolong switch life

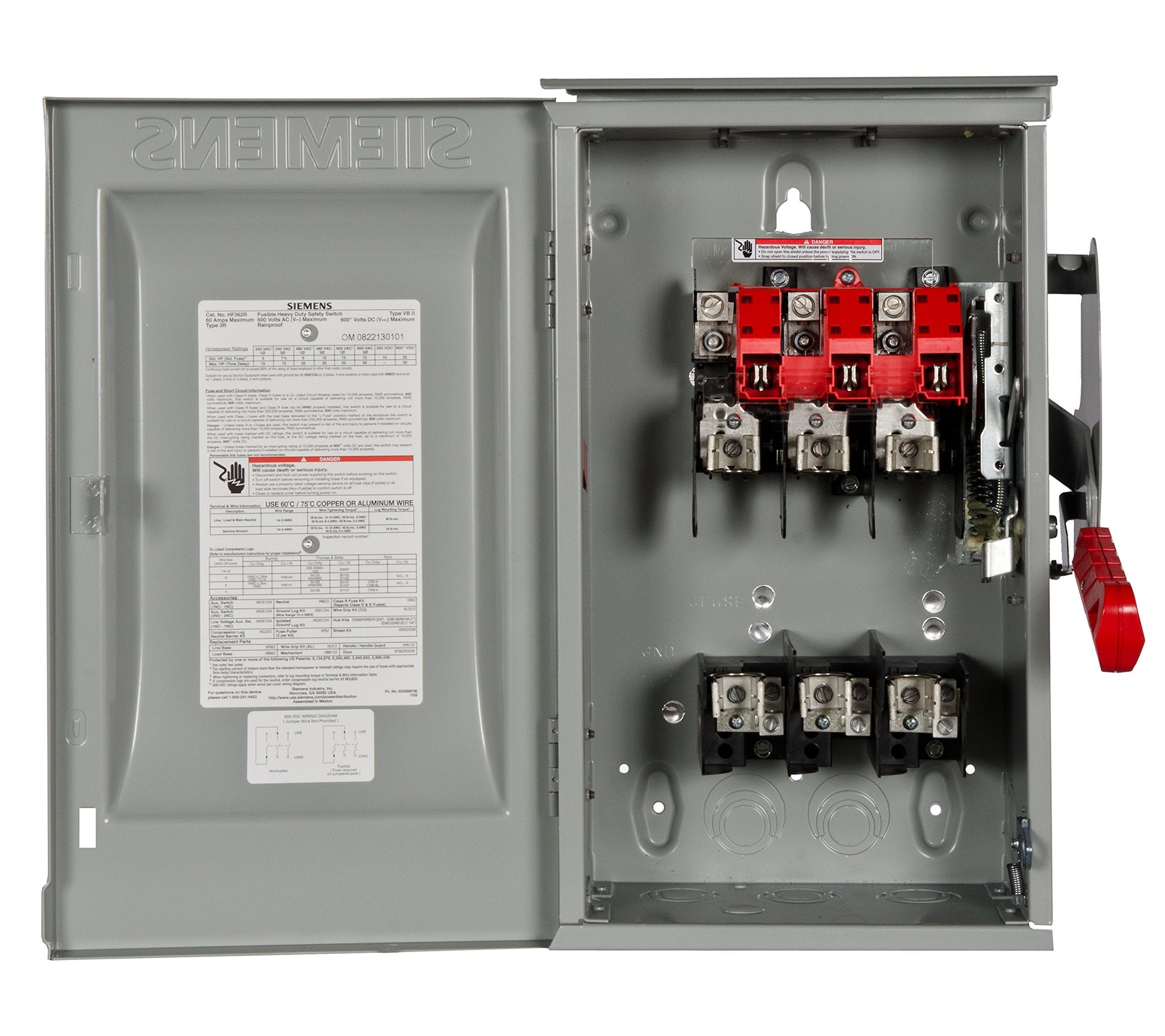

• Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
• This is a 60 Amp, 3 Pole, 600V, 3 Wire, Fused HD, Type 3R
• Quick-make, quick-break operating mechanism that ensures positive operation
• Arc chutes dissipate heat and prolong switch life
• Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals

model number: HF362R

Part Number: HF362R

Details: Siemens heavy duty safety switches are available in 30-1200A ratings and in Type 1, 3R, 12 and 4X enclosures. Both fusible and non-fusible versions are offered. They can be used on circuits that are rated through 200K when protected by or used with Class R or J fuses. They feature quick make and break operation and visible blade construction.

EAN: 0783643151291

Package Dimensions: 20.6 x 13.1 x 7.6 inches
