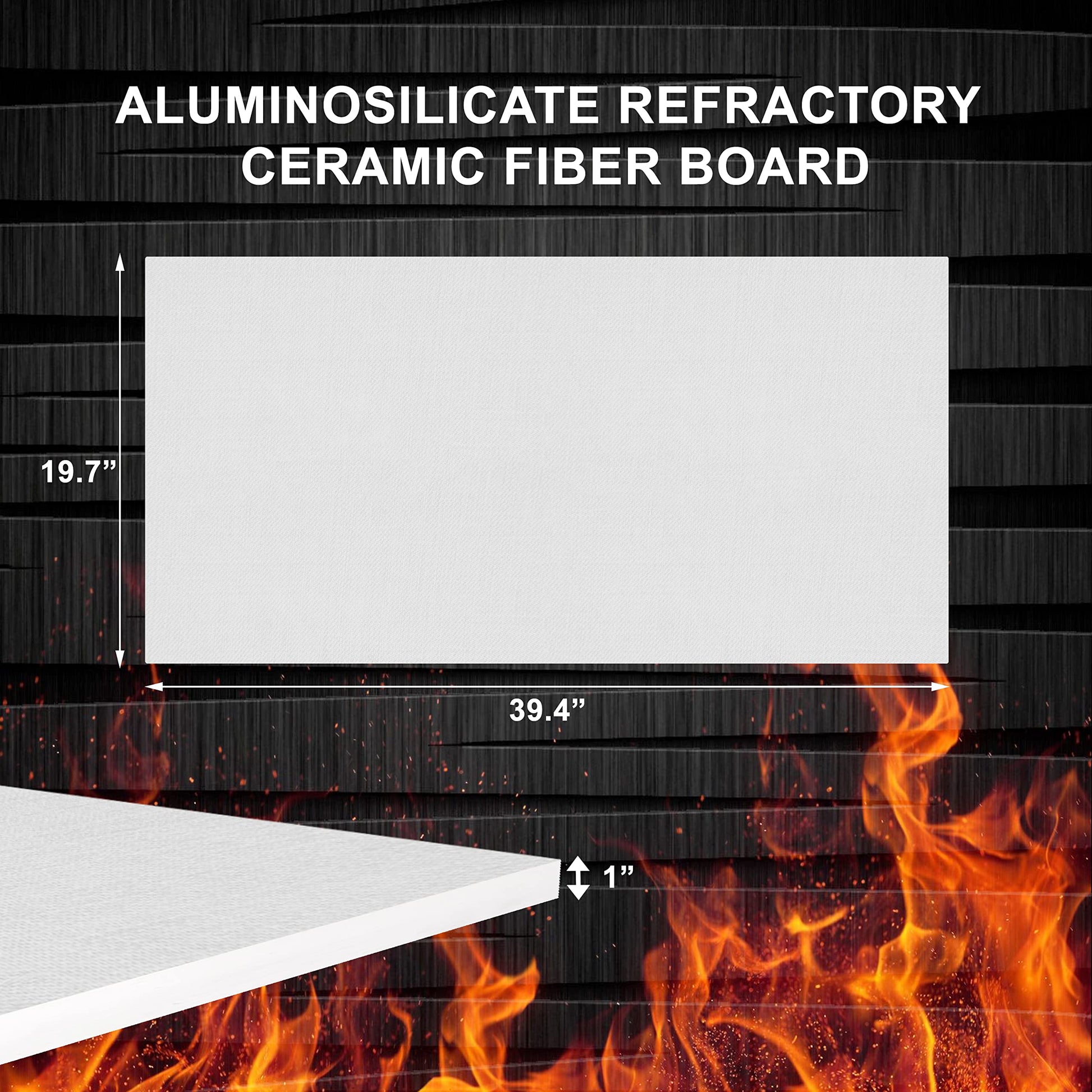

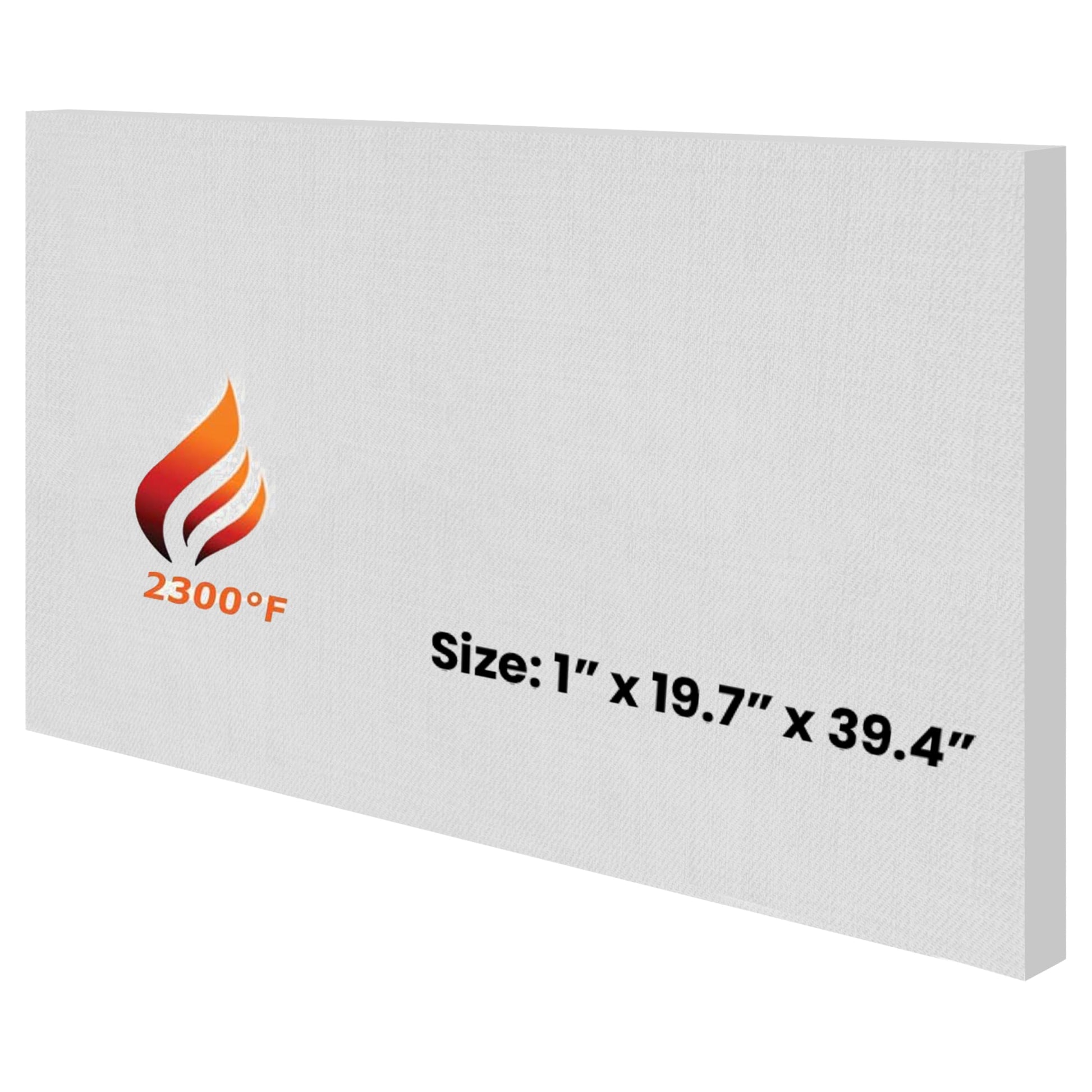

DIMENSIONS - Ceramic fiber insulation board has dimensions of 1 inch (T) x 19.7 inch (W) x 39.4 inch (L)

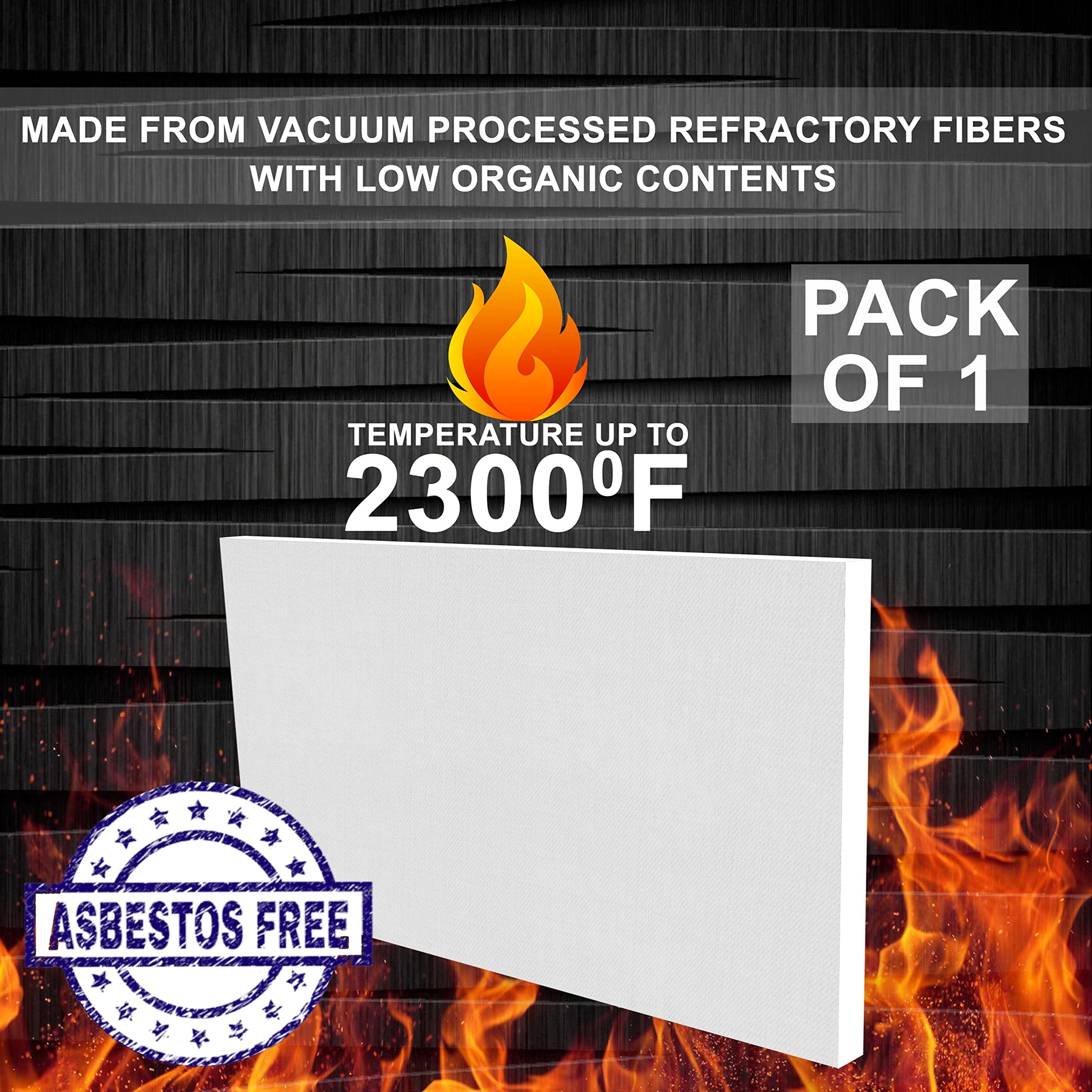

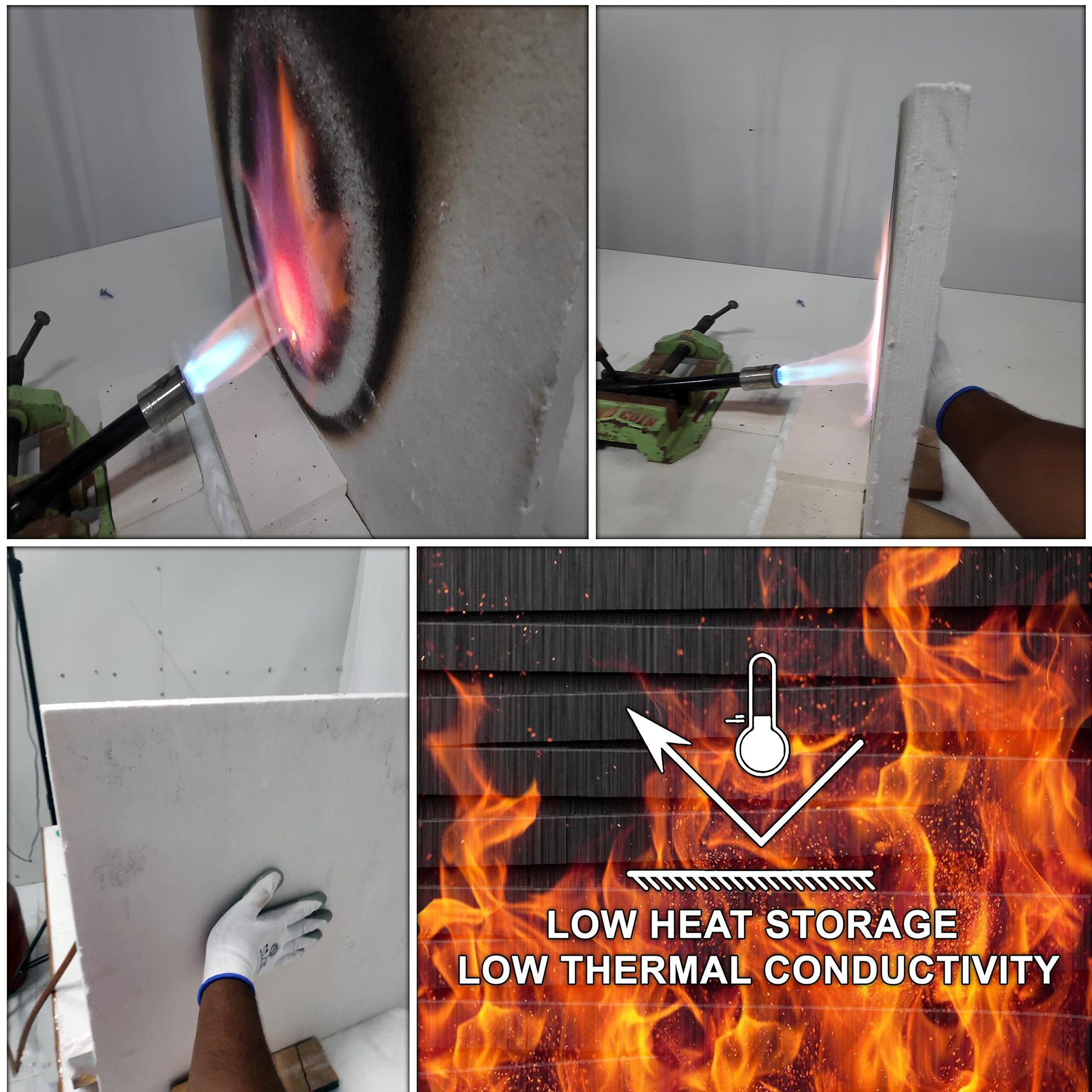

HIGH THERMAL INSULATION - This high temp insulation board has maximum used temperature of 2300F with high density of 20 – 24 lb/ft³

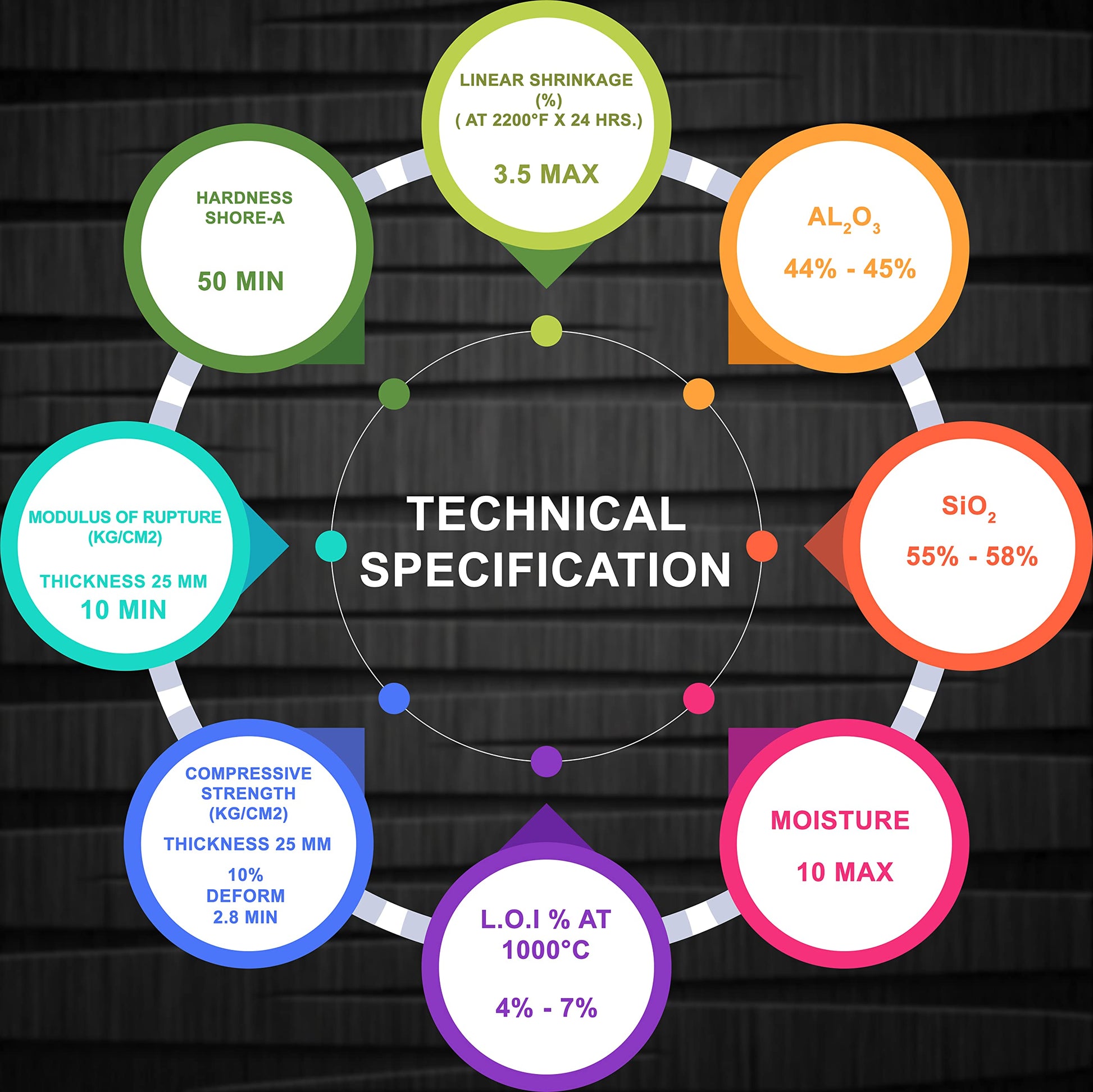

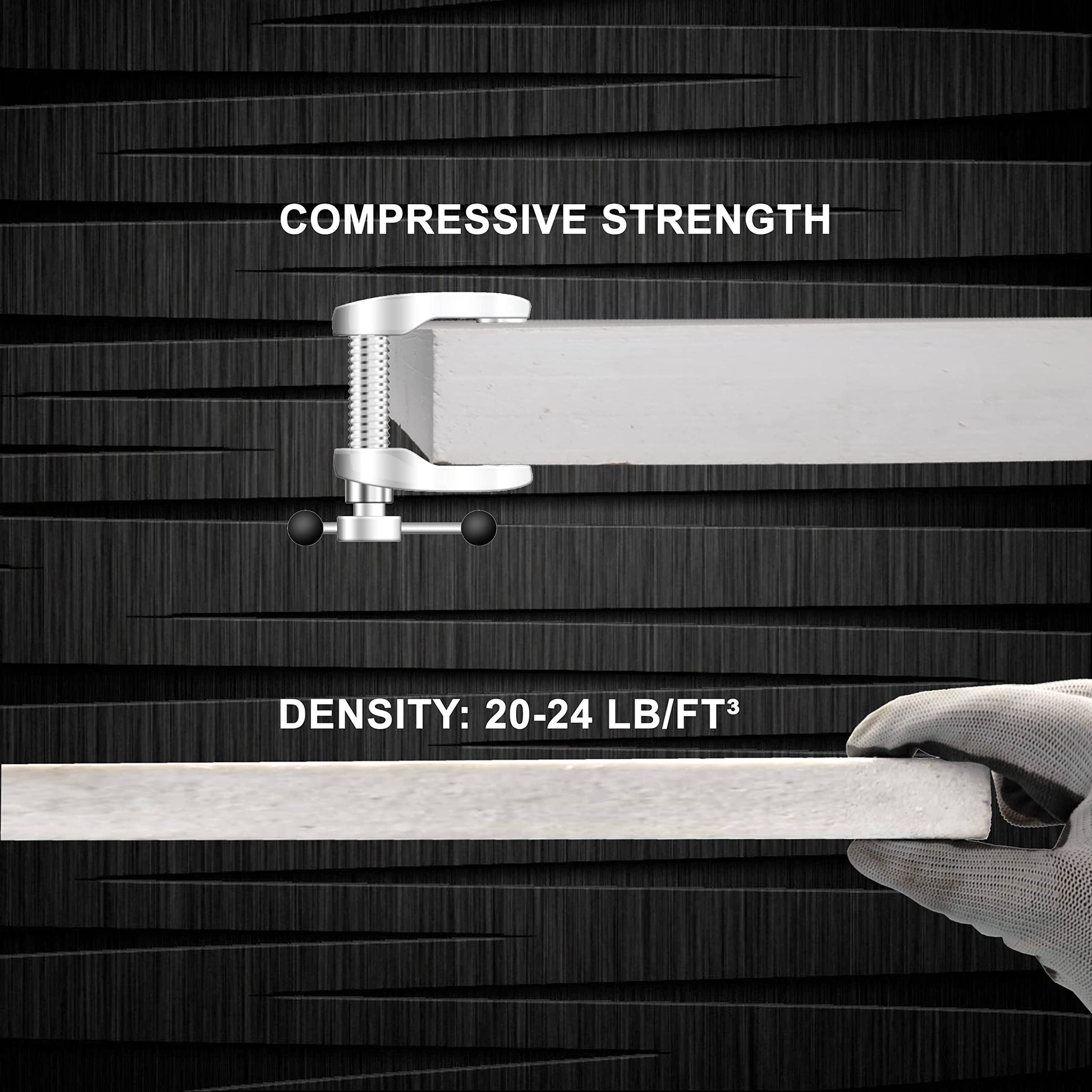

COMPRESSIVE STRENGTH - Vacuum cast ceramic fiber refractory board has a strength at 25% deformation - 78 PSI, Permanent linear shrinkage 3.5% max at 2200F when exposed to 24 hrs soaking heat, Loss on ignition (LOI) at 1832F will be 4-7%
GOOD MACHINABILITY - Ceramic fiber thermal insulation board can be easily cut & used with a hacksaw blade or knife; This fireproof board can also be drilled or machined to match various dimensions as per the requirement of your application

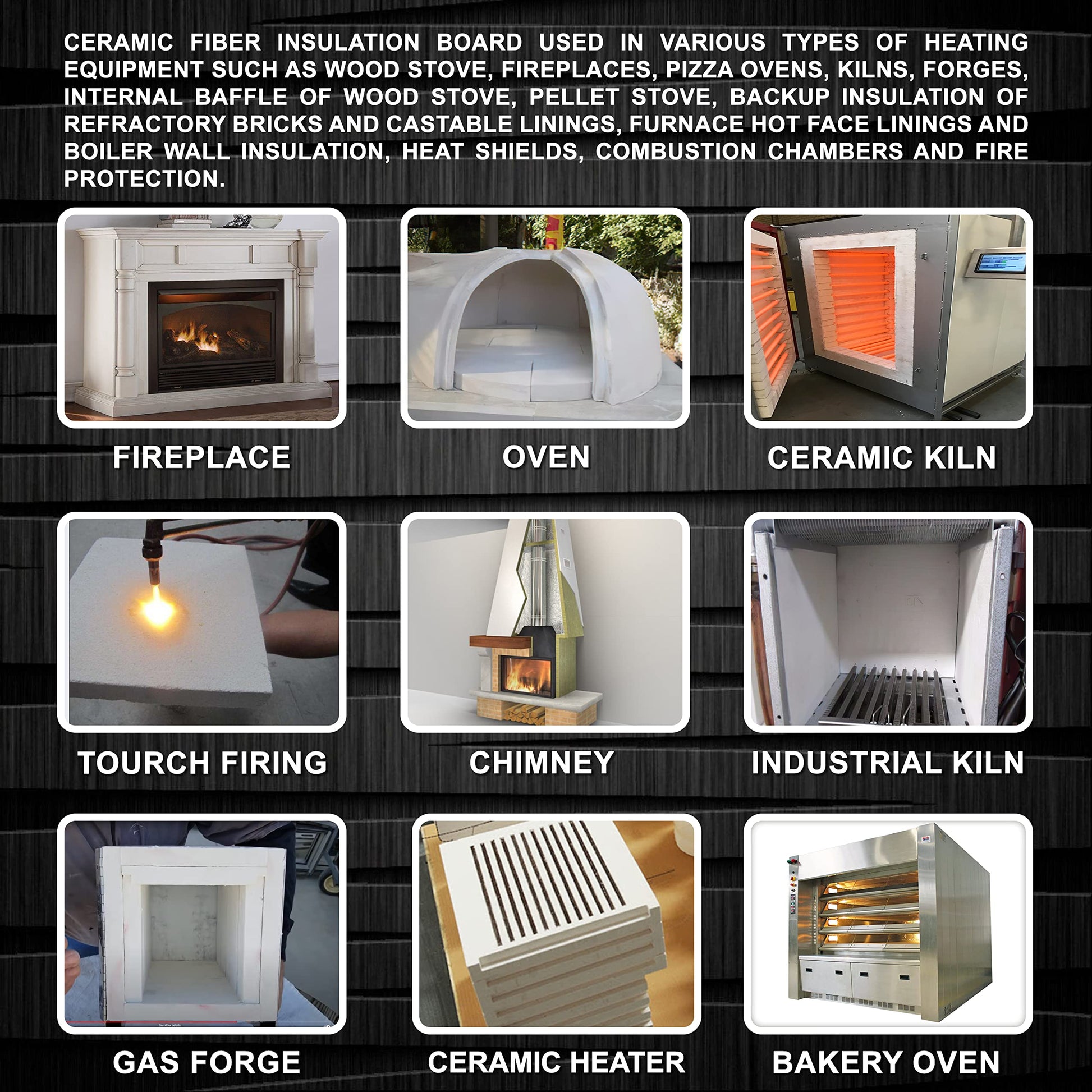

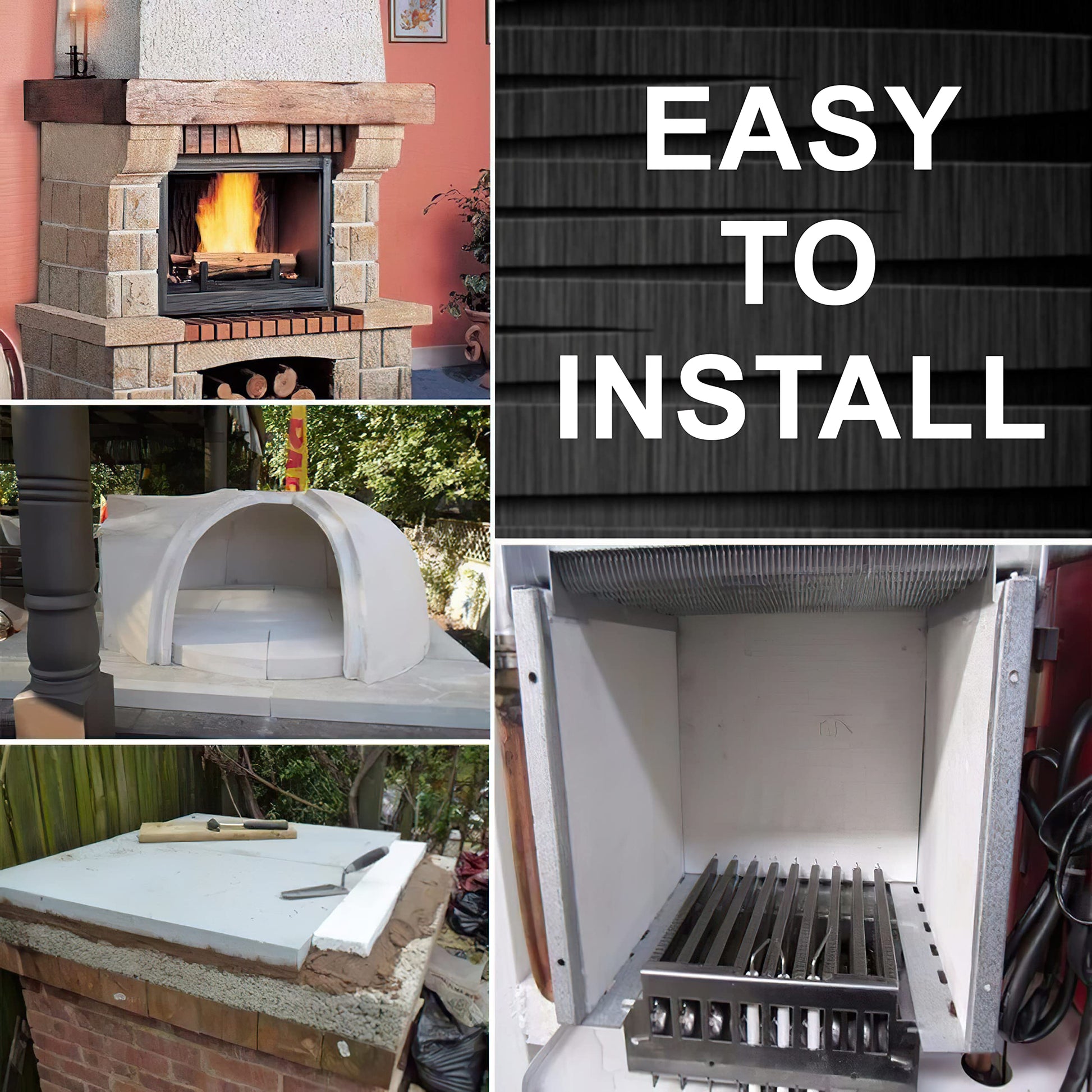

LIMITLESS APPLICATIONS - Ceramic fiber board is used in various types of heating equipment, such as wood stoves, fireplaces, pizza ovens, kilns, forges, internal baffle of wood stove, pellet stove, backup insulation of refractory bricks and castable linings, furnace hot face linings and boiler wall insulation, heat shields, combustion chambers, and fire protection
