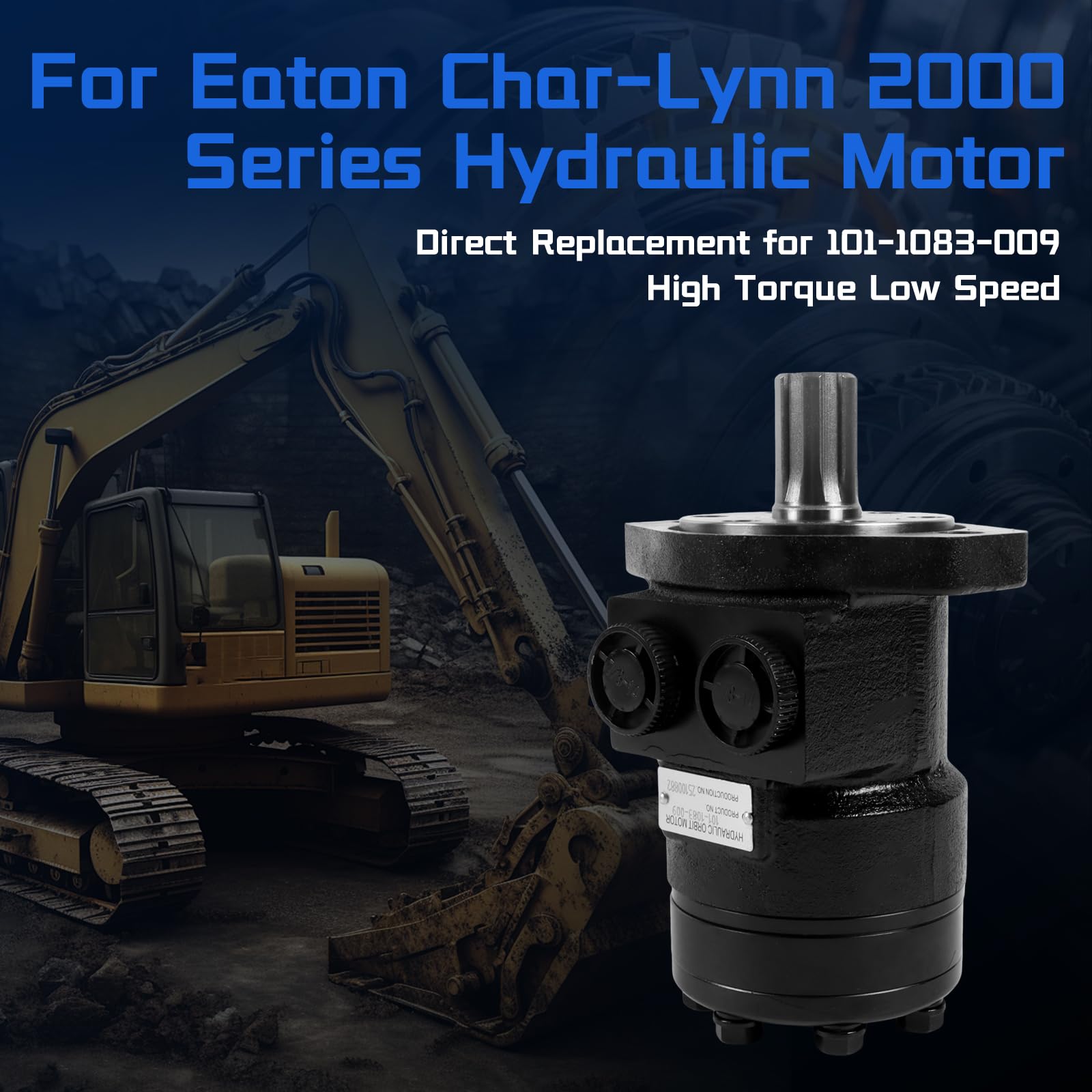

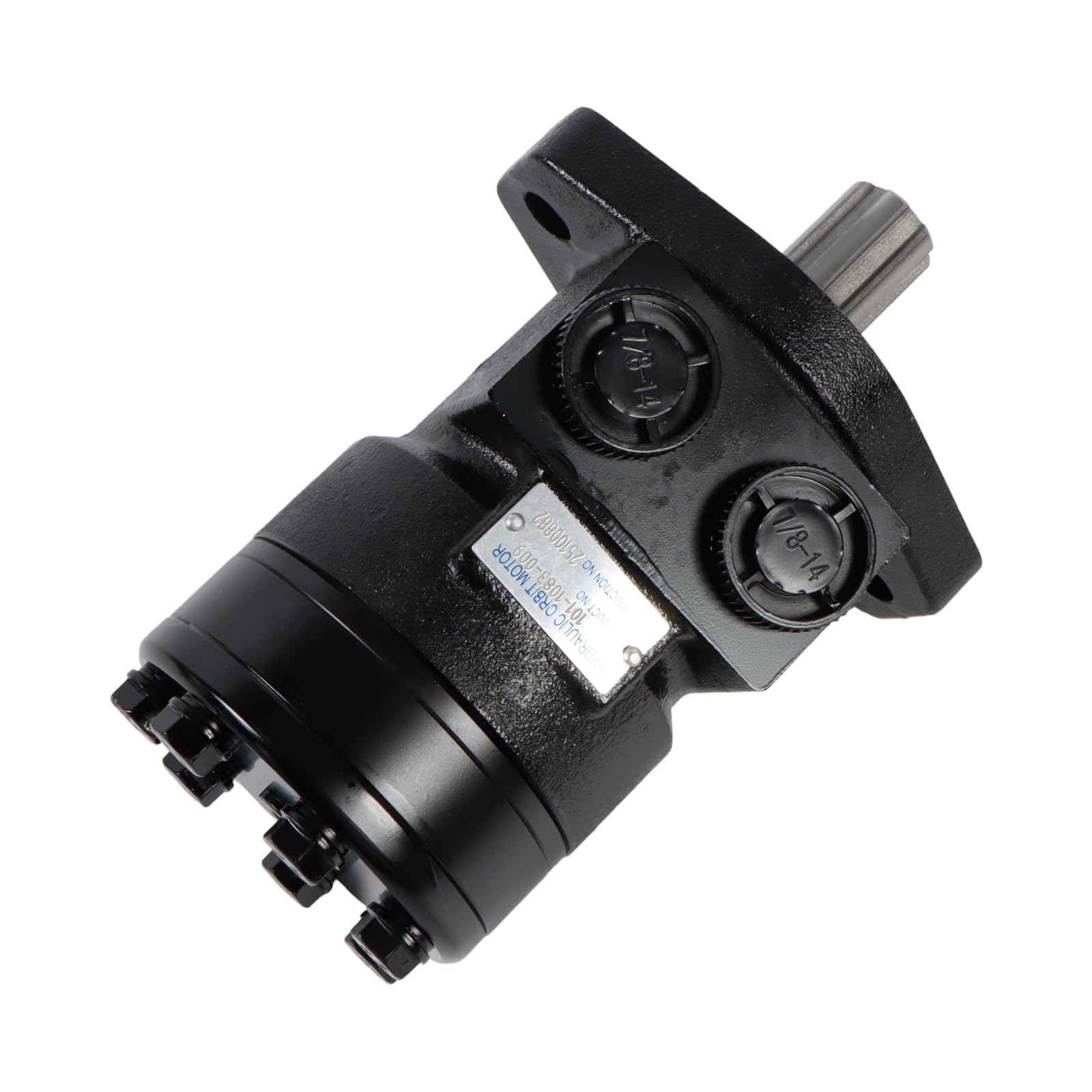

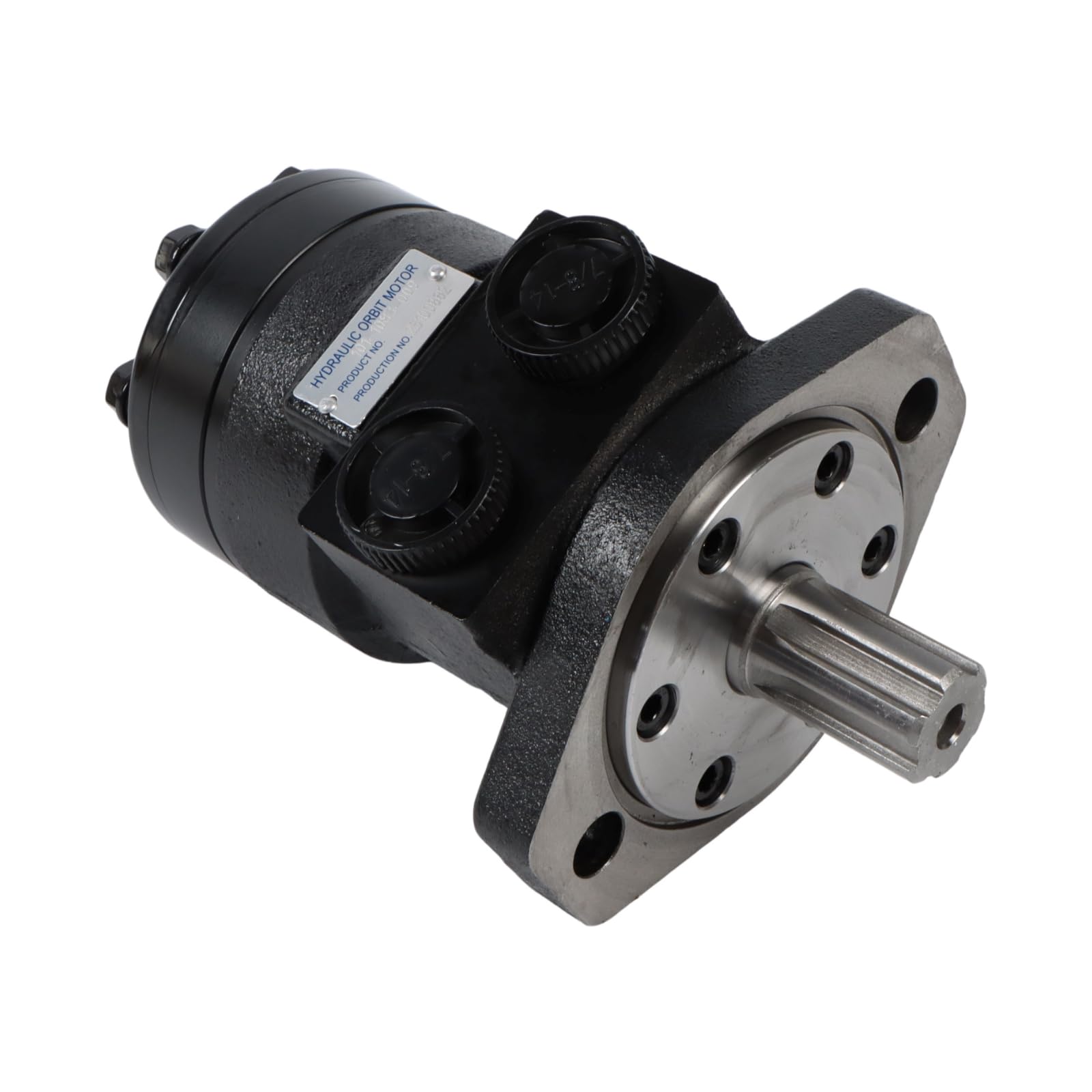

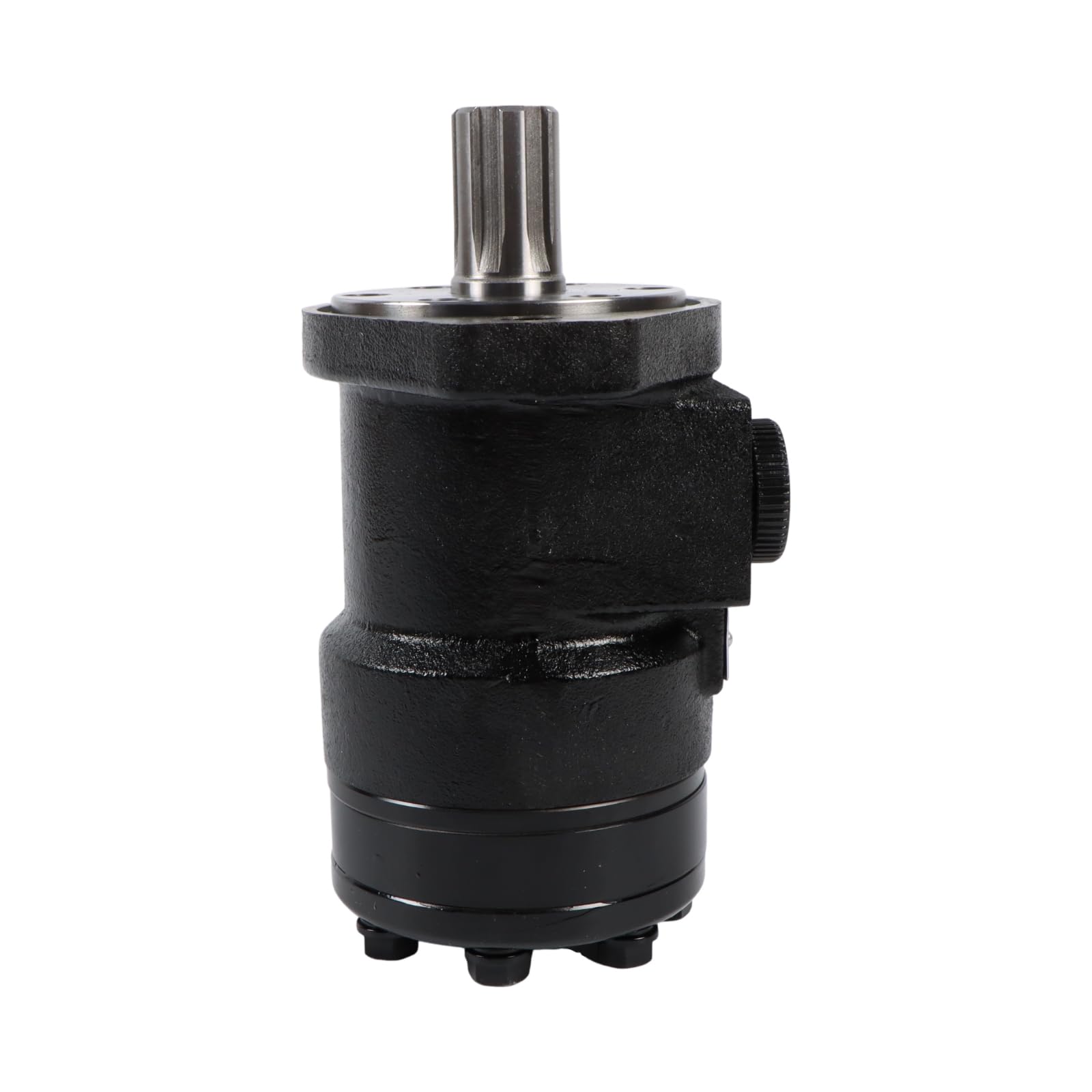

SINOCMP 101-1083-009 Hydraulic Motor Replacement for Char-Lynn H Series, 2-Bolt SAE-A Mount SAE 6B Splined Shaft SAE O-Ring Ports, Low Speed High Torque for Construction Agricultural Machinery

Brand: SINOCMP

Features:

• [🔧] Direct Swap – 5.9 cu/in Displacement: This hydraulic motor 101-1083-009 replaces for Char-Lynn H Series models with 5.9 cu in/rev (96 cc/rev) displacement. The 2-bolt SAE-A flange mount with 3.248 inch pilot diameter and 4.187 inch bolt circle lets this 101-1083-009 hydraulic motor bolt directly onto agricultural equipment, conveyors, and turf care machinery without modifications.
• [⚙️] Splined Shaft – SAE 6B with 1 Inch Diameter: This H series hydraulic motor features a 1 inch SAE 6B splined shaft with 1/4-20 UNC-2B threaded end hole. The splined shaft design on this 101-1083-009 replacement hydraulic motor provides secure torque transmission without key wear issues, making it ideal for demanding low-speed high-torque applications.
• [🛢️] SAE O-Ring Ports – 7/8-14 UNF-2B: For Char-Lynn style hydraulic motor features 7/8-14 UNF-2B SAE O-ring side ports for reliable leak-free sealing. The O-ring design on this 101-1083-009 hydraulic motor creates connections without thread sealant, saving installation time on agricultural and industrial equipment. No case drain required.

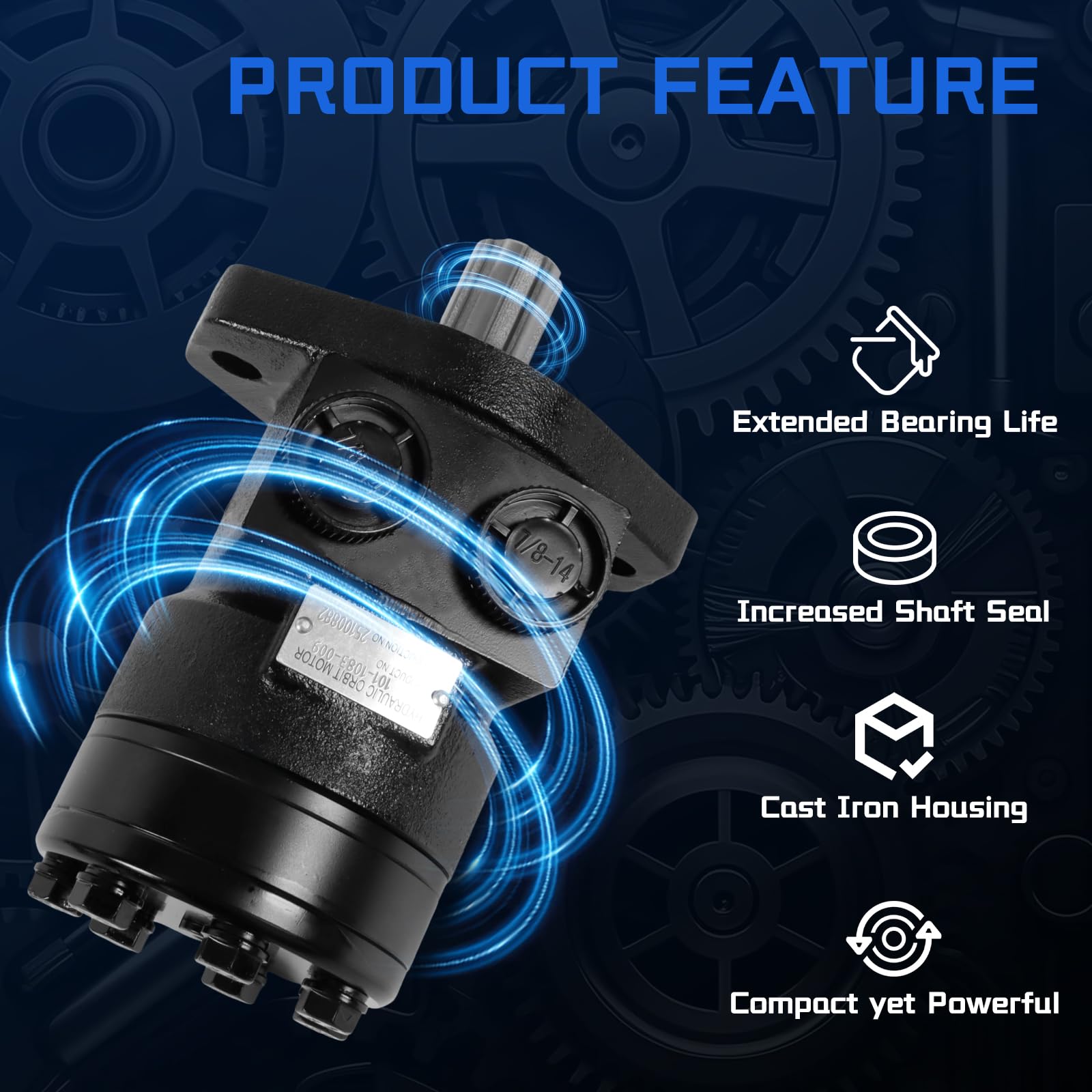

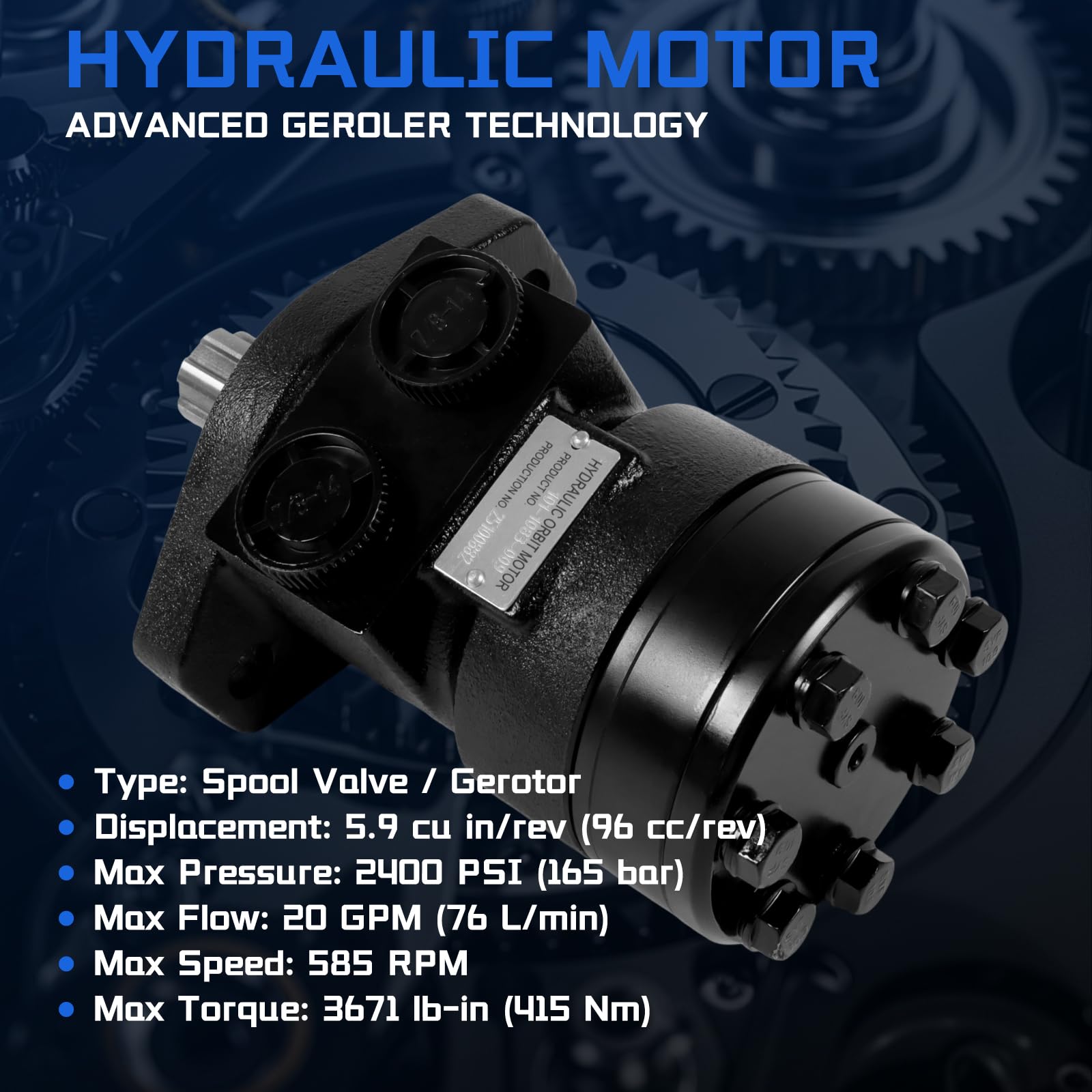

• [🏗️] Spool Valve Design – High Efficiency: This 101-1083-009 replacement hydraulic motor uses proven spool valve technology with hydrodynamic journal bearings for infinite bearing life at rated loads. The design combines valving and bearings into a common shaft, offering instant shaft reversal by simply changing flow direction and smooth operation across the entire speed range.
• [📦] Ready-to-Install – Complete Assembly: Box contains one hydraulic motor 101-1083-009 with primer low gloss black finish. Important: Verify 3.248 inch pilot diameter, 2-bolt pattern (4.187 inch bolt circle), and SAE 6B splined shaft before ordering. Flush hydraulic lines prior to installation. Max operating temp 180°F. Replacement seal kit available.

model number: Char-Lynn Eaton H Series

Part Number: 101-1083-009

Details: Complete Specifications

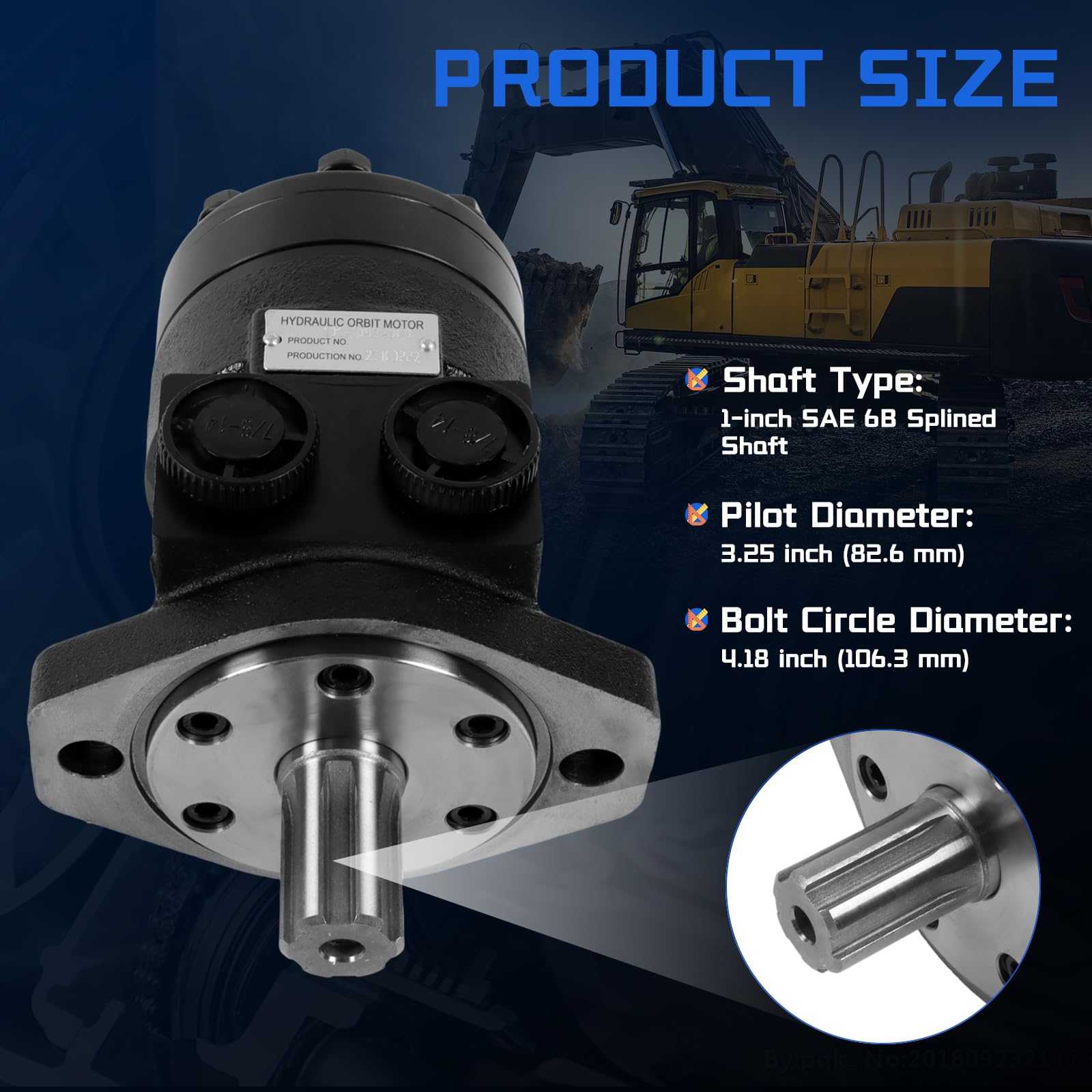

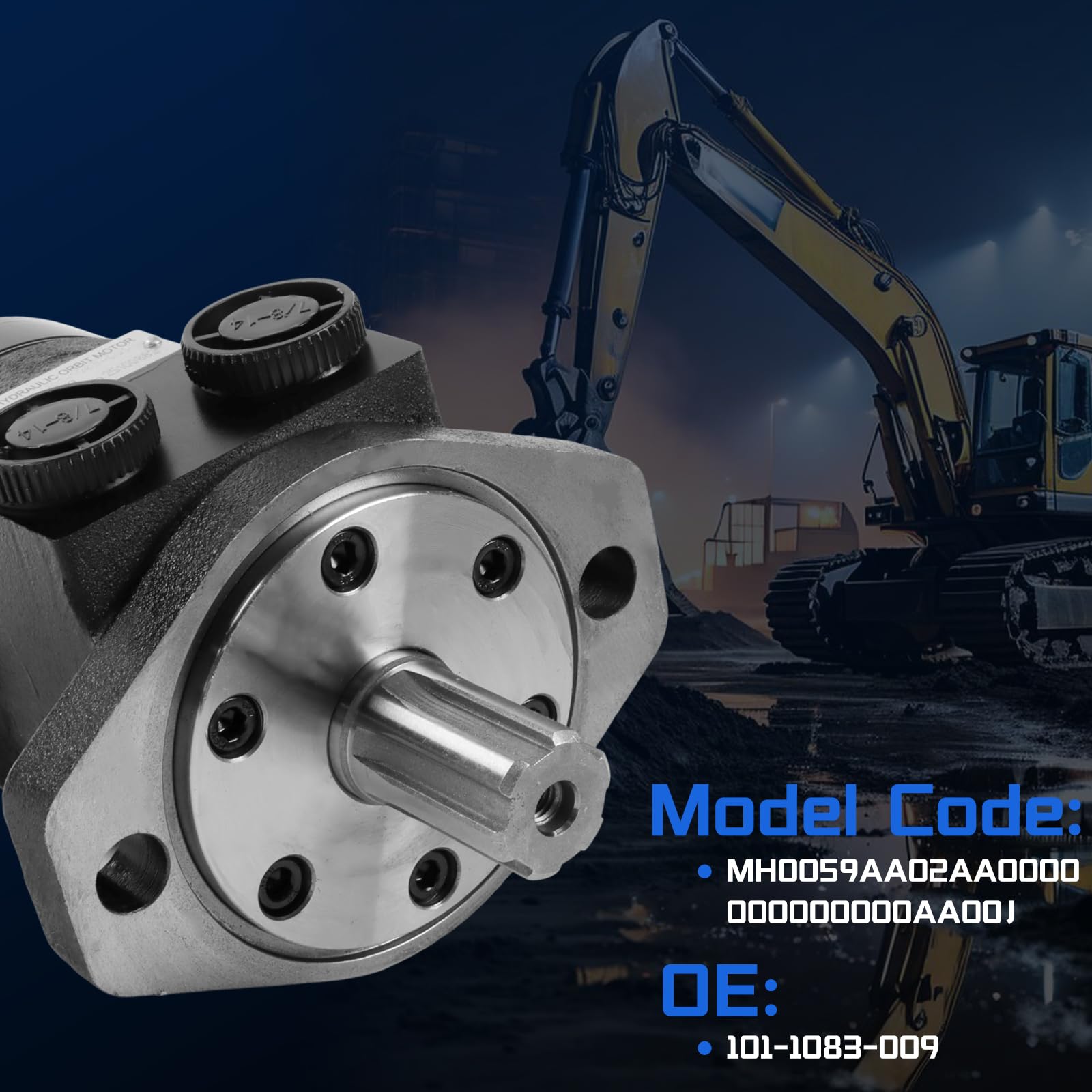

Model Number: 101-1083-009 Model Code: MH0059AA02AA0000000000000AA00J Series: H Series Displacement: 5.9 cu in/rev (96 cc/rev) Mounting Type: 2-Bolt SAE-A Standard Flange Pilot Diameter: 3.248 inch (82.50 mm) Bolt Circle: 4.187 inch (106.35 mm) Mounting Hole Size: 0.535 inch (13.59 mm) Shaft Type: SAE 6B Splined, 1 inch Diameter Shaft End Thread: 1/4-20 UNC-2B Port Type: 7/8-14 UNF-2B SAE O-Ring Port Location: Side Ports Case Drain: None Housing: Cast Iron, Primer Low Gloss Black Seal Type: Standard Seals Max Operating Temperature: 180°F (82°C) Weight: Approx 5.7 kg (12.6 lbs)

Compatibility Information

This 101-1083-009 hydraulic motor serves as a replacement for Char-Lynn Eaton H Series applications. It is compatible with the following configurations: 101-1083-009 (primary model number) 101-1083 (base model) OMPH/BMPH series replacement motors MH0059AA02AA0000000000000AA00J (For Danfoss model code)

Installation Notes

⚠️ Verify pilot diameter (3.248 inch), bolt pattern (2-bolt on 4.187 inch circle), and shaft type (SAE 6B splined) before ordering
⚠️ Flush hydraulic lines prior to installation to remove contaminants
⚠️ The mounting bracket must have sufficient rigidity to withstand torque reaction forces
⚠️ Ensure the connected shaft is concentric with the motor output shaft. Use flexible coupling if misalignment cannot be avoided
⚠️ Before first startup, fill the motor housing with clean hydraulic oil to prevent damage
⚠️ Use premium anti-wear hydraulic oil. Maintain proper filtration according to system requirements
⚠️ Cleanliness is critical. Work in a clean area when servicing hydraulic motors

Package Dimensions: 12.5 x 7.3 x 7.2 inches
