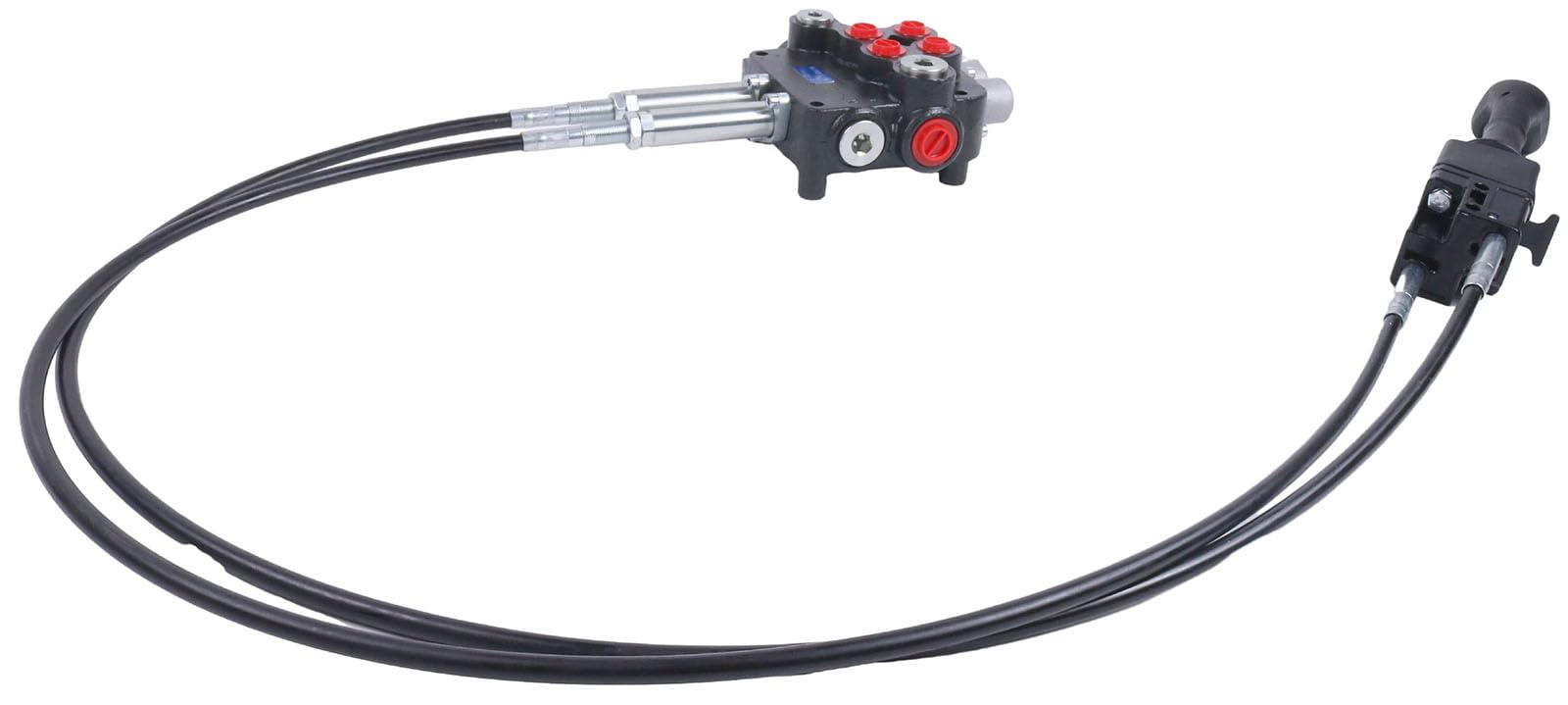

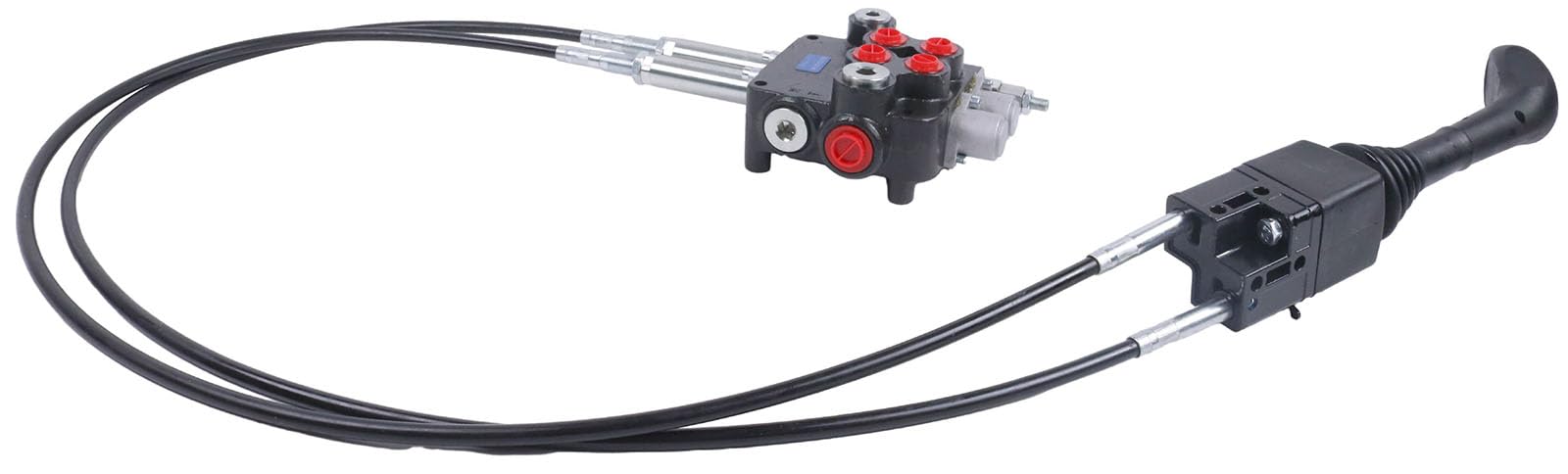

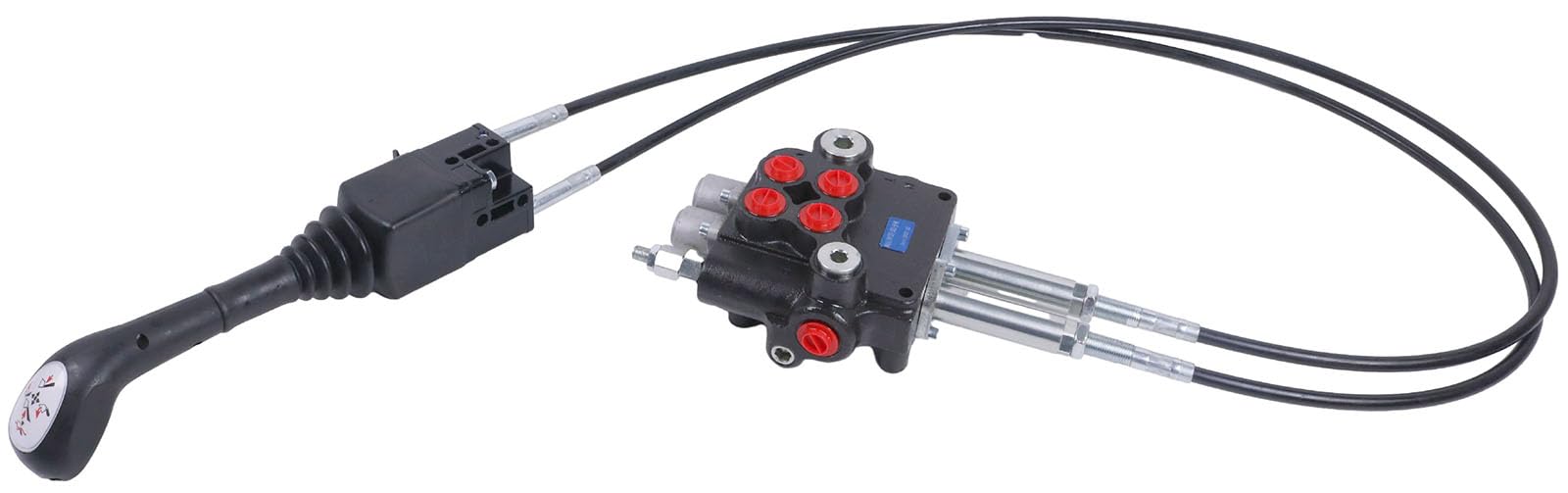

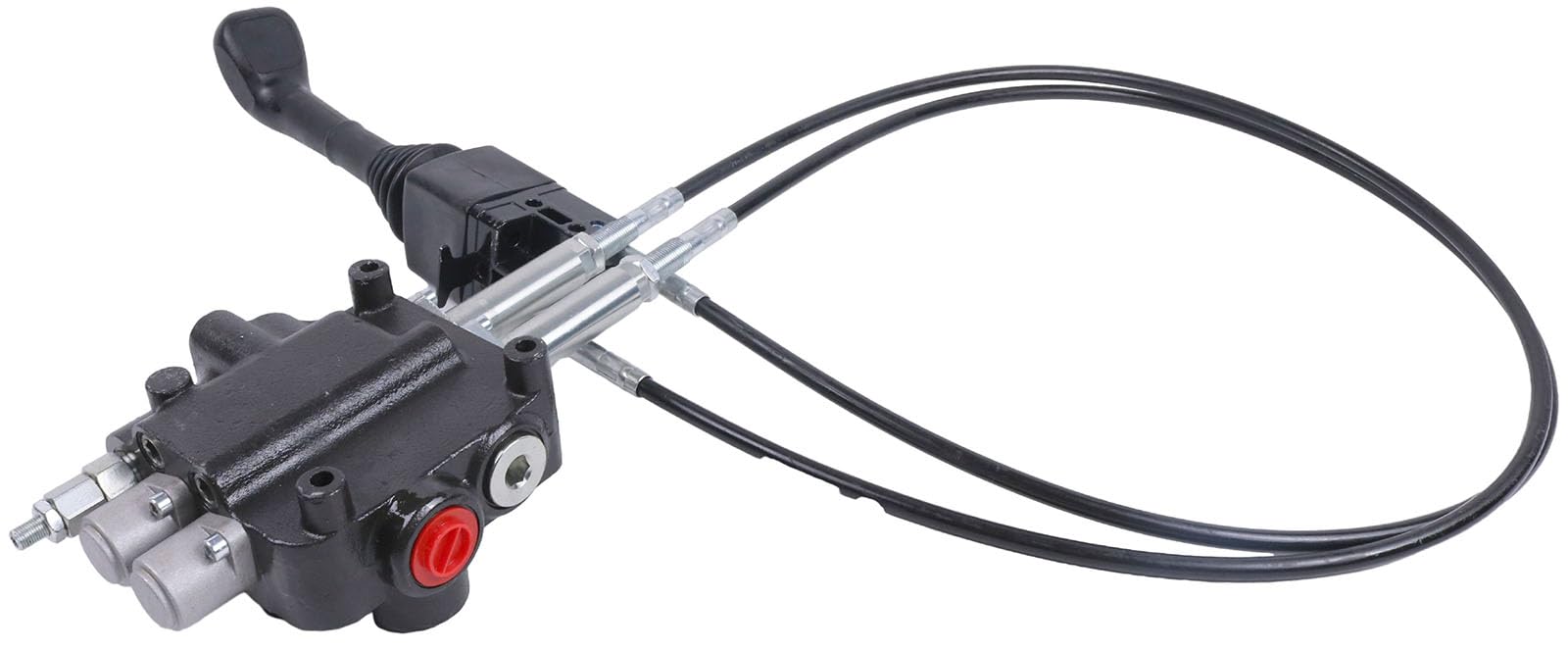

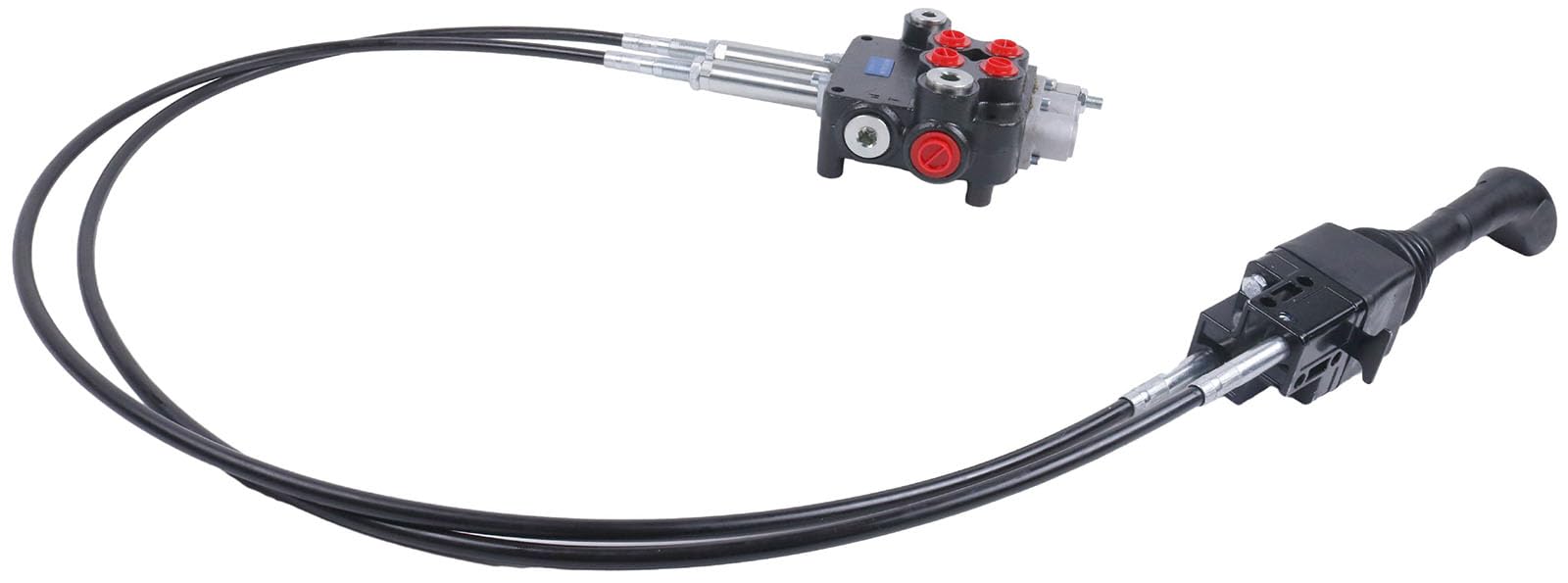

Solarhome Hydraulic Control Valve Kit,Cable Remote Control Valve Kit with 2 Spool Valve 80lpm/ 21gpm and 2 Cables Remote Joystick

Brand: Solarhome

Color: Black

Features:

• Specification: Model: P80, 2 Spool; Nominal flow: 21gpm (80l/min)
• Max. working pressure: 25MPa (3625PSI); Relief valve pressure: 17MPa, Adjustable
• Applicable temperature: -20～80℃; Max operating pressure P = 3600psi (250 bar); T = 150psi (10 bar); A , B = 4300psi (300 bar)
• P, A, B ports: G 1/2' T, N port: G 3/4'
• Package Includes: 1× 2 Spool Valve + Cables + Joystick

model number: HV-P80-2B

Part Number: Hydraulic Control Valve Kit

Details: Specification:
Model: P80, 2 Spool
Nominal flow: 21gpm (80l/min)
Max. working pressure: 25MPa (3625PSI)
Relief valve pressure: 17MPa, Adjustable
Applicable temperature: -20～80℃
Max operating pressure P = 3600psi (250 bar); T = 150psi (10 bar);
A , B = 4300psi (300 bar)
P, A, B ports: G 1/2'
T, N port: G 3/4'
Features:
O function, spring reset
Open center system (pump-to-tank flow)
Flexible shaft + one control and two handles (flexible shaft 1.5m)
All spools are standard double acting with spring return in neutral
position
Package Includes:
1× 2 Spool Valve + Cables + Joystick

Package Dimensions: 24.8 x 9.6 x 5.0 inches
