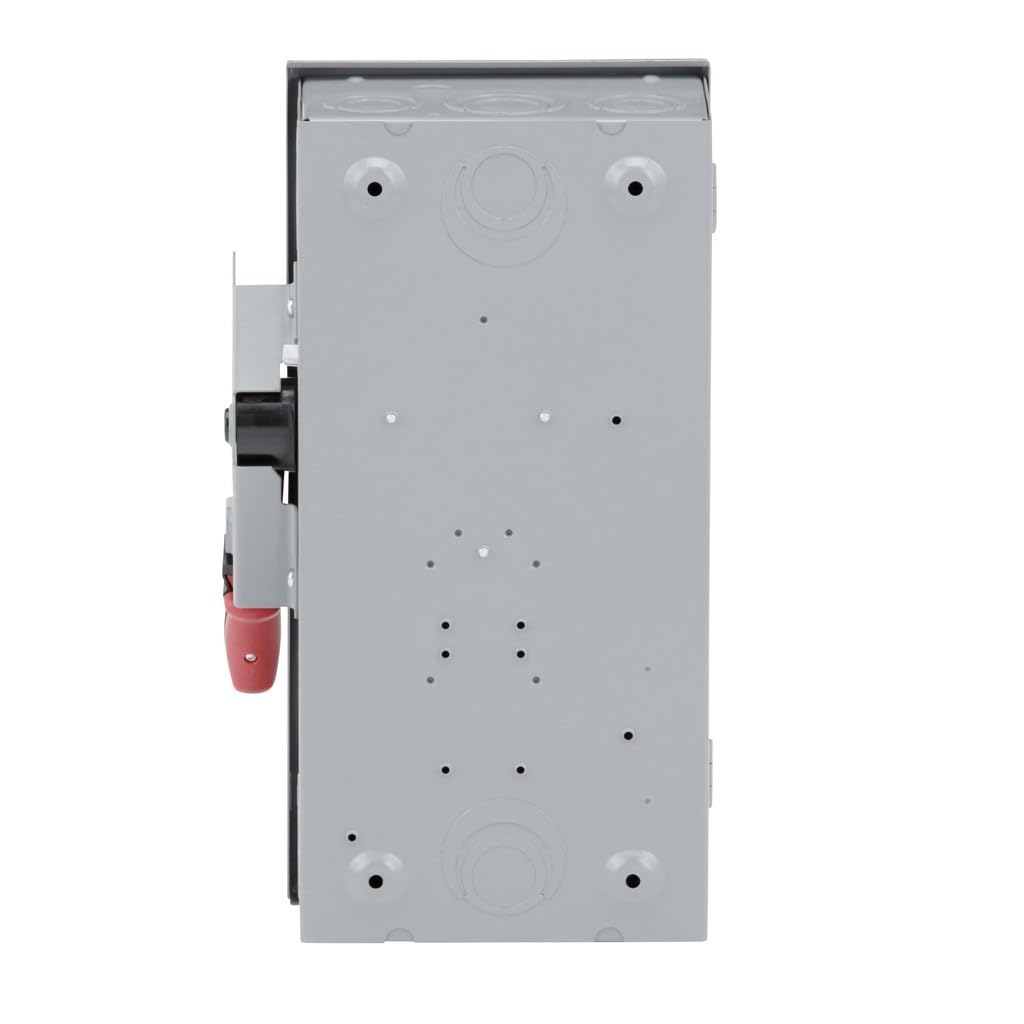

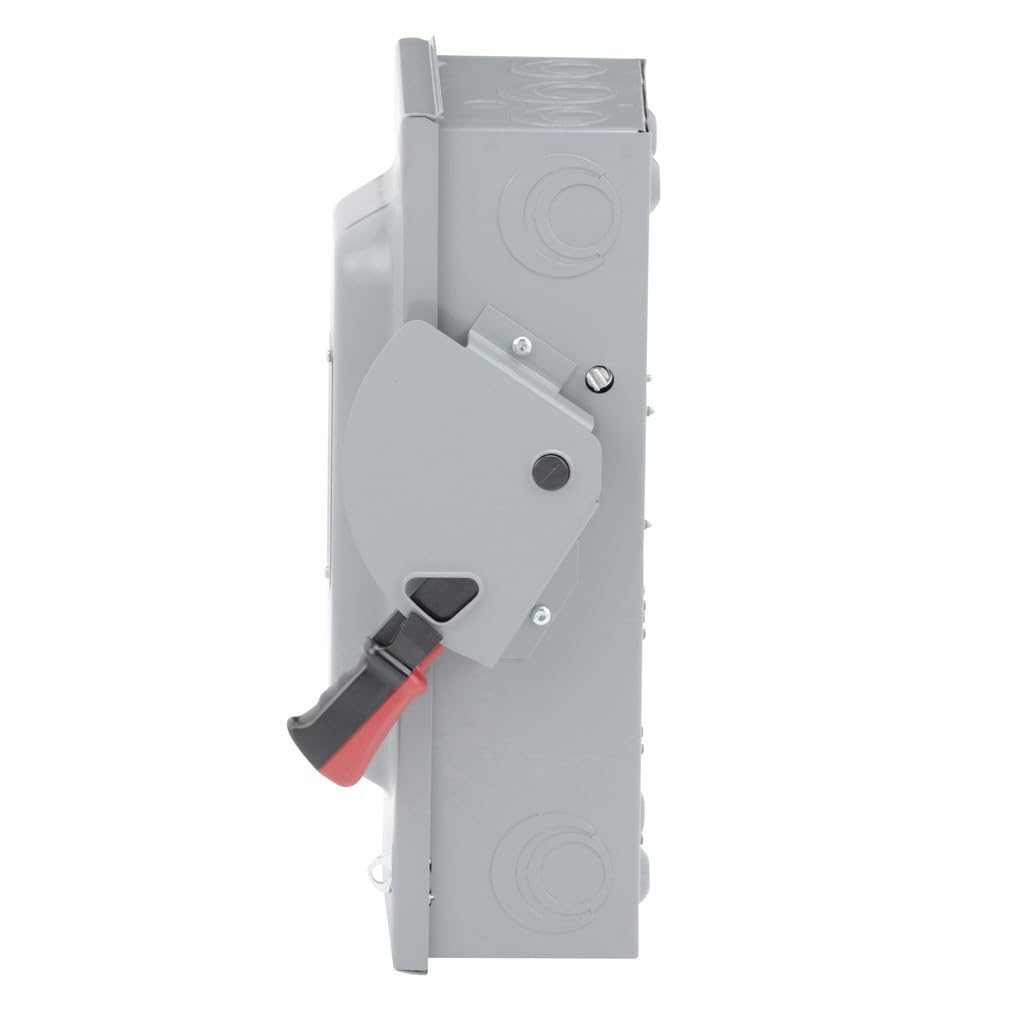

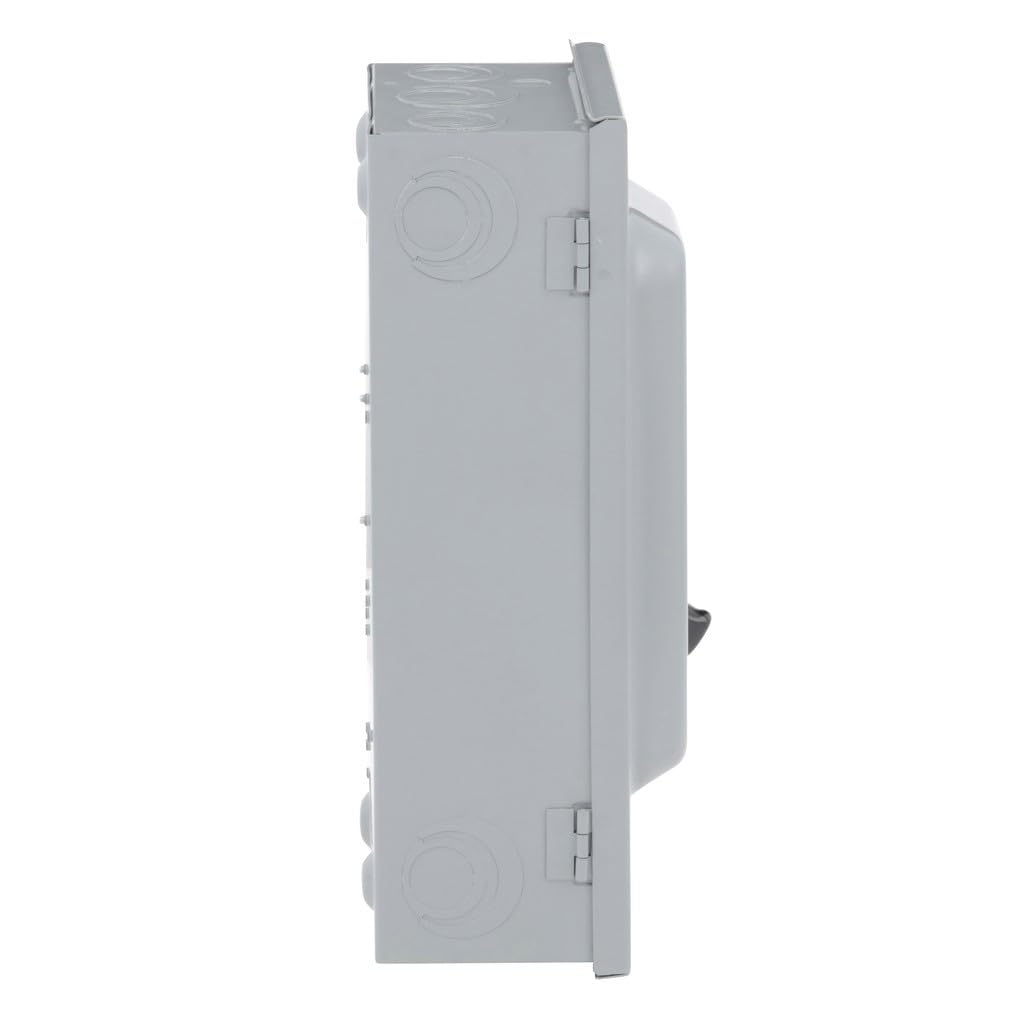

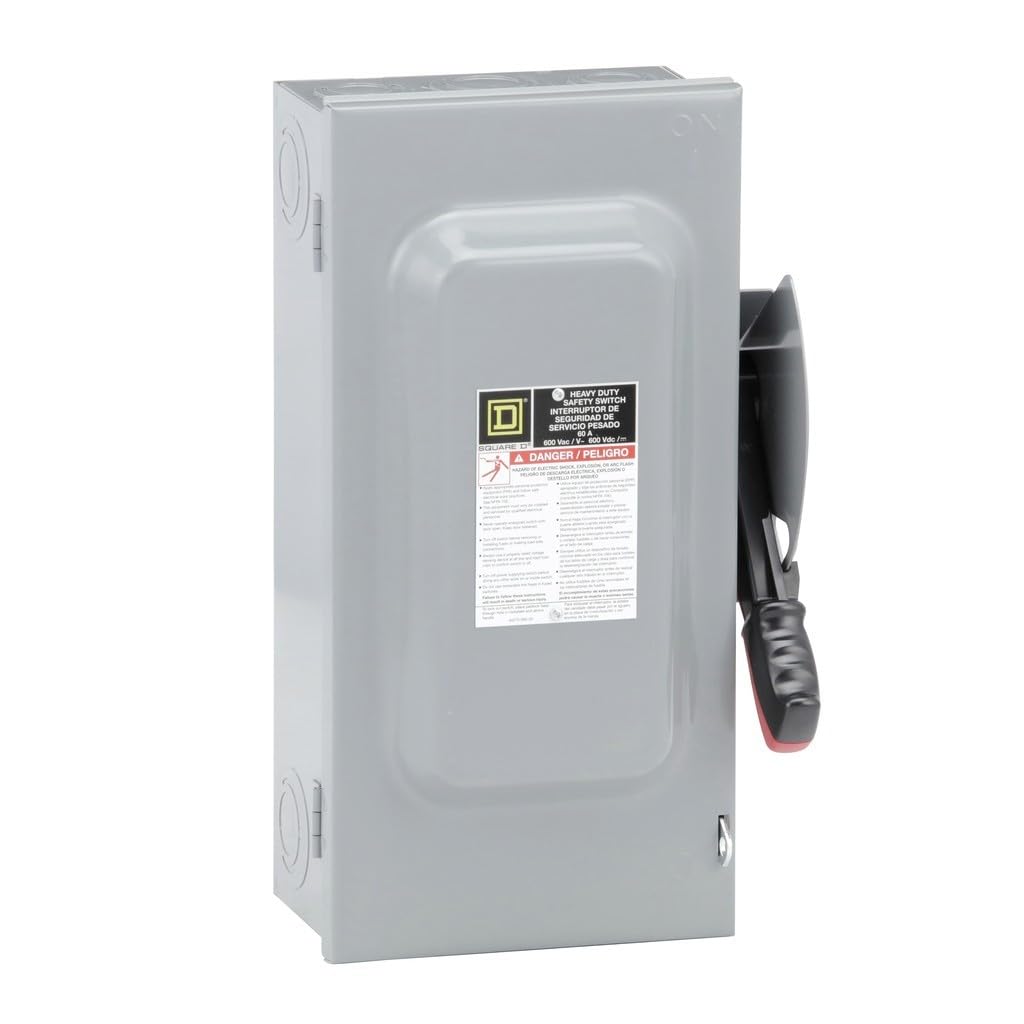

Square D by Schneider Electric Square D - HU362 Heavy Duty Safety Switch, Non-Fusible, 60-Amp, 600V, 3-Pole, Indoor

Brand: Schneider Electric

Color: Gray

Features:

• Single Throw Heavy Duty Safety Switch
• NEMA 1 steel
• Short Circuit Current Rating: 200 kA maximum
• Surface Mounting Type
• UL Listed

model number: HU362

Part Number: HU362

Details: The Square D by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptiol performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 60A and is UL listed with a NEMA 1 rating of protection. This 3-pole switch has operatiol voltage ratings of 600VAC/DC. The enclosure is made of steel and has no neutral installed. This non-fusible disconnect has a short circuit current rating of 200kA. This safety switch is surface mounted. This switch comes with an 18 months warranty.

EAN: 0785901505808

Package Dimensions: 20.0 x 10.0 x 8.0 inches
