SWP63 | Sturdi-Wall Plus Wet Set Bracket 3-Ply 2x6 | Heavy Duty Structural Concrete Anchor for Post Frame Construction | Tri State Perma-Column

Brand: Perma-Column LLC

Color: Silver

Features:

• Made of 100% American-made Steel, Robotically Welded
• Easily Fasten Post-Frame Structure to Concrete Footer Foundation
• Brackets are Used in a Wet Set Concrete Application and Work Well in Pier Foundations, Post Repair, and Renovations
• An Effective Solution to Using Post-Frame with a Concrete Footer Foundation
• Hardware Included for Ease of Installation

model number: SWP63

Part Number: SWP63

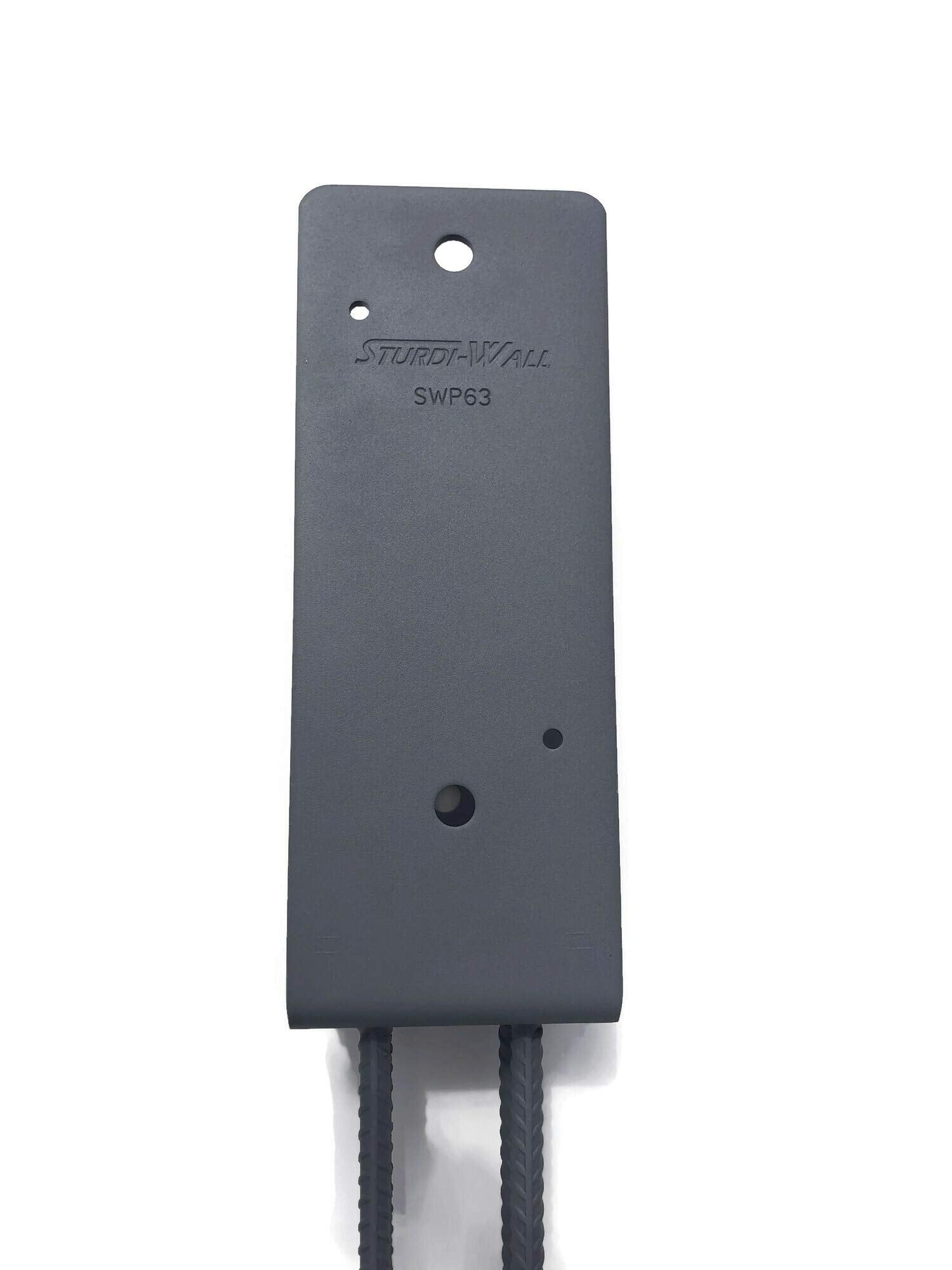

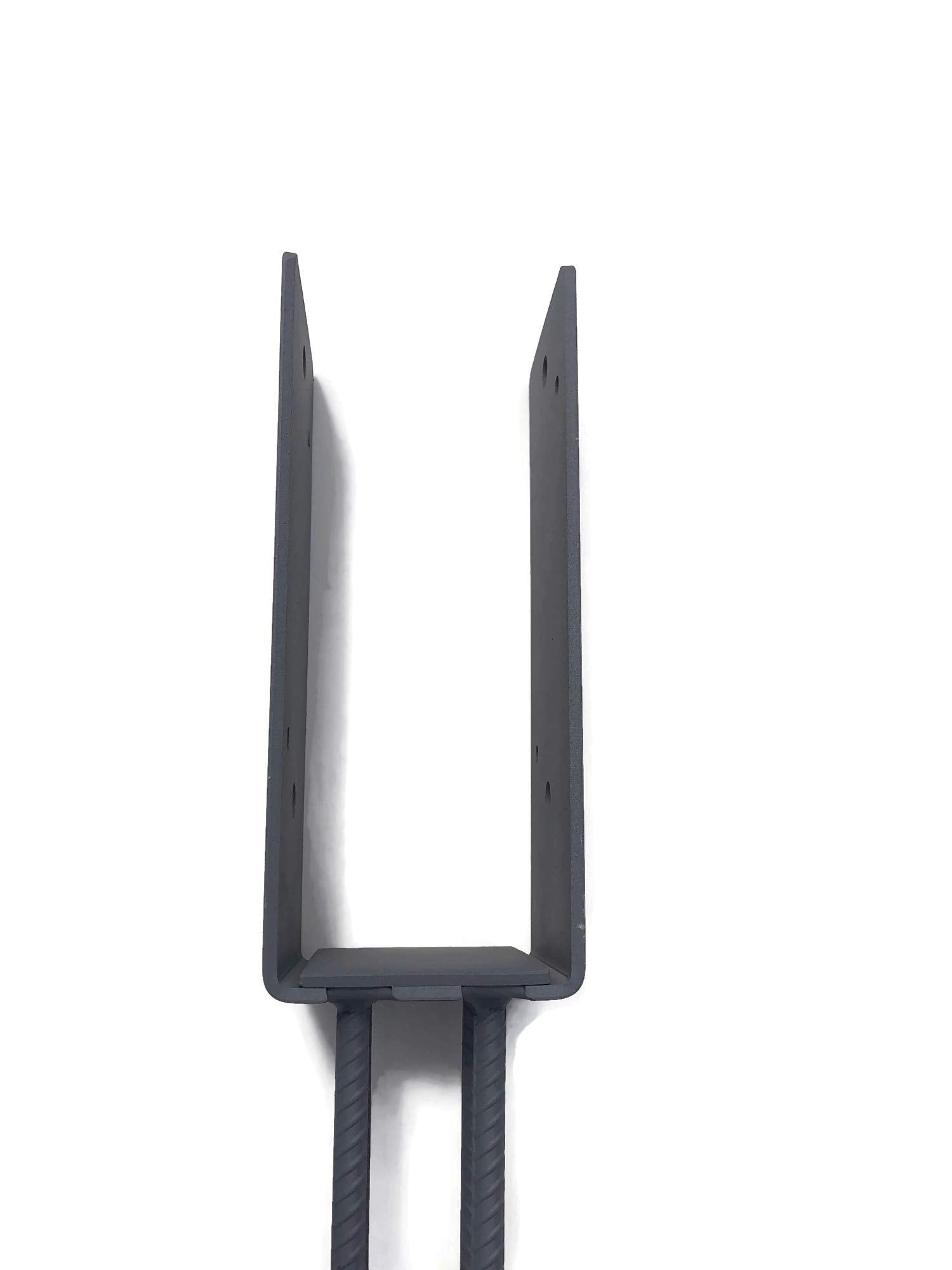

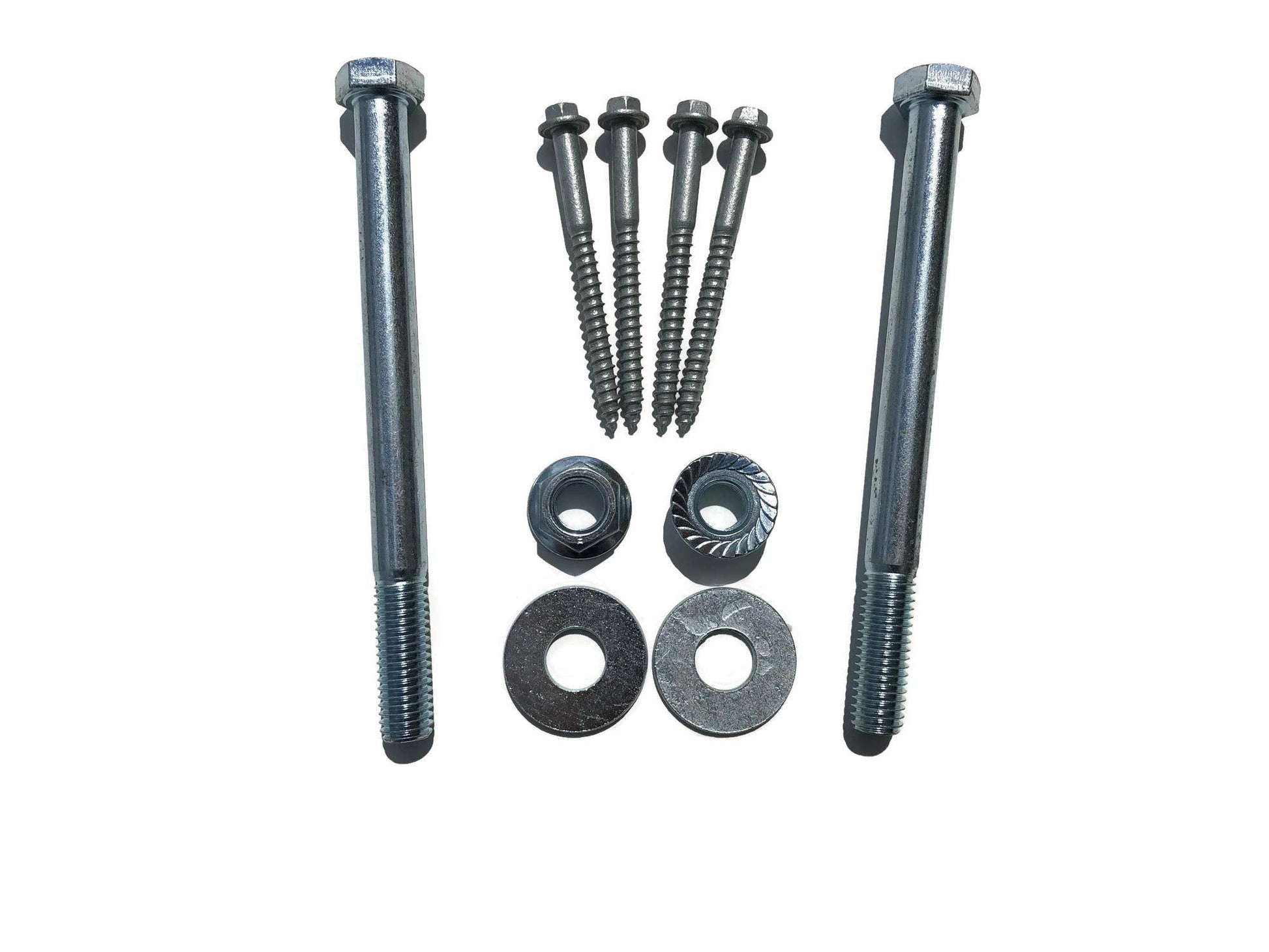

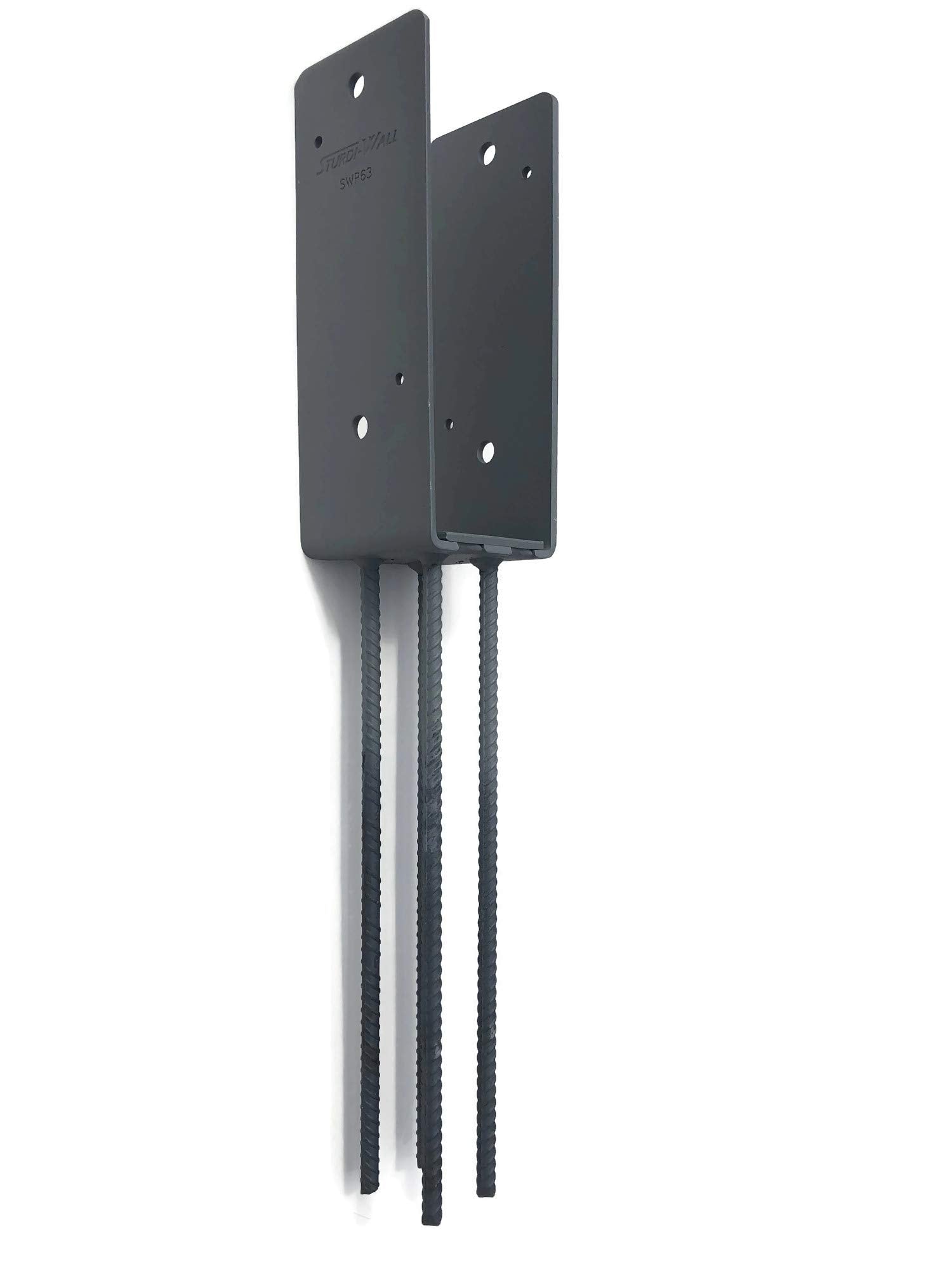

Details: The SWP63 Sturdi-Wall Plus Wet Set Bracket (3-Ply 2x6) is a high-strength, engineered anchoring system designed to secure wood posts into wet-set concrete. Made from 1/4' steel plate and A706 rebar (#4 or #5 depending on model), each bracket is precision welded to meet engineering specs and finished with a baked polyester powder coat. This heavy-duty concrete anchor provides maximum strength and structural integrity when the concrete is fully cured. Ideal for post-frame construction, pier foundations, renovations, and post-repair. Designed to accommodate both dimensional lumber and laminated columns without additional machining. Hardware included for ease of installation: (2) 1/2'-13x5' Hex Head Bolt - Grade 5 Zinc, (2) 1/2' - 13 Flange Lock Nut - Zinc, (2) 1/2' Flat Washer - Zinc, and (4) 1/4'x3' GR5 Galvanized Power Grip Screw.

Package Dimensions: 32.9 x 6.6 x 6.4 inches
