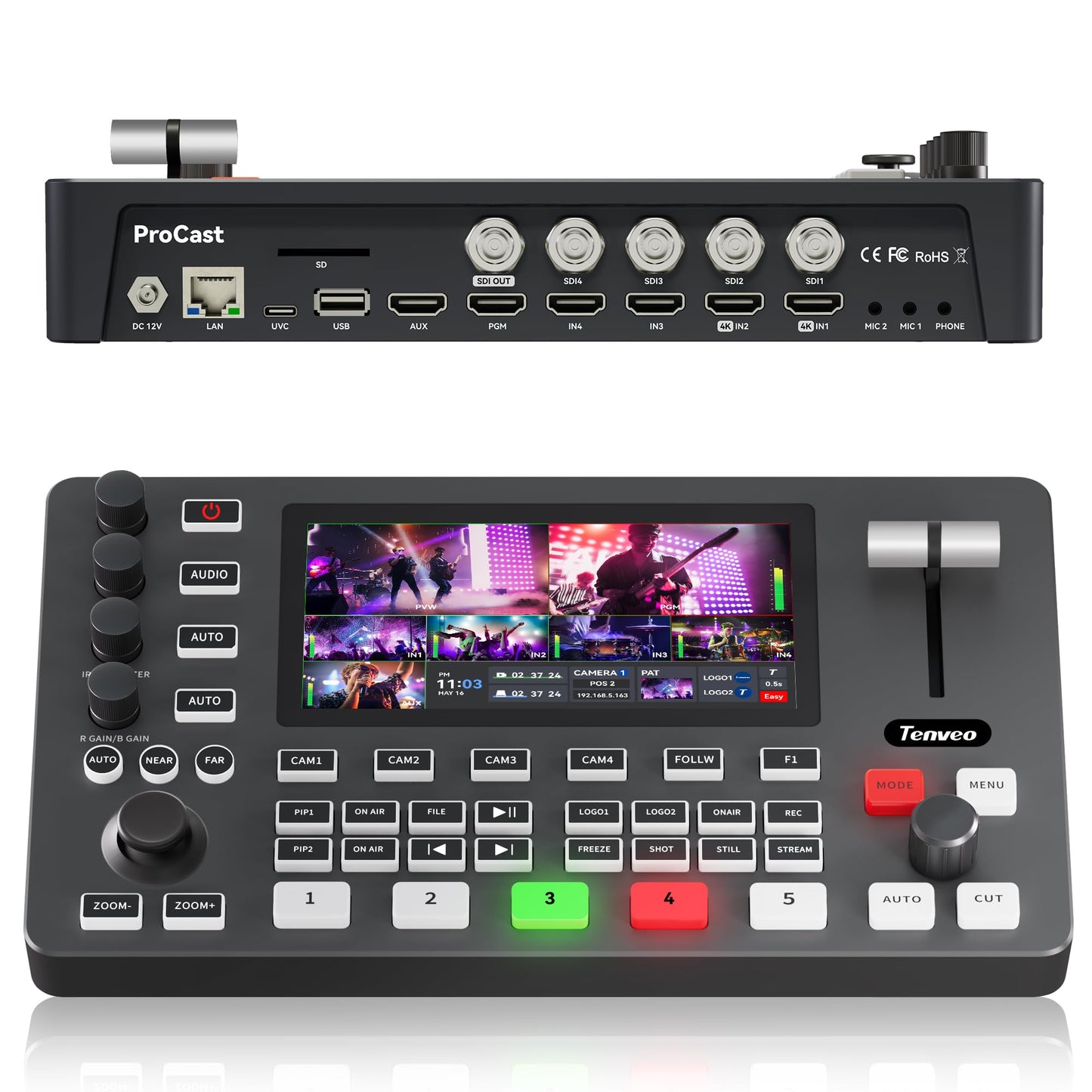

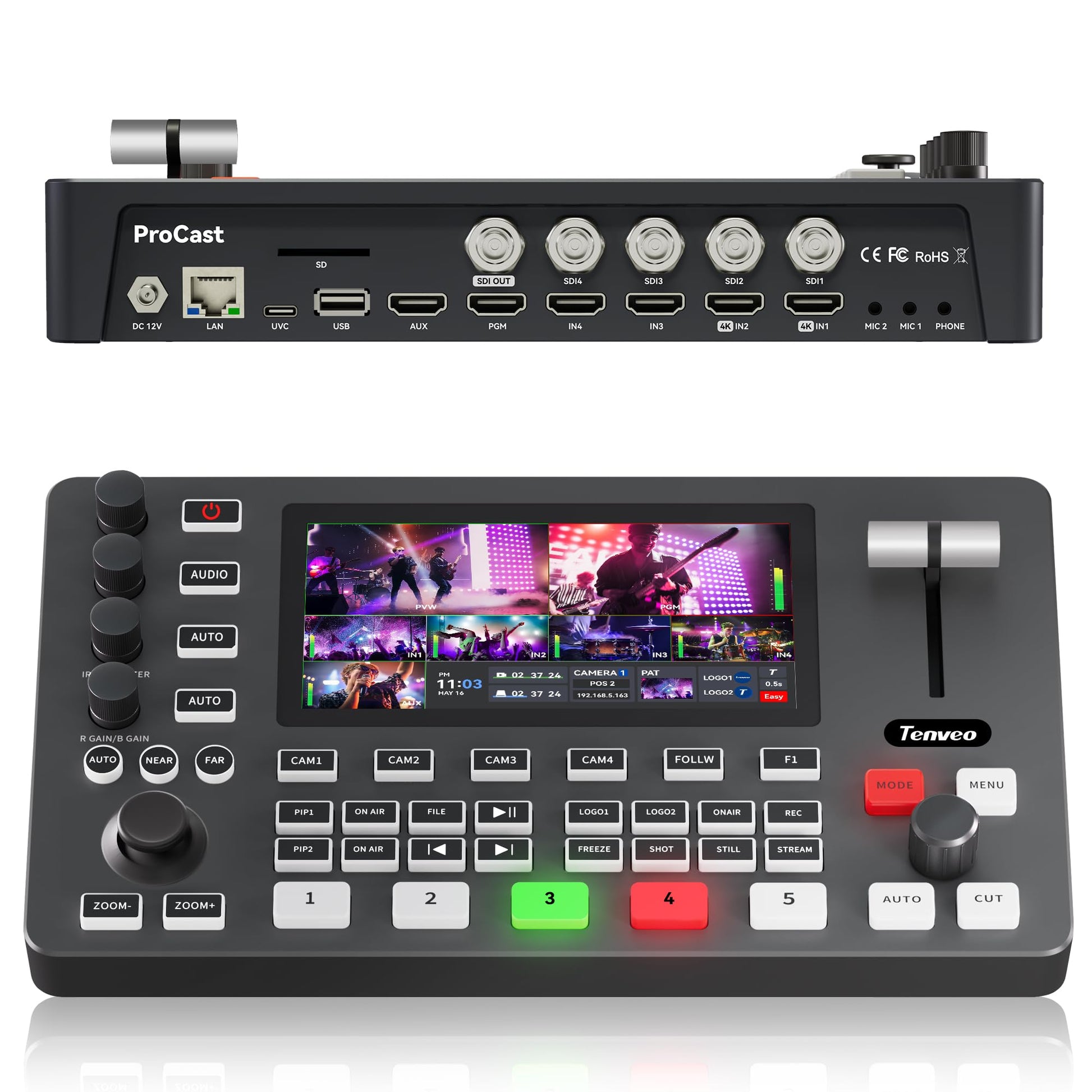

Tenveo 4K60FPS HDMI Video Switcher Mixer, 4*SDI & 4*HDMI Input, 5CH Live Streaming Switcher, 5.5’’ FHD Screen, 1080P60FPS Output, USB Video Recording, Support PTZ Camera and Controller, NDI Included

Brand: Tenveo

Color: black

Features:

• 【𝐓𝐞𝐧𝐯𝐞𝐨 𝐌𝐮𝐥𝐭𝐢-𝐅𝐮𝐧𝐜𝐭𝐢𝐨𝐧 𝐕𝐢𝐝𝐞𝐨 𝐌𝐢𝐱𝐞𝐫 𝐒𝐰𝐢𝐭𝐜𝐡𝐞𝐫】Tenveo PC500 - a professional live streaming Video Mixer Switcher, Integrates video encoding, multi-channel switching, PTZ/NDI Camera control, multi-camera Live streaming, real-time monitoring and USB recording. Designed and produced for professional Audio Video System Live Streaming /Live Production /Live Broadcasting. Suitable for Church Worship Live Services, Studio Live, Stage Shows, Product Launch, Sport Events, Government Activities, Online Training, University, Factory live, Classroom, High end Summit, Large Conference, Weddings, Podcasts, etc.

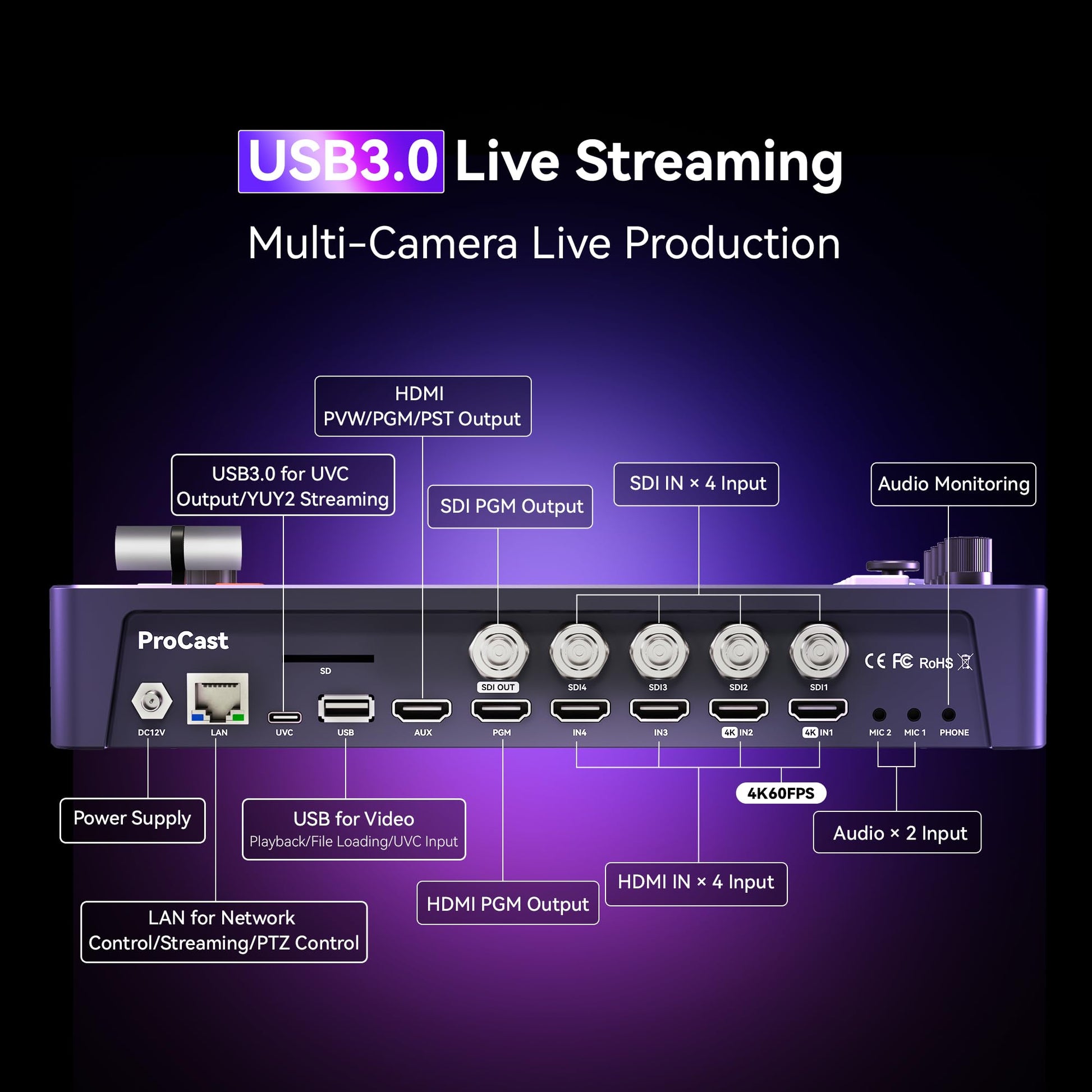

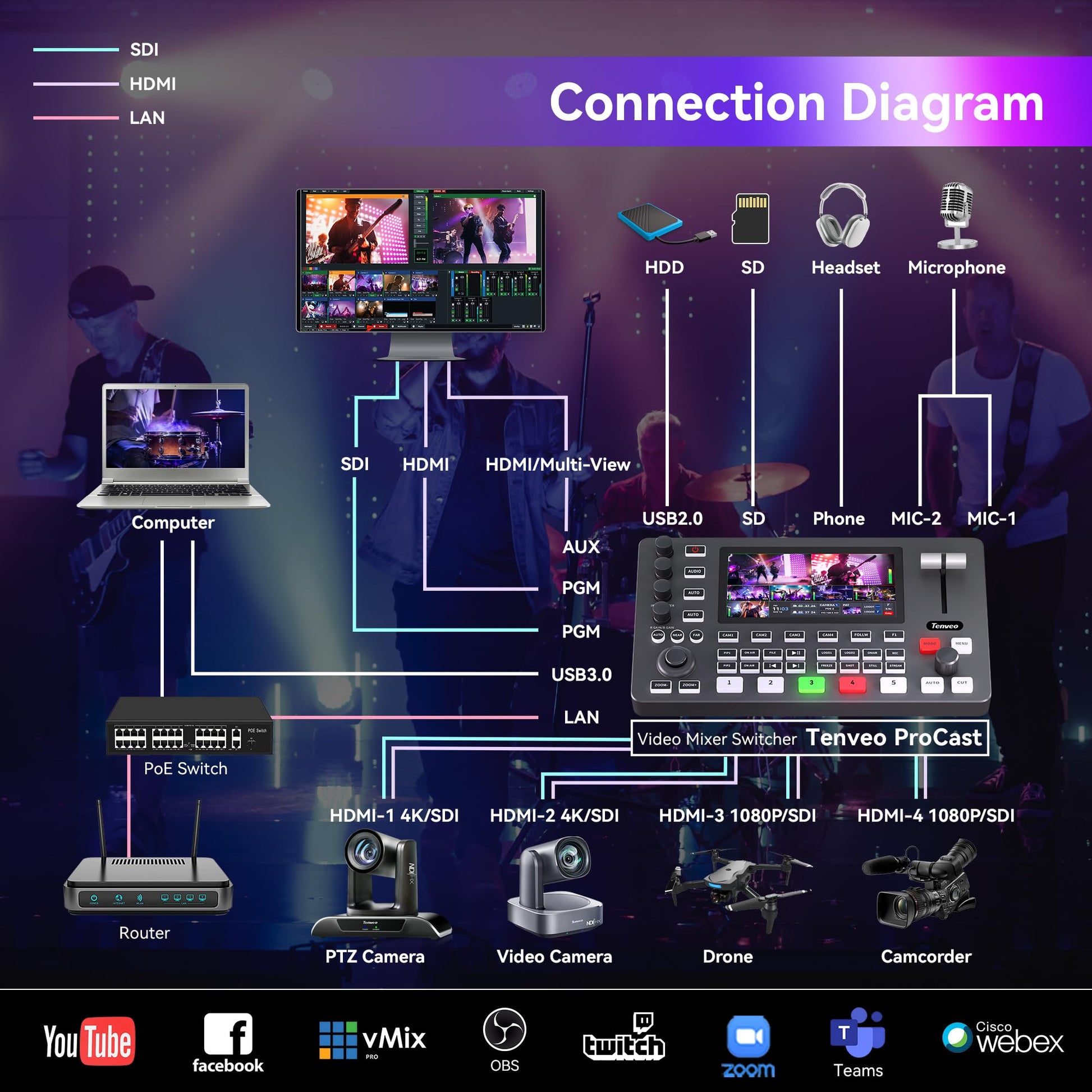

• 【𝐏𝐫𝐨𝐟𝐞𝐬𝐬𝐢𝐨𝐧𝐚𝐥 𝟒𝐊 𝐇𝐃𝐌𝐈 + 𝐒𝐃𝐈 𝐕𝐢𝐝𝐞𝐨 𝐌𝐢𝐱𝐞𝐫 𝐒𝐰𝐢𝐭𝐜𝐡𝐞𝐫】Tenveo PC500 supports 4CH flexible inputs - Video Input: 4*HDMI inputs(2*HDMI with 4K60FPS), 4*SDI inputs, 1*USB input(PGM recording/Video Playback/File Loading/UVC Input, NDI is also supported). Video Output: 1*SDI PGM output, 1*HDMI PGM output, 1*HDMI AUX output(All outputs can be customized as input channel/PST/PGM/Multi-view) and 1*USB3.0 output(UVC live streaming). Recording Output: USB2.0. Audio Input: 2*MIC, Audio Output: 1*PHONE. (4K60FPS and 1080P60FPS Input, 1080P60FPS Output.)
• 【𝐃𝐮𝐚𝐥 𝐂𝐡𝐚𝐧𝐧𝐞𝐥 𝐒𝐭𝐫𝐞𝐚𝐦𝐢𝐧𝐠 𝐯𝐢𝐚 𝐄𝐭𝐡𝐞𝐫𝐧𝐞𝐭】The Video Switcher supports up 2 Live Streaming platforms simultaneously, supporting UVC Streaming(USB3.0 Type-C)and IP Streaming which are SRT, RTMP, RTSP and NDI Streaming Via Ethernet. Enjoy seamless compatibility with major social media and professional software like YouTube, Facebook, Twitch, TikTok, OBS and vMix. Meanwhile, built-in web server, the video switcher supports control via web browser on any platform, providing you with the flexibility to manage live productions. This enhances operation efficiency and convenience.

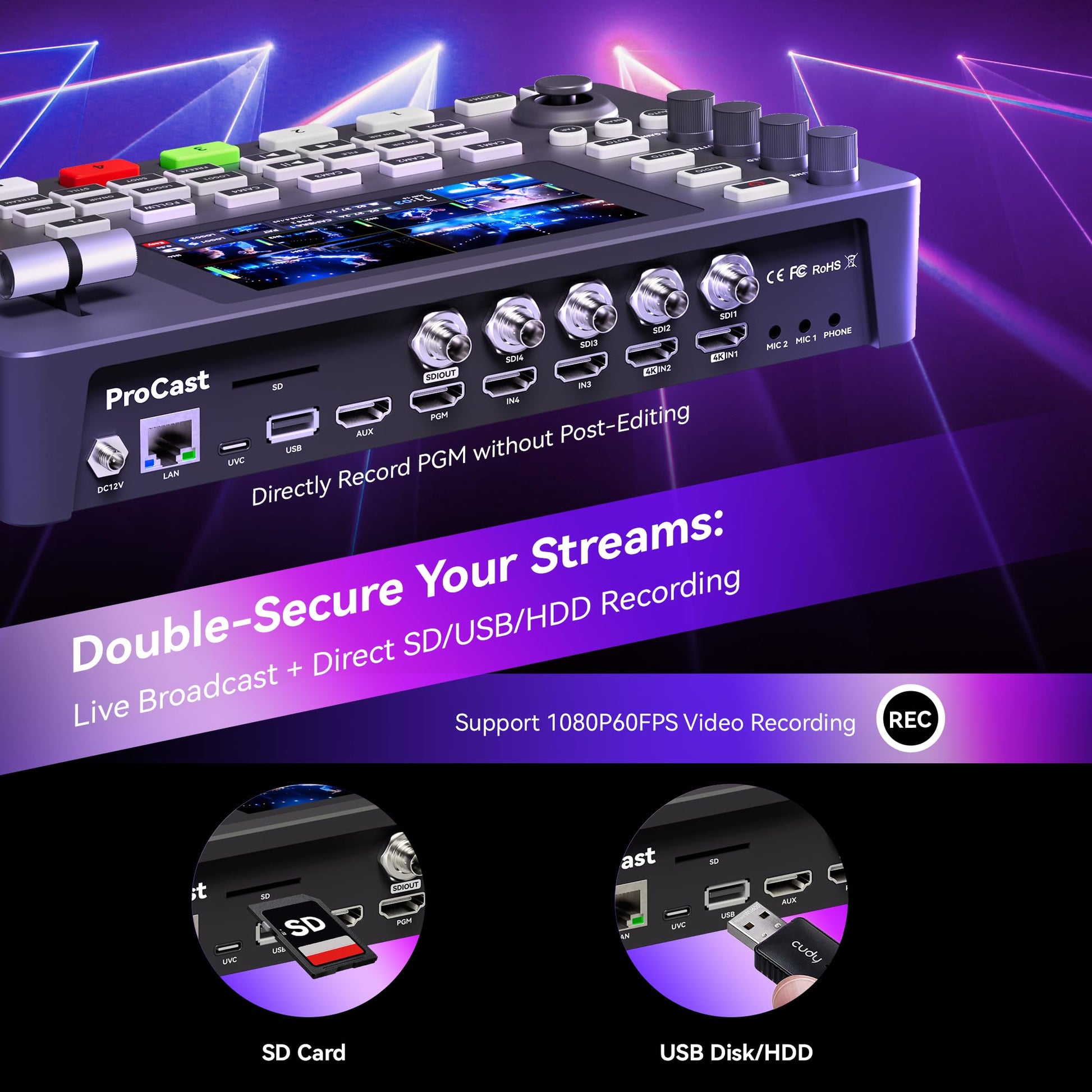

• 【𝐁𝐫𝐨𝐚𝐝𝐜𝐚𝐬𝐭-𝐆𝐫𝐚𝐝𝐞 𝐃𝐮𝐚𝐥 𝐑𝐞𝐜𝐨𝐫𝐝𝐢𝐧𝐠 & 𝐏𝐥𝐚𝐲𝐛𝐚𝐜𝐤】Supporting Dual Recording via SD Card/USB Disk/HDD, serving as auxiliary sources for PGM streams. With H.264 encoding, it simultaneously supports records and streams at separate bitrates(up to 1080p60fps). And the USB Recording becomes instant auxiliary sources - seamlessly integrated into live production via dedicated AUX for instant replay and live production. The recorded PGM file is production-ready, minimizing post-editing time. This ensures secure backup and storage of video content, providing peace of mind during critic productions.

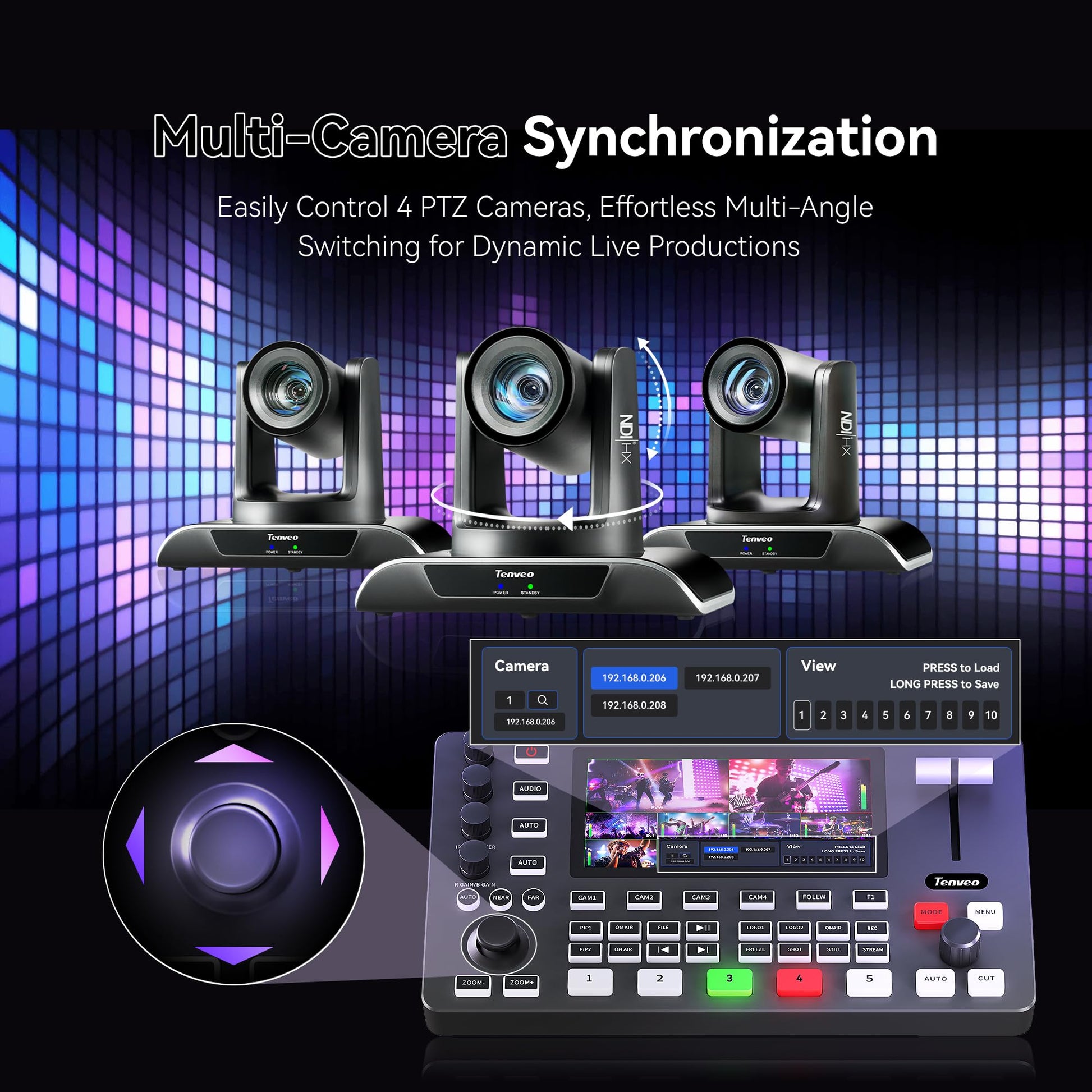

• 【𝐌𝐮𝐥𝐭𝐢-𝐂𝐚𝐦𝐞𝐫𝐚 𝐋𝐢𝐯𝐞 𝐬𝐭𝐫𝐞𝐚𝐦𝐢𝐧𝐠 𝐚𝐧𝐝 𝐋𝐢𝐯𝐞 𝐏𝐫𝐨𝐝𝐮𝐜𝐭𝐢𝐨𝐧】Easily manage and switch between 4 PTZ cameras to deliver compelling, multi-angle live streams. Once cameras are properly connected, press the magnifier/search icon to automatically detect PTZ cameras on the same LAN and add them by selecting their IP address. Customize operational parameters(pan-tilt-zoom, focus speed, exposure, WB, Gain), save/recall 10 preset positions per camera, trigger AI tracking on camera, record and recall 5 cruise tracks from the camera. The multi-camera capability enables you to capture diverse angles and deliver dynamic content, ideal for professional live streaming.
• 【𝐏𝐫𝐨𝐟𝐞𝐬𝐬𝐢𝐨𝐧𝐚𝐥 𝐀𝐮𝐝𝐢𝐨 𝐏𝐫𝐨𝐜𝐞𝐬𝐬𝐢𝐧𝐠】Supports 4 HDMI and 4 SDI, 1 USB, and 2 independent 3.5mm microphone inputs, 1 headphone output. Independently adjust volume, switch, mix and delay settings for each audio channel. Support ON(MIX) mode and Audio Follow Video(AFV) mode, built-in headphone output for audio monitoring. Make your live stream audio fuller and more pleasant, ideal for studio recording and live sound reinforcement.
• 【𝐀𝐝𝐯𝐚𝐧𝐜𝐞𝐝 𝐕𝐢𝐝𝐞𝐨 𝐄𝐟𝐟𝐞𝐜𝐭𝐬 𝐚𝐧𝐝 𝟑𝟔 𝐓𝐫𝐚𝐧𝐬𝐢𝐭𝐢𝐨𝐧𝐬】Create sophisticated outputs with two separate PlP layers and two Logo overlays, allowing you to seamlessly integrate graphics and multiple live feeds for dynamic, news-style broadcasting. Rich special effects can also be selected from Luma key, Chroma key, and DSK. 36 professional transition effects, including MIX, WIPE, DIP, and T-bar for dynamic live switching, supports adjusting duration, edge blending, and DIP color, and supports multiple customized transition. The all-in-one video switcher enables professional and dynamic content creation.
• 【𝐏𝐓𝐙 𝐅𝐮𝐧𝐜𝐭𝐢𝐨𝐧𝐚𝐥𝐢𝐭𝐲 𝐚𝐧𝐝 𝐋𝐚𝐧𝐝𝐬𝐜𝐚𝐩𝐞/𝐏𝐨𝐫𝐭𝐫𝐚𝐢𝐭 𝐒𝐜𝐫𝐞𝐞𝐧 𝐌𝐨𝐝𝐞】Tenveo PC500 Video Switcher supports flexible switching between landscape and portrait modes to adapt to different live streaming needs, and utilizes video playback as an auxiliary source for versatile program creation. You could also stream and control the PTZ Cameras in both landscape and portrait modes.
• 【𝐔𝐬𝐞𝐫-𝐟𝐫𝐢𝐞𝐧𝐝𝐥𝐲 𝐂𝐨𝐧𝐭𝐫𝐨𝐥 𝐏𝐚𝐧𝐞𝐥】Tenveo SDI HDMI Video Switcher features 5.5inch FHD Screen and an ergonomic control panel, providing precise and intuitive control over the switching process, empowering seamless live production and makes live streaming smoother. PC500 also supports 12 preset scenes and 5 customized scenes, and supports multi-window merging with different sources on each Window. The built-in media library further enhances your workflow by allowing you to store efficiently.
• 【𝐏𝐚𝐜𝐤𝐚𝐠𝐞 𝐋𝐢𝐬𝐭 & 𝐄𝐱𝐜𝐞𝐥𝐥𝐞𝐧𝐭 𝐂𝐮𝐬𝐭𝐨𝐦𝐞𝐫 𝐒𝐞𝐫𝐯𝐢𝐜𝐞】Package includes Tenveo Video Mixer Switcher, Power Adapter, USB3.0 Cable and User Manual. Tenveo offers 3 Years standard warranty, excellent after-sales service and LIFETIME technical support service. If necessary, we can provide remote assistance in setting up. Buy with confidence. 30-Day No-Questions-Asked Money-Back Guarantee. Risk-free purchase. Contact us if you have any question, we will be happy to reply you within 12 hours and definitely provide you with a satisfactory solution. Tips: Tenveo PTZ Bundle is more affordable, Search keyword "Tenveo PTZ Camera Bundle" from Amazon for a try.

model number: TEVO-PC500

Part Number: TEVO-PC500

Package Dimensions: 14.2 x 8.1 x 4.3 inches
