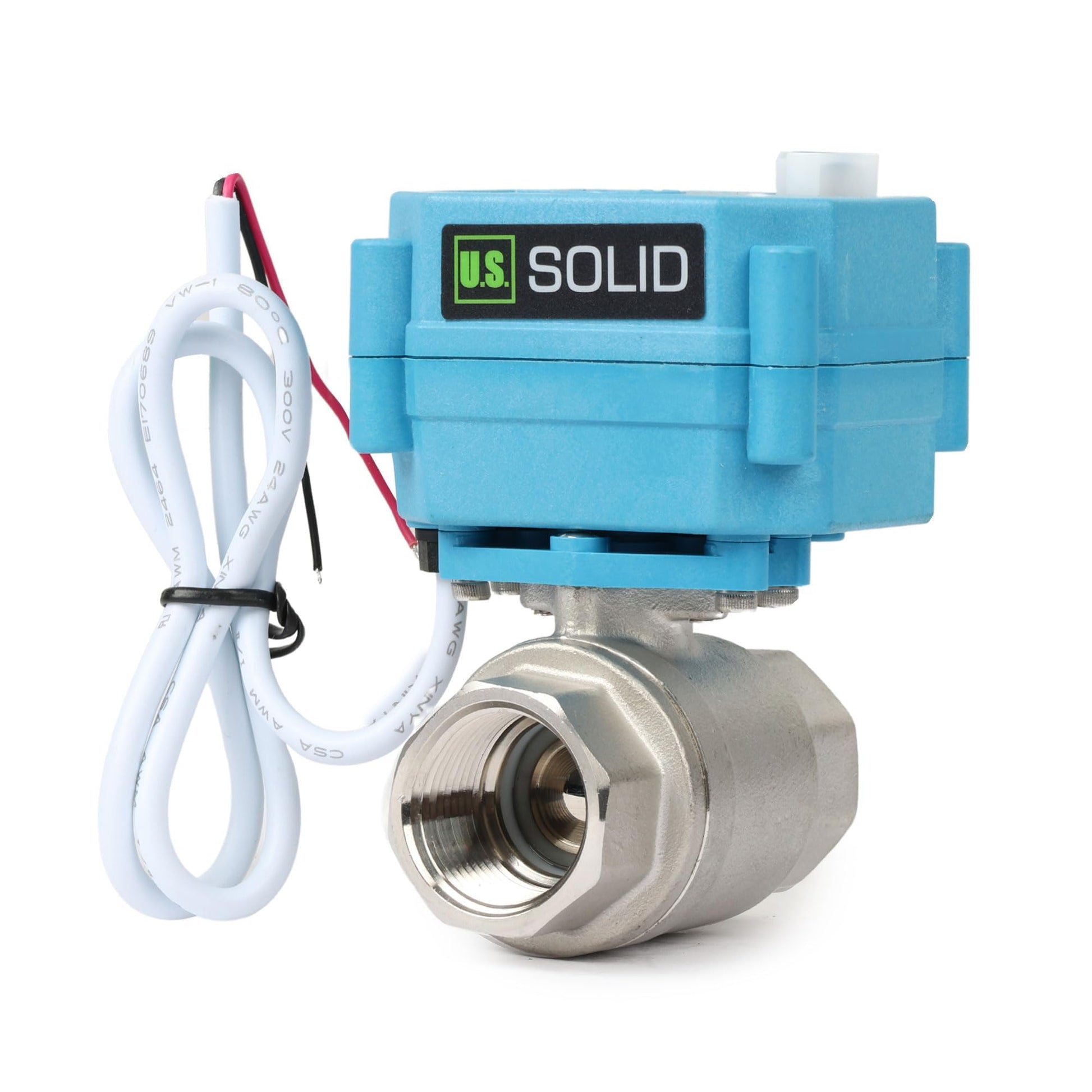

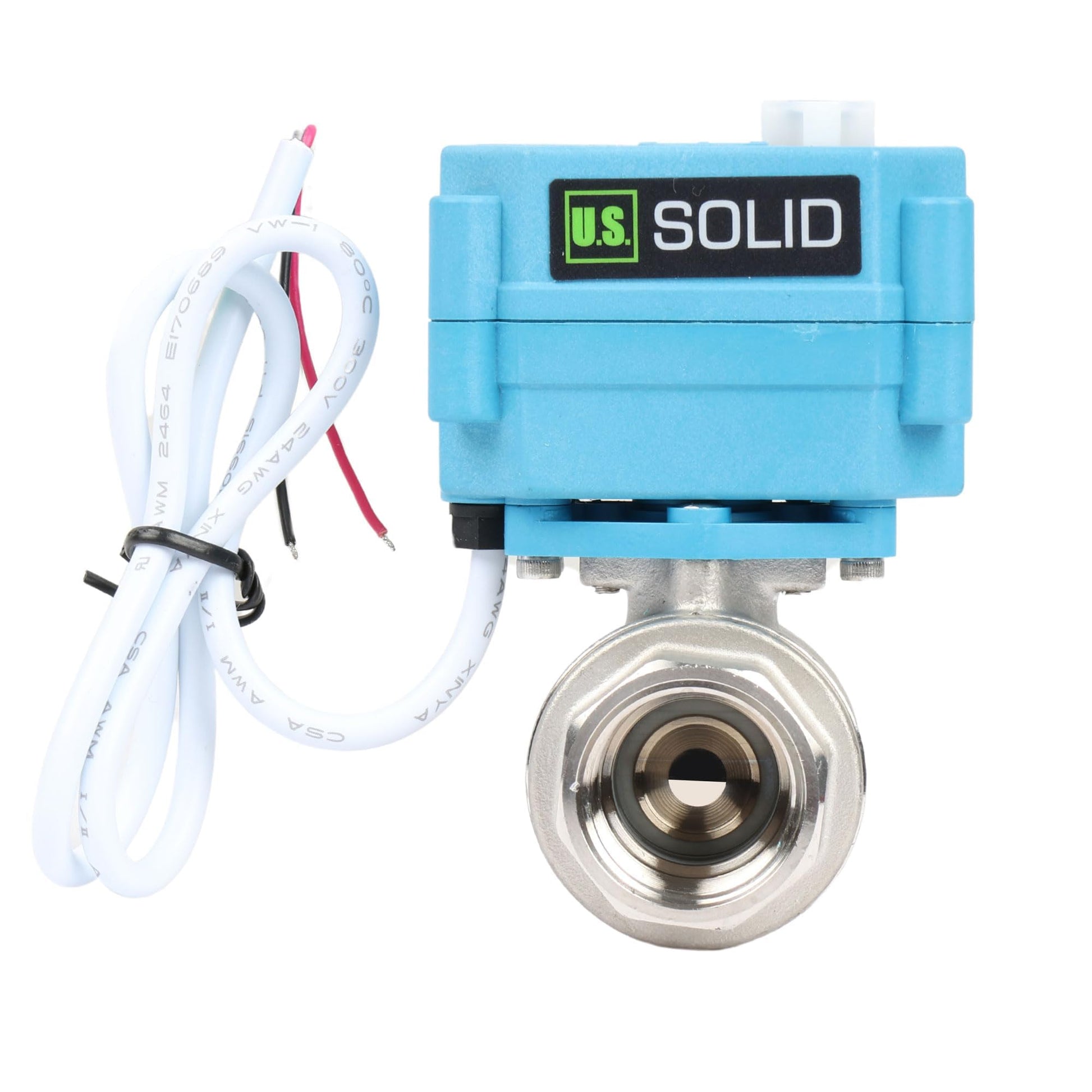

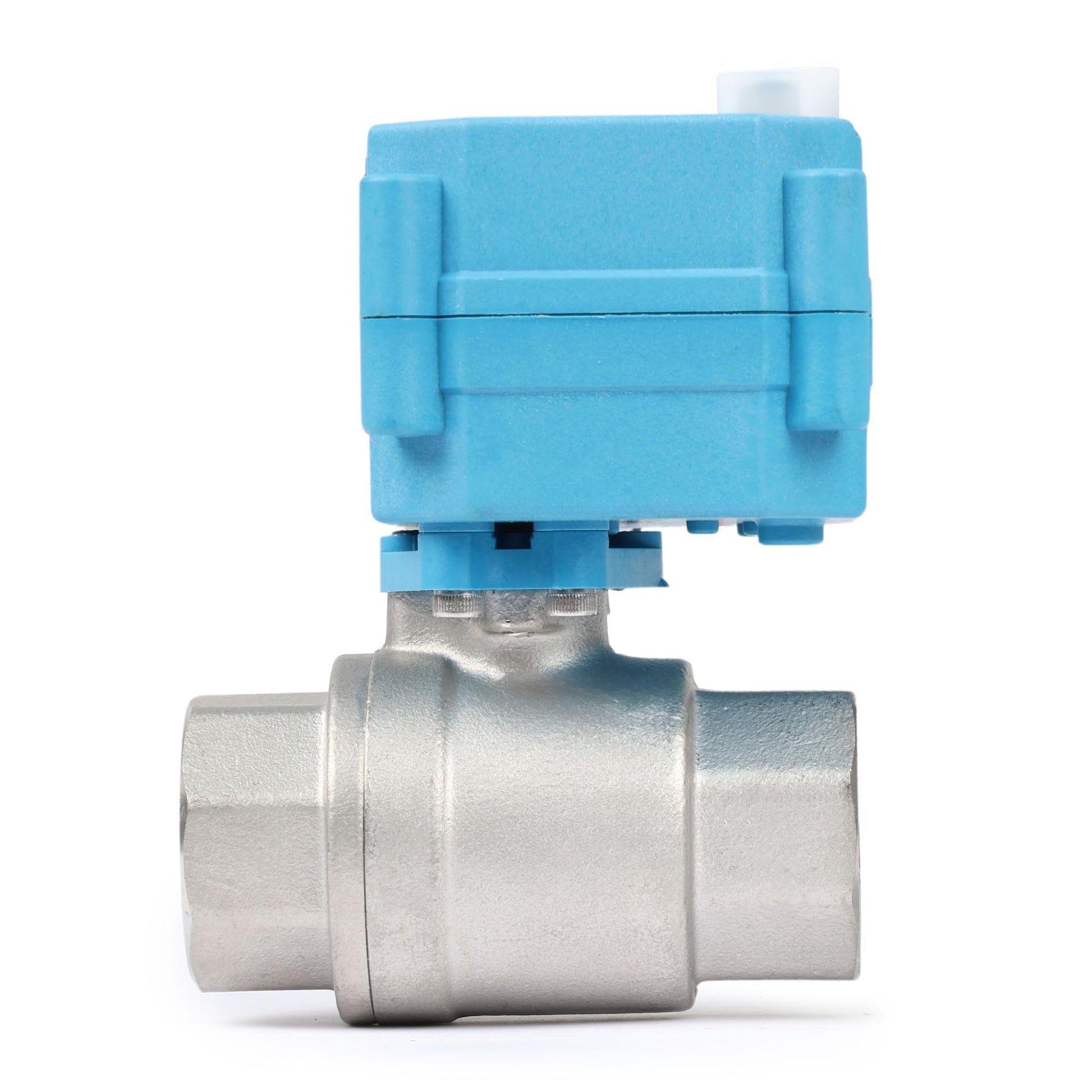

U.S. Solid Motorized Ball Valve 3/4 in IP67 Stainless Steel 110-230V Full Port NPT 2-Wire Auto Return Normally Open with Waterproof Cover

Brand: U.S. Solid

Features:

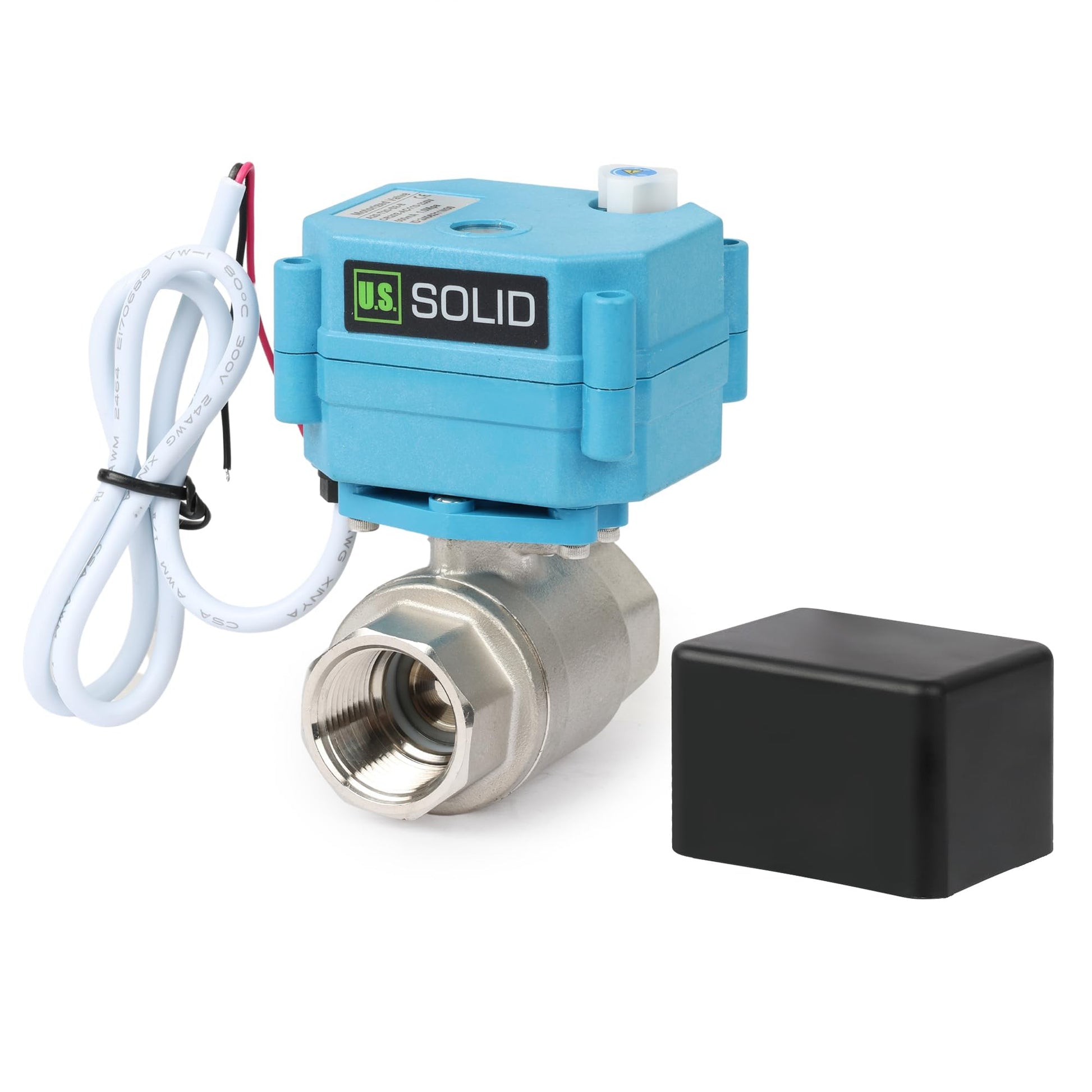

• IP67 Waterproof Rating with Protective Cover: Rated IP67 for dust and water immersion resistance, and includes a waterproof housing cover for outdoor installation in rain-exposed environments such as irrigation systems and HVAC lines.

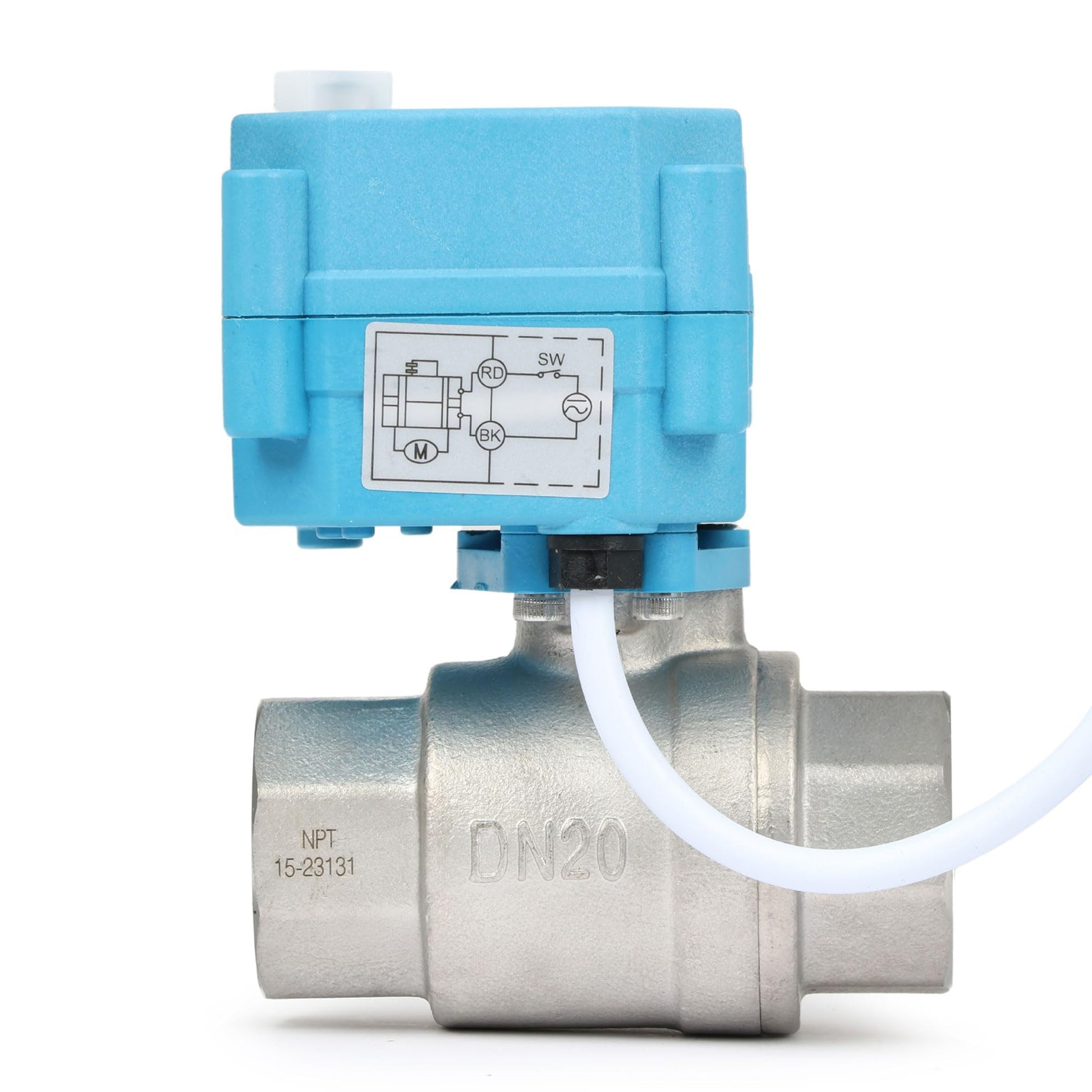

• 2-Wire Auto Return Operation: Simple 2-wire connection opens the valve when energized and automatically returns to the fully closed position when power is removed, eliminating the need for a third control wire.
• SS304 Stainless Steel Body, Full Port Design: Valve body is constructed from SS304 stainless steel, certified safe for potable drinking water, with a full-port bore that minimizes pressure drop across the valve.
• 3/4 in NPT Threading, 110-230V AC Compatible: Fits standard 3/4-inch NPT pipe connections and operates on 110V to 230V AC power, making it compatible with most residential and commercial plumbing and automation setups.
• Manual Override and Long Service Life: Built-in manual override function allows hand operation when power is unavailable during maintenance or outages; rated for approximately 70,000 open-close cycles for long-term reliability.

model number: JFMSV50005

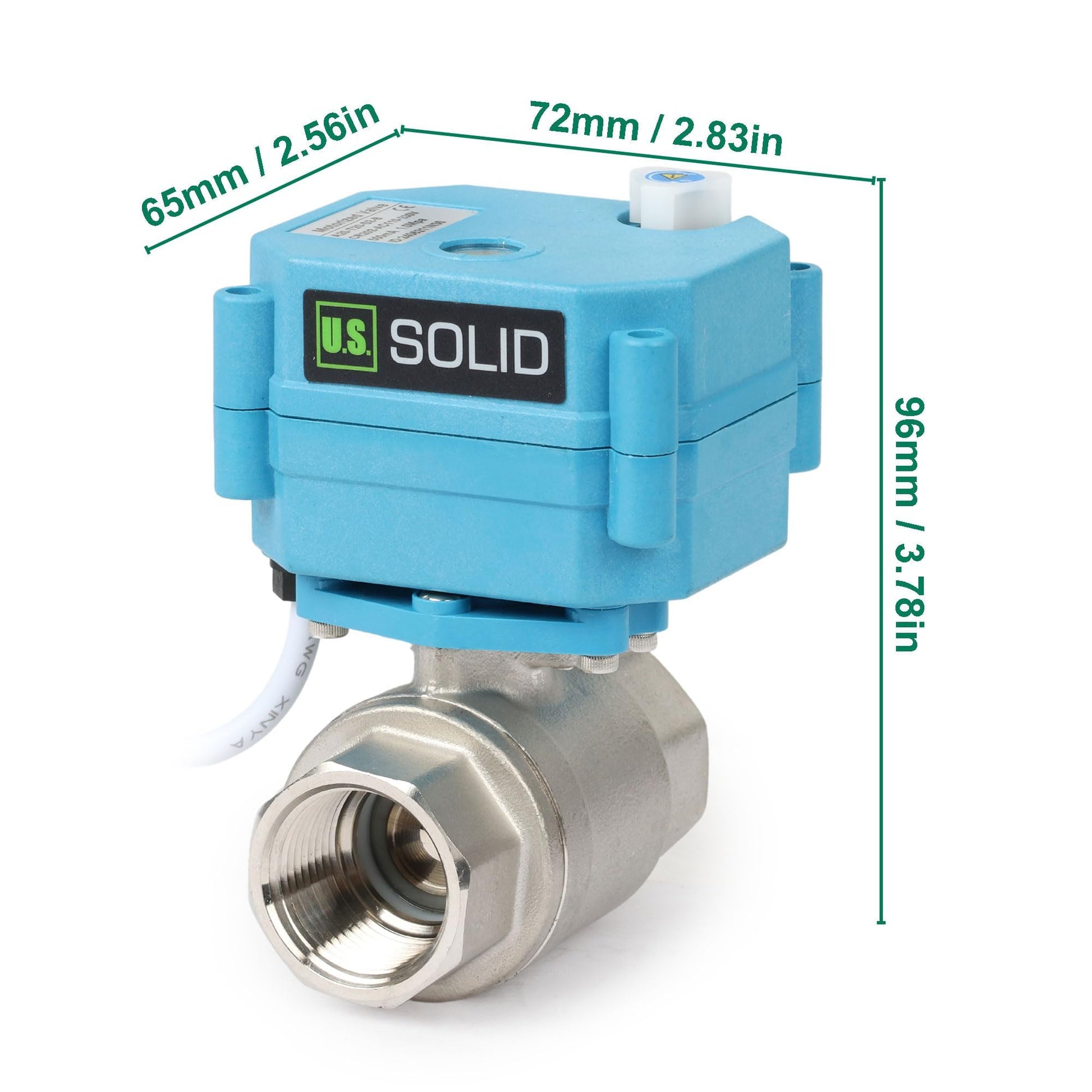

Package Dimensions: 4.3 x 3.5 x 3.0 inches
