XZT 60U Hydraulic Pressure Test Coupling Kit,Pressure gauges Set,Test Hose,BSPP ORFS JIC Hydraulic Swivel Run tees, Hydraulic Test Tools for Excavator Construction Machinery

Brand: XZT

Features:

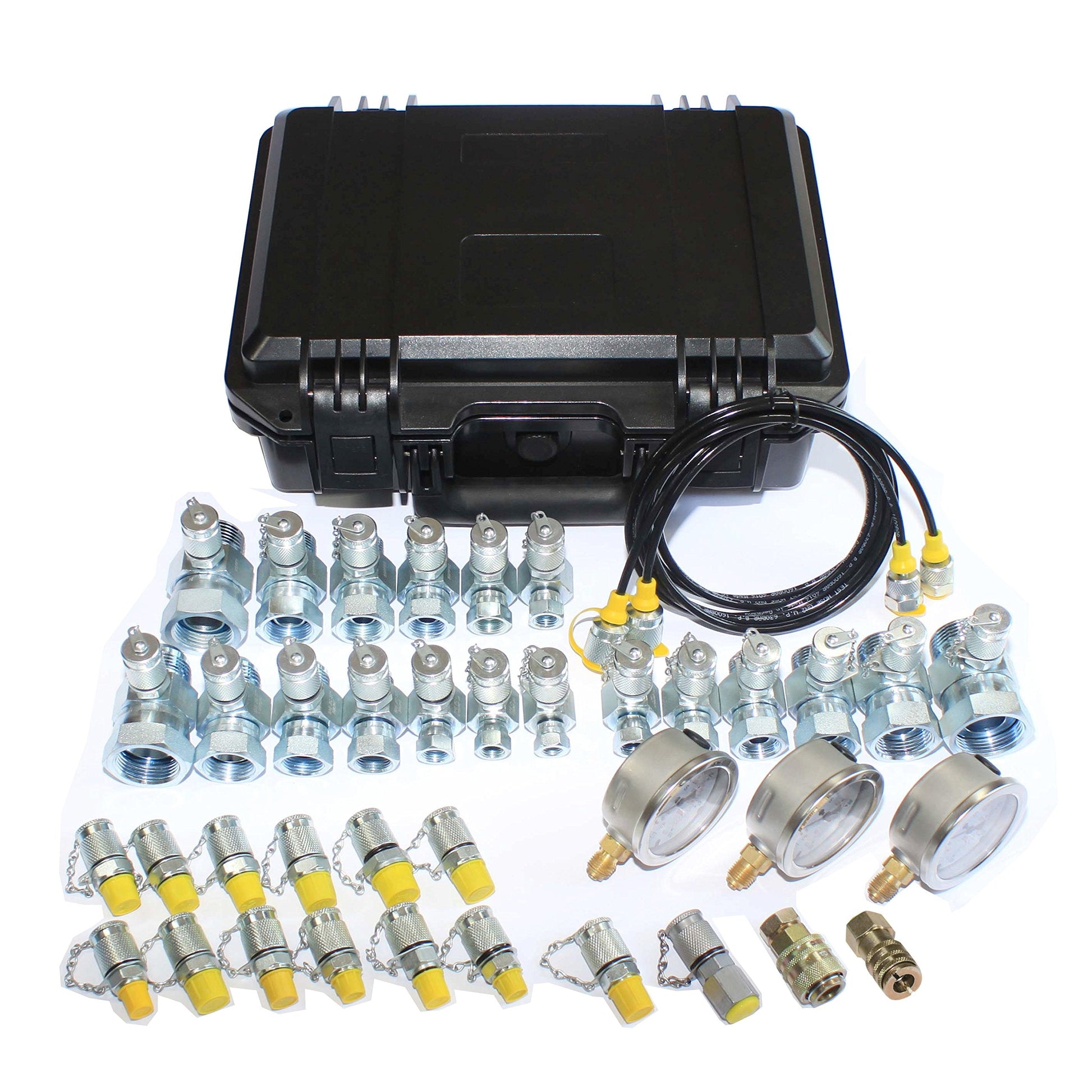

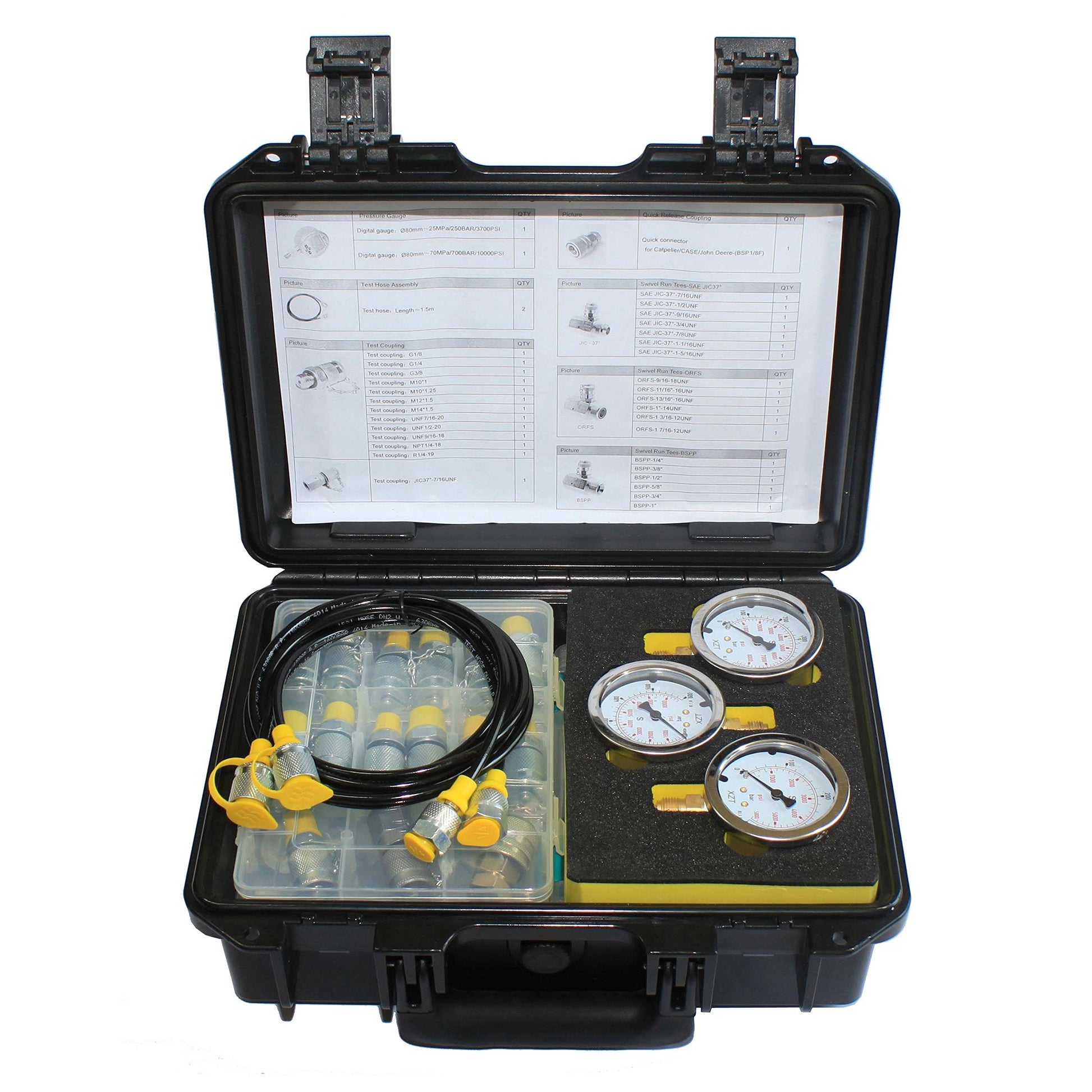

• 1:three level analog gauge: 9000PSI *1,6000PSI*1,3600PSI*1; 5FT Test hose* 3; Test couplings *13 types;
• 2:Hydraulic Swivel Run Tees : BSPP -6 pack,JIC37-7 pack,ORFS-6 pack
• 3: hydraulic repair kit Suit for most brand excavator, hydraulic systems
• 4:Max working pressure: 9000PSI/600BAR
• 5: packing weight is 22 pounds

model number: XZTK-70UD

Part Number: XZTK-60U

Details: Max Work Pressure:9000PSI/600BAR
Description Quantity：PCS
Pressure Gauge
Pressure Gauge：Ø60mm～9000PSI -----1
Pressure Gauge：Ø60mm～6000PSI -----1
Pressure Gauge：Ø60mm～3600PSI -----1

Test Hose Assembly
Test hose：Length＝1.5m---------------------------------------3

Test Coupling
Test coupling：G1/8 1
Test coupling：G1/4 1
Test coupling：G3/8 1
Test coupling：M10*1 1
Test coupling：M10*1.25 1
Test coupling：M12*1.5 1
Test coupling：M14*1.5 1
Test coupling：UNF7/16-20 1
Test coupling：UNF1/2-20 1
Test coupling：UNF9/16-18 1
Test coupling：NPT1/4-18 1
Test coupling：R1/4-19 1
Test coupling：JIC37°-7/16UNF 1

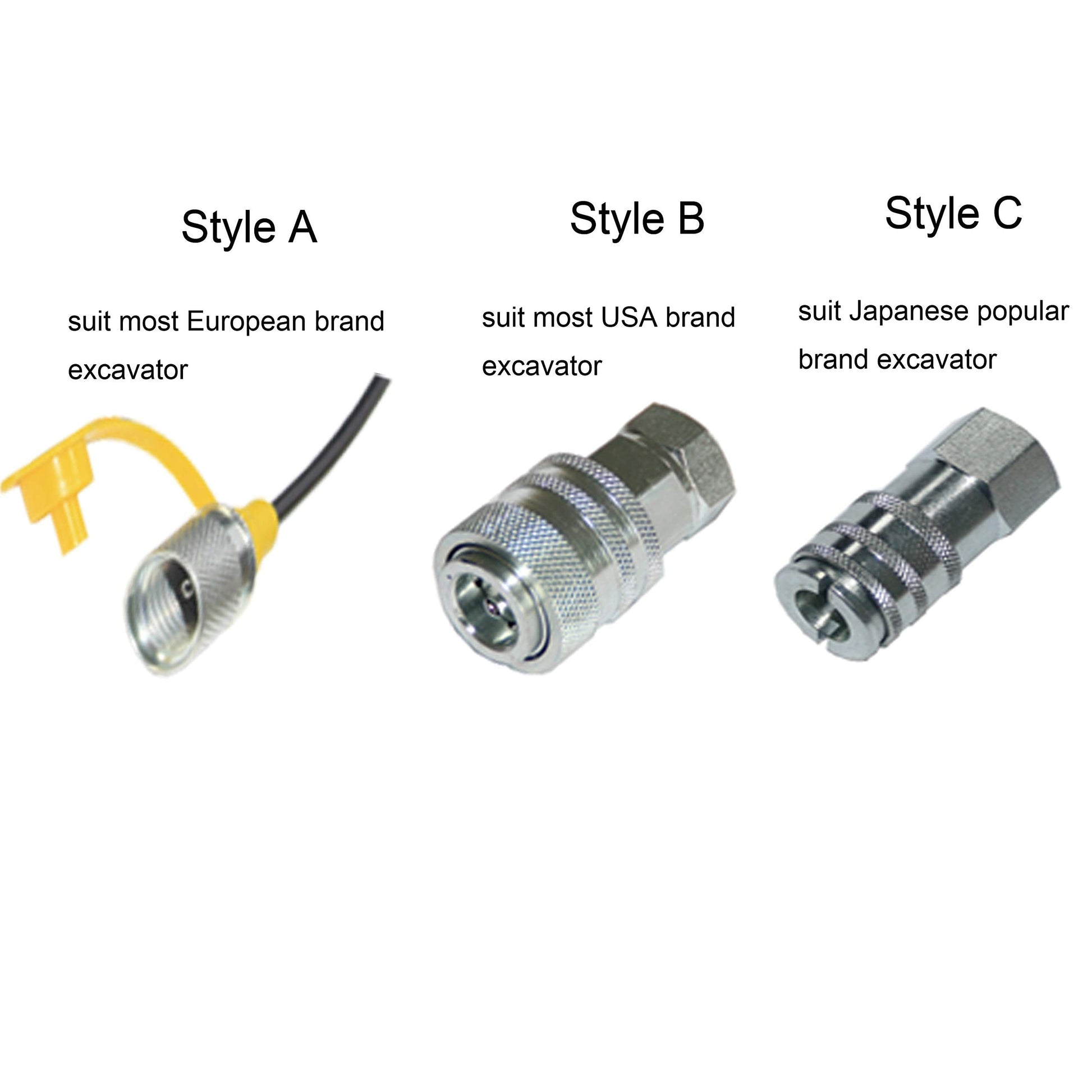

Quick Release Coupling
Quick connector for Catpelier/CASE/John Deere-(BSP1/8F)* 1
Quick connector for Komatsu/Hitachi * 1

Swivel Run Tees

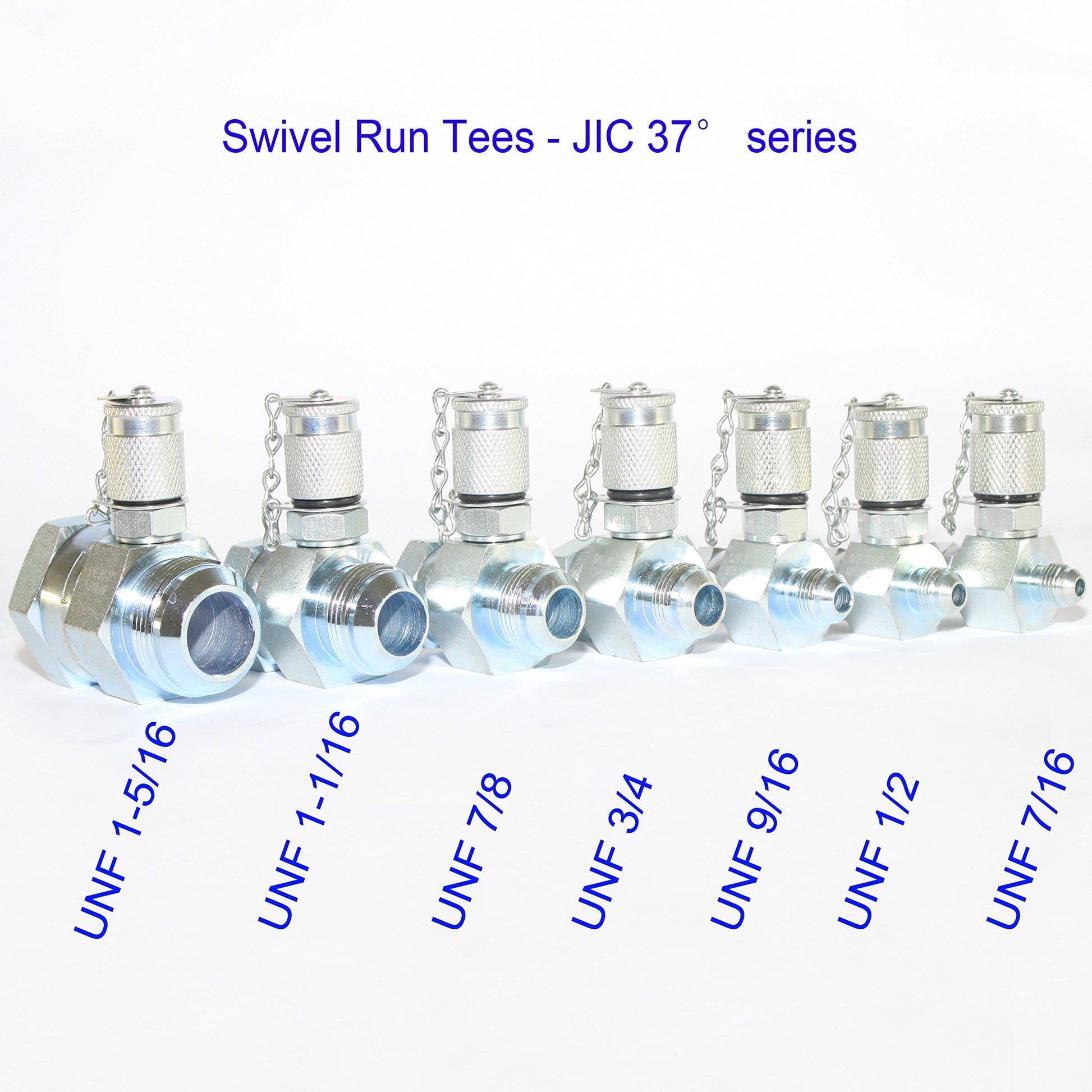

SAE JIC-37°-7/16UNF 1
SAE JIC-37°-1/2UNF 1
SAE JIC-37°-9/16UNF 1
SAE JIC-37°-3/4UNF 1
SAE JIC-37°-7/8UNF 1
SAE JIC-37°-1-1/16UNF 1
SAE JIC-37°-1-5/16UNF 1

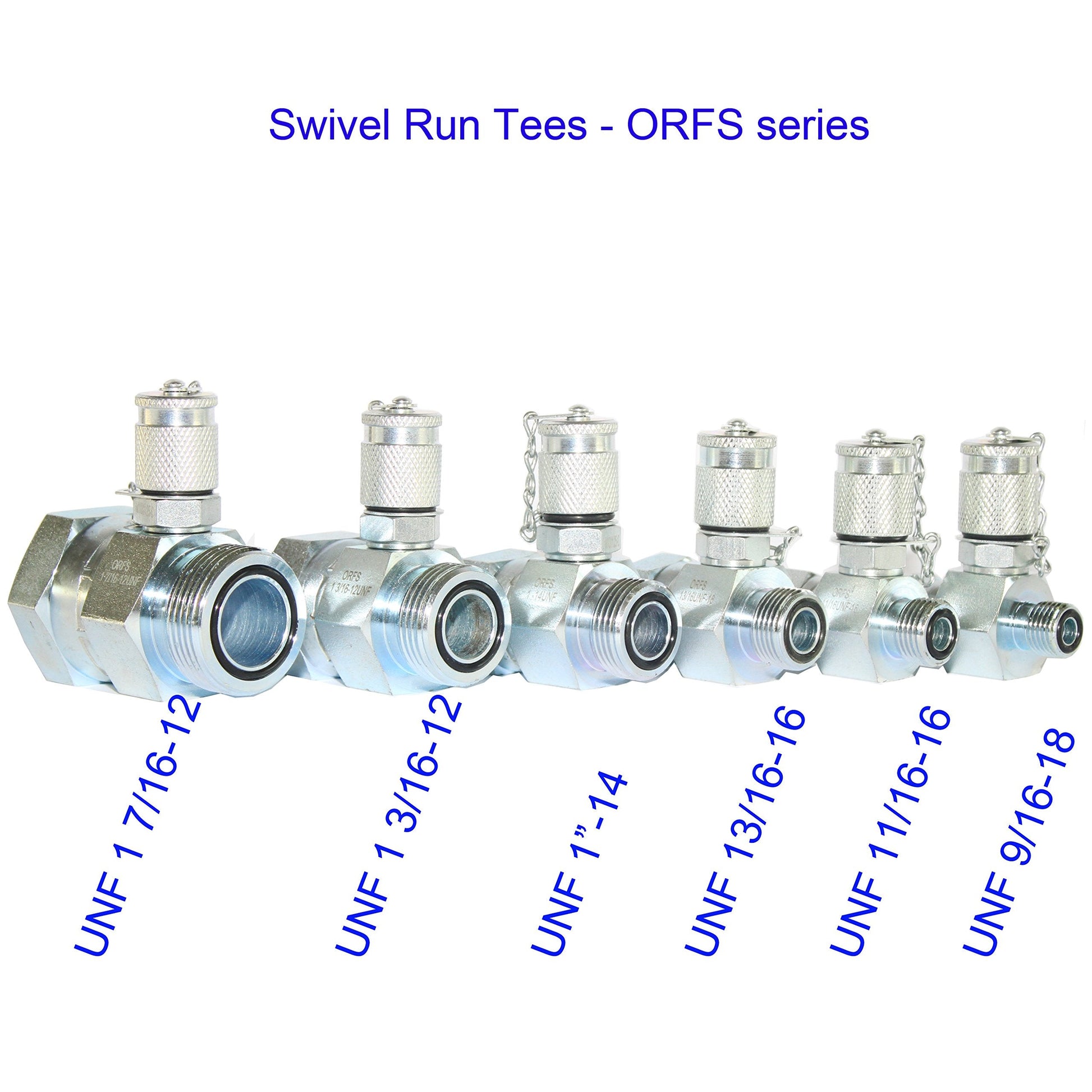

ORFS-9/16-18UNF 1
ORFS-11/16'-16UNF 1
ORFS-13/16“-16UNF 1
ORFS-1'-14UNF 1
ORFS-1 3/16-12UNF 1
ORFS-1 7/16-12UNF 1

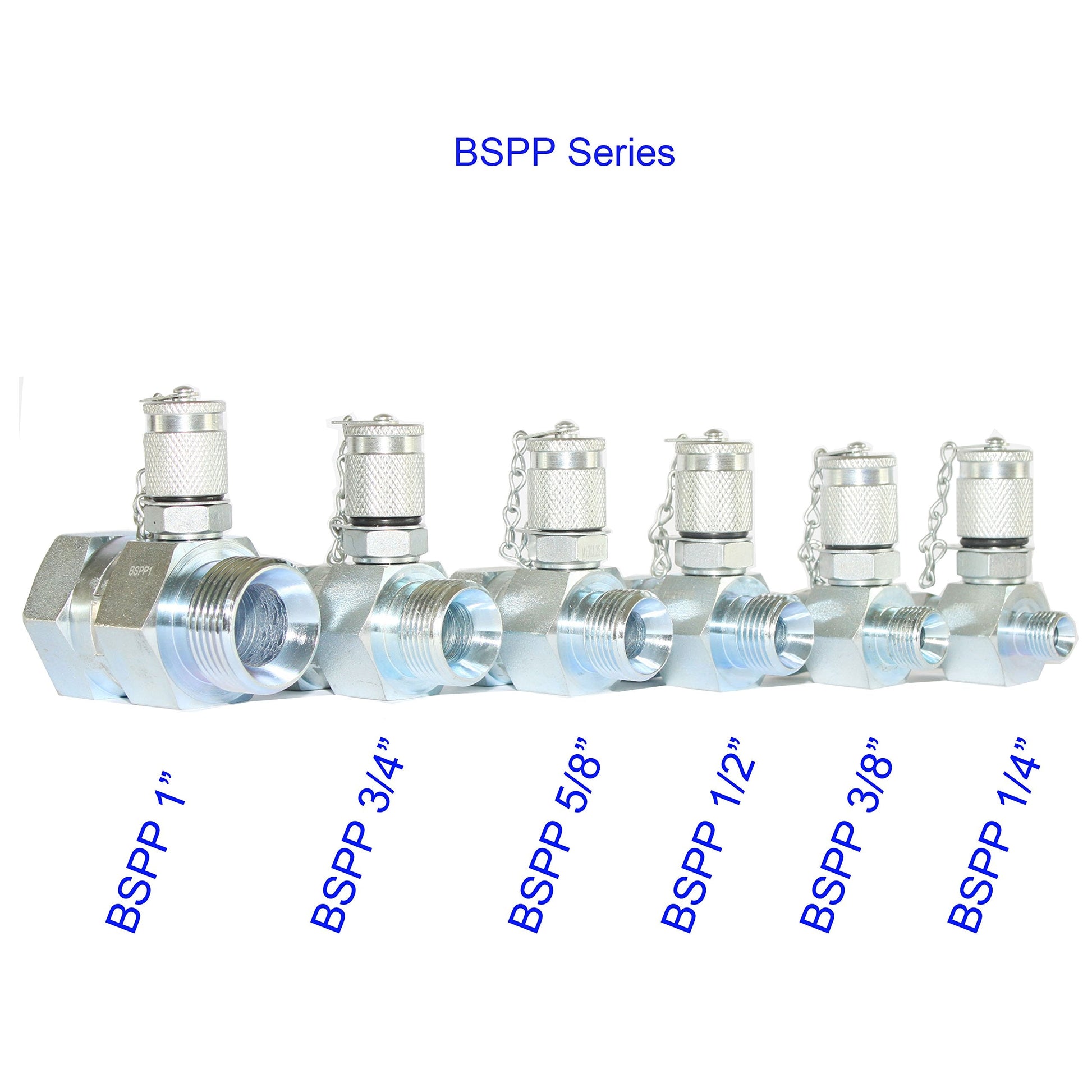

BSPP-1/4' 1
BSPP-3/8' 1
BSPP-1/2' 1
BSPP-5/8' 1
BSPP-3/4' 1
BSPP-1' 1

EAN: 0603097851571

Package Dimensions: 15.8 x 12.5 x 8.1 inches
