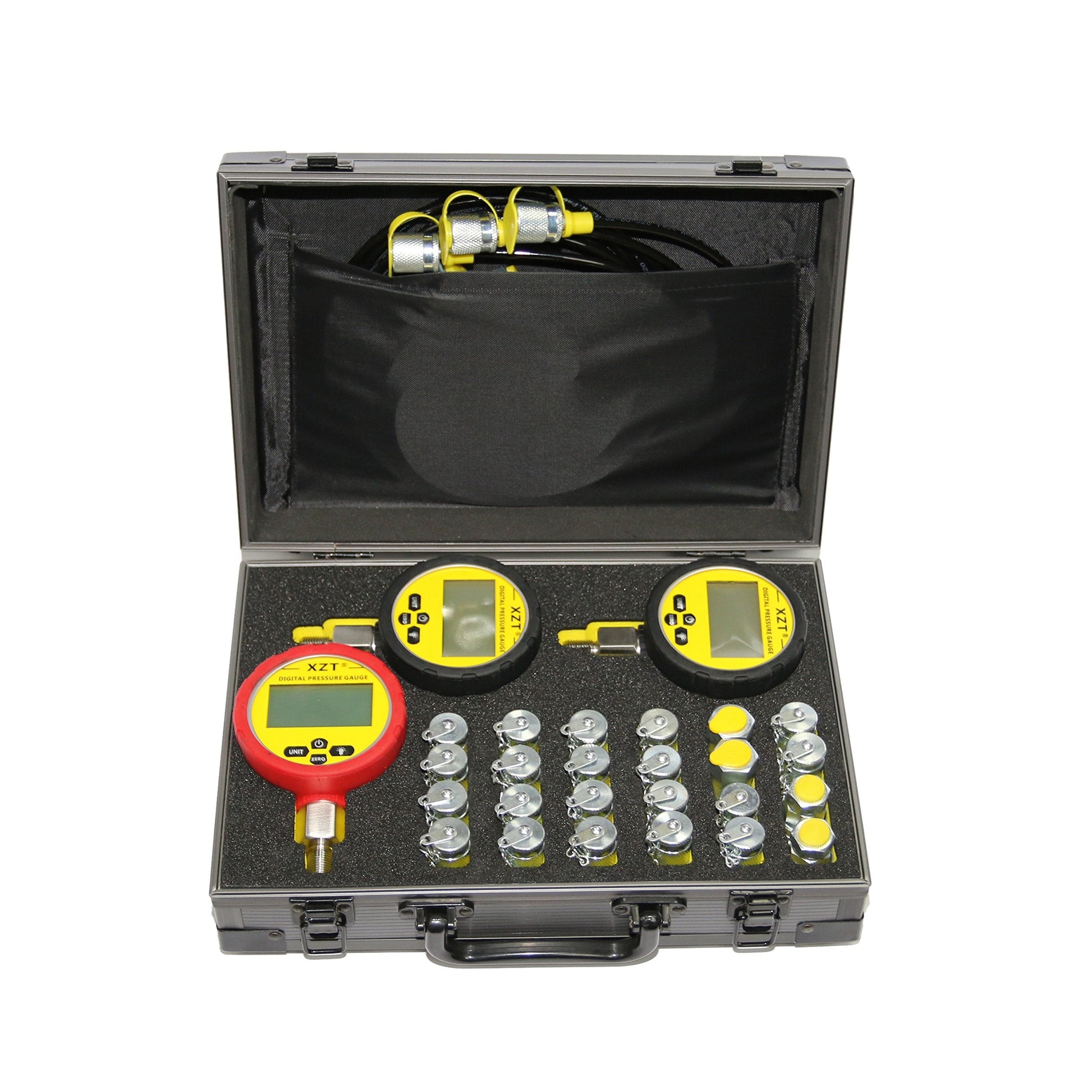

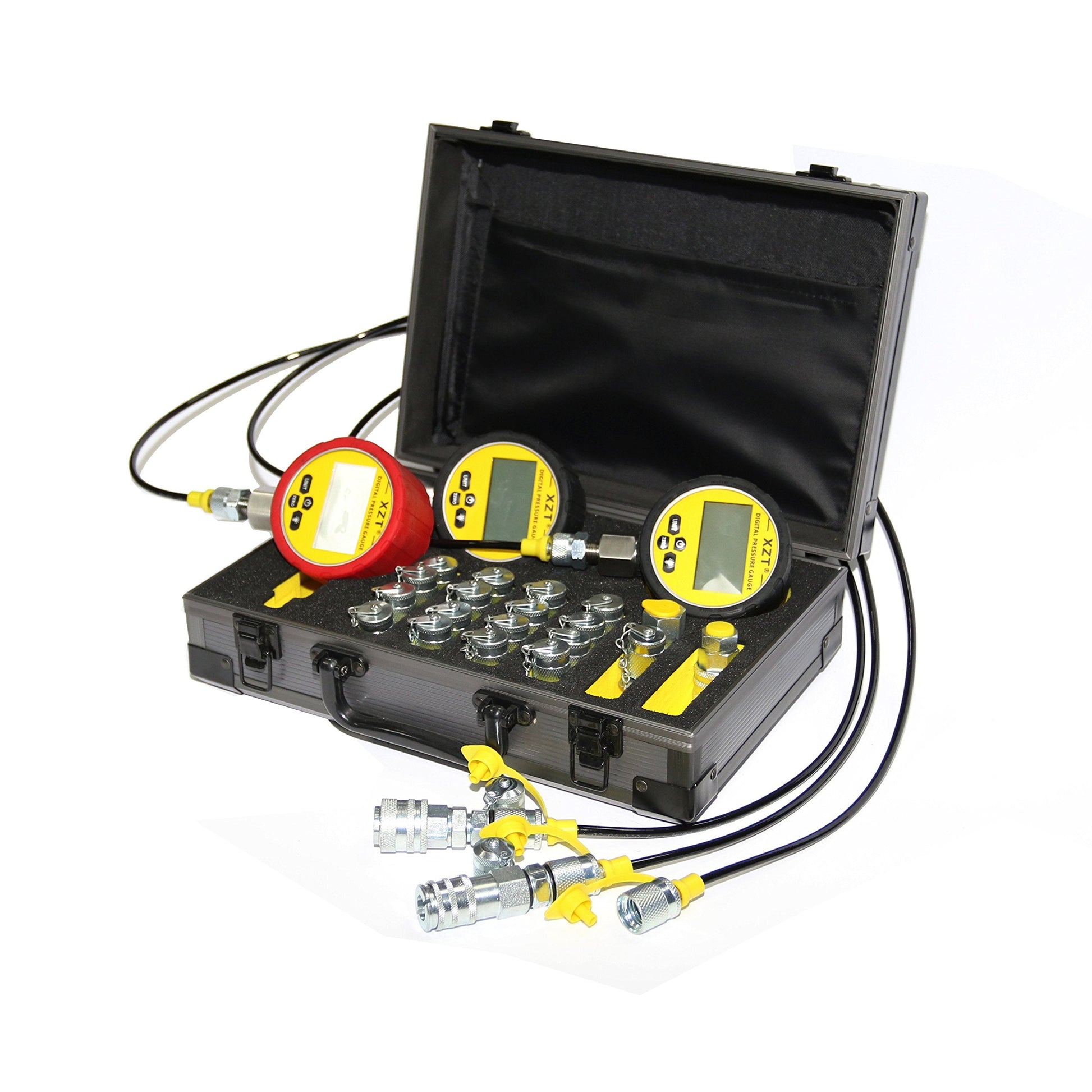

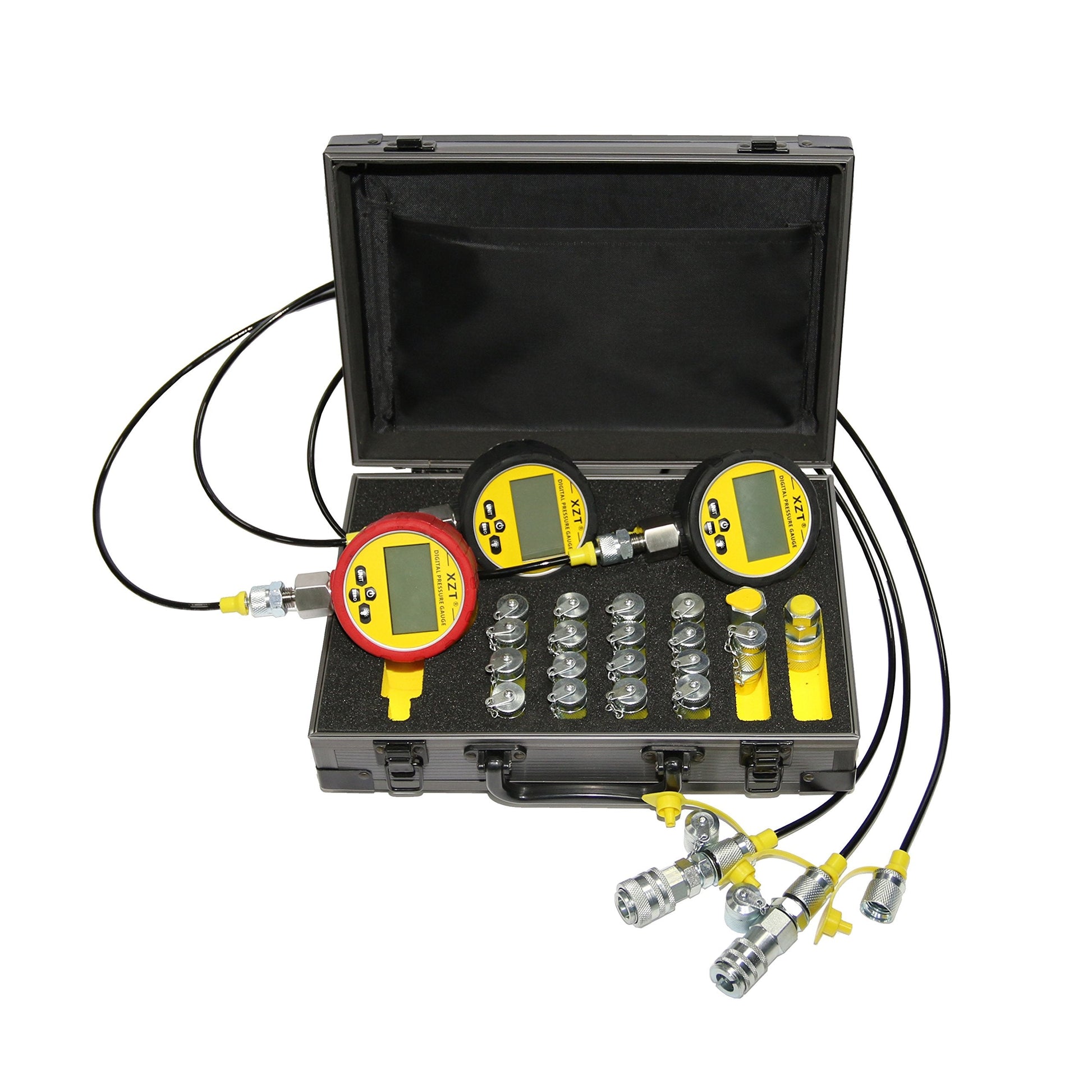

XZT 70P Digital Hydraulic Pressure Test,Pressure gauges Set, mini Hydraulic Hose Set, Test Coupling Set,Hydraulic Repair Tools for Excavator Construction Machinery,Hydraulic Systems

Brand: XZT

Features:

• 1:Digital pressure gauges: 10000PSI *2 pcs, 2300PSI *1 pcs; mini test hose: 3 pcs; test couplings: 20 pcs;
• 2: Quick connectors A type : 3 pcs ; Quick connectors B type for USA brand excavator : 2 pcs ; Quick connectors C type for Japanese brand excavator : 2 pcs ;
• 3:Easy to USE,easy to carry
• 4: Packing weight is : 10 pounds

Part Number: XZTK-70M

Details: Max Work Pressure:10000PSI/700BAR/70MPa

Contain: Description ---------------- Quantity: PCS
Pressure Gauge
Gauge: Ø80mm-700BAR/10000PSI/70MPa--------2
Gauge: Ø80mm-160BAR/2300PSI/16MPa--------1

Test Hose Assembly
Test hose: Length=1.5m-------------------2
Test hose: Length=3.0m-------------------1

Test Coupling
Test coupling: G1/8----------------- 2
Test coupling: G1/4------------------ 2
Test coupling: G3/8----------------- 1
Test coupling: M8*1----------------- 1
Test coupling: M10*1--------------- 1
Test coupling: M10*1.25----------- 1
Test coupling: M12*1.5------------- 1
Test coupling: M14*1.5------------- 1
Test coupling: M16*1.5------------- 1
Test coupling: UNF5/16------------- 1
Test coupling: UNF7/16-20-------- 1
Test coupling: UNF1/2-20---------- 1
Test coupling: UNF9/16-18-------- 1
Test coupling: R1/8------------------- 1
Test coupling: R1/4------------------- 1
Test coupling: NPT1/8----------------1
Test coupling: NPT1/4--------------- 1

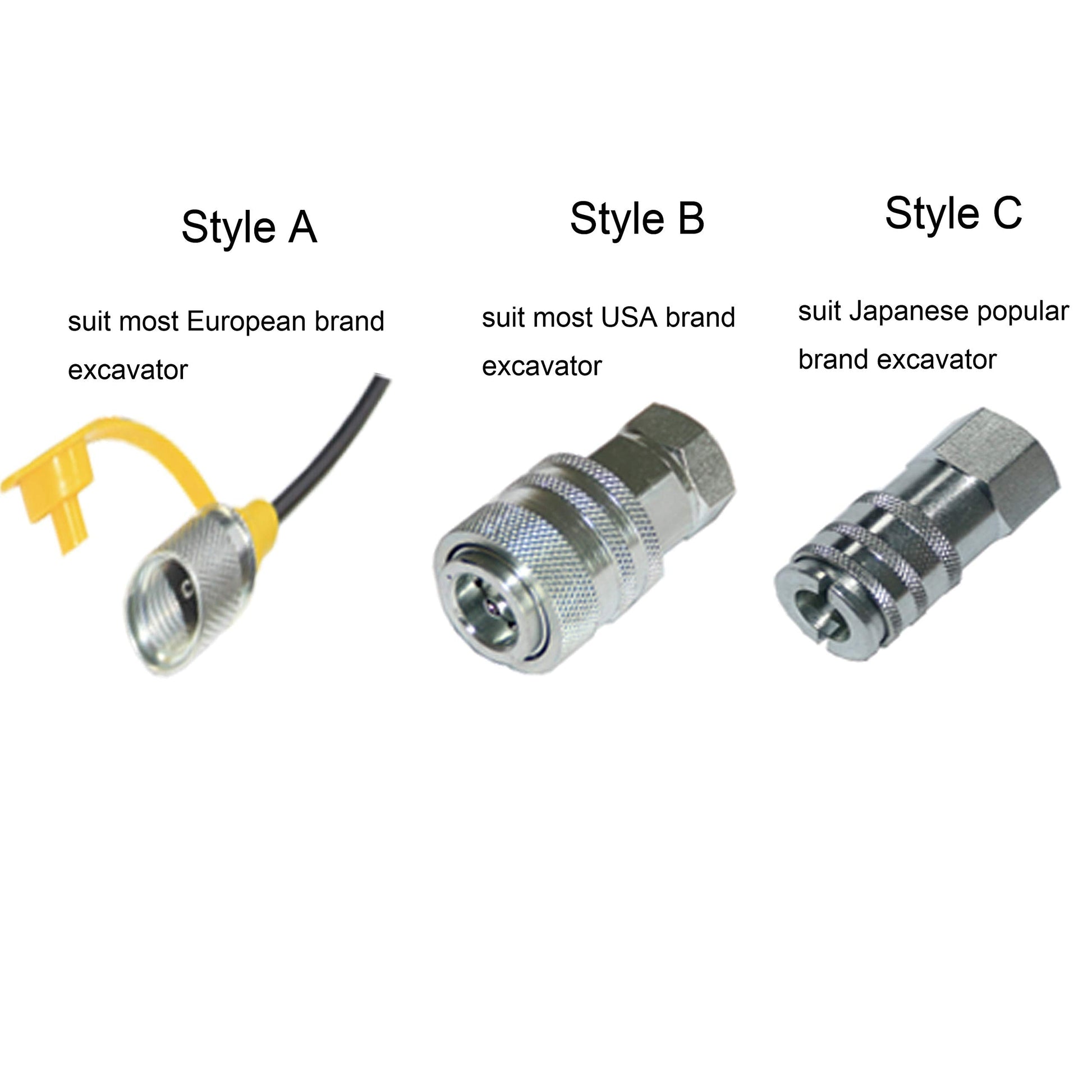

Quick Release Coupling
Quick connector A (M16*2 is contianed at hose) -------- 3
Quick connector B for USA brand excavator-------------- 2
Quick connector C for Japanese brand excavator-------- 2

EAN: 0603097853179

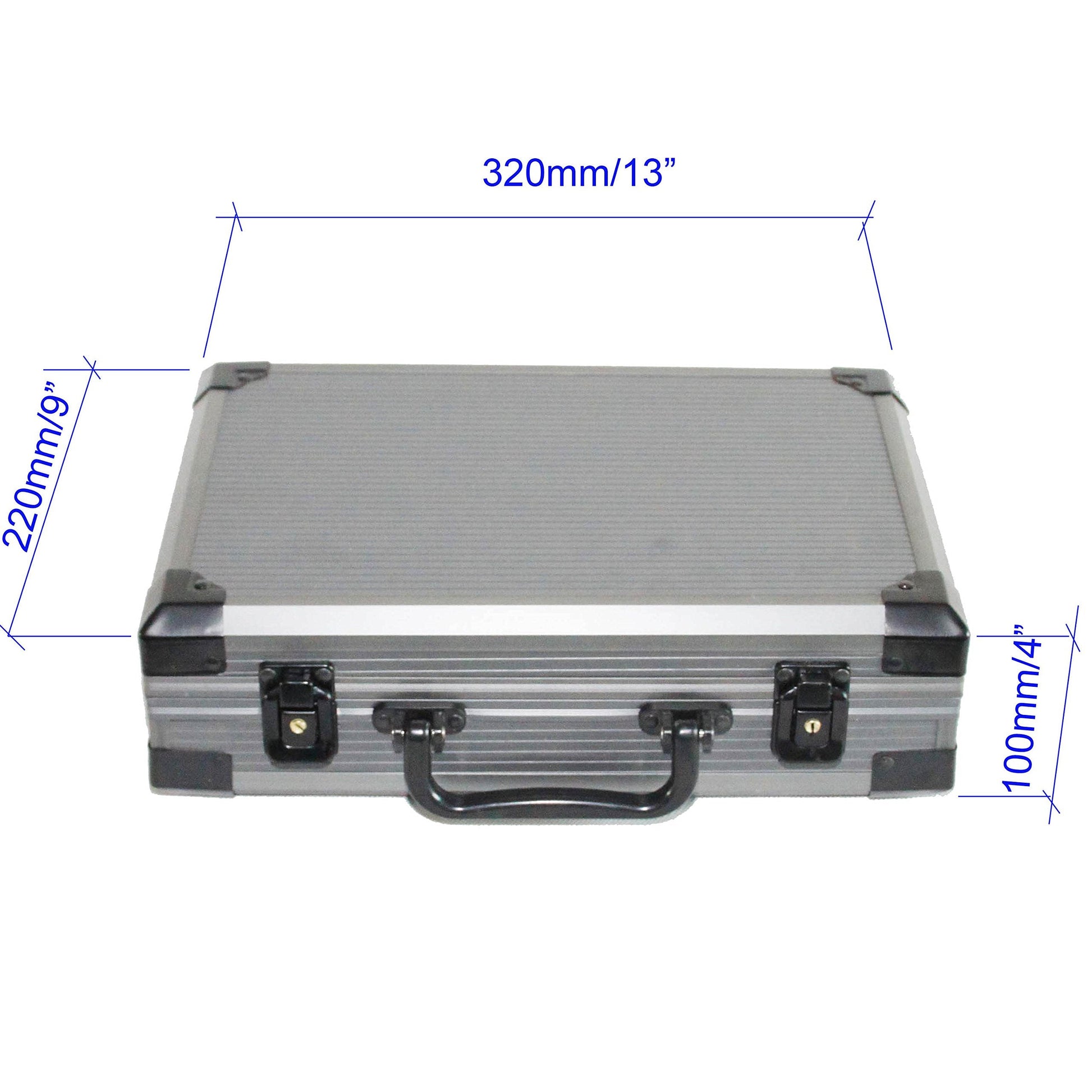

Package Dimensions: 13.1 x 10.4 x 4.8 inches
