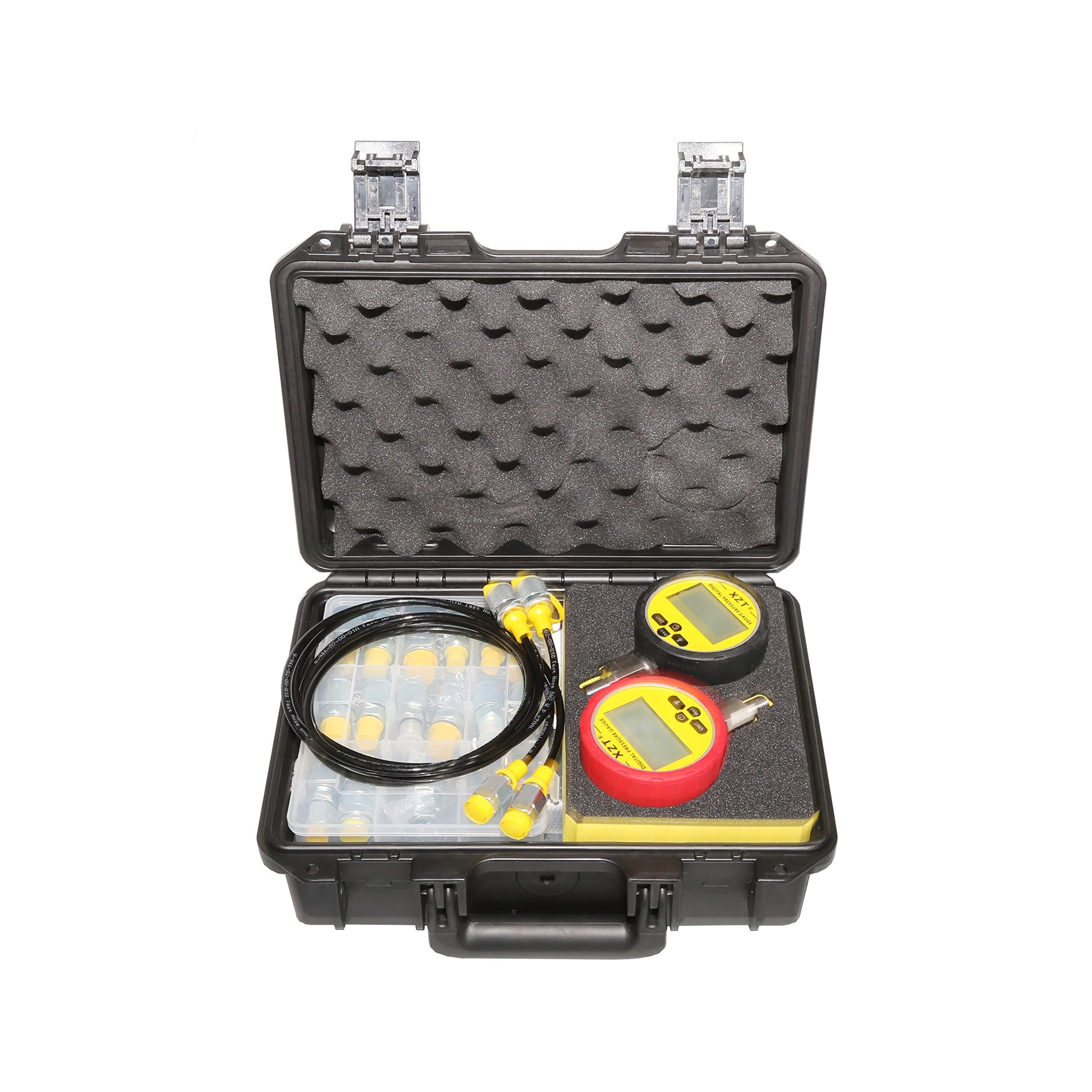

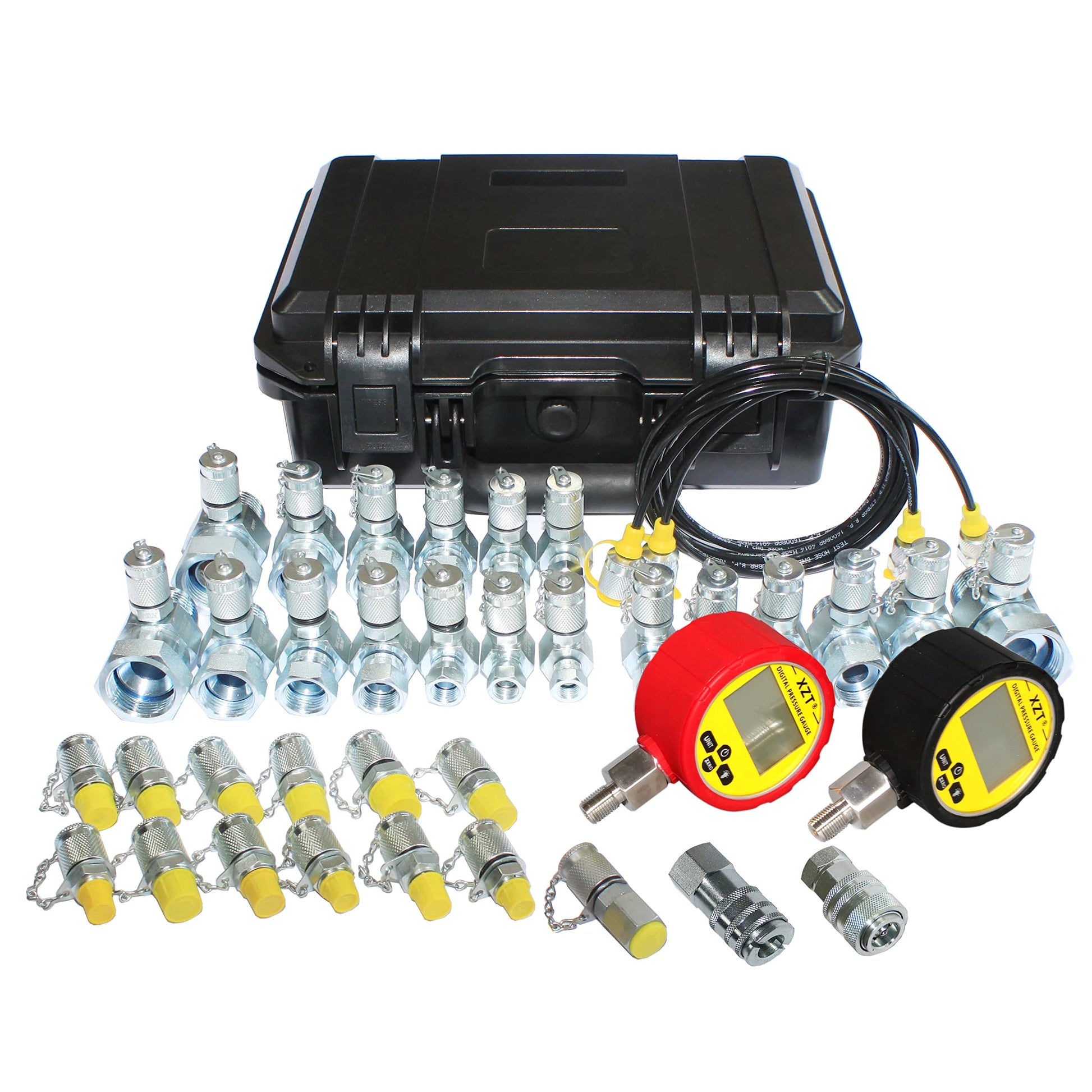

XZT 70U Hydraulic Pressure Test Coupling Kit,Pressure gauges Set,Test Hose,BSPP ORFS JIC Hydraulic Swivel Run tees for Repair Excavator Construction Machinery

Brand: XZT

Features:

• 1: 10000PSI digital pressure gauge *2 pcs; 5FT test hose *2 pcs; test couplings 12 types;
• 2: JIC 37 Run tees -7 pack; ORFS Run tees-6 pack; BSPP Run tees-6 pack
• 3: Repair tools for USA brand excavator
• 4:Max working pressure: 10000PSI/700BAR
• 5: packing weight is 22 pounds,Easy to USE

model number: XZTK-70UD

Part Number: XZTK-70UD

Details: Max Work Pressure:10000PSI/700BAR/70MPa
Description Quantity：PCS
Pressure Gauge
Pressure Gauge：Ø80mm～10000PSI/700BAR/70MPa -----2

Test Hose Assembly
Test hose：Length＝1.5m---------------------------------------3

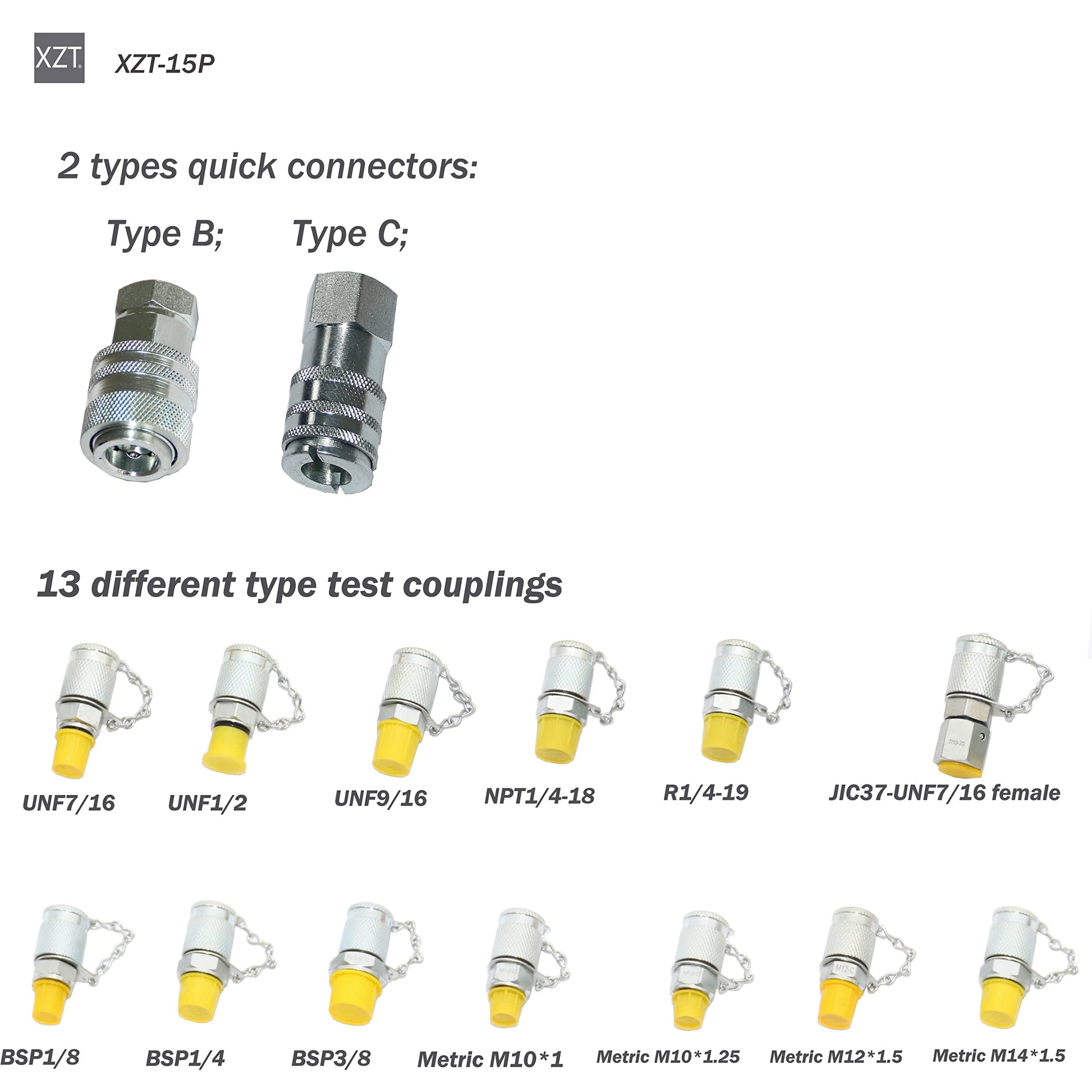

Test Coupling
Test coupling：G1/8 1
Test coupling：G1/4 1
Test coupling：G3/8 1
Test coupling：M10*1 1
Test coupling：M10*1.25 1
Test coupling：M12*1.5 1
Test coupling：M14*1.5 1
Test coupling：UNF7/16-20 1
Test coupling：UNF1/2-20 1
Test coupling：UNF9/16-18 1
Test coupling：NPT1/4-18 1
Test coupling：R1/4-19 1
Test coupling：JIC37°-7/16UNF 1

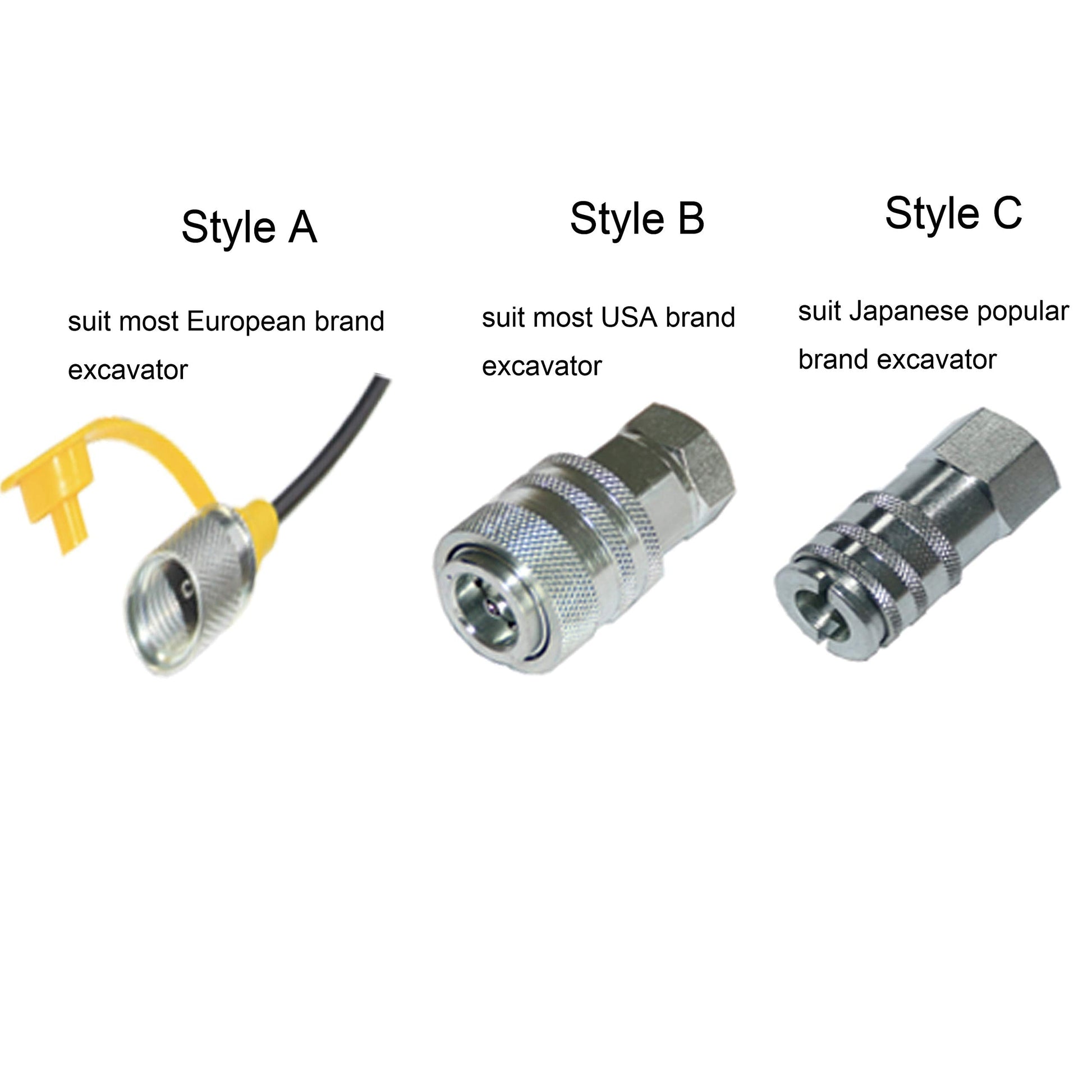

Quick Release Coupling
Quick connector A (M16*2 female) for most european brand excavator * 1
Quick connector B for USA brand excavator * 1
Quick connector C for Japanese excavator * 1

Swivel Run Tees

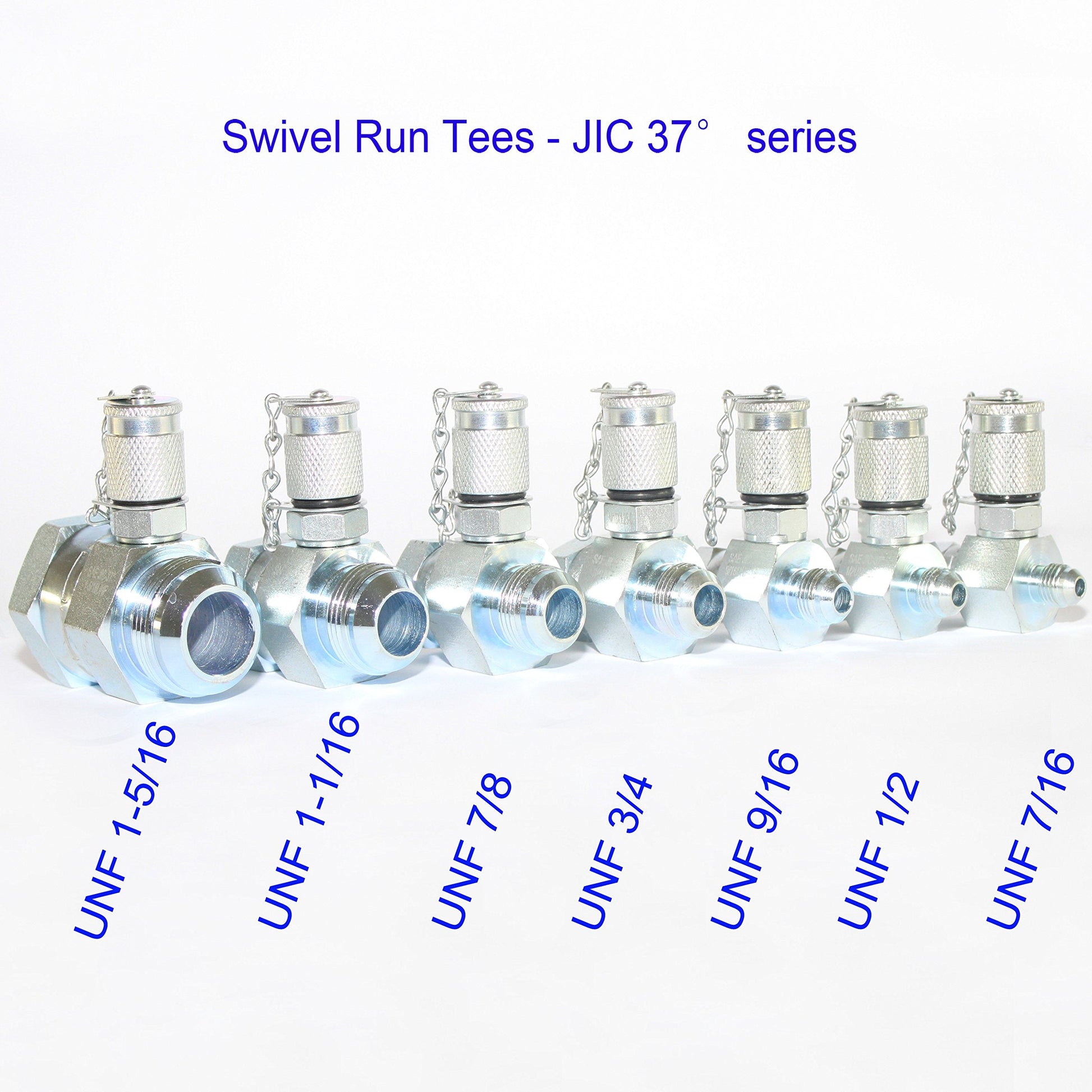

SAE JIC-37°-7/16UNF 1
SAE JIC-37°-1/2UNF 1
SAE JIC-37°-9/16UNF 1
SAE JIC-37°-3/4UNF 1
SAE JIC-37°-7/8UNF 1
SAE JIC-37°-1-1/16UNF 1
SAE JIC-37°-1-5/16UNF 1

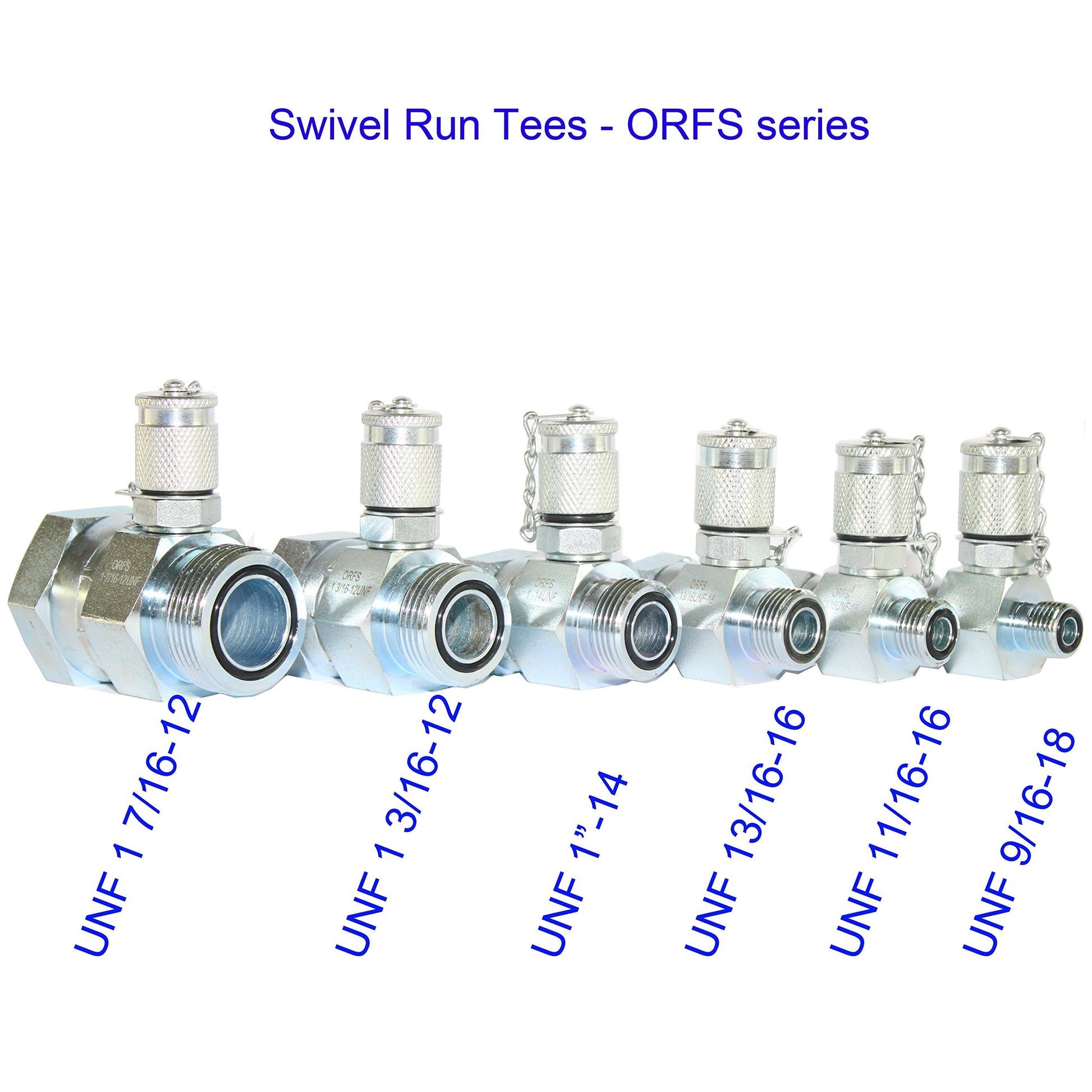

ORFS-9/16-18UNF 1
ORFS-11/16'-16UNF 1
ORFS-13/16“-16UNF 1
ORFS-1'-14UNF 1
ORFS-1 3/16-12UNF 1
ORFS-1 7/16-12UNF 1

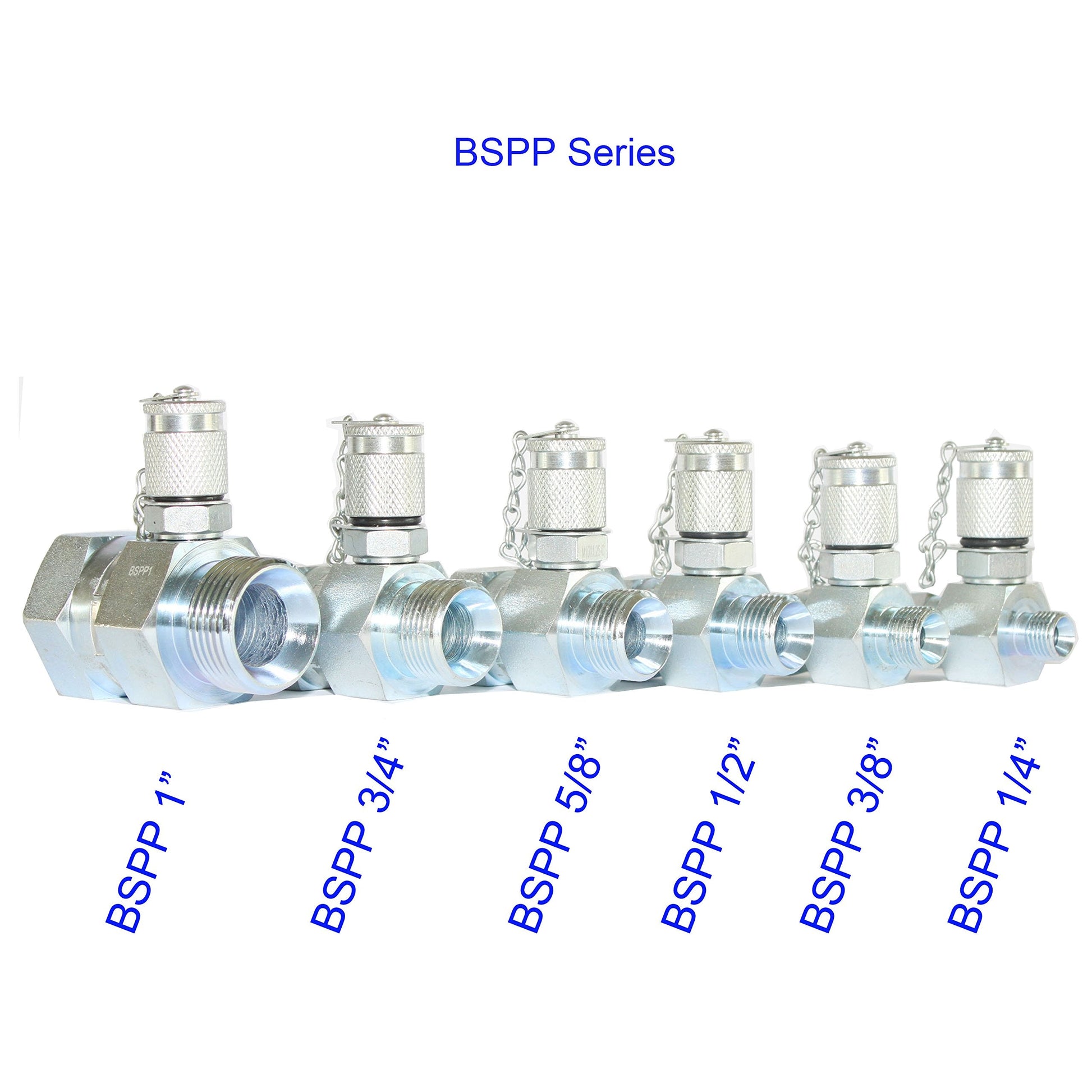

BSPP-1/4' 1
BSPP-3/8' 1
BSPP-1/2' 1
BSPP-5/8' 1
BSPP-3/4' 1
BSPP-1' 1

EAN: 0600748681167

Package Dimensions: 14.8 x 12.6 x 9.9 inches
