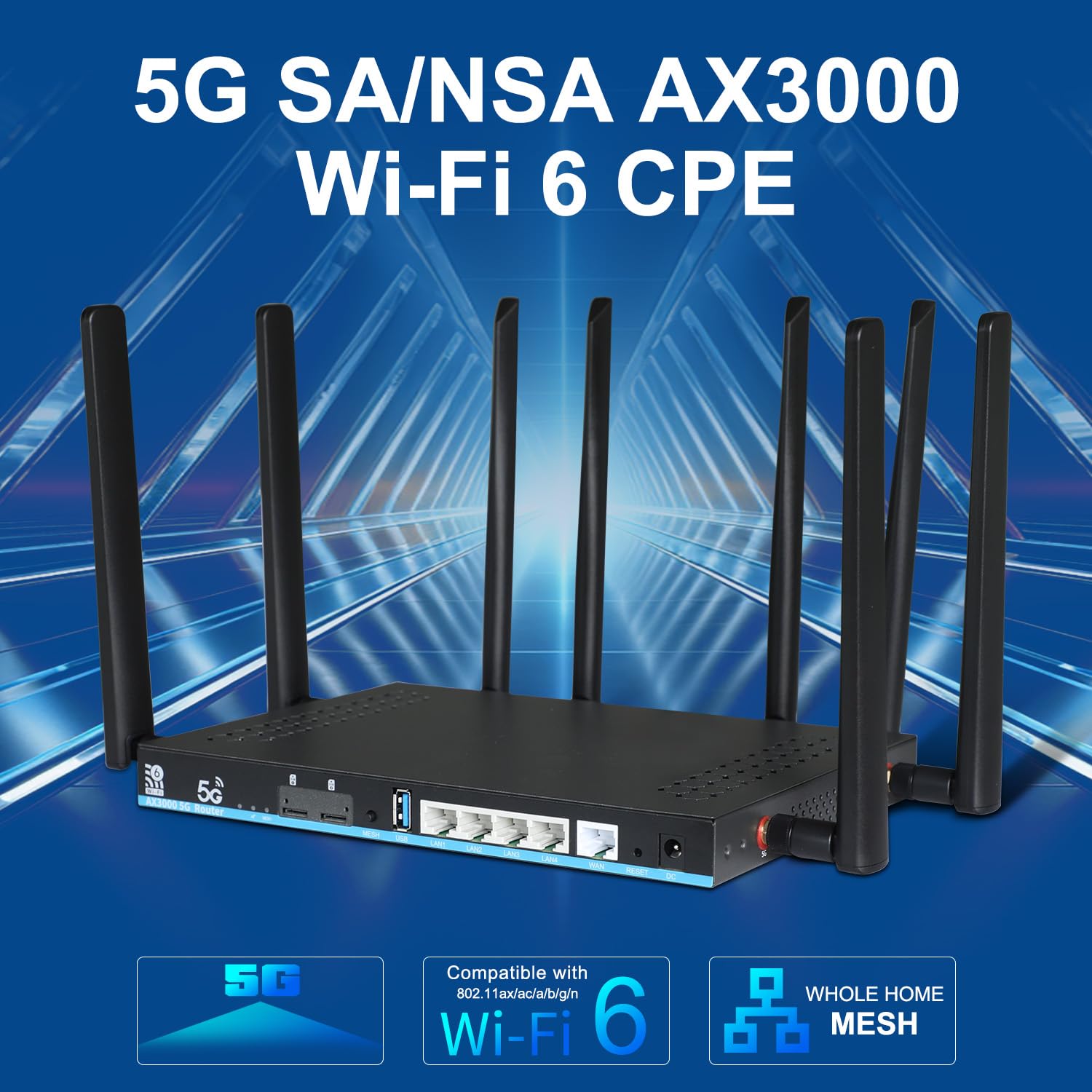

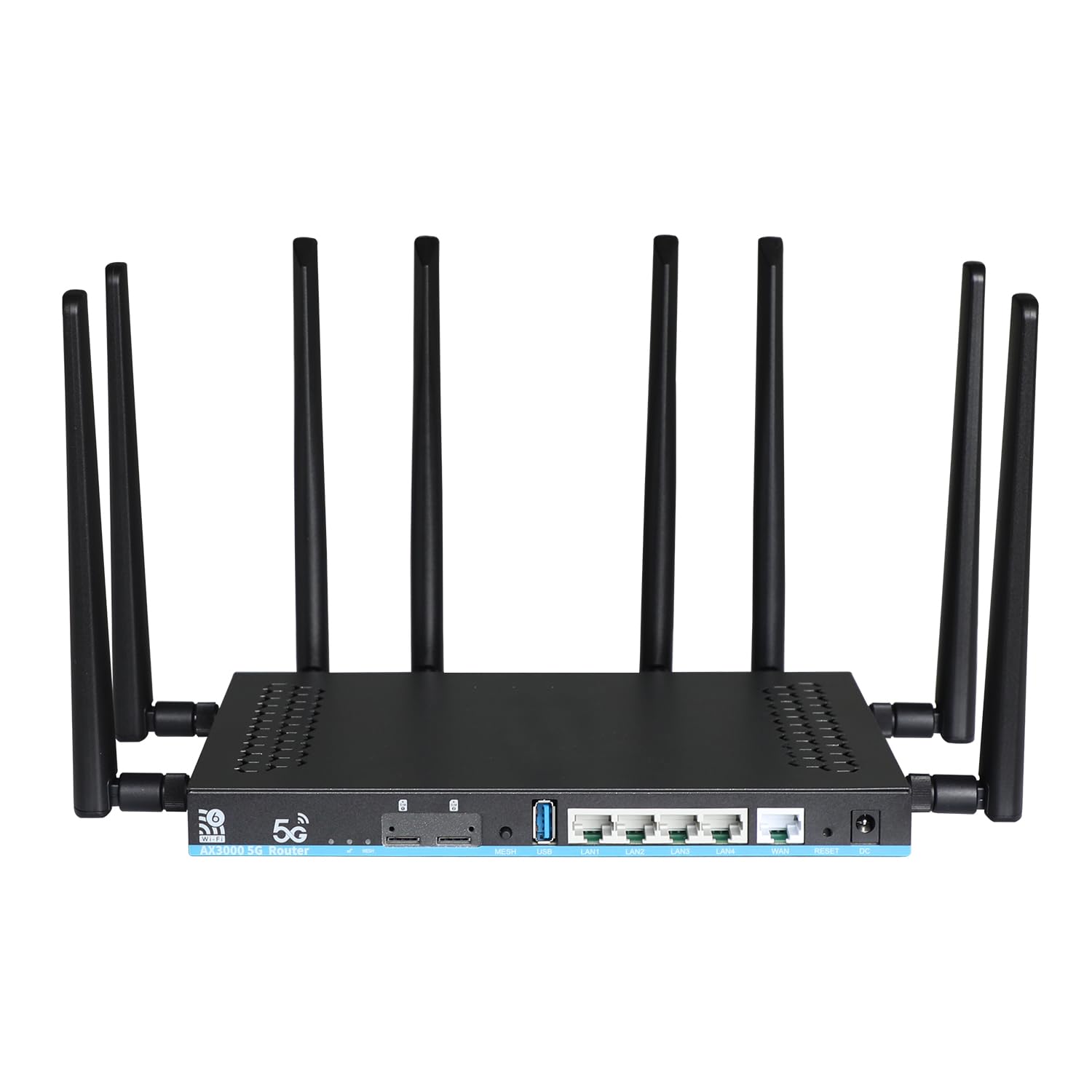

Zbtlink AX3000 5G WiFi 6 Router Unlocked with Dual SIM + eSIM, Sub-6GHz 2Gbps 5G NR Worldwide Bands n41/n77/n78 Compatible with AT&T T-Mobile Verizon, 8 External Antennas, 4 Gigabit LAN, OpenWRT

Brand: Zbtlink

Color: Black

Features:

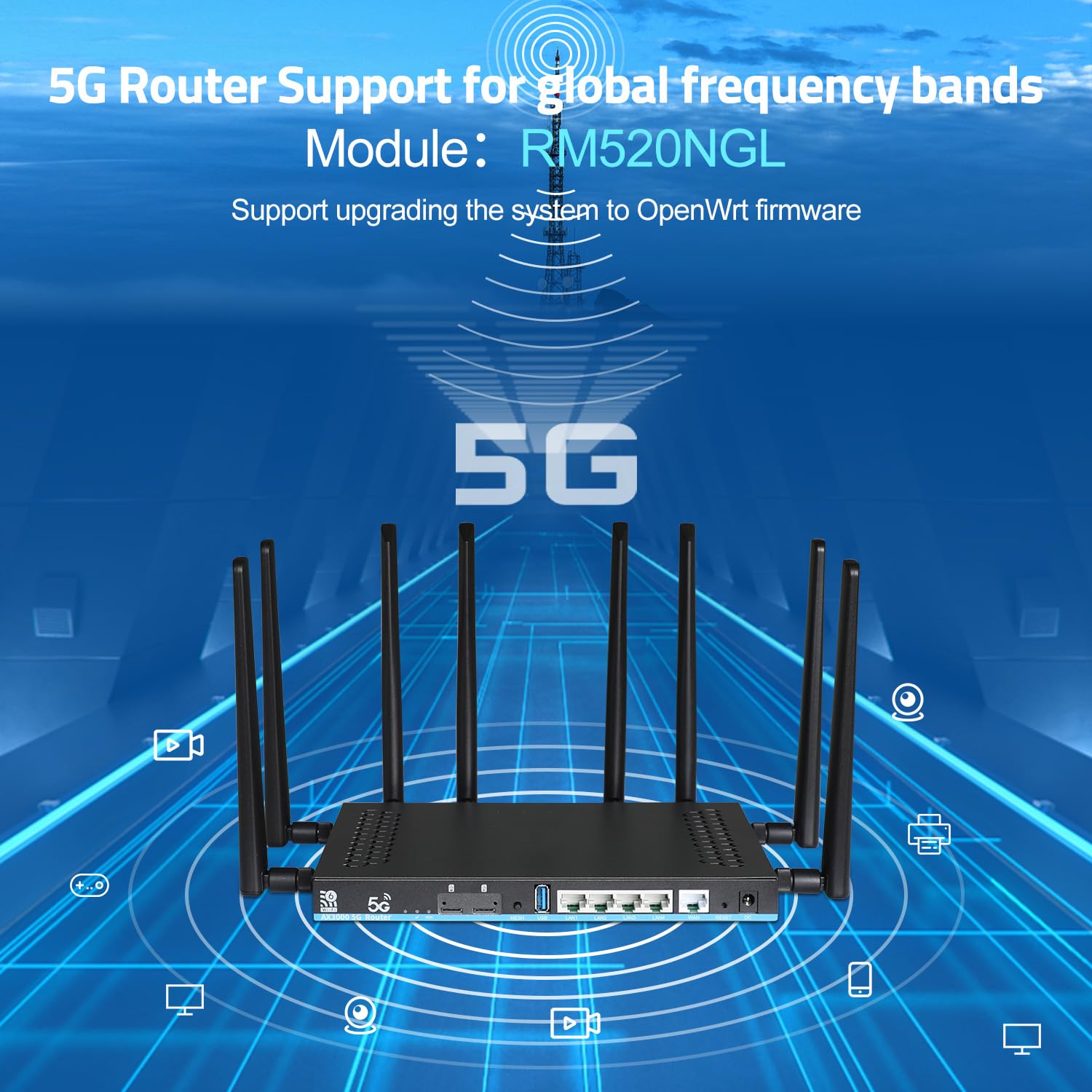

• 5G SUB-6GHZ 2GBPS + WI-FI 6 AX3000 — BLAZING DUAL-SPEED PERFORMANCE：Powered by the Quectel RM520NGL 5G module delivering up to 2Gbps download (5G SA) / 2.2Gbps (5G NSA) with Sub-6GHz 5G NR, plus Wi-Fi 6 AX3000 dual-band (574Mbps on 2.4GHz + 2400Mbps on 5GHz). OFDMA and 1024-QAM ensure ultra-low latency for 4K/8K streaming, cloud gaming, and enterprise video conferencing without buffering.
• DUAL NANO SIM + DUAL EMBEDDED eSIM — ALWAYS-ON GLOBAL CONNECTIVITY：Features 2 external Nano SIM card slots for easy carrier swapping, plus 2 factory-soldered eSIM chips (QFN-8, 6×5mm) for enterprise-managed provisioning — 4 cellular identities in total. Supports primary/failover switching (SIM1↔SIM2) and DSIM dual-active mode. 5G NR n41/n77/n78/n79/n1/n28 plus LTE B1–B28 globally covers AT&T, T-Mobile, Verizon, and major international carriers — ideal for travelers and multi-site businesses.

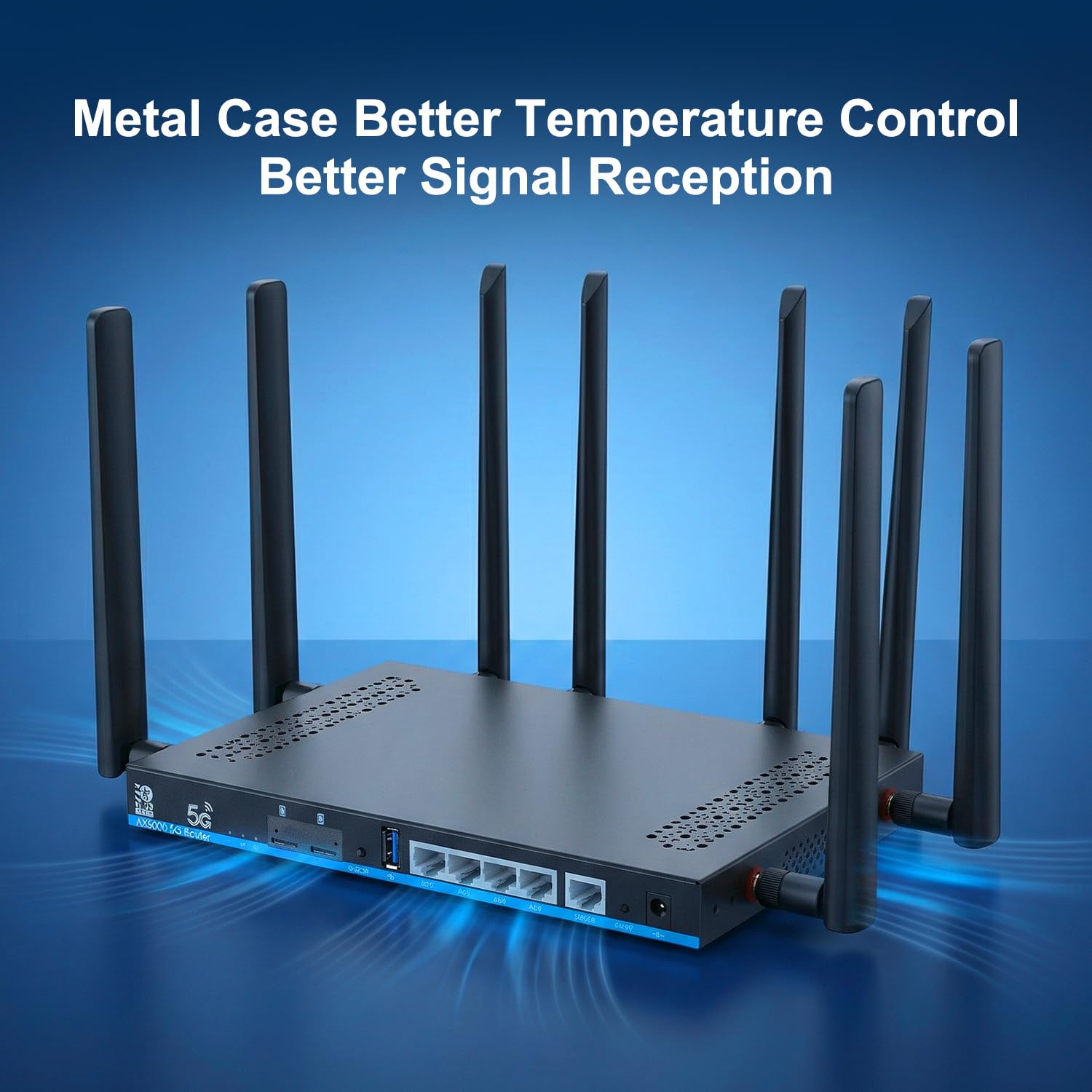

• 8 HIGH-GAIN EXTERNAL ANTENNAS — STRONG SIGNAL FOR HOME AND OFFICE：Features 8 external 5dBi omnidirectional antennas: 4× dedicated 5G cellular + 2× 5.8GHz Wi-Fi + 2× 2.4GHz Wi-Fi. Combined with 2T2R MU-MIMO on 2.4GHz and 2T3R MU-MIMO on 5GHz, the router delivers consistent, wall-penetrating signal to 30+ simultaneous devices across multi-story homes, offices, and warehouses — without needing a separate mesh system.

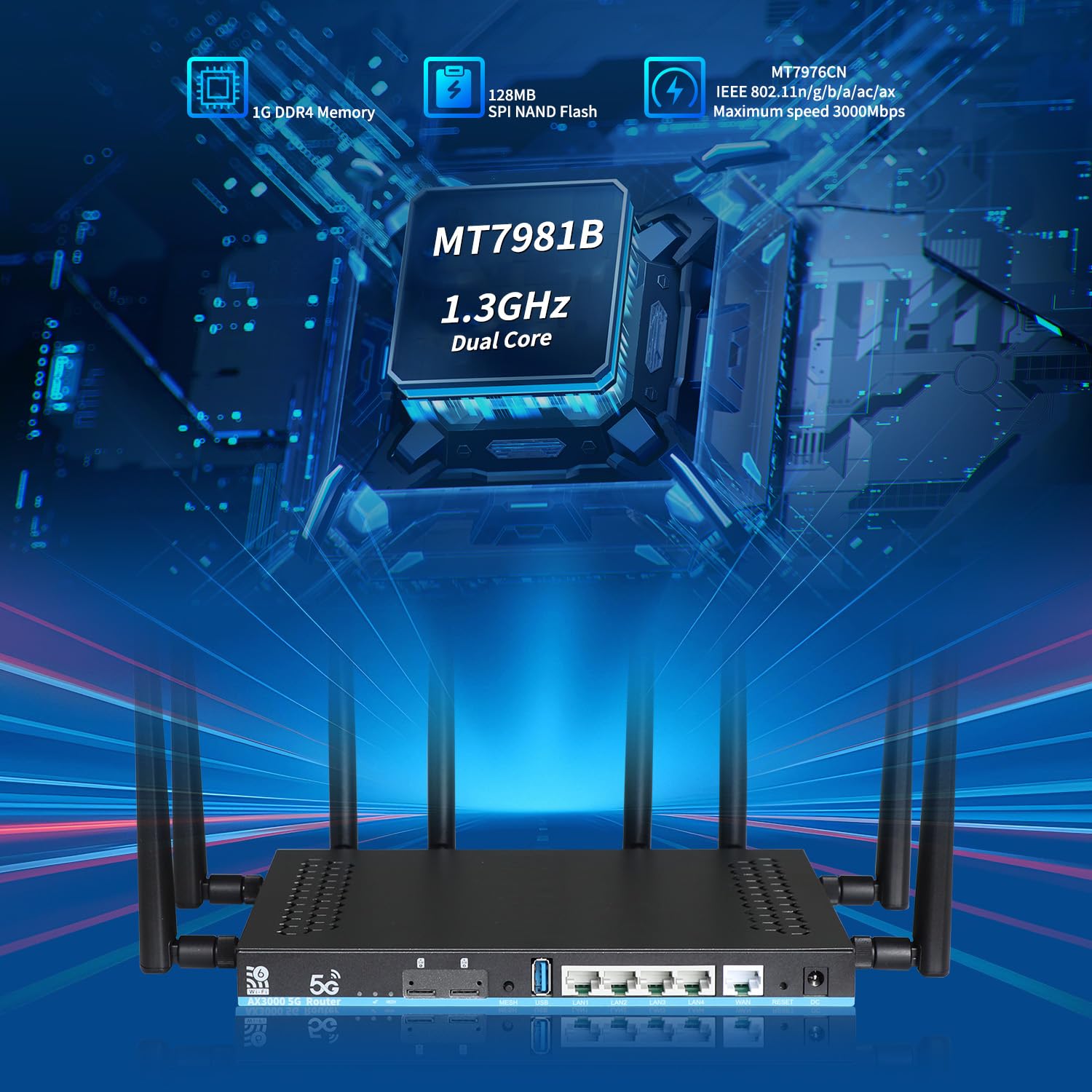

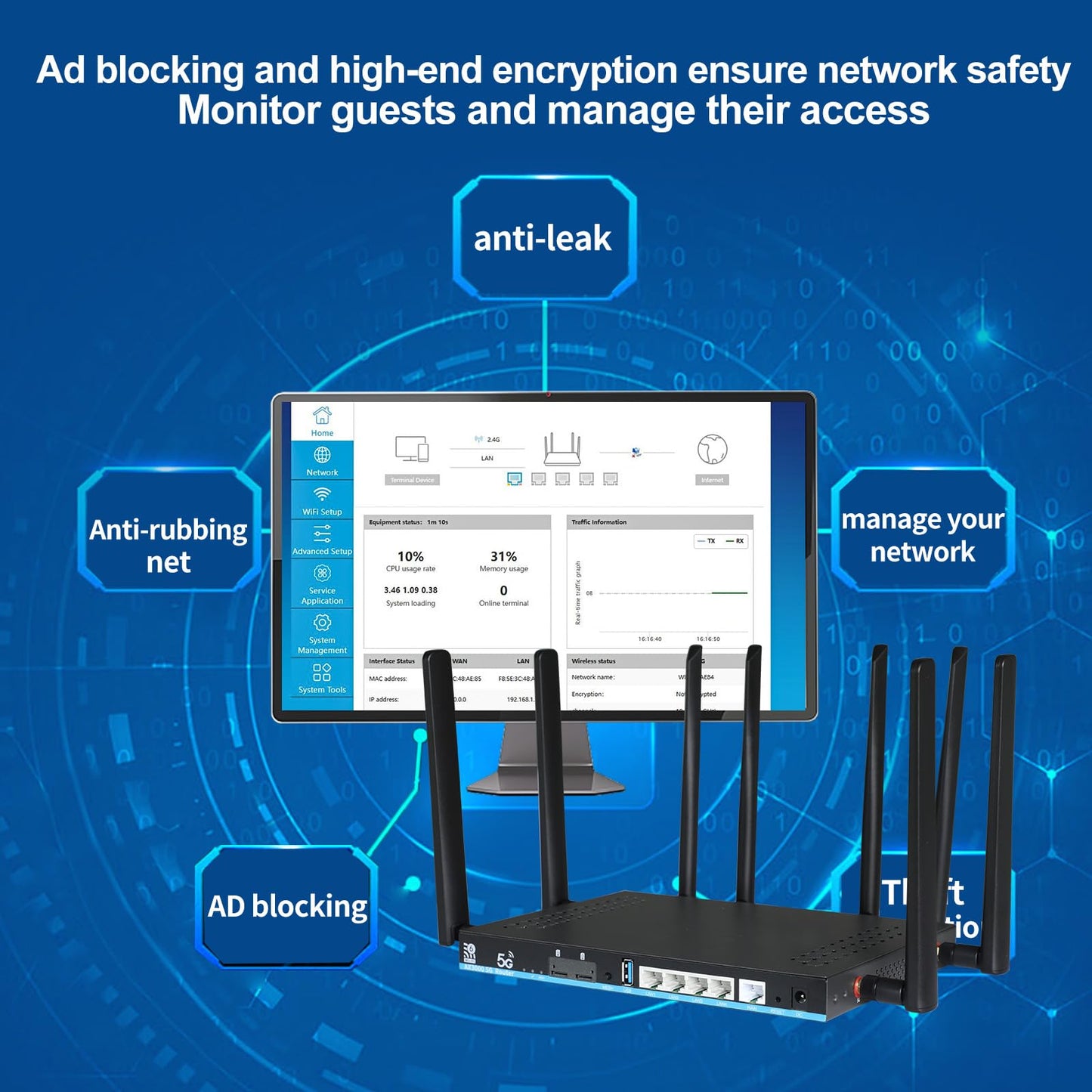

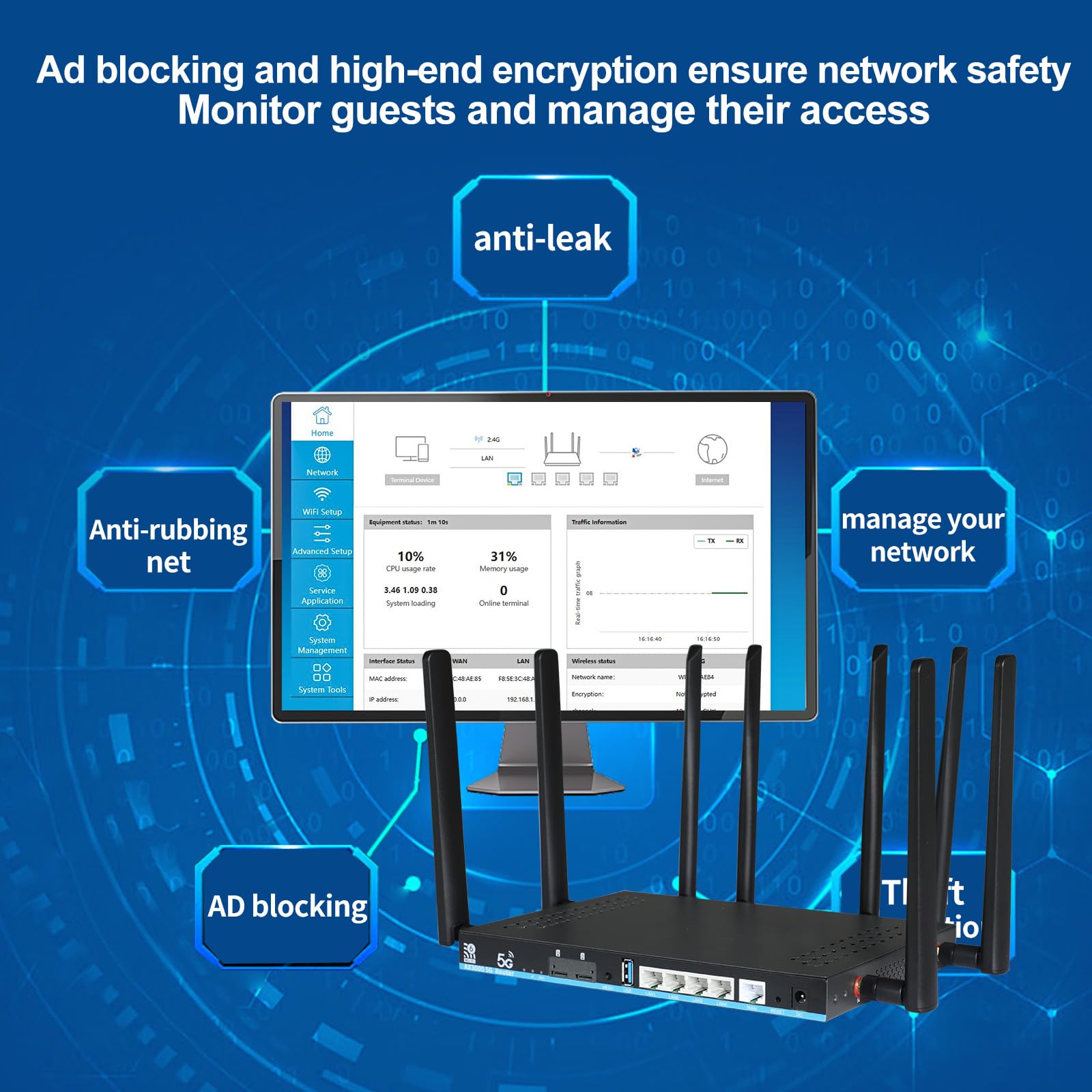

• OPENWRT + MESH — ENTERPRISE-GRADE MANAGEMENT WITH VPN, QoS & FIREWALL：Runs OpenWRT OS on a dual-core MT7981B ARM Cortex-A53 (1.3GHz) with 1GB DDR4 RAM for powerful multi-tasking. Built-in MESH support enables seamless whole-home roaming. Configure VPN, QoS traffic shaping, VLAN, parental controls, and firewall rules via web dashboard at 192.168.1.1. Contact our customer service team for OpenWRT add-on accessory inquiries.

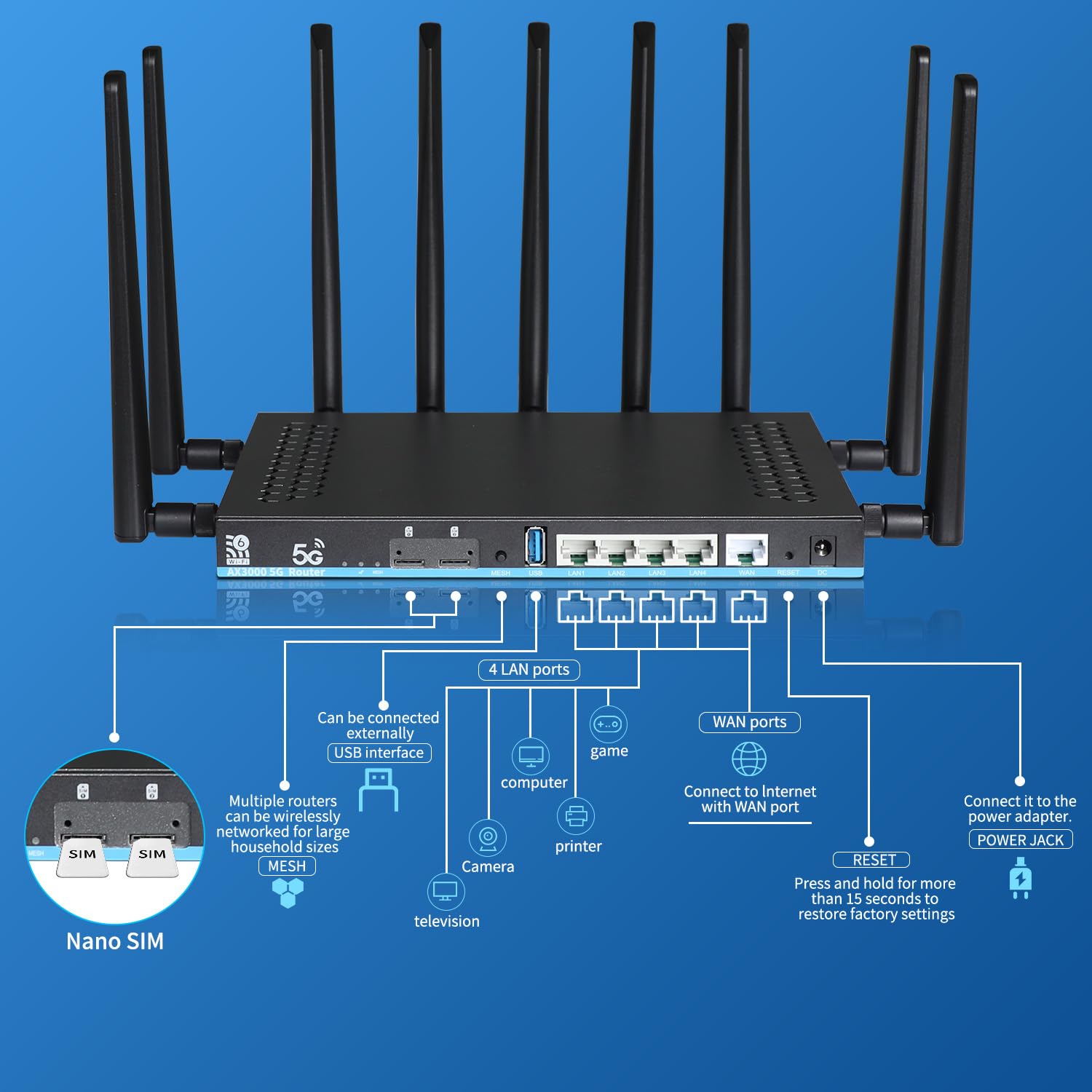

• 1 WAN + 4 GIGABIT LAN + USB 3.0 — FULLY WIRED AND WIRELESS READY：Five Gigabit Ethernet ports (1× WAN + 4× LAN) deliver up to 1Gbps wired throughput with Auto MDI/MDIX — perfect for connecting NAS, gaming PCs, smart TVs, and IP cameras simultaneously. USB 3.0 Type-A port supports external storage sharing. Backward compatible with Wi-Fi 5/4/3 devices; all Wi-Fi 6 features (OFDMA, BSS Coloring) remain active. Power: 12V/2.5A.
• LOW-LATENCY CLOUD GAMING & 4K STREAMING OPTIMIZATION：Wi-Fi 6 BSS Coloring and OFDMA slice network traffic intelligently, reducing latency to sub-20ms even with 50+ devices connected. QoS bandwidth prioritization dedicates fastest lanes to gaming consoles, streaming sticks, and video conferencing endpoints. 5G SA standalone mode offers direct, low-latency network slicing — the definitive upgrade for competitive gamers and cord-cutters.
• WORLDWIDE 5G BANDS + GLOBAL CERTIFICATIONS—TRAVEL AND DEPLOY ANYWHERE 5G NR: n1/n28/n41/n77/n78/n79. LTE FDD: B1/B2/B3/B5/B7/B8/B20/B28. LTE TDD: B34/B38/B39/B40/B41. WCDMA: B1/B5/B8. Supports 5G NSA and SA modes per 3GPP Release 15. RoHS compliant. Operating temp: 0°C–40°C. Compact flat-panel form factor: 235×165×23mm. Compatible with all major global carriers — drop in any nano SIM and go.

model number: Z8102AX-T

Package Dimensions: 13.1 x 9.8 x 2.4 inches
