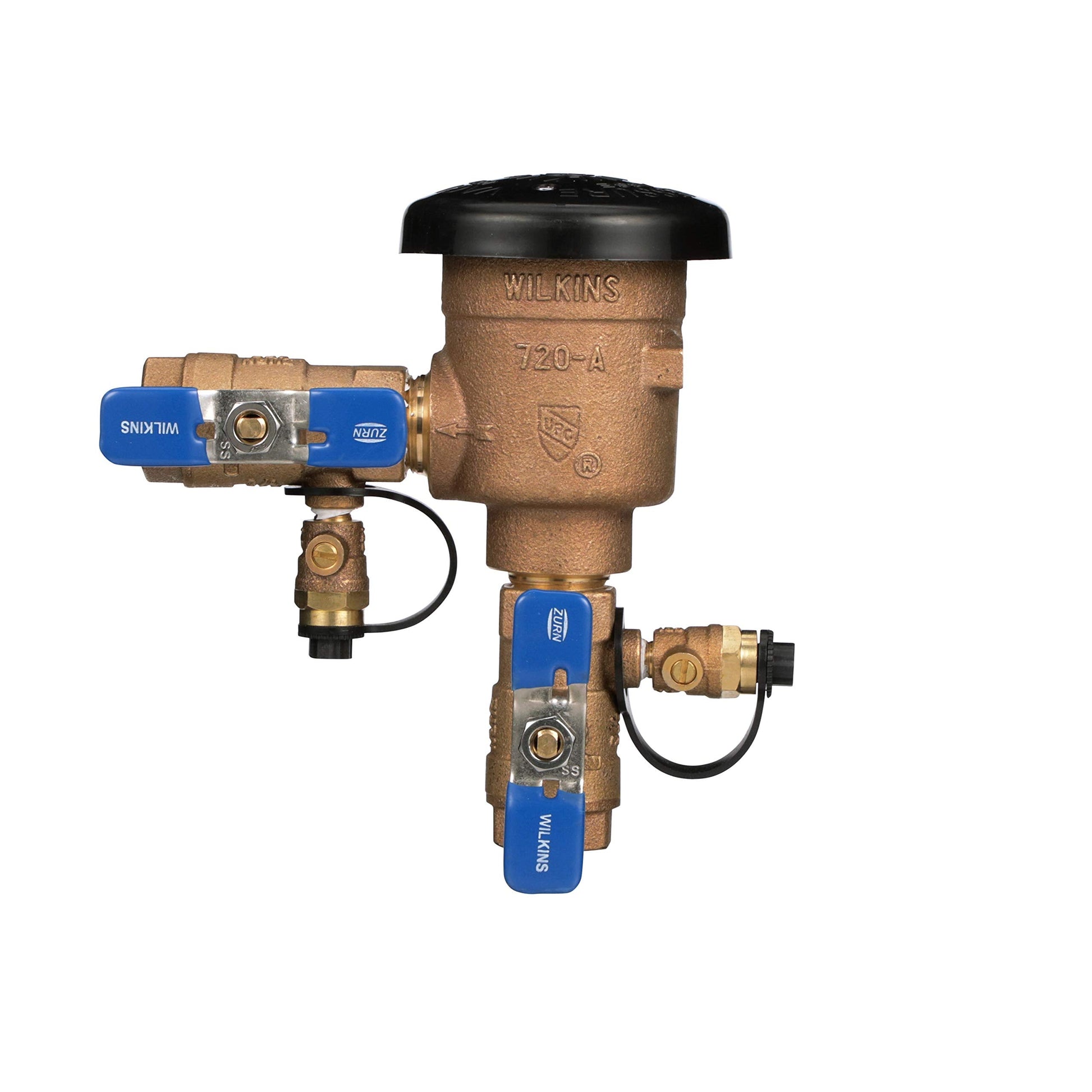

Zurn Wilkins 34-720A 3/4" 720A Pressure Vacuum Breaker Assembly

Brand: Zurn

Color: Bronze

Features:

• Serial number visible in any installed orientation reduces labor time
• Test Cocks on center line of valve allow for installation versatility
• Consistent, reliable performance provides world class backsiphonage protection
• Construction offers corrosion-resistance, strength, and winterization protection
• ASSE Listed; IAPMO Listed; CSA Certified; Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California; Serial number visible in any installed orientation reduces labor time;
• Standards Compliance: ASSE Listed 1020, IAPMO Listed, CSA Certified
• Main valve body: Cast Bronze ASTM B584
• Fasteners: Stainless Steel, 300 Series

model number: 34-720A

Part Number: 34-720A

Details: Product Description

The 3/4 in. 720A Pressure Vacuum Breaker Assembly protects against backsiphonage in high health hazard, non-potable residential and commercial irrigation applications. The 720A includes an approved check valve, vacuum relief, two test cocks, and inlet and outlet full port resilient seated shut-off valves. It also features a maximum pressure of 150 psi and a temperature range of 33°F to 110°F. The corrosion-resistant internal parts and all bronze bonnet and body construction provides added strength and protection against light freezes, while the test cocks on center line of valve allow for installation versatility.

From the Manufacturer

This Wilkins Series 720A pressure vacuum breaker assembly is designed for installation on potable water lines to protect against back-siphonage of contaminated water into the potable water supply. Assembly shall provide protection where a potential health hazard exists.

EAN: 0612052040035

Package Dimensions: 9.1 x 7.6 x 7.2 inches
